USER MANUAL Bordbar BK 16 AEG

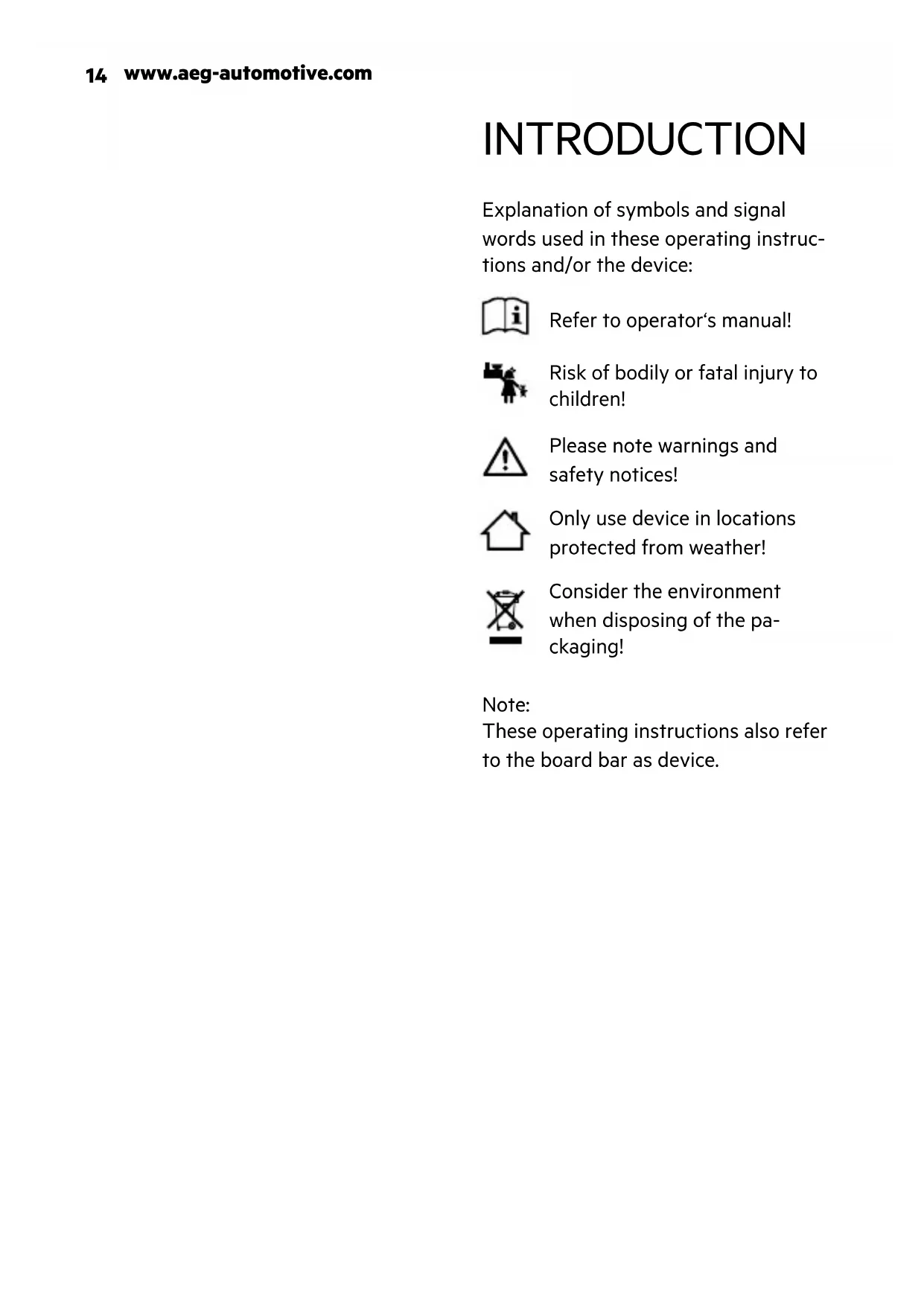

INTRODUCTION Explanation of symbols and signal words used in these operating instruc- tions and/or the device: Refer to operator‘s manual! Risk of bodily or fatal injury to children! Please note warnings and safety notices! Only use device in locations protected from weather! Consider the environment when disposing of the pa- ckaging! Note: These operating instructions also refer to the board bar as device.English 15 Intended use The board bar is used to heat or cool foods and beverages. Cooling is achieved using an electrothermal transducer (Peltier element) with a fan. It connects to power via car plug (12 V). This device is not intended for storing and transporting unpackaged foods. This device is not intended for use by children or persons with limited mental capacity or lacking experience and/or lacking expertise. Children should be supervised to ensure they do not play with the device. This device is not intended for com- mercial use. Any other use or modication of the device is considered improper and involves signicant risks. The manufac- turer assumes no liability for damages due to improper use. Contents Be sure to verify contents immediately upon opening the product. Check the product and all parts for damage. Do not use a defective product or parts.

Connecting cable with 12 V car plug

SAFETY General safety guidelines Read all safety guidelines and instructions. Non- compliance with safety guidelines and instructions can cause electric shock, re and / or serious injury. Keep all safety guidelines and instructions for future reference. Warning! Risk of bodily or fatal injury to children! Risk of suoca- tion or strangulation! Keep the machine out of the reach of children. Children are unable to assess the risks associated with use of this product! Danger! Damaged leads may cause fatal electric shock. Dis- continue use if leads are damaged. The manufacturer is not responsible for damages caused by:

External forces, damage to the device and/or damage to parts of the device due to mechanical impacts or overload.

Any type of modications to the device.

Using the device for pur- poses not described in this operating manual.

Subsequent damages from improper and/or incorrect use.

Unauthorised opening of the device. This will void the warranty.English 17 trical devices, the risk of electric shock increases.

Please verify there is no moisture on plugs and ca- bles. Never connect the de- vice to the on-board power system with wet hands.

Always unplug the cable from the 12 V car outlet by the plug. The cable may otherwise be damaged.

Do not use device if damaged. Damage to the device or the charging cable increases the risk of electrical shock.

Do not attempt to dis- assemble or repair the device. Immediately have the device repaired or re- placed by a speciality shop if defective.

Never use the cable to carry or pull the device. Fire hazard!

Verify the on-board volt- age matches the input voltage specied on the device (12 V DC) to prevent damage to the device.

The coolbag is not suit- able for continuous use. Otherwise overheating and permanent damage may result.

Do not cover the device during use, as it may be damaged from extreme heating.

Immediately stop using the device if you notice smoke or an unusual odour. Risk of electrical shock!

Do no expose the device to rain or wet conditions. Avoid pouring or dripping water or other liquids over it. If water penetrates elec-www.aeg-automotive.com

When cooling medications be sure the cooling capac- ity of the device meets the requirements of the respective medication.

Any foods being cooled must be in their original packaging or in suitable containers.

Never operate the device if it has been dropped or damaged in any other way. For inspection and repair, take it to a qualied electrician. Risk of injury!

When transporting the device in a vehicle, keep it secured in the boot or a suitable storage area to prevent it from moving in the event of sudden vehi- cle movement.

Be sure the device has a solid footing. The device will tip and can fall when empty.English 19 PRODUCT OVERVIEW

Attaching the carrying strap Attach the included carrying strap in the order Fig. 1 to 5. Cooling/warming process

1. For reasons of hygiene, clean the

inside of the board bar with a damp cloth before every use.

2. Fill the board bar with the items you

3. Set the switch (8) to the “OFF”

4. Plug the 12 V plug (11) into the 12 V

connection socket (9) on the device.

5. Connecting the power supply:

Plug the car power plug (12) into a 12 V car power socket. The red LED (10) will light up.

6. Switching on the board bar:

Cooling: Set the switch (8) to the “COLD” position. Heating: Set the switch (8) to the “HOT” position.

7. The board bar will start cooling/

heating. The LED will light up green (7 - cooling) or red (5 - heating). Attention: There is no auto shut-o. The unit will run continuously so long as the board bar is switched on. Remember the vehicle‘s battery will be discharged when the vehicle is not running.

8. Set the switch (8) to the “OFF” posi-

5. green LED - cooling

7. red LED - heating

12. 12 V car power plug

You may have to turn the ignition to activate the vehicle’s 12 V car outlet. Please refer to the owner’s manual for your vehicle. Contact a specialised shop if you are unsure.

Do not cover the device during use and ensure proper ventilation.

Promptly wipe up any condensa- tion. After extended cooling periods moisture will condense into water drops inside the coolbag. This does not mean the device is defective.

Wait approx. 5-10 min when switch- ing between cooling and heating to allow the heating/cooling electronics to reach the correct temperature.

Do not use ice packs or ice bags in the board bar. Melt water can dam- age the board bar.English 21 CLEANING, CARE AND MAINTENANCE Minimal care will ensure your device remains functional for years.

Carefully wind the cable when storing the device. This will help prevent accidental damage to the cable and the device.

Clean the product with a soft, dry cloth.

Store the machine in a clean, dry place. Changing the fuses A fuse inside the car plug safeguards the device. This will respond in the event of a short circuit or voltage peaks and must then be replaced. Attention! Do not use higher rated fuses. The elec- tronics may otherwise be damaged.

1. Unscrew the retaining pin (1) with

the fuse cover (2) from the car plug (4).

2. Insert a new micro-fuse (3) of the

same rating (see Technical Data).

3. Replace the retaining pin (1) with

the fuse cover (2) in the car plug (4).

9. Disconnect the car plug (12) from

the 12 V car socket and neatly wind up the cable.

10. Clean and dry the inside of the

board bar after use. This will pre- vent mould from forming. Tips for achieving the best cooling power

Select a well ventilated location for use, away from sunlight.

Allow warm dishes to rst cool down before keeping them cool in the board bar.

Do not open the board bar more than necessary.

Do not leave the board bar open longer than necessary.www.aeg-automotive.com
