Product Type	Microwave Oven
Brand	Maytag
Model	MMMF6030PB
Overall Width	76 cm (30 in)
Overall Height	45.4 cm (17 7/8 in)
Depth with Door	34 cm (12 in)
Depth with Door Open 90°	105.3 cm (41.4 in)
Cavity Height	23 cm (9.1 in)
Cavity Width	46 cm (18.1 in)
Cavity Depth	27.9 cm (11 in)
Electrical Supply	120 V AC, 60 Hz, 15 A or 20 A (fused)
Structural Supported Weight	68 kg (150 lb) including the oven and cabinet
Ventilation	Factory set for recirculation, can be vented to the top or wall
Certifications	UL, CUL, CSA
Minimum Height from Floor to Bottom of Oven	30.8 cm (12 in) minimum, 46 cm (18 in) recommended
Cabinet Opening Width (min)	76.2 cm (30 in)
Compatible Upper Cabinet Depth	30.5 to 40.6 cm (12 to 16 in) with or without trim
Optional Trim Mounting Kit	Part Number W11630300 (not included)
Cleaning	Use a damp cloth, avoid abrasive cleansers
Replacement Parts	Available from Whirlpool (original parts)

Frequently Asked Questions - MMMF6030PB MAYTAG

What are the exact dimensions of the Maytag MMMF6030PB microwave oven?

The overall dimensions are: width 76 cm (30 in), height 45.4 cm (17 7/8 in), depth with door 34 cm (12 in). The interior cavity measures 23 cm (9.1 in) in height, 46 cm (18.1 in) in width, and 27.9 cm (11 in) in depth.

What electrical supply is needed for this microwave?

It requires a 120 V AC, 60 Hz power supply, on a 15 A or 20 A fused circuit. A time-delay circuit breaker or dedicated circuit is recommended. Do not use an extension cord.

Can this microwave be installed flush?

Yes, for some cabinet depths: with the optional trim mounting kit (part W11630300), it can be installed flush for cabinets 13 to 16 in deep. Without trim, flush installation is not possible.

How to configure the ventilation for external exhaust?

The oven is factory set for internal recirculation. To vent to the top or wall, follow the installation instructions provided with the appliance. You may need to purchase a vent kit.

What is the maximum weight supported by the mounting structure?

The support structure (including the oven and upper cabinet with its contents) must be able to support a load of 150 lb (68 kg). The mounting plate must be secured to at least one 2 in x 4 in wall stud.

Which models are compatible with this manual?

The listed models include: WMMF5930P, MMMF6030P, KMMF330P, WMMF7330R, WMMF7530R, MMMF8030P, KMMF530P, KMMF730P, JMHF730R, JMHF930R and their Y variants. Check the exact serial number.

How to clean the interior of the microwave?

Use a soft damp cloth to wipe the walls. Avoid abrasive cleansers or metallic pads that could scratch the surface. For odors, place a bowl of water with lemon and heat for a few minutes.

Where can I purchase replacement parts for this model?

Genuine replacement parts are available from Whirlpool (the manufacturer). You can order them via their website or contact an authorized service center. The trim mounting kit part number is W11630300.

What are the safety certifications of this appliance?

The microwave oven is certified UL (Underwriters Laboratories), CUL (Canadian Underwriters Laboratories) and CSA (Canadian Standards Association), ensuring compliance with safety standards.

Can I install the microwave above a gas range?

Yes, it is generally possible. The recommended minimum height between the cooking surface and the bottom of the microwave is 18 in (46 cm). Ensure the support structure can support the total weight and follow the clearances specified in the manual.

USER MANUAL MMMF6030PB MAYTAG

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030P/KMMF330P/YKMMF330P/WMMF7330R/YWMMF7330R/WMMF7530R/MMMF8030P/YMMMF8030P/KMMF530P/YKMMF530P/KMMF730P/YKMMF730P/JMHF730R/YJMHF730R/JMHF930R/YJMHF930R
Unit of Measurement in cm
Overall Width (A) 30 76
Overall Height (B) 17	78	45.4
Height of the door (C) 15 38.2
Depth with door (D) 12 34 32.4
Depth with door open 90° (E) 41.4 105.3
Depth with door with Bump Out Kit (L hook) (F1) 13.8 35.0
Depth with door with Bump Out Kit (M hook) (F2) 14.3 36.3
Depth with door with Bump Out Kit (N hook) (F3) 14.8 37.6
Depth with door with Bump Out Kit (P hook) (F4) 15.3 38.9
Depth with door with Bump Out Kit (R hook) (F5) 15.8 40.2
Depth with door open 90° with Bump Out Kit (L hook) (G1)	42.5 107.8
Depth with door open 90° with Bump Out Kit (M hook) (G2)	43.0 109.1
Depth with door open 90° with Bump Out Kit (N hook) (G3)	43.5 110.4
Depth with door open 90° with Bump Out Kit (P hook) (G4)	44.0 111.7
Depth with door open 90° with Bump Out Kit (R hook) (G5)	44.5 113.0

FRONT VIEW

SIDE VIEW

TOP VIEW

TOP VIEW WITH BUMP OUT KIT

IMPORTANT: Dimensional specifications are provided for planning purposes only.

Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.

All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

MICROWAVE INTERIOR CAVITY DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030PKMMF330P/YKMMF330P/WMMF7330R/YWMMF7330RWMMF7530R/MMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730P/JMHF730RYJMHF730R/JMHF930R/YJMHF930R
Unit of Measurement in cm
Cavity Height (A) 9.1 23
Cavity Width (B) 18.1 46
Cavity Depth (C) 11 27.9

CAVITY INTERIOR FRONT VIEW CAVITY INTERIOR SIDE VIEW

MICROWAVE OVEN

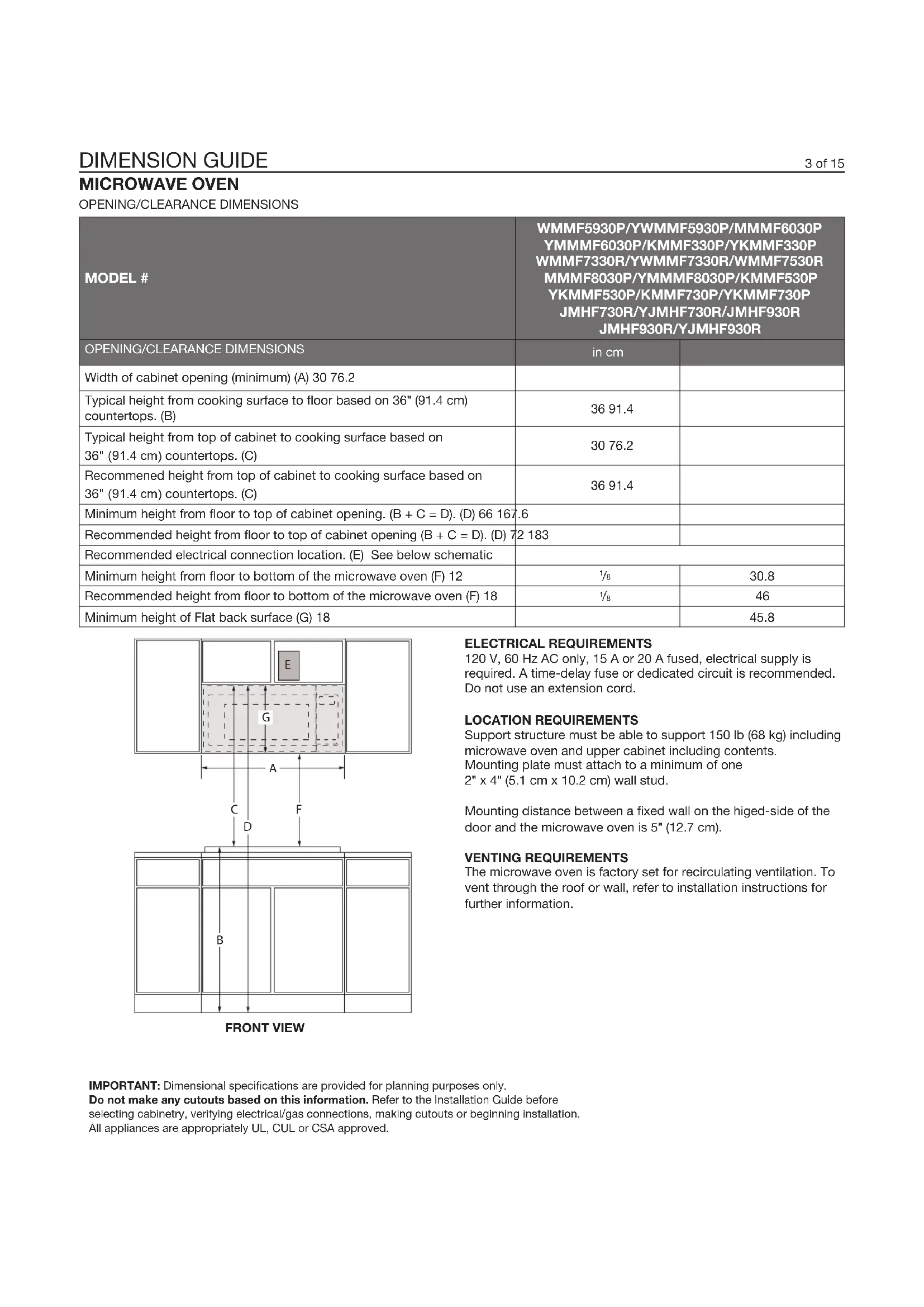

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030PYMMMF6030P/KMMF330P/YKMMF330PWMMF7330R/YWMMF7330R/WMMF7530RMMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730PJMHF730R/YJMHF730R/JMHF930RJMHF930R/YJMHF930R
OPENING/CLEARANCE DIMENSIONS	in cm

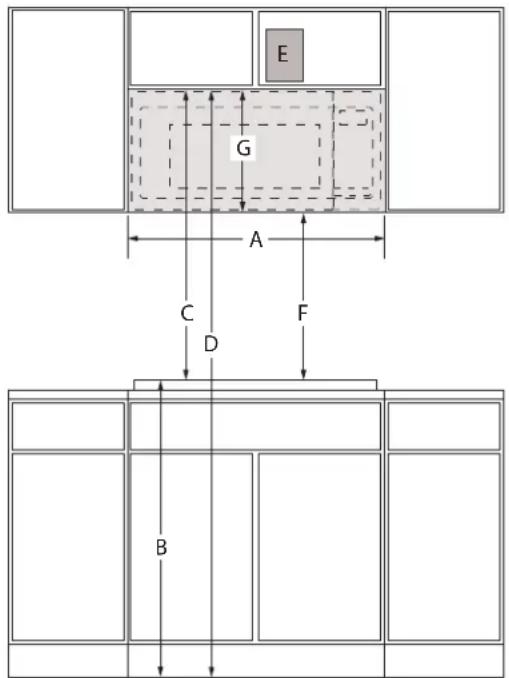

Width of cabinet opening (minimum) (A) 30 76.2
Typical height from cooking surface to floor based on 36" (91.4 cm) countertops. (B)	36 91.4
Typical height from top of cabinet to cooking surface based on 36" (91.4 cm) countertops. (C)	30 76.2
Recommended height from top of cabinet to cooking surface based on 36" (91.4 cm) countertops. (C)	36 91.4
Minimum height from floor to top of cabinet opening. (B + C = D). (D) 66 167.6
Recommended height from floor to top of cabinet opening (B + C = D). (D) 72 183
Recommended electrical connection location. (E) See below schematic
Minimum height from floor to bottom of the microwave oven (F) 12	18	30.8
Recommended height from floor to bottom of the microwave oven (F) 18	18	46
Minimum height of Flat back surface (G) 18		45.8

FRONT VIEW

ELECTRICAL REQUIREMENTS

120 V, 60 Hz AC only, 15 A or 20 A fused, electrical supply is required. A time-delay fuse or dedicated circuit is recommended. Do not use an extension cord.

LOCATION REQUIREMENTS

Support structure must be able to support 150 lb (68 kg) including microwave oven and upper cabinet including contents. Mounting plate must attach to a minimum of one 2" x 4" (5.1 cm x 10.2 cm) wall stud.

Mounting distance between a fixed wall on the higed-side of the door and the microwave oven is 5" (12.7 cm).

VENTING REQUIREMENTS

The microwave oven is factory set for recirculating ventilation. To vent through the roof or wall, refer to installation instructions for further information.

IMPORTANT: Dimensional specifications are provided for planning purposes only. Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation. All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030PKMMF330P/YKMMF330P/WMMF7330R/YWMMF7330RWMMF7530R/MMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730P/JMHF730RYJMHF730R/JMHF930R/YJMHF930R
Opening/Clearance Measurement in cm

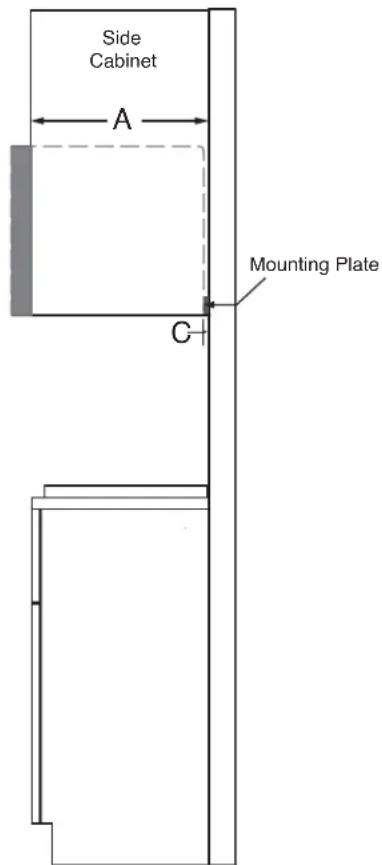

Depth of upper cabinet (minimum-maximum) Stand Out* (A)	12~12.75 30.5~32.4

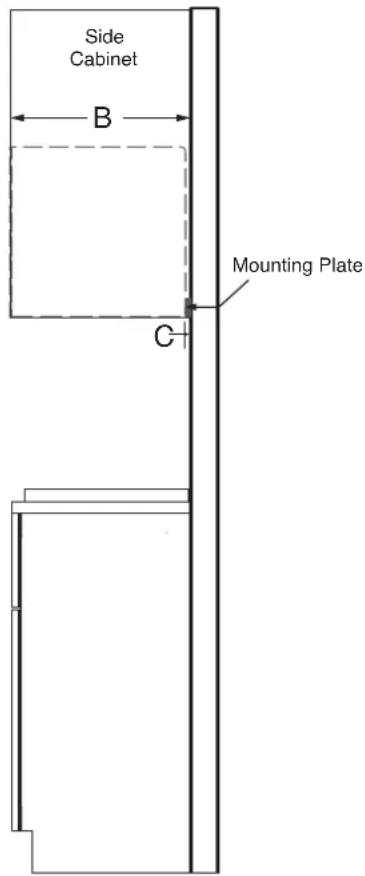

Depth of upper cabinet (minimum-maximum) Flush* (B)	12.75~13 32.4~33
Depth of upper cabinet (minimum-maximum)* (C)	0.5 1.27
Can this product be installed flush? Flush refers to there appliance not protruding past the cabinet depth. (Y/N)	(A) N(B) Y

*This microwave oven is factory set for 12" (30.5 cm)\~13" (33.02 cm) depth of upper cabinet, install with the provided mouting plate.

SIDE VIEW SIDE VIEW

BACK VIEW

IMPORTANT: Dimensional specifications are provided for planning purposes only.

Do not make any cutouts based on this information. Refer to the Installation Guide before

selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.

All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030PYMMMF6030P/KMMF330P/YKMMF330PWMMF7330R/YWMMF7330R/WMMF7530RMMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730PJMHF730R/YJMHF730R/JMHF930R/YJMHF930R
OPENING/CLEARANCE DIMENSIONS	in cm

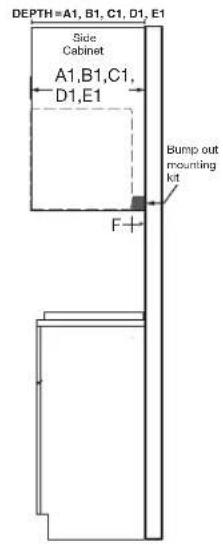

Depth of upper cabinet (minimum-maximum) Flush* (A1) 13 34 ~14	35~35.6

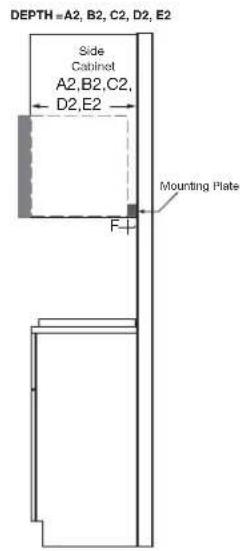

Depth of upper cabinet (minimum-maximum) Stand out* (A2) 13~	13 34 33~35
Depth of upper cabinet (minimum-maximum) Flush* (B1) 14 14 ~14	12 36.2~36.8
Depth of upper cabinet (minimum-maximum) Stand out* (B2) 14~	14 14 35.6~36.2
Depth of upper cabinet (minimum-maximum) Flush* (C1) 14 34 ~15	37.5~38.1
Depth of upper cabinet (minimum-maximum) Stand out* (C2) 14 12 ~	14 34 36.8~37.5
Depth of upper cabinet (minimum-maximum) Flush* (D1) 15 14 ~15	12 38.7~39.4
Depth of upper cabinet (minimum-maximum) Stand out* (D2) 15~	15 14 38.1~38.7
Depth of upper cabinet (minimum-maximum) Flush* (E1) 15 34 ~16	40~40.6
Depth of upper cabinet (minimum-maximum) Stand out* (E2) 15 12 ~	15 34 39.4~40
Back of the microwave oven to back of the cabinet or Wall (F) 1.5~	3.5 3.8~8.9
Can this product be installed flush? Flush refers to the appliance not protruding past the cabinet depth. (Y/N)	(A1, B1, C1, D1, E1) Y(A2, B2, C2, D2, E2) N

D-Depth of upper cabinet

*For the depth of upper cabinet larger than 13" (33.02 cm), and less than or equal to 16" (40.64 cm) depth of upper cabinet, install with the optional bump out mounting kit W11630300, the bump out mounting kit is not provided, but can purchased from Whirlpool®.

SIDE VIEW

BACK VIEW

SIDE VIEW

IMPORTANT: Dimensional specifications are provided for planning purposes only.

Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation. All appliances are appropriately UL, CUL or CSA approved.
