Product Type	Built-in microwave (under cabinet or over range)
Brand	Maytag
Model	MMMF6030PZ
Width	76.2 cm (30 in)
Height	45.4 cm (17 7/8 in)
Depth (with door)	32.4 cm (12 3/4 in)
Cavity Capacity	1.0 cu ft (29.5 L)
Power Supply	120 V AC, 60 Hz, 15-20 A (fuse or circuit breaker)
Ventilation	Recirculation (factory set), external venting possible (top or wall)
Installation	Built-in under cabinet with mounting plate; flush installation possible with optional trim kit
Approximate Weight	35 kg (77 lb)
Cavity Dimensions (H x W x D)	23 cm x 46 cm x 27.9 cm
Control Type	Electronic (unspecified, assumed touch or buttons)
Main Functions	Microwave cooking, defrosting, reheating, automatic cooking (depending on model)
Cavity Lighting	Included (unspecified, but standard)
Turntable	Included (standard)
Safety	Child lock, auto shut-off (assumed)
Cleaning	Interior cleaning with damp cloth; avoid abrasive products
Replacement Parts	Available from the manufacturer (Whirlpool) - trim kit W11630300, mounting plate
Repairability	Repairability index not provided; parts available through authorized service

Frequently Asked Questions - MMMF6030PZ MAYTAG

What is the required power supply for this microwave?

A power supply of 120 V AC, 60 Hz only, protected by a 15 A or 20 A fuse is required. It is recommended to use a time-delay fuse or dedicated circuit. Do not use an extension cord.

Can this microwave be installed flush with cabinets?

Yes, for certain cabinet depths, it can be installed flush using the optional trim mounting kit (model W11630300). See the opening and clearance dimensions in the manual for compatible depths (A1, B1, C1, D1, E1).

How to ventilate this microwave?

The microwave is factory-set for recirculation ventilation. For external exhaust, you can reconfigure it for top or wall exhaust. Refer to the installation instructions for details.

What are the interior cavity dimensions?

The interior cavity dimensions are: height 23 cm (9.1 in), width 46 cm (18.1 in), and depth 27.9 cm (11 in). The volume is approximately 1.0 cu ft (29.5 L).

What is the maximum weight supported by the mounting structure?

The support structure must be able to support a load of 150 lb (68 kg), including the microwave and the upper cabinet and their contents.

Can I use an extension cord with this microwave?

No, it is strongly discouraged to use an extension cord. The appliance must be plugged directly into a suitable outlet.

What models are compatible with this manual?

This manual covers several models: WMMF5930P, YWMMF5930P, MMMF6030P, YMMMF6030P, KMMF330P, YKMMF330P, WMMF7330R, YWMMF7330R, WMMF7530R, MMMF8030P, YMMMF8030P, KMMF530P, YKMMF530P, KMMF730P, YKMMF730P, JMHF730R, YJMHF730R, JMHF930R and YJMHF930R. Check your appliance's model number.

Where can I download the full manual for this microwave?

The full manual is available for free download in PDF format on notice-facile.com or on the manufacturer's website. You can also request a translation in your language via the form on the page.

Is this microwave certified?

Yes, all appliances are UL, CUL or CSA certified, ensuring compliance with safety standards.

How to configure ventilation for external exhaust?

The microwave can be reconfigured for external exhaust. Consult the Installation Guide provided with the appliance. You may need to purchase an appropriate exhaust kit. The installation manual details the steps for top or wall exhaust.

USER MANUAL MMMF6030PZ MAYTAG

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030P/KMMF330P/YKMMF330P/WMMF7330R/YWMMF7330R/WMMF7530R/MMMF8030P/YMMMF8030P/KMMF530P/YKMMF530P/KMMF730P/YKMMF730P/JMHF730R/YJMHF730R/JMHF930R/YJMHF930R
Unit of Measurement in cm
Overall Width (A) 30 76
Overall Height (B) 17	78	45.4
Height of the door (C) 15 38.2
Depth with door (D) 12 34 32.4
Depth with door open 90° (E) 41.4 105.3
Depth with door with Bump Out Kit (L hook) (F1) 13.8 35.0
Depth with door with Bump Out Kit (M hook) (F2) 14.3 36.3
Depth with door with Bump Out Kit (N hook) (F3) 14.8 37.6
Depth with door with Bump Out Kit (P hook) (F4) 15.3 38.9
Depth with door with Bump Out Kit (R hook) (F5) 15.8 40.2
Depth with door open 90° with Bump Out Kit (L hook) (G1)	42.5 107.8
Depth with door open 90° with Bump Out Kit (M hook) (G2)	43.0 109.1
Depth with door open 90° with Bump Out Kit (N hook) (G3)	43.5 110.4
Depth with door open 90° with Bump Out Kit (P hook) (G4)	44.0 111.7
Depth with door open 90° with Bump Out Kit (R hook) (G5)	44.5 113.0

FRONT VIEW

SIDE VIEW

TOP VIEW

TOP VIEW WITH BUMP OUT KIT
IMPORTANT: Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

MICROWAVE INTERIOR CAVITY DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030PKMMF330P/YKMMF330P/WMMF7330R/YWMMF7330RWMMF7530R/MMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730P/JMHF730RYJMHF730R/JMHF930R/YJMHF930R
Unit of Measurement in cm
Cavity Height (A) 9.1 23
Cavity Width (B) 18.1 46
Cavity Depth (C) 11 27.9

CAVITY INTERIOR FRONT VIEW CAVITY INTERIOR SIDE VIEW

MICROWAVE OVEN

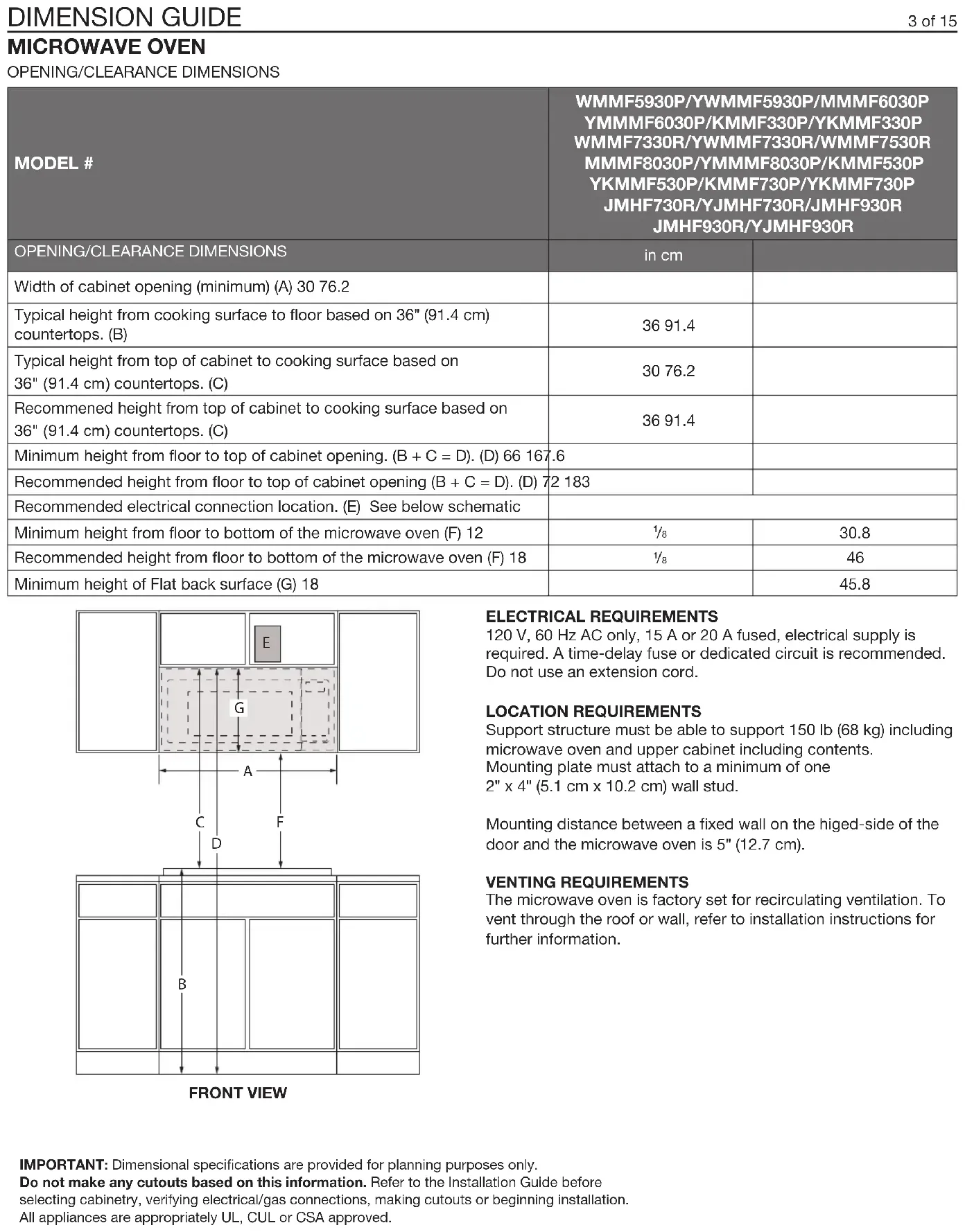

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030PYMMMF6030P/KMMF330P/YKMMF330PWMMF7330R/YWMMF7330R/WMMF7530RMMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730PJMHF730R/YJMHF730R/JMHF930RJMHF930R/YJMHF930R
OPENING/CLEARANCE DIMENSIONS	in cm
Width of cabinet opening (minimum) (A) 30 76.2
Typical height from cooking surface to floor based on 36" (91.4 cm) countertops. (B)	36 91.4
Typical height from top of cabinet to cooking surface based on 36" (91.4 cm) countertops. (C)	30 76.2
Recommended height from top of cabinet to cooking surface based on 36" (91.4 cm) countertops. (C)	36 91.4
Minimum height from floor to top of cabinet opening. (B + C = D). (D) 66 167.6
Recommended height from floor to top of cabinet opening (B + C = D). (D) 72 183

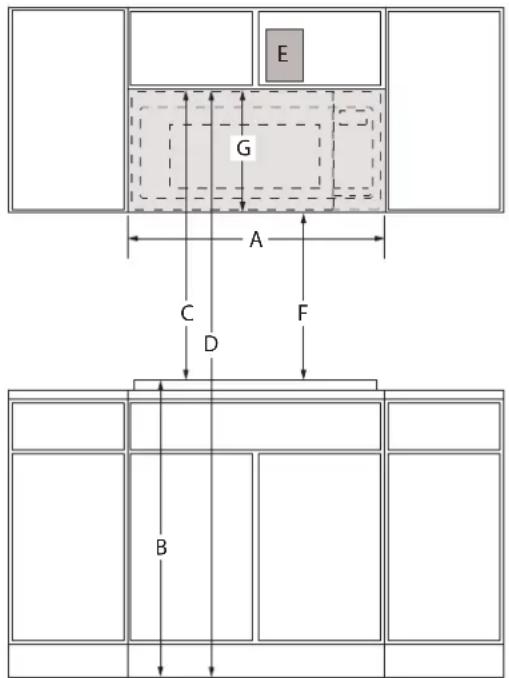

Recommended electrical connection location. (E) See below schematic
Minimum height from floor to bottom of the microwave oven (F) 12	18	30.8
Recommended height from floor to bottom of the microwave oven (F) 18	18	46
Minimum height of Flat back surface (G) 18		45.8

FRONT VIEW

ELECTRICAL REQUIREMENTS

120 V, 60 Hz AC only, 15 A or 20 A fused, electrical supply is required. A time-delay fuse or dedicated circuit is recommended. Do not use an extension cord.

LOCATION REQUIREMENTS

Support structure must be able to support 150 lb (68 kg) including microwave oven and upper cabinet including contents. Mounting plate must attach to a minimum of one 2" x 4" (5.1 cm x 10.2 cm) wall stud.

Mounting distance between a fixed wall on the higed-side of the door and the microwave oven is 5" (12.7 cm).

VENTING REQUIREMENTS

The microwave oven is factory set for recirculating ventilation. To vent through the roof or wall, refer to installation instructions for further information.

IMPORTANT: Dimensional specifications are provided for planning purposes only. Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation. All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030PKMMF330P/YKMMF330P/WMMF7330R/YWMMF7330RWMMF7530R/MMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730P/JMHF730RYJMHF730R/JMHF930R/YJMHF930R
Opening/Clearance Measurement in cm

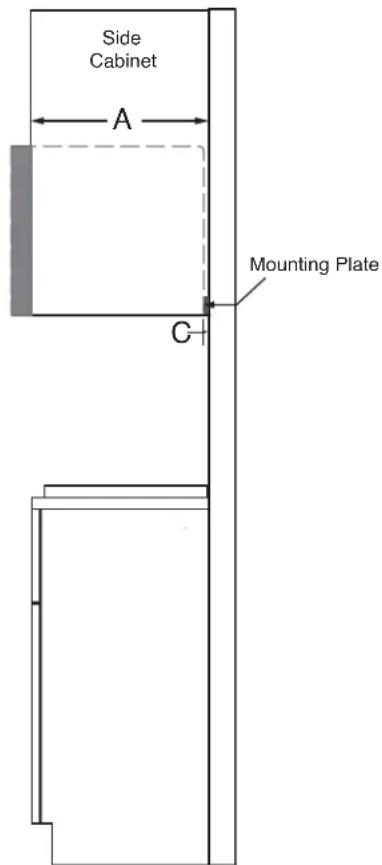

Depth of upper cabinet (minimum-maximum) Stand Out* (A)	12~12.75 30.5~32.4
Depth of upper cabinet (minimum-maximum) Flush* (B)	12.75~13 32.4~33
Depth of upper cabinet (minimum-maximum)* (C)	0.5 1.27
Can this product be installed flush? Flush refers to there appliance not protruding past the cabinet depth. (Y/N)	(A) N(B) Y

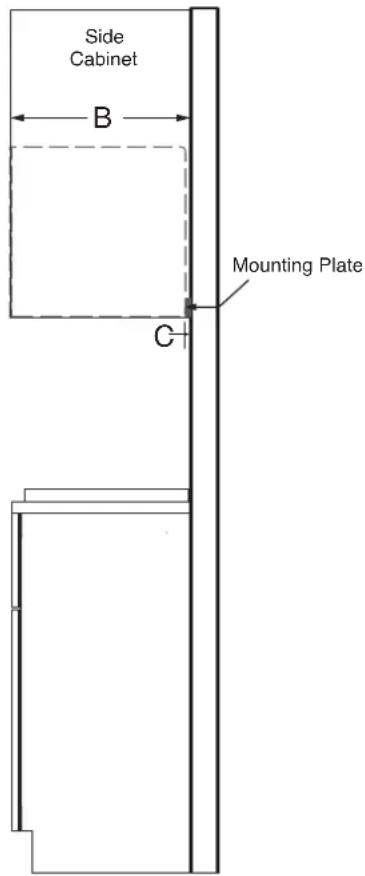

*This microwave oven is factory set for 12" (30.5 cm)\~13" (33.02 cm) depth of upper cabinet, install with the provided mouting plate.

SIDE VIEW SIDE VIEW

BACK VIEW

IMPORTANT: Dimensional specifications are provided for planning purposes only.

Do not make any cutouts based on this information. Refer to the Installation Guide before

selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.

All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030PYMMMF6030P/KMMF330P/YKMMF330PWMMF7330R/YWMMF7330R/WMMF7530RMMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730PJMHF730R/YJMHF730R/JMHF930R/YJMHF930R
OPENING/CLEARANCE DIMENSIONS	in cm
Depth of upper cabinet (minimum-maximum) Flush* (A1) 13 34 ~14	35~35.6

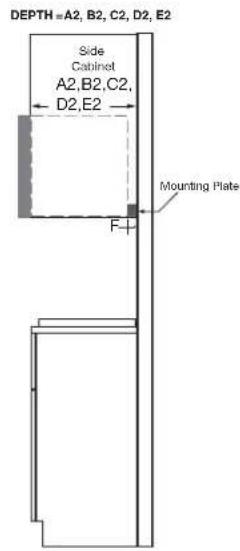

Depth of upper cabinet (minimum-maximum) Stand out* (A2) 13~	13 34 33~35
Depth of upper cabinet (minimum-maximum) Flush* (B1) 14 14 ~14	12 36.2~36.8
Depth of upper cabinet (minimum-maximum) Stand out* (B2) 14~	14 14 35.6~36.2
Depth of upper cabinet (minimum-maximum) Flush* (C1) 14 34 ~15	37.5~38.1
Depth of upper cabinet (minimum-maximum) Stand out* (C2) 14 12 ~	14 34 36.8~37.5
Depth of upper cabinet (minimum-maximum) Flush* (D1) 15 14 ~15	12 38.7~39.4
Depth of upper cabinet (minimum-maximum) Stand out* (D2) 15~	15 14 38.1~38.7
Depth of upper cabinet (minimum-maximum) Flush* (E1) 15 34 ~16	40~40.6
Depth of upper cabinet (minimum-maximum) Stand out* (E2) 15 12 ~	15 34 39.4~40
Back of the microwave oven to back of the cabinet or Wall (F) 1.5~	3.5 3.8~8.9
Can this product be installed flush? Flush refers to the appliance not protruding past the cabinet depth. (Y/N)	(A1, B1, C1, D1, E1) Y(A2, B2, C2, D2, E2) N

D-Depth of upper cabinet

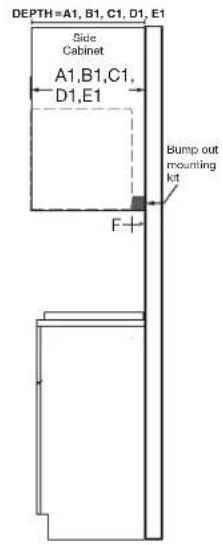

*For the depth of upper cabinet larger than 13" (33.02 cm), and less than or equal to 16" (40.64 cm) depth of upper cabinet, install with the optional bump out mounting kit W11630300, the bump out mounting kit is not provided, but can purchased from Whirlpool®.

SIDE VIEW

BACK VIEW

SIDE VIEW

IMPORTANT: Dimensional specifications are provided for planning purposes only.

Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation. All appliances are appropriately UL, CUL or CSA approved.
