Product Type	Built-in Microwave Oven
Brand	Maytag
Model	MMMF6030PW
Color	White (PW)
Overall Width	76.2 cm
Overall Height	45.4 cm
Depth with Door Closed	32.4 cm
Cavity Dimensions (H x W x D)	23 x 46 x 27.9 cm
Power Supply	120 V ~, 60 Hz, 15 A or 20 A
Recommended Electrical Protection	Time-delay fuse or dedicated circuit
Installation Type	Under cabinet or over range
Ventilation Type	Recirculating (configurable for external exhaust)
Factory Ventilation Configuration	Recirculating
Minimum Cabinet Opening Width	76.2 cm
Minimum Height from Floor to Top of Opening	167.6 cm
Minimum Height from Floor to Bottom of Oven	30.8 cm
Support Structure Load Capacity	150 lb (68 kg) including oven and cabinet
Required Wall Mounting	Mounting plate on 2 x 4 in (5.1 x 10.2 cm) stud
Minimum Side Clearance (hinge side)	12.7 cm
Main Functions	Microwave cooking, defrost, timer, surface light
Care and Cleaning	Clean with a damp cloth and vinegar; do not use abrasive products
Safety	Do not use metal containers; do not operate empty
Replacement Parts and Repairability	Consult Maytag after-sales service or online parts

Frequently Asked Questions - MMMF6030PW MAYTAG

What are the overall dimensions of the Maytag MMMF6030PW?

The overall dimensions are: width 76.2 cm, height 45.4 cm, depth with door closed 32.4 cm.

What power supply is required for this microwave oven?

It requires a 120 V AC, 60 Hz outlet protected by a 15 A or 20 A fuse. A dedicated circuit with time-delay fuse is recommended.

Can this oven be installed with external exhaust?

Yes, although it is factory-set for recirculation, it can be installed with external exhaust through the top or wall per the installation instructions.

What is the minimum installation height under a cabinet?

The minimum height from floor to top of cabinet opening is 167.6 cm (66 inches), and the minimum height from floor to bottom of oven is 30.8 cm (12 inches).

Is this microwave compatible with a 12-inch deep cabinet?

Yes, it is factory-set for a cabinet depth of 12 to 13 inches (30.5 to 33 cm). For different depths, an optional mounting kit may be required.

How to clean the interior of the microwave oven?

Use a soft damp cloth with vinegar or a mild cleaner. Avoid abrasive products. For stubborn stains, heat a bowl of water with lemon.

How to set the timer on this model?

Press the 'Timer' or 'Minuterie' key, set the desired time using the numeric keypad or +/- keys, then press 'Start'. Refer to the manual for exact details.

What to do if the oven is not heating?

First check that the power cord is plugged in and that the circuit breaker is not tripped. If the problem persists, contact Maytag after-sales service.

Can I use metal utensils in this microwave?

No, never use metal containers or utensils as they can cause sparks and damage the appliance.

What is the capacity of this microwave oven?

The capacity is not explicitly stated in the manual, but the cavity dimensions (23 x 46 x 27.9 cm) give a volume of approximately 1.8 cubic feet (30 liters).

USER MANUAL MMMF6030PW MAYTAG

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030P/KMMF330P/YKMMF330P/WMMF7330R/YWMMF7330R/WMMF7530R/MMMF8030P/YMMMF8030P/KMMF530P/YKMMF530P/KMMF730P/YKMMF730P/JMHF730R/YJMHF730R/JMHF930R/YJMHF930R
Unit of Measurement in cm
Overall Width (A) 30 76
Overall Height (B) 17	78	45.4
Height of the door (C) 15 38.2
Depth with door (D) 12 34 32.4
Depth with door open 90° (E) 41.4 105.3
Depth with door with Bump Out Kit (L hook) (F1) 13.8 35.0
Depth with door with Bump Out Kit (M hook) (F2) 14.3 36.3
Depth with door with Bump Out Kit (N hook) (F3) 14.8 37.6
Depth with door with Bump Out Kit (P hook) (F4) 15.3 38.9
Depth with door with Bump Out Kit (R hook) (F5) 15.8 40.2
Depth with door open 90° with Bump Out Kit (L hook) (G1)	42.5 107.8
Depth with door open 90° with Bump Out Kit (M hook) (G2)	43.0 109.1
Depth with door open 90° with Bump Out Kit (N hook) (G3)	43.5 110.4
Depth with door open 90° with Bump Out Kit (P hook) (G4)	44.0 111.7
Depth with door open 90° with Bump Out Kit (R hook) (G5)	44.5 113.0

FRONT VIEW

SIDE VIEW

TOP VIEW

TOP VIEW WITH BUMP OUT KIT
IMPORTANT: Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

MICROWAVE INTERIOR CAVITY DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030PKMMF330P/YKMMF330P/WMMF7330R/YWMMF7330RWMMF7530R/MMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730P/JMHF730RYJMHF730R/JMHF930R/YJMHF930R
Unit of Measurement in cm
Cavity Height (A) 9.1 23
Cavity Width (B) 18.1 46
Cavity Depth (C) 11 27.9

CAVITY INTERIOR FRONT VIEW CAVITY INTERIOR SIDE VIEW

MICROWAVE OVEN

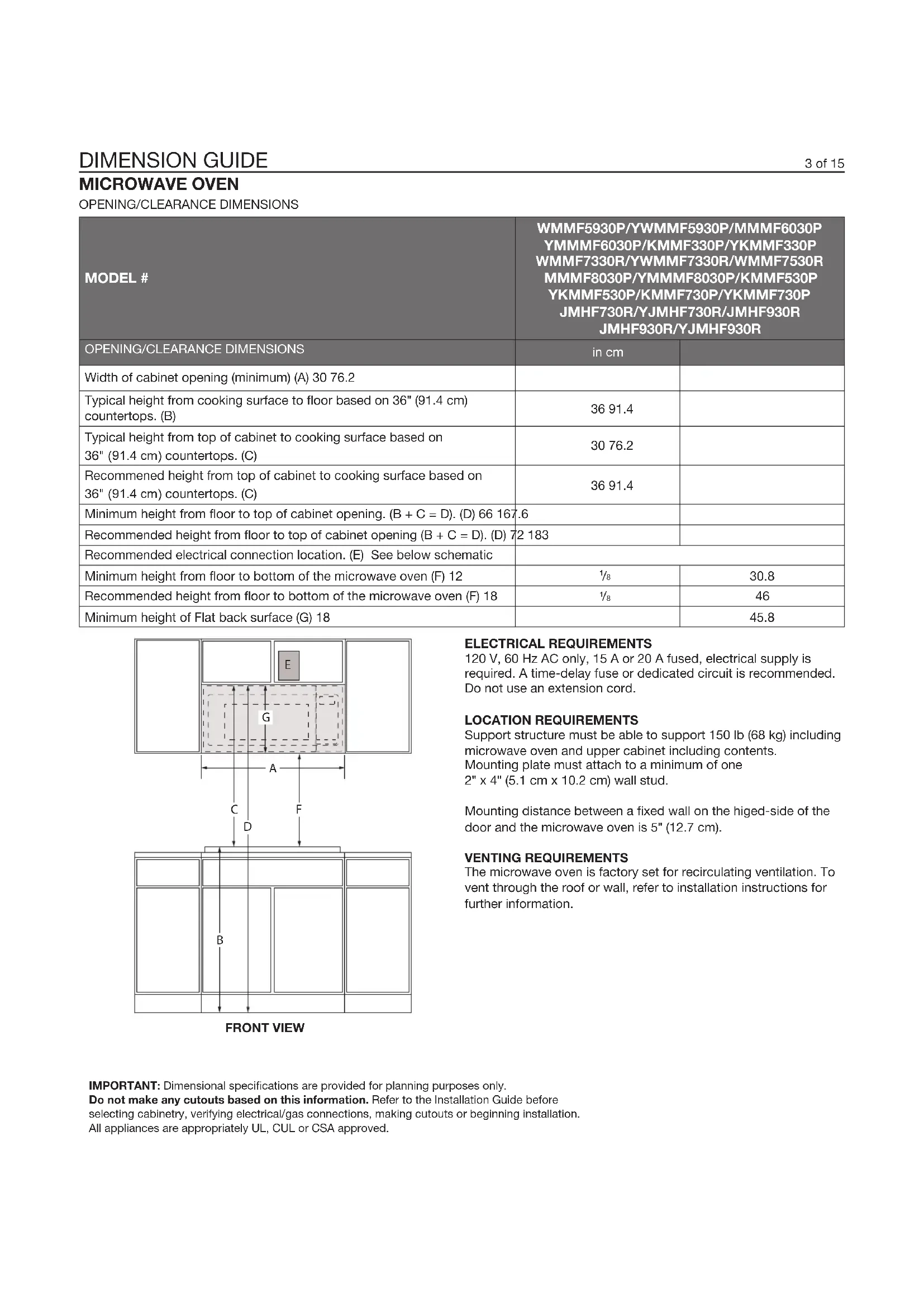

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030PYMMMF6030P/KMMF330P/YKMMF330PWMMF7330R/YWMMF7330R/WMMF7530RMMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730PJMHF730R/YJMHF730R/JMHF930RJMHF930R/YJMHF930R
OPENING/CLEARANCE DIMENSIONS	in cm

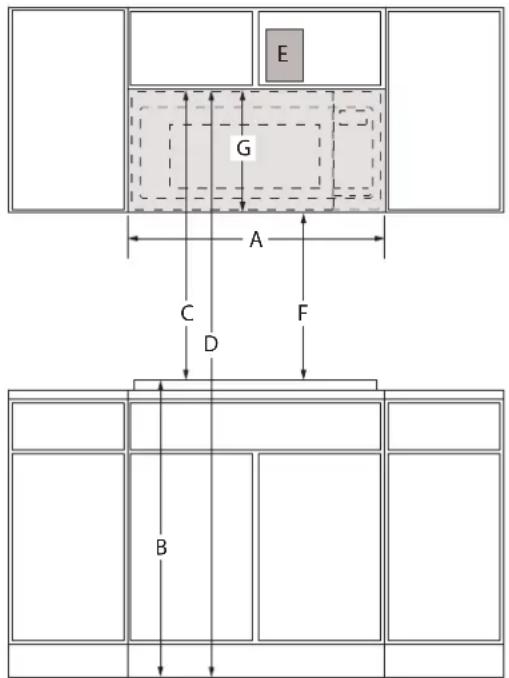

Width of cabinet opening (minimum) (A) 30 76.2
Typical height from cooking surface to floor based on 36" (91.4 cm) countertops. (B)	36 91.4
Typical height from top of cabinet to cooking surface based on 36" (91.4 cm) countertops. (C)	30 76.2
Recommended height from top of cabinet to cooking surface based on 36" (91.4 cm) countertops. (C)	36 91.4
Minimum height from floor to top of cabinet opening. (B + C = D). (D) 66 167.6
Recommended height from floor to top of cabinet opening (B + C = D). (D) 72 183
Recommended electrical connection location. (E) See below schematic
Minimum height from floor to bottom of the microwave oven (F) 12	18	30.8
Recommended height from floor to bottom of the microwave oven (F) 18	18	46
Minimum height of Flat back surface (G) 18		45.8

FRONT VIEW

ELECTRICAL REQUIREMENTS

120 V, 60 Hz AC only, 15 A or 20 A fused, electrical supply is required. A time-delay fuse or dedicated circuit is recommended. Do not use an extension cord.

LOCATION REQUIREMENTS

Support structure must be able to support 150 lb (68 kg) including microwave oven and upper cabinet including contents. Mounting plate must attach to a minimum of one 2" x 4" (5.1 cm x 10.2 cm) wall stud.

Mounting distance between a fixed wall on the higed-side of the door and the microwave oven is 5" (12.7 cm).

VENTING REQUIREMENTS

The microwave oven is factory set for recirculating ventilation. To vent through the roof or wall, refer to installation instructions for further information.

IMPORTANT: Dimensional specifications are provided for planning purposes only. Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation. All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030PKMMF330P/YKMMF330P/WMMF7330R/YWMMF7330RWMMF7530R/MMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730P/JMHF730RYJMHF730R/JMHF930R/YJMHF930R
Opening/Clearance Measurement in cm

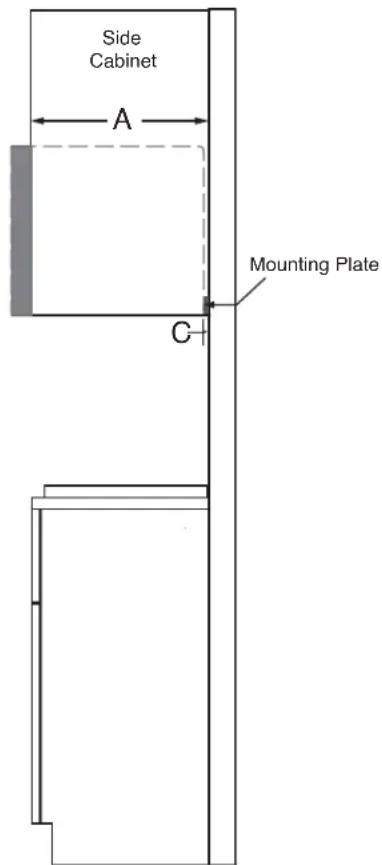

Depth of upper cabinet (minimum-maximum) Stand Out* (A)	12~12.75 30.5~32.4

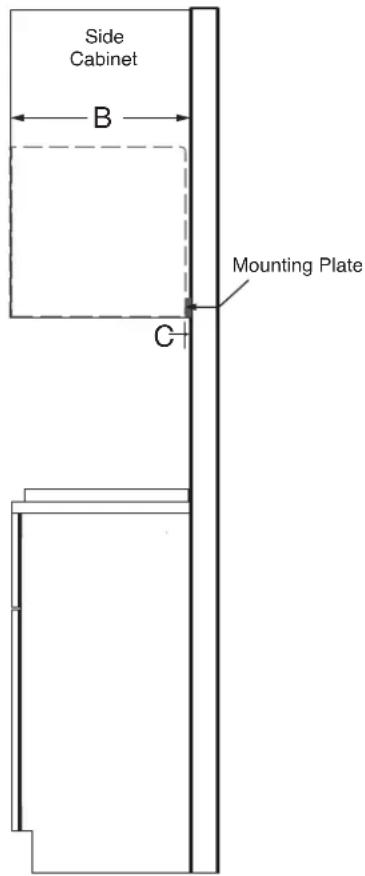

Depth of upper cabinet (minimum-maximum) Flush* (B)	12.75~13 32.4~33
Depth of upper cabinet (minimum-maximum)* (C)	0.5 1.27
Can this product be installed flush? Flush refers to there appliance not protruding past the cabinet depth. (Y/N)	(A) N(B) Y

*This microwave oven is factory set for 12" (30.5 cm)\~13" (33.02 cm) depth of upper cabinet, install with the provided mouting plate.

SIDE VIEW SIDE VIEW

BACK VIEW

IMPORTANT: Dimensional specifications are provided for planning purposes only.

Do not make any cutouts based on this information. Refer to the Installation Guide before

selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.

All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030PYMMMF6030P/KMMF330P/YKMMF330PWMMF7330R/YWMMF7330R/WMMF7530RMMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730PJMHF730R/YJMHF730R/JMHF930R/YJMHF930R
OPENING/CLEARANCE DIMENSIONS	in cm

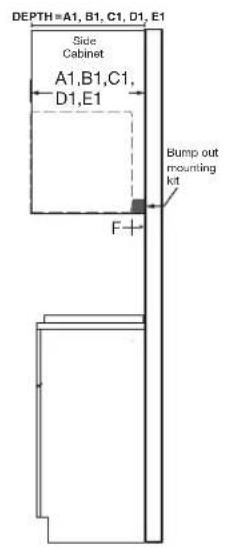

Depth of upper cabinet (minimum-maximum) Flush* (A1) 13 34 ~14	35~35.6

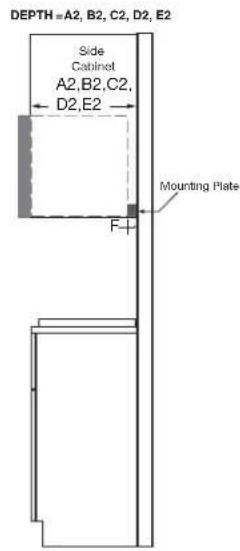

Depth of upper cabinet (minimum-maximum) Stand out* (A2) 13~	13 34 33~35
Depth of upper cabinet (minimum-maximum) Flush* (B1) 14 14 ~14	12 36.2~36.8
Depth of upper cabinet (minimum-maximum) Stand out* (B2) 14~	14 14 35.6~36.2
Depth of upper cabinet (minimum-maximum) Flush* (C1) 14 34 ~15	37.5~38.1
Depth of upper cabinet (minimum-maximum) Stand out* (C2) 14 12 ~	14 34 36.8~37.5
Depth of upper cabinet (minimum-maximum) Flush* (D1) 15 14 ~15	12 38.7~39.4
Depth of upper cabinet (minimum-maximum) Stand out* (D2) 15~	15 14 38.1~38.7
Depth of upper cabinet (minimum-maximum) Flush* (E1) 15 34 ~16	40~40.6
Depth of upper cabinet (minimum-maximum) Stand out* (E2) 15 12 ~	15 34 39.4~40
Back of the microwave oven to back of the cabinet or Wall (F) 1.5~	3.5 3.8~8.9
Can this product be installed flush? Flush refers to the appliance not protruding past the cabinet depth. (Y/N)	(A1, B1, C1, D1, E1) Y(A2, B2, C2, D2, E2) N

D-Depth of upper cabinet

*For the depth of upper cabinet larger than 13" (33.02 cm), and less than or equal to 16" (40.64 cm) depth of upper cabinet, install with the optional bump out mounting kit W11630300, the bump out mounting kit is not provided, but can purchased from Whirlpool®.

SIDE VIEW

BACK VIEW

SIDE VIEW

IMPORTANT: Dimensional specifications are provided for planning purposes only.

Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation. All appliances are appropriately UL, CUL or CSA approved.
