Brand	Airforce
Model	Modulo Plus
Product type	Range hood
Category	Kitchen hood
Power supply	220-240 V, 50/60 Hz
Minimum safety distance (electric hob)	50 cm
Minimum safety distance (gas/mixed hob)	55 cm
Suction power	4 speeds: 1 (minimum), 2 (medium), 3 (maximum), 4 (intensive)
Intensive function	Duration of 7 minutes, automatic return to speed 3
Timer	5 minutes (activation by long press on a speed button)
Automatic switch-off	4 hours after last button use
Filter type	Metal grease filter (washable) + activated charcoal filter (recirculation version)
Grease filter cleaning	Once a month, by hand or in dishwasher (short cycle, low temperature)
Charcoal filter replacement	Every 6 months with normal use (not washable)
Lighting	LED (lighting unit, complete replacement by technical service)
Remote control	Wireless, with pairing procedure and possible code change
Extraction mode	Ducted version (external extraction) or recirculation version (recycling)
Materials	Stainless steel or others (not specified)
Maximum air flow	Greater than 650 m³/h (for intensive speed timing)
Standards	Directive WEEE 2002/96/EC, EU regulation 65/2014

Frequently Asked Questions - Modulo Plus Airforce

What is the minimum distance between the hood and the hob?

For an electric hob, the minimum distance is 50 cm. For a mixed or gas hob, it is 55 cm (unless otherwise specified by the hob manufacturer).

How to clean the grease filter?

The metal grease filter should be cleaned once a month with a non-aggressive detergent, by hand or in the dishwasher at low temperature and short cycle. Dishwashing may cause discoloration but does not affect filtering.

How to replace the charcoal filter?

The activated charcoal filter (recirculation version) is not washable. It must be replaced every 6 months with normal use. Remove the old filter and install a new one.

How to use the remote control?

The remote control is supplied with predefined codes. To pair it, cut then restore power to the hood, press the lights button within 5 seconds, then the motor button. Wait 10 seconds. Consult the manual for code change procedures.

What to do in case of LED lighting malfunction?

The LED lighting unit must be replaced entirely. Contact the technical support service to perform the replacement.

After how long does the hood turn off automatically?

The hood turns off automatically 4 hours after the last button press.

How to activate the intensive function?

Press the button corresponding to speed 4. The intensive function lasts about 7 minutes, then the hood automatically returns to speed 3.

Can I use the hood without the charcoal filter?

Yes, if you use the hood in ducted version (external extraction). In recirculation version, the charcoal filter is necessary to recycle odors.

How to reset the remote control?

To generate a new code, press both buttons on the remote control simultaneously for about 10 seconds until the LED lights up, then press both buttons again within 3 seconds. Three flashes confirm the operation. Then perform the pairing procedure.

What cleaning products to use for the hood?

Use a cloth soaked in denatured alcohol or neutral liquid detergents. Avoid abrasive products. Clean the inside and outside regularly.

USER MANUAL Modulo Plus Airforce

Isometric line drawing of a rectangular industrial container with a circular top and side mounting feet (no text or symbols)

D

INSTRUCTIONS ON MOUNTING AND USE

F

PRESCRIPTIONS DE MONTAGE ET MODE D'EMPLOI

NL

MONTAGEVOORSCHRIFTEN EN GEBRUIKSAANWIIZING

ES

MONTAJE Y MODO DE EMPLEO

|

Illustration of two gloves with bandages and straps (no text or symbols)

IT Per tutte le operazioni di installazione e manutenzione utilizzare guanti da lavoro
EN Always wear work gloves for all installation and maintenance operations
DE Bei allen Installations- und Instandhaltungsarbeiten immer Schutzhandschuhe tragen.
FR Munissez-vous de gants de travail avant d'effectuer toute opération d'installation et d'entretien.
NL Draag bij alle installatie- en onderhoudswerkzaamheden werkhandschoenen.
ES Todas las operaciones de instalación y mantenimiento se deben realizar utilizando guantes de trabajo.
PT Para todas as operações de instalação e manutenção, utilize luvas adequadas para este tipo de atividade
GR Πάντοτε να φοράτε γάντια εργασίας για όλες τις επεμβάσεις εγκατάστασης και συντήρησης.
SV Använd alltid skyddshandskar vid installation och underhåll.
FI Käytä asennus- ja huoltotöissä suojakäsineitä.
NO Ved alle installasjonsprosedyrer og alt vedlikehold av ventilatoren må man bruke arbeidshansker
DA Ved alle installations- og vedligeholdelsesindgreb skal der bæres arbejdshandsker.
PL Wszelkie czynności montażowe i konserwacyjne wykonywać w rękawicach ochronnych.
CZ Při všech instalačních a údržbových pracích používejte pracovní rukavice
SK Pri všetkých inštalačných a údržbárskych prácach používajte ochranné pracovné rukavice.
HU Valamennyi üzembe helyezési és karbantartási müvelethez használjon védőkesztyűt
BG за всички операции по инсталиране и техническо обслужване използвайте работни ръкавици.
RO Pentru toate operațiile de instalare și întreținere utilizați mănuși de protectie.
RU Для выполнения всех операций по установке и уходу используйте рабочие перчатки.
ET Kasutage paigaldus- ja hooldustöödel kaitsekindaid.

Technical line drawing of a 3D cabinet or enclosure with mounting brackets and internal components, no text or symbols present.

Technical line drawing of a front-mounted device with two circular ports at the bottom (no text or symbols)

Warnung

The appliance should not be used by children under 8 years of age and by persons with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they are supervised or have received instructions regarding the safe use of the appliance and are aware of the possible risks. Children must not play with the appliance. Any intended cleaning and maintenance by the user should not be carried out by children unless supervised. The hood should never be used without without the grid properly fitted! Never use the hood without the grill properly fitted!

The accessible components can overheat when the cooktop is in use.

The hood must not be connected to the flues of other appliances that run on gas or other fuels. When the hood is used at the same time as other appliances that run on gas or other fuels, provision must be made for an adequate supply of air. No food must be cooked flambé underneath the hood. The use of an unprotected flame could cause damage to the filters and could cause fires, so should be avoided. When frying food, never leave the pan unattended because the cooking oil could flare up. Please comply with the technical and safety provisions set forth by your local competent authorities regarding the ventilation of hoods.

This appliance conforms to European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). Please dispose of this product correctly in the interest of health and the environment.

The symbol 📁 on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. If the power cable is damaged you should, in the interest of safety, contact the manufacturer or the manufacturer's technical assistance service to request a replacement, or ask someone who is similarly qualified.

Check also the drawings on the initial pages with the alphabetical and numerical references in the explanatory text. Closely follow the instructions in this manual. We cannot accept liability for any faults, detriment or fire damage to the appliance due to non-compliance with the manual's instructions.

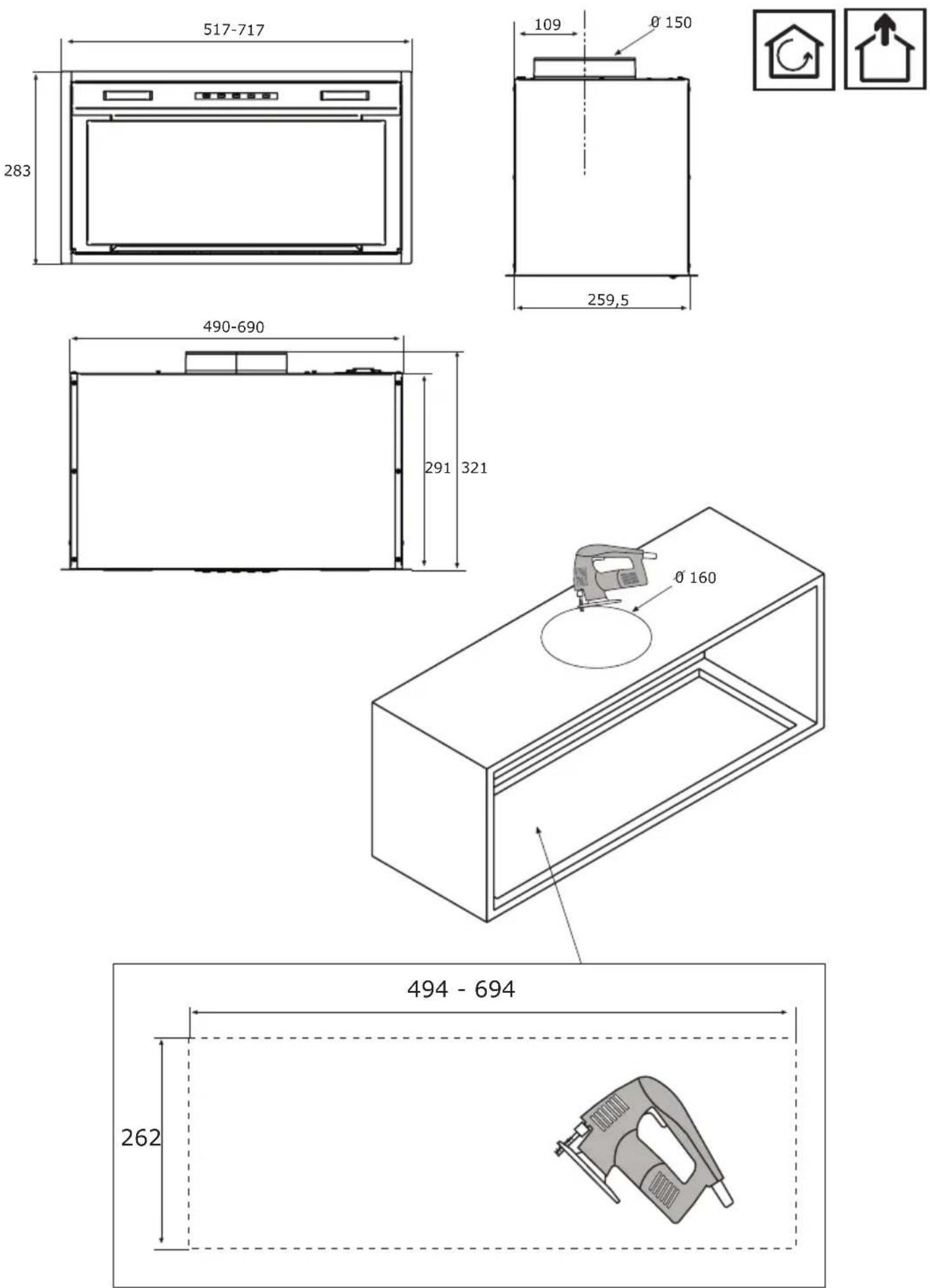

You should affix the hood to a wall of sufficient weight-bearing capacity.

The cooker hood must be placed at a minimum distance of 50 cm from the cooking plane for electric cookers and 55 cm for gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

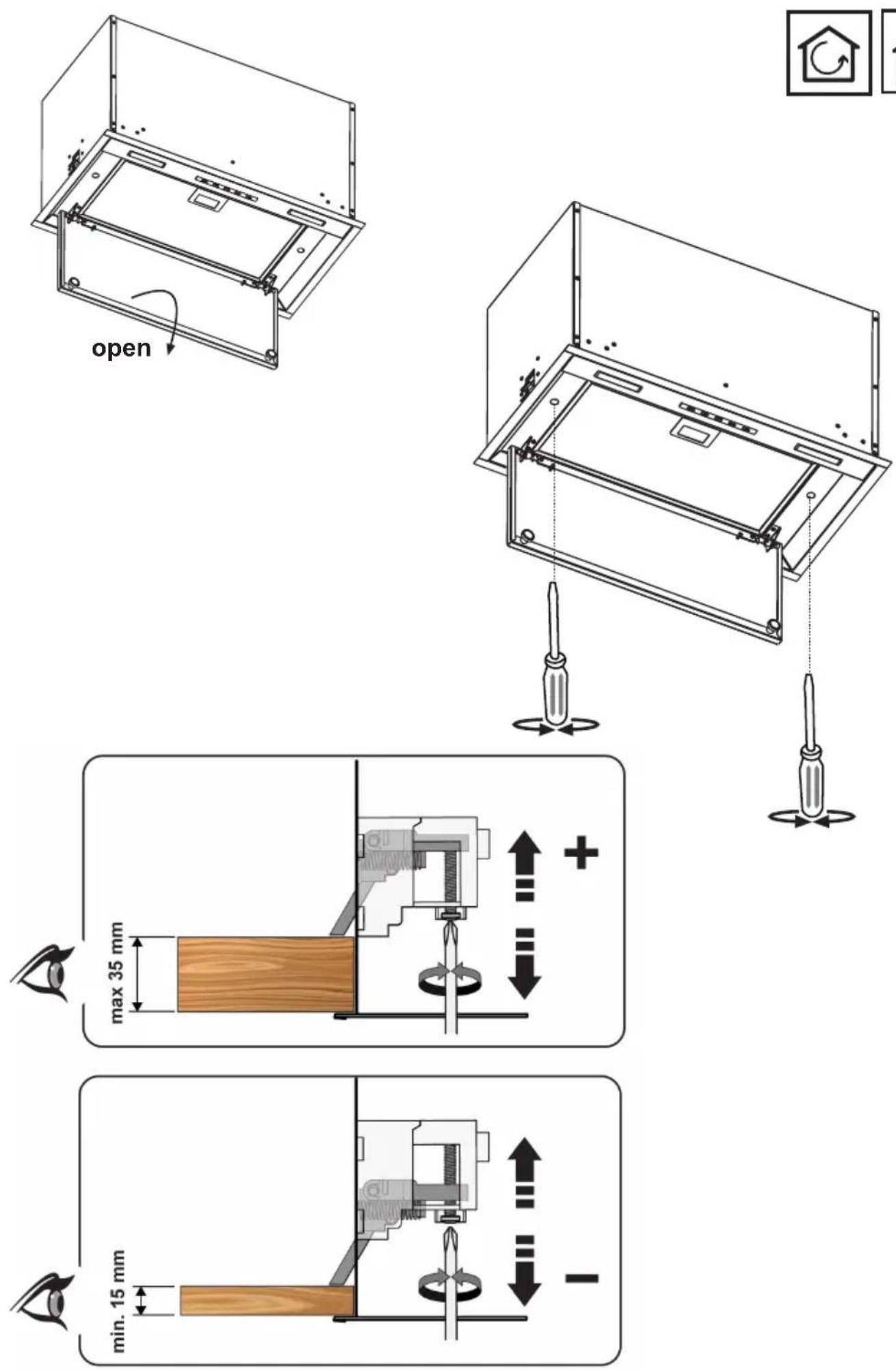

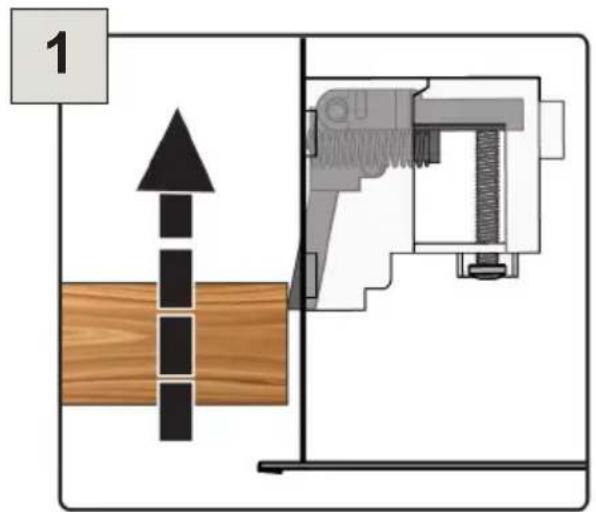

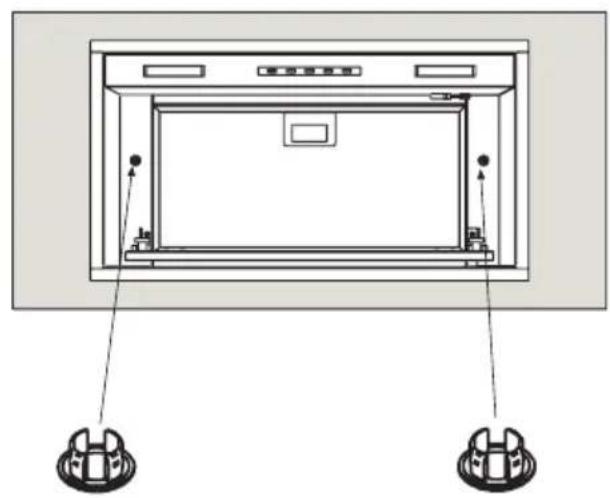

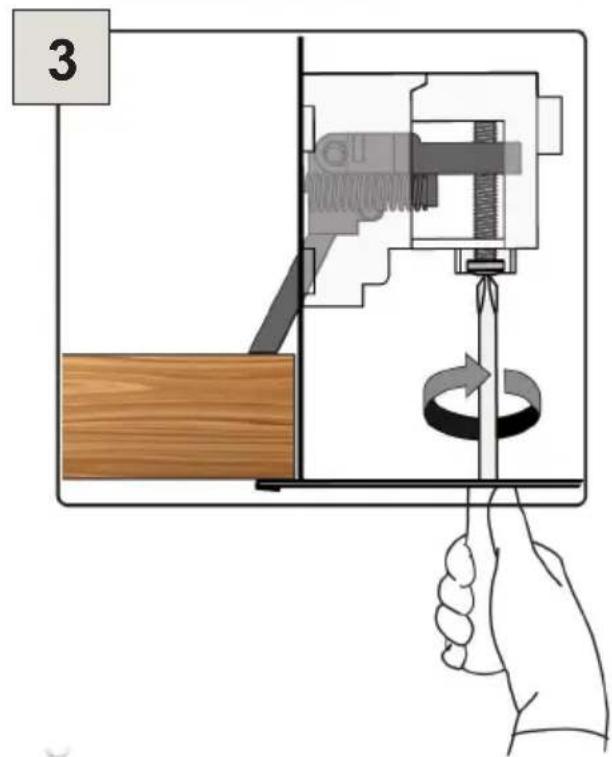

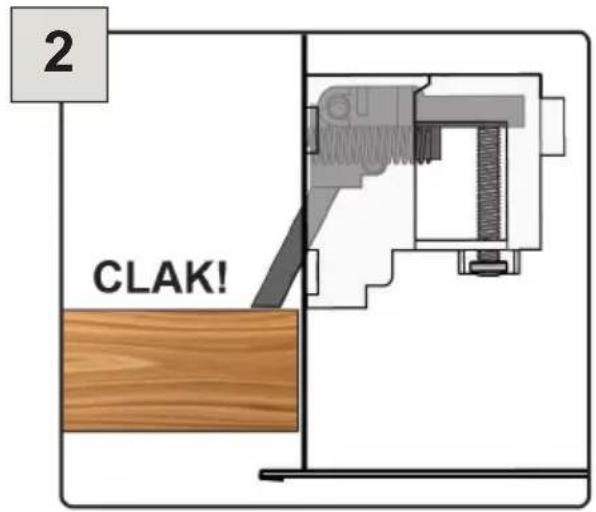

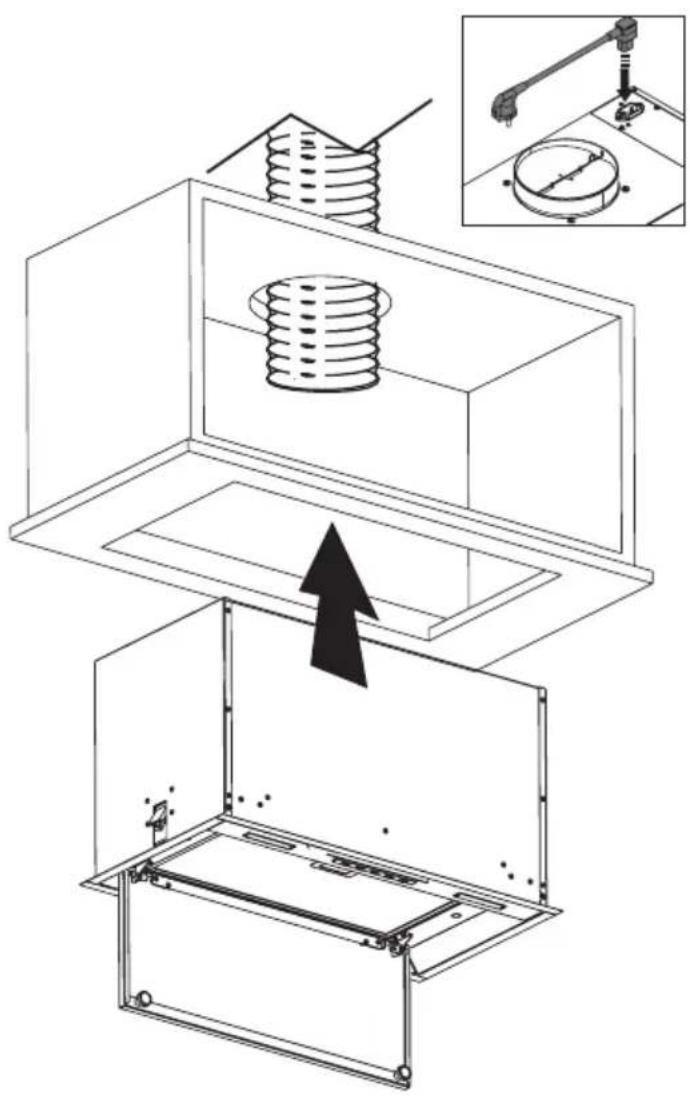

The cooker hood is provided with an upper air exit B for discharging fumes externally for models including chimney flue C (Suction Version A- exhaust pipe not supplied). If cooking fumes and vapours cannot be externally discharged, the cooker hood can be used in the recirculating version F: the installation of 1 active charcoal filter F allows the recirculation of fumes and vapours through the upper grid G.

Make sure that there is a power socket near the hood and that the system has a 30 mA differential. The mains voltage must be the same as that on the label inside the hood. The hood has a 1250 mm power cable with or without plug: if it does have a plug, connect the hood to an accessible approved socket; or if it does not (connection direct to the mains), fit an approved bipolar switch with a minimum contact opening of no less than 3 mm (accessible). This installation and electrical connection must be executed by a qualified technician.

Product performance test carried out in accordance with standard (EU) No 65/2014-Ref: IEC 61591

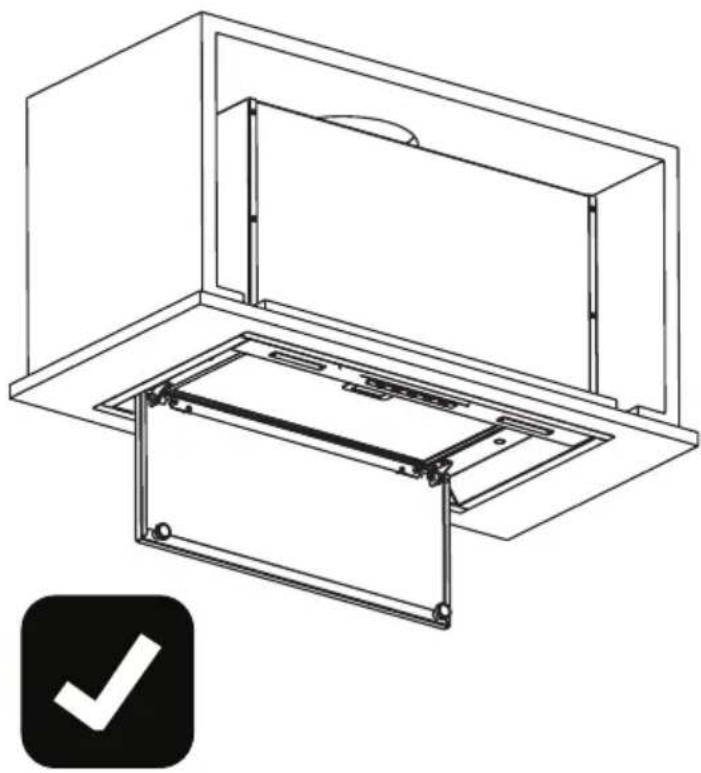

Maximum performance is achieved by placing the mobile panels, if any, in the open position.

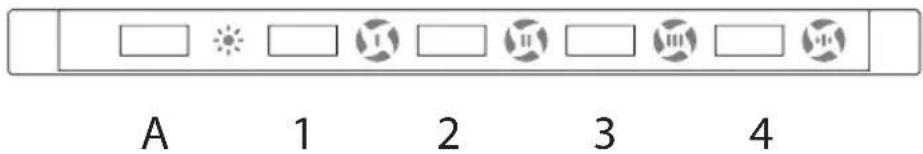

RLN 4V

A. ON/OFF lighting

1 - 2 - 3 - 4 Minimum suction power (1), medium (2), maximum (3), High Speed (4) The long pression of the button will make the corresponding led light flash, activating the timer. It will stop after 5 minutes, turning off the motor.

4 High Speed: tapping this control activates the "High Speed" aspiration level. This will time-out after approx. 7 minutes, after which the speed will return to level 3.

TlloCo

1: + motor

2: On/Off motor

3:- motor

4: On/Off light

5: Led

Note: the LED on the hood indicates the various speeds: green 1st speed, orange 2nd speed, red 3rd speed and flashing red 4th speed. All hoods with capacities exceeding 650 m3/h have the last timed speed; It lasts for 7 minutes, after which it automatically returns to the last non-timed speed.

Initialization procedure:

1. Cut off power to the hood
2. Power the hood again
3. Within the first 5 sec, press the light button and release it after the lights turn on (the control must be turned on via key 3)
4. Within 5 sec, press the motor key and release it

Now you have to wait for about 10 seconds – then you can use the hood normally.

Notes: after 4 hours from the last use of a key, the hood turns off automatically.

Should there be interferences with other nearby remote controls, carry out the code change procedure.

Should it be required to replace the radio control, the frequency of the electronic system of the new radio control must be calibrated again via the initialization procedure.

Procedure for generating a new code for the radio control.

The radio control is supplied with default codes. If you want to generate new random codes you need to follow the procedure below: simultaneously press the plus and minus keys for at least 10 seconds; the LED will turn on, then press the two buttons again (within 3 seconds). The LED flashes three times to indicate that the operation has been completed. Once you changed the radio control you must run again the initialization procedure.

Maintenance

Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.

Cleaning

The hood must be cleaned frequently both inside (apart from the area behind the grease filter) and outside. Use a cloth moistened with denatured alcohol or neutral liquid detergents. Never use products containing abrasives.

Warning

Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

Anti-grease Filter

must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

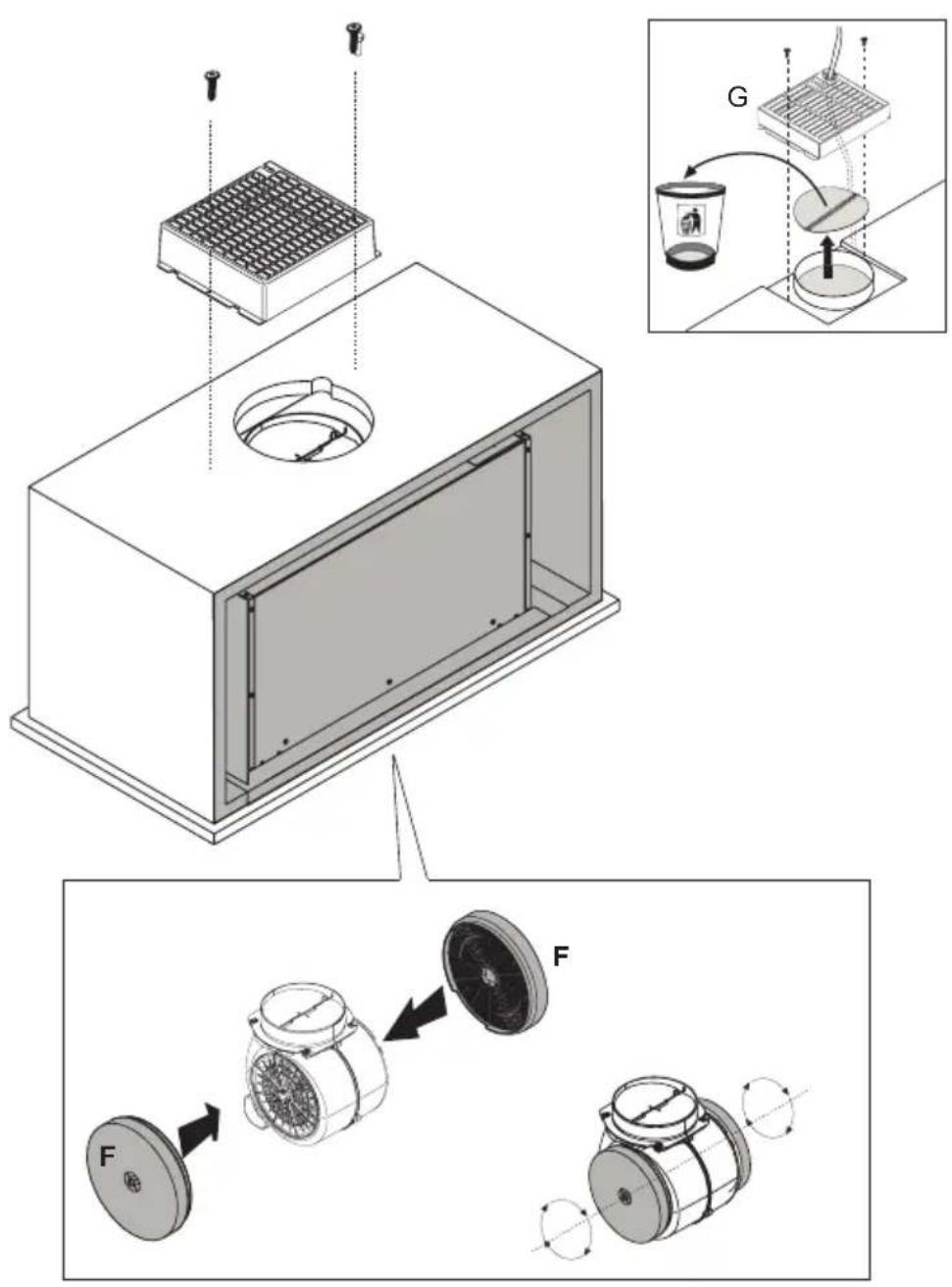

Charcoal Filter - (only for filter version)

The active charcoal filters F are not washable nor regenerative. It should be changed every 6 months in normal use. The active charcoal filters capture unpleasant cooking odours.

Replacing lightbulbs

Warning! Prior to touching the light bulbs ensure they are cooled down.

Led Light

If the lighting group LED does not work, please contact the technical service center in order to replace the whole group.

Reducing environmental impact:

To reduce energy consumption, we recommend you always use the lowest suction speed among those suitable for the cooking mode currently active, avoid leaving the appliance running for more than 15 minutes after burner shutdown and switch off the lights if you leave the cooking area.

Attention

A

1

2

3

4

A. ON/OFF lumières

A

1

2

3

4

A. ON/OFF luci
