Product type	Extractor hood
Brand	Airforce
Model	Modulo POP
Electrical supply	230 V / 50 Hz
Number of motor speeds	3 (1, 2, 3)
Lighting	LED, ON/OFF switch
Control type	Push buttons
Extraction mode	Extracting (external discharge) or recirculating (recycling)
Minimum installation distance	50 cm (electric cooking) / 65 cm (gas or mixed cooking)
Grease filter	Metallic, dishwasher-safe
Charcoal filter	Optional, replace every 6 months
Grease filter maintenance	Monthly cleaning
Power cable length	1250 mm
Required electrical protection	30 mA residual current device
Performance standards	Regulation (EU) No 65/2014, IEC 61591
Minimum age of use	8 years (supervision required for children aged 8 to 14)
Material	Stainless steel and glass (estimate)
Weight	Approximately 15 kg (estimate)
Dimensions (W x D x H)	90 x 50 x 60 cm (estimate)

Frequently Asked Questions - Modulo POP Airforce

How do I clean the grease filter?

Clean the metal grease filter once a month with a non-aggressive detergent, by hand or in a dishwasher at low temperature and short cycle. Dishwasher washing may cause discoloration but does not affect performance.

What is the minimum distance between the hood and the cooking hob?

For electric cooking, the distance must be at least 50 cm. For gas or mixed cooking, it must be at least 65 cm. If the hob instructions specify a greater distance, follow that.

Can I use the hood in recirculation mode?

Yes, if external evacuation is not possible. You must then install an activated charcoal filter (not supplied) and the hood will recirculate fumes and vapors through the upper grille.

How do I replace the LED bulb?

The lamps are integrated LEDs. In case of malfunction, contact technical support to replace the entire lighting assembly.

How often should I replace the charcoal filter?

Under normal use, replace the activated charcoal filter every 6 months. It is neither washable nor recyclable.

What should I do if the hood does not turn on?

First check that the hood is plugged in and that the 30 mA residual current device has not tripped. Ensure the mains voltage matches that indicated on the label. If the problem persists, contact technical support.

Can I install the hood on a drywall wall?

Installation on a wall that cannot support the weight of the hood (such as drywall) is not recommended. Failure to comply may lead to risk of falling.

How can I reduce the environmental impact of the hood?

Use the lowest extraction speed suitable for cooking, do not leave the hood running for more than 15 minutes after turning off the burners, and turn off the lights when leaving the cooking area.

Is it safe to flambé food under the hood?

It is strictly forbidden to flambé food under the hood. The open flame can damage the filters and cause a fire.

Can the hood be used by children?

Children under 8 years old must not use the appliance. Children aged 8 to 14 and persons with reduced capabilities may use it under supervision and after understanding the safety instructions.

USER MANUAL Modulo POP Airforce

Abstract white swirl logo design on gray background (no text or symbols)

Airforce

made in Italy

EN INSTRUCTIONS ON MOUNTING AND USE

Quick reference guide

A

B

1

2

3

D

A. Lampen EIN/AUS

B. Motor AUS

1 - 2 - 3 adjustment hood speed: minimum (1), average (2), maximum (3)

F

A – lumières ON/OFF

Silhouette of a hand holding a smartphone displaying a QR code (no text or symbols on the device)

Scan Qr code for the full version of the manual.

The appliance should not be used by children under 8 years of age and by persons with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they are supervised or have received instructions regarding the safe use of the appliance and are aware of the possible risks. Children must not play with the appliance. Any intended cleaning and maintenance by the user should not be carried out by children unless supervised. The hood should never be used without without the grid properly fitted! Never use the hood without the grill properly fitted!

The accessible components can overheat when the cooktop is in use.

The hood must not be connected to the flues of other appliances that run on gas or other fuels. When the hood is used at the same time as other appliances that run on gas or other fuels, provision must be made for an adequate supply of air. No food must be cooked flambé underneath the hood. The use of an unprotected flame could cause damage to the filters and could cause fires, so should be avoided. When frying food, never leave the pan unattended because the cooking oil could flare up. Please comply with the technical and safety provisions set forth by your local competent authorities regarding the ventilation of hoods.

This appliance conforms to European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). Please dispose of this product correctly in the interest of health and the environment.

The symbol 📁 on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. If the power cable is damaged you should, in the interest of safety, contact the manufacturer or the manufacturer's technical assistance service to request a replacement, or ask someone who is similarly qualified.

Check also the drawings on the initial pages with the alphabetical and numerical references in the explanatory text. Closely follow the instructions in this manual. We cannot accept liability for any faults, detriment or fire damage to the appliance due to non-compliance with the manual's instructions.

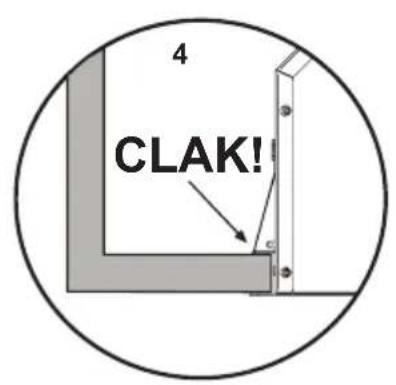

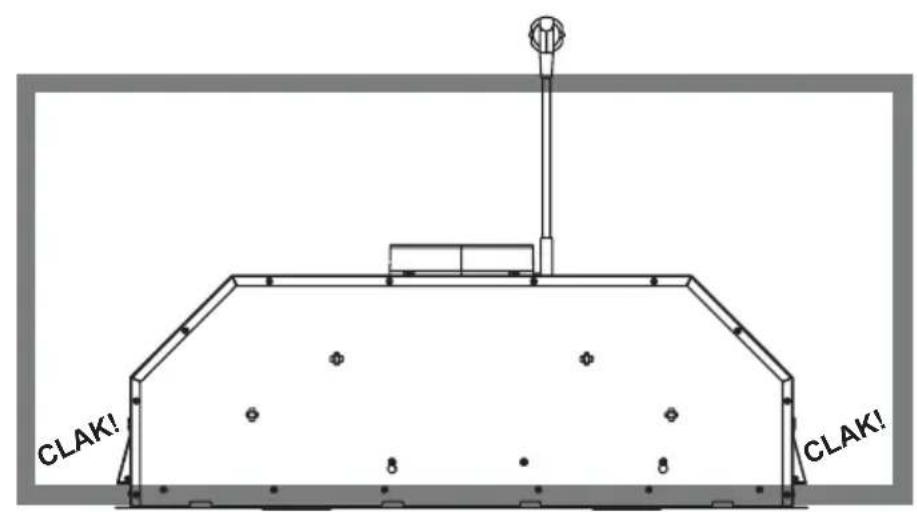

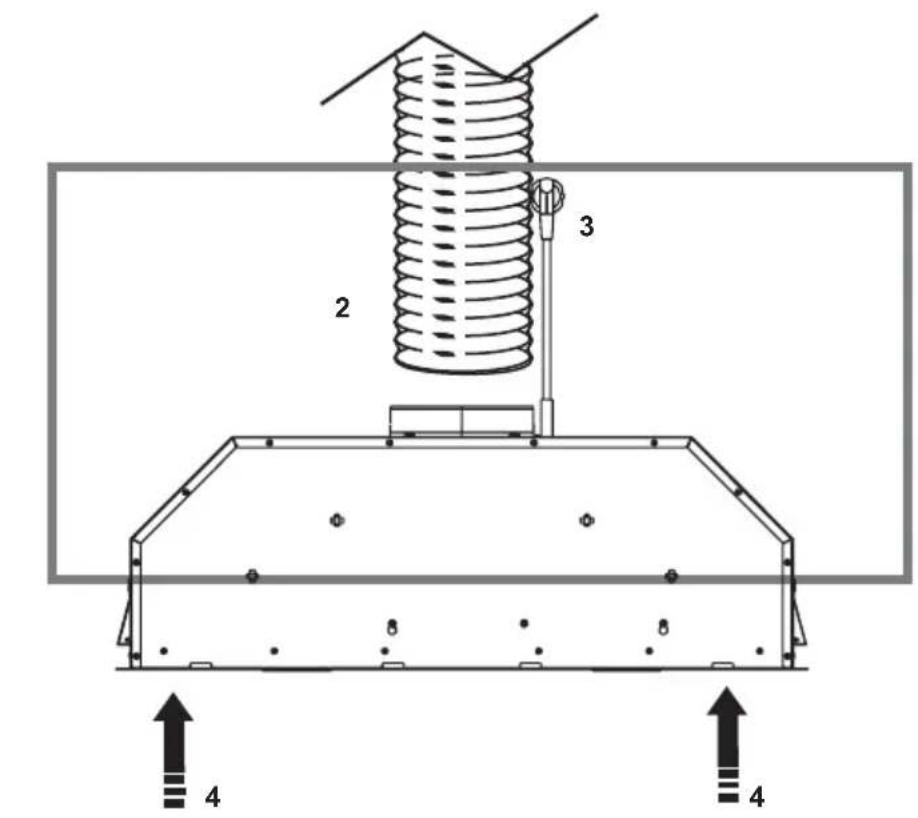

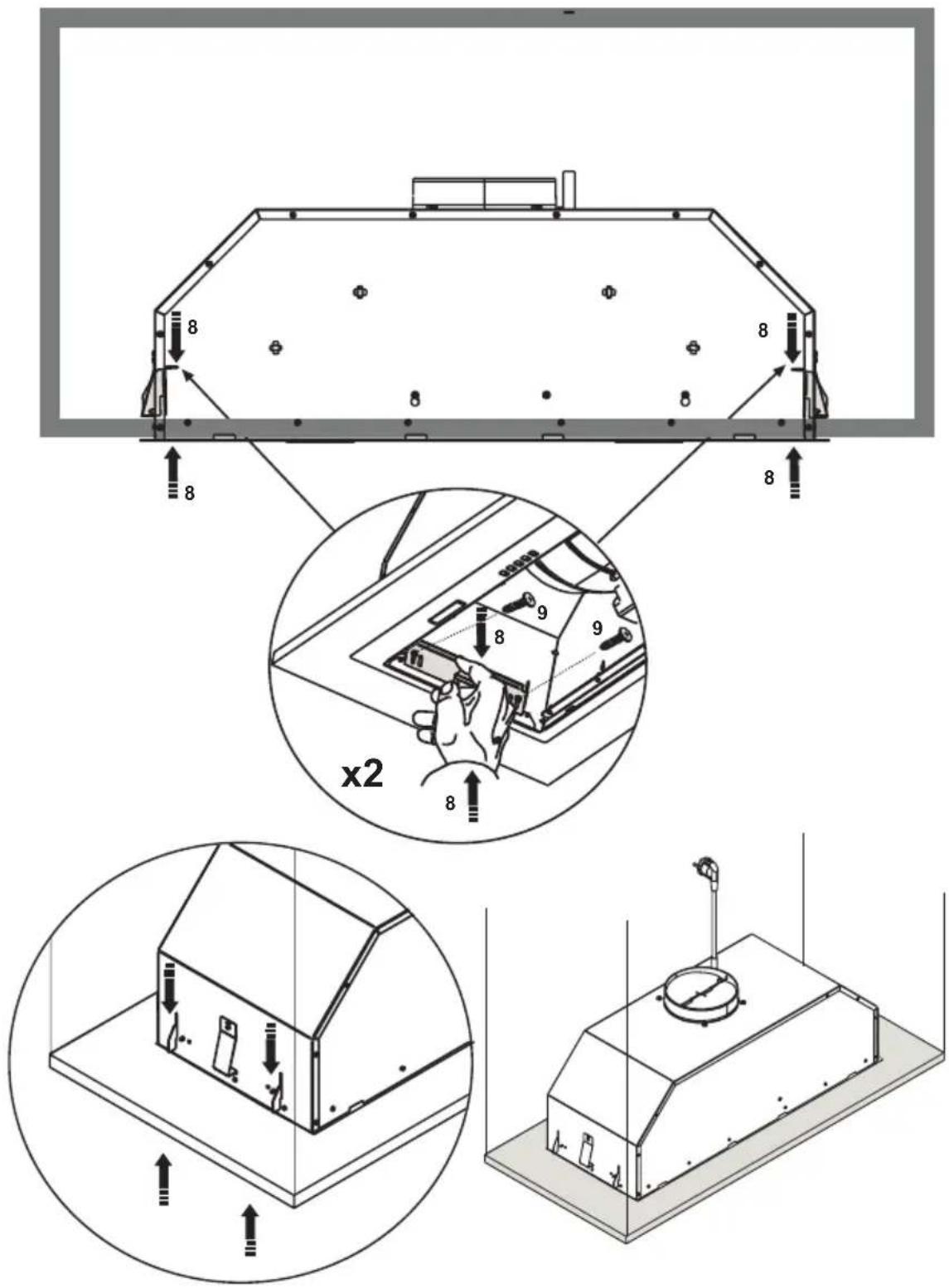

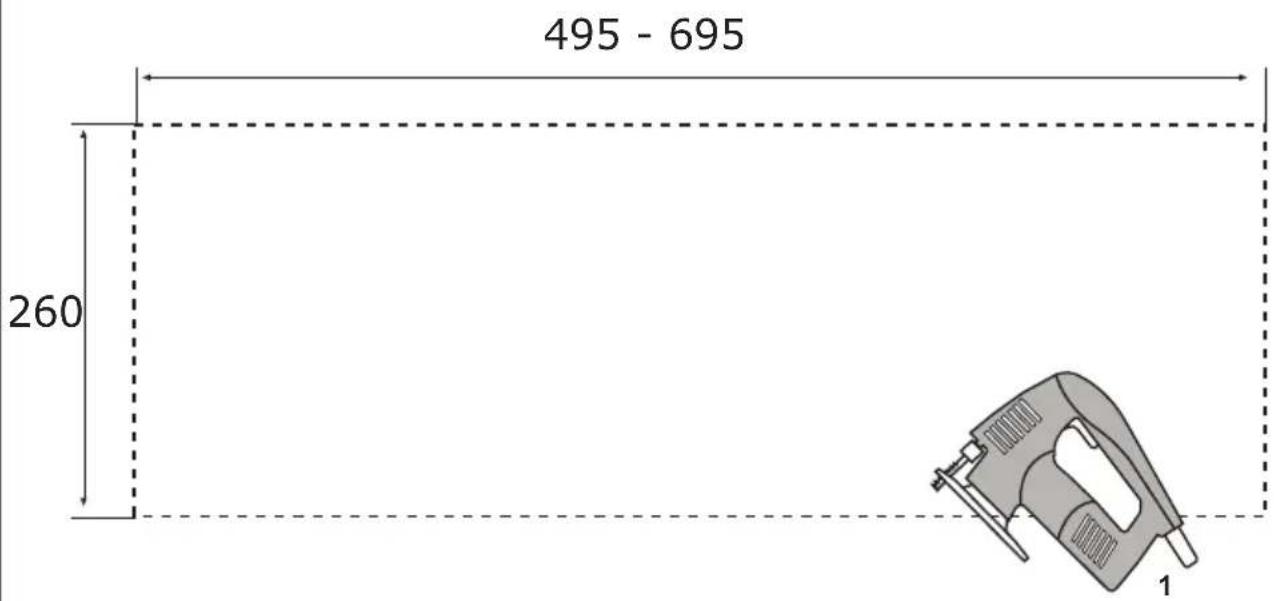

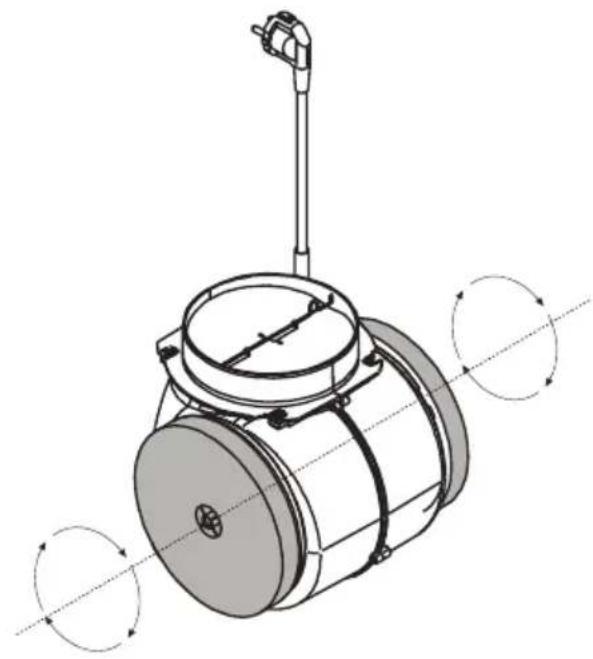

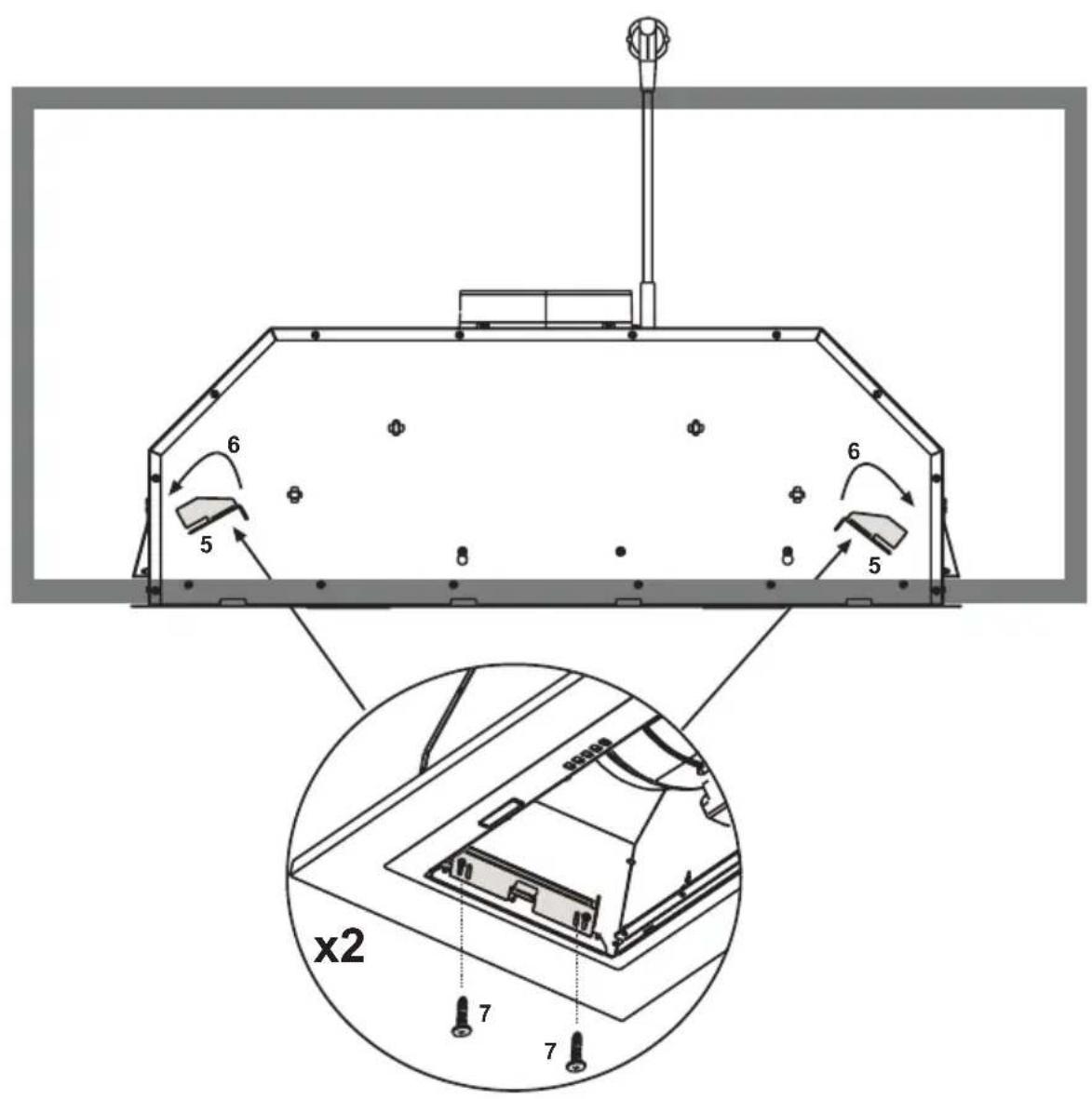

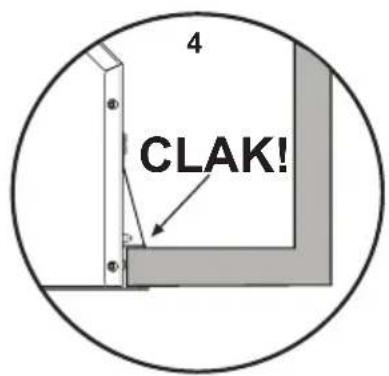

You should affix the hood to a wall of sufficient weight-bearing capacity.

The cooker hood must be placed at a minimum distance of 65 cm from the cooking plane for electric cookers and 50 cm for gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

Make sure that there is a power socket near the hood and that the system has a 30 mA differential. The mains voltage must be the same as that on the label inside the hood. The hood has a 1250 mm power cable with or without plug: if it does have a plug, connect the hood to an accessible approved socket; or if it does not (connection direct to the mains), fit an approved bipolar switch with a minimum contact opening of no less than 3 mm (accessible). This installation and electrical connection must be executed by a qualified technician.

Product performance test carried out in accordance with standard (EU) No 65/2014-Ref: IEC 61591

Maximum performance is achieved by placing the mobile panels, if any, in the open position.

A

B

1

2

3

A – lights ON/OFF

B –motor speed OFF

1 – 2 – 3 adjustment hood speed: minimum (1), average (2), maximum (3)

In the case of an excessive concentration of steam, adjust the hood to maximum speed. We advise starting the hood five minutes before beginning to cook and continue the function for at least 15 minutes after having finished cooking.

MaintenanceMainten

Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.

Cleaning

The hood must be cleaned frequently both inside (apart from the area behind the grease filter) and outside. Use a cloth moistened with denatured alcohol or neutral liquid detergents. Never use products containing abrasives.

Warning

Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

Anti-grease Filter

must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Charcoal Filter - (only for filter version)

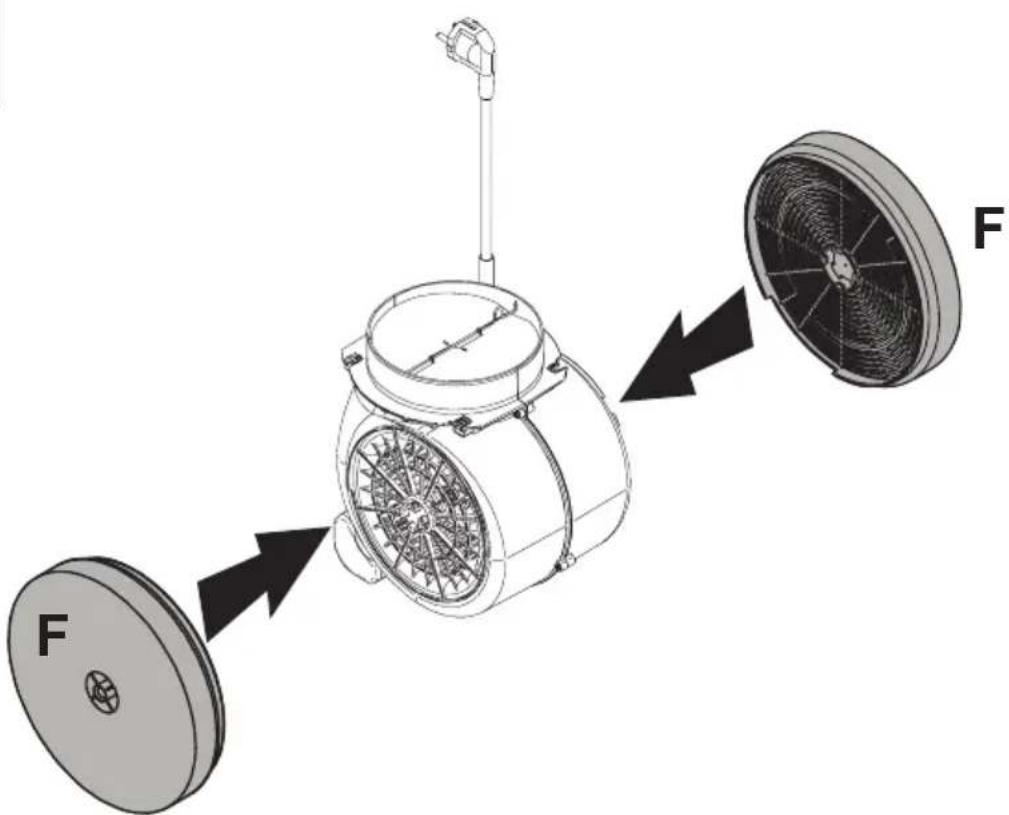

The active charcoal filters F are not washable nor regenerative. It should be changed every 6 months in normal use. The active charcoal filters capture unpleasant cooking odours.

Replacing lightbulbs

Warning! Prior to touching the light bulbs ensure they are cooled down.

Led Light

If the lighting group LED does not work, please contact the technical service center in order to replace the whole group.

Reducing environmental impact:

To reduce energy consumption, we recommend you always use the lowest suction speed among those suitable for the cooking mode currently active, avoid leaving the appliance running for more than 15 minutes after burner shutdown and switch off the lights if you leave the cooking area.
