USER MANUAL XE1100 Xtorm
In/Output USB-C 15W USB 15W Power Button LED Power Indicator Official Xtorm Label
3A Connect the USB end of the charging cable to the USB-A output of the Power Bank and the other end to the input of your device. The charging will start automatically. 3B Charging some devices requires a charging cable other than the one supplied. E.g. an Apple Lightning
or a Micro USB cable. 4A Connect the USB-C end of the charging cable to output 1 of the Power Bank and the USB end to a wall charger. 4B For the fastest charging possible use a 15W charger. This will fully recharge the Power Bank within 4 hours.
5A Press the Power Button once to display the battery level remaining in the Power Bank via the LED display. 5B Each lit LED light indicates 25% remaining energy in the Power Bank. At 4 lit lights, the Power Bank is fully charged.1 SPECIFICATIONS 2 PRODUCT OVERVIEW

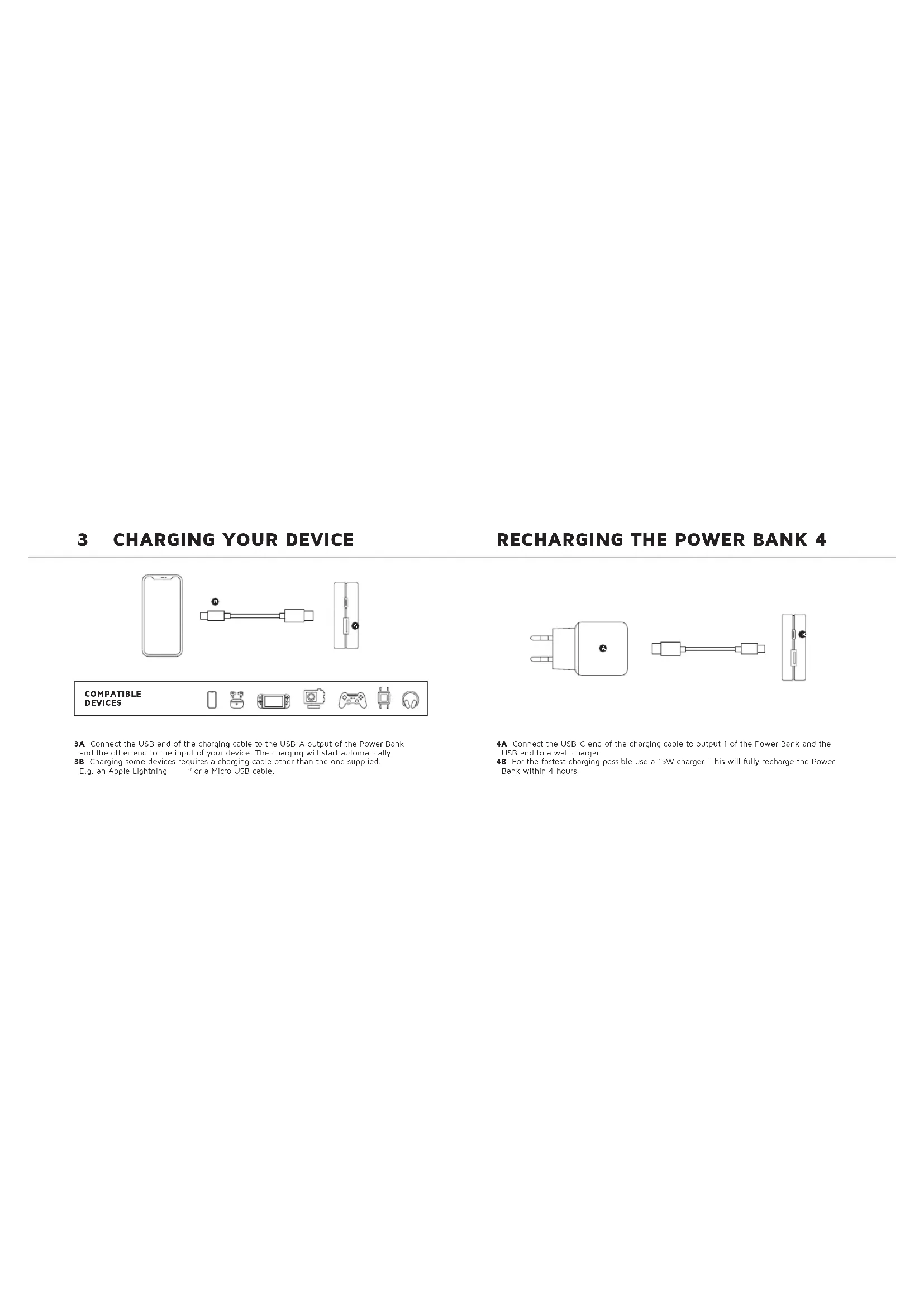

3 CHARGING YOUR DEVICE
3.A Connect the USB end of the charging cable to the USB-A output of the Power Bank and the other end to the input of your device. The charging will start automatically. 3.B Charging some devices requires a charging cable other than the one supplied. E.g. an Apple Lightning
4.A Connect the USB-C end of the charging cable to output 1 of the Power Bank and the USB end to a wall charger. 4.B For the fastest charging possible use a 15W USB-C PD charger. This will fully recharge the Power Bank within 4 hours.
5.A Press the Power Button once to display the battery level remaining in the Power Bank via the LED display. 5.B Each lit LED light indicates 25% remaining energy in the Power Bank. At 4 lit lights, the Power Bank is as good as fully charged.
6 I KASSEN1 TEKNISET TIEDOT
Protects both the internal battery as well as the battery of the attached device from overcharging.
3. SECURED POWER MANAGEMENT
Automatically picks the correct charging speed and efficiently devides power between attached devices.
4. SHORT CIRCUIT PROTECTION
Breaks the circuit automatically when an overcurrent is detected. This protects the Xtorm chargerand your device from short circuit damage.
5. A-CLASS BATTERY CELLS
We only use the best battery cells that provide the fast charging you need and meet all safety requirements.
Our power products are built to power your device as efficient as possible. This en- sures the least possible loss of energy during the charging process.
XTORM SAFETY CHECK WARNINGS
EN Warnings Don’t drop, dissemble or attempt to repair the charger by yourself. Avoid exposure to water or high humidity. Don’t expose to any heat source. Keep out of reach of children. Don’t use in the presence of flammable gas. The warranty will lapse in the event of improper use. Telco Accessories has tested the product in a test environ
