SMO200IX - Microwave Oven SIGNATURE - Free user manual and instructions

Product Type	Built-in Microwave Oven
Brand	SIGNATURE
Model	SMO200IX
External Dimensions (W x D x H)	592 x 331 x 376 mm
Cavity Dimensions (W x D x H)	315 x 296 x 211 mm
Capacity	20 liters
Net Weight	13 kg
Power Supply	220-240 V ~ 50 Hz, 1080 W
Microwave Power	700 W
Operating Frequency	2,450 MHz
Power Levels	10% / 30% / 50% / 70% / 100%
Functions	Quick cooking, microwave cooking, automatic defrost by weight
Child Safety	Yes (simultaneous lock of 1 Min and 10 Sec buttons)
Door Lock System	Yes
Finish	Stainless Steel
Installation Type	Built-in
Minimum Clearance Above Oven	40 mm
Included Accessories	Glass turntable, turntable support
Cleaning	Interior with damp cloth, turntable dishwasher-safe
Appliance Class	Group 2, Class B
Usage	Household use only
Spare Parts	Replaceable lamp (consult dealer), fuse 8A / 250V

Frequently Asked Questions - SMO200IX SIGNATURE

How to start a simple cooking cycle on the SMO200IX?

Press the Start/Reset button to start a one-minute cooking cycle at 100% power. You can increase the time in one-minute increments by pressing it repeatedly. The maximum time is 10 minutes. To stop, hold the button for 2 seconds.

What power levels are available?

Five power levels are accessible: 100% (P10), 70% (P7), 50% (P5), 30% (P3), and 10% (P1). Adjust by pressing the Micro/Defrost button until the desired level is displayed.

How to use automatic defrost?

Press Micro/Defrost to select the function (shows 'dEF'). Then set the food weight (0.1 to 2.0 kg) using the 1 Min and 10 Sec buttons. Start with Start/Reset. The oven automatically adjusts time and power.

How to activate child safety lock?

Press and hold the 1 Min and 10 Sec buttons simultaneously for 2 seconds. The lock activates. To deactivate, repeat the same operation.

What if the oven does not turn on?

Check that the plug is properly inserted. If not, unplug, wait 10 seconds, and plug back in firmly. Also check that the household fuse has not blown and that the door is closed properly. If the problem persists, contact a qualified technician.

What utensils can I use in this microwave?

Use only microwave-safe containers (glass, ceramic, microwave-safe plastic). Avoid metal, melamine, and items with metal trims. Sealed containers (closed bottles, eggs in shell) must not be used.

How to clean the oven interior?

Turn off and unplug the appliance. Wipe the walls with a damp cloth and mild detergent. For odors, heat a bowl of water with lemon juice for 5 minutes, then wipe. The glass turntable can be washed in the dishwasher. Never use a steam cleaner.

What are the cabinet dimensions for built-in installation?

The inner width must be 566 to 580 mm, height 365 to 380 mm. Depth must exceed 550 mm. The cabinet edge thickness should not exceed 15 or 20 mm. A minimum ventilation clearance of 40 mm above the oven is required.

Why does the oven cause radio interference?

Normal oven operation may disturb radio or TV reception. To reduce interference, clean the door and sealing surface, move the oven away from the receiver, or use a better antenna.

What to do if smoke appears inside the oven?

Do not open the door. Press Start/Reset or unplug the appliance to cut power. Keep the door closed to smother any flames. Do not use water.

USER MANUAL SMO200IX SIGNATURE

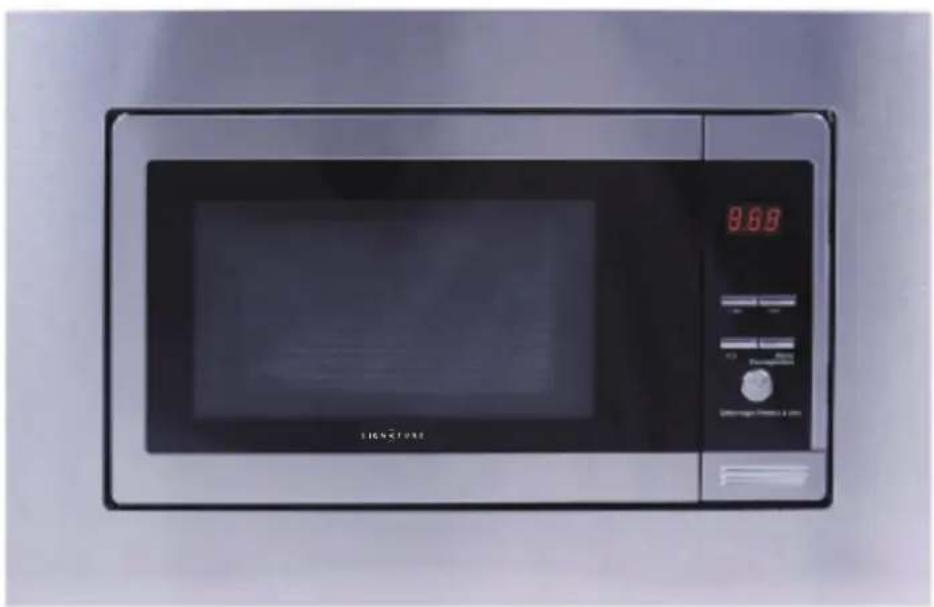

Front view of a black STEKTURE microwave oven with digital display and control buttons (no visible text or symbols on the device body)

SIGNATURE

FOUR À MICRO-ONDES ENCASTRABLE

SMO200IX

TABLE DES MATIERES

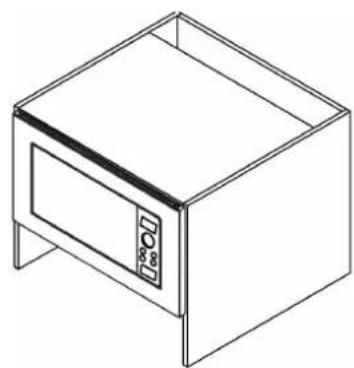

Technical diagram of a cabinet or enclosure with numbered parts labeled 1, 2, and 3.

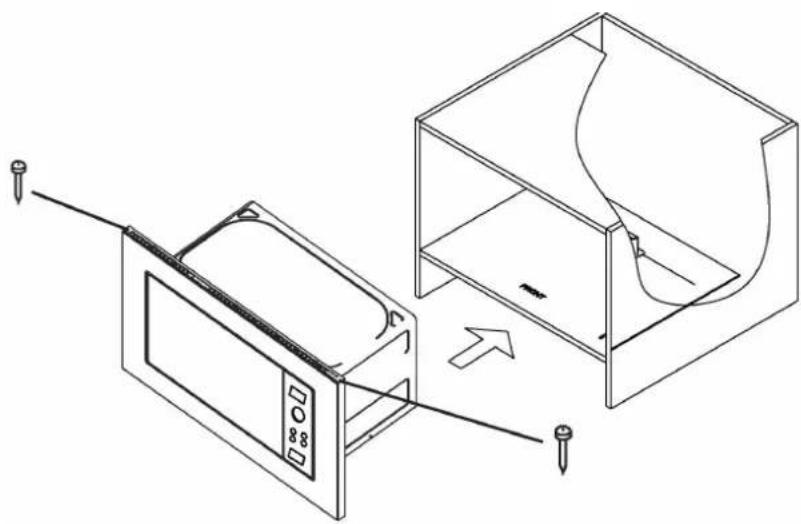

Diagram showing a microwave oven connected to a storage unit with three labeled parts and an arrow indicating assembly or transformation.

COMPOSANTS

Technical line drawing showing a microwave oven and its internal structure with screwdriver (no text or symbols)

Technical line drawing of a microwave oven with open door and internal panel, shown from two views (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet

Front view of a black Lienshoe oven with digital display and control buttons (no visible text or symbols on the main body)

SIGNATURE

MICROWAVE OVEN

SMO200IX

Table of contents

1. Important safety instructions - 2 -
2. SPEIFICATIONS - 7 -
3. BEFORE YOU CALL FOR SERVICE - 7 -
4. RADIO INTERFERENCE - 7 -
5. INSTALLATION -8-
6. IMPORTANT SAFETY INSTRUCTIONS - 9 -
   7.SAFETY INSTRUCTIONS FOR GENERAL USE -9-
7. CONTROL PANEL - 11 -
8. OPERATION INSTRUCTION -11-
9. CARE OF YOUR MICROWAVE OVEN - 13 -
10. BUILT-IN MICROWAVE OVEN INSTALLATION MANUAL - 14 -
11. FRAME INSTALLATION STEPS - 15 -
12. CORRECT DISPOSAL OF THIS PRODUCT - 16 -

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY! PLEASE READ CAREFULLY THIS MANUEL BEFORE YOUR FIRST USE AND SAVE IT FOR FUTURE REFERENCE.

Important safety instructions

When using electrical appliance basic safety precautions should be followed, including the following:

warning: to reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.

2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

3. Do not operate the oven when empty.

4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

5. To reduce the risk of fire in the oven cavity:

a. When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition.
b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
c. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
d.Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

e. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

1. Warning: liquid or other food must not be heated in sealed containers since they are liable to explode.

2. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.

3. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.

4. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

5. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.

6. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.

7. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.

8. Utensils should be checked to ensure that they are suitable for use in microwave oven.

9. Warning: it is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy

10. Group 2 ISM equipment: group 2 contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment. Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

11. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
12. Children should be supervised to ensure that they do not play with the appliance.
13. Warning: do not install oven over a range cooktop or other heat-producing appliance. If installed could be damaged and the warranty would be avoid.
14. The accessible surface may be hot during operation.
15. The door or the outer surface may get hot when the appliance is operating.
16. The temperature of accessible surfaces may be high when the appliance is operating.
17. Warning: if the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
18. The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.

19. The microwave oven is for household use only and not for commercial use.

20. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.

21. Please secure the turn table before you move the appliance to avoid damages.
22. Caution: it is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service central
23. Metallic containers for food and beverages are not allowed during microwave cooking.
24. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking. Care should be taken not to displace the turntable when removing containers from the appliance.
25. The appliance shall not be cleaned with a steam cleaner.
26. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
27. The microwave oven is intended for defrosting, cooking and steaming of food only.
28. Use gloves if you remove any heated food.
29. Caution! Steam will escape, when opening lids or wrapping foil.
30. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle.
31. The microwave oven is intended to be used built-in.

32. The means for disconnection from the supply mains having a contact separation in all poles must be incorporated in the fixed wiring in accordance with the wiring rules.

33. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

34. The lamp inside the product is used for lighting of the product. This lamp is not suitable for household room illumination.

35. Care should be taken not to displace the turntable when removing containers from the appliance

36. Fixed appliances and built-in appliances being used equal or higher than 900 mm above the floor and having detachable turntable shall state that careshould be taken not to displace the turntable when removing containers from the appliance. this is not applicable for appliances with a steam cleaner

37. If the removal of any cover results in microwave leakage

38. Warning, microwave energydo not remove this cover

39. The minimum height of the free space required above the top shell of the microwave oven is 40MM

CAUTION: Hot surface.

This appliance can be used by children aged from 8 years and above and persons with educated hysical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

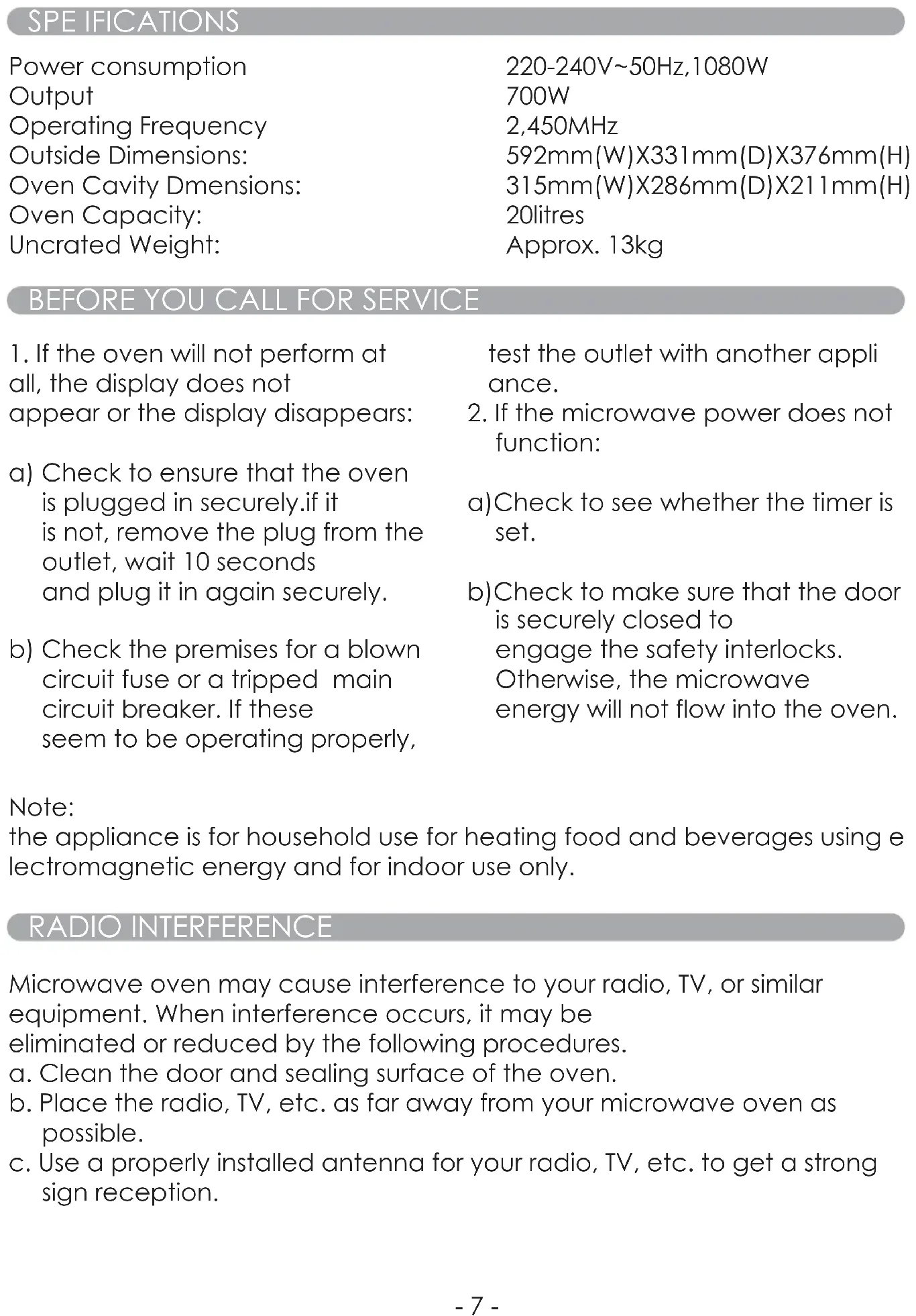

SPECIFICATIONS

Power consumption	220-240V~50Hz,1080W
Output	700W
Operating Frequency	2,450MHz
Outside Dimensions:	592mm(W)X331mm(D)X376mm(H)
Oven Cavity Dimensions:	315mm(W)X286mm(D)X211mm(H)
Oven Capacity:	20litres
Uncrated Weight:	Approx. 13kg

BEFORE YOU CALL FOR SERVICE

1. If the oven will not perform at all, the display does not appear or the display disappears:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.

b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly,

test the outlet with another appli ance.

1. If the microwave power does not function:

a) Check to see whether the timer is set.

b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.

Note:

the appliance is for household use for heating food and beverages using e lectromagnetic energy and for indoor use only.

RADIO INTERFERENCE

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a. Clean the door and sealing surface of the oven.
b. Place the radio, TV, etc. as far away from your microwave oven as possible.

c. Use a properly installed antenna for your radio, TV, etc. to get a strong sign reception.

1. Make sure all the packing materials are removed from the inside of the door.
2. Inspect the oven after unpacking for any visual damage such as:

Misaligned Door

Damaged Door

Dents or Holes in Door Window and Screen

Dents in Cavity

If any of the above are visible, DO not use the oven.

1. This Microwave Oven weighs 10.5kg and must be placed on a horizontal surface strong enough to support this weight.
2. The oven must be placed away from high temperature and steam.
3. DO NOT place anything on top of the oven.
4. DO NOT remove the turn -table drive shaft.
5. As with any appliance, close supervision is necessary when used by children.

WARNING-THIS APPLIANCE MUST BE EARTHED.

1. The plug socket should be within easy reach of the power cord
2. This oven requires 1.3K VA for its input. consultation with service engineer is suggested when installing the oven.

CAUTION: This oven is protected internally by ac 250V, 8 Amp Fuse

IMPORTANT SAFETY INSTRUCTIONS

-WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)
-WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
-WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
-WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.

• Only use utensils that are suitable for use in microwave ovens.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;
• When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
• The oven should be cleaned regularly and any food deposits removed;
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS FOR GENERAL USE

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.

4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
   5.Do not cook any food surrounded by a membrane,such as egg yolks,potatoes,chicken livers,etc without first being pierced several times with a fork.

5. Do not insert any object into the openings on the outer case.

6. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.

7. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.

8. IMPORTANT-COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN

Do not use metal pans or dishes with metal handles. Do not use anything with metal trim.

Do not use paper covered wire twist-ties on plastic bags. Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.

Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.

Do not cook in a container with a restricted opening, such as a pop bottle or salad oil bottle, as they may explode if heated in a microwave oven.

Do not use conventional meat or candy thermometers. There are the thermometers available specifically for microwave cooking. These may be used.

1. Microwave utensils should be used only in accordance with manufacturer's instructions.

2. Do not attempt to deep-fry foods in this oven.

3. Please remember that a microwave oven only heats the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not hot to the touch when

FEATURE DIAGRAM

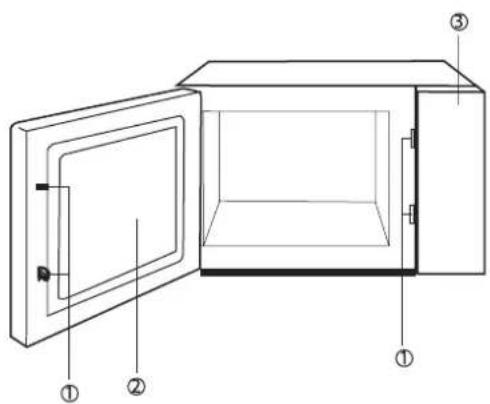

Technical diagram of a cabinet with labeled parts, showing open door and internal structure

removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

1. Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.
2. Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.
3. When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.
4. Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.
5. To reduce the risk of fire in the oven cavity:

(a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.

(b) Remove wire twist-ties from bags before placing bag in oven.
(c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

(1) Door Safety Lock System

(2) Oven Window
(3) Control Panel

CONTROL PANEL

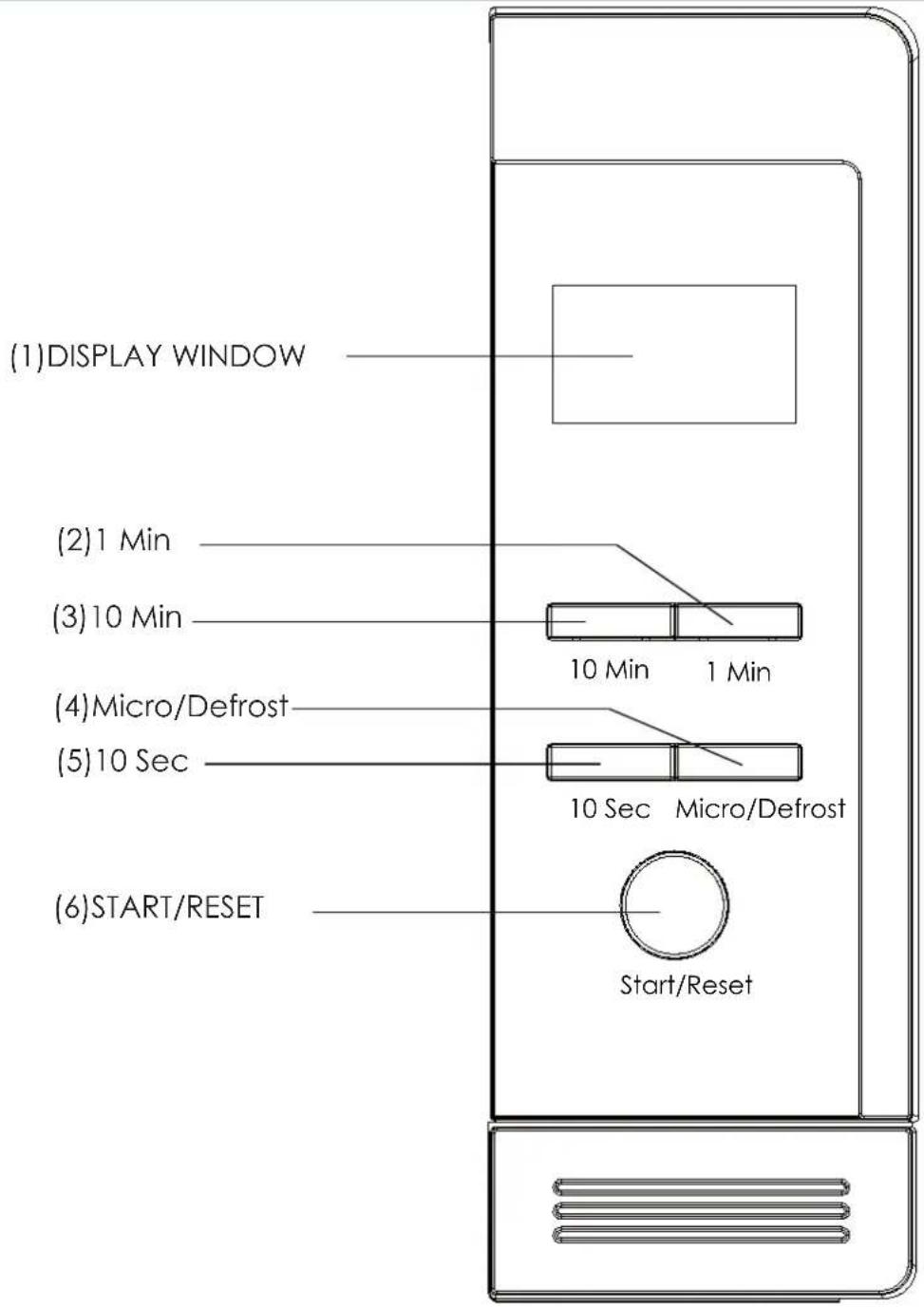

(1)DISPLAY WINDOW (2)1 Min (3)10 Min 10 Min 1 Min (4)Micro/Defrost (5)10 Sec 10 Sec Micro/Defrost (6)START/RESET Start/Reset

You only need press "START/RESET" to start cooking for 1 min with 100% microwave power. Each press means increasing one minute cooking time, the maximum time is 30 min. After cooking finished you will sound five beeps for remind.

Press and hold the "Start/Reset" for 2 seconds to stop.

(A) Fast cooking method

(For example: Select 100% power to cook foods for 5 minutes.)

a) Set the time "5:00"

b) Press "START/RESET" button

(B) Control by hand

(For example: Select 70% power to cook foods for 10 minutes)

a) Press "Micro/Defrost" button to select 70% power.

b) Press time button to set cooking time "10:00"

c) Press "START/RESET" button.

You can press "Micro/Defrost" button to select power.

Step	Display Micro power
1 P10 100%
2	P7	70%
3	P5	50%
4	P3	30%
5	P1	10%

3. AUTO DEFROST FUNCTION

You need to press "1Min" (1.0kg-2.0kg) and "10Sec" (0.1kg-0.9kg) according to the weight of the food.

The oven can select defrosting program and auto start defrosting.

For example: defrost 0.4kg frozen foods

1) Press "Micro/Defrost" to choose defrost function, display "dEF".

2) Set weight "0.4kg" by pressing "10Sec" buttons.

3).Press "START/RESET" button.

Remark: the maximum weight is 2kgs.

4. START AND RESET

1) Open door status

Press "START/RESET" button to cancel setting or cooking program.

Press "START/RESET" button to start cooking after setting cooking program.

Press "START/RESET" button to continue cooking when the cooking is in pause status.

Press " START/RESET" button to stop working when the microwave oven is operating.

5. CHILDREN SAFETY LOCK

To activate the Child Lock, press "1Min" and "10Sec" buttons at the same time for 2 seconds.

After that press any button is useless. If press "1Min" and "10Sec" button at the same time for 2 seconds again it will unlock this function.

CLEANING AND CARE OF YOUR MICROWAVE OVEN

1. Turn the oven off and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth.

The use of harsh detergent or abrasives is not recommended.

1. The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
2. Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the control Panel.

3. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.

4. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.

5. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or dish washer. Cooking vapour collect during repeated use but in no way affect the bottom surface or roller ring wheels. When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.
6. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth.
7. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

Diagram showing a microwave oven connected to a storage unit with numbered instructions and arrows indicating assembly or operation.

COMPONENTS

1、bolt φ3×20mm 2PCS
2. screwcover 1PCS
2、bolt 4×45mm 1PCS

TRIM KIT SPECIFICATIONS

Cavity dimensions

Width 566-580mm

Height 365-380mm

Depth 550mm

FRAME dimensions

Width 592mm

Height 390mm

Depth 20mm

Cabinet measurement Requirements(illustrated above):

1. Cabinet's inner dimension in transverse direction is 566mm.
   This is the minimum distance from the left batten to right batten. Do not alter.

2. Cabinet's inner dimension in longitudinal direction is 365mm.
   This is the minimum distance from the left batten to right batten. Do not alter.

3. Cabinet's depth should be no less than 550mm.

4. Outside dimension of cabinet should be no less than 596mm, as the frame length is 592mm.

5. Cabinet's board less than 15mm or 20mm thick.

6. Both the left and right sides of the microwave oven need to have at least 5mm of space.

Technical line drawing showing a microwave oven and its internal structure with screwdriver (no text or symbols)

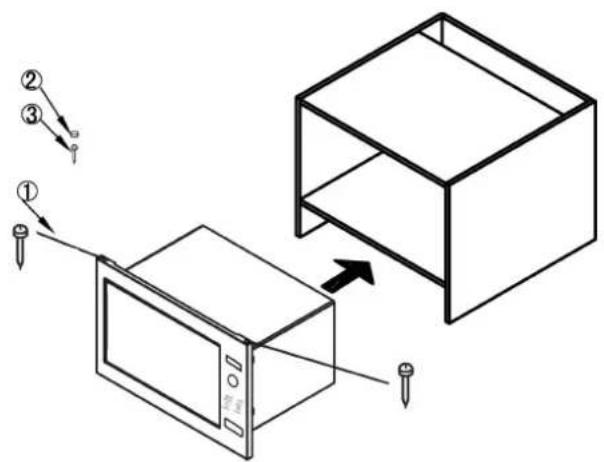

1. Put the microwave oven into the cabinet and keep the microwave oven in a horizontal direction and keep the edge distance of two side as same. Then fix the bolt(component 1) on the top of microwave oven and beat it into the cabinet.

Line drawing of a microwave oven with an open door and internal components, showing a close-up inset of the lid (no text or symbols)

Line drawing of a simple kitchen oven with a door and control panel (no text or symbols)

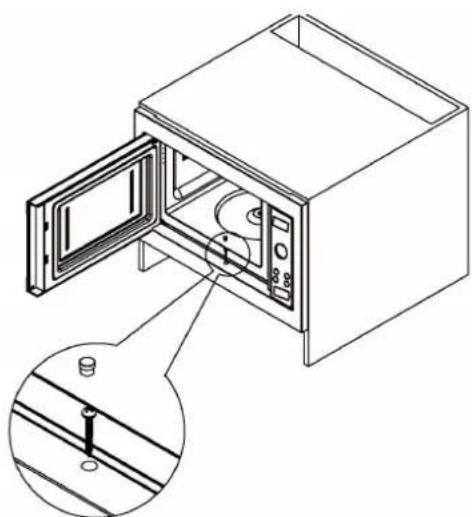

1. Open the microwave oven, fix the bolt (Component 5) and beat it into the cabinet, then install screw cover

CORRECT DISPOSAL OF THIS PRODUCT

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
