Product type	Microwave oven with grill
Brand	SIGNATURE
Model	MOG25MG
Power supply voltage	230 V~ 50 Hz
Microwave power (input)	1450 W
Microwave power (output)	900 W
Grill power	1000 W
Number of microwave power levels	5 (10%, 30%, 50%, 80%, 100%)
Cooking functions	Microwave, Grill, Combined (2 modes), Defrost (weight or time), Quick cook, Auto menu (8 programs)
Timer	Up to 95 minutes
Clock	Built-in with 24h setting
Child lock	Yes (by holding Stop button for 3 seconds)
Installation type	Freestanding (not built-in)
Included accessories	Glass tray, turntable ring, grill rack
Cleaning	Damp cloth, lemon tip for walls
Safety	Child lock, grounding, safety interlock system
Warranty	2 years (legal warranty of conformity)
After-sales service	BUT – 09 78 97 97 97 (local call)

Frequently Asked Questions - MOG25MG SIGNATURE

How to set the oven clock?

Press Clock once. Turn the knob to set the hours (0-23), then press Clock to confirm. Turn the knob to set the minutes (0-59), then press Clock again to confirm.

How to use the defrost function?

Two modes: Defrost by weight (press Defrost once, then turn to select weight from 100 to 2000 g) or Defrost by time (press twice, then set time from 0 to 95 minutes). Start with Start/+30s.

Which utensils are suitable for microwave?

Use microwave-safe dishes: heat-resistant glass, suitable plastic, parchment paper, etc. Avoid metal, aluminum, metal ties, and paper bags. When in doubt, perform the utensil test described in the manual.

How to clean the inside of the oven?

Unplug the appliance. Clean the inside with a damp cloth. For stubborn stains, place a lemon in a bowl with 300 ml of water, heat at 100% for 10 minutes, then wipe with a soft dry cloth.

How to activate the child lock?

In standby mode, press and hold the Stop button for 3 seconds. A long beep sounds and the lock icon appears. To deactivate, repeat the same operation.

What to do if the oven does not start?

Check that the power cord is properly plugged. If the fuse has blown, replace it or reset the circuit breaker. Make sure the door is closed properly. Test the socket with another appliance. If the problem persists, contact after-sales service.

Can I use metal containers in the oven?

No, metal containers or those with metal trim can cause electric arcs and damage the oven. Use only microwave-safe utensils.

How to use combined cooking?

Press Grill/Combi. several times to select the mode: C-1 (55% microwave + 45% grill) or C-2 (36% microwave + 64% grill). Confirm with Start/+30s, set cooking time (max 95 min) and start.

What is the power of this oven?

Microwave power: 900 W output (1450 W input). Grill power: 1000 W. Five power levels available: 10%, 30%, 50%, 80%, 100%.

How to reset the clock?

Repeat the setting procedure: press Clock, set hours, confirm, set minutes, and confirm. If no button is pressed for 1 minute, the setting is canceled.

USER MANUAL MOG25MG SIGNATURE

Black signature microwave oven with digital display and control knobs (no visible text or symbols on main body)

SIGNATURE®

FOUR À MICRO-ONDES

TABLE DES MATIERES

Line drawing of a mechanical lever with a handle and central hub, accompanied by a magnified inset showing a rotating component (no text or symbols)

Diagram of a microwave oven with labeled parts A, B, C, D, and E for identification

Technical diagram of a kitchen sink with labeled components and parts

1) Plateau en verre

Line drawing of a microwave oven with lid and door, showing open door and interior (no text or symbols)

Remarque :

Warning symbol with steam inside a triangle (no text or numbers)

1 Micro-ondes Grill/Combi. 2 Décongélation Menu auto. 3 Minuterie Horloge 4 Stop Départ/+30s 5 6 7 8

1 Micro-ondes
2 Décongélation
3 Minuterie
4 Stop
5 Grill/Combi.
6 Menu auto.
7 Horloge
8 Départ/+30s

6. OPÉRATIONS

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Black signature microwave oven with digital display and control knobs (no visible text or symbols on main body)

SIGNATURE®

MICROWAVE OVEN

MOG25MG

DIRECTORY

1. Precautions to avoid possible exposure to excessive microwave
   energy -27-
2. Important safety instructions -29-
3. To reduce the risk of injury to persons grounding installation -34-
4. Utensils -34-
5. Names of oven parts and accessories -36-
6. Operation -40-
7. Trouble shooting -44-
8. Cleaning -45-
   9.. Specifications -45-
9. Correct disposal of this product -45-

Please read these instructions carefully before the first use of this product and save this manual for your future reference.

Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service.

1. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.

(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

(c)WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

2. IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific:
   "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
3. Keep the appliance and its cord out of reach of children less than 8 years.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service

agent or similarly qualified persons in order to avoid a hazard.

1. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

2. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

3. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

4. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

5. Only use utensils that are suitable for use in microwave ovens.

6. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

7. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

8. The contents of feeding bottles and baby food jars shall be stirred or shaken

and the temperature checked before consumption, in order to avoid burns.

1. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

2. The oven should be cleaned regularly and any food deposits removed.

3. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

4. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)

5. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

6. The microwave oven shall not be placed in a cabinet or furniture.

7. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)

8. This appliance is intended to be used in household and similar applications such as:

9. staff kitchen areas in shops, offices and other working environments;

10. by clients in hotels, motels and other residential type environments;
11. farm houses;

12. bed and breakfast type environments.

13. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

14. Metallic containers for food and beverages are not allowed during microwave cooking.

15. The appliance shall not be cleaned with a steam cleaner.

16. The appliance is intended to be used freestanding.

17. The rear surface of appliances shall be placed against a wall.

18. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

19. The temperature of accessible surfaces may be high when the appliance is operating.

20. WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

For details for cleaning door seals, cavities and adjacent parts please refer to chapter 8 'CLEANING'.

The microwave oven is intended to be used freestanding, it is not intended to be built-in. Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional.

3. TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

4. UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

UTENSIL TEST:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.

5. NAMES OF OVEN PARTS AND ACCESSORIES

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

Glass Tray

Mechanical component diagram showing a three-lobed shaft with internal chambers and a small inset view of a cylindrical component (no text or symbols)

Turntable Ring Assembly

Grill Rack( Can not be used in microwave function and must be placed on the glass tray )

Instruction Manual

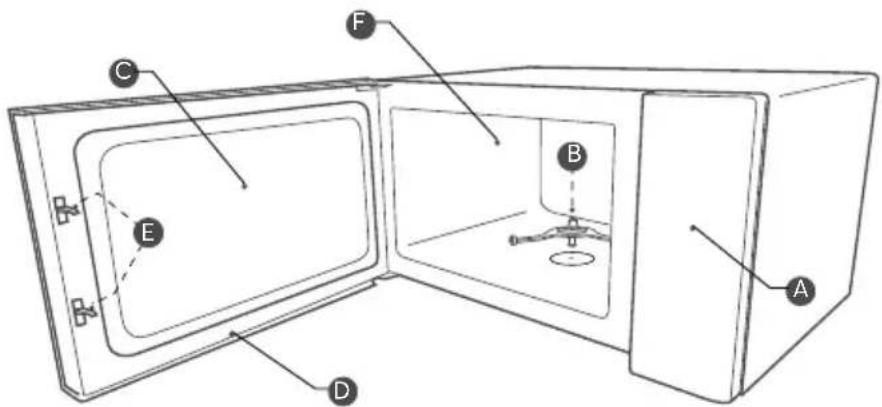

Diagram of a microwave oven with labeled parts A, B, C, D, and E for identification

A) Control panel
B) Turntable Ring Assembly
C) Observation window

D) Door assembly

E) Safety interlock system

F) Oven cavity

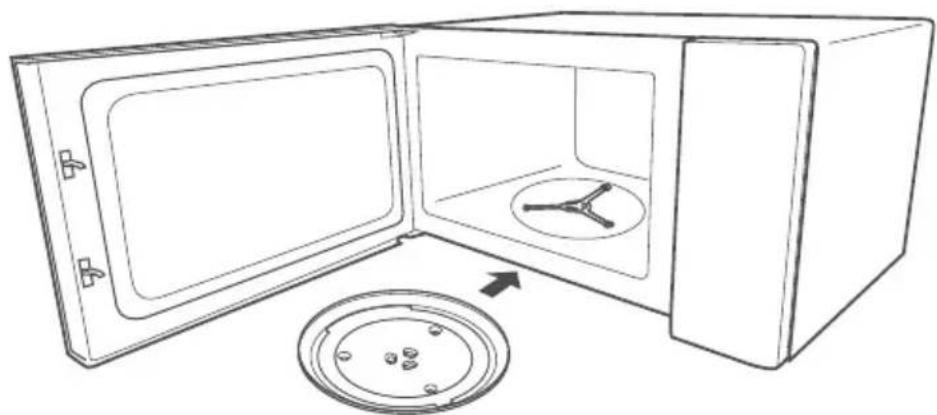

Cleaning the cooking compartment and putting the turntable in place. For new installations, make sure all packaging and shipping tape has been removed. Before using the appliance to prepare food for the first time, you will need to put the turntable in place correctly. You must clean the cooking compartment and accessories.

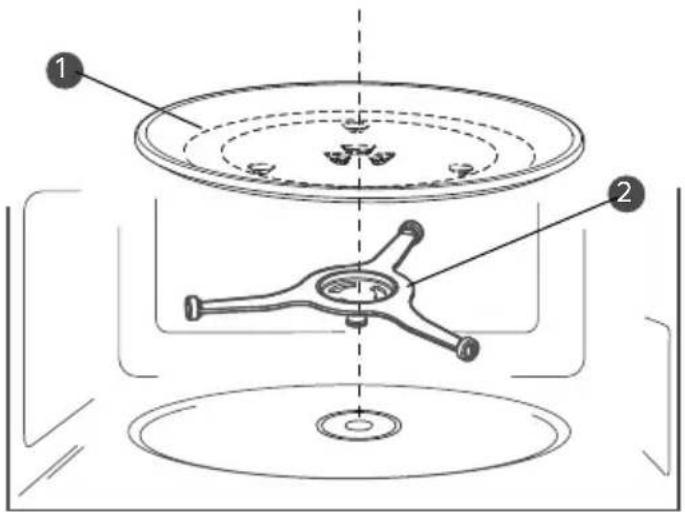

Technical diagram of a kitchen sink with labeled components and parts

1) Glass Tray

2) Turntable Ring Assembly

Line drawing of a microwave oven with open door and circular base (no text or symbols)

Note:

1. Never use the appliance without the turntable. Make sure that it is properly engaged. The turntable can turn clockwise or anti-clockwise.
2. Never place the glass tray upside down. The glass tray should never be restricted.
3. Both glass tray and turntable ring assembly must always be used during cooking.
4. All food and containers of food are always placed on the glass tray for cooking.
5. Never restrict the movement of the turntable.
6. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

COUNTERTOP INSTALLATION

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

INSTALLATION

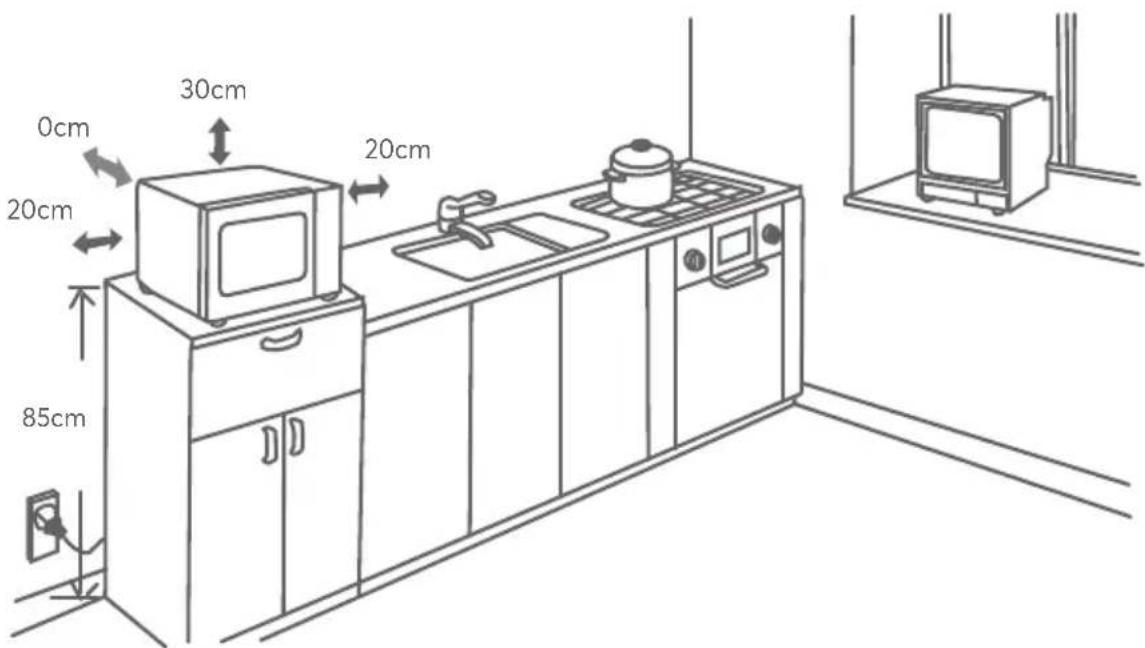

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

0cm 20cm 30cm 20cm 85cm

(1The minimum installation height is 85cm.
(2)The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven. A minimum clearance of 20cm is required between the oven and any adjacent walls.
(3) Do not remove the legs from the bottom of the oven.
(4)Blocking the intake and/or outlet openings can damage the oven.
(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

Warning symbol with steam inside a triangle (no text or numbers)

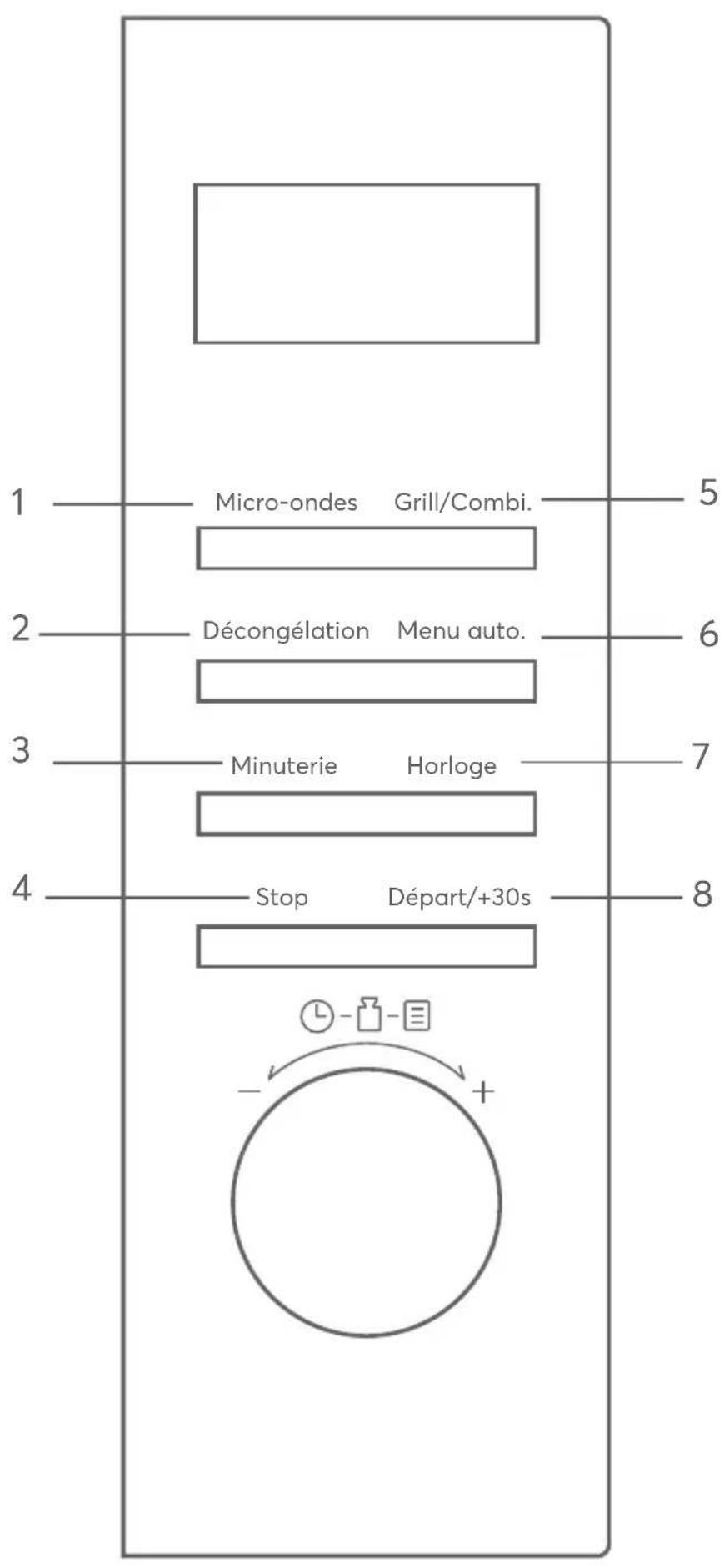

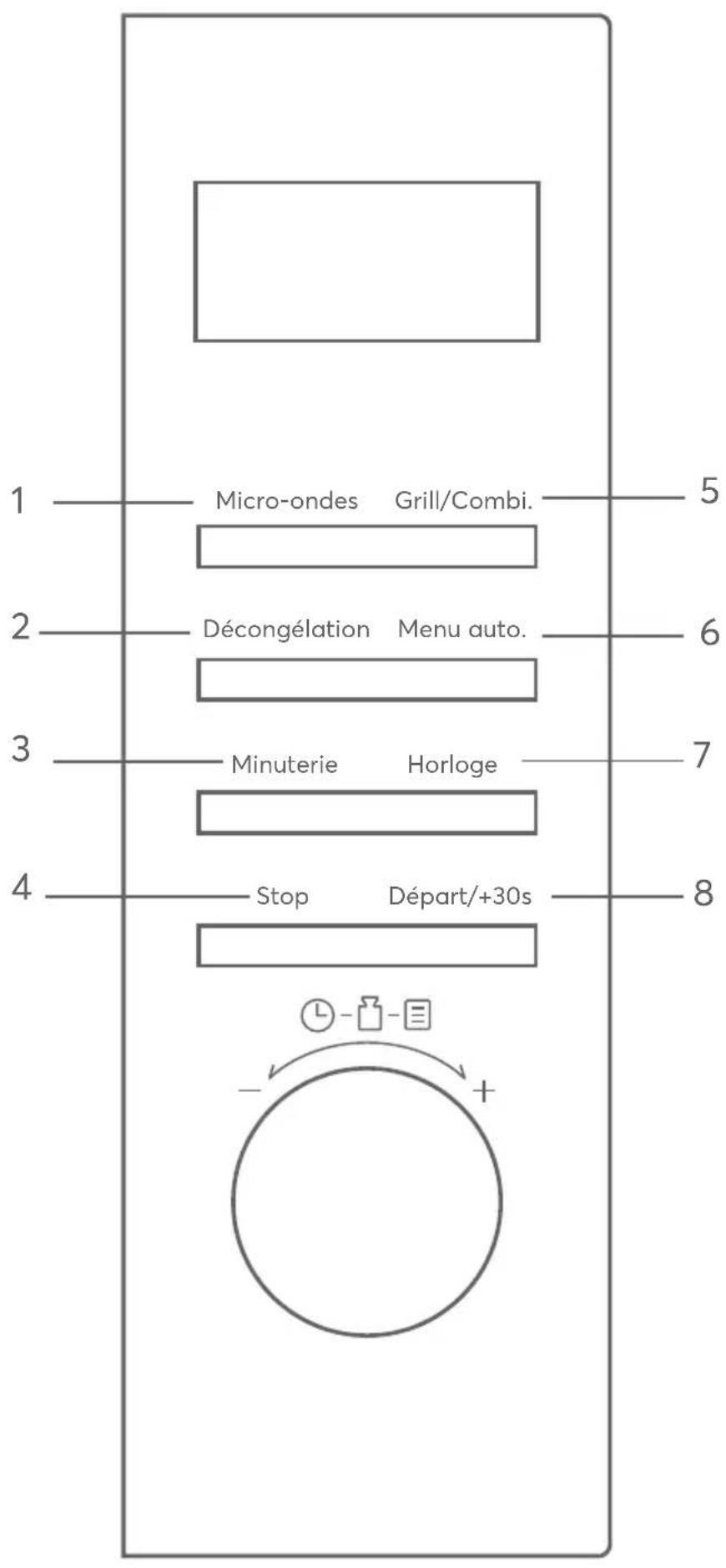

1 Micro-ondes Grill/Combi. 2 Décongélation Menu auto. 3 Minuterie Horloge 4 Stop Départ/+30s 5 6 7 8

1 Micro-ondes
2 Décongélation
3 Minuterie
4 Stop
5 Grill/Combi.
6 Menu auto.
7 Horloge
8 Départ/+30s

6. OPERATION

Please confirm already loaded food in the appliance before operation.

1. Setting the Clock

1) Press Horloge once and then "00:00" will display.
2) Turn the knob to set the hour figures. The time should be within 0-23.
3) Press Horloge to confirm.
4) Turn the knob to set the minute figures. The time should be within 0-59.
5) Press Horloge to confirm. The clock is set.

Notes:(1) After the step 4, if the Horloge button is not pressed or if there is no operation within 1 minute, the setting is invalid.

(2) To reset the clock, please repeat step 1 to step 5.
(3) If the clock is not set, it would not function when powered.

2. Microwave Cooking

5 power levels are available.

Power Level 1	00% 80% 50%	30% 10%
Display P10	0 P80 P50 P30	P10

1) Press Micro-ondes and then "P100" will display.
2) Press Micro-ondes repeatedly or turn the knob to set the power level.
3) Press Départ/+30s to confirm.
4) Turn the knob to adjust the cooking time.
5) Press Départ/+30s to start cooking.

3. Setting the Kitchen Timer

1) Press Minuterie once and then "00:00" will display.
2) Turn the knob to set the desired time. The maximum time value is "95:00".
3) Press Départ/+30s to confirm. The timer starts counting down.

4. Grill Cooking

1) Press Grill/Combi. and then "G-1" will display.
2) Press Départ/+30s to confirm.
3) Turn the knob to set the cooking time. The maximum time value is "95:00".
4) Press Départ/+30s to start cooking.

5. Combination Cooking

1) Press Grill/Combi. once and then "G-1" will display. Press Grill/Combi. repeatedly to choose the power you want, and "C-1", "C-2" will display in order.
2) Press Départ/+30s to confirm.
3) Turn the knob to set the cooking time. The maximum time value is "95:00".
4) Press Départ/+30s to start cooking. Note:

Combination instructions

Function Display		Microwave Power	Grill Power
Combi. 1 C-1	55% 45%
Combi. 2 C-2	36% 64%

6. Defrost by Weight

1) Press Décongélation once and then the screen will display "dEF1".
2) Turn the knob to set the weight of food. The range of weight is 100 to 2000g.
3) Press Départ/+30s to start defrosting.
4) Once defrosting has finished, the buzzer will sound five times.

7. Defrost by Time

1) Press Décongélation twice and then the screen will display "dEF2".
2) Turn the knob to set the desired defrost time. The range of time is 0:00-95:00.
3) Press Départ/+30s to start defrosting.
4) Once defrosting has finished, the buzzer will sound five times.

8. Multi-Stage Cooking

Notes:(1) Two cooking stages can be set in multi-stage cooking.

(2) If you set defrost function, it will work automatically in the first stage.
(3) Kitchen Timer and Auto menu cannot be set as one of the multi-stage.
(4) You can press Départ/+30s to increase cooking time during multi-stage cooking.

Example: defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes

1) Press Décongélation twice and then the screen will display "dEF2".
2) Turn the knob to set the desired defrost time of 5 minutes.
3) Press Micro-ondes and then "P100" will display.
4) Turn the knob to set the power level of P80.
5) Press Départ/+30s to confirm.
6) Turn the knob to set the cooking time of 7 minutes.
7) Press Départ/+30s to start cooking.

9. Speedy Cooking

1) In waiting state, press Départ/+30s to cook food with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds and the maximum time value is 95 minutes.

2) In waiting state, turn the knob left to set a cooking time with 100% power. Then press Départ/+30s to start cooking.

10. Lock Function for Children

You can use this function to prevent children from accidentally turning the oven on. To activate the lock:

In waiting state, press and hold Stop for three seconds. A long beep sounds and the locked icon will display.

To deactivate the lock:

In locked state, press and hold Stop for three seconds. A long beep sounds.

11. Inquiring Function

1) If the clock has been set, the current time will display for three seconds by pressing Horloge in the cooking state.
2) In the microwave cooking, press Micro-ondes to inquire the power level. In grill and combination cooking, press Grill/Combi. to inquire the power level.

12. Auto menu

1) Press Menu auto. once and then "A-1" will display.
2) Press Menu auto. repeatedly or turn the knob to choose the menu you need. 8 auto menus are available.
3) Press Départ/+30s to confirm.
4) Turn the knob to set the weight of food.
5) Press Départ/+30s to start cooking.

Menu Weight	Display
A-1Auto Reheat	200g 200
	400g 400
A-2Meat	250g 250
	350g 350
	450g 450
A-3Vegetable	200g 200
	300g 300
	400g 400
A-4Pasta	50g(450g cold water)	50
	100g(800g cold water)	100
A-5Potato	1(about 230g) 1
	2	2
	3	3
A-6Fish	250g 250
	350g 350
	450g 450
A-7Beverage	1(120ml) 1
	2(240ml) 2
	3(360ml) 3
A-8Popcorn	50g 50
	100g 100

7. TROUBLE SHOOTING

	Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble Possible Cause Remedy
Oven cannot be started.	Power cord is not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat. Door is not closed well. Close door well.

8. CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

9. SPECIFICATIONS

Model:	MOG25MG
Rated Voltage:	230V~ 50Hz
Rated Input Power (Microwave):	1450W
Rated Output Power (Microwave):	900W
Rated Output Power (Grill):	1000W

10. CORRECT DISPOSAL OF THIS PRODUCT

Symbol of a trash bin crossed out by two crossed lines, with a blank rectangular base below (no text or symbols)

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97 Monday to Friday from 9:00 am to 19:00 pm

Saturday from 9:00 am to 18:00 pm (local call price).

LE TRI

FACILE
