MO20-SM - Microwave Oven SIGNATURE - Free user manual and instructions

Product type	Microwave oven
Brand	SIGNATURE
Model	MO20-SM
Power supply	230 V~, 50 Hz
Rated power	1150 W
Output power (microwave)	700 W
Capacity	20 L
Turntable diameter	24.5 cm
Dimensions (W × D × H)	45.1 × 34.3 × 25.8 cm
Net weight	10.2 kg
Power levels	5 (Low, Med-Low, Medium, Med-High, High)
Timer	Up to 35 minutes
Installation type	Freestanding, do not place in a cabinet
Usage	Household use only
Maintenance	Clean regularly with a damp cloth; do not use steam cleaner
Safety	Door lock, automatic shut-off, overheat protection
Replacement parts	Turntable, rotating ring, rotation shaft, waveguide cover
Warranty	2-year legal conformity warranty
After-sales service	Contact the BUT store or call 09 78 97 97 97

Frequently Asked Questions - MO20-SM SIGNATURE

How to set the clock on the microwave oven?

The SIGNATURE MO20-SM microwave oven does not have a digital clock. The timer is set with a rotary knob up to 35 minutes. Turn the knob beyond 3 minutes if you wish to set a time less than 2 minutes, then go back to the desired time.

What utensils can I use in this oven?

Use only microwave-safe containers: heat-resistant ceramic (without metallic trim), heat-resistant plastic (not for extended cooking), heat-resistant glass, plastic wrap (except for meat or chops). Never use metal containers.

How to clean the microwave oven?

Unplug the appliance before cleaning. Clean the exterior with a soft damp cloth. For the interior, use a soft damp cloth. Wipe door seals. The turntable, ring and shaft can be washed with soapy water. Never use abrasive detergent or metal brush. Do not remove the waveguide cover.

What if the oven does not turn on?

First check that the door is properly closed. Make sure the cord is plugged in and the outlet works. Check the circuit breaker fuse. If all is in order, place a cup of water (150 ml) in the oven and close the door. Set the timer to 1 minute. If the oven does not heat, contact after-sales service.

Can I operate the oven empty?

No, never operate the oven empty. This could damage the appliance. Always ensure there are food or liquid inside when in use.

How to defrost food?

Use the lowest power level (Low) to defrost. For 200 g, count about 4 minutes; for 400 g, 8 minutes; for 600 g, 12 minutes. Halfway through, open the door and turn the food for even defrosting.

What are the burn risks?

The surfaces of the oven, especially the door and interior, become hot. Use gloves to remove food. Be careful of steam when opening covers. Liquids can erupt suddenly after heating; let them sit for a few moments before removing.

How to use the microwave function?

Place food in a suitable container on the turntable. Close the door. Turn the power knob to the desired level (Low to High). Set the timer by turning the knob clockwise to the desired time. The oven starts automatically. At the end of cooking, a bell rings.

What to do if there is smoke inside the oven?

Keep the door closed to smother flames. Turn off the oven and unplug it. Only open the door when the smoke has dissipated. Then thoroughly clean the interior to remove any grease residue.

Where can I find after-sales service?

For any questions or repairs, contact BUT after-sales service at 09 78 97 97 97 (price of a local call), Monday to Friday from 9 am to 7 pm and Saturday from 9 am to 6 pm. You can also go to a BUT store. The appliance has a 2-year legal conformity warranty.

USER MANUAL MO20-SM SIGNATURE

Exterior view of a microwave oven with control knobs and a signed timer (no visible text or symbols on the main subject)

SIGNATURE®

FOUR À MICRO-ONDES

MO20-SM

TABLE DES MATIERES

1. CONSIGNE DE SECURITE - 3 -
2. INSTALLATION - 15-
3. NETTOYAGE ET ENTRETIEN - 16-
4. DESCRIPTION DU MICRO-ONDES - 17-
5. DESCRIPTION DU PANNEAU DE CONTROLE - 18-
6. FONCTIONNEMENT - 19 -
7. GUIDE DES USTENSILES - 21-
8. CONSEILS DE CUISSON - 22 -
9. ENTRETIEN - 24 -
10. L'ENTRETIEN DES DISPOSITIFS DE PROTECTION - 24 -

Symbolic icon of a person walking with arrows, enclosed in a circle (no text or symbols)

LE TRI + FACILE BAC DE TRI

Warning symbol depicting steam rising inside a triangle, indicating hazardous material

: ATTENTION : SURFACE CHAUDE

Exterior view of a microwave oven with control knobs and a side panel (no visible text or symbols on the main subject)

SIGNATURE®

MICROWAVE OVEN

MO20-SM

TABLE OF CONTENTS

1. IMPORTANT SAFEGUARDS - 28 -
2. INSTALLATION - 35-
3. CLEANING AND MAINTENANCE - 36 -
4. PRODUCT INSTRUCTION - 38 -
5. OPERATION OF CONTROL PANEL - 39 -
6. OPERATION - 40 -
7. UTENSILS GUIDELINE - 42 -
8. COOKING TIPS - 42 -
9. MAINTENANCE - 44 -
10. SERVICING SAFEGUARDS - 44 -

Warning symbol with exclamation mark inside a triangle (no text or numbers)

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY!

Please read these instructions carefully before the first use of this product and save this manual for your future reference.

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The following basic precautions should always be followed when using electrical appliance:

1. Read all instructions before using.

2. Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance. And the wall socket is properly grounded.

3. To reduce the risk of fire in the oven cavity:

a. Do not overcook the food.
b. Remove wire twist -ties from paper or plastic bags before placing bags in the oven.
c. Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled.

d. After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built -up grease may overheat and begin to cause smoke or catch fire.

e. If materials inside the oven should smoke or ignite, keep oven door closed, turn oven off and disconnect the power supply.

f. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of

ignition.

1. To reduce the risk of explosion and sudden boiling:

a. WARNING: Liquids and other foods must not be heated in sealed container since they are liable to explode; Baby bottles fitted with a screw cap or teat are considered to be sealed containers.

b. Use the wide -mouthed container to cook liquid, and the cooked liquid should not be removed out immediately. Several moments should be waited before removing. In order to avoid possible hazards caused by delayed eruptive boiling of liquids.

c. Potatoes, sausage and chestnut should be peeled or pierced before cooking. Eggs in their shell, whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

d. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away from the face and hands.

3. Slowly lift the furthest edge of dishes cover and microwave plastic wrap and carefully open popcorn and oven cooking bags away from the face.

4. To prevent the turntable from breaking:

a. Let the turntable cool down before cleaning.

b. Do not place hot foods or utensils on the cold turntable.

c. Do not place frozen foods or utensils on the hot turntable.

1. Make sure the utensils do not touch the interior walls during cooking.

2. Only use utensils that are suitable for use in microwave ovens.

3. Do not store food or any other things inside the oven.

4. Do not operate the oven without any liquid or food inside the oven. This would do damage the oven.

5. When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

6. Any accessories not recommended by the manufacturer may cause injuries to persons.

7. Do not use outdoors.

8. Save these instructions.

9. WARNING: If the door or door seals are damaged or the oven is malfunctioned, the oven must not be operated until it has been repaired by a competent person;

10. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;

11. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;

12. Microwave heating of beverages can result in delayed eruptive boiling; therefore care must be taken when handling the container;

13. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

14. The lamp of microwave oven is not intended for other purposes.
15. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
16. This appliance is intended to be used in household and similar applications, such as:

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses;

- By clients in hotels, motels and other residential environments;

- Bed and breakfast type environments.

1. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children should be supervised to ensure that they do not play with the appliance.

1. The appliance shall not be cleaned with a steam cleaner.

2. The door or the outer surface may get hot when the appliance is operating.

3. WARNING: Accessible parts may become hot during use. Young children should be kept away.

4. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

5. The surfaces are liable to get hot during use.

Warning sign depicting steam rising inside a triangle, indicating hazardous or hazardous material.

: CAUTION:HOT SURFACE

1. Unplug the appliance before cleaning.

2. The waveguide cover must not be removed.

3. For details about how to clean the door joints, the cavities and the adjacent parts, please refer to section "CLEANING AND MAINTENANCE".

4. To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10cm, the side to the wall should be at least 5cm, the free distance above the top surface at least 20cm.

5. Metallic containers for food and beverages are not allowed during microwave cooking.

37.7. The oven should be cleaned regularly and any f deposits removed.

1. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

2. The microwave oven is only used in freestanding, the microwave oven shall not be placed in a cabinet.

3. This product is for household use only!

4. Group 2 Class B appliance

Group 2 ISM equipment: group 2 contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment. Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

1. This product internal light source LED light on <60lm.

2. "To be in compliance EN 61000-3-11, the product shall be connected only to a supply of the system impedance:Zsys = 0.40089 ohms or less. Before connect the

product to public power network, please consult your local power supply authority to ensure the power network meet above requirement."

1. The microwave oven is designed for free-standing.

2. Devices must not be placed in un-removable devices.

Specifications

Model:	MO20-SM
Rated Voltage:	230V~
Rated Input Power(Microwave):	1150W
Rated Output Power(Microwave):	700W
Oven Capacity:	20L
Turntable Diameter:	24.5cm
External Dimensions:	45.1*34.3*25.8cm
Net Weight:	10.2kg

INSTALLATION

1. Take out all the packing. If there is a safe film over the oven, tear it off before Use. Check carefully for damage. If any, immediately notify dealer or send to the manufacturer's service center.
2. Microwave ovens must be placed under dry and non-corrosiveness environments, kept away from heat and humidity, such as gas burner or water tank.
3. To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10 cm, the side to the wall should be at least 5 cm, the free distance above the top surface at least 20 cm. the distance of the microwave to the ground should be at least 85 cm.
4. The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance. The distance should be more than 5m.
5. The appliance must be positioned so that the plug is accessible, and must ensure a good grounding in case leakage, ground loop can be formed to avoid electric shock.
6. The microwave oven must be operated with the door closed.
7. The microwave oven must not be placed in a cabinet. The microwave oven is intended to be used freestanding.
8. As there is manufacturing residue or oil remained on the oven cavity or heat element, it usually would smell the odor, even a slight smoke, It is normal case and would not occur after several times use, keep the door

or window open to ensure good ventilation. So it is strongly recommended to place a cup of water in the turntable, setting at high power and operate for several times.

CLEANING AND MAINTENANCE

CAUTION

The oven should be cleaned regularly and any food deposits removed.

WARNING

1. Remove the power cord from the wall outlet before cleaning. Don't immerse the appliance in water or other fluids when cleaning.

2. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation

3. Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance

4. Do not remove the waveguide cover

5. When the microwave oven has been used for a long time, there may be some strange odors exist in oven, Following 3 methods can get rid of them:

a. Place several lemon slices in a cup, then heat with high Micro Power for 2-3 min.

b. Place a cup of black tea in oven, then heat with high

micro power.

c. Put some orange peel into oven, and then heat them with high Micro Power for 1 minute.

1. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;

TIPS FOR CLEANING

Details for cleaning door seals, cavity and adjacent parts:

Exterior:

Wipe the enclosure with a dampened soft cloth

Door:

Using a dampened soft cloth, wipe clean the door and window

Wipe the door seals and adjacent parts to remove any spill or spatter

Wipe the control panel with a slightly dampened soft cloth

Interior walls:

Wipe clean the cavity with a dampened soft cloth

Wipe clean the waveguide cover to remove any food splashed

Turntable/ Rotation ring/ Rotation axis:

Wash with mild soap water

Rinse with clean water and allow drying thoroughly

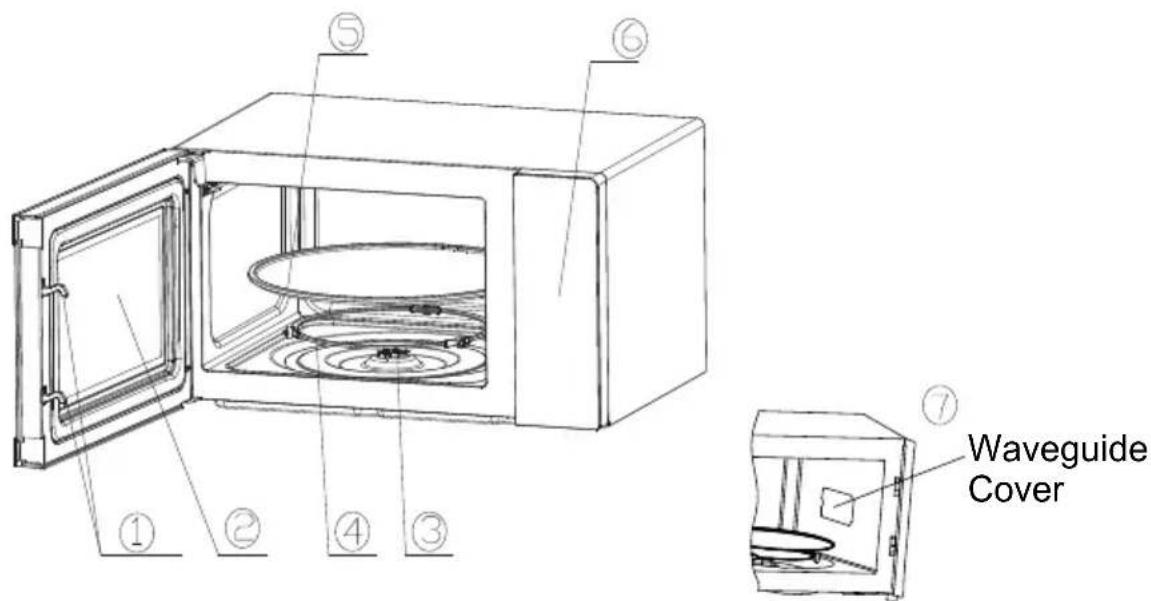

Waveguide Cover ① ② ③ ④ ⑤ ⑥ ⑦

1) Door lock

Microwave oven door must be properly closed in order for it to operate

2) Viewing window

Allow user to see the cooking status

3) Rotating axis

The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate

4) Rotating ring

The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating

5) Turntable

The food sits on the turntable, its rotation during operation helps to cook food evenly

CAUTION

- Place the rotating ring first

- Fit the turntable onto the rotating axis and make sure that it is geared in properly

6) Control panel

See below in details (the control panel is subject to

change without prior notice)

7) Waveguide cover

It is inside the microwave oven, next to the wall of control panel.

WARNING

Never remove the waveguide cover

The maximum setting is 35 minutes, there is a ringtone at the end, and the knob returns to the "0" position.

2. MICROWAVE FUNCTION

No.	MICROWAVE POWER	MICROWAVE OUTPUT RATIO
1 Low	17% power output
2	Mid-Low	30% power output
3 Med	55% power output
4	Mid-High	80% power output
5 High	100% power output

Below is some food defrosting time advice:

No. Weight (g) Defrost time
1 200g About 4 minutes
2 400g About 8 minutes
3 600g About 12 minutes

OPERATION

1) Connect the cord

-Before connecting the cord, make sure the timer is set to "0" position.

- Do not block the ventilation.

2) Place the food on the glass turntable and close the door

- Food must be contained in a utensil.

- Do not operate the microwave oven without load, otherwise it will cause damage to the microwave oven.

3) Select the desired microwave power level

4) Set the timer

If the desired time is less than 2 minutes, turn the microwave power knob to over 3 minutes position and then turn back to the desired time setting.

5) Once the desired time is set, the cooking begins. If pausing in midway is needed, just open the door at any time, and close it to resume operation.

6) When it times out and cooking ends, the microwave oven produces a bell ring, the inside lamp will also be automatically turned off.

If food is removed before time out, make sure to set back the timer to "0" position, this avoids the microwave oven from operating in empty load.

7) It is recommended to wear gloves when removing the cooked food from oven and be careful do not touch the heat element on the top of cavity.

CAUTION

Heating food fast, generally only 2 to 3 minutes, please control in 5 minutes. Please pay attention to the cooking condition of the food at any time and adjust it according to your taste preference. Avoid overheating. When heating porridge, congee, should first stir evenly, and then covered with plastic film (leave corners for ventilation) or with a perforated lid heating.

At mid-point to defrosting time, please open the door to turn the food, so that the defrosting effect is more uniform.

UTENSILS GUIDELINE

It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table.

Material of container	Microwave	Notes
Heat-resistant	Yes	Never use the ceramics which are decorated with metal rim or glazed
ceramic Heat-resistant plastic	Yes	Can not be used for long time microwave cooking
Heat-resistant glass	Yes
Grill rack	No
Plastic film	Yes	It should not be used when cooking meat or chops as the over-temperature may do damage to the film

COOKING TIPS

The following factors may affect the cooking result:

Food arrangement

Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need.

Over cooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger or steak should be turned once during cooking.

Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking

Allow standing time

After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner

Whether the food is done

Color and hardness of food help to determine if it is done, these include:

- Steam coming out from all parts of food, not just the edge

- Joints of poultry can be moved easily

- Pork or poultry shows no signs of blood

- Fish is opaque and can be sliced easily with a fork

Browning dish

When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring.

Microwave safe plastic wrap

When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt

Microwave safe plastic cookware

Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar

content. Also, the preheating time specified in the dish instruction manual must not be exceeded.

MAINTENANCE

Please check the following before calling for services.

1. Place one cup of water (approx. 150ml) in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min.

2. Does the oven lamp light?

3. Does the cooling fan work?

(Put your hand over the rear ventilation openings.)

1. Does the turntable rotate?

(The turntable can rotate clockwise or counter clockwise.

This is quite normal.)

5.Is the water inside the oven hot?

If "NO" is the answer to any of the above questions, please check your wall socket and the fuse in your meter box.

If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTER APPROVED.

SEERRVVIICCIINNGG SSAAFFEEGGUUAAARRDDSS

Caution: MICROWAVE RADIATION

1. The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the oven chassis (use a screwdriver) to discharge before touching.

2. During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth.

3. Magnetron
   • High voltage transformer
   • High voltage capacitor

4. High voltage diode

5. High voltage fuse

6. The following conditions may cause undue microwave exposure during servicing.

Improper fitting of magnetron;

Improper matching of door interlock, door hinge and door;

Improper fitting of switch support;

Door, door seal or enclosure has been damaged.

CORRECT DISPOSAL OF THIS PRODUCT

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97

Monday to Friday from 9:00 am to 19:00 pm Saturday from 9:00 am to 18:00 pm (local call price).

LE TRI

FACILE
