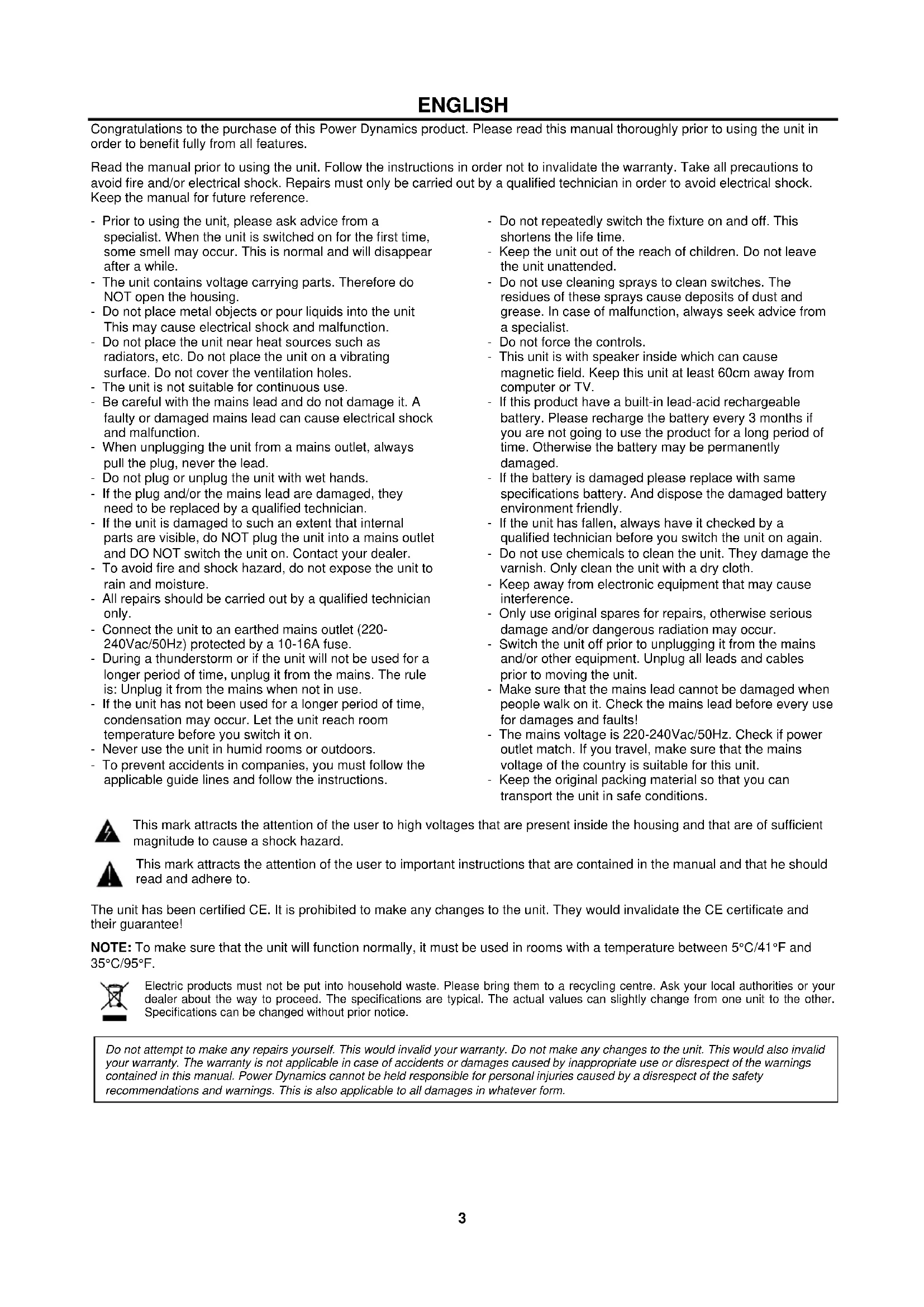

V2.023 ENGLISH Congratulations to the purchase of this Power Dynamics product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features. Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference. - Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while. - The unit contains voltage carrying parts. Therefore do NOT open the housing. - Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction. - Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes. - The unit is not suitable for continuous use. - Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction. - When unplugging the unit from a mains outlet, always pull the plug, never the lead. - Do not plug or unplug the unit with wet hands. - If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician. - If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. - To avoid fire and shock hazard, do not expose the unit to rain and moisture. - All repairs should be carried out by a qualified technician only. - Connect the unit to an earthed mains outlet (220- 240Vac/50Hz) protected by a 10-16A fuse. - During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use. - If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. - Never use the unit in humid rooms or outdoors. - To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions. - Do not repeatedly switch the fixture on and off. This shortens the life time. - Keep the unit out of the reach of children. Do not leave the unit unattended. - Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist. - Do not force the controls. - This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV. - If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged. - If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly. - If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again. - Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth. - Keep away from electronic equipment that may cause interference. - Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur. - Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit. - Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults! - The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit. - Keep the original packing material so that you can transport the unit in safe conditions. This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard. This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to. The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee! NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F. Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice. Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Power Dynamics cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.4 UNPACKING INSTRUCTION CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. POWERSUPPLY On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply. Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire. FRONT PANEL

5. Media player buttons:

Mode - Press to change modes between playing SD, USB, MP3 and BT. Play / pause - Press this button to start or pause play. Folder - Press this button to enter FOLDER selection. Repeat - Press the repeat button once to continually repeat ALL tracks, press repeat once more to repeat just the current track. Previous - Press this button to go to the previous track. Press and hold to scan backwards within tracks. Next - Press this button to go to the next track. Press and hold to scan forwards within tracks.

6. Media playback zone assign buttons

7. Mic/Line 1 level control with zone assign buttons

8. Mic/Line 2 level control with zone assign buttons

9. Mic/Line 3 level control with zone assign buttons

10. Aux level control with zone assign buttons

11. Zone 1 output level control with monitor send button and level indicator

12. Zone 2 output level control with monitor send button and level indicator

13. Zone 3 output level control with monitor send button and level indicator

14. Zone 4 output level control with monitor send button and level indicator

15. Zone 5 output level control with monitor send button and level indicator

16. Zone 6 output level control with monitor send button and level indicator

17. Chime button with level control

18. Monitor headphones output with level control

25. Channel 3 DIP switch adjustment (mic or line + Phantom power 20V on/off)

26. Channel 3 Mic/Line input (XLR or Jack)

27. Channel 2 DIP switch adjustment (mic or line + Phantom power 20V on/off)

28. Channel 2 Mic/Line input (XLR or Jack)

29. Channel 1 DIP switch adjustment (mic or line + Phantom power 20V on/off)

DIP SWITCHES Mic/Line inputs 1, 2 and 3 each have 2 DIP switches on the rear panel (25, 27, 29) to set the input level and/or activate +20V phantom power for use with condenser microphones. Set the level correctly for the type of input source connected (Mic or Line) If the source connected is a condenser microphone which requires phantom power, make sure that the phantom is switched on for that channel. Be sure to make these DIP switch settings when the amplifier is switched off. Making any changes when the amplifier is powered up may cause loud bangs through the system which can damage the speakers.

PRIORITY AND EMERGENCY ACTIVATION

The Mic/Line 1 input also has a Priority switch (31), which attenuates all other channels when Mic/Line 1 signal is detected and returns them to normal when Mic/Line 1 signal is silent. For buildings with a main emergency alarm panel (for fire alerts etc.), the PRM606 has Mute contacts on the rear panel (33), which will mute all audio except for channel 1 when activated by a 24V trigger voltage. This leaves channel 1 active for evacuation announcements in the case of an emergency. The screw terminal plug can be pulled out to make connection easier. 2-core bell wire is appropriate for this. Connect a 24Vdc output from the alarm control panel observing the correct polarity shown on the contacts. SPEAKER OUTPUTS The PRM606 has a separate speaker output for each zone, connected via 3 large modular terminal plugs. Each plug can be removed from the rear panel for convenient connection of speaker outputs to 2 zones. Each zone output can be used to power either 100V line speakers or standard low impedance speakers. These 2 configurations cannot be used together, so it is important to decide which will be used at the start.6

1. Activate the BT-function on your device (Mobile phone, tablet etc.) from which you want to play the

music. See the operating instructions for that device.

2. Press the “BT” button and activate BT-function.

3. Select “PRM-AMPLIFIER” on your BT-device and make the BT-connection

If password is required, you can enter "0000". Attention: The BT distance is approx. 10 meter without any barrier. 100V SYSTEM For 100V line systems, connect the amplifier to the first speaker in the system using double-insulated speaker wire which has adequate current rating to handle the total output of the amplifier. Connect the “100V” output terminal to the positive (+) connection of the speaker and “COM” output to the negative (-) connection of the speaker. Connect further speakers in parallel to the first speaker with all positive terminals and connected together and all negative terminals connected together as shown below. A 100V line speaker system can comprise of many speakers connected together. The determining factor for how many speakers can be used on a single amplifier is the power rating. For most purposes, it is advised to connect as many speakers as needed with a combined wattage of no more than 90% of the amplifier’s output power rating. The terminals of a 100V speaker are connected to a transformer and in some cases, this transformer may be “tapped” for different power ratings. These tapings can be used to adjust the wattage (and output volume) of each speaker in the system to help achieve the ideal total power of the system for the amplifier.

5. Media player buttons:

DATEN / ESPECIFICACIONES TÉCNICAS / SPÉCIFICATIONS TECHNIQUES Playback options : BT streaming, SD, USB Output power: RMS : 360W Impedance : 100V, 4 Ohm, 8 Ohm Frequency response : 100Hz - 24.000Hz Power supply : 220-240VAC 50Hz Power consumption : 2A Dimensions (L x W x H) : 390 x 483 x 95mm (without feet 88mm) Weight : 11,85kg The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice. The products referred to in this manual conform to the European Community Directives to which they are subject: European Union United Kingdom

Tronios Ltd., 130 Harley Street, London W1G 7JU, United Kingdom

2014/30/EU S.I. 2016:1091 2011/65/EC S.I. 2012:3032Specifications and design are subject to change without prior notice. www.tronios.com Copyright © 2022 by Tronios The Netherlands
