Brand	Power Dynamics
Model	WT240A
Product type	Audio receiver
Power supply	Power adapter 220-240 VAC / 19 VDC, 3.16 A
Wired connectivity	USB, AUX, Ethernet (RJ-45)
Wireless connectivity	Bluetooth, Wi-Fi
Audio outputs	Line out (RCA), speaker output
Main functions	USB/AUX/BT/Wi-Fi playback, channel presets (4 direct + scan), equalizer, speaker grouping
Dedicated app	Legacy Player (iOS and Android)
Control buttons	Volume +/-, previous/next track, play/pause, mode, CH1-CH4 presets, CH+/-, EQ, Group, WPS/Reset
Indicator light	Power indicator (PWR)
Reset	Reset button (press and hold)
Operating temperature	5°C to 35°C
Usage	Indoor only
Maintenance	Clean with a dry cloth; do not use chemical products
Safety	Do not open the casing, avoid moisture and heat sources, unplug during storms
Electrical compatibility	220-240 VAC, 50 Hz (via adapter)
Package contents	WT240A receiver, power adapter, user manual
Warranty	Warranty valid subject to compliance with the instructions in the manual
Country of manufacture	Netherlands (headquarters Tronios B.V.)

Frequently Asked Questions - WT240A Power Dynamics

How to connect my smartphone via Bluetooth to the WT240A?

Enable Bluetooth on your smartphone, search for devices and select WT240A. No password is required. The connection is automatic.

How to use the Legacy Player app?

Download the Legacy Player app from the Apple Store or Google Play. Follow the instructions in the app to set up Wi-Fi, manage presets and control playback.

What should I do if I hear no sound?

Check that the device is on (PWR indicator lit), the volume is sufficient, and the audio source (USB, AUX, BT, Wi-Fi) is correctly selected via the MODE button. Also ensure that the speakers are properly connected.

How to reset the receiver to factory settings?

Press and hold the WPS/RESET button on the back of the device for a few seconds until the device restarts. All settings will be erased.

How to connect the WT240A to my Wi-Fi network?

Use the Legacy Player app to set up Wi-Fi. You can also press the WPS button if your router supports WPS: press WPS on the device then press the WPS button on your router within 2 minutes.

How to program the channel presets CH1 to CH4?

Presets are programmed via the Legacy Player app. In the app, associate a station or playlist with each preset channel (CH1 to CH4). Then use the CH1-CH4 buttons on the device to recall them.

Can I use the device outdoors or in a humid room?

No, the WT240A is designed for indoor use only. Do not expose it to rain or moisture to avoid risk of electric shock.

How to clean the receiver?

Use a dry, soft cloth. Never use chemical products, solvents or abrasive cleaners that could damage the finish.

What does the triangle with a lightning bolt symbol mean?

This symbol warns of the presence of high voltage inside the device. Never open the casing, risk of electric shock. Only a qualified technician should service.

How to change the audio source (USB, AUX, BT, Wi-Fi)?

Press the MODE button to switch between available sources: USB, AUX, Bluetooth or Wi-Fi (Internet). The active source is shown on the display.

User questions about WT240A Power Dynamics

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Receiver in PDF format for free! Find your manual WT240A - Power Dynamics and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WT240A by Power Dynamics.

USER MANUAL WT240A Power Dynamics

Power Dynamics Professional Audio

WT240A Amplifier

Ref. nr.: 952.499

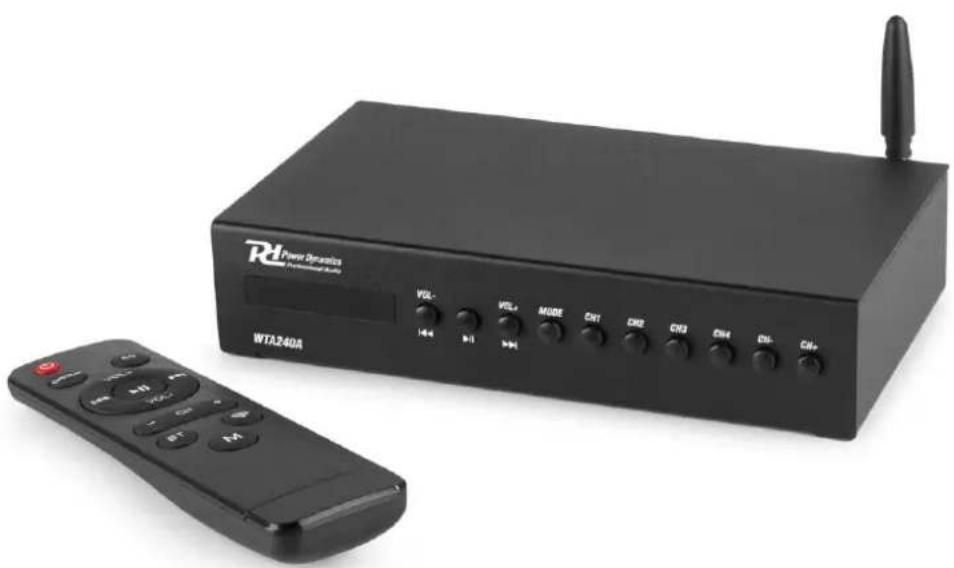

Power Dynamics WT240A - Power Dynamics Professional Audio - 1

INSTRUCTION MANUAL GEBRUIKSAANWIJZING BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI

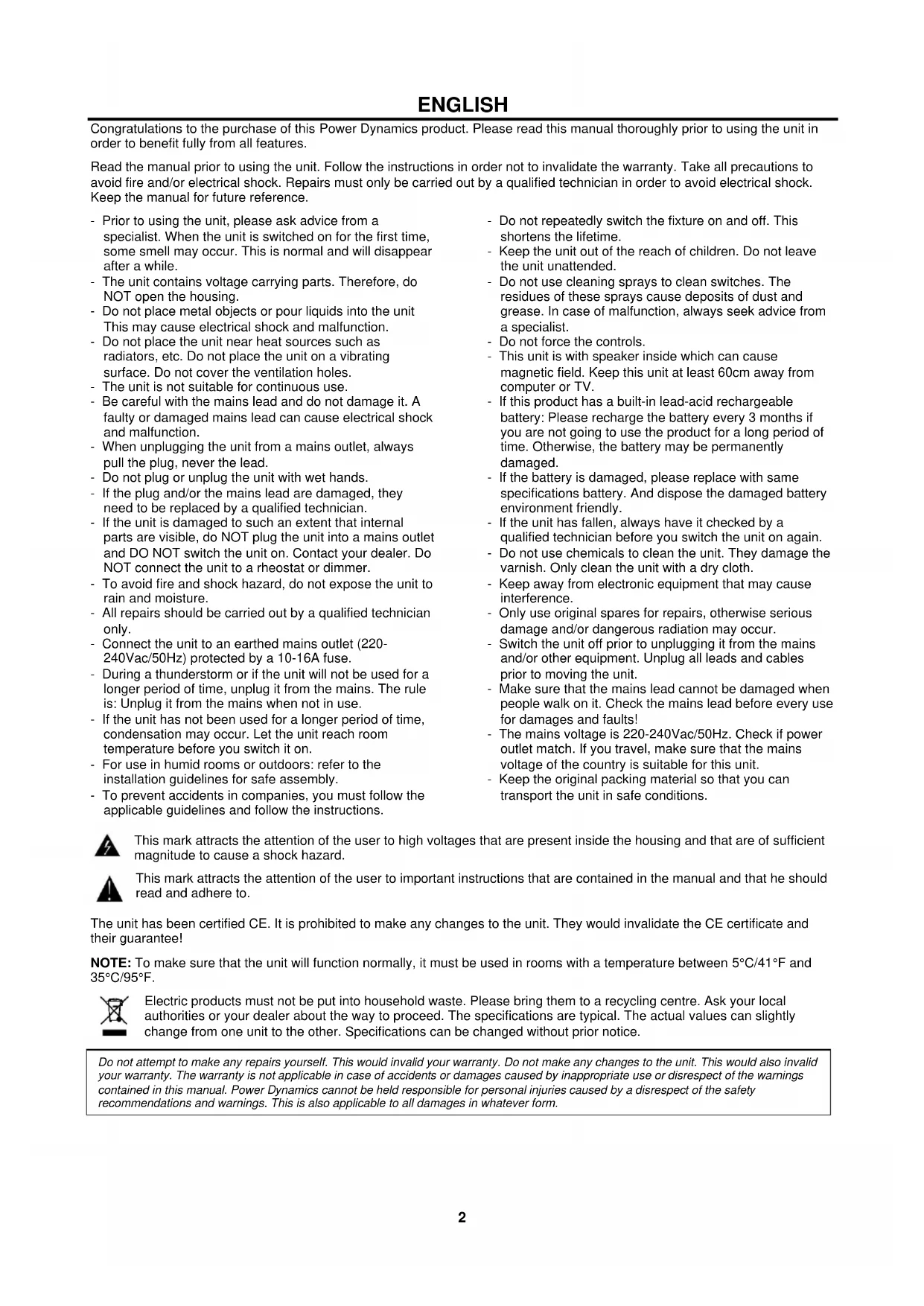

Congratulations to the purchase of this Power Dynamics product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
The unit contains voltage carrying parts. Therefore, do NOT open the housing.
Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
The unit is not suitable for continuous use.
Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
When unplugging the unit from a mains outlet, always pull the plug, never the lead.
Do not plug or unplug the unit with wet hands.
If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
To avoid fire and shock hazard, do not expose the unit to rain and moisture.
All repairs should be carried out by a qualified technician only.
Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on.
For use in humid rooms or outdoors: refer to the installation guidelines for safe assembly.
To prevent accidents in companies, you must follow the applicable guidelines and follow the instructions.
Do not repeatedly switch the fixture on and off. This shortens the lifetime.
Keep the unit out of the reach of children. Do not leave the unit unattended.
Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
Do not force the controls.
This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
If this product has a built-in lead-acid rechargeable battery: Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise, the battery may be permanently damaged.
If the battery is damaged, please replace with same specifications battery. And dispose the damaged battery environment friendly.
If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
Keep away from electronic equipment that may cause interference.
Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
Keep the original packing material so that you can transport the unit in safe conditions.

Power Dynamics WT240A - Power Dynamics Professional Audio - 2

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

Power Dynamics WT240A - Power Dynamics Professional Audio - 3

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Power Dynamics WT240A - Power Dynamics Professional Audio - 4

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Power Dynamics cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

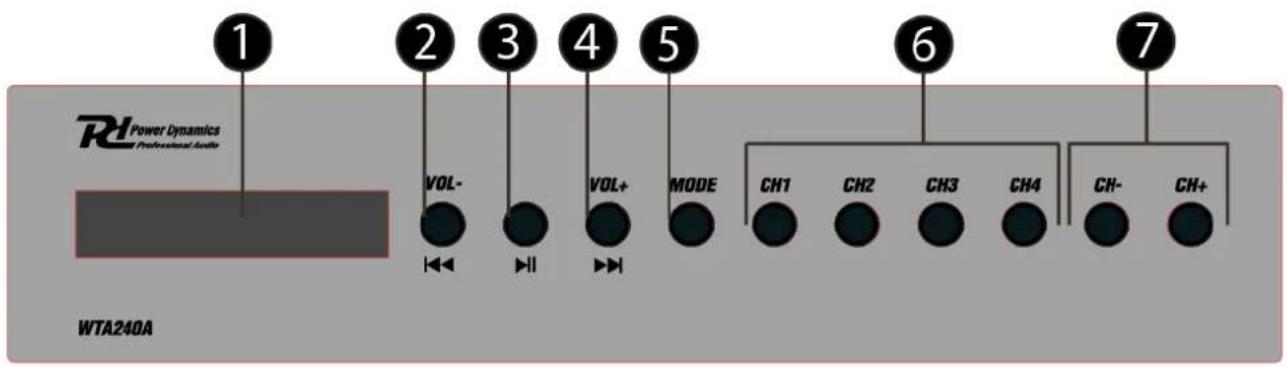

1 2 3 4 5 6 7 RH Power Dynamics of Professional Audio VOL- VOL+ MODE CH1 CH2 CH3 CH4 CH- CH+ WTA240A

DISPLAY
VOLUME DOWN - PREVIOUS TRACK

Press for previous track, press and hold to lower volume level.

PLAY/PAUSE
VOLUME UP - NEXT TRACK

Press for next track, press and hold to increase volume level.

MODE
Switch between USB, AUX, BT or internet modes.
PRESET CHANNEL BUTTONS 1-4
Choose from the preset selection (which is programmable in the app).
PRESET CHANNEL SWITCH UP OR DOWN
Toggle within the pre-programmed selection (which is programmable in the app).

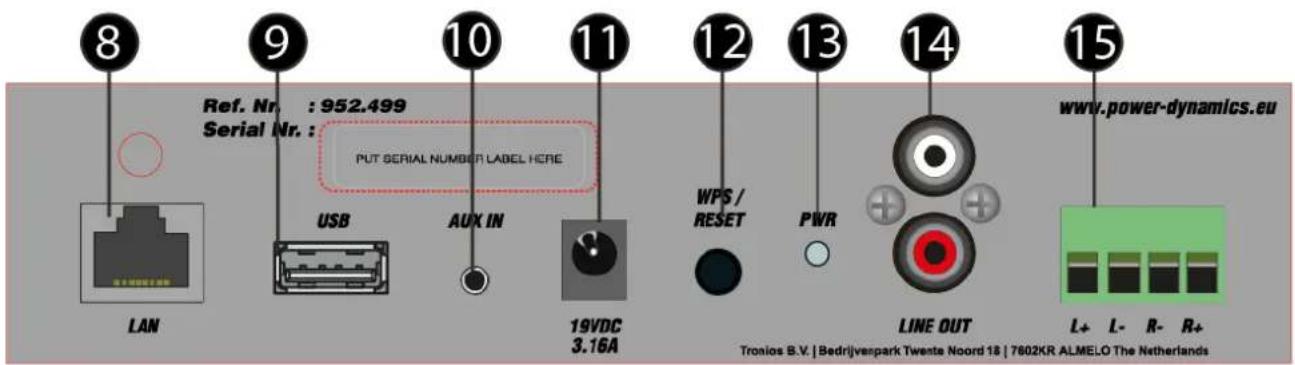

8 Ref. Nr. : 952.499 Serial Nr. : 10 PUT SERIAL NUMBER LABEL HERE USB AUX IN 19VDC 3.16A 12 WPS / RESET PWR 13 LINE OUT L+ L- R- R+ www.power-dynamics.eu Tronios B.V. | Bedrijvenpark Twente Noord 18 | 7602KR ALMELO The Netherlands

RJ-45 LAN-CONNECTOR
USB INPUT
AUX INPUT
DC INPUT
WPS/RESET

Press to connect with a router using WPS.

Press and hold for a factory reset

POWER INDICATOR
LINE OUT
SPEAKER OUTPUT

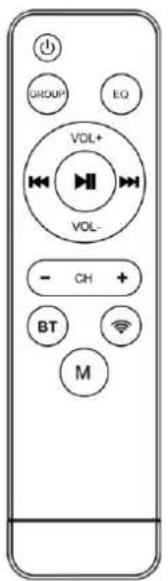

GROUP EQ VOL+ VOL- - CH + BT M

(1)

GROUP

VOL+

VOL-

◀

▶||

▶▶▶

CH +

CH -

Power ON / OFF

Short press for join the speaker group (only working in combination with the app)

Long press for exit the speaker group (only working in combination with the app)

Switch EQ Effect

Volume Up

Volume Down

Play / Pause

Switch UP for the predefined channel (only working in combination with the app)

Switch Down for the predefined channel (only working in combination with the app)

Short press for switch to the BT play mode

Long press for switch to the BT pair mode

Short press for connect the speaker to the WIFI

Long press for restore to the factory settings

Switch between BT, WIFI, Line-in, USB,

CONNECTING WITH BT

Connecting your BT-device to the amplifier, follow below steps:

Turn on BT on your device
Search for "WT240A"
Connect with "WT240A"

Your device is now connected, no password needed.

DISCONNECTING OR RECONNECTING WITH BT

If you want to change BT-device, follow below steps:

Disconnect the current BT-device ("OFF")
Connect new BT-device by following above steps

If you move out of range or turn off the BT-function on your device, the BT of the speaker will disconnect. To reconnect turn on the BT on the device.

DOWNLOAD AND INSTALL LEGACY PLAYER APP

For the best user experience, please download the latest version of the LEGACY Player app via Apple store or Google play. Here you will also find the latest features and explanations on how to use them.
