KHF 665 610 S - Basket AMICA - Free user manual and instructions

Product type	Kitchen hood
Brand	Amica
Model	KHF 665 610 S
Category	Decorative hood (chimney)
Power supply voltage	220-240 V / 50 Hz
Number of speeds	4 (including one booster speed)
Control	Touch panel with sensor keys
Timer (delayed shutdown)	Yes, about 15 minutes
Booster function	Yes, automatic return to lower speed after a few minutes
Lighting	LED with dimming and color adjustment
Grease filter	Aluminum, dishwasher safe or hand washable
Activated carbon filter	Optional, not washable, replace every 3-4 months
Extraction modes	External extraction (duct ∅120 or 150 mm) or recirculation
Minimum mounting height	According to technical data sheet (distance above hob)
Maintenance	Clean exterior and interior at least once a month
Safety	Automatic booster shutdown, room ventilation required with other appliances
Warranty	According to the provided warranty card

Frequently Asked Questions - KHF 665 610 S AMICA

What is the recommended mounting height for the hood above the hob?

The mounting height is indicated on the technical data sheet of the appliance. For electric hobs, follow this indication; for gas hobs, observe the greater distance if specified by the hob manufacturer.

How to clean the grease filter?

The grease filter should be cleaned at least once a month. You can wash it in the dishwasher or by hand with a mild detergent. After several washes in the dishwasher, the color may change, but this does not affect its efficiency.

When should I replace the carbon filter?

The activated carbon filter is not washable or regenerable. It must be replaced every 3 to 4 months, or more frequently with heavy use. It is used only in recirculation mode.

How to activate the delayed shutdown function (timer)?

While the hood is running, touch and hold the sensor key of the active speed for at least 3 seconds. The key flashes, indicating that the delayed shutdown is set (about 15 minutes). To deactivate, touch the same key again.

How to adjust the brightness of the lighting?

Turn on the lighting, then press and hold the lighting sensor key for about 3 seconds. The brightness decreases. Touch again to reduce further. Once at minimum, the next touch returns to maximum.

How to change the lighting color?

Press and hold simultaneously the sensor keys ⚙ and 4 for 2 seconds. Keys 1 and 4 flash. Use them to choose the color, then confirm with the ⚙ key.

Can I use the hood without the grease filter?

No, it is prohibited to use the hood without the aluminum grease filters. They protect the motor and prevent fire hazards.

What to do if the power cable is damaged?

The cable must be replaced by the manufacturer, its after-sales service, or a similarly qualified person to avoid any hazard.

Does the hood have a remote control?

No, the hood is controlled only by the integrated touch panel. No remote control is provided.

What to do in case of failure or malfunction?

Contact after-sales service whose details are on the warranty card. Prepare the appliance serial number (on the rating plate). Repairs by unqualified persons are prohibited.

USER MANUAL KHF 665 610 S AMICA

Kitchen extractor hood / kaminhaube /

Simple line drawing of a kitchen chimney with steam rising (no text or symbols)

KHF 665 610 S / KHF 685 610 S /

KHF 695 610 S

EN- Table of contents

NOTES ON SAFETY 7

UNPACKING

DISPOSAL OF OLD APPLIANCE 10

OPERATION

COOKER HOOD CONTROLS 11

CONTROL PANEL 11

OFF-TIMER * 11

ADJUST BRIGHTNESS* 12

ADJUST LIGHTING COLOUR* 12

OTHER IMPORTANT INFORMATION CONCERNING THE OPERATION OF THE HOOD 13

CLEANING AND MAINTENANCE 14

MAINTENANCE

GREASE FILTER 14

ACTIVATED CHARCOAL FILTER 14

LIGHT

WARRANTY AND AFTER SALES SERVICE 15

WARRANTY

14

14

15

GARANTIE, NACHVERKAUF-SERVICE

GARANTIE

26

CS- Obsah

BEZPEČNOSTNÍ POKYNY

VYBALENI

LIKVIDACE OPOTŘEBOVANÝCH ZAŘÍZENÍ

OBSLUHA

OVLÁDÁNÍ ODSAVAČE

OVLÁDACÍ PANEL

ČASOVAČ (ODLOŽENÉ VYPNUTÍ DIGESTOŘE)*

DIMMER (REGULACE INTENZITY OSVĚTLENÍ)*

NASTAVENÍ BARVY OSVĚTLENÍ*

JINÉ DŮLEŽITÉ INFORMACE O OBSLUZE ODSAVAČE

ČISTĚNÍ A ÚDRŽBA

ÚDRŽBA

PROTITUKOVÝ FILTR

UHLÍKOVÝ FILTR

OSVĚTLENÍ

ZÁRUKA, POPRODEJNÍ SERVIS

ZÁRUKA

28

31

31

32

32

32

32

33

33

34

35

35

35

35

35

36

36

SK- Obsah

BEZPEČNOSTNÉ POKYNY POUŽÍVANIA 38

ROZBALENIE

LIKVIDÁCIA ZARIADENÍ 42

POUŽIVANIE 43

OVLÁDANIE ODSÁVAČA 43

OVLÁDACÍ PANEL 43

ČASOVAČ (ONESKORENÉ VYPNUTIE ODSÁVAČA)* 43

STMIEVAČ (NASTAVENIE INTENZITY OSVETLENIA)* 44

NASTAVENIE FARBY OSVETLENIA* 44

INÉ DÔLEŽITÉ INFORMÁCIE TÝKAJÚCE SA POUŽÍVANIA ODSÁVAČA 45

ČISTENIE A ÚDRŽBA 46

KONZERVÁCIA 46

PROTITUKOVÝ FILTER 46

UHLÍKOVÝ FILTER 46

OSVETLENIE 46

ZÁRUKA, POPREDAJNÝ SERVIS 47

ZÁRUKA 47

From now on, your daily housework will be easier than ever before. Your appliance Air*optionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Amica

NOTES ON SAFETY

• Before using the appliance, please carefully read this manual!
• The appliance is designed for household use only.
• The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance.
• The manufacturer shall not be liable for any damage or fire caused by the appliance resulting from failure to follow instructions in this manual.
• Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.
• Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The length of the duct (usually a pipe of ∅ 120 or 150 mm) should not be longer than 4-5 m. An air extraction duct is also required for telescopic and furniture hoods in absorption mode.
• Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane (Mainly in chimney cooker hoods).
• The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.
• Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the

wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

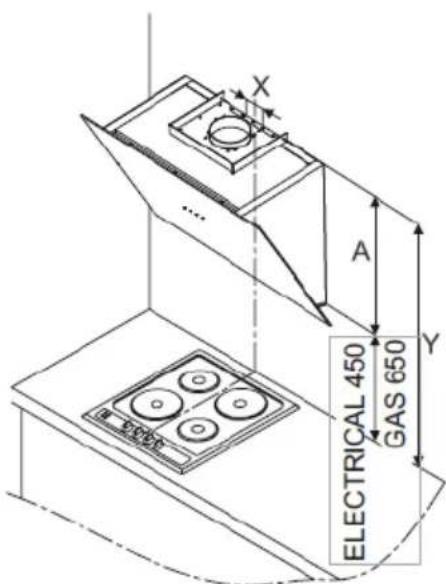

• For details of the installation distance above an electric hob please refer to product technical sheet. If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1).
• Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.
• When cooking on fat, supervise the pans constantly, because overheated fat can ignite.
• Unplug the appliance before any cleaning, replacing the filter or repair work.
• Cooker hood grease filter should be cleaned at least once a month, because the filter saturated with fat is flammable.
• Ensure adequate ventilation (air flow) if other equipment such as liquid fuel stoves or heaters are operated in the room in addition the cooker hood. When the cooker hood is simultaneously operated with burning appliances requiring adequate fresh air from the room to work properly, their safe operation is possible if under pressure around these appliances is a maximum of 0.004 mbar (this does not apply when the cooker hood is used as an odour filter)
• Do not lean on the hood.
• The hood should be cleaned regularly both inside and out (AT LEAST ONCE A MONTH, following the indications concerning maintenance provided in this manual)..Failure to adhere to the rules concerning cleaning the hood and replacing filters results in a fire risk.
• If the power cord is damaged it should be replaced by a specialised service centre.
• Ensure that it is possible to disconnect the ap-

pliance from the mains by removing the plug or switching off the bi-polar switch.

• This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety.
• Particular attention should be paid not to allow unaccompanied children to use the appliance.
• Make sure voltage indicated on the nameplate corresponds to the local mains supply voltage.
• Before use, extend and straighten the power cord.
• Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.
• Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. Do not connect the appliance to the mains until assembly is complete.
• Do not operate your kitchen hood without the aluminium grease filters.
• It is strictly forbidden to cook dishes under on an open flame (flambé) under your kitchen hood.
• Always strictly adhere to regulations issued by the competent local authorities regarding the technical and safety requirements for fume extraction.
• Failing to tighten bolts and fasteners in accordance with these instructions may endanger life and health.
• Hanging kitchen hoods operate only in air circulation / odour absorber mode
• WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

UNPACKING

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

Symbol of a trash bin crossed with a diagonal line, representing waste or discharge (no text or labels)

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

OPERATION

Cooker hood controls

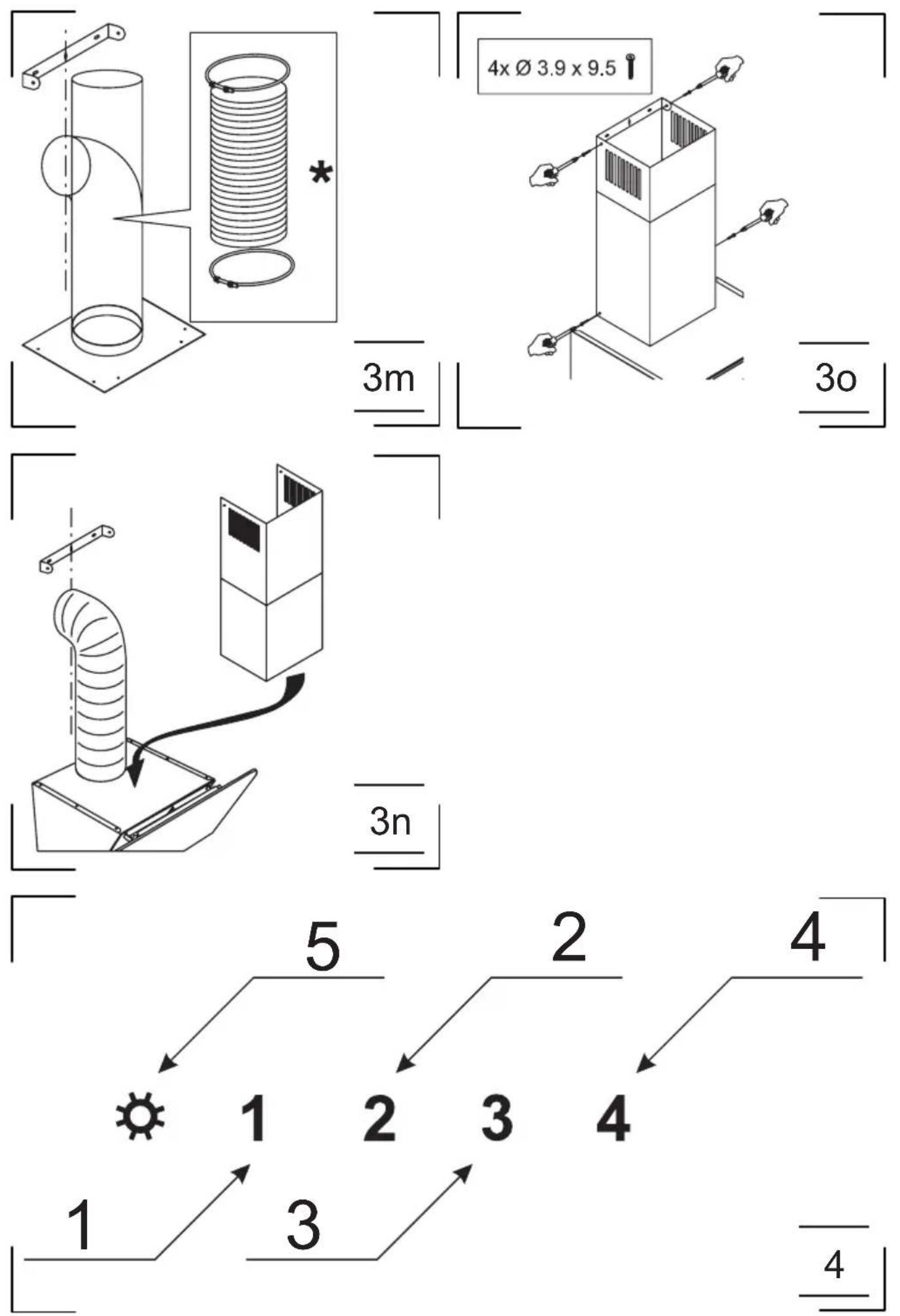

Control Panel is shown in Figure 4, for reference it is also shown below:

Control Panel

It is equipped with a touch controls. Touch one of the sensors to enable the desired function:

• Low speed (1). Use this speed when cooking a little food with hardly any fumes.
• Medium speeds (2 – 3). Use this speed when cooking multiple dishes at the same time with moderate amount of fumes.
• High Speed (4) is the booster speed. Use this speed when frying or grilling, with large amount of fumes. After a few minutes, the appliance will automatically reduce the fan speed by one level.
• Lighting on/off (5). The lighting operates independently of hood fan.

Touch sensor corresponding to the selected speed to turn off the kitchen hood.

Off-Timer \*

Use Off-Timer to turn off the hood after a specified time. Use Off-Timer to filter the fumes out of the air after cooking. The delay time is about 15 minutes. To enable Off-Timer at any fan speed touch the active speed sensor for at least 3 seconds. Sensor flashes. Flashing indicates that the Off-Timer has been enabled. To cancel Off-Timer touch the active speed sensor. The appliance will turn off. To turn on the appliance, set the desired fan speed. Cancelling the off-timer does not turn off the lighting.

Adjust brightness\*

Use this function to adjust brightness. To adjust brightness, touch and hold the Lighting sensor for about 3 seconds. Lighting brightness will be reduced. Touch sensor again to reduce brightness another level down. When the lowest brightness is reached, touch the sensor again to cycle to maximum brightness. Repeating this a number of times will allow you to chose the desired brightness.

Adjust lighting colour\*

Simultaneously touch and hold ⚙ and 4 for 2 seconds. Lighting will turn on and the two sensors 1 and 4 will flash. Use these sensors to adjust light colour. Touch ⚙ to confirm the desired colour.

Other important information concerning the operation of the hood

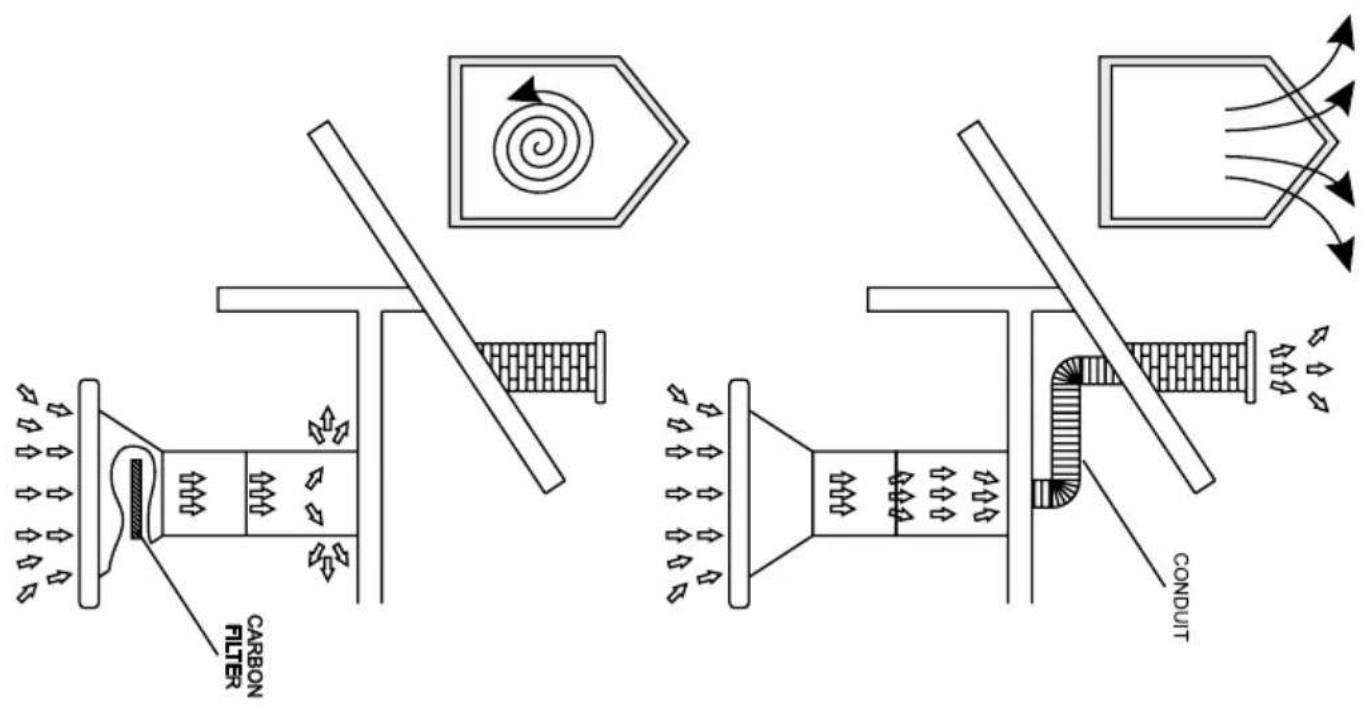

Operation in air circulation / odour filter mode. In this mode, the filtered air returns to the room through the outlets. Install activated charcoal filter in this setting. It is recommended to install the air guide (available depending on the model, mainly in chimney cooker hoods).

Air extraction operation: When cooker hood operates in extraction mode, air is discharged outside through an extraction duct. Remove activated charcoal filter in this setting. The cooker hood is connected to the air outlet opening using a rigid or flexible extraction duct with a diameter of 150 or 120 mm, and the appropriate clamps, which must be purchased at a hardware store. The appliance should be installed by a qualified installer.

Fan speed: Lowest and medium fan speed is used in normal conditions and less intense odours, while the highest speed is used only when cooking odours are very intense, such as during frying or grilling.

Note (applies to universal hoods only): Due to the design of universal hoods you need to manually change the mode of operation. See Figure 8 for instructions on how to change the mode.

Note (only applies to telescopic and in-built kitchen hoods): Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Note: Hanging kitchen hoods operate only in air circulation / odour absorber mode

CLEANING AND MAINTENANCE

Maintenance

Regular maintenance and cleaning of the appliance will ensure trouble-free operation of the cooker hood and extend its life. Especially make sure that the grease filter and activated charcoal filter are replaced according to manufacturer's recommendations.

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.
• It is recommend to use a damp cloth and a neutral detergent.

Note: After several washes in the dishwasher, the colour of the aluminium filter may change. The change of colour does not indicate improprieties or the necessity to change it.

Grease filter

For normal hood operation, grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

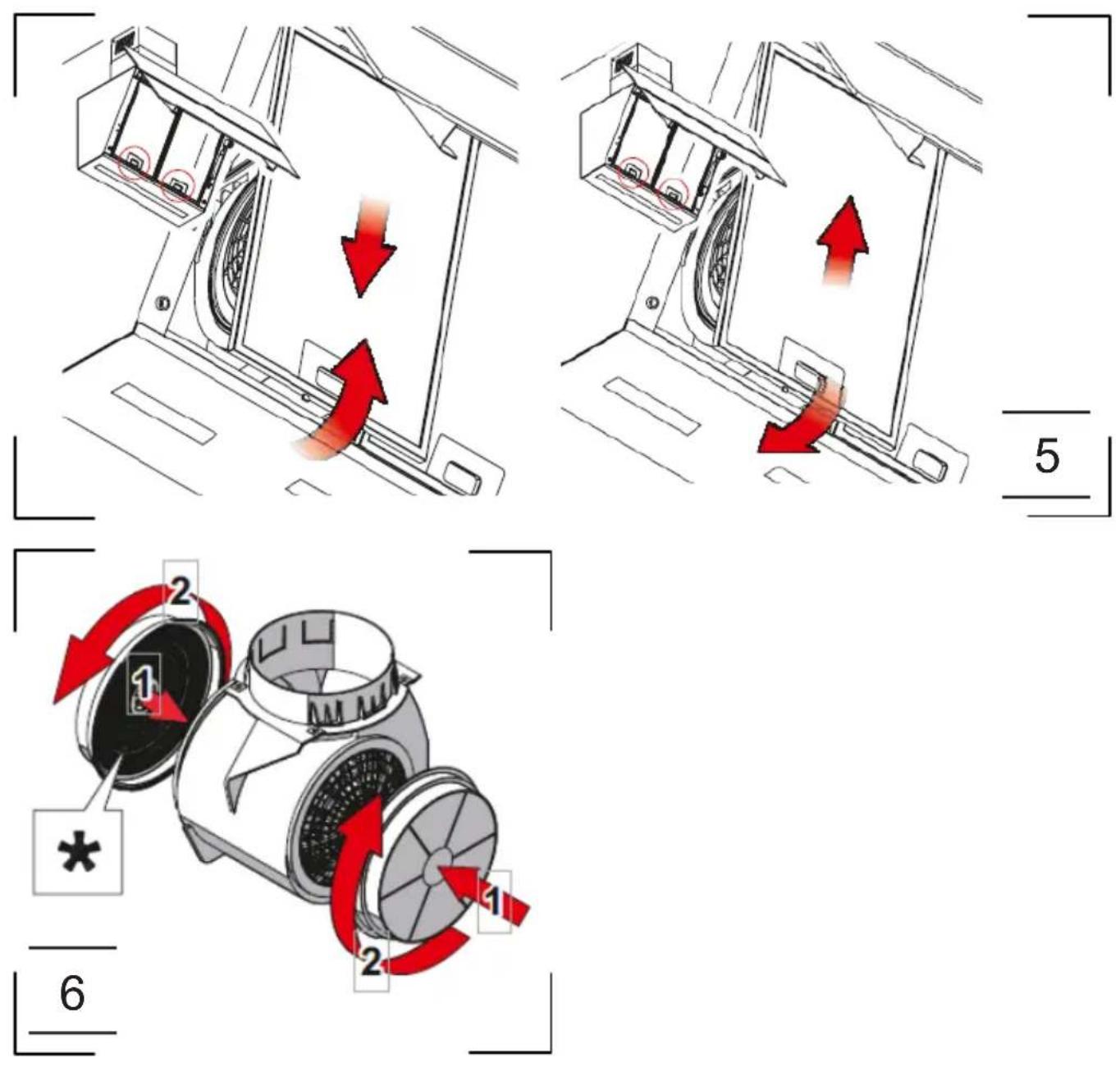

Dismantling of grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every 2 months or more frequently if the appliance is used intensively.

Activated charcoal filter

Charcoal filter is used only when the cooker hood is not connected to the ventilation duct. Activated charcoal filter can absorb odours until saturated. Charcoal filter is not suitable for washing or regeneration and should be replaced at least once every 3-4 months or more frequently if the appliance is used intensively.

Dismantling of charcoal filter is shown on Figure 6.

Light

Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance. See Figure 7 for details how to replace lights. If there is no such figure in this manual, please contact authorised service to replace the lighting module.

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product.

Service

• The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. For safety reasons, repairs should be referred to professionals.
• Repairs carried out by unqualified persons may seriously endanger the appliance user.
• The minimum warranty period for the appliance offered by the manufacturer, importer or authorized representative is given in the warranty card.
• The warranty shall be void if you make any independent adaptations or alterations, tamper with seals or other appliance safety devices or its parts or interfere with the appliance contrary to operating instructions.

In the event of appliance malfunction, request assistance or repair.

If your appliance needs repair, please contact the service centre. Please see warranty card for address and contact details of our service centre. Before contacting us, please have ready the appliance serial number, which can be found on the identification sticker: For your convenience, please write it down below:

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

GARANTIE, NACHVERKAUFSERVICE

Garantie

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two diagonal lines, no text or labels present

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, representing waste or discharge (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two crossed lines, representing waste or discharge (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Uređaj je za vrijeme transporta za- štićen od oštećenja. Nakon vađenja uređaja iz pakiranja molimo Vas da elemente ambalaže uklonite na način koji ne ugrožava okoliš.

Svi materijali korišteni za pakiranje nisu štetni za okoliš, 100% materijala je prikladno za rečikliranje, stoga su označeni odgovarajućim simbolom.

Pozor! Elemente pakiranja (polietilenske vrećice, komadići stiropora itd.) prilikom uklanjanja ambalaže držati daleko od djece.

ZBRINJAVANJE POTROŠENIH UREĐAJA

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Ovaj uređaj je označen u skladu s europskom uredbom 2012/19/EU.

Oznaka na proizvodu pokazuje da ovaj proizvod nakon njegovog životnog vijeka ne može biti tretiran kao obični kućanski otpad.

Korisnik ima obvezu ovaj proizvod predati na odgovarajuće sabirno mjesto za recikliranje potrošene električne i elektroničke opreme. Ustanove za prikupljanje ovakvog otpada, uključujući lokalne sabirne točke, kupovna mjesta, opcinske jedinice, stvaraju odgovarajući sustav koji omogućava zbrinjavanje ovakve opreme.

Pravilno odlaganje potrošene električne i elektroničke opreme sprečava potencijalne negativnę posljedice za okoliš i ljudsko zdravlje, koje inače mogu biti uzrokovane neodgovarajućim odlaganjem i preradom ovog proizvoda.

UPORABA

Upravljanje napom

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

CONDUIT CARBON FILTER

h = min 650mm h = min 650mm h = min 450mm h = 450mm h h 1

Illustration of two overlapping gloves, one white and one black, with no text or symbols.

Symbol of a person crossed with a diagonal line, representing restriction or exclusion (no text present)

Two identical black-and-white human figure silhouettes of standing individuals (no text or symbols)

3a

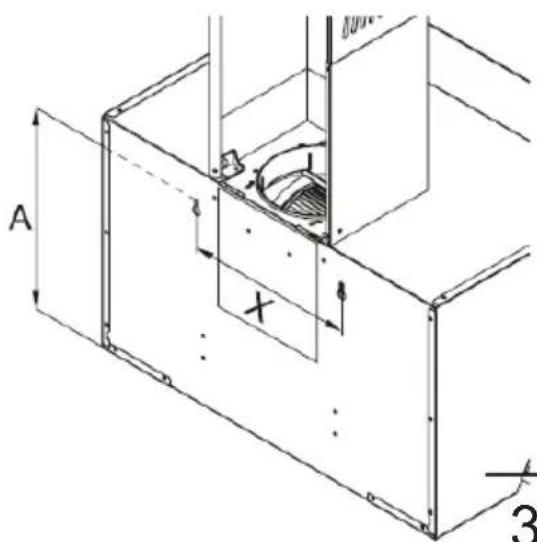

A X 3

3d

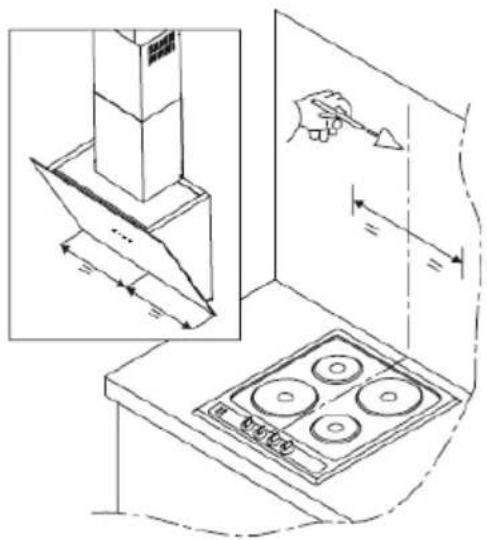

Technical diagram showing kitchen appliance installation with labeled dimensions and a hand holding a tool near a stove.

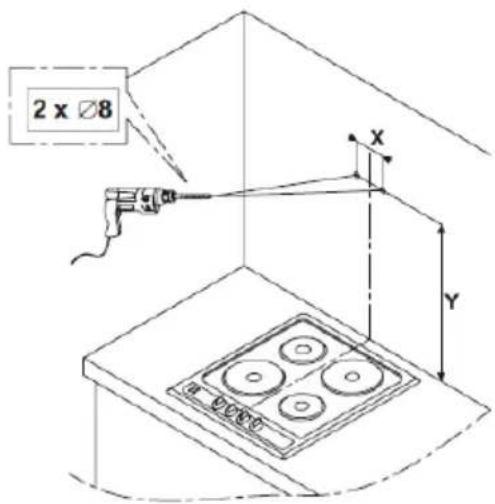

2 x Ø8 X Y

3b
3e

ELECTRICAL 450 GAS 650 X A Y B202P

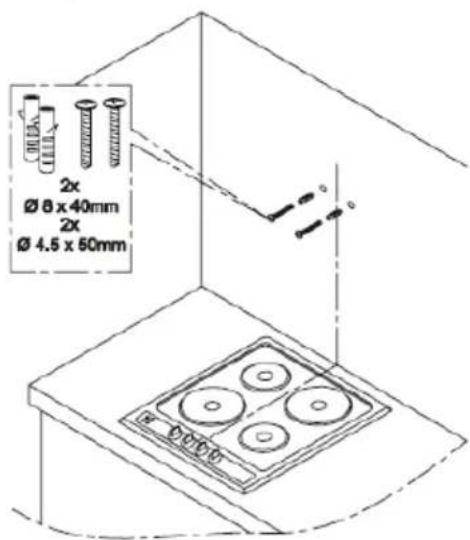

2x Ø 8 x 40mm 2x Ø 4.5 x 50mm

3c
3f

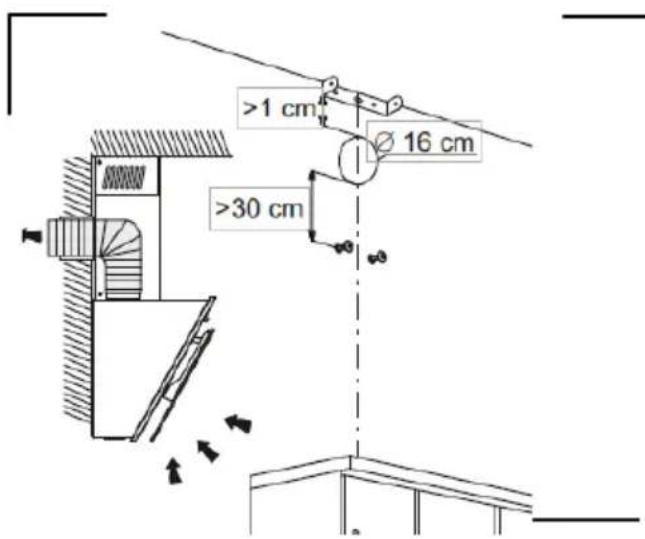

>1 cm Ø 16 cm >30 cm

3g

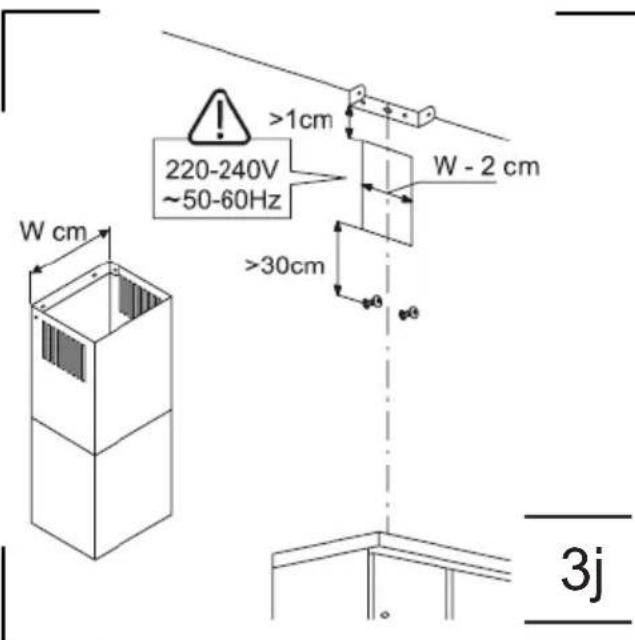

W cm 220-240V ~50-60Hz >1cm W - 2 cm >30cm 3j

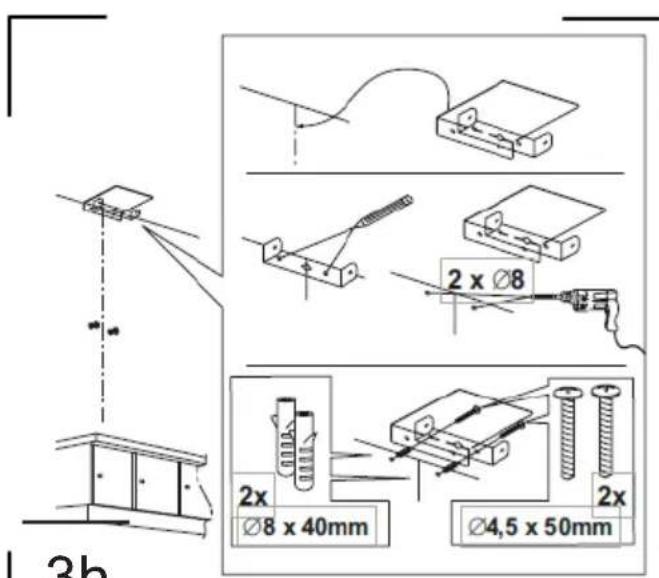

2 x Ø8 2x Ø8 x 40mm Ø4,5 x 50mm 3b

3h

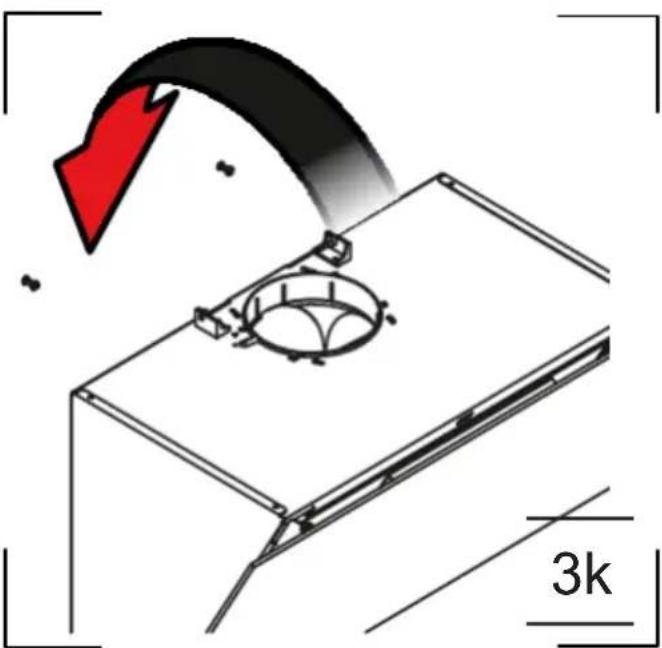

Diagram showing a mechanical component with a red arrow and scale marker (3k), no readable text or symbols present.

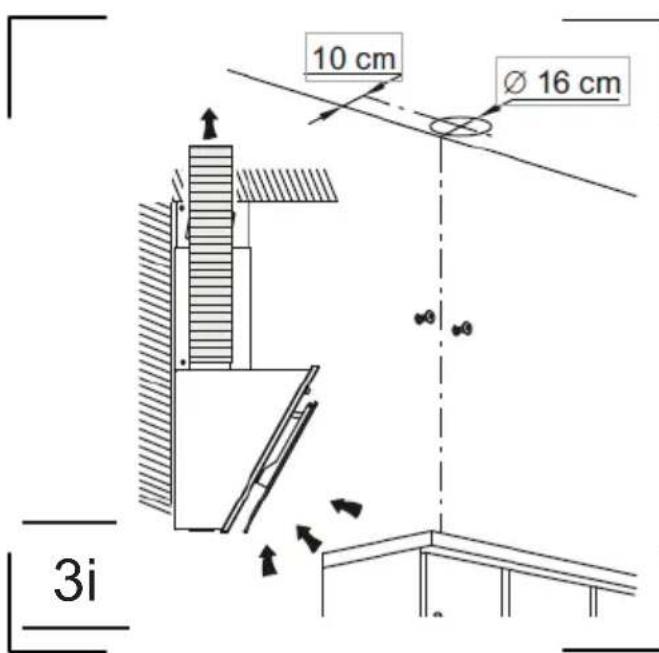

10 cm Ø 16 cm 3i

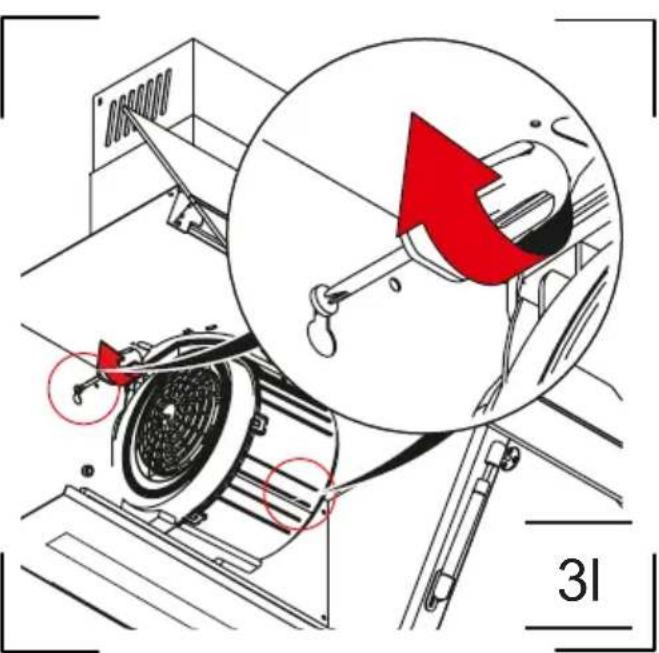

Technical diagram of a mechanical assembly with a magnified inset showing a red arrow and component detail (no readable text or symbols)

5

Amica S.A.

ul . Mickiewicza 52 / 64-510 Wronki tel. [phone] / fax [phone]

www.amica.pl

Amica International GmbH

Lüdinghauser Str. 52

D-59387 Ascheberg

Tel: 0 25 93 - 95 67-0

www.amica-group.de
