CP 110105 - Fan Orbegozo - Free user manual and instructions

Product type	Ceiling fan
Brand	Orbegozo
Model	CP 110105
Power supply	220-240 V ~ 50 Hz
Installation	Complies with national electrical standards; requires an all-pole switch with 3 mm contact opening
Minimum blade height	2.30 m above the ground
Functions	Ventilation with reverse rotation (summer/winter)
Use	Household use only
Safety	Can be used by children aged 8 and above under supervision; do not play with the appliance
Cleaning and maintenance	Disconnect before cleaning; do not immerse in water
Recycling	Do not dispose of with household waste; follow the WEEE directive (2012/19/EU)
Warranty	Legal warranty as per applicable legislation; contact customer service via Orbegozo website
Customer service	https://orbegozo.com/contacto/
Original instructions	Available at www.orbegozo.com

Frequently Asked Questions - CP 110105 Orbegozo

How to install the Orbegozo CP 110105 ceiling fan?

Installation must be carried out by a qualified person. Ensure the power circuit is switched off. Follow the diagrams in the manual and check that the blades are properly attached. The minimum blade height must be 2.30 m.

Can I reverse the direction of rotation of the blades?

Yes, the fan allows reverse rotation. Always stop the fan before changing direction using the switch on the housing.

How to clean my fan?

Always disconnect the appliance before cleaning. Use a soft dry cloth. Never use water or liquid products to avoid risk of electric shock.

What to do if the fan stops working?

First check that the plug is properly inserted and the circuit breaker has not tripped. If the problem persists, contact Orbegozo authorized technical service via their website.

The fan is making noise, is that normal?

A slight operating noise is normal. If the noise is excessive, check that all screws are tight and that the blades are balanced. An imbalance may cause vibrations.

What is the minimum recommended installation height?

The blade must be at least 2.30 m above the ground to ensure optimal safety.

Can I use the fan with a speed controller?

The manual does not specify the use of a speed controller. It is recommended to use only the supplied controls to avoid damage.

How to get a copy of the manual?

You can download the manual for free in PDF format from www.orbegozo.com by searching for model CP 110105.

Is the appliance under warranty?

Yes, the fan is covered by the legal warranty as per current legislation. Keep your receipt and contact customer service via Orbegozo website.

Can I replace the blades myself?

Blade replacement must be done with original parts. Consult the manual for the procedure and make sure not to mix blades from different fans.

USER MANUAL CP 110105 Orbegozo

Modern metallic ceiling fan with three blades and a top hub (no text or symbols visible)

CP 110105

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Scan this QR code in order to access to more information about this ceiling fan, including installation details. Or enter www.orbegozo.com and look for the model number in the website.

Technical diagram of a mechanical clamp assembly with screwdriver and adjustment mechanism (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and wiring (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Technical line drawing of a mechanical component with no visible text or symbols

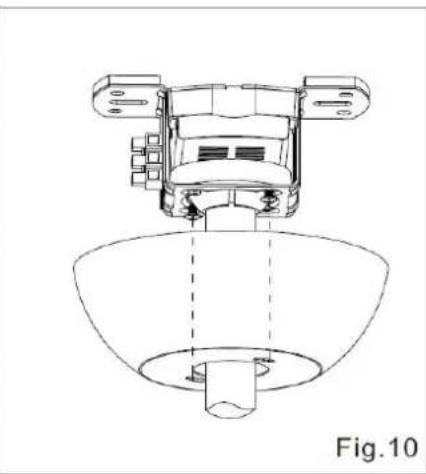

Fig.10

Simple line drawing of a bowl-shaped object with a central column and two small dots, no text or symbols present.

OK

Technical line drawing of a mechanical assembly with a propeller and rotor, showing internal components and a rotation indicator (no text or symbols)

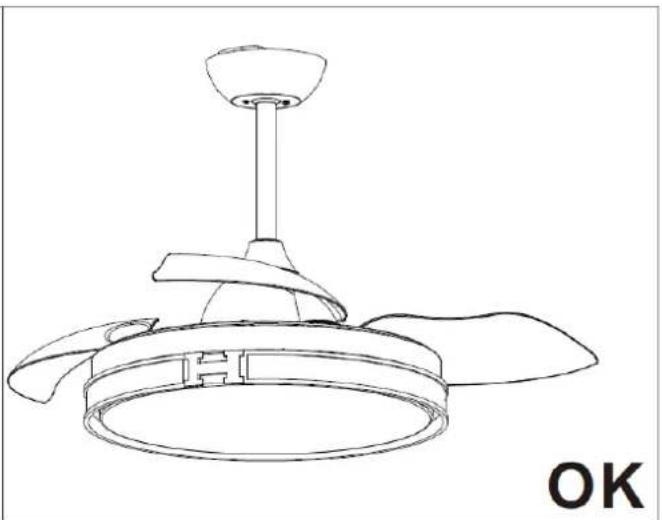

Line drawing of a ceiling fan with a top-mounted head and three blades, labeled 'OK' (no text or symbols on the diagram itself)

Diagram of a mechanical device with a funnel and rotating base, showing internal components and a magnified inset (no text or symbols)

FUNCIONAMIENTO DEL VENTILADOR DE TECHO

Dear Customer, If you follow the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come. Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.

14. WARNING: In case of misuse, there is a risk of possible injury.

Other specific safeguards

1. The method of disconnection from the mains supply must incorporate a switch or isolator with a minimum contact separation of 3 mm. on all poles.

2. Make sure that when the fan is fitted in the chosen position, there is no possibility of the rotating blades coming into contact with any object. Blades should be at least 2.30 m from floor when fan is hung.

3. If you are installing more than one ceiling fan make sure that you do not mix fan blade sets, even though they are from the same ceiling fan model.

4. Before beginning, disconnect power by removing fuse or turning off circuit breaker.

5. Once fan installation is completed make sure that all connections are secure to prevent fan from falling.

6. Fan must be turned off and stopped before reversing fan direction.

7. Check that the means of fitting the fan to the ceiling is capable of supporting the weight of the fan when in operation. (Minimum 50Kg.).

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

CONSEILS DE SECURITE

Technical diagram of a mechanical clamp or clamping device with screwdriver and adjustment arrows (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and wiring (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Technical line drawing of a mechanical component with no visible text or symbols

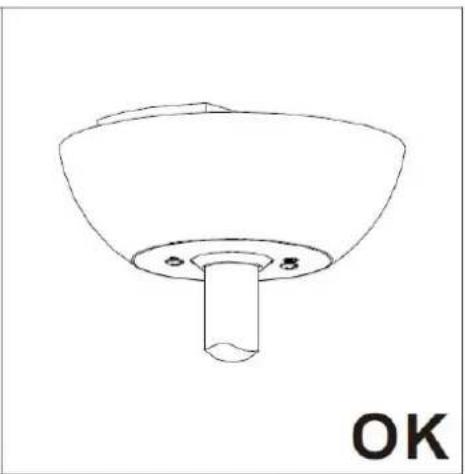

Line drawing of a bowl-shaped object with a central stem and two small dots, labeled 'OK' at the bottom (no other text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

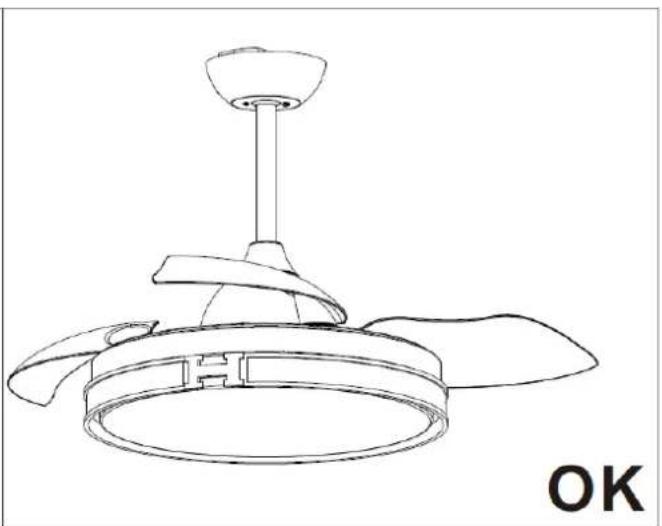

Line drawing of a ceiling fan with a propeller and three blades, labeled 'OK' (no text or symbols on the diagram itself)
