| Product type | Air cooler with humidification |
| Brand | Orbegozo |
| Model | AIR 80 |
| Category | Air conditioning |
| Power supply | Mains (230 V ~ 50 Hz) |
| Rated power | 73.3 W |
| Maximum airflow | 9.53 m³/min |
| Sound power level | 61.1 dB(A) |
| Maximum air speed | 4.2 m/s |
| Number of speeds | 3 (low, medium, high) |
| Timer | 0.5 to 7.5 hours |
| Remote control | Yes (2 AAA batteries not included) |
| Oscillation function | Automatic horizontal and manual vertical |
| Ice cube tray | Yes (2 cold accumulators) |
| Air filter | Triple removable permanent filter |
| Water tank capacity | Approximately 5 L (estimate) |
| Safety | Child lock, do not use near water |
| Maintenance | Regular filter cleaning, damp cloth and tank |
| Warranty | Legal, technical service via Orbegozo |
Frequently Asked Questions - AIR 80 Orbegozo
User questions about AIR 80 Orbegozo
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Air Conditioning in PDF format for free! Find your manual AIR 80 - Orbegozo and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AIR 80 by Orbegozo.
USER MANUAL AIR 80 Orbegozo
Sonifer, S.A.
Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.
Dear Customer, If you follow the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come. Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

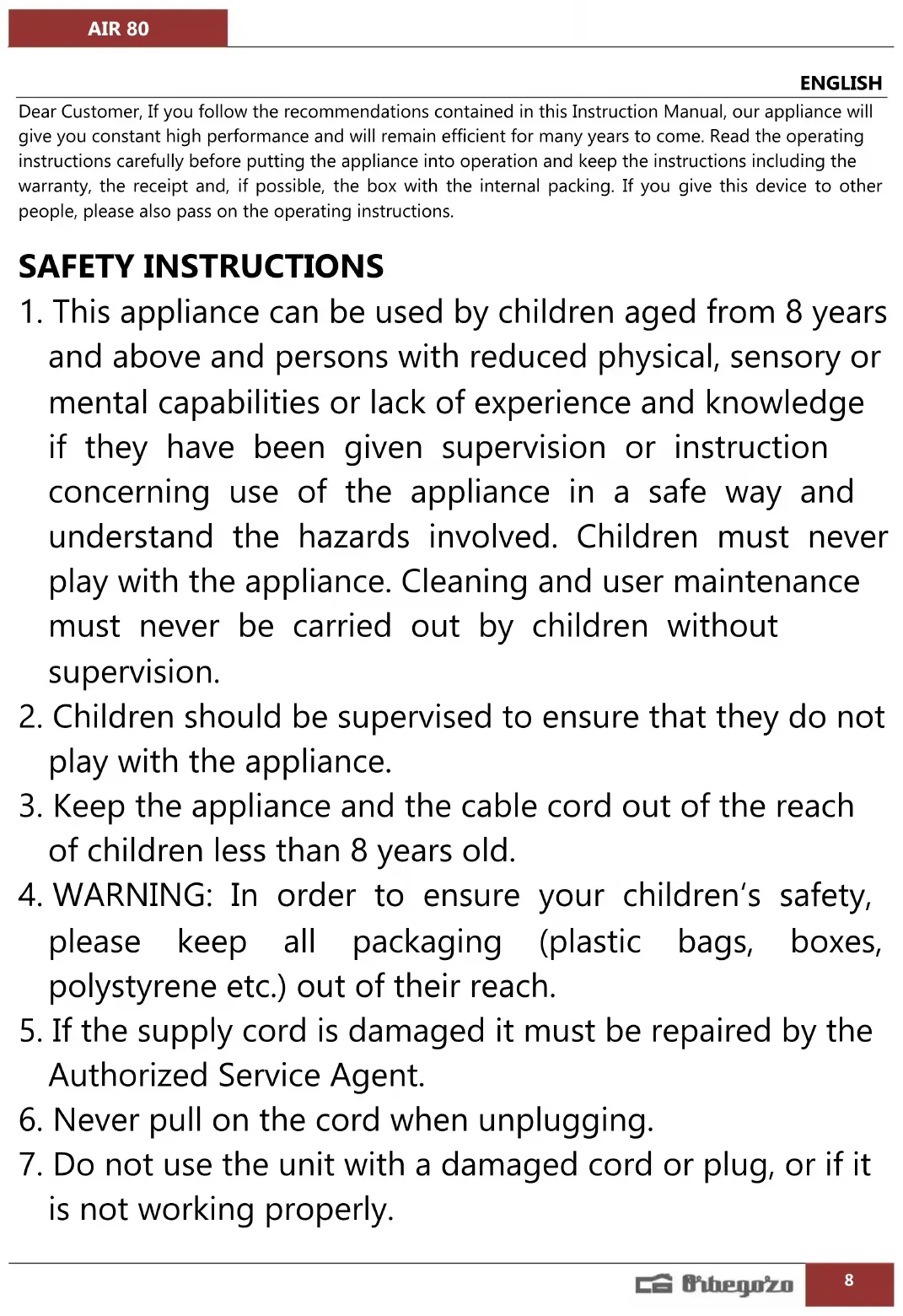

SAFETY INSTRUCTIONS
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
- Children should be supervised to ensure that they do not play with the appliance.
- Keep the appliance and the cable cord out of the reach of children less than 8 years old.
- WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
- If the supply cord is damaged it must be repaired by the Authorized Service Agent.
- Never pull on the cord when unplugging.
-
Do not use the unit with a damaged cord or plug, or if it is not working properly.
-
Do not handle the appliance with wet hands.
- Never immerse the appliance in water or any other liquid.
- Make sure the appliance has been unplugged before cleaning.
- This appliance must be installed following the national regulations for electrical installations.
- This appliance is for household use only.
- In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.
-
WARNING: In case of misuse, there is a risk of possible injury.
-
Never insert fingers, pencils or any other object through the grille when fan is running.
- Disconnect the plug when moving from one location to another.
- Disconnect plug when removing guards for cleaning.
- Be sure fan is on a stable, even surface when operating to avoid overturning.
- DO NOT USE fan in window. Rain may create an electrical hazard. Do not leave the fan operating adjacent to an area where water has been collected to avoid the potential of electrical hazard.
-
Do not operate this product near an open fire, it may ignite and cause fire, resulting in body injury or property damage.
-
Do not operate in areas where gasoline, paint or other flammable liquids are used or stored.
- Never attempt to disassemble or alter the product in any way not instructed by this manual. Shock, fire, or bodily injury may occur.
- Do not cover or restrict airflow to the inlet or exhaust grills in any manner as the appliance may over heat and become a fire risk.
- Keep all objects at least 1.5 meter from the front, sides and rear of the appliance.
FUNCTIONS
- Refrigeration / Humidification: This appliance can be used as humidifier, used with the ice tray, this appliance can refresh the ambience.
- Adjustable speed: have three speed, low, medium, high.
- Swing function: the slats swing automatically, delivering wind at wide angle flatly. Also swing the slats transversely by your hands, choosing the wind direction up and down.
- Triple removable air filter and triple cooling pad: easy to clean, can use soft brush and detergent.
- Timer up to 7.5 hours
- Remote control: to control the functions of the appliance from a distance.
ASSEMBLING
- Open the package and take out the air cooler.
- Mount the wheels on the bottom of the cooler, fastening them with 4 screws each. The wheels with brakes must be located in the rear part of the conditioner.
- Fill the tank with clean water.
① Open the front hatch pressed at the top.
② Pour into the water over min level but no more than max Level.
③ To en-have the cooling effect, you can put the ice box into the tank, previously frozen.
Attention: cut the power when you pour the water into the tank. You should change the water of the tank each 15 days.
OPERATION
Plug the device into the mains
- To turn on the air conditioner, press the POWER button
-
"LOW, MED, HI" speed button: select the desired speed 1, 2 or 3.
-
Oscillation button: press "OSC" button, the air direction oscillates horizontally. Pressing it again stops this function.
You can also rotate the blades crosswise manually, choose the air stream up and down. - Humidification button: press the "COOL" button to make it start to work. If you add the cold packs, the temperature of the air outlet vent can drop up to 3°C below the ambient temperature after a few minutes. If you press the button again, this function stops.
- Timer: You can set a sleep time between 30 minutes and 7.5 hours.
- To turn off the air conditioner, press the "POWER" button.
- All functions can be realized by remote control
REMOTE CONTROL
The remote control allows you to control the same functions as the control panel. Always point the remote control towards the front of the air conditioner when you want to use it.
Do not mix different types of batteries or new and old.
Remove the batteries from the remote control if it is not going to be used for long periods of time.
Works with two 1.5V AAA batteries (not included)
THE USE OF ICE BOX
The ice crystal has the main characteristic of keeping cold, it can absorb the heat of the water and make the water temperature in the tank drop below room temperature, so that the air will be much colder.
How to use:
a. Add water to the TANK to the MAX indication and place it in the freezer to make sure it freezes completely.
b. Place the ACCUMULATOR on top of the air conditioner
c. There are two ACCUMULATORS that can be used interchangeably.
CLEANING AND MANTENANCE
1. Clean the air filter screen
Disconnect the plug, remove the two screws from each of the three air filter screens and remove them from the air conditioner. Clean the air filter screen with neutral detergent and a brush. Then clean it with clean water and re-install it on the device.
2. Clean the wetted pad
Disconnect the power plug, remove the air filter screen and remove the wet pad from the holder. Clean the damp pad with neutral detergent and a brush. Then clean it with clean water and reinstall it on the device.
Attention: The wet pad must be installed completely, in order to avoid leakage.
3. Clean the water tank
Disconnect the plug, open the two latches located on both sides of the cooler, remove the upper part of the cooler and place it on a cloth or paper to absorb any drops of water that may remain in the water pump.
Wash it with neutral detergent and rinse with water. Once dry, reassemble the air conditioner.
4. Clean the shell
Clean with neutral detergent and a soft cloth.
Attention: Disconnect the plug when cleaning the device and do not leave any water on the control panel.
MALFUNCITON AND MAINTENANCE
| Malfunction | Possible reasons | Solution |
| No action | Power off or poor connection | Plug the power cord and make sure it connects well. |
| Poor result of dedusting | Block the air filter screen with dust.Block the air inlet with corpus alien. | Remove and clean the air filter screen.Remove corpus alien from the air inlet. |
Repair the appliance under the situation as follows:
- Abnormal action or no action.
- Abnormal action since ingress of water or corpus alienum.
DISPOSAL OF OLD ELECTRICAL APPLIANCES
The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the
correct disposal of their old appliance.
DECLARATION OF CONFORMITY:
This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.
GUARANTEE
This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/
For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/
Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
