USER MANUAL PDR065 LENCO

Version: 1.03 English

CAUTION: Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

PRECAUTIONS BEFORE USE

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2”) free

space around the whole device.

2. Install in accordance with the supplied user manual.

3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-

generating products or naked flame. The device can only be used in moderate climates. Extremely cold or warm environments should be avoided. Working temperature between 0° and 35°C.

4. Avoid using the device near strong magnetic fields.

5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device

following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.

6. Warning! Never insert an object into the product through the vents or openings. High voltage flows

through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.

7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.

8. The device shall not be exposed to dripping or splashing and make sure that no objects filled with

liquids, such as vases, are placed on or near the apparatus.

9. Do not use this device when condensation may occur. When the unit is used in a warm wet room with

damp, water droplets or condensation may occur inside the unit and the unit may not function properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit should be dry before getting any power.

10. Although this device is manufactured with the utmost care and checked several times before leaving the

factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.

11. This device must operate on a power source as specified on the specification label. If you are not sure of

the type of power supply used in your home, consult your dealer or local power company.

12. Keep away from animals. Some animals enjoy biting on power cords.

13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids.

To remove severe stains, you may use a damp cloth with dilute detergent.

14. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of

the device or battery replacement.

15. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may

be corrupted or lost.

16. If the unit has USB playback function, the USB memory stick should be plugged into the unit directly.

Don’t use an USB extension cable because it can cause interference resulting in failing of data.

17. The rating label has been marked on the bottom or back panel of the device.

18. This device is not intended for use by people (including children) with physical, sensory or mental

disabilities, or a lack of experience and knowledge, unless they’re under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.

19. This product is intended for non professional use only and not for commercial or industrial use.

20. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable

position vibrations or shocks or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.

21. Never remove the casing of this device.

22. Never place this device on other electrical equipment.

23. Do not allow children access to plastic bags.

24. Only use attachments/accessories specified by the manufacturer.

25. Refer all servicing to qualified service personnel. Servicing is required when the device has been

damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the device, when the device has been exposed to rain or moisture, does not operate normally, or has been dropped.

26. Long exposure to loud sounds from personal music players may lead to temporary or permanent

27. If the product is delivered with power cable or AC power adaptor:

• If any trouble occur, disconnect the AC power cord and refer servicing to qualified personnel.

• Don’t step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable’s exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children’s reach! When playing with the power cable, they can seriously injure themselves.

• Unplug this device during lightning storms or when unused for a long period.

• The socket outlet must be installed near the equipment and must be easily accessible.

• Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.

• Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection.

• Devices with class 2 construction do not require an earthed connection.

• Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.

• Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.

28. If the product contains or is delivered with a remote control containing coin/cell batteries:

• “Do not ingest battery, Chemical Burn Hazard” or equivalent working.

• [The remote control supplied with] This product contains a coin/button cell battery. If the battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

• Keep new and used batteries away from children.

• If the battery compartment does not close securely, stop using the product and keep it away from children.

• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

29. Caution about the use of Batteries:

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation.

• Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas.

• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.

• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or that leakage of flammable liquid or gas.

• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

• Attention should be drawn to the environmental aspects of battery disposal. INSTALLATION

• Unpack all parts and remove protective material.

• Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.5 Accessories ● Remote Control ● User manual

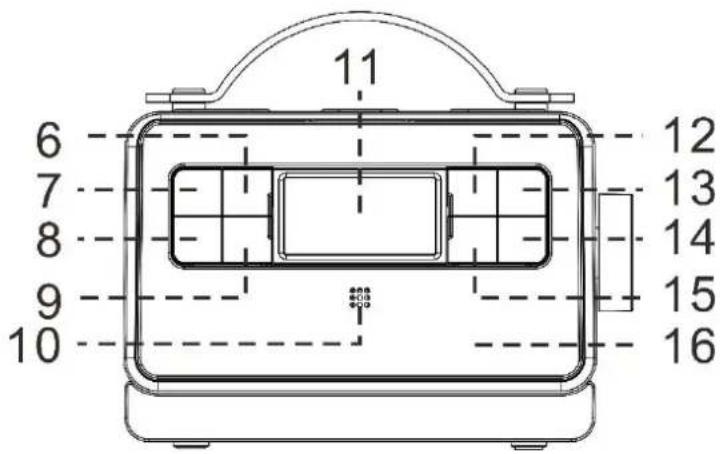

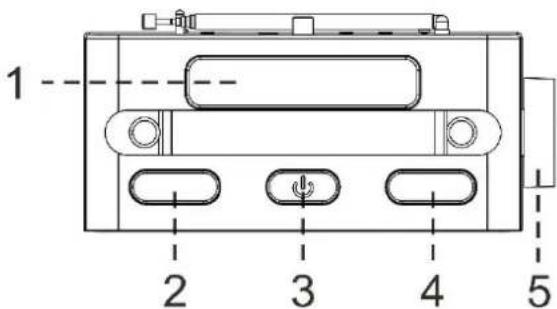

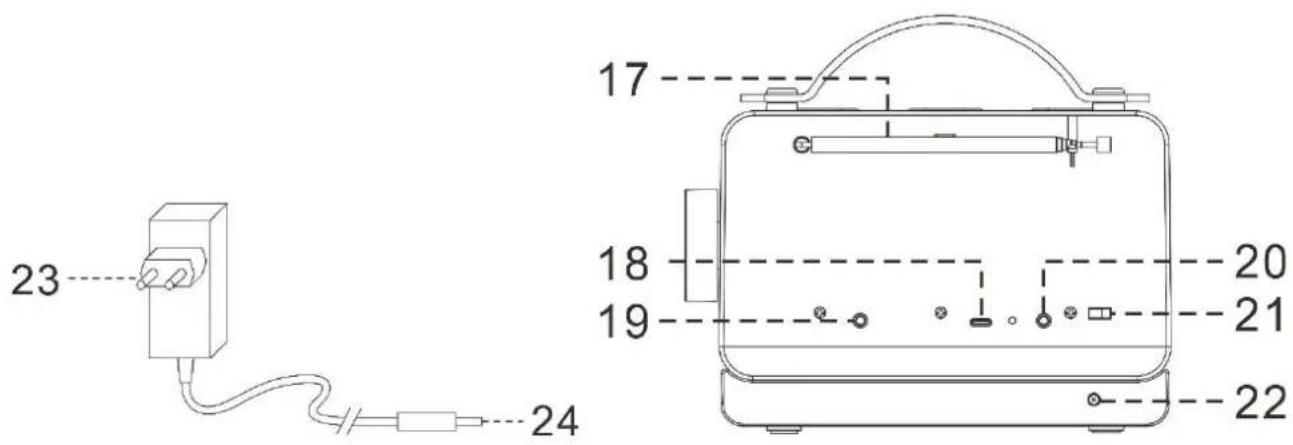

19) 3.5mm headphone jack

22) DC jack of the charger docking station

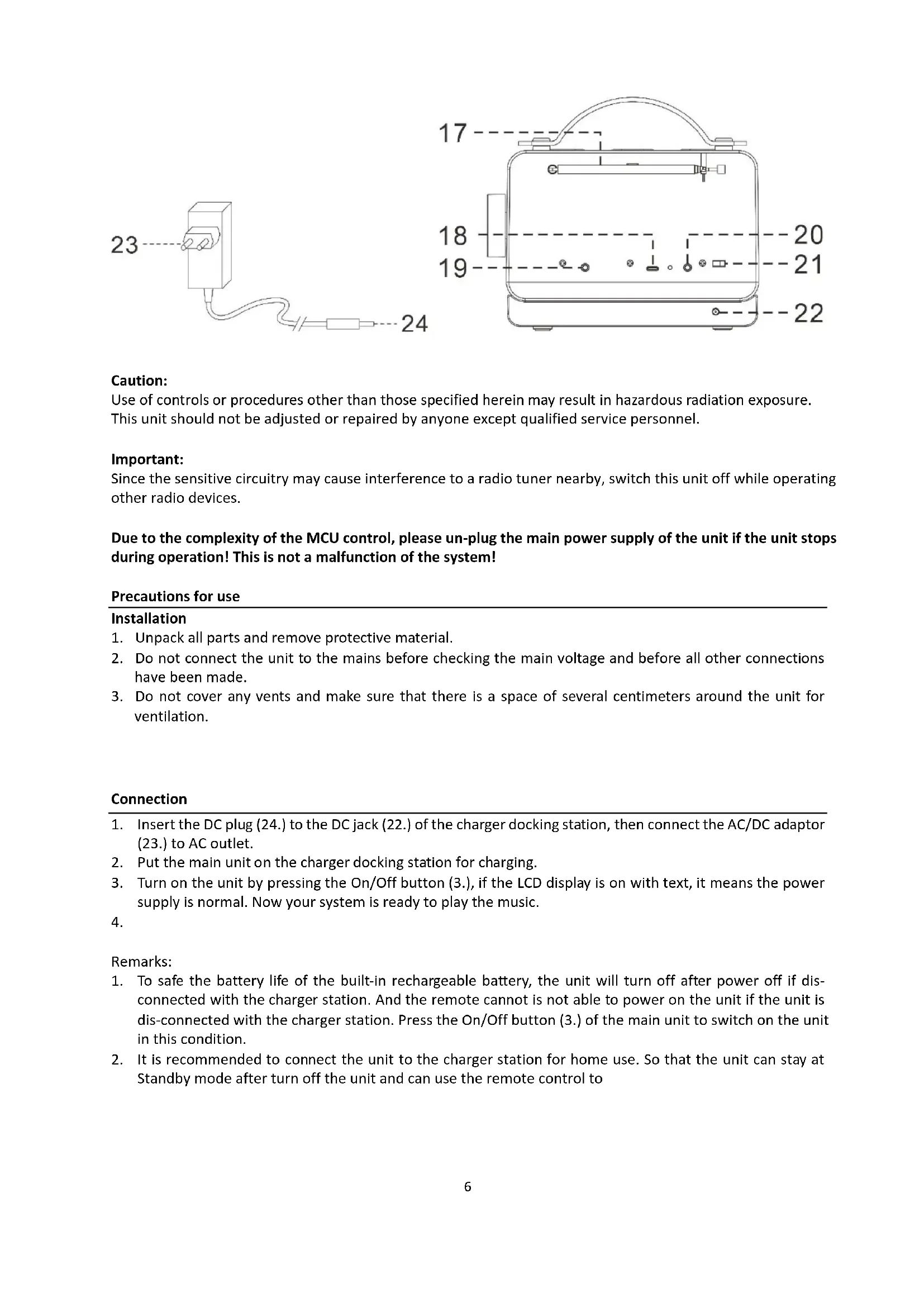

Caution: Use of controls or procedures other than those specified herein may result in hazardous radiation exposure. This unit should not be adjusted or repaired by anyone except qualified service personnel. Important: Since the sensitive circuitry may cause interference to a radio tuner nearby, switch this unit off while operating other radio devices. Due to the complexity of the MCU control, please un-plug the main power supply of the unit if the unit stops during operation! This is not a malfunction of the system! Precautions for use Installation

1. Unpack all parts and remove protective material.

2. Do not connect the unit to the mains before checking the main voltage and before all other connections

3. Do not cover any vents and make sure that there is a space of several centimeters around the unit for

1. Insert the DC plug (24.) to the DC jack (22.) of the charger docking station, then connect the AC/DC adaptor

2. Put the main unit on the charger docking station for charging.

3. Turn on the unit by pressing the On/Off button (3.), if the LCD display is on with text, it means the power

supply is normal. Now your system is ready to play the music.

1. To safe the battery life of the built-in rechargeable battery, the unit will turn off after power off if dis-

connected with the charger station. And the remote cannot is not able to power on the unit if the unit is dis-connected with the charger station. Press the On/Off button (3.) of the main unit to switch on the unit in this condition.

2. It is recommended to connect the unit to the charger station for home use. So that the unit can stay at

Standby mode after turn off the unit and can use the remote control to7 Setting the Time & Date The clock will synchronize to RDS/DAB clock once receiving the RDS/DAB signal if the clock was not set in advance. Follow the below steps to set the time and date manually.

1. Turn on the unit by pressing the On/Off button (3.), then press the Mode button (7.) to select FM or DAB

5. Set the hour and minitues by pressing Tune + / - (4) button and press the Enter button (8.) to confirm.

6. The display will change to “Set date 1-1-2020”. Then set the day / month / year by pressing Tune + / - (4)

button and press the Enter button (8.) to confirm.

7. The display will show <Time saved> meaning the time and date has been stored successfully.

8. Under the <System> <Time> setting, you can also set the hour / date format.

Please follow the below breakdown of the menu for operation. Pressing Tune + / - (4) button to select and press the Enter button (8.) to enter/confirm. Press Menu button (2.) again to quite the setting. <System> <Time> <Set time/Date> Follow the instruction "Setting the Time & Date" <Auto update> Update from Any (The system will automatically update the time and date once receiving the RDS/DAB signal) Update from DAB (The system will automatically update the time and date once receiving the DAB signal) Update from FM (The system will automatically update the time and date once receiving the RDS signal) No update (If you prefer to set the time and date manually, please select this setting) <Set 12/24 hour> Set 24 hour Set 12 hour <Set date format> DD-MM-YYYY MM-DD-YYYY

• The preset time will be reset completely if disconnecting the main power supply. You are recommended to switch the system into standby mode for convenient use.

Listening to radio FM Operation Manual tuning

1. Turn on the unit by pressing On/Off button (3.), then press the Mode button (7.) to select FM mode.

2. Press the Tune + / - (4) button to tune your desired station.

1. Press and hold the Tune + / - (4) button for a while then release the button. Unit will start to scan at up or

down direction until radio station received.

2. Rotate volume up/down knob (5.) for the desired volume level.8

Hints for reception:- Extend the tele-scopic antenna for best reception. FM scan setting After auto tuning if too many unwanted weak radio stations are received, you can select strong stations only by filtering out the weaker signals.

3. Perform the auto tuning operation again as above.

FM Mono & FM-stereo reception By default, all stereo stations are reproduced in stereo. For weak signal, this may result in a poor signal-to- noise. To play weak signal in mono mode, follow the below steps to switch between stereo and mono setting.

3. When you wish to switch to stereo signals, follow the same procedure but to select < Stereo allowed >.

Hints for best reception: - FM: the receiver has a rod antenna (17.) at the rear cabinet. This antenna should be totally unraveled and extended for the best reception. Radio data system (RDS) This is the feature which displays the information released from the radio broadcast and will showed on the LCD display step by step as below by pressing the Info button (9.) continuously. Radio text→ program type→ frequency→ mono/stereo → time → date Preset memory stations You can store 10 FM stations in the memory

1. Turn to the desired radio station by “manual” or “auto” tuning method.

2. Press and hold the Preset button on the remote for 2-3 seconds, the display will show “Preset Store” <1:

4. Press Enter button to store the location (1-10). Display will show Preset ‘X’ stored

1. If the preset station is already stored, the display will show the frequency next to the preset station, eg:<1:

2. The preset station will be overwrite when new radio station is being stored.

3. For present station number 1, 2, 3, 4 they can be stored directly by pressing and hold the button (12.) or

(13.) or (14.) or (15) on the main unit after turned to the desired radio station. Recall preset memory:

1. Press the Preset buttons on the remote control to recall the preset station directly.

3. Display will show the preset station frequency and preset store number (P1, P2, P3… etc).9

Digital audio broadcasting (DAB) radio

1. Turn on the unit by pressing On/Off button (3.), then press the Mode button (7.) to select DAB mode.

2. Unit will automatically scan all available stations in DAB mode.

3. Or press the Menu button (2.) once, the display will show < Full scan >. Press Enter button (8.) to confirm

and unit will start a full scan and all the received station will be kept in station list after scan.

6. Press the Info button continuously to check the below info released by DAB.

3. Press Enter button (8.) to confirm and the display will show the DAB channels.

4. Press press Tune + / - (4) button to cycle through the DAB channels and press Enter button (8.) to enter

Display information This is the feature which displays the information released from the radio broadcast and will showed on the LCD display step by step as below by pressing the Info button (9.) continuously. Radio text→ program type→ frequency→ mono/stereo → time → date DRC (Dynamic Range Control) value You can set the compression level of station to eliminate the different in dynamic range or sound level between radio station.

selection. Station order

1. Set in DAB mode. Press the Menu button (2.) then press Tune + / - (4) button to select < Station order >.

Press Enter button (8.) to enter the setting.

2. Press Tune + / - (4) button to browse ‘Alphanumeric’ and ‘Ensemble’ then press Press Enter button (8.) to

confirm your selection. Prune inactive station

1. Set in DAB mode. Press the Menu button (2.) then press Tune + / - (4) button button to select < Prune >.

Press Enter button (8.) to enter the setting.

2. Press S Tune + / - (4) button to select ‘Yes’ then press Press Enter button (8.) to confirm.

Preset memory station You can store 10 DAB stations in the memory and the setting step were exactly same as FM.10 System setting Set in FM or DAB mode. Press the Menu button (2.) then press Tune + / - (4) button to select < System >. Press Enter button (8.) to enter the setting of the time, backlight, inactive standby, languages. Pressing Tune + / - (4) button to select and press the Enter button (8.) to enter/confirm. Press Menu button (2.) again to quite the setting. Time - Refer to the section “Setting the Time & Date” <System> <Backlight> <Timeout> To set the duration of the display to change the backlight brightness from On level to Dim level at standby mode. <10 sec>, <20 sec>, <30 sec>, <45 sec>, <60 sec>, <90 sec>, <120 sec>, <180 sec>, <ON> <On level> The backlight brightness at ON (operation) mode <High>, <Medium>, <Low> <Dim level> The backlight brightness at Standby mode <High>, <Medium>, <Low> <System> <Inactive Standby> <OFF>, <2 hour>, <4 hour>, <5 hour>, <6 hour> <System> <Language> English, Espanol, Francais, Italiano, Nederlands, Norsk, Polski, Suomi, Dansk, Deutsch <System> <Factory Reset> Once perform the factory reset, all the preset station will be erased as well as language setting, unit will back to its ordinary ex-factory setting. <Yes>, <No> <System> <Software Upgrade> <Yes>, <No> <System> <SW Version> To check the software version

Bluetooth connecting and playback

2. “Bluetooth” will be shown on the LCD display. It means the Bluetooth is in searching mode.

3. Switch on the Bluetooth feature of your Bluetooth device (such as mobile phone) and select “Lenco PDR-

065” Bluetooth equipment to connect.

4. Once connected successfully, the LCD display will show “BT Connected “.

5. Start playback from your Bluetooth device and enjoy the music.

6. Rotate volume up/down knob (5.) to desired volume level.

7. You can press the Skip up or Skip down button of your Bluetooth device to control the music

8. To disconnect the Bluetooth connection, press the Mode button (7.) to switch to another mode or turn

off the Bluetooth feature of your Bluetooth device. The LCD display will show “Bluetooth “again for pairing of a new device or switch off the unit. Repeat step 3-5 above to connect for another Bluetooth device. More features A. Alarm clock setting This function allows the system to turn on automatically and wake you up to buzzer, FM or DAB mode. Set the system to DAB / FM mode, then press the Menu button (2.) then press Tune + / - (4) button button to select <System> press Enter button (8.) to confirm. Press Tune + / - (4) button to select <Alarm>, press Enter button11 (8.) to enter the Timer setting mode. LCD will show Timer On time, Moreover, the timer clock will flash the hour digit, this means the unit is all ready to enter timer setting mode.

: Press the Alarm key to select the set up of Alarm 1. Press OK key to start the set up.

: Once enter the set up of The Alarm, the hour digits is flashing. Press + / - key to set the hour and then press Enter key to confirm the hour. Then the minute digits is flashing. Press + / - key to set the hour and then press Enter key to confirm the minute.

: Then press + / - key to select the duration of the alarm between: 15, 30, 45, 60, 90, 120 (minutes). Tune + / - (4) button to select timer on mode. Then press Enter button (8) to store the timer on mode.

: Press up / down key to select the wake up mode between: Buzzer, FM, DAB. FM/DAB: can select between last listened or preset station list. Press + /- key to select and then press OK key to confirm the setting.

: You can select the alarm frequency between: Daily, Once, Weekends or Weekdays. If you choose Once, you need to confirm the date of the alarm. Press Tune + / - (4) button to select timer on volume level and press Enter button (8) to complete the timer setting. The Unit will return to standby mode and the display will show the timer icon “ ”.

Press + / - key to select alarm on or off, and then press Enter key to confirm the setting. Once the alarm is on, the alarm icon will be shown on the display. On the other hand, the alarm icon will be disappeared if the alarm is being turn off.

• For FM/DAB wake up, the system will preset to the last radio frequency being listened too before switching off.

• If wake up to buzzer is selected, the unit will emit a “beep beep” sound at the selected time.

• There are about 4 seconds for the alarm setting mode, this system will return to normal mode automatically if no keys are being pressed in this time frame. The alarm can only work when the device is positioned and connected on the battery docking station! B. SNOOZE Press the Snooze key on the unit once to extend the alarm for 5 minutes every time.

C. Using Headphones Inserting the plug of your headphones into the Headphone jack will enable you to listen in private. READ THIS IMPORTANT INFORMATION BEFORE USING YOUR HEADPHONES

1) Avoid extended play at very high volume as it may impair your hearing.

2) If you experience ringing in your ears, reduce the volume or shut off your unit.

3) Keep the volume at a reasonable level to allow you to hear outside sounds.12

D. Easy – Normal mode switch This system has built-in easy-normal mode switch at the rear panel. Switch on Easy Mode to simplify the interface of the device, making it easy to use for seniors. Slide the Easy- Normal mode switch to the Easy mode position – Only Power On/Off (3), Preset 1 – 4 buttons (12 – 15), and Volume knob (5) are still in operation. Other buttons will be cut-off.

Manufacturers name or trade mark, commercial registration and address

Shenzhen ABP Technology Co. Ltd. Address: 2

floor, B2 Building, Xin hao sheng Industrial zone, Yonghe Road, Qiaotou, Fuhai Street, Bao an District, Shenzhen City, Guangdong 518103, P.R. China Model Identifier

AD0181-0552500GB Input voltage Specified by the manufacturer. Shall be a value or a range. 100-240V Input AC frequency Specified by the manufacturer. Shall be a value or a range 50/60 Hz Output voltage Nameplate output voltage. Shall indicate whether is AC or DC. 5,5V Output current Nameplate output current. 2,5A Output Power Nameplate output power. 13,75W Average active efficiency Declared by the manufacturer based on the value calculated as arithmetical mean of efficiency at load conditions 1-4. 87,403%13 Efficiency at low load (10%) Declared by the manufacturer based on the value calculated at load condition 5. External power supplies with a nameplate output power of 10 W or less shall be exempted from this requirement. 71,9% No load Power consumption Declared by the manufacturer based on the value measured for load condition 6. ≤ 0.1W14 Remote control transmitter Battery installation (battery not provided) The infra-red transmitter requires 2 pc AAA size battery for operation Button description Power on/Standby Press to power on/standby the system

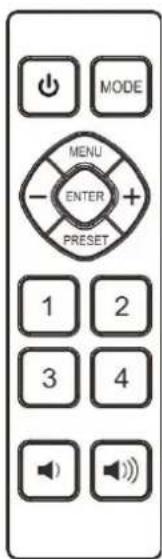

Menu Press to enter the menu setting

Press to choose the options

ENTER Press to confirm the setting

Preset Press enter the FM/DAB radio preset station

Volume up / down Press to adjust the volume level

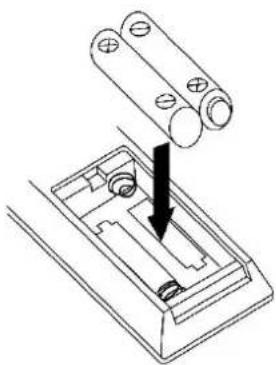

BATTERY INSTALLATION The battery compartment is located on the back of the remote control.

1. Remove the battery compartment door by pressing in on the tab and lifting it

2. Insert two (2) AAA size batteries (not included) into the battery compartment

following the polarity markings inside the battery compartment.

3. Replace the battery compartment door.

1. Be sure that the batteries are installed correctly. Wrong polarity may damage the unit.

2. Use only the size and type of batteries specified.

3. Do not mix old and new batteries.

4. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.

5. If the unit is not to be used for an extended period of time, remove the batteries. Old or leaking batteries

can cause damage to the unit and may void the warranty.

6. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow

battery manufacturer’s directions).

7. Do not dispose of batteries in fire, batteries may leak or explode.15

NOTE: Due to ERP stage two requirements and to protect the environment, the unit will switch to standby mode automatically if no music is playing after 15 minutes.

Lenco offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer. Important note: It is not possible to send products that need repairs to Lenco directly. Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires. This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual.16

3. Disposal of the Old Device

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).

4. DECLARATION OF CONFORMITY

Hereby, Commaxx declares that the radio equipment type [Lenco PDR-065] is in compliance with directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://commaxx-certificates.com/doc/pdr-065_doc.pdf Type RF Frequency range (MHz) Power (dBm) Bluetooth 2402-2480 < 6 DAB 174-240

floor, B2 Building, Xin hao sheng Industrial zone, Yonghe Road, Qiaotou, Fuhai Street, Bao an District, Shenzhen City, Guangdong 518103, P.R. China Model-ID

WAARSCHUWING BATTERIJ

floor, B2 Building, Xin hao sheng Industrial zone, Yonghe Road, Qiaotou, Fuhai Street, Bao an District, Shenzhen City, Guangdong 518103, P.R. China Modellidentifikator

floor, B2 Building, Xin hao sheng Industrial zone, Yonghe Road, Qiaotou, Fuhai Street, Bao an District, Shenzhen City, Guangdong 518103, P.R. China Identificador de modelo
