Product Type	Mounting bracket (VCM) for projector
Brand	Chief
Model	HBUW
Maximum weight capacity	113.4 kg (250 lbs)
Material	Aluminum (series 40, min. thickness 0.154", ASTM B221) for extension column
Mounting compatibility	Threaded NPT or NPSM 1-1/2" extension column (ANSI/ASME B1.20.1 standard) or UL-listed LPK-1 kit
Horizontal adjustment	Up to 38 mm (1-1/2") in all directions
Waviness adjustment (horizontal tilt)	Yes, by adjustment bolts at each end
Tilt adjustment (vertical elevation)	Yes, by outer bolts at each end
Interface mounting type	HB series interface mounting bracket
Necessary tools	5/32" wrench (for set screw), 5/16" nut wrench
Use	Indoor use only
Safety standards	Compliant with UL (LPK-1 kit) and ANSI/ASME B1.20.1 standards
Country of origin	Not specified

Frequently Asked Questions - HBUW Chief

What is the maximum weight supported by the Chief HBUW mount?

The Chief HBUW mount can support up to 113.4 kg (250 lbs) total, including the projector and all intermediate components.

How to install the VCM mount on an NPT extension column?

Screw the VCM mount onto the NPT 1-1/2" pipe engaging at least four threads. Ensure the long edge of the VCM is parallel to the screen, then tighten the 5/16-18 x 3/8" set screw to lock the movement.

Is the Chief HBUW mount compatible with all projectors?

This mount uses interface brackets from Chief's HB series, which are specific to each projector model. Use the bracket provided with your projector or order the appropriate model.

How to adjust the projector orientation after installation?

The mount offers three adjustments: horizontal (up to 38 mm), waviness (horizontal tilt), and vertical tilt. Loosen the corresponding bolts, adjust, then retighten firmly. Do not over-loosen.

Can I use this mount outdoors?

No, this product is designed for indoor use only. Using it outdoors exposes to risks of damage and injury.

What tools are needed for installation?

You will need a 5/32" wrench for the set screw and a 5/16" nut wrench to secure the projector bracket.

How to maintain the Chief HBUW mount?

No specific maintenance is required. Periodically check the tightness of screws and bolts. Clean with a soft, dry cloth if necessary.

What to do if the mount is damaged?

Do not use the mount if it is damaged. Return it to an authorized technical service for inspection and repair. Do not attempt to repair it yourself.

Is the HBUW mount delivered with the extension column?

No, the NPT extension column or the LPK-1 kit must be purchased separately. The mount is designed to be attached to these components.

Where can I find the detailed manual for the Chief HBUW?

The manual is available for free download in PDF format on sites like notice-facile.com. You can also request a translation in your language.

USER MANUAL HBUW Chief

INSTALLATION INSTRUCTIONS

INSTRUCTIONS D'INSTALLATION

MONTAGEANLEITUNG

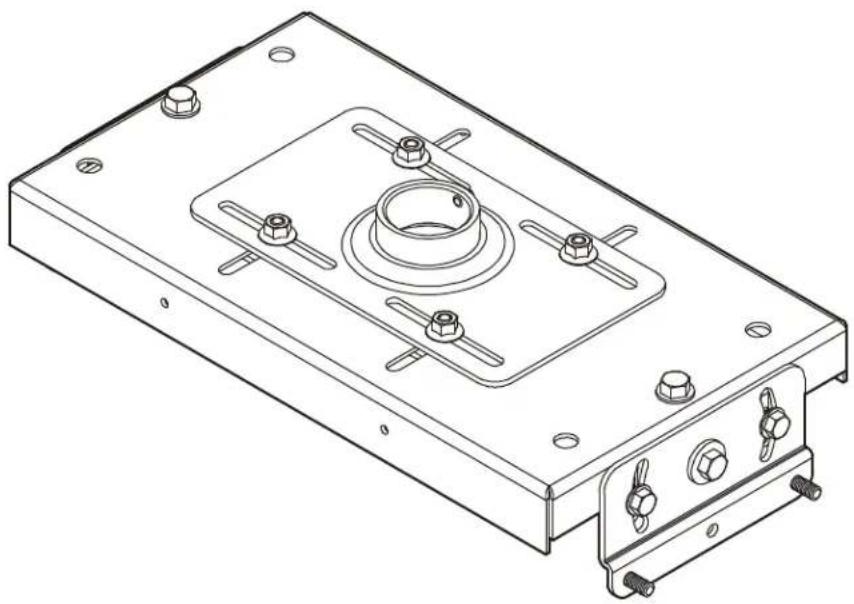

Technical line drawing of a mechanical housing component with mounting holes and internal features (no text or symbols)

HD Projector Mount

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components located between the supporting structure and the VCM does not exceed 250 lbs (113.4 kg).

- The weight capacity of the VCM may be LIMITED to the lowest weight capacity of any other component located between the VCM and the supporting structure!

WARNING: Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is damaged. Return the mounting system to a service center for examination and repair.

WARNING: Do not use this product outdoors.

IMPORTANT ! : The VCM mount is designed to be mounted to:

- a 1-1/2" NPT or NPSM following ANSI/ASME B1.20.1 (Schedule 40, 0.154" minimum thickness aluminum-ASTM B221) threaded extension column;

- a UL Listed Chief LPK-1 low profile mounting kit.

--SAVE THESE INSTRUCTIONS--

LEGEND

	Tighten Fastener		Adjust
	Apretar elemento de fijación		Ajustar
	Befestigungsteil festziehen		Einstellen
	Apertar fixador		Ajustar
	Serrare il fissaggio		Regolare
	Bevestiging vastdraaien		Afstellen
	Serrez les fixations		Ajuster
	Loosen Fastener		Open-Ended Wrench
	Aflojar elemento de fijación		Llave de boca
	Befestigungsteil lösen		Gabelschlüssel
	Desapertar fixador		Chave de bocas
	Allentare il fissaggio		Chiave a punte aperte
	Bevestiging losdraaien		Steeksleutel
	Desserrez les fixations		Clé à fourche
	Hex-Head Wrench
	Llave de cabeza hexagonal
	Sechskantschlüssel
	Chave de cabeça sextavada
	Chiave esagonale
	Zeskantsleutel
	Clé à tête hexagonale

TOOLS REQUIRED FOR INSTALLATION

1/2"9/16"

5/32"(included)

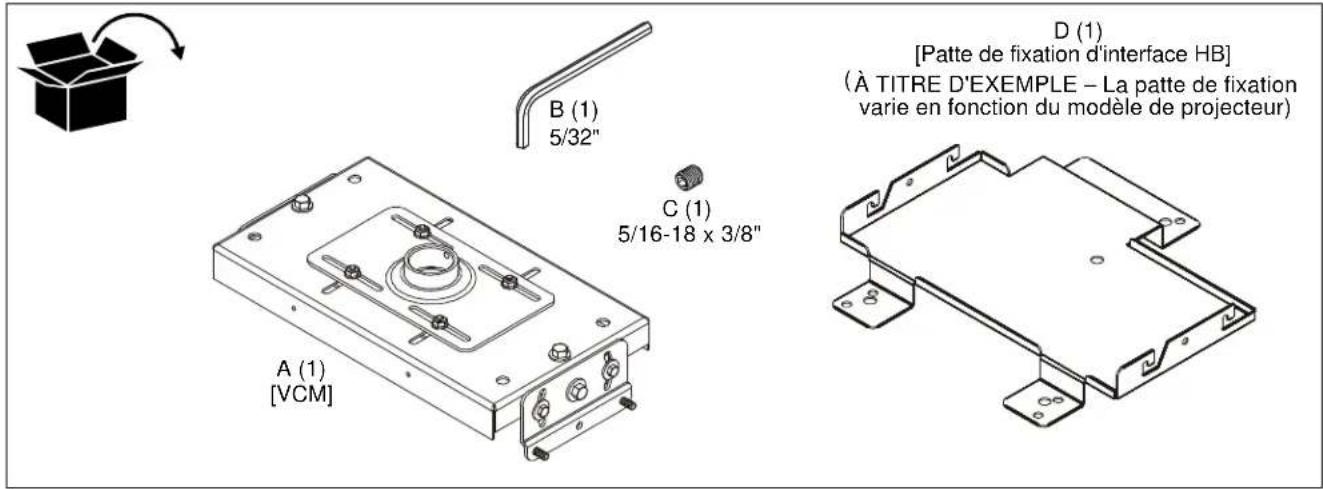

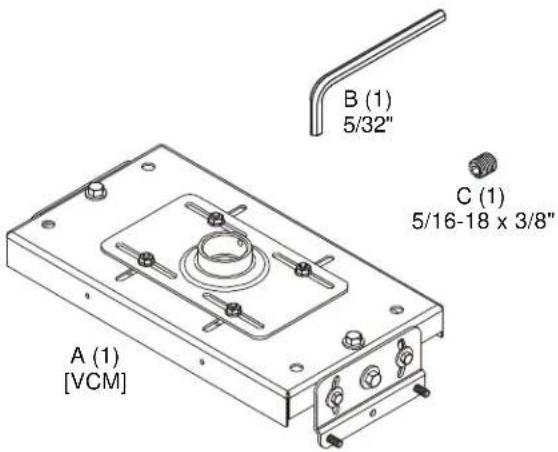

PARTS

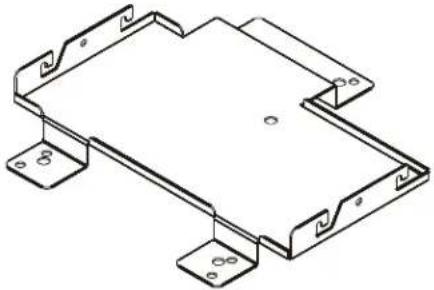

		[D (1) [HB interface bracket] (EXAMPLE ONLY - Bracket varies dependent on projector model)

INSTALLATION

The VCM mount is designed to be mounted to:

- a 1-1/2" NPT or NPSM following ANSI/ASME B1.20.1 (Schedule 40, 0.154" minimum thickness aluminum-ASTM B221) threaded extension column; or

• a UL Listed Chief LPK-1 low profile mounting kit.

NOTE: Proceed to Installing VCM Mount to NPT Extension Column section or Installing VCM Mount to LPK-1 Mount Kit section, as appropriate.

Installing VCM Mount to NPT Extension Column

IMPORTANT ! : These installation instructions assume that a 1-1/2" NPT or NPSM (Schedule 40, 0.154" minimum thickness aluminum - ASTM B221) pipe (not included) has been properly installed and is in place.

1. Thread the VCM mount (A) onto the existing 1-1/2" NPT pipe until tight with a minimum of four threads engaged. ((Siehe Abb. 1)
   NOTE: Ensure that long edge of VCM mount is located parallel to the screen. ((Siehe Abb. 1)
2. Tighten the 5/16-18 x 3/8" set screw (C) into the VCM mount threaded collar to prevent movement of the VCM. ((Siehe Abb. 1)

NPT pipe ① ② (C) x 1 (A) SCREEN

Figure 1

1. Proceed to Projector Installation section.

Installing VCM Mount to LPK-1 Mount Kit

1. Install VCM mount (A) to LPK-1 low profile mount kit (not included) following instructions included with LPK-1 mount kit.

INSTALLING PROJECTOR

IMPORTANT ! : Model VCM uses Chief "HB" Series interface brackets. (See Parts drawing.)

Install Interface Bracket

WARNING: IMPROPER INSTALLATION CAN LEAD TO PROJECTOR FALLING RESULTING IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT. DO NOT substitute hardware. Use only the hardware provided by the manufacturer.

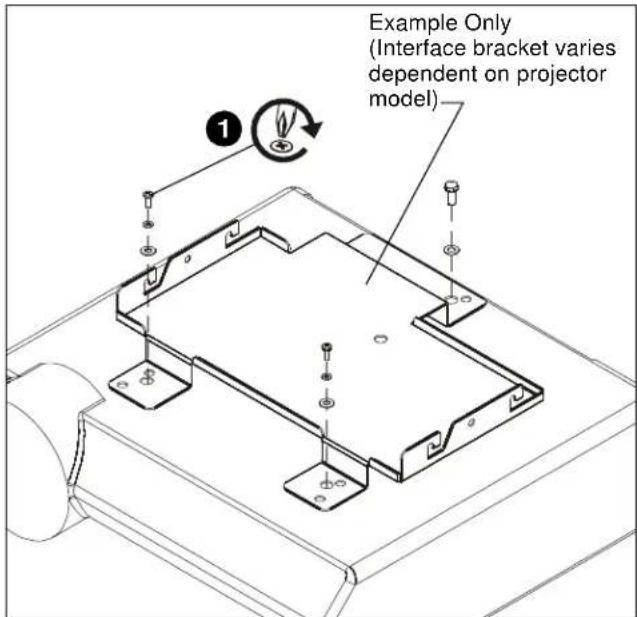

1. Secure interface bracket to VCM using installation instructions and hardware provided with interface bracket. ((Siehe Abb. 2)

Example Only (Interface bracket varies dependent on projector model)

Figure 2

Install Projector with Attached Interface Bracket

1. Orient projector with attached interface bracket so that it is square to the screen. ((Siehe Abb. 3)
2. Lift the projector and install it to the four studs extending from the VCM housing. ((Siehe Abb. 3)

WARNING: IMPROPER INSTALLATION CAN LEAD TO PROJECTOR FALLING RESULTING IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Ensure that the VCM housing is seated in slots on HB bracket!

Example Only (Interface bracket varies dependent on projector model) ③ x 2 ② SCREEN ① ③ x 2

Figure 3

Adjustments

WARNING: MOUNTING HARDWARE IS TO BE LOOSENED ONLY ENOUGH TO ALLOW FOR NECESSARY MOVEMENT. Over-loosening or removal of mounting hardware may result in personal injury or serious damage to equipment!

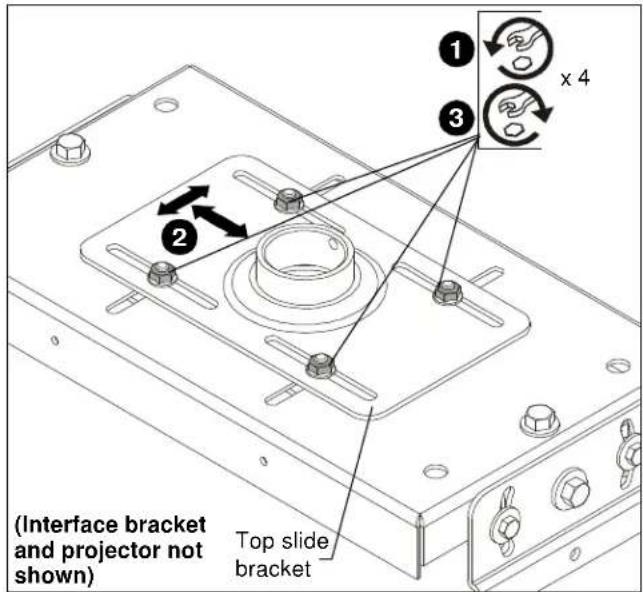

1. Loosen, but do NOT remove, the four nuts holding the top slide bracket on the VCM mount.
2. Adjust VCM mount up to 1-1/2" in any direction.
3. Tighten the nuts loosened (in Step 1) on the top slide bracket.

(Interface bracket and projector not shown) Top slide bracket ① ② ③ x 4

Figure 4

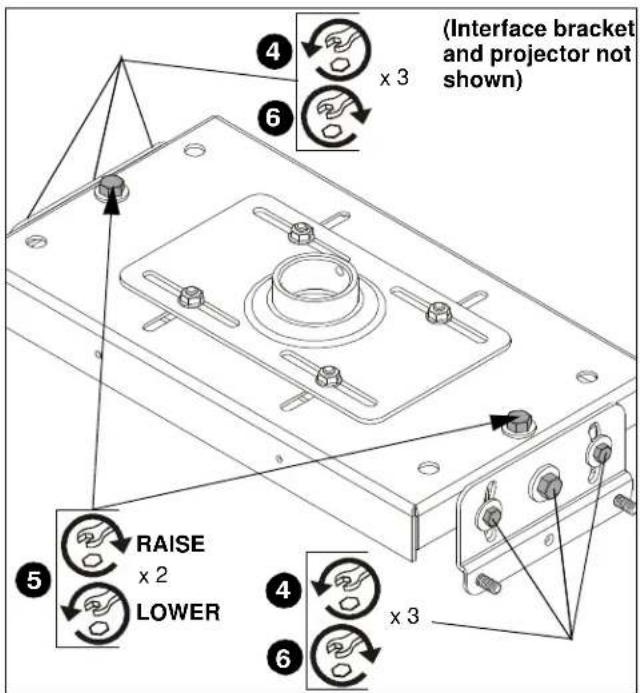

1. Loosen three bolts on each end of the VCM mount.
2. Turn adjustment bolts (one at each end of VCM mount top) as required.

• Turn CLOCKWISE to raise

• Turn COUNTERCLOCKWISE to lower

1. Securely tighten three bolts on each end of VCM mount.

(Interface bracket and projector not shown) x 3 4 6 5 RAISE x 2 LOWER 4 x 3 6

Figure 5

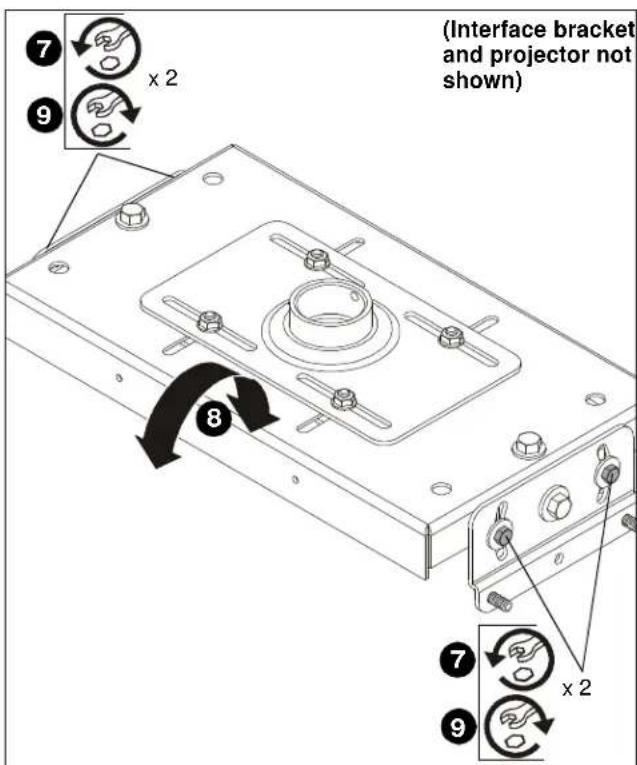

1. Loosen two outside bolts on each end of the VCM mount.
2. Tilt projector to desired direction.
3. Securely tighten two outside bolts on each end of VCM mount.

(Interface bracket and projector not shown) 7 x 2 9 8 7 x 2 9

Figure 6
