USER MANUAL OLCM1U Chief

INSTALLATION INSTRUCTIONS

Technical line drawing of two mechanical assembly components with no visible text or symbols

Large Outdoor Floor/Ceiling Mount

DISCLAIMER

Legrand | AV and its affiliated corporations and subsidiaries (collectively "Legrand | AV"), intend to make this manual accurate and complete. However, Legrand | AV makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Legrand | AV makes no representation of warranty, expressed or implied, regarding the information contained herein. Legrand | AV assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the primary Chief product to which an accessory and/or component is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief product which is attached to a primary Chief product, and may have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item designed to be attached or resting on an accessory or mounting system such as a video camera, CPU, screen, display, projector, etc.

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all mounting systems are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this mounting system can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this mounting system is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the mounting system.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the

installer's responsibility to make sure the combined weight of all components located within the mounting system of the OLCM1U mounts does not exceed 250 lbs (113.4 kg).

NOTE: "Moment" ratings have NOT been evaluated by UL.

WARNING: Exceeding the maximum moment can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the mounting system does not exceed a moment of 2000 ft-lbs. See table below for specific column specifications.

COLUMN MODEL	Weight capacity	Moment Length (IN) (ML)	Max Design Moment (FT-LBS) (MDM)
ODAC0203B	300 lbs (136 kg) 23	min - 36 max 2000
ODAC0304B	300 lbs (136 kg) 33	min - 48 max 2000
ODAC0405B	300 lbs (136 kg) 45	min - 60 max 2000
ODAC0506B	300 lbs (136 kg) 57	min - 72 max 2000
ODAC0708B	300 lbs (136 kg) 81	min - 96 max 2000

WARNING: Never operate this mounting system if it is damaged. Return the mounting system to a service center for examination and repair.

WARNING: Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is damaged. Return the mounting system to a service center for examination and repair.

WARNING: Use this mounting system with other outdoor products only.

WARNING: Always use two people or a mechanical lifting device to safely lift and position equipment.

NOTE: The OLCM1U flat panel floor/ceiling mounts are intended to be used with UL Listed ODAC Series columns (not included): ODAC0203, ODAC0304, ODAC0405, ODAC0506, ODAC0708.

--SAVE THESE INSTRUCTIONS--

DIMENSIONS

DIMENSIONS:

INCHES

[MILLIMETERS]

LEGEND

	Tighten Fastener		Pencil Mark
	Apretar elemento de fijación		Marcar con lápiz
	Befestigungsteil festziehen		Stiftmarkierung
	Apertar fixador		Marcar com lápis
	Serrare il fissaggio		Segno a matita
	Bevestiging vastdraaien		Potloodmerkteken
	Serrez les fixations		Marquage au crayon
	Loosen Fastener		Drill Hole
	Aflojar elemento de fijación		Perforar
	Befestigungsteil lösen		Bohrloch
	Desapertar fixador		Fazer furo
	Allentare il fissaggio		Praticare un foro
	Bevestiging losdraaien		Gat boren
	Desserrez les fixations		Percez un trou
	Phillips Screwdriver		Adjust
	Destornillador Phillips		Ajustar
	Kreuzschlitzschraubendreher		Einstellen
	Chave de fendas Phillips		Ajustar
	Cacciavite a stella		Regolare
	Kruiskopschroevendraaier		Afstellen
	Tournevis à pointe cruciforme		Ajuster
	Open-Ended Wrench		Remove
	Llave de boca		Quitar
	Gabelschlüssel		Entfernen
	Chave de bocas		Remover
	Chiave a punte aperte		Rimuovere
	Steeksleutel		Verwijderen
	Clé à fourche		Retirez
	By Hand		Optional
	A mano		Opcional
	Von Hand		Optional
	Com a mão		Opcional
	A mano		Opzionale
	Met de hand		Optie
	À la main		En option
	Hex-Head Wrench		Security Wrench
	Llave de cabeza hexagonal		Llave de seguridad
	Sechskantschlüssel		Sicherheitsschlüssel
	Chave de cabeça sextavada		Chave de segurança
	Chiave esagonale		Chiave di sicurezza
	Zeskantsleutel		Veiligheidssleutel
	Clé à tête hexagonale		Clé de sécurité

TOOLS REQUIRED FOR INSTALLATION

15/3 #2 1/2" 9/16" 5/32" (included)

PARTS

[Interface Bracket Hardware Kit] A (4) M6x16mm B (4) M6x25mm C (4) M8x20mm D (4) M8x30mm [Interface Lockout Bag] - (2) - (Qty per bag) M (1) #10-24 x 1/2" N (1) 1/4-20 x 2" P (1) 5/16-18 x 2" Q (1) 1/4-20 R (1) 5/16-18 S (2) 5/16" T (2) 1/4" [H (1)] [Mount assembly] Box-column Hardware Kit U (2) 3/8-16 x 4 1/4" V (2) 3/8-16 W (4) 3/8" J (2) [Side wind shield] K (1) [Center wind shield] L (2) [Interface bracket] X (1) 1/4-20 x 1 1/4" Y (2) 5/16 x 5/8" Z (8) 1/4-20 x 5/8" AA (4) 5/16-18 BB (6) 5/16" CC (8) 1/4" DD (1) 5/32"

INSTALLATION

IMPORTANT ! : The following procedure assumes that:

- a UL Listed ODAC Series Floor/Ceiling Column (not included) has been properly installed following instructions provided with plate and pipe.

Attaching Mount to ODAC Series Column

CAUTION: WATCH FOR PINCH POINTS! Do not place fingers between movable parts.

1. Slide mount assembly (H) onto ODAC Series Floor/Ceiling Column. (See Figure 1) or (See Figure 2)
2. Use two 3/8-16 x 4 1/4" hex head tapping bolts (U), four 3/8" washers (W) and 3/8-16 hex nuts (V). (See Figure 1) or (See Figure 2)

(To Ceiling) ② (U) x 2 ① (H) (W) x 4 ② (V) x 2

Figure 1

(To Floor) ② (U) x 2 (H) ① (W) x 4 ② (V) x 2

Figure 2

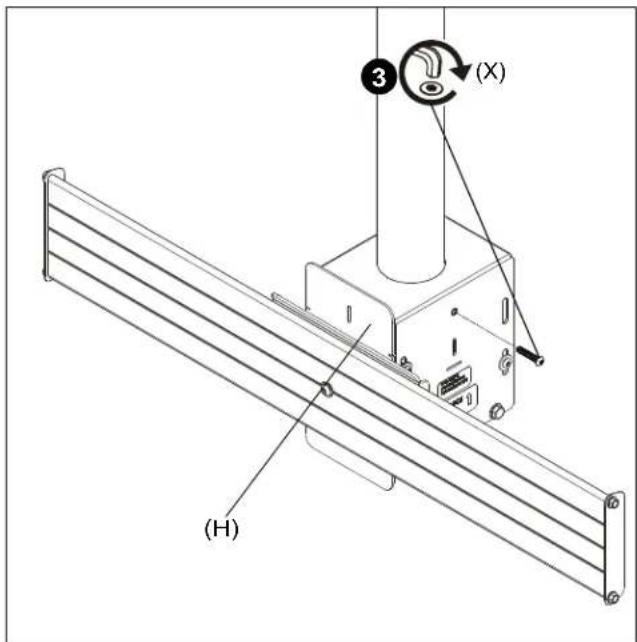

1. Install 1/4-20 x 1 1/4" button head cap screw (X) into mount assembly (H) to prevent column from rattling. (See Figure 3)

(X) (H)

Figure 3

Attach Wind Shield to Mount

1. Use two 5/16 x 5/8" hex head bolts (Y) and two 5/16" washers (BB) to secure center wind shield (K) to back of mount assembly (H). (See Figure 4)

(H) (BB) x 2 (K) (Y) x 2

Figure 4

1. Use two 1/4-20 x 5/8" cap screws (Z) and two 1/4" washers (CC) to secure center wind shield (K) to sides of mount assembly (H). (See Figure 5)

(Z) x 2 (CC) x 2

Figure 5

1. Loosely install two 1/4-20 x 5/8" button head cap screws (Z) and two 1/4" washers (CC) into two center holes on center wind shield (K). (See Figure 6)

(K) (CC) x 2 ③ (Z) x 2

Figure 6

1. Hang two side wind shields (J) onto screws loosely installed in Step 3 using teardrop holes in center slots. (See Figure 7)
2. Slide wind shields (J) horizontally to desired mounting position. (See Figure 7)

(Q) x 2 teardrop holes 4 5 5

Figure 7

1. Use four 1/4-20 x 5/8" button head cap screws (Z) and four 1/4" washers (CC) to secure two side wind shields (J) to center wind shield (K). (See Figure 8)
2. Tighten all six screws (Z).

(J) x 2 (CC) x 4 (K) 6 (Z) x 4

Figure 8

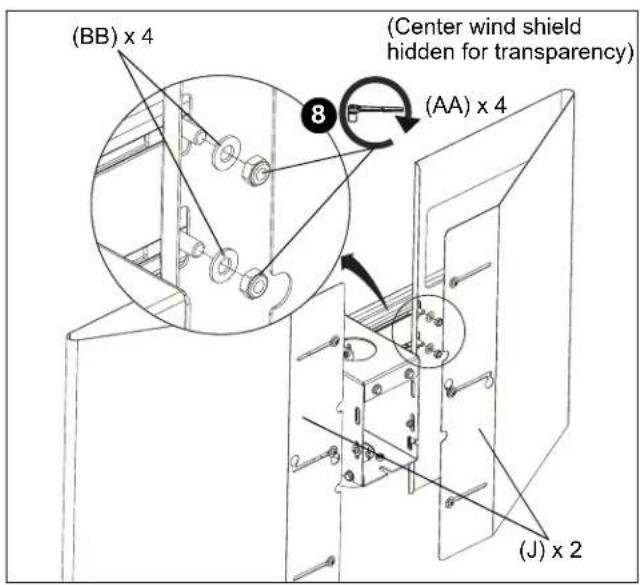

1. Use four 5/16-18 hex nuts (AA) and four 5/16" washers (BB) to secure four wind shield connectors (pre-installed) to side wind shields (J). (See Figure 9)

(BB) x 4 (Center wind shield hidden for transparency) (AA) x 4 8 (J) x 2

Figure 9

Attaching Interface Brackets to Display

1. Lower the latch mechanism on each interface bracket (L). (See Figure 10)

(L) x 2 Latch mechanism

Figure 10

1. Align the center of the interface bracket (L) with center of screen. (See Figure 11)

NOTE: The diamond-shape hole in the bracket corresponds to the center of the mount.

(E or F) x 4 (if necessary) (G) x 4 2 Center of bracket (L) x 2 3 (A-D) x 4

Figure 11

WARNING: IMPROPER INSTALLATION CAN LEAD TO DISPLAY FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Using screws of improper size may damage your display. Properly sized screws will easily and completely thread into display mounting holes. If spacers are required, be sure to use longer screws of the same diameter.

1. Select correct screws, spacers (if necessary) and universal washers from the hardware bag (A-G) and attach brackets (L) to back of screen. (See Figure 11)

Attaching Display to Ceiling Mount

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components located within the mounting system of the OLCM1U mounts does not exceed 250 lbs (113.4 kg).

1. Ensure that the latch mechanisms on interface brackets (L) are already lowered. (See Figure 10)
2. While supporting both sides of display, lower display onto ceiling mount, hooking top of interface brackets onto front of ceiling mount. (See Figure 12)

WARNING: IMPROPER INSTALLATION CAN LEAD TO DISPLAY FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! The display MUST be centered on the ceiling mount.

1. Raise the latch mechanism on both interface brackets to lock bracket in place. (See Figure 12)

(wind shield hidden for clarity) ② Latch mechanism ③

Figure 12

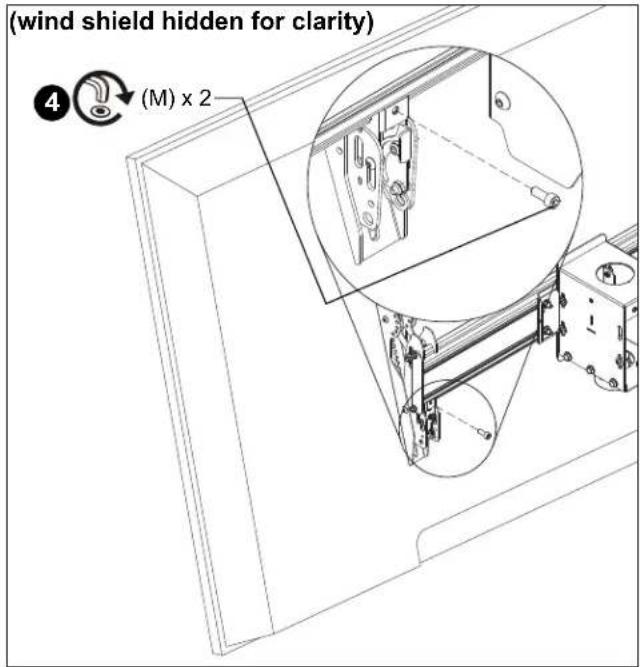

1. Fasten brackets against ceiling mount extrusion using two #10-24 x 1/2" socket head cap screws (M). (See Figure 13)

2. Repeat for other interface bracket.

(wind shield hidden for clarity) (M) x 2

Figure 13

Adjustments

CAUTION: Watch for pinch points! Do not place fingers between movable parts.

Yaw

The ceiling mounts allows yaw adjustment in 45° increments in each direction.

1. Remove two bolts and washers connecting column collar to mount assembly box. (See Figure 14)
2. Adjust yaw in 45° increment until desired position is achieved. (See Figure 14)
3. Reinstall bolts and washers removed in Step 1. (See Figure 14)

+/- 45° ② column collar ① ③

Figure 14

Tilt

CAUTION: Watch for pinch points! Do not place fingers between movable parts.

The interface brackets allow -7.6^ to 20^ tilt, and can be locked at -7.6^ , -5^ , 0^ , 5^ , 10^ , 15^ and 20^ tilt. (See Figure 15)

-5° AND -15° HOLE LOCKOUT 0° HOLE LOCKOUT +7.6° HOLE LOCKOUT -5° AND -20° HOLE LOCKOUT -10° HOLE LOCKOUT 2.48 [63.0] 1.91 [48.4] 10°

Figure 15

1. If necessary, loosen button head tilt friction bolt (located on side of interface bracket). (See Figure 16)

2. Adjust tilt as required. (See Figure 16)

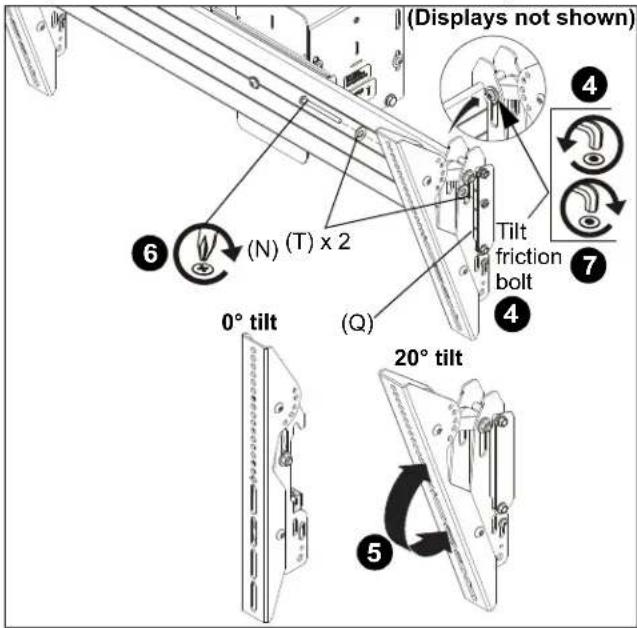

3. The tilt may be locked at -7.6°, -5°, 0°, 5°, 10°, 15° and 20° using one 1/4-20 x 2" Phillips head screw (N), one 1/4-20 lock nut (Q) and two 1/4" washers (T) per interface bracket. (See Figure 15) and (See Figure 16)

NOTE: Use of washers (T) is optional.

1. Tighten button head tilt friction bolt as necessary.

(Displays not shown) 4 Tilt friction bolt 7 6 (N) (T) x 2 (Q) 0° tilt 20° tilt 5

Figure 16

Roll

1. Adjust roll adjustment screw to change roll position. The roll may be adjusted 3^ in either direction. (See Figure 17)

roll adjustment screw

Figure 17

Latch Lock/Security

IMPORTANT ! : In order to prevent interface latch from getting loose due to strong winds, the latch MUST be locked either using a padlock or locking bolt (N) and 5/16-18 hex nuts (Q). This is NOT optional!

Using Padlocks (Security)

1. Add padlock (not included) to each interface bracket to lock latch and to provide security for displays. (See Figure 18)

Padlock (Optional) (wind shield hidden for clarity)

Figure 18

Using Bolts/Nuts

NOTE: This will keep latch from opening but does not provide additional security for the displays.

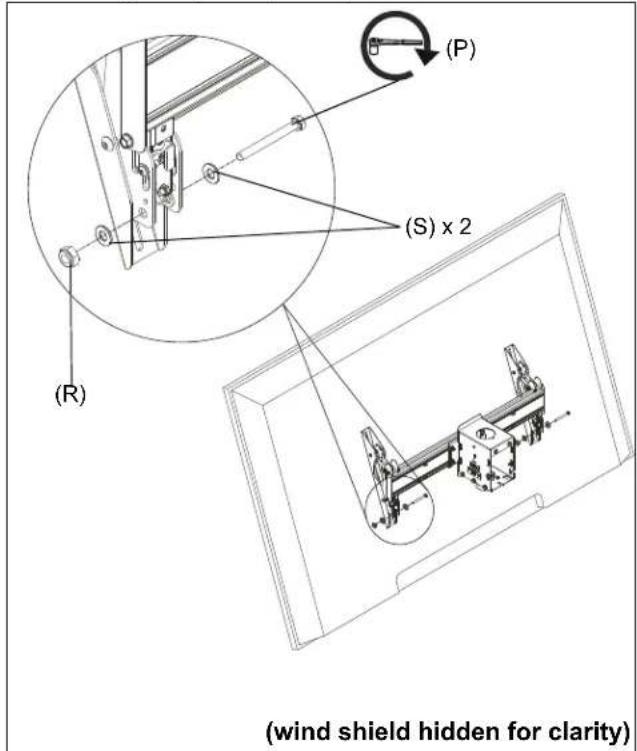

1. Use 5/16-18 x 2" hex head carriage bolt (P), 5/16-18 hex nut (R) and two 5/16" washers (S) to lock each interface bracket latch in place. (See Figure 19)

(P) (S) x 2 (R) (wind shield hidden for clarity)

Figure 19
