| Product type | Split air conditioner, indoor unit |
| Brand | Panasonic |
| Model | S90MU2E5BN |
| Refrigerant | R32 (flammable) |
| Power supply | 230 V ~ 50 Hz (single-phase) |
| Dimensions (indoor unit) | Approximately 300 x 800 x 200 mm |
| Weight (indoor unit) | Approximately 15 kg |
| Operating modes | Cooling, heating, dehumidification (DRY), ventilation |
| Special functions | nanoe X (air purification), automatic defrost, automatic restart after power failure |
| Refrigerant leak detection sensor | Optional (R32 leak sensor) |
| Cleaning | Wipe the indoor unit with a soft, dry or damp cloth; do not use water or solvents |
| Outdoor unit maintenance | Have the coil cleaning done by a professional |
| Safety | Turn off power before cleaning; do not pierce or burn; use a dedicated circuit with residual current circuit breaker |
| Operating temperature | Heating: down to -15°C outdoor; cooling: up to 43°C outdoor |
| Energy efficiency class | Not specified (commercial model, check the label) |
| Spare parts | Contact an authorized dealer or Panasonic customer service |
| Repairability | Do not repair yourself; call a professional |
| Warranty | See the warranty conditions provided with the unit |
| Origin | Manufactured by Panasonic |
Frequently Asked Questions - S90MU2E5BN PANASONIC
User questions about S90MU2E5BN PANASONIC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Air-conditioner in PDF format for free! Find your manual S90MU2E5BN - PANASONIC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. S90MU2E5BN by PANASONIC.
USER MANUAL S90MU2E5BN PANASONIC
SCAN 2D-BARCODE FOR FULL OPERATING INSTRUCTIONS
https://eu.datanavi.ac.smartcloud.panasonic.com/documents/
ENGLISH
3\~7
Before operating the unit, read these operating instructions thoroughly and keep them for future reference.
This booklet mainly mentions the safety-related regulatory matters. Regarding the contents of the operation, please scan the matrix two-dimensional (2D) barcode and refer to the detailed manuals.
FRANÇAIS
8 \~ 12
Thank you for purchasing this Panasonic product. This product is a commercial air conditioner indoor unit. Installation Instructions attached.

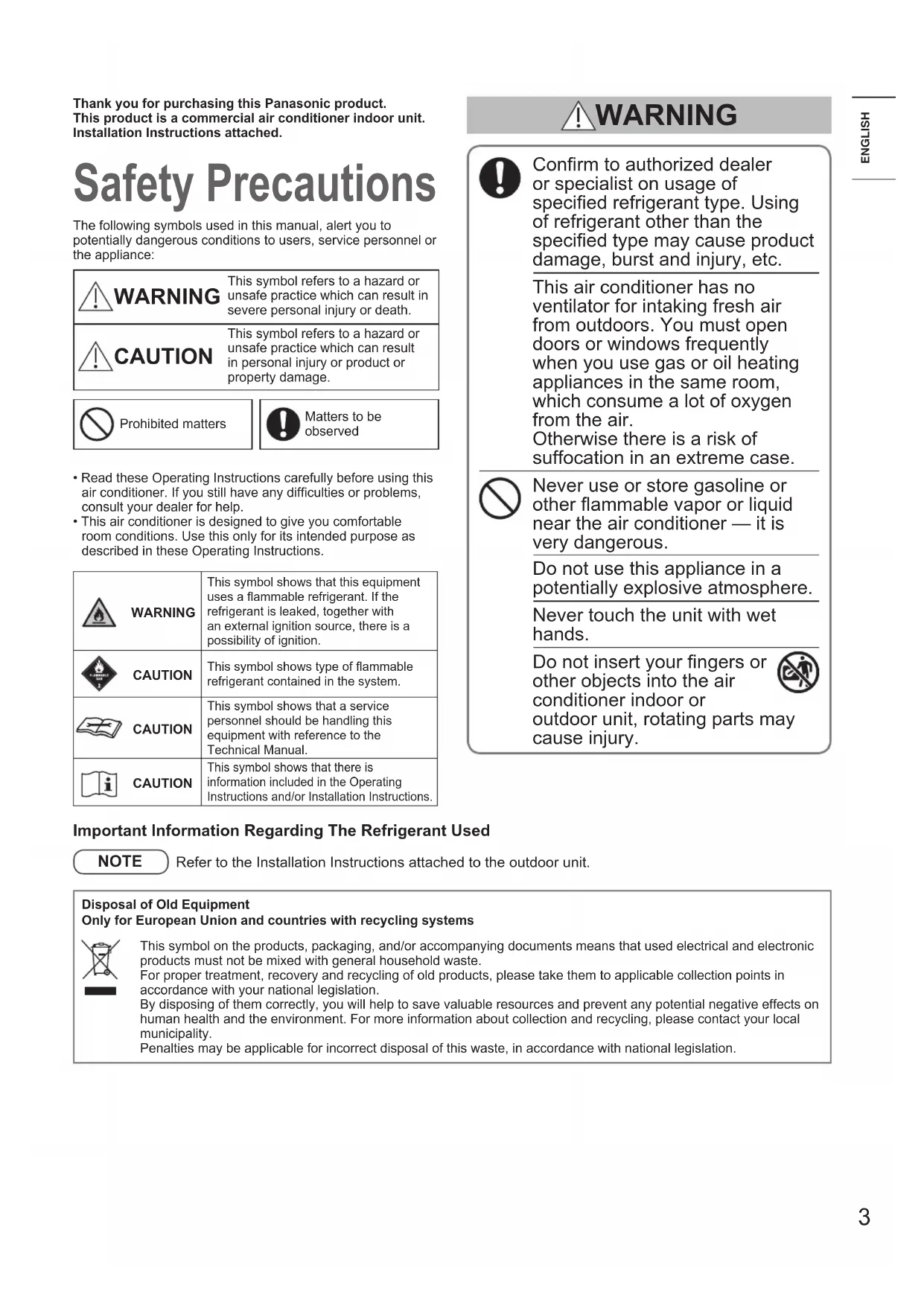

Safety Precautions
The following symbols used in this manual, alert you to potentially dangerous conditions to users, service personnel or the appliance:
 | WARNING | This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death. |
 | CAUTION | This symbol refers to a hazard or unsafe practice which can result in personal injury or product or property damage. |
Prohibited matters
Matters to be observed
- Read these Operating Instructions carefully before using this air conditioner. If you still have any difficulties or problems, consult your dealer for help.
- This air conditioner is designed to give you comfortable room conditions. Use this only for its intended purpose as described in these Operating Instructions.
 | WARNING | This symbol shows that this equipment uses a flammable refrigerant. If the refrigerant is leaked, together with an external ignition source, there is a possibility of ignition. |
 | CAUTION | This symbol shows type of flammable refrigerant contained in the system. |
 | CAUTION | This symbol shows that a service personnel should be handling this equipment with reference to the Technical Manual. |
 | CAUTION | This symbol shows that there is information included in the Operating Instructions and/or Installation Instructions. |
Confirm to authorized dealer or specialist on usage of specified refrigerant type. Using of refrigerant other than the specified type may cause product damage, burst and injury, etc.
This air conditioner has no ventilator for intaking fresh air from outdoors. You must open doors or windows frequently when you use gas or oil heating appliances in the same room, which consume a lot of oxygen from the air. Otherwise there is a risk of suffocation in an extreme case.
Never use or store gasoline or other flammable vapor or liquid near the air conditioner — it is very dangerous.
Do not use this appliance in a potentially explosive atmosphere. Never touch the unit with wet hands.
Do not insert your fingers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury.
Important Information Regarding The Refrigerant Used
NOTE
Refer to the Installation Instructions attached to the outdoor unit.
Disposal of Old Equipment
Only for European Union and countries with recycling systems
This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste.
For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment. For more information about collection and recycling, please contact your local municipality.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
WARNING
If the refrigerant comes in contact with a flame, it produces toxic gases.
For safety, be sure to turn the air conditioner off and also to disconnect the power before cleaning or servicing.
Pull off the power plug from a receptacle, or switch off the breaker, or switch off the power disconnecting me isolate the air conditioner from main power supply in case of emergency.
Dispose of according to national and/or local legislation.
This product must not be modified or disassembled under any circumstances.
Modified or disassembled unit may cause fire, electric shock or injury.
Do not clean inside the indoor and outdoor units by users. Engage authorized dealer or specialist for cleaning.
In case of malfunction of this appliance, do not repair by yourself. Contact the sales dealer or service dealer for a repair and disposal.
Provide a power outlet to be used exclusively for each unit, and a power supply disconnect, Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) for overcurrent protection should be provided in the exclusive line.
Provide a power outlet exclusively for each unit, and full disconnection means having a contact separation in all poles must be incorporated in the fixed wiring in accordance with the wiring rules.
To prevent possible hazards from insulation failure, the unit must be grounded.
Do not use modified cord, joint cord, extension cord or unspecified cord to prevent overheating and fire.
The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
Be aware that refrigerants may not contain an odour.
An unventilated area where the appliance using flammable refrigerants is installed shall be so constructed that should any refrigerant leak, it will not stagnate so as to create a fire or explosion hazard.
The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.
After the unit is installed, never fail to ask the installer for the floor space of the room where the unit is installed and the refrigerant charge amount.
In case the unit or the room divider is changed, never fail to consult the sales dealer or service dealer.
Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
Do not pierce or burn.
In cases that require mechanical ventilation, ventilation openings shall be kept clear of obstruction.
! WARNING
The appliance shall be stored in a room without continuously operating open flames (for example: an operating gas appliance) and ignition sources (for example: an operating electric heater).
Stop using the product when any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/fire/electric shock) Examples of abnormality/failure:
• The ELCB trips frequently.
- The product sometimes does not start when turned on.
- The power is sometimes disconnected when the cord is moved.
- Burnt odor or abnormal noise is detected during operation.
• The body is deformed or abnormally hot.
• Water leaks from the indoor unit.
- Power cord or plug becomes abnormally hot.
• Fan speed cannot be controlled.
- The unit stops running immediately even if it is switched on for operation.
Contact immediately your local dealer for maintenance/repair.
When the optional "R32 refrigerant leakage detection sensor" detects refrigerant leakage, P08 alarm and inspection mark will be displayed on the remote controller, the indoor unit fan will be running to prevent refrigerant stagnation, and it will not stop even if you press the ON/OFF operation button on remote controller. In such a case, do not turn off the ELCB, ventilate the room, and contact the service dealer immediately. Also, do not use combustion equipment such as stoves.
Do not sit or step on the unit. You may fall down accidentally.
If refrigerant R32 is used and R32 refrigerant leakage detection sensor is connected to the indoor unit, do not turn off the ELCB of the indoor unit except when there is a symptom of abnormality or failure, or when performing short-term maintenance. (When the ELCB is turned off, R32 refrigerant leakage detection sensor cannot detect the refrigerant leakage when the refrigerant leaks, and it may lead to cause the generation of toxic gases and fires.)
Do not use the following items near the indoor unit and R32 refrigerant leakage detection sensor as they may cause fire or false detection of refrigerant leakage.
• Gas equipment that uses flammable gas (propane, methane, etc.)
- Combustible gas such as pesticides and hair spray (LPG, etc.)
- Sprays, drugs, chemicals, paints, etc. that use siloxane.
WARNING CAUTION
If the alarm display J01 appears, there is something wrong R32 refrigerant leakage detection sensor or its wiring connection to the indoor unit.
Contact the service dealer immediately.
(It may not be detected when the refrigerant leaks.)
When the alarm display J02 appears, it is the end of the life of the sensor board of R32 refrigerant leakage detection sensor.
Contact the service dealer as soon as possible to replace the sensor board.
(If the sensor board is used as it is without being replaced, the sensor may be deteriorated and the refrigerant leakage may not be detected properly.)
CAUTION
This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial use by lay persons.
Keep the fire alarm and the air outlet at least 1.5 m away from the unit.
Do not make the room too hot or too cold if babies or invalids are present.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
Do not turn the air conditioner on and off from the power mains switch. Use the ON/OFF operation button.
Do not stick anything into the air outlet of the outdoor unit. This is dangerous because the fan is rotating at high speed.
Do not touch the air inlet or the sharp aluminum fins of the outdoor unit. You may get injured.
Do not stick any object into the FAN CASE. You may be injured and the unit may be damaged.
Do not touch the fan because it automatically rotates when it detects a refrigerant leak. You may be injured.
NOTICE
- The appliance shall be stored so as to prevent mechanical damage from occurring.
- The compressor may occasionally stop during thunderstorms. This is not a mechanical failure. The unit automatically recovers after a few minutes.
- The English text is the original instructions. Other languages are translation of the original instructions.
Maintenance
! WARNING
- For safety, be sure to turn the air conditioner off and disconnect the power before cleaning. (Otherwise, electric shock or injury may result because the fan is rotating at high speed.)
- Do not pour water on the indoor unit. (This may damage the internal components and cause an electric shock hazard.)
! CAUTION
● Never use solvents or harsh chemicals. Also, do not wipe plastic parts using very hot water. (This may cause deformation or change in colour.)
● Some metal edges and fins are sharp. Be careful when you clean those parts. (Injury may result.)
- Use a firm stool or ladder when cleaning an indoor unit installed in high locations.

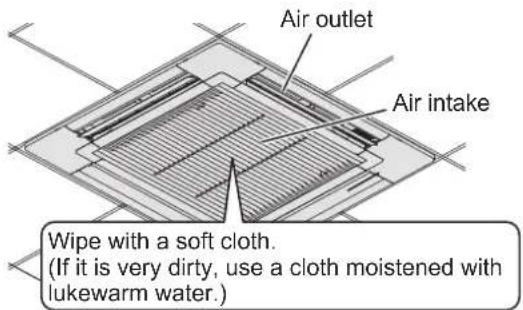

■ Indoor unit (e.g., Type U2)
The internal coil and other components of the outdoor unit must be cleaned periodically. - Consult your dealer or service center.
Operation Mechanism
■ Heating performance
● This air conditioner utilizes outside air for heating; its heating performance reduces as outside temperature decreases.
→ In the event that heating is not sufficient, please use an additional heating appliance.
■ Defrosting
● This appliance may start defrosting operation to melt frost formed in the outdoor unit.
①Defrosting starts: The indoor unit fan stops (or the speed becomes extremely slow).
→ "○" (STANDBY) appears.
② Heating operation resumes after several minutes: The indoor unit fan remains stopped (or it will run at a very slow speed) until the indoor heat exchanger coil warms up sufficiently.
→ “○” (STANDBY) appears.
③Defrosting is complete: The indoor unit fan starts operation.
→ "○" (STANDBY) disappears.
■ "DRY" operation
- Once the room temperature reaches the level that was set, the outdoor unit repeats the cycle of turning on and off automatically.
- When the room temperature is more likely to reach the level that was set, the fan speed is set to "breeze" (light wind) automatically.
■ Should power failure occur while the unit is running
The unit will resume operation automatically. Operation settings prior to power failure will be used.
NOTICE
This air conditioner incorporates a biocidal product.
Free radicals generated by a device incorporated in the air conditioner have the capacity to inhibit pollutants, such as certain types of bacteria, viruses, mould.
Active substances : Free radicals generated in situ from ambient air or water.
Usage : This device function can be turned ON / OFF by the "nanoe X" icon button or remote controller settings if there is no "nanoe X" icon button. Please refer to "How to Use" for more details.
Scan the matrix two-dimensional (2D) barcode on the front page and read the detailed instructions on use.
* In the case of nanoe™ X "OFF"
Specifications
Corresponding language table
| English Français Español | Deutsch | ||
| 4-Way Cassette (Type U2) Cassette 4 voies (Type U2) Cassette de 4 vías (tipo U2) 4-Wege-Kassette (Typ U2) | |||
| Model Name Nom du modèle Nombre del modelo Modellbezeichnung | |||
| Power Source Source d'alimentation Alimentación Stromversorgung | |||
| Cooling Capacity Capacité de refroidissement Capacidad de refrigeración Kühlkapazität | |||
| Sensible | Sensible | Sensible | Sensibel |
| Latent | Latent | Latente | Latent |
| Heating Capacity | Capacité de chauffage | Capacidad de calefacción | Heizkapazität |
| Cooling electric power input | Puissance électrique absorbée de refroidissement | Entrada de alimentación eléctrica de refrigeración | Elektrische Leistungsaufnahme Kühlen |
| Heating electric power input | Puissance électrique absorbée de chauffage | Entrada de alimentación eléctrica de calefacción | Elektrische Leistungsaufnahme Heizen |
| Sound pressure level (High/Medium/Low) | Niveau de pression sonore (Élevé/Moyen/Bas) | Nivel de presión sonora (Alto/Medio/Bajo) | Schalldruckpegel (Hoch/Mittel/Niedrig) |
| Sound power level (High/Medium/Low) | Niveau de puissance sonore (Élevé/Moyen/Bas) | Nivel de potencia acústica (Alto/Medio/Bajo) | Schallleistungspegel (Hoch/Mittel/Niedrig) |
| In the case of nanoeTM X “OFF” | Dans le cas où nanoeTM X est sur « ARRÊT » | En el caso de nanoeTM X en “APAGAR” | Bei nanoeTM X „AUS“ |
| English Italiano | Nederlands | Português | |
| 4-Way Cassette (Type U2) | Cassetta a 4 vie (Tipo U2) | 4-weg cassette (Type U2) | Cassete de 4 vias (Tipo U2) |
| Model Name Nome del modello | Modelnaam | Nome do modelo | |
| Power Source Alimentazione Stroomvoorziening Fonte de energia | |||
| Cooling Capacity Capacità di raffreddamento Koelcapaciteit | Capacidade de arrefecimento | ||
| Sensible | Sensibile | Verstandig | Sensível |
| Latent | Latente | Latent | Latente |
| Heating Capacity | Capacità di riscaldamento | Verwarmingscapaciteit | Capacidade de aquecimento |
| Cooling electric power input | Assorbimento elettrico raffreddamento | Elektrisch ingangsvermogen bij koelen | Entrada de energia eléctrica de arrefecimento |
| Heating electric power input | Assorbimento elettrico riscaldamento | Elektrisch ingangsvermogen bij verwarmen | Entrada de energia eléctrica de aquecimento |
| Sound pressure level (High/Medium/Low) | Livello di pressione acustica (Alto/Medio/Basso) | Geluidsdrukniveau (Hoog/Gemiddeld/Laag) | Nível de pressão sonora (Alto/Médio/Baixo) |
| Sound power level (High/Medium/Low) | Livello di potenza acustica (Alto/Medio/Basso) | Geluidsvermogenniveau (Hoog/Gemiddeld/Laag) | Nível de potência sonora (Alto/Médio/Baixo) |
| In the case of nanoeTM X “OFF” | Nel caso nanoeTM X sia “SPENTO” | In het geval nanoeTM X “UIT” staat | No caso do nanoeTM X em “DESLIGADO” |
Specifications
Corresponding language table
| English Ελληνικη Βългарски Türkçe | |||
| 4-Way Cassette (Type U2) | Κασέτα 4 οδών (Τύπος U2) | 4-пътна касета (Тип U2) | 4 Yöne Üflemeli Kaset (Tip U2) |
| Model Name Όνομα μοντέλου Наименование на модела Mode | Adı | ||
| Power Source Πηγή τροφοδοσίας Източник на | електрозахранване | Güç kaynağı | |
| Cooling Capacity Ικανότητα ψύξης Οχлаждаща мощност Soğutma kapasitesi | |||
| Sensible | Αισθητή | Значително | Duyulur |
| Latent | Λανθάνουσα | Латентно | Gizli |
| Heating Capacity | Ικανότητα θέρμανσης | Отоплителна мощност | Isıtma kapasitesi |
| Cooling electric power input | Είσοδος ηλεκτρικής ισχύος για ψύξη | Охлаждане входяща електроенергия | Soğutma modunda çekilen elektrik gücü |
| Heating electric power input | Είσοδος ηλεκτρικής ισχύος για θέρμανση | Отопление входяща електроенергия | Isıtma modunda çekilen elektrik gücü |
| Sound pressure level(High/Medium/Low) | Επίπεδο πίεσης ήχου(Υψηλά/Μεσαία/Χαμηλά) | Ниво на звуково налягане(Високо/Средно/Ниско) | Ses basıncı düzeyi(Yüksek/Orta/Düşük) |
| Sound power level(High/Medium/Low) | Επίπεδο ισχύος ήχου(Υψηλά/Μεσαία/Χαμηλά) | Ниво на сила на звука(Високо/Средно/Ниско) | Ses gücü düzeyi(Yüksek/Orta/Düşük) |
| In the case of nanoeTM X “OFF” | Στην περίπτωση nanoeTM X«АПENEРГОПОІНМЕNO» | При nanoeTM X „ИЗКЛ“ | nanoeTM X “КАPALI” olması durumunda |
Information on hazardous constituents as specified in sub-rule1 of rule16 (1) in electrical and electronic equipment.
Declaration of Conformity with the requirements of the E-Waste (Management) Amendment Rules 2018 with the rule 16 (1) limits with respect to Lead, Mercury, Cadmium, Hexavalent chromium, Polybrominated biphenyls, Polybrominated diphenyl ethers.
The content of hazardous substance with the exemption of the applications listed in SCHEDULE II of the E-Waste (Management) Amendment Rules 2018 :
- Lead (Pb) – not over 0.1% by weight;
- Cadmium (Cd) – not over 0.01% by weight;
- Mercury (Hg) – not over 0.1% by weight;
- Hexavalent chromium (Cr ^6+ ) – not over 0.1% by weight;
- Polybrominated biphenyls (PBBs) – not over 0.1% by weight;
- Polybrominated diphenyl ethers (PBDEs) – not over 0.1% by weight.
For the purpose of recycling to facilitate effective utilization of resources, please return this product to a nearby authorized collection center, registered dismantler of recycler, or Panasonic service center when disposing of this product.
Customer care number (Toll free) : 1800 103 1333, 1800 108 1333
Please see the Panasonic website for further information on collection centers, etc. or call the customer care toll-free number http://www.panasonic.com/in/corporate/sustainability/panasonic-india-i-recycle-program.html
| Do's & Don'ts: E-waste (Management) Amendment Rules 2018 | ||
| S.No. Do's Don'ts | ||
| 1. | All electrical and electronic products are required to be handed over only to the Authorized recycler. | The product should not be opened by the user himself / herself, but only by authorized service personnel. |
| 2. | The product should be handed over only to authorized recycler for disposal. | The product is not meant for re-sale to any unauthorized agencies / scrap dealers / kabariwalas. |
| 3. | Keep the product in an isolated area, after it becomes non-functional / unrepairable so as to prevent its accidental breakage. | The product is not meant for mixing into household waste stream. |
| 4. | Refer to Operating Instructions for handling of end of life products. | Do not keep any replaced spare part(s) from the product in an exposed area. |
| 5. | Always dispose products that have reached end of life at Panasonic India Authorized Service Centre. | Do not donate old electronic items to anybody.Do not dispose your product in garbage bins along with municipal waste that ultimately reaches landfill. |
| 6. | Wherever possible or as instructed, separate the packaging material according to responsible waste disposal options and sorting for recycling. | Do not give e-waste to informal and unorganized sectors like Local Scrap Dealers / Rag Pickers. |
(English) • Product Information
If you have problems or questions concerning your Air Conditioner, you will need the following information. Model and serial numbers are on the nameplate.
(English) Model No. / Serial No. / Date of purchase / Dealer's address / Phone number
a branch of Panasonic Marketing Europe GmbH,
Maxis 2, Western Road, Bracknell, Berkshire, RG12 1RT
Authorised representative in EU
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
