Product type	Mobile LED projector
Brand	Brennenstuhl
Model	professionalLINE X 12050 M
Rated voltage	220-240 V AC, 50/60 Hz
Power	120 W
Rated current	0.52 A
Power factor	0.9
Protection rating	IP54, IK08
Protection class	I
Power cable	5 m, H07RN-F 3G1.5
Integrated power socket	Yes, admissible power 120 W (max. load 3400 W)
Dimensions (L x W x H)	31 x 31 x 10.4 cm
Weight	4.15 kg
Operating temperature range	-20°C to +50°C
Maximum projection area	0.096 m²
Lighting functions	On/off, stepped dimming (100%, 50%) and gradual
Angle adjustment	Foldable and adjustable carrying bracket
Tripod mounting	Possible, screws supplied
Light source	Non-replaceable LED
Maintenance	Clean with a dry or slightly damp cloth, no solvents
Safety	Do not look directly into the beam, do not use in explosive atmospheres, no external dimmer, respect minimum distance
Usage	Indoor and outdoor, heavy-duty use
Package contents	Projector, screw set (M6 x 45, M6 x 60, washers, nuts)
Optional accessories	Tripod (not included)

Frequently Asked Questions - professionalLINE X 12050 M BRENNENSTUHL

How to turn the projector on and off?

Use switch B on the back of the projector. Press once to turn on at 100%, a second time for 50%, and a third time to turn off. For gradual dimming, hold the switch down.

Can I use the projector outdoors?

Yes, the projector is suitable for indoor and outdoor use thanks to its protection rating IP54 (protected against water splashes and dust).

How to adjust the angle of the projector?

The foldable carrying bracket A allows you to adjust the tilt angle. Unfold it and choose the desired position.

Can I replace the LED bulb?

No, the LED light source is not replaceable. At the end of its life, replace the entire projector.

Can the projector be mounted on a tripod?

Yes, thanks to the holes in the carrying bracket, you can attach the projector to a suitable tripod. A screw set is supplied for mounting.

How to clean the projector?

Unplug the device, then use a dry or slightly damp cloth. Never use solvents or abrasive products.

What is the maximum power of the integrated socket?

The power socket can support a maximum load of 3400 W. The admissible power of the projector itself is 120 W.

Can I use an external dimmer with this projector?

No, the projector is not suitable for use with external dimmers. Only use the built-in switch to adjust the intensity.

What to do if the cable is damaged?

The cable cannot be replaced. If the cable is damaged, the projector must be disposed of in accordance with environmental regulations.

Does the projector get hot?

Yes, the surface can become hot. Maintain a minimum distance from illuminated objects to avoid overheating. The 'Hot Surface' symbol is attached to the device.

USER MANUAL professionalLINE X 12050 M BRENNENSTUHL

Operating instructions

Mobile LED light

X 8050 M • X 8051 M • X 8002 M

X 12050 M • X 12051 M • X 12002 M

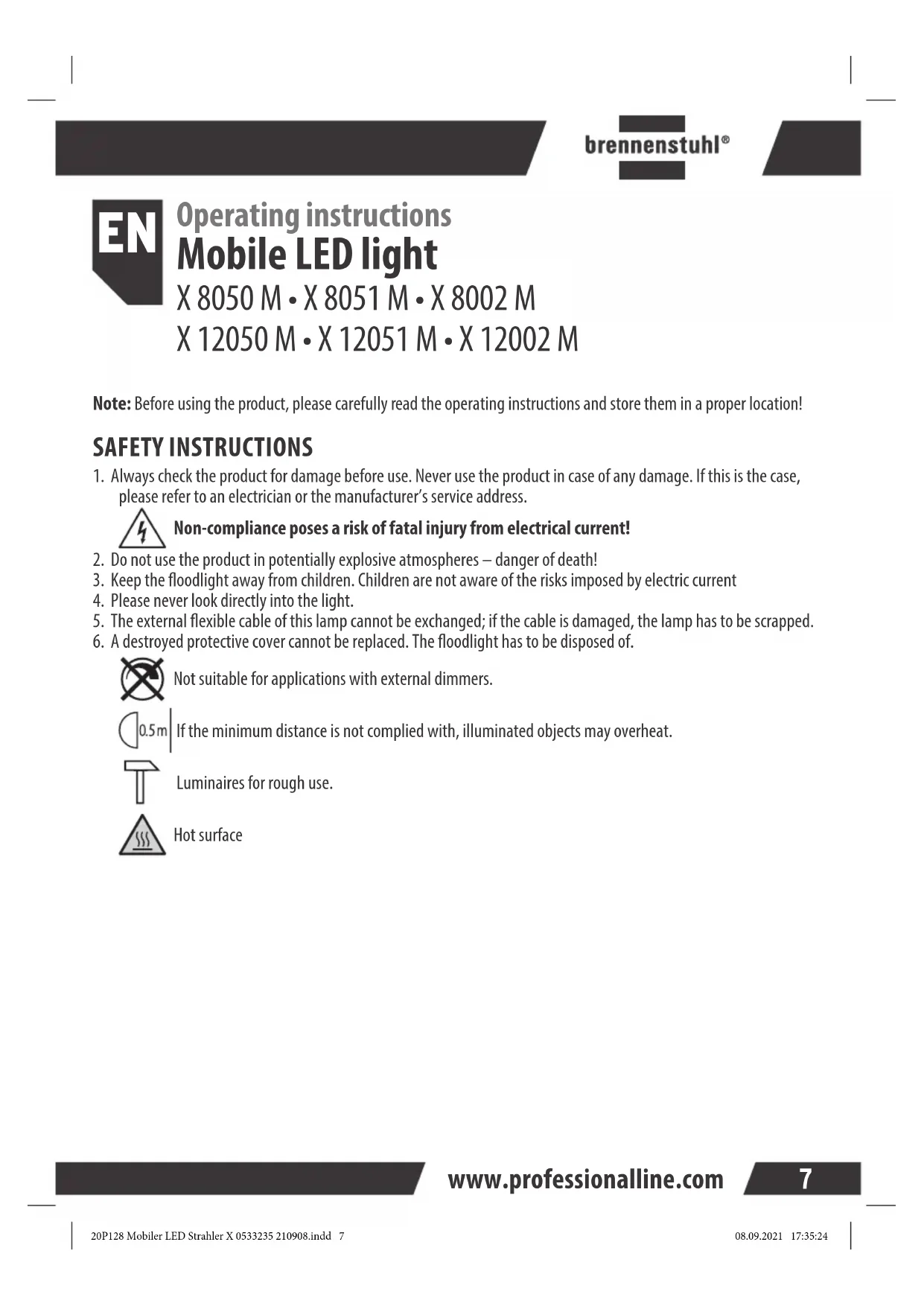

Note: Before using the product, please carefully read the operating instructions and store them in a proper location!

SAFETY INSTRUCTIONS

1. Always check the product for damage before use. Never use the product in case of any damage. If this is the case, please refer to an electrician or the manufacturer's service address.

Non-compliance poses a risk of fatal injury from electrical current!

1. Do not use the product in potentially explosive atmospheres – danger of death!
2. Keep the floodlight away from children. Children are not aware of the risks imposed by electric current
3. Please never look directly into the light.
4. The external flexible cable of this lamp cannot be exchanged; if the cable is damaged, the lamp has to be scrapped.
5. A destroyed protective cover cannot be replaced. The floodlight has to be disposed of.

Not suitable for applications with external dimmers.

If the minimum distance is not complied with, illuminated objects may overheat.

Luminaires for rough use.

Hot surface

www.professionalline.com

7

professionalLINE

TECHNICAL DATA

Type designation X 8050 M/X 8051 M	X 8002 M X 12050 M/X	12051 M X 12002 M
Power socket
Output
Nominal voltage	50/60 Hz	220 - 240 V AC50/60 Hz	220 - 240 V AC50/60 Hz	220 - 240 V AC50/60 Hz
Power factor	0.9	0.9	0.9	0.9
Mains current	0.34 A	0.34 A	0.52 A	0.52 A
IP, IK	IP 54. IK 08	IP 54. IK 08	IP 54. IK 08	IP 54. IK 08
Protection class	I	I	I	I
Connection cable	5m H07RN-F 3G1.5	5m H07RN-F 3G1.5	5m H07RN-F 3G1.5	5m H07RN-F 3G1.5
Loading capacity socket	max. 3400 W	max. 2000 W	max. 3400 W	max. 2000 W
Operational temperature range	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C
Size	31 x 31 x 9.7 cm	31 x 31 x 9.7 cm	31 x 31 x 10.4 cm	31 x 31 x 10.4 cm
Weight	3.7 kg	3.7 kg	4.15 kg	4.15 kg
Maximum projected area	0.096 m^2	0.096 m^2	0.096 m^2	0.096 m^2

This product is suitable for indoor and outdoor lighting purposes.

OPERATION

Setting up and turning on the light

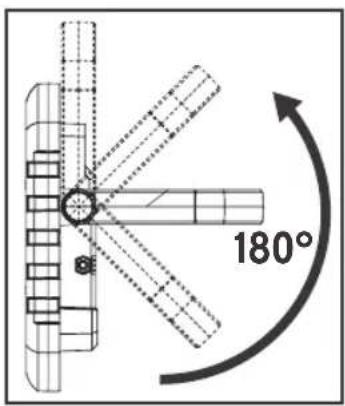

Place the light on a dry, flat surface. Only use the light with the bracket A extended. The adjustable bracket A can be adjusted to several levels and can be used to set the light at different tilt angles.

Mounting the light on a tripod

The light can be mounted on a suitable tripod using the holes on bracket A (mounting material not included!). Make sure the tripod is sufficiently stable and the light is securely mounted.

Switching and Dimming the light

Switch on the spotlight with the switch B on the back.

The light intensity can be adjusted in steps and continuously:

Steps dimming: by pressing the switch twice, 100 and 50% light can be adjusted.

Stepless dimming: press the switch permanently – the light intensity is slowly reduced.

Proceed in the same way to increase the intensity again.

If the switch is left in any of its "on" positions for longer than 3 seconds, then pressing it once again will always turn it off.

ILLUSTRATED COMPONENTS

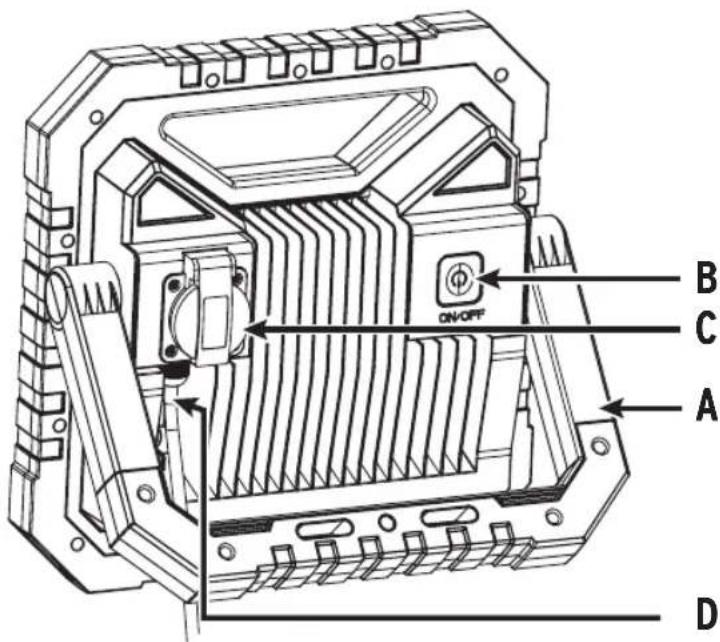

A Folding clamp
B On/Off and function switch
C Power socket
D Connection cable

Power socket

At the back side of the floodlight, there is a power socket © by means of which it can also be used as power distributor. The power socket © is also functional when the light is switched off.

OPTIONAL STAND (not included in the scope of delivery)

You can find suitable accessories on our homepage www.brennenstuhl.com.

TRIPOD MOUNTING

By means of the holes in the holding bracket, the floodlight can be mounted on a Brennenstuhl tripod.

SCOPE OF DELIVERY

A screw set is included for mounting the spotlight on Brennenstuhl tripods. 1 x M6 x 45 screw + 1 x washer, 2 x M6 x 60 screws, 2 x washers and 2 x nuts

www.professionalline.com

professionalLINE

MAINTENANCE

ATTENTION! The LED lamp does not contain components that require maintenance. The light source in this lamp cannot be replaced; if the light source has reached the end of its service life, the entire lamp has to be replaced. The lamp may not be opened.

CLEANING

Before cleaning, disconnect the floodlight from the mains power.

Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning.

DISPOSAL

Dispose of electrical devices in an environmentally friendly way! Electrical devices do not belong in the household rubbish!

According to the European Directive 2012/19/EU on old electrical and electronic devices, used electrical devices must be collected separately and turned over for environmentally friendly recycling. You can find out about options for disposal of the out-of-service device at your town or city administration.

CE EU DECLARATION OF CONFORMITY

The EU declaration of conformity is deposited at the manufacturer.

ADRESSES

For more information please visit the Service/FAQ section on our homepage, www.brennenstuhl.com.
