USER MANUAL W3207C DELL

Dell™ LCD TV Owner's Manual

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your TV.
NOTICE: A NOTICE indicates either potential damage to hardware and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Information in this document is subject to change without notice.

© 2006 Dell Inc. All rights reserved.

Reproduction of this document in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

TSXT technology is incorporated under license from SRS Labs, Inc.

Trademarks used in this text: Dell, the DELL logo; SRS(●) TruSurround XT TruSurround XT, SRS, and (●) symbol are trademarks of SRS Labs, Inc.

Dell, Dimension, OptiPlex, Dell Precision, Latitude, Inspiron, DellNet, PowerApp, PowerEdge, PowerConnect, PowerVault, and EMC ^3 are trademarks of Dell Inc.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

July 2006

Rev. A00

Contents

1 About Your TV

Front View 5

Right View 6

Left View 7

Rear View 8

Package Contents 10

Caring for Your TV 10

2 Setting Up Your TV

Proper Location for Your TV 13

Connecting Your TV 14

3 Your Remote Control

Installing Batteries 21

Using Your Remote Control 22

Using Your TV With a Universal or Learning Remote Control 24

4 Using the TV Menu

Using Your Remote Control With the TV Menu 25

Selecting Your TV Menu Language 26

Input Select 26

Picture Menu 28

Audio 28

Size 29

Parental Control 29

Setup 30

5 Troubleshooting Problems With Your TV

Troubleshooting Tips 33

General Problems 34

TV Menu Messages 38

Remote Control Problems 38

Using the Self-Test Feature when Connected to a Computer 39

Problems When Using the TV as a Monitor 39

6 Specifications for Your TV 41

Contacting Dell 43

Index 65

About Your TV

Front View

Front view of a flat-screen computer monitor with a stand and two labeled ports (1 and 2) pointing to the front panel.

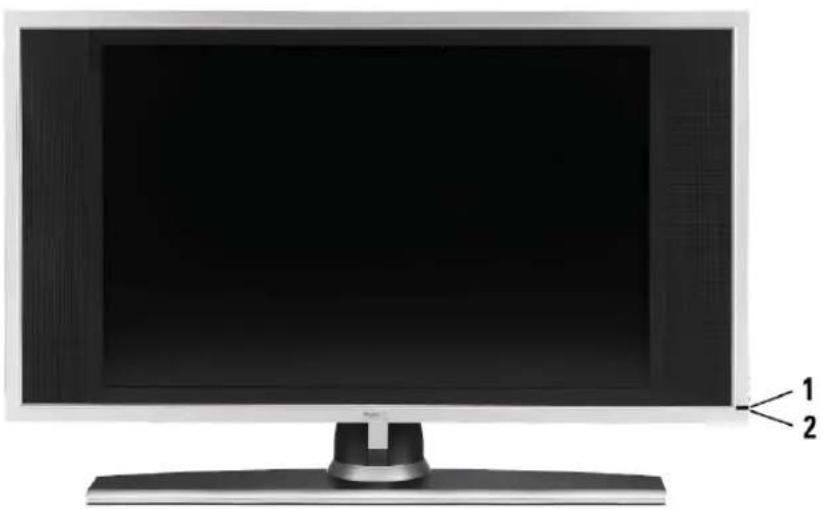

1 IR Receiver Senses the signal from the remote control

2 Power indicator light (LED) The light is blue when the TV is on and amber when the TV is in power save mode

Right View

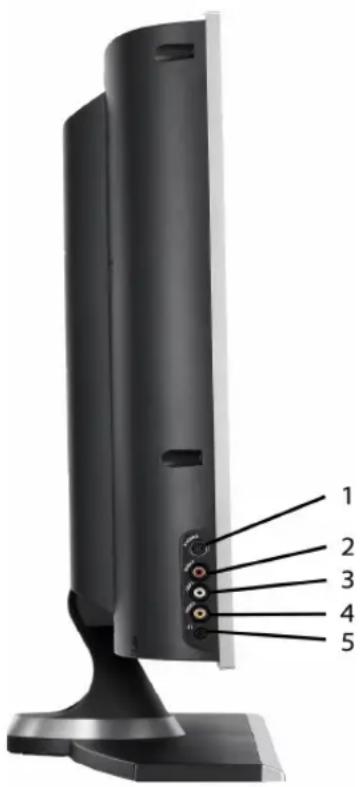

1 S-Video input (SIDE)

Use this to connect devices such as a video game system, a digital camera, or a DVD player

2 Audio connector (R) Use this connector if you have connected a device to the composite connector (SIDE) or the S-Video connector (SIDE)

3 Audio connector (L) Use this connector if you have connected a device to the composite connector (SIDE) or the S-Video connector (SIDE)

4 Composite video connector (SIDE) Use this to connect devices such as VCR or DVD player

5 Headphone Use this connector to connect the Headphone

Left View

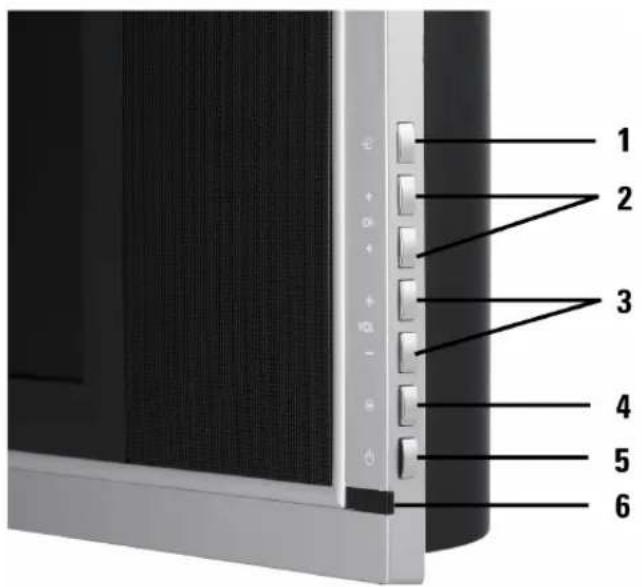

1 Input Source button Push to display the Input Select menu

2 Channel up/down button

Push to select the previous/next channel or navigate through the TV Menu

3 Volume up/down button

Push to increase/decrease the volume or to select a TV Menu option

4 TV Menu button Push to display the TV Menu

5 Power button and light (LED)

Push to turn the TV on and off The power light is blue when the TV is on and amber when it is in power saving mode

6 IR receiver Senses the signal from the remote control

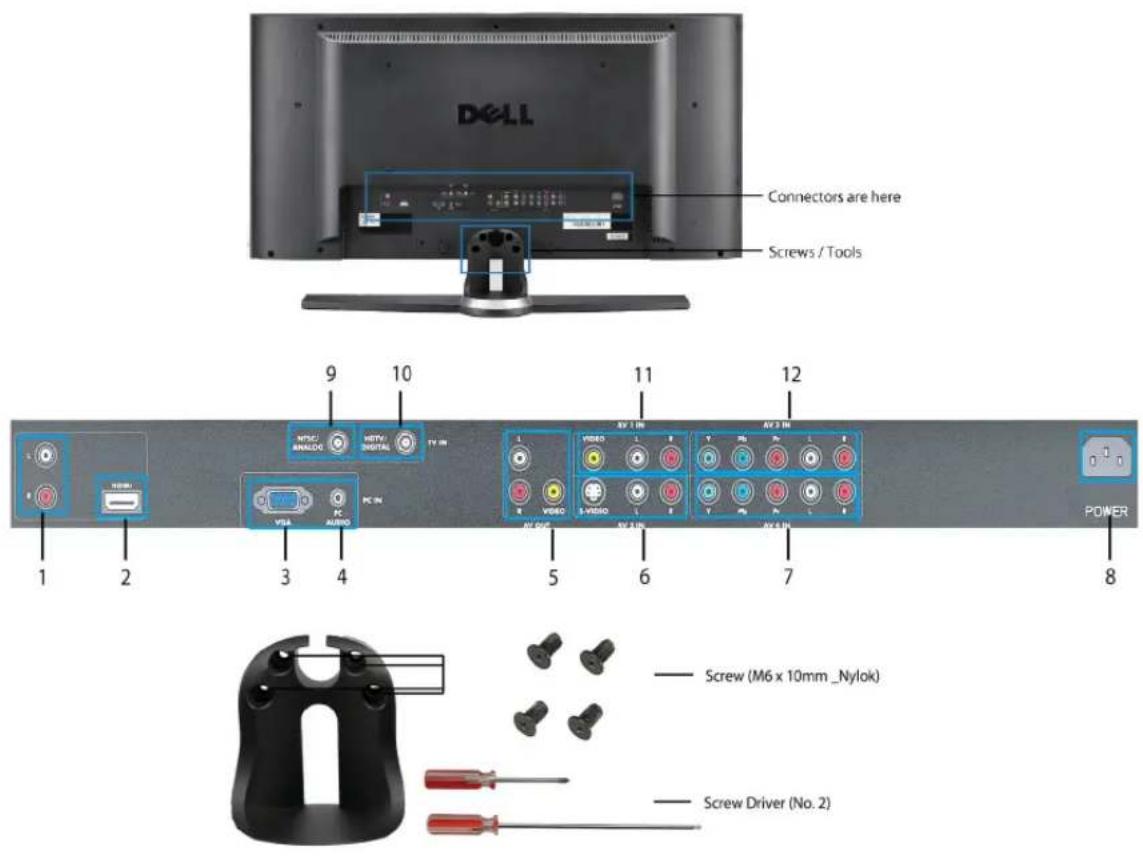

Rear View

1 D V I a u d Connect to the DVI audio connectors if you have connected a device (L/R) such as a DVD player or set-top box to the HDMI connectors with a DVI to HDMI interchange cable

2 HDMI connectors Connect devices such as a DVD player or set-top box

3 Video Graphics Array Connect to the VGA cable from your computer to the TV (VGA) connector

4 Audio connector for Connect the audio cable from your computer to the TV VGA

5 Composite video and audio-out connectors Connect a device such as a VCR if you have connected an antenna or cable TV through the ANT/Cable connector

6 S-Video connectors (AV2)	Connect devices such as a video game system or a DVD player
7 Component audio and video connectors (AV4)	Connect devices such as a DVD player, set-top box, or cable TV box
8 Power connector Connect your power cord
9 NTSC connector Connect an antenna or a cable TV box
10 HIDTV connector Connect an antenna for the digital tuner when using Digital TV (HDTV connector)
11 Composite video and audio connectors (AV1)	Connect devices such as a VCR or DVD player
12 Component audio and video connectors (AV3)	Connect devices such as a DVD player, set-top box, or cable TV box

Package Contents

NOTE: If you need additional cables, contact Dell.

Remote control

AAA batteries (2)

Power cord

Antenna (coaxial) cable

Composite cables

Coiled black cable with multiple colored connectors (red, yellow, white) attached to its ends, no text or symbols visible.

Documentation

Caring for Your TV

CAUTION: Only a licensed technician should service the TV. Do not disassemble the TV. Before cleaning the TV, unplug it from the electrical outlet.

• To clean the surface of the panel, slightly dampen a soft, clean, lint-free cloth with water.

• To clean the TV cabinet, use a cloth, slightly dampened with a mild detergent.
• Do not use chemicals such as benzene, thinner, ammonia, or any type of abrasive cleaner.
• Do not use compressed air to clean the TV.

Setting Up Your TV

CAUTION: Before you begin any of the setup procedures in this section, follow the safety instructions in the Product Information Guide

Proper Location for Your TV

Consider the following environmental factors while deciding the position of your TV:

• Ensure you allow adequate ventilation.
• Do not place the TV in locations that are exposed to high heat and humidity, direct sunlight, dusty environments, or extreme cold.
• Avoid moving the TV between locations with high humidity and dusty environments.
• Do not subject the TV to severe vibration or high impact conditions. Do not place the TV inside a car trunk.
• Do not place the TV in a location where water or other liquids could spill on or into the TV.

Connecting Your TV

The tables below provide a description of the connectors on your TV to help you decide which connectors to use for your various video devices.

Connecting Your Cable TV Box or Antenna

Quality Cable and connector When to Use

Good Coaxial cable

Coaxial (RF) cable carries the video and audio signal from the antenna or cable connector to your TV. The coaxial connector is labelled NTSC. To locate the NTSC connector see "Rear View" on page 8.

Best Coaxial cable

Close-up of a black coaxial cable with metallic connector and two circular copper contacts on a circuit board (no text or symbols visible)

The HDTV cable carries the digital video and audio signal from the antenna connector to your TV. To locate the HDTV connector see "Rear View" on page 8.

Connecting Your Video Devices

Quality Cable and connector When to Use

Good Composite

Three colored audio/video connectors with black cable, shown from different angles (no text or symbols visible)

The composite connector carries the video signal through a single pin. If you are using a composite video connector, you also need to connect composite audio cables. To locate the composite connectors, see "Left View" on page 7 and "Rear View" on page 8.

Quality Cable and connector When to Use

Better S-Video

Three connected audio/video cables (black, gray, red) shown from a photo inset, no text or symbols visible.

Best Component (YPbPr)

Close-up of various audio/video connectors with colored wires, no visible text or symbols

Excellent HDMI

The S-Video connector splits the video signal into two signals, black-and-white and color. If you are using the S-Video connector, you also need to connect the audio cables. To locate the S-Video connectors, see "Right View" on page 6 and "Rear View" on page 8.

The component connectors splits the video signal into three signals: two color signals and one black-and-white signal. If you are using the component connectors, you also need to connect the audio cables. To locate the component connectors, see "Rear View" on page 8.

HDMI (High Definition Multimedia Interface) assures that the best video signal is always sent from source (HDTV signal, DVD player) to the TV. This is achieved by allowing uncompressed video and multi-channel audio data to be sent to the display device through a single cable. To locate the connector see "Rear View" on page 8.

Connecting Audio Out

Quality Cable and connector When to Use
Good Composite video and audio out connectors	Use these connectors to connect a device such as a VCR if you have connected an antenna or cable TV through the ANT/Cable connector.

Using the HDTV or NTSC Connector (Coaxial)

1 Turn off the TV and unplug the power cord.
2 Connect the coaxial cable to the HDTV or the NTSC connectors on the TV.
3 Plug in the power cord for the TV and turn on the TV.

4 Enter the TV Menu and select TV for NTSC or TV Digital for HIDTV. See "Input Select" on page 26 for more information.

Using the Composite Connector

1 Turn off the TV and unplug the power cord.

NOTE: If you are connecting a device that you want to be able to remove, such as a video game system or a camcorder, use the composite connector on the right side of the TV (see "Left View" on page 7).

2 Connect your device to the TV using the audio and video cable.
3 Plug in the power cords for the TV and devices and turn them on.

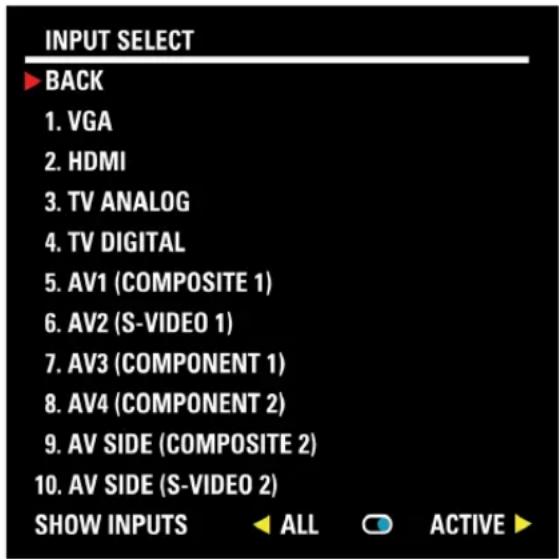

4 Enter the TV Menu and select AV1, or AV SIDE (Composite 3). See "Input Select" on page 26 for more information.

Three colored audio/video connectors (yellow, gray, red) with black cables, shown from above and side (no text or symbols visible)

Using the S-Video Connector

1 Turn off the TV and unplug the power cord.

NOTE: If you are connecting a device that you want to be able to remove, such as a video game system, or a camera, use the S-Video connector on the right side of the TV (see "Left View" on page 7).

2 Connect your device using the S-Video and audio cables.
3 Plug in the power cords for the TV and devices and turn them on.
4 Enter the TV Menu and select AV3, AV2, or AV SIDE (S-Video 2). See "Input Select" on page 26 for more information.

Three connected audio/video connectors (black, white, red) shown from a photo inset, no text or symbols visible.

Using the Component Connector

1 Turn off the TV and unplug the power cord.
2 Connect your device using the component video and audio cables.
3 Plug in the power cords for the TV and devices and turn them on.
4 Enter the TV Menu and select AV3 or AV4. See "Input Select" on page 26 for more information.

Close-up of five different audio/video cables with black leads, no visible text or symbols

Using the HDMI Connector

1 Turn off the TV and unplug the power cord.
2 Connect your device using the HDMI connector.
3 Plug in the power cords for the TV and devices and turn them on.
4 Enter the TV Menu and select HDMI 1. See "Input Select" on page 26 for more information.

Using the VGA Connector

1 Turn off the TV and unplug the power cord.

NOTE: Suggest to use a VGA cable which has a ferrite core.

2 Connect the VGA and audio cables to your TV and computer.

3 Plug in the power cords for the TV and devices and turn them on.

4 Enter the TV Menu and select VGA. See "Input Select" on page 26 for more information.

Using the Composite Video and Audio Out Connectors

1 Turn off the TV and unplug the power cord.
2 Connect the video and audio out cables to your TV and to a device such as a VCR if you have connected an antenna or cable TV through the ANT/Cable connector.
3 Plug in the power cords for the TV and devices and turn them on.

Close-up of three colored audio/video connectors (red, yellow, gray) with no visible text or symbols

Your Remote Control

Installing Batteries

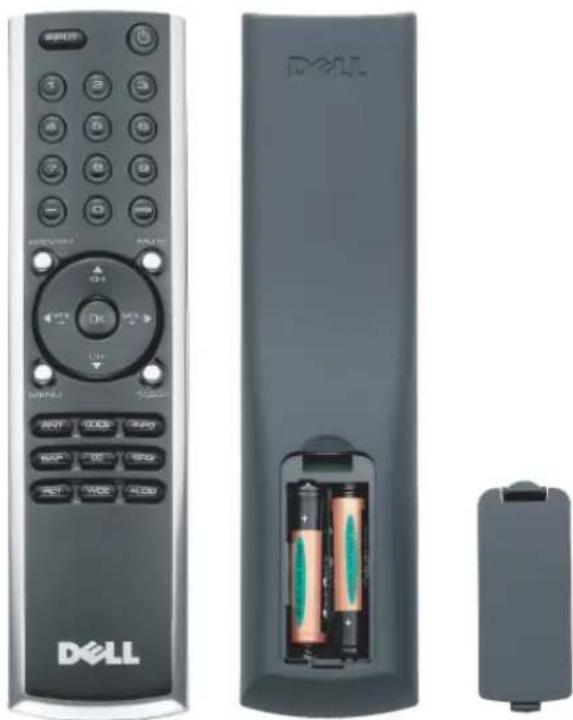

Before you can use your remote control, install two AAA batteries in the remote control as follows.

1 Open the battery cover.
2 Install the batteries. Make sure that you match the + and - on the batteries with the + and - symbols in the battery compartment.
3 Close the battery cover.

Exterior view of a Dell remote control with visible battery and keypad (no text or symbols on main device)

Using Your Remote Control

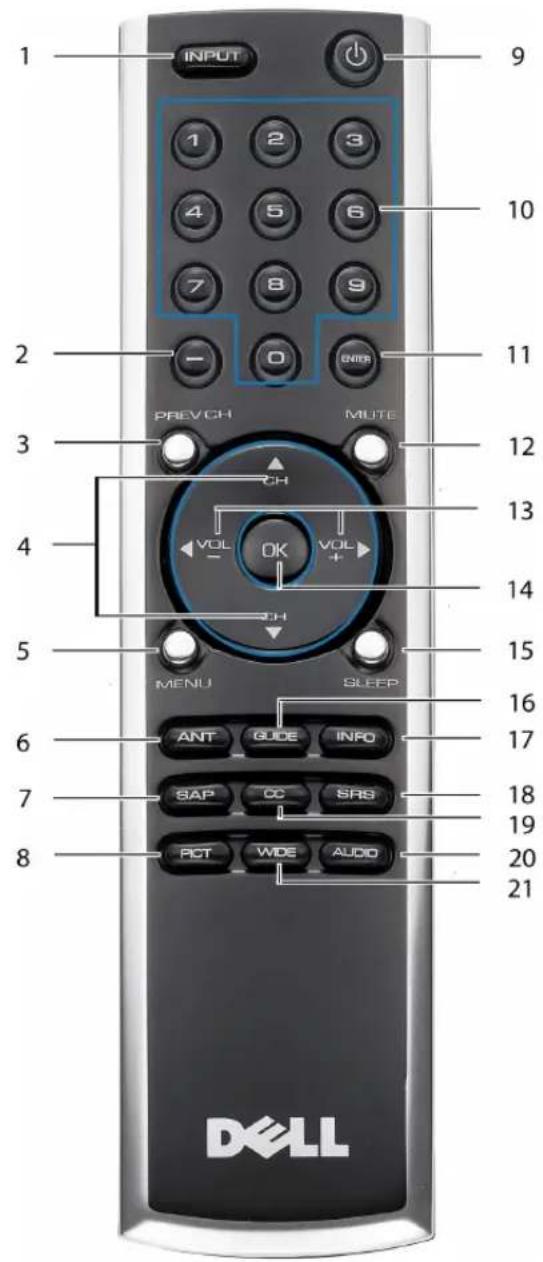

1	INPUT	Enters the Input Select menu.
2	-	Press to select digital channels. For example, to select 62-3, press 6, 2, the dash key and then 3 to view the channel.
3 PREV CH Returns you to the previously viewed channel.
4 CII ▲CH ▼		Push to view the next/previous channel.
5 MENU Enters and exits the TV Menu.
6 ANT Toggles between analog and digital TV input sources.
7 SAP Toggles between primary and secondary audio sources.
8	PICT	Cycles through the preset options for the Picture menu.
9 POWER Turns the TV on and off.
10 NUMBER Press to select a channel.
11 ENTER Press to confirm your selection.
12 MUTE	Press to turn the sound on and off.
13 VOL+	Increases/decreases the volume.
14 OK	Press this button to make or confirm a selection in the TV Menu.
15 SLEEP	Turns on the sleep timer.
16 GUIDE	Displays an electronic program guide when using Digital TV (ATSC connector).NOTE: Content may vary depending on the broadcaster.
17 INFO	Displays information about your TV (for example, in TV mode, it displays the channel you are watching).
18 SRS Press to turn on/off SRS Surround.
19 CC	Toggles Closed Captioning on/off - DAO.
20 AUDIO	Cycles through the preset Audio options.
21 WIDE	Sets the screen size.

Using Your TV With a Universal or Learning Remote Control

Preprogrammed universal remote controls can be programmed to control the following functions on your Dell TV:

• P o w e r
- Channel Up ( ▲)
- Channel Down ( ▼)
• V o l u m e U p (+ )
• V o l u m e D o w n ( - )
- M u t e
- Input Select

NOTE: Future preprogrammed universal remote controls may be able to control more functions.

You can program universal remote controls to work with your Dell TV in the following ways:

• If the remote control manual lists codes by manufacturer, use the Phillips codes.
• If the remote control has a search function, this function may be used to find the correct code.
• If the remote control has a learning function, you can program specific buttons on it from the Dell remote control, in addition to those buttons listed above.

NOTE: See the remote control documentation for specific instructions for your universal or learning remote control.

Using the TV Menu

Your TV has a TV Menu that allows you to select the proper input source, make adjustments to the image and audio settings, and set parental controls.

Using Your Remote Control With the TV Menu

NOTE: You can access and make selections to the TV Menu using the volume and channel buttons on the side panel of the TV or you can use the remote control. Except where noted, this section describes how to use the TV Menu with the remote control.

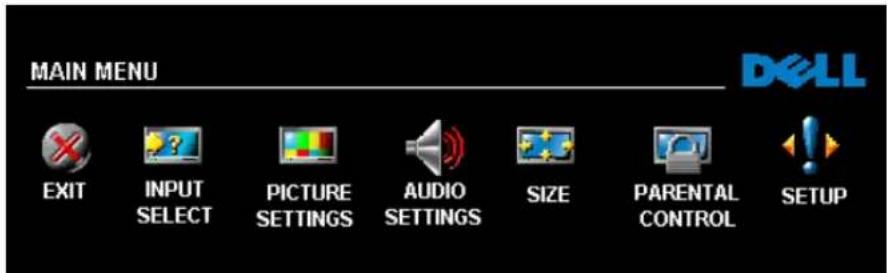

1 To enter the TV Menu, press the MENU button.

Seven icons appear along the bottom of the screen.

2 Use the left and right navigation buttons to move between the icons.

The icon appears highlighted as you move through the menu.

3 To select an option, press the OK button when the icon is highlighted.

4 A new menu appears for that selected option. Use the up and down navigation buttons to move through the various settings.

NOTE: A red arrow appears next to the setting as you navigate through the options. A check mark appears next to the option that you have selected.

5 Use the left and right navigation buttons and the OK button to adjust or select settings.

NOTE: You can select EXIT or press the MENU button at any time to return to the main menu.

6 After you have made your selections, press the MENU button to return to the main menu.

7 To exit the TV Menu, select the EXIT icon and press OK.

Selecting Your TV Menu Language

1 Press the MENU button to enter the TV Menu.
2 Select SETUP.
3 In the SETUP menu, select LANGUAGE and scroll to select the language that you want the TV Menu to appear in.

Input Select

The Input Select menu allows you to select the proper source based on how you have your TV and video equipment connected. Press INPUT on the remote to go directly to the INPUT SELECT menu. You can also press MENU on the remote and select INPUT SELECT from the main menu.

If you are using the TV (NTSC connector) or the Digital TV (HDTV connector) input source, you can preset the viewable channels. Go to the Main Menu, select SETUP-> CHANNEL SETUP

-> CHANNEL SEARCH. If you are using the NTSC connector and the ATSC connector at the same time, you need to preset the viewable channels for both the Digital TV and the TV input sources.

VGA — Select when you have your computer connected to the VGA connector. See "Rear View" on page 8 for the location of the VGA connector.

HDMI( (High-Definition Multimedia

Interface) — Select when you have connected a device, such as a DVD player using the HDMI connector. See "Rear View" on page 8 for the location of the HDMI connector.

TV ANALOG — Select when you have your antenna or cable TV box connected to the NTSC connector. See "Rear View" on page 8 for the location of the NTSC connector.

TV DIGITAL — Select when you have your antenna or cable TV box connected to the HDTV connector. See "Rear View" on page 8 for the location of the NTSC connector.

AV1 (COMPOSITE 1) — Select when you have a video device, such as a video game system, connected to the composite connector on the bottom of the TV. See "Rear View" on page 8 for the location of the composite video and audio connectors.

AV2 (S-VIDEO 1) — Select when you have a video device, such as a VCR, connected to the S-Video connector on the bottom of the TV. See "Rear View" on page 8 for the location of the S-Video connector.

AV3 (COMPONENT 1) — Select when you have a video device, such as a DVD player, set-top box, or cable TV box, connected to the component audio and video connectors on the bottom of the TV. See "Rear View" on page 8 for the location of the component audio and video connectors.

AV4 (COMPONENT 2) — Select when you have a video device, such as a DVD player, set-top box, or cable TV box, connected to the component audio and video connectors on the bottom of the TV. See "Rear View" on page 8 for the location of the component audio and video connectors.

AV SIDE (COMPOSITE 2) — Select when you have a video device, such as a video game system, connected to the composite connector on the side of the TV. See "Right View" on page 6 for the location of the composite connector.

AV SIDE (S-VIDEO 2) — Select when you have a video device, such as a VCR, connected to the S-Video connector on the side of the TV. See "Right View" on page 6 for the location of the S-Video connector.

SHOW INPUTS — Show Inputs allows you to select Active or All. Active searches for which connectors are being used. The available input sources appear in white and input sources that are not available appear in grey. All shows all the input sources and allows you to select all the input sources even if you do not have a device connected.

NOTE: In TV Menu Settings, located in the Setup menu, you can set the Input Select to display the device that you have attached. For example, AV2 would say DVD when you view the Input Select menu.

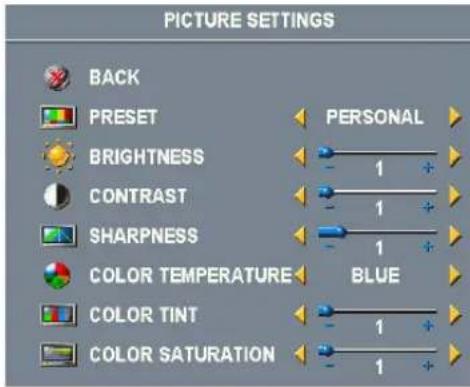

Picture Menu

The Picture Menu allows you to adjust the appearance of the image including color and brightness.

If you select one of the following preset image settings the individual settings are automatically updated.

- Movies • Weak Sign a - Sports • Multimcd i

If you select Personal, you can adjust the individual settings, such as Brightness and Color.

The typical color temperature presets are:

• Natural: 6500K
• Normal: the native panel temperature
- Blue: 9300K
• Red: 5700K

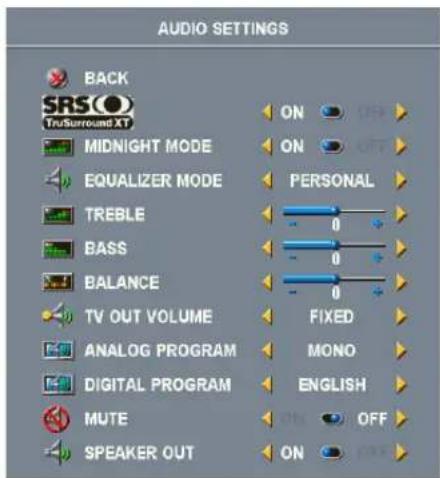

Audio

The Audio Menu allows you to set the audio to best fit the type of show you are watching.

SRS TruSurround XT—Delivers virtual surround sound over two speakers from any source, which creates a wider sound with deep rich bass.

MIDNIGHT MODE — Evens out the large volume variations between voice and action scenes.

EQUALIZER MODE — If you select one of the following preset Equalizer Mode settings, the individual audio levels are automatically updated:

• Music
• Theater
• Voice

If you select Personal, you can adjust the individual audio levels, such as BASS and TREBLE.

TV Out Volume — Select Fixed if you want to adjust the volume using the remote or volume control on an attached audio receiver. Select Variable if you want to adjust the volume using the TV remote or front panel buttons. Using Variable adjusts the TV volume out not the volume on an attached audio receiver

Use Program to select Stereo, Mono, or SAP (Second Audio Program).

Mute — Allows you to turn the sound on or off.

Speaker On/Off — Allows you turn on or off the sound from the speaker.

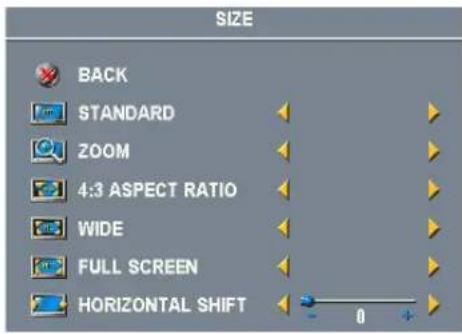

Size

NOTICE: Using black bars, such as those seen in Wide or 4:3, for an extended period of time may cause burn-in on your TV.

Size allows you to adjust the appearance of the image. Use H. Position to adjust the horizontal placement of the image.

Use the following settings to adjust the aspect ratio:

Standard — Best selection for viewing digital HIDTV, 16:9 or 22:9 DVD movies.

Zoom — Best selection for viewing TV, VCR or 4:3 DVD movie.

4:3 — Best selection for viewing TV, VCR or 4:3 DVD movie.

Wide — Best selection for viewing digital HDTV, 16:9 and 22:9 DVD movies.

Full Screen — Best selection for viewing digital HDTV or 16:9 DVD movies.

Horizontal Shift—Adjust the horizontal placement of the image.

NOTE: Most DVDs have information about the supported aspect ratio on the case.

Parental Control

Parental Control allows you to block certain channels or programs so children cannot view programs that are not age appropriate.

To enter the Parental Control menu, you need an access code. The first time you enter, use access code 3355. See "Setting an Access Code" on page 30 for information on creating a new access code.

You can set the following options to block content:

• Channel Lock — Blocks selected channels
• Movie Rating — Blocks movies based on their rating (G, PG, PG-13, R, NC-17, and X)
• TV Ratings — Blocks TV shows based on their rating
• Canadian English Rating — Blocks movies/ TV shows based on their rating
• Canadian French Rating — Blocks movies/TV shows based on their rating
• Region Rating — Blocks digital programs based on their rating

• Block Options — Turns on or off all your parental control settings

NOTE: You can use Clear All to unblock the channels and programs that you have set.

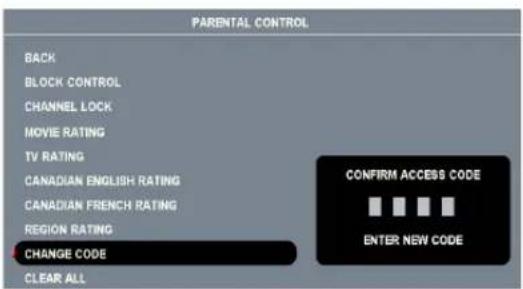

Setting an Access Code

After you enter the Parental Control menu for the first time, you can set your own four-digit access code.

1 In the Parental Control menu, select Change Code.
2 Using the number pad on the remote control, enter a new access code.
3 Select Exit.

NOTE: Parental Control ACCESS CODE can be reset by pressing Channel down and Volume down keys on front control panel simultaneously for 10 seconds.

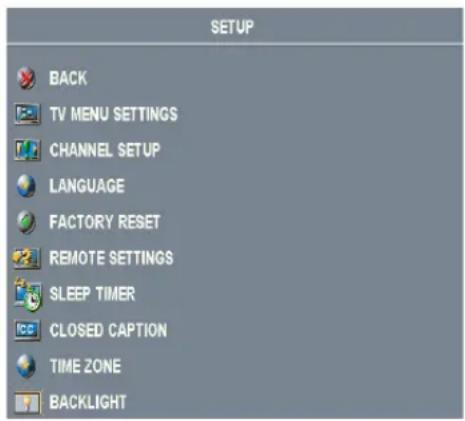

Setup

Setup allows you to adjust the appearance of the TV Menu, preset viewable cable channels, change the language of the TV Menu (see "Selecting Your TV Menu Language" on page 26) and to restore factory settings.

In the TV Menu Settings menu, use TV Menu Hold Time to increase or decrease the amount of time the TV Menu appears. The maximum amount of time is 60 seconds. You can select TV Button Lock to lock the buttons on the bottom panel. When this option is enabled, only the power button functions. Hold the volume increase and the channel increase buttons together for 10 seconds to unlock the buttons.

Channel Setup allows you adjust the settings for individual channels and preset the viewable channels. If you are using the TV (NTSC connector) or the Digital TV (HDTV connector) input source, you can preset the viewable channels. Go to the Main Menu, select Setup, select Channel Setup, and then select Channel Search. If you are using the NTSC connector and the HDTV connectors at the same time, you need to preset the viewable channels for both the Digital TV and the TV input source.

Language enables you to choose the TV Menu language.

Select Factory Reset to reset the TV Menu settings to the factory default values.

Select Remote Settings to enable support for legacy remote codes (RC5 codes). The default selection is No.

Sleep Timer allows you to set an increment of time after which the TV automatically turns off.

Select Closed Caption to turn on and off closed captioning and set several other CC options.

Time Zone allows you to set the time zone and daylight saving settings.

Select Backlight to change backlight brightness to a preferred level.

NOTE: The actual time is set through use of the ATSC tuner with a digital antenna. Without this antenna the time will not be available.

Troubleshooting Problems With Your TV

CAUTION: If at any time you see smoke or sparks coming from your TV, contact Dell. Do not try to perform any troubleshooting steps.

Troubleshooting Tips

NOTE: Some problems may be related to video devices connected to your TV. See the video device documentation for additional troubleshooting information.

Most problems with your TV may be caused by not having the correct input selection. Each connector on the TV (side and bottom) is associated with an input selection, which is labelled AV1 through AV4 in the Input Select menu.

• AV1 - Composite connector on the bottom of the TV
• AV2 - S-Video connector on the bottom of the TV
• AV3 - Component connector on the bottom of the TV
• AV4 - Component connector on the bottom of the TV
  • AV SIDE (COMPOSITE 2) - Composite connector on the right of the TV
  • AV SIDE (S-VIDEO 2) - S-Video connector on the right of the TV

You can also select the following inputs:

• TV - NTSC connector on the bottom of the TV
• DIGITAL TV - HIDTV connector on the bottom of the TV
• VGA - VGA connector on the bottom of the TV
• HDMI - HDMI connector on the bottom of the TV

General Problems

Problem Possible Solution

Poor picture quality while watching TV and using a device such as a DVD player or a VCR

1 Check the aspect ratio settings in the TV Menu. Press the Menu button on the remote control and select Size. For more information on using the TV Menu, see "Using the TV Menu" on page 25.

2 Reconnect the device using the same type of connector. For example, if you are using the composite connector on the bottom, try connecting the device to the composite connector on the side of the TV display. See "About Your TV" on page 5 for the location of the connectors. After you connect the device, change the input source in the TV Menu. See "Input Select" on page 26 for more information.

3 Connect the device using a different connector. For example, if you are experiencing the problem using a composite connector, try using the component connector.

NOTE: To connect to a different connector, you need the appropriate cables for that connector. See your device documentation for a list of supported connections.

After you connect the device, change the input source in the TV Menu. See "Input Select" on page 26 for more information.

4 Reset the original factory defaults. Press Menu on the remote control, select Setup, and then select Factory Reset.

5 Adjust the color temperature. Press Menu on the remote control, select Picture Setting, and then select Color Temperature.

NOTE: Some set top boxes offer aspect ratio. See your device documentation for more information.

Poor picture quality when using a device connected to the ANT/Cable (coaxial) connector

1 Ensure TV display is selected as the input source in the Input Source menu. See "Input Select" on page 26 for more information.

2 Press Menu on the remote control, select Setup, and then select Channel Setup. This resets the channels on your TV.

3 Check the aspect ratio settings in the TV Menu. Press the Menu button on the remote control and select Size. For more information on using the TV Menu, see "Using the TV Menu" on page 25.

4 Reset the original factory defaults. Press Menu on the remote control, select Setup, and then select Factory Reset.

5 Adjust the color temperature. Press Menu on the remote control, select Picture, and then select Color Temperature.

6 The problem may be with your device, contact your service provider.

Problem Possible Solution

Nothing appears on my TV 1

Ensure the TV display is turned on.

2 Verify that all the cables are properly connected to the TV display, including the power cable.
3 Check to see if there is a blue or amber light on the lower, right-hand corner of the TV display. A blue light indicates the TV display is on. An amber light, means the TV display is in power save mode.
4 Ensure the proper source is selected in the Input Source menu. See "Input Select" on page 26 for more information.
5 Reconnect any devices that are currently connected to the TV display. If you are using multiple devices, connect and test one device at a time.
6 Connect another device that you know is working properly.
7 Reset the original factory defaults. Press Menu on the remote control, select Setup, and then select Factory Reset.

Problem Possible Solution

No sound 1	Ensure mute is not turned on. Pressing the Mute button on the remote control turns the mute function on and off.2 If only certain TV channels do not have sound, then you need to correct the Input Select menu in the TV Menu (see "Input Select" on page 26).3 Verify that the audio cables are firmly connected to both the audio input connectors on your TV display and audio output connectors on your devices. Ensure that the cable colors match the connectors colors.4 Also, ensure that the audio cables are connected to the same row as the video cables. See "About Your TV" on page 5 for the location of the connectors.5 Reconnect the device using the same type of connector. For example, if you are using the composite connector on the bottom, try connecting the device to the composite connector on the side of the TV display. See "About Your TV" on page 5 for the location of the connectors. After you connect the device, change the input source in the TV Menu. See "Input Select" on page 26 for more information.6 Connect the device using a different connector. For example, if you are experiencing the problem using a composite connector, try using the component connector.NOTE: To connect to a different connector, you need the appropriate cables for that connector. See your device documentation for a list of supported connections.After you connect the device, change the input source in the TV Menu. See "Input Select" on page 26 for more information.7 Test the device on a different TV.
Bright or dark dots Pixel defects within industry specifications are inherent to an LCD TV and do not constitute a defective problem. For more information about pixels and LCD technology, go to support.dell.com.Picture is too dim or too bright Update the color settings in the TV Menu. Press Menu on the remote control and select Picture Settings.
The screen is not centered correctly 1	Update the size settings in the TV Menu. Press Menu on the remote control and select Size.2 Reset the original factory defaults. Press Menu on the remote control, select Setup, and then select Factory Reset.

Problem Possible Solution

Screen has one or more lines 1	Check the aspect ratio settings in the TV Menu. Press the Menu button on the remote control and select Size. For more information on using the TV Menu, see "Using the TV Menu" on page 25.2 Ensure the proper source is selected in the Input Source menu.Scc "Input Select" on page 26 for more information.3 Try connecting a different device. Ensure that you properly connect the cables and update the input source in the TV Menu.4 Update the size settings in the TV Menu. Press Menu on the remote control and select Size.5 Reset the original factory defaults. Press Menu on the remote control, select Setup, and then select Factory Reset.
The front panel buttons do not work	Check the TV Menu to see if the buttons have been locked. Press Menu on your remote control, select Setup.If you are unable to use the remote control, press the volume up and the channel up buttons on the bottom of the TV display for 10 seconds to unlock the buttons.
The picture is too small	1 Adjust the size settings. Press Menu on the remote control, and select Size & Position.2 This may be a problem with your device. See the documentation for the device.

TV Menu Messages

While using your TV, the following messages may appear.

Message Possible Solution
Auto Adjust No action required, the TV is performing an auto adjustment.
Out of Range Check the optimal resolution settings.
	You may need to download a new video driver. For more information, go to support.dell.com.
No Video Input 1	Check all cables are properly connected.2 Ensure the proper source is selected. See "Input Select" on page 26 for more information.
TV Buttons Locked To unlock, press Menu on your remote control, select Setup.
In Power Save Mode	If you have a computer connected to the TV display and there is no signal detected, the TV display goes in to sleep mode. The power light is amber when the TV display is in sleep mode.
Press any key on keyboard or move mouse
Self Test Appears for computer source when there is nothing plugged in.Select VGA from Input Select menu and nothing is plugged in.Plug a computer in to the VGA connector.

Remote Control Problems

Problem Possible Solution

The TV does not respond when using the remote control

1 Point the remote control directly at the lower right corner of the TV display. Be sure that nothing is blocking the front of the TV display. For the location of the IR, see "Front View" on page 5.2 Verify that the batteries are properly installed.3 If the batteries are old, install new batteries.NOTE: Bright lights or other infrared devices may interfere with your remote control and IR on the TV display.

Using the Self-Test Feature when Connected to a Computer

When your computer is connected to the TV display through VGA connector you can use the self-test feature to check whether your TV display is functioning properly. If your TV display and computer are properly connected but the TV display screen remains dark, run the TV display self-test by performing the following steps:

1 Turn off both your computer and the TV display.
2 Unplug the video cable from the back of the computer.
3 Turn on the TV display. If the TV display cannot sense a video signal and is working correctly, the floating "Dell - Self-Test Feature Check" dialog box appears on the screen (against a black background). While in self-test mode, the power light remains blue and the self-test pattern scrolls through the screen continually. This box also appears during normal system operation if the video cable becomes disconnected or damaged.
4 Turn off your TV display and reconnect the video cable; then turn on both your computer and the TV display. If your TV display screen remains blank, the problem may be with your computer or graphic card.

See your computer documentation for more information.

Problems When Using the TV as a Monitor

NOTE: You can only connect your computer to the TV display using a VGA connector.

Problem Possible Solution

The picture is off-centered or too small

1 Use Auto Adjust to check the Image Settings. Press Menu to enter the TV Menu, select Image Settings, and then select Auto Adjust.

2 Check the optimal resolution settings. You may need to download a new video driver. For more information, go to support.dell.com.

NOTE: Some older video cards may not support the resolution settings for the TV.

Problem Possible Solution
No audio 1	Ensure the green audio cable is connected to audio connector on the TV and on the computer. For the location of the connector on the TV, see "Using the VGA Connector" on page 18. See your computer documentation for the location of connectors on your computer.Do not connect the audio cable to the headphone jack.2 Ensure the volume on the computer is not muted.3 Verify that sound on your computer is working by checking the speakers. See your computer documentation for information on troubleshooting your computer.4 Disconnect the TV from the computer and test to see if the TV volume works.
No video	NOTE: If you see a self-test, it means there is a problem with your video card or you are using the wrong input source.1 Ensure the TV is turned on.2 Verify that all the cables are properly connected to the TV, including the power cable.3 Check to see if there is a blue or amber light on the lower, right-hand corner of the TV. A blue light indicates the TV is on. An amber light, means the TV is in power save mode.4 Ensure proper source is selected. See "Input Select" on page 26 for more information.5 Reconnect the computer.6 Connect another device that you know is working properly.7 Reset the original factory defaults. Press Menu on the remote control, select Setup, and then select Factory Reset.

Specifications for Your TV

General

Model number W3207C

Display type LCD TV

Screen size 32-inches

Viewable area 697.69 x 392.26 mm (27.47 x 15..44 inches)

Image aspect ratio 16:9 (wide screen)

Video display capabilities 480i / 480p / 576i / 576p / 720p / 1080i

Additional features:

SAP capable Yes

CC capable Yes

Parental control capable Yes

Physical Dimensions

Display (with stand) 951 x 561 x 209 mm (37.44 x 22.08 x 8.22 inches)

Weight (with stand) 20.4kg/44.93lbs

Native Resolution 1366 x 768 WXCA

IIDTV Capable Yes


Number of Tuners 1 (Digital/Analog)

Brightness 500 nits (typ.)

Contrast Ratio 1200:1 (typ.)

Viewing Angle

Horizontal ±88 degree

Vertical ±88 degree

Inputs

Video

Inputs

Composite (CVBS)	two in total (side and bottom)
S-Video	two in total (side and bottom)
Component	two (bottom)
TV IN (coaxial)	two (bottom)
Audio (RCA L+R)	six pairs in total (side and bottom)
IIDMI	one (bottom)
Computer
VGA (for use as computer monitor)	one (bottom)
Audio (PC)	one (bottom)

Outputs

Vidco
Composite (CVBS)	one (bottom)
Audio (RCA I.+R)	one pair (bottom)

Audio

Effects SRS TruSurround XT
	Midnight Mode
Speakers (separate) 15 watts/channel	30 watts total

Contacting Dell

To contact Dell electronically, you can access the following websites:

• www.dell.com
  • support.dell.com (support)

For specific web addresses for your country, find the appropriate country section in the table below.

NOTE: Toll-free numbers are for use within the country for which they are listed.

NOTE: In certain countries, support specific to Dell™ XPS™ computers is available at a separate telephone number listed for participating countries. If you do not see a telephone number listed that is specific for XPS computers, you may contact Dell through the support number listed and your call will be routed appropriately.

When you need to contact Dell, use the electronic addresses, telephone numbers, and codes provided in the following table. If you need assistance in determining which codes to use, contact a local or an international operator.

NOTE: The contact information provided was deemed correct at the time that this document went to print and is subject to change.

Bahamas Website: www.dell.com.bs
E-mail: [e-mail]
General Support
toll-free: 1-866-278-6818

Country (City)International Access CodeCountry CodeCity Code	Department Name or Service Area,Website and E-Mail Address	Area Codes,Local Numbers, andToll-Free Numbers
Anguilla Website:www.dell.com.ai
	E-mail: [e-mail]
	General Support	toll-free: 800-335-0031
Antigua and Barbuda Website:www.dell.com.ag
	E-mail: [e-mail]
	General Support	1-800-805-5924
Argentina (Buenos Aires)International Access Code: 00Country Code: 54City Code: 11	Website:www.dell.com.arE-mail:[e-mail]-mail for desktop and portable computers:[e-mail]-mail for servers and EMC® storage products:[e-mail] CareTechnical SupportTechnical Support ServicesSales	toll-free: 0-800-444-0730toll-free: 0-800-444-0733toll-free: 0-800-444-07240-810-444-3355
Aruba Website:www.dell.com.aw	E-mail:[e-mail] Support	toll-free: 800-1578
Australia (Sydney)International Access Code: 0011Country Code: 61City Code: 2	Website: support.ap.dell.comE-mail: support.ap.dell.com/contactusGeneral Support	13DELL-133355
Austria (Vienna)International Access Code: 900Country Code: 43City Code: 1	Website:support.euro.dell.comE-mail: [e-mail]/Small Business SalesHome/Small Business FaxIHome/Small Business Customer CarePreferred Accounts/Corporate Customer CareSupport for XPSHome/Small Business Support for all other DellcomputersPreferred Accounts/Corporate SupportSwitchboard	0820 240 530 000820 240 530 490820 240 530 140820 240 530 160820 240 530 810820 240 530 170820 240 530 170820 240 530 00

Country (City)International Access CodeCountry CodeCity Code	Department Name or Service Area,Website and E-Mail Address	Area Codes,Local Numbers, andToll-Free Numbers
Barbados Website: www.dell.com/bb
	E-mail: [e-mail]
	General Support	1-800-534-3142
Belgium (Brussels)	Website:support.euro.dell.com
International Access Code: 00	Tech Support for XPS	02 481 92 96
Country Code: 32	Tech Support for all other Dell computers	02 481 92 88
City Code: 2	Tech Support Fax	02 481 92 95
	Customer Care	02 713 15 65
	Corporate Sales	02 481 91 00
	Fax	02 481 92 99
	Switchboard	02 481 91 00
Bermuda Website: www.dell.com/bm
	E-mail: [e-mail]
	General Support	1-877-890-0751
Bolivia Website: www.dell.com/bo
	E-mail: [e-mail]
	General Support	toll-free: 800-10-0238
Brazil	Website:www.dell.com/br
International Access Code: 00	E-mail: [e-mail]
Country Code: 55	Customer Support, Tech Support	0800 90 3355
City Code: 51	Technical Support Fax	51 3481 5470
	Customer Care Fax	51 3481 5480
	Sales	0800 90 3390
British Virgin Islands General Support		toll-free: 1-866-278-6820
Brunci	Technical Support (Penang, Malaysia)	604 633 4966
Country Code: 673	Customer Care (Penang, Malaysia)	604 633 4888
	Transaction Sales (Penang, Malaysia)	604 633 4955
Canada (North York, Ontario)International Access Code: 011	Online Order Status: www.dell.ca/ostatus
	AutoTech (automated Hardware and Warranty Support)	toll-free: 1-800-247-9362
	Customer Service (Home Sales/Small Business)	toll-free: 1-800-847-4096
	Customer Service (med./large business,government)	toll-free: 1-800-326-9463
	Customer Service (printers, projectors, televisions,handhelds, digital jukebox, and wireless)	toll-free: 1-800-847-4096
	Hardware Warranty Support (Home Sales/SmallBusiness)	toll-free: 1-800-906-3355
	Hardware Warranty Support (med./large bus.,government)	toll-free: 1-800-387-5757
	Hardware Warranty Support (printers, projectors,televisions, handhelds, digital jukebox, and wireless)	1-877-335-5767
	Sales (Home Sales/Small Business)	toll-free: 1-800-387-5752
	Sales (med./large bus., government)	toll-free: 1-800-387-5755
	Spare Parts Sales & Extended Service Sales	1 866 440 3355
Cayman Islands E-mail: [e-mail]
	General Support	1-877-262-5415
Chile (Santiago)	Website:www.dell.com/cl
Country Code: 56	E-mail: [e-mail]
City Code: 2	Sales and Customer Support	toll-free: 1230-020-4823
China (Xiamen)Country Code: 86City Code: 592	Technical Support website: support.dell.com.cnTechnical Support E-mail: [e-mail] Care E-mail: [e-mail] Support FaxTechnical Support (DellTM DimensionTM and Inspiron)Technical Support (OptiPlexTM, LatitudeTM, and Dell PrecisionTM)Technical Support (servers and storage)Technical Support (projectors, PDAs, switches, routers, and so on)Technical Support (printers)Customer CareCustomer Care FaxHome and Small BusinessPreferred Accounts DivisionLarge Corporate Accounts GCPLarge Corporate Accounts Key AccountsLarge Corporate Accounts NorthLarge Corporate Accounts North Government and EducationLarge Corporate Accounts EastLarge Corporate Accounts East Government and EducationLarge Corporate Accounts Qucue TeamLarge Corporate Accounts SouthLarge Corporate Accounts WestLarge Corporate Accounts Spare Parts	592 818 1350toll-free: 800 858 2968toll-free: 800 858 0950toll-free: 800 858 0960toll-free: 800 858 2920toll-free: 800 858 2311toll-free: 800 858 2060592 818 1308toll-free: 800 858 2222toll-free: 800 858 2557toll-free: 800 858 2055toll-free: 800 858 2628toll-free: 800 858 2999toll-free: 800 858 2955toll-free: 800 858 2020toll-free: 800 858 2669toll-free: 800 858 2572toll-free: 800 858 2355toll-free: 800 858 2811toll-free: 800 858 2621

Colombia Website: www.dell.com/cl
E-mail: [e-mail]
General Support
01-800-915-4755

Country (City)International Access CodeCountry CodeCity Code	Department Name or Service Area,Website and E-Mail Address	Area Codes,Local Numbers, andToll-Free Numbers
Costa Rica Website:www.dell.com/cr
	E-mail: [e-mail]
	General Support	0800-012-0231
Czech Republic (Prague)International Access Code: 00Country Code: 420	Website:support.euro.dell.com
	E-mail: [e-mail]
	Technical Support	22537 2727
	Customer Care	22537 2707
	Fax	22537 2714
	Technical Fax	22537 2728
	Switchboard	22537 2711
Denmark (Copenhagen)International Access Code: 00Country Code: 45	Website:support.euro.dell.com
	Technical Support for XPS	7010 0074
	Technical Support for all other Dell computers	7023 0182
	Customer Care (Relational)	7023 0184
	IHome/Small Business Customer Care	3287 5505
	Switchboard (Relational)	3287 1200
	Switchboard Fax (Relational)	3287 1201
	Switchboard (Home/Small Business)	3287 5000
	Switchboard Fax (IHome/Small Business)	3287 5001
Dominica Website:www.dell.com/dm
	E-mail: [e-mail]
	General Support	toll-free: 1-866-278-6821
Dominican Republic Website:www.dell.com/do
	E-mail: [e-mail]
	General Support	1-800-156-1588
Ecuador Website:www.dell.com/cc
	E-mail: [e-mail]
	General Support (calling from Quito)	toll-free: 999-119-877-655-3355
	General Support (calling from Guayaquil)	toll-free: 1800-999-119-877-655-3355
El Salvador Website:www.dell.com/ec
	E-mail: [e-mail]
	General Support	800-6132
Finland (Helsinki)	Website:support.euro.dell.com
International Access Code: 990	E-mail: [e-mail]
Country Code: 358	Technical Support	0207 533 555
City Code: 9	Customer Care	0207 533 538
	Switchboard	0207 533 533
	Sales under 500 employees	0207 533 540
	Fax	0207 533 530
	Sales over 500 employees	0207 533 533
	Fax	0207 533 530
France (Paris) (Montpellicr)	Website:support.euro.dell.com
International Access Code: 00	Home and Small Business
Country Code: 33	Technical Support for XPS	0825 387 129
City Codes: (1) (4)	Technical Support for all other Dell computers	0825 387 270
	Customer Care	0825 823 833
	Switchboard	0825 004 700
	Switchboard (calls from outside of France)	04 99 75 40 00
	Sales	0825 004 700
	Fax	0825 004 701
	Fax (calls from outside of France)	04 99 75 40 01
	Corporate
	Technical Support	0825 004 719
	Customer Care	0825 338 339
	Switchboard	01 55 94 71 00
	Sales	01 55 94 71 00
	Fax	01 55 94 71 01
Germany (Langen)	Website: support.euro.dell.com
International Access Code: 00	E-mail: [e-mail]
Country Code: 49	Technical Support for XPS	069 9792 7222
City Code: 69	Technical Support for all other Dell computers	069 9792-7200
	Home/Small Business Customer Care	0180-5-224400
	Global Segment Customer Care	069 9792-7320
	Preferred Accounts Customer Care	069 9792-7320
	Large Accounts Customer Care	069 9792-7320
	Public Accounts Customer Care	069 9792-7320
	Switchboard	069 766-7000
Greece	Website: support.euro.dell.com
International Access Code: 00	Technical Support	00800-44 14 95 18
Country Code: 30	Gold Service Technical Support	00800-44 14 00 83
	Switchboard	2108129810
	Gold Service Switchboard	2108129811
	Salcs	2108129800
	Fax	2108129812
Grenada E-mail: [e-mail]
	General Support	toll-free: 1-866-540-3355
Guatemala E-mail: [e-mail]
	General Support	1-800-999-0136
Guyana E-mail: [e-mail]
	General Support	toll-free: 1-877-270-4609
Hong Kong	Website: support.ap.dell.com
International Access Code: 001Country Code: 852	Technical Support E-mail: [e-mail] Support (Dimension and Inspiron)Technical Support (OptiPlex, Latitude, and Dell Precision)Technical Support (PowerAppTM, PowerEdgeTM, PowerConnectTM, and PowerVaultTM)Customer CareLarge Corporate AccountsGlobal Customer ProgramsMedium Business DivisionHome and Small Business Division	2969 31882969 31912969 31963416 09103416 09073416 09083416 09122969 3105
India E-mail: [e-mail]	[e-mail][e-mail]
	Technical Support	1600338045and 1600448046
	Sales (Large Corporate Accounts)	1600 33 8044
	Sales (Home and Small Business)	1600 33 8046
Ireland (Cherrywood)	Website:support.euro.dell.com
International Access Code: 00	E-mail: [e-mail]
Country Code: 353	Sales
City Code: 1	Ireland Sales	01 204 4444
	Dell Outlet	1850 200 778
	Online Ordering HelpDesk	1850 200 778
	Customer Care
	Home User Customer Care	01 204 4014
	Small Business Customer Care	01 204 4014
	Corporate Customer Care	1850 200 982
	Technical Support
	Technical Support for XPS computers only	1850 200 722
	Technical Support for all other Dell computers	1850 543 543
	General
	Fax/Sales Fax	01 204 0103
	Switchboard	01 204 4444
	U.K. Customer Care (dial within U.K. only)	0870 906 0010
	Corporate Customer Care (dial within U.K. only)	0870 907 4499
	U.K. Sales (dial within U.K. only)	0870 907 4000
Italy (Milan)	Website:support.euro.dell.com
International Access Code: 00	Home and Small Business
Country Code: 39	Technical Support	02 577 826 90
City Code: 02	Customer Care	02 696 821 14
	Fax	02 696 821 13
	Switchboard	02 696 821 12
	Corporate
	Technical Support	02 577 826 90
	Customer Care	02 577 825 55
	Fax	02 575 035 30
	Switchboard	02 577 821
Jamaica E-mail: [e-mail]
	General Support (dial from within Jamaica only)	1-800-440-9205
Japan (Kawasaki)	Website: support.jp.dell.com
International Access Code: 001	Technical Support (servers)	toll-free: 0120-198-498
Country Code: 81	Technical Support outside of Japan (servers)	81-44-556-4162
City Code: 44	Technical Support (Dimension and Inspiron)	toll-free: 0120-198-226
	Technical Support outside of Japan (Dimension and Inspiron)	81-44-520-1435
	Technical Support (Dell Precision, OptiPlex, and Latitude)	toll-free:0120-198-433
	Technical Support outside of Japan (Dell Precision, OptiPlex, and Latitude)	81-44-556-3894
	Technical Support (PDAs, projectors, printers, routers)	toll-free: 0120-981-690
	Technical Support outside of Japan (PDAs, projectors, printers, routers)	81-44-556-3468
	Faxbox Service	044-556-3490
	24-Hour Automated Order Status Service	044-556-3801
	Customer Care	044-556-4240
	Business Sales Division (up to 400 employees)	044-556-1465
	Preferred Accounts Division Sales (over 400 employees)	044-556-3433
	Public Sales (government agencies, educational institutions, and medical institutions)	044-556-5963
	Global Segment Japan	044-556-3469
	Individual User	044-556-1760
	Switchboard	044-556-4300
Korea (Seoul)	E-mail: [e-mail]
International Access Code: 001	Support	toll-free: 080-200-3800
Country Code: 82	Support (Dimension, PDA, Electronics and Accessories)	toll-free: 080-200-3801
City Code: 2	Sales	toll-free: 080-200-3600
	Fax	2194-6202
	Switchboard	2194-6000
Latin America Customer Technical Support (Austin, Texas, U.S.A.)		512 728-4093
	Customer Service (Austin, Texas, U.S.A.)	512 728-3619
	Fax (Technical Support and Customer Service) (Austin, Texas, U.S.A.)	512 728-3883
	Sales (Austin, Texas, U.S.A.)	512 728-4397
	SalesFax (Austin, Texas, U.S.A.)	512 728-4600or 512 728-3772
Luxembourg	Website:support.euro.dell.com
International Access Code: 00	Support	342 08 08 075
Country Code: 352	Home/Small Business Sales	[phone]
	Corporate Sales	26 25 77 81
	Customer Care	[phone]
	Fax	26 25 77 82
Macao	Technical Support	toll-free: 0800 105
Country Code: 853	Customer Service (Xiamen, China)	34 160 910
	Transaction Sales (Xiamen, China)	29 693 115
Malaysia (Penang)International Access Code: 00Country Code: 60City Code: 4	Website: support.ap.dell.comTechnical Support (Dell Precision, OptiPlex, and Latitude)Technical Support (Dimension, Inspiron, and Electronics and Accessories)Technical Support (PowerApp, PowerEdge, PowerConnect, and PowerVault)Customer CareTransaction SalesCorporate Sales	toll-free: 1 800 880 193toll-free: 1 800 881 306toll-free: 1800 881 386toll-free: 1800 881 306 (option 6)toll-free: 1 800 888 202toll-free: 1 800 888 213
MexicoInternational Access Code: 00Country Code: 52	E-mail: [e-mail] Technical SupportSalesCustomer ServiceMain	001-877-384-8979or 001-877-269-338350-81-8800or 01-800-888-3355001-877-384-8979or 001-877-269-338350-81-8800or 01-800-888-3355
Montserrat E-mail: [e-mail] Support		toll-free: 1-866-278-6822
Netherlands Antilles F-mail: [e-mail] Support		001-800-882-1519
Netherlands (Amsterdam)	Website:support.euro.dell.com
International Access Code: 00	Technical Support for XPS	020 674 45 94
Country Code: 31	Technical Support for all other Dell computers	020 674 45 00
City Code: 20	Technical Support Fax	020 674 47 66
	Home/Small Business Customer Care	020 674 42 00
	Relational Customer Care	020 674 4325
	Home/Small Business Sales	020 674 55 00
	Relational Sales	020 674 50 00
	Home/Small Business Sales Fax	020 674 47 75
	Relational Sales Fax	020 674 47 50
	Switchboard	020 674 50 00
	Switchboard Fax	020 674 47 50
New Zealand	Website:support.ap.dell.com
International Access Code: 00	E-mail: support.ap.dell.com/contactus
Country Code: 64	General Support	0800 441 567
Nicaragua E-mail: [e-mail]
	General Support	001-800-220-1377
Norway (Lysaker)	Website:support.euro.dell.com
International Access Code: 00	Technical Support for XPS	815 35 043
Country Code: 47	Technical Support for all other Dell products	671 16882
	Relational Customer Care	671 17575
	Home/Small Business Customer Care	23162298
	Switchboard	671 16800
	Fax Switchboard	671 16865
Panama E-mail: [e-mail]
	General Support	011-800-507-1264
Peru E-mail: [e-mail]
	General Support	0800-50-669
Poland (Warsaw)	Website: support.euro.dell.com
International Access Code: 011	E-mail: [e-mail]
Country Code: 48	Customer Service Phone	57 95 700
City Code: 22	Customer Care	57 95 999
	Sales	57 95 999
	Customer Service Fax	57 95 806
	Reception Desk Fax	57 95 998
	Switchboard	57 95 999
Portugal	Website: support.euro.dell.com
International Access Code: 00	Technical Support	707200149
Country Code: 351	Customer Care	800 300 413
	Sales	800 300 410 or 800 300 411 or800 300 412 or 21 422 07 10
	Fax	21 424 01 12
Puerto Rico E-mail: [e-mail]
	General Support	1-877-537-3355
St. Kitts and Nevis Website: www.dell.com/kn
	E-mail: [e-mail]
	General Support	toll-free: 1-866-540-3355
St. Lucia Website: www.dell.com/lc
	E-mail: [e-mail]
	General Support	1-800-882-1521
St. Vincent and the Grenadines Website: www.dell.com/vc
	E-mail: [e-mail]
	General Support	toll-free: 1-877-441-4740
Singapore (Singapore)International Access Code: 005Country Code: 65	NOTE:The phone numbers in this section should be called from within Singapore or Malaysia only.Website:support.ap.dell.comTechnical Support (Dimension, Inspiron, and Electronics and Accessories)Technical Support (OptiPlex, Latitude, and Dell Precision)Technical Support (PowerApp, PowerEdge, PowerConnect, and PowerVault)Customer CareTransaction SalesCorporate Sales	toll-free: 1 800 394 7430toll-free: 1 800 394 7488toll-free: 1 800 394 7478toll-free: 1 800 394 7430(option 6)toll-free: 1 800 394 7412toll-free: 1 800 394 7419
Slovakia (Prague)International Access Code: 00Country Code: 421	Website:support.euro.dell.comE-mail:[e-mail] SupportCustomer CareFaxTech FaxSwitchboard (Sales)	02 5441 5727420 22537 270702 5441 832802 5441 832802 5441 7585
South Africa (Johannesburg)International Access Code:09/091Country Code: 27City Code: 11	Website:support.euro.dell.comE-mail:[e-mail] QueueTechnical SupportCustomer CareSalesFaxSwitchboard	011 709 7713011 709 7710011 709 7707011 709 7700011 706 0495011 709 7700
Southeast Asian and Pacific Countries	Technical Support, Customer Service, and Sales(Penang, Malaysia)	604 633 4810
Spain (Madrid)International Access Code: 00	Website:support.euro.dell.com
	Home and Small Business
Country Code: 34	Technical Support	902 100 130
City Code: 91	Customer Care	902 118 540
	Sales	902 118 541
	Switchboard	902 118 541
	Fax	902 118 539
	Corporate
	Technical Support	902 100 130
	Customer Care	902 115 236
	Switchboard	91 722 92 00
	Fax	91 722 95 83
Sweden (Upplands Vasby)International Access Code: 00	Website:support.euro.dell.com
	Technical Support for XPS	0771 340 340
Country Code: 46	Technical Support for all other Dell products	08 590 05 199
City Code: 8	Relational Customer Care	08 590 05 642
	Home/Small Business Customer Care	08 587 70 527
	Employee Purchase Program (EPP) Support	020 140 14 44
	Technical Support Fax	08 590 05 594
	Sales	08 590 05 185
Switzerland (Geneva)International Access Code: 00	Website:support.euro.dell.com
	E-mail: [e-mail]
Country Code: 41	Technical Support for XPS	0848 33 88 57
City Code: 22	Technical Support (IHome and Small Business) for all other Dell products	0844 811 411
	Technical Support (Corporate)	0844 822 844
	Customer Care (IHome and Small Business)	0848 802 202
	Customer Care (Corporate)	0848 821 721
	Fax	022 799 01 90
	Switchboard	022 799 01 01
TaiwanInternational Access Code: 002Country Code: 886	Website:support.ap.dell.comE-mail: [e-mail] Support (OptiPlex, Latitude, Inspiron, Dimension, and Electronics and Accessories)Technical Support (PowerApp, PowerEdge, PowerConnect, and PowerVault)Customer CareTransaction SalesCorporate Sales	toll-free: 00801 86 1011toll-free: 00801 60 1256toll-free: 00801 60 1250(option 5)toll-free: 00801 65 1228toll-free: 00801 651 227
ThailandInternational Access Code: 001Country Code: 66	Website:support.ap.dell.comTechnical Support (OptiPlex, Latitude, and Dell Precision)Technical Support (PowerApp, PowerEdge, PowerConnect, and PowerVault)Customer CareCorporate SalesTransaction Sales	toll-free: 1800 0060 07toll-free: 1800 0600 09toll-free: 1800 006 007(option 7)toll-free: 1800 006 009toll-free: 1800 006 006
Trinidad/Tobago Website:www.dell.com/ttE-mail: [e-mail] Support		1-800-805-8035
Turks and Caicos Islands Website:www.dell.com/tcE-mail: [e-mail] Support		toll-free: 1-877-441-4735
U.K. (Bracknell)	Website:support.euro.dell.com
International Access Code: 00	E-mail: [e-mail]
Country Code: 44	Customer Care website:
City Code: 1344	support.euro.dell.com/uk/en/ECare/form/home.asp
	Sales
	Home and Small Business Sales	0870 907 4000
	Corporate/Public Sector Sales	01344 860 456
	Customer Care
	Home and Small Business Customer Care	0870 906 0010
	Corporate Customer Care	01344 373 185
	Preferred Accounts (500–5000 employees)	0870 906 0010
	Global Accounts Customer Care	01344 373 186
	Central Government Customer Care	01344 373 193
	Local Government & Education Customer Care	01344 373 199
	Health Customer Care	01344 373 194
	Technical Support
	Technical Support for XPS computers only	0870 366 4180
	Technical Support (Corporate/Preferred Accounts/PAD [1000+ employees])	0870 908 0500
	Technical Support for all other products	0870 353 0800
	General
	Home and Small Business Fax	0870 907 4006

Uruguay Website: www.dell.com/uy
E-mail: [e-mail]
General Support
toll-free: 000-413-598-2521

Country (City)International Access CodeCountry CodeCity Code	Department Name or Service Area,Website and E-Mail Address	Area Codes,Local Numbers, andToll-Free Numbers
U.S.A. (Austin, Texas)International Access Code: 011Country Code: 1	Automated Order-Status ServiceAutoTech (portable and desktop computers)Hardware and Warranty Support (Dell TV, Printers, and Projectors) for Relationship customersAmericas Consumer XPS SupportConsumer (Home and Home Office) Support for all other Dell productsCustomer ServiceEmployee Purchase Program (EPP) CustomersFinancial Services website:www.dellfinancialservices.comFinancial Services (lease/loans)Financial Services (Dell Preferred Accounts [DPA])BusinessCustomer Service and SupportEmployee Purchase Program (EPP) CustomersSupport for printers, projectors, PDAs, and MP3 playersPublic (government, education, and healthcare)Customer Service and SupportEmployee Purchase Program (EPP) CustomersDell SalesDell Outlet Store (Dell refurbished computers)Software and Peripherals SalesSpare Parts SalesExtended Service and Warranty SalesFaxDell Services for the Deaf, Hard-of-Hearing, or Speech-Impaired	toll-free: 1-800-433-9014toll-free: 1-800-247-9362toll-free: 1-877-459-7298toll-free: 1-800-232-8544toll-free: 1-800-624-9896toll-free: 1-800-624-9897toll-free: 1-800-695-8133toll-free: 1-877-577-3355toll-free: 1-800-283-2210toll-free: 1-800-456-3355toll-free: 1-800-695-8133toll-free: 1-877-459-7298toll-free: 1-800-456-3355toll-free: 1-800-695-8133toll-free: 1-800-289-3355or toll-free: 1-800-879-3355toll-free: 1-888-798-7561toll-free: 1-800-671-3355toll-free: 1-800-357-3355toll-free: 1-800-247-4618toll-free: 1-800-727-8320toll-free: 1-877-DELLTTY(1-877-335-5889)
U.S. Virgin Islands E-mail: [e-mail]
	General Support	1-877-702-4288
Venezuela Website: www.dell.com/ve
	E-mail: [e-mail]
	General Support	0800-100-4752

Index

A

about

package contents, 10

TV, 5

access code

default, 29

parental control, 29

setting, 30

ATSC, 30

cable, usage, 14

connecting, 17

connector, location, 9

audio

button, 23

connector for VGA, location, 8

connectors, location, 6

DVI connectors, location, 8

equalizer mode, 28

midnight mode, 28

program, 28

speaker on/off, 28

SRS TruSurround, 28

TV menu, 28

TV out volume, 28

AV1/AV2/AV7. See composite.

AV3/AV4. See S-Video.

AV5/AV6. See component.

B

block

parental control, 30

button

audio, 23

channel up/down, 7

enter, 23

info, 23

input, 23

input source, 5, 7-8

menu, 23

mute, 23

pict, 23

power, 7

prev ch, 23

sleep, 23

TV menu, 7

volume up/down, 7

C

channel

setup, 30

channel lock

parental control, 29

coaxial

ATSC connector, 17

cable, usage, 14

NTSC connector, 17

color temperature, 28

component

AV5/AV6 connectors, location, 9

cable, usage, 15

connecting, 18

composite

AV1/AV2/AV7 connectors, location, 6

cable, usage, 14

connecting, 17

video/audio out connectors, location, 8

computer

connecting, 18

connector

ATSC, 9

audio left/right, 6

component (AV5/AV6), 9

composite (AV1/AV2/AV7), 6

composite video/audio out, 8

DVI audio connectors, 8

HDMI, 8

NTSC, 9

S-Video, 9

VGA, 8

VGA audio, 8

D

DVI

audio connectors, location, 8

E

enter

button, 23

cqualizer mode, 28

music, 28

theater, 28

voice, 28

H

HDMI

cable, usage, 15

connecting, 18

connector, location, 8

|

info

button, 23

input

button, 23

IR receiver

location, 7

M

menu

button, 23

midnight mode, 28

mono, 28

movie rating

parental control, 29

mutc

button, 23

N

NTSC, 30

connecting, 17

connector, location, 9

P

parental control, 29

block options, 29

channel lock, 29

movie rating, 29

pict

button, 23

picture menu

color temperature, 28

movies, 28

multimedia, 28

sports, 28

weak signal, 28

power LED

location, 7

prev ch

button, 23

R

remote control

audio button, 23

enter button, 23

info button, 23

input button, 23

installing batteries, 21

menu button, 23

mute button, 23

pict button, 23

prev ch button, 23

sleep button, 23

troubleshooting, 38

universal, using, 24

s

SAP, 28

second audio program. See SAP

self-test

using, 39

setup

channel setup, 30

channels, 30

menu, 30

TV menu hold time, 30

size

4 to 3, 29

full screen, 29

menu, 29

standard, 29

wide, 29

zoom, 29

slccp

button, 23

specifications, 41, 43

audio, 42

general, 41

inputs, 41

outputs, 42

physical dimensions, 41

picture-in-picture (PIP), 41

viewing angle, 41

SRS TruSurround XT, 28

stereo, 28

S-Vidco

AV3/AV4 connectors, location, 9

AV8 connector, location, 6

cable, usage, 15

connecting, 17

connecting, 18

connector, location, 8

T

volume

fixed, 28

variable, 28

tips

troubleshooting, 33

troubleshooting, 33

general problems, 34

remote control, 38

self-test, 39

tips, 33

TV menu messages, 38

VCA monitor, 39

TV

about, 5

caring for, 10

front view, 5

left view, 6-7

proper location, 13

rear view, 8

setting up, 13

troubleshooting, 33

TV menu

audio menu, 28

hold time, 30

messages, 38

parental control menu, 29

picture menu, 28

setup menu, 30

size menu, 29

TV ratings, 29

parental control, 29

V

VGA

W

weak signal, 28

TV LCD Dell™

Front view of a flat-screen computer monitor with a stand and two labeled ports (1 and 2) pointing to the front panel.

Coiled black cable with multiple colored connectors (red, yellow, white) attached to its ends, no text or symbols visible.

Close-up of a black coaxial cable with metallic connector and two gold-colored circular connectors on a dark surface (no text or symbols visible)

Three colored audio/video connectors (yellow, gray, red) with metallic pins and black cables, shown from different angles (no text or symbols visible)

Three connected audio/video cables (black, gray, red) shown from a photo inset, no text or symbols visible.

Close-up of multiple audio/video connectors with colored wires, no visible text or symbols

Excellente HDMI

Five different audio/video audio jack cables (blue, green, red, white) shown against a white background, no text or symbols visible.

Close-up of a blue V12G D-sub connector with gold connectors (no text or symbols visible)

Three types of audio/video connectors shown in separate views: one with a gray plug, two with red and yellow cables, and a close-up of metallic components (no text or symbols visible)

Votre télécommande

Installation des piles

Exterior view of a DELL remote control with visible battery and keypad (no text or symbols on main device)

• www.dell.com
  • support.dell.com (assistance)

Assistance technique

classification films

SRS TruSurround XT, 28

stéréo, 28

S-Vidéo

connexion, 17

Front view of a flat-screen computer monitor with a stand and two labeled ports (1 and 2) pointing to the front panel.

Coiled black cable with multiple colored connectors (red, yellow, white) attached to its ends, no text or symbols visible.

Cuidado de su TV

Three connected audio/video connectors (black, gray, red) shown from a photo inset, no text or symbols visible.

Close-up of various colored audio/video connectors with black cables, no visible text or symbols

Excelente HDMI

Close-up of four colored audio/video cables (blue, red, green, white) with black leads, no text or symbols visible.

Close-up of a blue DVI connector with a gold connector and black cable (no text or symbols visible)

Three types of audio/video connectors shown in separate views: one with black cable, two with red and yellow color probes (no text or symbols visible)

SRS TruSurround XT, 28

V

volumen

fijo, 28

variable, 28

T

tamaño

4 a 3,29

estándar, 29

menú, 29

Pantalla Ancha, 29

pantalla completa, 29

zoom, 29

temperatura de color, 28

temporizador

botón, 23

TV

acerca de, 5

cuidado de, 10
