MD 16904 - Grass trimmer MEDION - Free user manual and instructions
Find the device manual for free MD 16904 MEDION in PDF.
| Product type | Cordless grass trimmer and hedge trimmer |
| Brand | Medion |
| Model | MD 16904 |
| Power supply | Lithium-ion battery 3.7 V / 1300 mAh |
| Charger | Input 100-240 V~ 50/60 Hz, output 5 V 700 mA |
| Charging time | 3 to 5 hours |
| No-load speed | 950 min⁻¹ |
| Cutting length (hedge/shrub trimmer) | 100 mm |
| Cutting width (grass trimmer) | 70 mm |
| Guaranteed sound power level | 84 dB(A) |
| Sound pressure level | 62 dB(A) |
| Weight | 1.6 kg |
| Protection class (device) | III |
| Protection class (charger) | II |
| Battery type | Integrated lithium-ion |
| Package contents | Grass trimmer, hedge/shrub trimmer, charger, user manual |
| Functions | Edge cutting, trimming hedges and shrubs |
| Safety | Start lock, safety key, protective cover |
| Maintenance | Cleaning with soft cloth, lubricating blades after each use |
| Warranty | 24 months |
| Use | Private use only |
Frequently Asked Questions - MD 16904 MEDION
User questions about MD 16904 MEDION
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Grass trimmer in PDF format for free! Find your manual MD 16904 - MEDION and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MD 16904 by MEDION.
USER MANUAL MD 16904 MEDION
MEDION ^® MD 16904
Inhaltsverzeichnis
DE
Close-up of two hands holding a robotic hand and a small electronic device (no visible text or symbols)


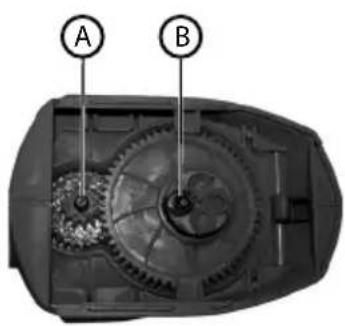

A B
Original EC-Declaration of Conformity
We, MEDION AG, Arn Zehnthof 77, 45307 Essen, herewith confirm that the appliances as detailed below do comply with the governing EU-regulations as mentioned in this form.
The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment,
Electromagnetic compatibility (EMC) 2004/108/EC
Outdoorrichtlinie
Noise Emission Directive for outdoor 2000/14/EC & Amendment 2005/88/EC
Machinery Directive 2006/42/EC
⊗ RoHS Richtlinie
2011/65/EU
RoHS Directive 2011/65/EU
The article do comply with the standards as below :
EN 55014-1: 2006+A1:2009+A2:20011
EN 55014-2:1997+A1:2001+A2:2008
EN 61000-3-2: 2014
EN 61000-3-3:2013
EN 60335-1:2012+A11:2014
EN 60335-2-29: 2004+A2:2010
EN 60745-1:2009+A11:2010
EN 60745-2-15: 2009+A1:2010
EN 62233: 2008
EN 50581:2012
Fulfils the requirements laid out in Annex VI in Directive 2000/14/EC.
Director Technical Project Management
15. Impressum
Copyright © 2015
Stand: 16-12-2015
Traffic warning sign with pictogram and pictogram symbols indicating hazard and pedestrian crossingAVERTISSEMENT!
Close-up of two hands holding a robotic hand and a small electronic device (no visible text or symbols)


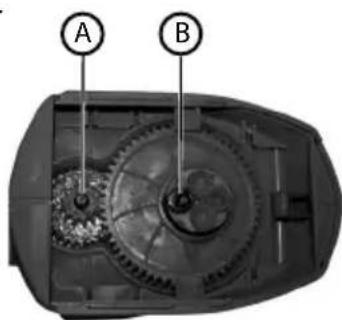

A B
Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)Appareil
The article do comply with the standards as below :
EN 55014-1:2006+A1:2009+A2:20011
EN 55014-2: 1997+A1:2001+A2:2008
EN 61000-3-2: 2014
EN 61000-3-3: 2013
EN 60335-1:2012+A11:2014
EN 60335-2-29: 2004+A2:2010
EN 60745-1:2009+A11:2010
EN 60745-2-15: 2009+A1:2010
EN 62233: 2008
EN 50581:2012
Director Technical Project Management
Close-up of two hands holding a robotic hand and a small electronic device (no visible text or symbols)
The article do comply with the standards as below:
EN 55014-1:2006+A1:2009+A2:20011
EN 55014-2: 1997+A1:2001+A2:2008
EN 61000-3-2: 2014
EN 61000-3-3: 2013
EN 60335-1:2012+A11:2014
EN 60335-2-29: 2004+A2:2010
EN 60745-1:2009+A11:2010
EN 60745-2-15: 2009+A1:2010
EN 62233: 2008
EN 50581:2012
Director Technical Project Management
- About these instructions....82
1.1. Symbols and keywords used in these instructions ....82
FR
-
Proper use
-
Safety information
3.1. Electrical safety....86
3.2. Charger....86
3.3. Battery....87
3.4. Safety instructions for operation 88
3.5. Safety instructions for maintenance and cleaning 88
3.6. First aid....89
-
Package contents
-
Overview of the appliance 90
5.1. Type plate....91
-
Mounting the cutting tool 91
-
Charging the battery 93
-
Using the appliance....93
8.1. Cutting grass....94
8.2. Trimming hedges/bushes 95
-
Storing the appliance 95
-
Cleaning and maintaining the appliance 96
-
Troubleshooting 97
- Disposal 97
12.1. Removing the battery 97
- Technical data 99
- Legal notice.... 100
- Declaration of conformity.... 101
- General Warranty Conditions 102
- Service Address.... 104
1. About these instructions
Please read these instructions carefully before using the appliance. Note the warnings on the appliance and in the operating instructions.
Always keep the operating instructions close to hand. If you sell the appliance or give it away, make sure you also hand over these instructions and the guarantee slip.
1.1. Symbols and keywords used in these instructions
DANGER!
Warning: risk of fatal injury.
WARNING!
Warning: risk of possible fatal injury and/or serious permanent injuries.
WARNING!
Warning: risk of electric shock.
WARNING!
Warning: danger due to sharp edges and moving parts.
To avoid hazards, read the manual/safety instructions carefully and make sure you understand them.
Risk of injuries due to flying objects.
▶ Keep third parties out of the cutting area.
CAUTION!
Please follow the instructions to prevent injuries and property damage.
ATTENTION!
Follow the instructions to avoid property damage. The cutting tool continues running after being turned off.
▶ Make sure that the cutting tool has come to a standstill before approaching the cutting area.
Operation prohibited during rain.
NOTICE!
Additional information on using the product.
Wear safety goggles.
Wear protective gloves.
Use the charger only in dry indoor locations.
Protection class II (mains adapter only)
Sound power level
This appliance corresponds to European Machine Directive 2006/42/EC. This is indicated by the CE mark.
2. Proper use
This appliance may only be used with the original cutting tool approved by Medion for cutting lawn edges or bushes.
The appliance is not suitable for cutting thickets, excessive weed growth, wood or other objects.
The appliance is intended for private use only and not for industrial/commercial use.
Any other use is deemed improper.
Please note that we shall not be liable in cases of improper use:
- Do not modify the appliance without our consent and do not use any auxiliary equipment that we have not approved or supplied.
- Use only spare parts and accessories that we have supplied or approved.
- Heed all the information in these operating instructions, especially the safety information. Any other use is deemed improper and can cause personal injury or property damage.
- Do not use the product in areas where there is a risk of explosion, e.g. tank systems, fuel storage depots, or areas in which solvents are being used. It is also not permitted to use this appliance in areas where the air is contaminated with fine particles (e.g. flour dust or sawdust).
- Do not expose the appliance to any extreme conditions. The following should be avoided:
–High levels of humidity or moisture
-Extremely high or low temperatures
-Direct sunlight
-Naked flames
3. Safety information
Before using this appliance for the first time, make sure you have read and understood the operating instructions.
▶ Follow the safety instructions to avoid endangering yourself and others.
▶ Always observe the valid national and international safety, health and labour laws.
WARNING!
Risk of injury due to improper handling.
This appliance may not be used by children. The appliance and its charger should be kept out of the reach of children.
▶ Appliances may be used by persons with reduced physical, sensory or mental capabilities and/or who have no experience in, or knowledge of, using such appliances providing they are supervised or have been instructed in how to use the appliance safely and have understood the associated risks.
▶ Children must not be allowed to play with the appliance.
▶ Always switch the appliance off while it is unattended, during transport, before clearing blockages or before cleaning and prevent accidental switch-on by removing the safety key.
WARNING!
Risk of suffocation.
- Keep any plastic sheet used in packaging away from children.
Before using the appliance for the first time and after each use, check the appliance and the charger for damage.
▶ Do not use the appliance if the appliance, accessories or charger exhibit visible damage or if the on/off switch does not work properly.
▶ If you discover any transport damage or other defects,
contact the Medion Service Centre immediately.
Do not operate the appliance if your physical condition does not allow this: the appliance may not be used after taking medication or drugs or if you are tired, ill or under the influence of alcohol, as this may endanger yourself and others.
3.1. Electrical safety
▶ Use only the supplied charger model HYCH0070500700G for EU/ HYCH 007 0500700B for UK.
Connect the charger to a freely accessible, properly installed 100–240 V \~ 50/60 Hz power socket only.
The charger must be freely accessible so that you can disconnect the appliance from the mains quickly and easily in the event of emergency.
▶ Lay the charger cable so that nobody can step on it or trip over it. Do not use an extension cable.
▶ Do not kink or crush the charger cable.
▶ Always pull on the plug to disconnect the charger cable from the socket.
▶ Ensure that the appliance is switched off before plugging in the charger.
3.2. Charger
WARNING!
Live components. There is a risk of electric shock.
▶ Use the charger only in dry indoor locations. Keep the charger away from rain or moisture.
▶ Keep the charger clean.
Do not use the charger if it is visibly damaged. If damaged, the charger for the appliance must be replaced by the manufacturer or a similarly qualified person in order to avoid hazards.
WARNING!
Risk of fire and explosion!
Do not charge any batteries from other manufacturers. The charger is only designed to charge batteries with the specifications given in the technical data.
As the charger can heat up during use, do not operate it in the vicinity of easily inflammable materials (e.g. paper, fabric curtains, etc.).
3.3. Battery
The appliance contains a built-in battery. Therefore, please follow the instructions below:
WARNING
Risk of explosion.
▶ Do not throw the appliance and its built-in rechargeable battery into a fire.
▶ Never expose the appliance and its built-in rechargeable battery to excessive heat, such as sunlight, fire, strong artificial light, etc.
▶ Do not open the appliance. Risk of short-circuiting the battery.
▶ Charge the battery between 10^ C– 45^ C.
▶ After strenuous operation, allow the battery to cool down.
ATTENTION!
Possible appliance damage.
▶ Avoid heavy impacts and vibrations.
▶ Dispose of a defective battery in an environmentally friendly manner (see „12. Disposal“, page 97).
3.4. Safety instructions for operation
WARNING!
Live components. There is a risk of electric shock.
▶ Avoid contact between the cutting tool and live elements (electric fence, cables, etc.).
▶ Hold the appliance by the handle.
▶ Protect the appliance from moisture. Do not use the appliance in the rain or in extreme moisture. Do not cut damp or wet grass.
▶ Always wear safety goggles, work gloves, tight-fitting clothing, sturdy shoes and long trousers when using the appliance.
▶ Always keep at a sufficient distance to the cutting tool.
▶ Keep other people or animals away from the cutting area to prevent hazards due to thrown items.
▶ Ensure sufficient lighting and visibility during operation.
▶ Keep in mind that the cutting tool runs on after switching off.
▶ Keep all parts of your body away from the cutting blade.
▶ Do not attempt to remove any cuttings or material to be cut while the blade is still running.
▶ Do not remove blockages unless the appliance is secured against accidental switch-on by removing the safety key.
▶ Always attach the safety cover when transporting or storing the appliance.
▶ Ensure that you are standing firmly on both feet and keep your balance while operating the appliance.
3.5. Safety instructions for maintenance and cleaning
WARNING!
Live components. There is a risk of electric shock.
▶ Never immerse the appliance in water or other liquids.
▶ Always pull out the plug before cleaning the appliance.
WARNING!
Risk of injury on the cutting unit.
▶ Always remove the plug before cleaning or maintaining the appliance and secure it against accidental switch-on by removing the safety key.
In the event of impact from foreign bodies or unusual vibrations, perform a visual check of the cutting blade, mechanics and housing for wear or damage before use.
▶ After cleaning/maintenance, remove any possible blockages from the cutting tool or rotating parts.
The symbols and notices on the appliance may not be removed or covered. Symbols or notices that are no longer legible should be replaced immediately.
3.6. First aid
Ensure that there is a first aid kit located near your place of work in case of an accident.
If you require assistance (Europe-wide number for emergency services/fire brigade: 112), provide the following information:
-Where is the emergency/accident?
-What happened?
-How many injured/affected parties need attention?
- Which injuries or signs of illness are affecting those concerned?
—Remain on the line to answer any questions from the rescue centre!
4. Package contents
Please check your purchase to ensure that all items are included. If anything is missing, please contact us within 14 days of purchase.
The product you have purchased includes:
• Cordless grass and shrub shears
-Grass shears
-Shrub/hedge trimmer blade
-Charger HYCH0070500700G for EU/ HYCH 007 0500700B for UK (manufacturer: HOYOA, Xuzhou Hengyuan Electrical Appliance Co., Ltd., China)
- Operating instructions incl. warranty conditions
5. Overview of the appliance
2) Shrub/hedge trimmer blade
3) Grass shears
4) Safety lock-out
5) Handle
6) Safety key
7) Charging light
8) Connection socket for charger
9) On/off switch
10) Opening latch
5.1. Type plate
NOTICE!
The type plate is located on the side of the appliance.
6. Mounting the cutting tool
CAUTION!
Risk of injury.
Do not mount the cutting tool unless the appliance is unplugged and secured against accidental switch-on.
▶ Wear work gloves when installing the desired blade.
Leave the protective cover on the cutting tool when fitting to prevent injuries or damage to the cutting tool.
▶ Switch the appliance off and pull out the safety key.
▶ Hold the appliance by the handle, slightly raise the opening latch and pull the housing cover on the opening latch in the direction of the arrow.
▶ Set the tool that is not required to one side.
▶ Lubricate the tool and the eccentric drive.
▶ Smear some lubricant on the cutter drive and on the cutting tool.
▶ Fit the new tool with the eccentric mounting facing towards the appliance so that the base plate (C) of the tool fits into the slots on the housing. Ensure that the pins of the eccentric shaft (B) and the drive shaft (A) fit into the holes on the appliance.
If necessary move the pin on the eccentric mounting (D) upwards so that the cutting tool can be fitted into position.
▶ Push the housing cover against the direction of the arrow until it clicks into place.
Insert the plug of the charger into the socket on the appliance. Insert the safety key into the appliance.
▶ Use only the supplied charger model HYCH0070500700G for EU/ HYCH 007 0500700B for UK.
Connect the charger to a freely accessible, properly installed 100–240 V \~ 50/60 Hz power socket only.
The charge indicator lights up red. The charge indicator will go out as soon as the battery is fully charged. Charging takes about 3–5 hours.
NOTICE!
The handle of the appliance warms up during charging. This is normal and not a defect.
▶ Do not switch on the appliance during charging.
8. Using the appliance
▶ Wear protective goggles, protective gloves, safety shoes and tight-fitting work clothes while operating the appliance.
DANGER!
Risk of injury.
▶ Do not use the appliance if the appliance or the cutting tool exhibit visible damage or if the on/off switch does not work properly.
WARNING!
Risk of injury/property damage.
▶ Keep all parts of your body away from the cutting blade.
- Keep people and animals away from the application area.
Before starting work, check the cutting area for foreign objects, obstacles (e.g. fences) or animals and remove all objects which could be thrown out or damage the cutting tool.
▶ Keep in mind that the cutting tool runs on after switching off.
▶ Never work on unstable ground. Ensure that you are standing firmly on both feet and keep your balance while operating the appliance.
▶ If you are not using the appliance, pull the safety key from the appliance to prevent accidental switch-on.
ATTENTION!
Possible appliance damage.
▶ Smear the cutting tool with a suitable lubricant before operation and after every hour of operation.
▶ Switch on the appliance by simultaneously pressing the safety lock-out (4) and the on/off switch (8) on the handle and keeping the on/off switch pressed in. As soon as the on/off switch is released, the appliance switches off.
▶ After using the appliance, replace the blade cover to prevent injuries.
8.1. Cutting grass
ATTENTION!
Possible appliance damage.
▶ Do not use the grass shears for cutting shrubs or hedges or for shredding compost material.
▶ Make sure that the cutting tool does not come into contact with the ground, sand, gravel or other contaminating foreign bodies.
▶ Hold the appliance properly with one hand on the handle, switch it on as described above and move the cutting tool in front of your body when working.
8.2. Trimming hedges/bushes
ATTENTION!
Possible appliance damage.
▶ Do not use the shrub/hedge trimmer blade to cut dead branches or other hard objects. The cutting blade could be damaged.
The shrub/hedge trimmer blade is not suitable for cutting grass or weeds. Grass and weeds can jam the cutting tool.
▶ Do not cut any branches thicker than about 10 mm.
▶ Hold the appliance properly with one hand on the handle, switch it on as described above and move the cutting tool in front of your body when working.
When trimming a shrub/hedge, work from the top to the bottom.
8.2.1. Recommended cutting times
–Cut deciduous hedges in June and October.
–Cut evergreen hedges in April and August.
- Cut conifers and other fast-growing shrubs approximately every six weeks from May.
9. Storing the appliance
▶ Switch off the appliance and secure it by removing the safety key.
▶ Clean the appliance and lubricate the cutting tool. Reattach the blade cover to avoid injury.
▶ Always store the appliance secured against switching on and out of the reach of children or other unauthorised parties in a dry, clean and frost-free location.
10. Cleaning and maintaining the appliance
WARNING!
Live components. There is a risk of electric shock.
▶ Never immerse the appliance in water or other liquids. Do not spray the appliance with water.
▶ Always remove the plug before cleaning or maintaining the appliance and secure it against accidental switch-on by removing the safety key.
CAUTION!
Risk of injury.
▶ Do not clean or maintain the cutting tool unless the appliance is unplugged and secured against accidental switch-on.
▶ Wear work gloves when cleaning and maintaining the desired cutting blade.
ATTENTION!
Possible appliance damage.
▶ Do not clean the cutting tools under running water or with a high-pressure cleaner.
- Clean the appliance after every use, as dried grass and cutting residue are difficult to remove.
Do not use aggressive cleaning agents as these could damage the surfaces of the appliance.
▶ Clean the appliance and the cutting tools with a cloth or a soft brush.
Lubricate the cutting tool after every use and the blade drive after an extended period of storage or intensive use of the appliance.
11. Troubleshooting
The product left our warehouse in perfect condition. If you do, however, discover a problem, see if you can solve it by using the solutions offered in the following table. If these do not work, contact our customer services department.
▶ Improper repairs will invalidate the warranty. Do not attempt to repair the appliance yourself.
| Problem Possible cause Troubleshooting | ||
| Length of cutting time per battery charge low | Battery defective Contact customer service | |
| Charging indicator does not light up | Safety key not inserted Insert safety key | |
| Charging not possible | Battery defective, charger defective | Contact customer service |
12. Disposal
Remove the built-in rechargeable battery before disposing of the appliance.
12.1. Removing the battery
CAUTION! Risk of injury.
- Keep removed batteries away from children; do not throw them into a fire, short-circuit or dismantle them.
▶ Do not expose removed batteries to extreme conditions, e.g. radiators, direct sunlight! There is an increased risk of leakage! - Avoid contact with skin, eyes and mucous membranes. If any of these areas come into contact with battery acid, rinse them immediately with plenty of clean water and consult a doctor as soon as possible.
Remove the battery only when you dispose of the grass shears. Before removal, ensure that the battery is completely discharged.
- Run the shears to a complete standstill to use up any residual charge in the appliance.
▶ Switch off the appliance, pull the plug from the socket and the connector plug from the appliance (if applicable).
▶ Undo the screws on the side of the appliance and open the housing.
▶ Use wire cutters to cut the connecting wires of the battery and remove the battery pack.
▶ Dispose of the battery in an environmentally friendly manner (see below).
Packaging
The product has been packaged to protect it from damage in transit. The packaging is made of materials that can be recycled in an environmentally friendly manner.
Appliance
Old appliances should not be disposed of with the normal household rubbish.
In accordance with Directive 2012/19/EU, the appliance must be properly disposed of at the end of its service life.
This involves separating the materials in the appliance for the purpose of recycling and minimising the environmental impact.
Take old appliances to a collection point for electrical scrap or a recycling centre.
Contact your local waste disposal company or your local authority for more information on this subject.
Batteries
The appliance is fitted with a built-in lithium-ion battery. Within the EU this symbol indicates that this product may not be thrown away with the household refuse. Before disposing of the appliance, remove the battery as described above.
Do not dispose of used batteries in the household rubbish. Batteries must be properly disposed of. Retailers who stock batteries and local authority collection points have appropriate disposal containers for this purpose. You can contact your local waste disposal company or municipal authorities for further information.
13. Technical data
Charger
Modell
HYCH0070500700G
for EU
HYCH 007 0500700B
for UK
Manufacturer: HOYOA, Xuzhou Hengyuan Electrical
Appliance Co., Ltd., China
Input 100–240 V 50/60 Hz
Output
5 V = 700 mA
Protection class II
Battery
Voltage
3.7
V
Capacity
1300
mAh
Battery type Lithium-ion
Charging duration 3–5 hours
Appliance
Idle speed 950 rpm
Cutting length, shrub/
hedge trimmer blade 100 mm
Cutting width, grass shears 70 mm
Determined
sound power level _LWA 82 dBA
Guaranteed
sound power level _LWA 84 dBA
Sound pressure level _LPA 62 dBA
Protection class III
Weight
1.6 kg
Subject to technical modifications!
14. Legal notice
Copyright © 2015
Status: 2015-12-16
All rights reserved.
This operating manual is protected by copyright.
Mechanical, electronic and any other form of reproduction is prohibited without the written permission of the manufacturer. Copyright is owned by the company:
Medion AG
Am Zehnthof 77
45307 Essen
Germany
The operating manual can be reordered via the service hotline and is available for download via the service portal at www.medion.com/gb/service/start/.
You can also scan the QR code above and download the operating manual onto your mobile device via the service portal.
Original EC-Declaration of Conformity
We, MEDION AG, Arn Zehnthof 77, 45307 Essen, herewith confirm that the appliances as detailed below do comply with the governing EU-regulations as mentioned in this form.
The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment,
Electromagnetic compatibility (EMC) 2004/108/EC
⊗ Outdoorrichtlinie
Noise Emission Directive for outdoor
2000/14/EC & Amendment 2005/88/EC
Machinery Directive 2006/42/EC
⊗ RoHS Richtlinie
2011/65/EU
RoHS Directive 2011/65/EU
The article do comply with the standards as below :
EN 55014-1: 2006+A1:2009+A2:20011
EN 55014-2: 1997+A1:2001+A2:2008
EN 61000-3-2: 2014
EN 61000-3-3: 2013
EN 60335-1:2012+A11:2014
EN 60335-2-29: 2004+A2:2010
EN 60745-1:2009+A11:2010
EN 60745-2-15: 2009+A1:2010
EN 62233: 2008
EN 50581:2012
Fulfils the requirements laid out in Annex VI in Directive 2000/14/EC.
Director Technical Project Management
16. General Warranty Conditions
16.1. General information
The warranty period is 24 months and begins on the day the product is purchased. The warranty covers all types of material and product damage that could occur during normal use.
Please keep your original proof of purchase in a safe place. The warranty provider reserves the right to refuse to confirm the status of the warranty or to carry out a repair under warranty if a valid proof of purchase cannot be produced.
If it is necessary to return your device for repair, please ensure that it is suitably packaged for transportation. Unless otherwise specified, you shall bear the costs for sending the device and the transport risk. The warranty provider does not assume any liability for additional materials sent with the product that do not belong to the original package contents supplied with the product.
Please enclose as much information as possible about the fault when sending the device to the warranty provider. In order to make a valid claim under warranty and before returning the device, please contact the Service Hotline operated by the warranty provider or the Service Portal. They will provide you with information on how to proceed further.
This warranty has no effect on your statutory warranty rights and is subject to the laws of the country in which the first purchase of the product was made by the end customer.
16.1.1. Scope
In the event of a fault on your product that is covered by this warranty, the warranty provider guarantees to repair or replace the product. The decision about whether to repair or replace the device is taken by the warranty provider. Therefore, the warranty provider can at its own discretion decide to replace a device submitted for repair under warranty with a refurbished device of the same quality.
No warranty is provided for batteries or rechargeable batteries or for consumable materials i.e. parts which have to be replaced at regular intervals during the normal use of the product e.g. video projector lamps.
A pixel error (permanently coloured, light or dark point in an image) is not generally considered a fault. Please refer to the information provided in the manual for this product for the precise number of permissible defects in the image.
The warranty provider gives no warranty for burnt-in images on plasma or LCD devices that result from the improper use of the device. Please refer to the information provided in the manual for this product for precise instructions on operating your plasma or LCD device.
The warranty does not cover errors relating to the playback of data media that have been created in an incompatible format or as a result of using unsuitable software. If it is discovered during the repair that the fault concerned is not covered under warranty, the warranty provider reserves the right to invoice the customer for the
costs already incurred in the form of a flat-rate handling charge, as well as to charge the customer for the materials and labour required for the repair after submitting a cost estimate. You will be informed in advance as the customer about these repair charges; you are responsible for accepting or rejecting the repair process.
16.1.2. Exclusions
Malfunctions and damage to the device caused by external influences, accidental damage, improper use, changes made to the product, modifications, upgrades, the use of third-party parts, neglect, viruses or software faults, improper transport, improper packaging or loss during the return of the product are not covered by the warranty issued by the warranty provider.
The warranty will be invalidated if the fault to the device is caused by maintenance or repair carried out by someone other than a service partner authorized by the warranty provider. The warranty will also be invalidated if labels or serial numbers on the device or a component of the device have been modified or made illegible.
16.1.3. Service Hotline
Before sending the device to the warranty provider, you must contact us via the Service Hotline or the Service Portal. This ensures that you receive further information on how to make a valid claim under warranty.
The use of the hotline may be subject to a charge.
The Service Hotline should under no circumstances be considered a substitute for user training for software and hardware or reading the manual, nor does it provide support for third-party products.
16.2. Special warranty conditions for repair on site or replacement on site
If there is an entitlement to on-site repair or replacement, the specific warranty terms and conditions for on-site repair or replacement shall apply to your product. The following provisions must be ensured by you for carrying out repairs or replacements on site:
- Personnel from the warranty provider who arrive at your premises for the above-mentioned purpose must have unrestricted, safe and immediate access to the devices.
- Telecommunication facilities required by these personnel for the proper execution of your order, for testing and diagnostic purposes or for remedying faults must be provided by you at your own expense.
- You shall be personally responsible for restoring your own application software after completion of the service by the warranty provider.
- You shall be personally responsible for configuring and connecting any existing external devices after completion of the service by the warranty provider.
- The free cancellation period for repairs or replacements on site is at least 48 hours, thereafter we shall invoice you for any costs resulting from a late or missing cancellation.
17. Service Address
0333
3213106
01793
715716
(costs:
local)
Mo - Fr: 08:00 - 20:00
Sa - Su: 10:00 - 16:00
www.medion.co.uk
@ Please use the contact form at www.medion.com/contact
