Product type	Cordless blower
Brand	Worx
Model	WG543E.9
Rated voltage	18 V (20 V max no load)
Maximum air flow	696 m³/h (volume mode)
Maximum air speed	209 km/h (speed mode)
Weight (with battery)	1.7 kg
Charging time	Approximately 2 hours
Battery type	Li-Ion 20 V, model WA3553
Included charger	Model WA3880
Sound power level	92.6 dB(A)
Vibration emission (hand-arm)	< 2.5 m/s²
Operating modes	2 modes: air volume and air speed, selectable by slide
Power adjustment	2-speed switch
Recommended safety equipment	Safety glasses, hearing protection, long trousers, closed-toe shoes
Maintenance and cleaning	Clean with a damp cloth and mild soap; do not use solvents or pressurized water
Repairability	Use only genuine Worx spare parts
Intended use	Blow debris outdoors; do not use indoors or for pet grooming

Frequently Asked Questions - WG543E.9 WORX

How do I change the operating mode of the blower?

To switch from air volume mode to air speed mode, press the nozzle release button and slide the nozzle forward (volume mode) or backward (speed mode). Volume mode is ideal on hard surfaces, speed mode on grass.

How do I charge the battery and how long does it take?

Use only the included Worx WA3880 charger. Insert the battery into the charger; the indicator shows charging. Charging time is approximately 2 hours. Do not leave the battery charging unnecessarily.

What type of battery can I use?

Use only the Worx WA3553 Li-Ion battery (20 V max). Never use any other model, as this could damage the device or pose a safety risk.

Can I use a non-Worx charger?

No. Use only the included Worx WA3880 charger. An incompatible charger may overheat the battery or cause a fire.

How do I clean the blower after use?

Disconnect the battery. Clean the exterior with a damp cloth and a little mild soap. Never use solvents, harsh detergents, or pressurized water. The bearings are self-lubricating.

What safety precautions should I take?

Always wear safety glasses and hearing protection. Wear long trousers and closed-toe shoes. Do not blow in the direction of people or animals. Keep hair and clothing away from the air intake.

What should I do if the machine becomes clogged?

Immediately turn off the blower and remove the battery. Wait for all moving parts to stop completely, then remove debris blocking the chute or air intake. Never insert hands while the battery is connected.

How do I store the blower for long periods?

Remove the battery. Clean the device and let it dry. Store it in a dry place, out of reach of children. Keep the battery away from sunlight and heat. Charge it partially (about 50%) before storage.

What is the noise level of this device?

The sound pressure level is 78 dB(A) and the sound power level is 92.6 dB(A). Wear hearing protection during use.

Can I use the blower in rainy weather?

No. Never use the device in rain or wet conditions. Water can damage electrical components and increase the risk of electric shock. Also avoid using it if there is a risk of thunderstorms.

USER MANUAL WG543E.9 WORX

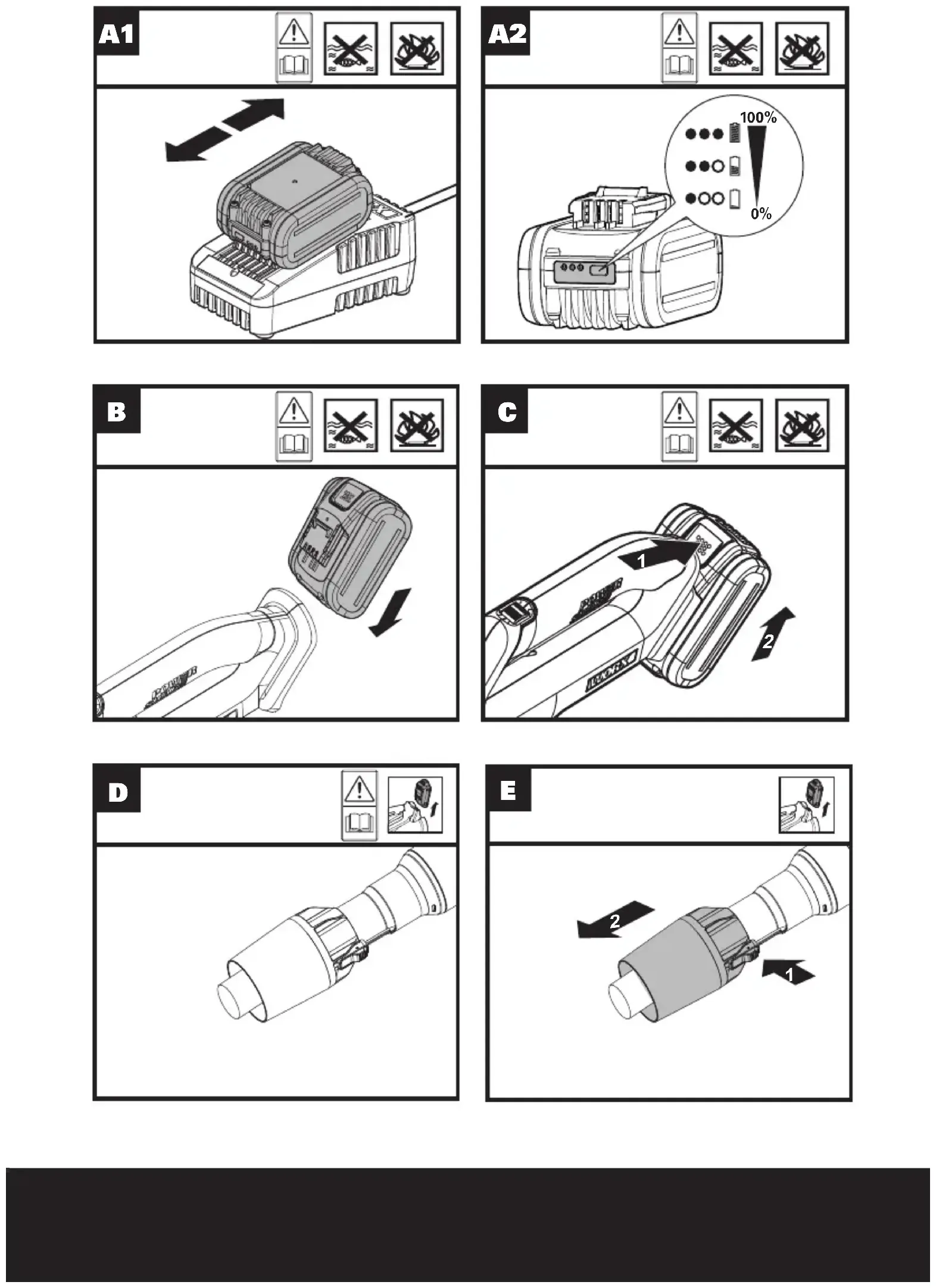

Technical diagram of a mechanical device with numbered parts for identification

A1 A1

A2 100% 0%

B A2014-8

C 1 2

D ! < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < < <

E 2 1

Technical illustration of a flashlight with an inset close-up showing internal components (no text or symbols)

G OFF ON

H1 I

Row of eight safety and hazard symbols including warning, education, person, hazard symbol, human figure, traffic cone, and no net.

Illustration of a rocket launching from a pile of debris with arrows indicating motion (no text or symbols)

I II

H2

Row of eight safety and hazard symbols including warning, head protection, workplace safety, and no recorded items

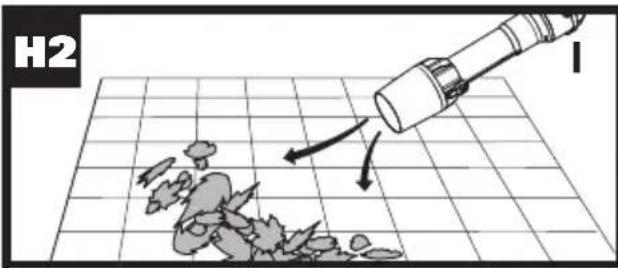

Illustration of a flashlight emitting smoke from scattered debris on a grid, with no visible text or symbols.

Technical diagram showing a belt buckle assembly with labeled parts I and II, including a magnified view of the component.

PRODUCT SAFETY

WARNING: Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The appliance is only to be used with the power supply unit provided with the appliance.

IMPORTANT

READ CAREFULLY BEFORE USE

KEEP FOR FUTURE REFERENCE

Safe operating practices 1) Training

a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine.
b) Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator.

c) Never operate the machine while people, especially children, or pets are nearby.
d) Keep in mind, that the operator or user is responsible for accidents or hazards occurring to other people or their property.

2) Preparation

a) While operating the machine, always wear substantial footwear and long trousers. Do not operate the machine when barefoot or wearing open sandals. Avoid wearing clothing that is loose fitting or that has hanging cords or ties.
b) Do not wear loose clothing or jewellery that can be drawn into the air inlet. Keep long hair away from the air inlets.
c) Obtain ear protection and safety glasses. Wear them at all times while operating the machine.
d) Operate the machine in a recommended position and only on a firm, level surface.
e) Do not operate the machine on a paved or gravel surface where ejected material could cause injury.
f) Before using, always visually inspect to see, that the

fasteners are secure, the housing is undamaged and that guards and screens are in place. Replace worn or damaged components in sets to preserve balance. Replace damaged or unreadable labels.

3) Operation

a) Before starting the machine, make certain that the feeding chamber is empty.
b) Keep your face and body away from the feed intake opening.
c) Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part.
d) Keep proper balance and footing at all times. Do not overreach. Never stand at a higher level than the base of the machine when feeding material into it.
e) Always stand clear of the discharge zone when operating this machine.
f) If the machine should start making any unusual noise or vibration, immediately shut off the power source and allow the machine to stop. Remove the battery pack

from the machine and take the following steps before restarting and operating the machine:

i) inspect for damage;
ii) replace or repair any damaged parts;
iii) check for and tighten any loose parts.
g) Do not allow processed material to build up in the discharge zone; this may prevent proper discharge and can result in kickback of material through the intake opening.
h) If the machine becomes clogged, shut-off the power source and remove the battery pack from the machine before cleaning debris.
i) Never operate the machine with defective guards or shields, or without safety devices.
j) Keep the power source clean of debris and other accumulations to prevent damage to the power source or possible fire.
k) Do not transport this machine while the power source is running.
I) Always disconnect the machine from the power

supply (e.g. remove the battery pack from the machine)

-whenever you leave the machine,

-before clearing blockages or unclogging chute,

-before checking, cleaning or working on the machine.

m) Avoid using the machine in bad weather conditions especially when there is a risk of lightning.

4) Maintenance and storage

a) keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition.

b) Replace worn or damaged parts.

c) Use only genuine replacement parts and accessories.

d) Store the machine in a dry place out of the reach of children.

e) When the machine is stopped for servicing, inspection, or storage, or to change an accessory, shut off the power source, disconnect the machine from the supply and make sure that all moving parts are come to a complete

stop. Allow the machine to cool before making any inspections, adjustments, etc. Maintain the machine with care and keep it clean.

f) Store the machine in a dry place out of the reach of children.

g) Always allow the machine to cool before storing.

h) Never attempt to override the interlocked feature of the guard.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.

b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials.

When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting

the battery terminals together may cause burns or a fire.

c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Keep battery pack clean and dry.
g) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
i) Do not maintain battery pack on charge when not in use.
j) After extended periods of storage, it may be necessary to charge and discharge the battery

pack several times to obtain maximum performance.

k) Recharge only with the charger specified by Worx. Do not use any charger other than that specifically provided for use with the equipment.
I) Do not use any battery pack which is not designed for use with the equipment.
m) Keep battery pack out of the reach of children.
n) Retain the original product literature for future reference.
o) Remove the battery from the equipment when not in use.
p) Dispose of properly.
q) Do not mix cells of different manufacture, capacity, size or type within a device.
r) Keep the battery away from microwaves and high pressure.

SYMBOLS

Read the operator's manual

	Warning
	Wear eye protection
	Do not expose to rain
	Wear ear protection
	Keep bystanders away
	Warning of hazard
	Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.
	Remove battery from the socket before carrying out any adjustment, servicing or maintenance.
	Li-lon battery. This product has been marked with a symbol relating to 'separate collection' for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.
	Do not burn

Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.

COMPONENT LIST

1. AIRSPEED SELECTOR NOZZLE

2. BLOWER TUBE

3. ON/OFF SWITCH

4. HANDLE

5. BATTERY PACK RELEASE BUTTON *

6. BATTERY PACK *

7. MOTOR HOUSING

8. NOZZLE RELEASE BUTTON

* Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA
Type Designation WG543E WG543E.9 (520-559 - designation of machinery, representative of blower)

	WG543E WG543E.9
Voltage 20 V	--- Max.**
Maximum air volume	I: 518 m3/h II: 696 m3/h (Air volume mode)
Maximum air velocity	I: 153 km/h II: 209 km/h (Air speed mode)
Charging time 2 hrs (approx.) /
Machine weight 1	7 kg 1.1 kg

** Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

NOISE DATA

A weighted sound pressure L	_pA = 78.0 dB(A)
K_pA	3.0 dB(A)
A weighted sound power L	_wA = 92.6 dB(A)
K_wA	3.0 dB(A)
Wear ear protection.

VIBRATION INFORMATION

Typical weighted vibration a	_h < 2.5 m/s^2
Uncertainty K = 1.5 m/s ^2

The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value during actual use of the power tool can differ from the

declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained Using the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use

should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimise your vibration exposure risk.

ALWAYS use sharp chisels, drills and blades Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate) If the tool is to be used regularly then invest in anti vibration accessories.

Plan your work schedule to spread any high vibration tool use across a number of days.

ACCESSORIES

	WG543E WG543E.9
Battery pack (WA3553) 1 /
Charger (WA3880) 1 /

We recommend that you purchase your accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

OPERATION

INTENDED USE

The blower is intended for residential use only. Use the blower outdoors to move yard debris as needed.

ASSEMBLY AND OPERATION

ACTION FIGURE
ASSEMBLY

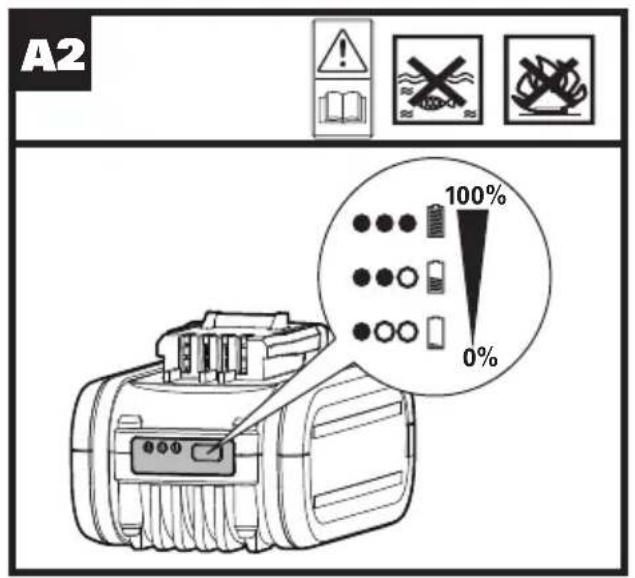

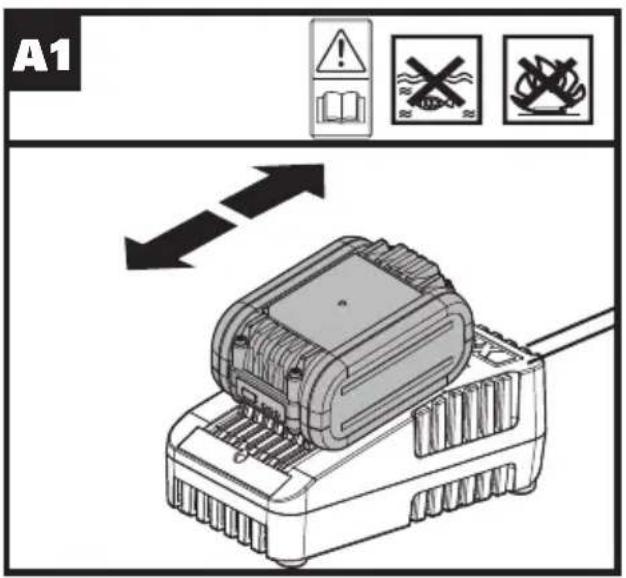

Charging the battery packYour battery pack is UNCHARGED, you must charge before use.More details can be found in charger's manual.WARNING! The charger and battery pack are specially designed to work together, so do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections because of an electrical failure and hazard will occur.	See Fig.A1,A2

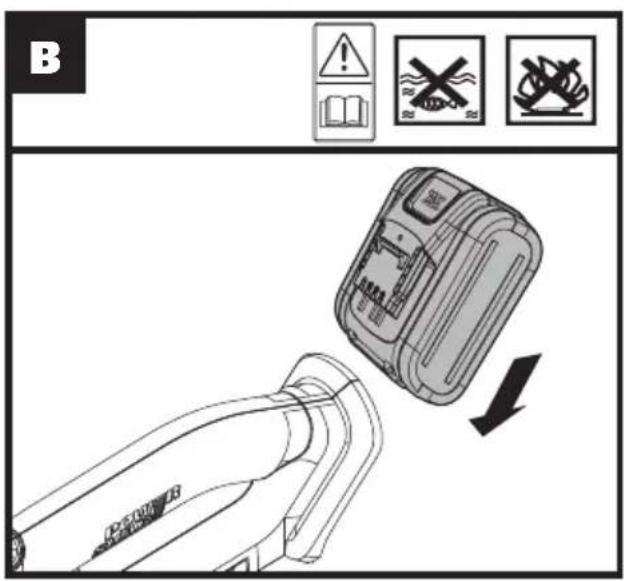

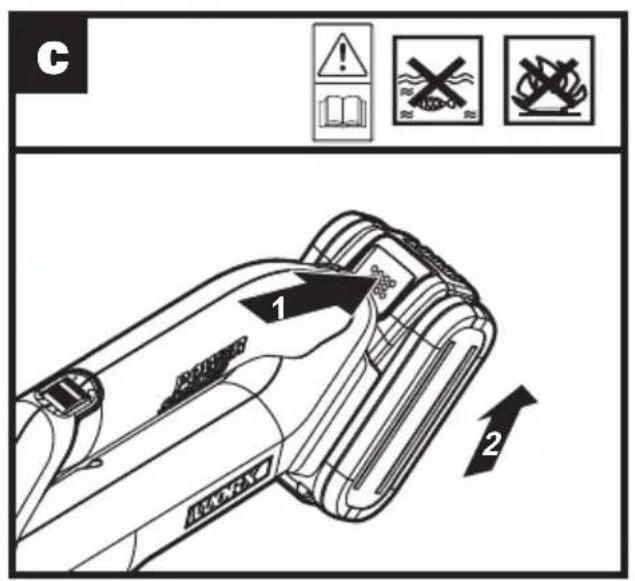

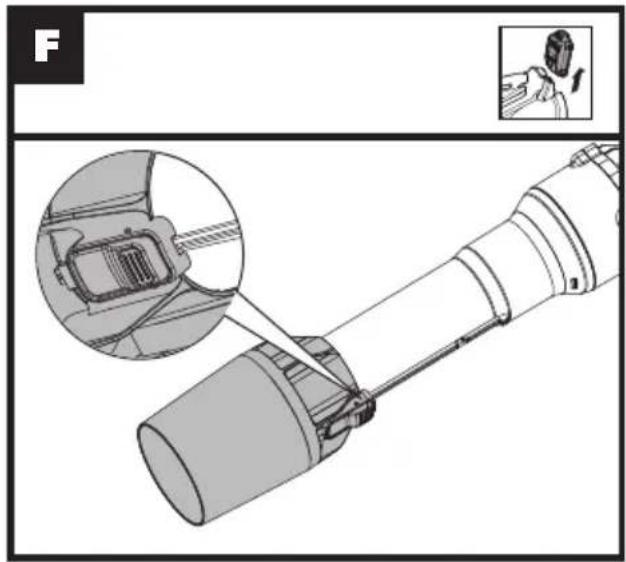

Installing & removing the battery packNOTE:Press the battery release button to release battery pack from your tool. After recharging, insert the battery pack into tool's battery port. A simple push and slight pressure will be sufficient.	See Fig.B,C
Air speed modeNOTE:The blower is in the air speed mode for default assembly.NOTE:The blower has two working modes: air speed mode and air volume mode. To change modes, depress the nozzle release button and slide backward for air speed mode. Slide forward for air volume mode.Choose a suitable mode according to your work. Air speed mode is recommended for cleaning in grass, as shown in Fig. H1.While air volume mode is recommended for cleaning on hard ground such as cement, as shown in Fig. H2.	See Fig. D

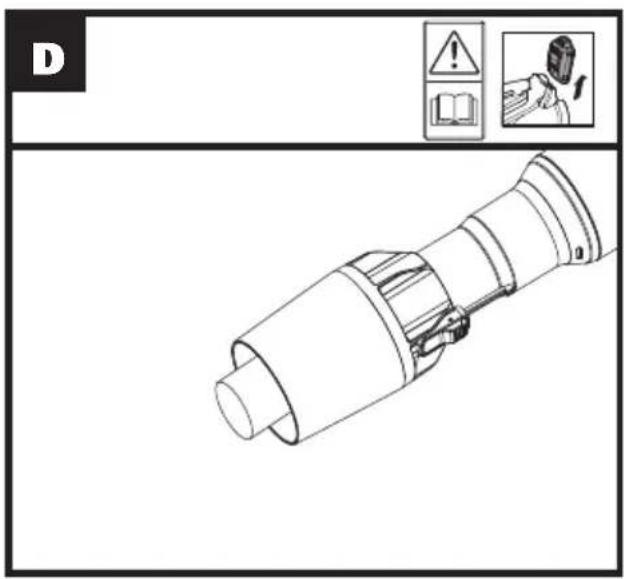

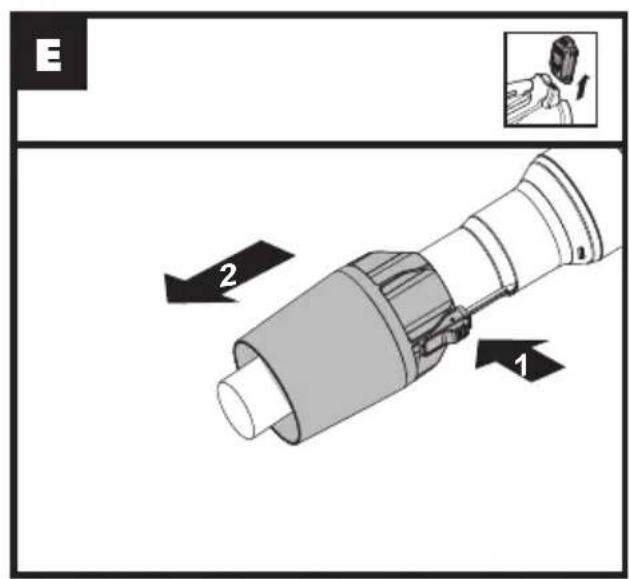

Air volume mode	See Fig.E, F
OPERATION

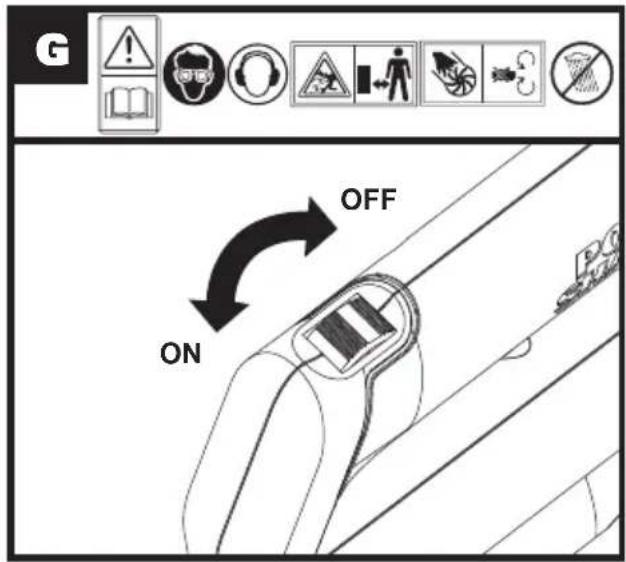

Starting & StoppingWARNING! The tool runs for a few seconds after it has been switched off.Let the motor come to a complete standstill before setting the tool down.	See Fig. G

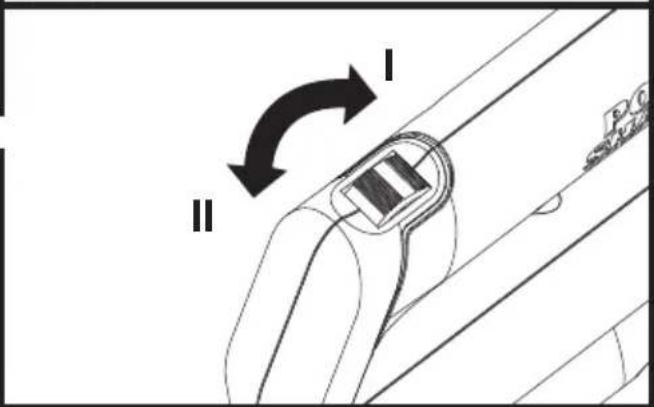

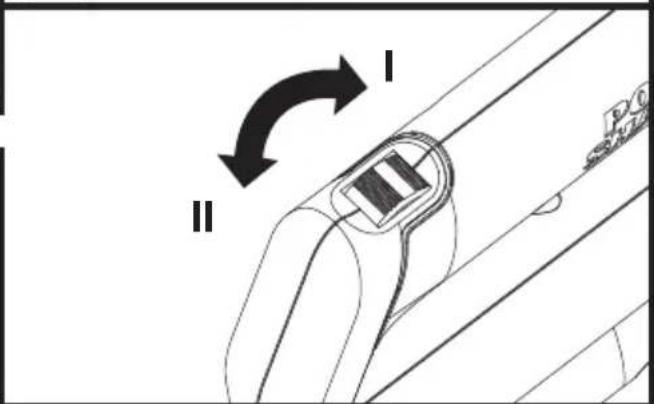

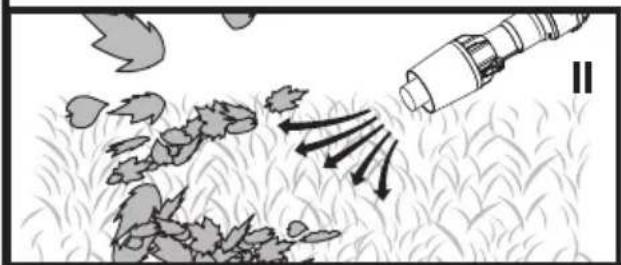

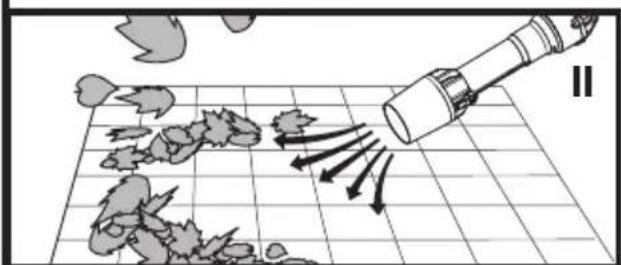

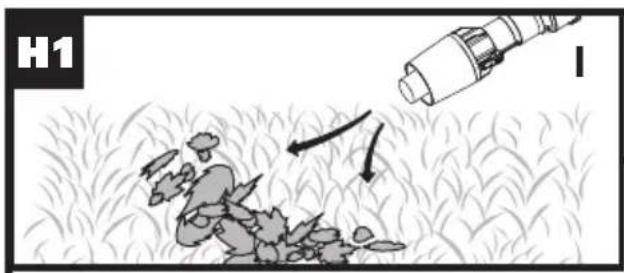

Adjusting the blowing speed / air volume with 2-speed switchUSER TIPS-Hold the blower tube approximately 8" above the ground when operating the tool.Use a sweeping motion from side to side.Advance slowly keeping the accumulated debris/leaves in front of you.- After blowing the debris/leaves into a pile,it is easy to dispose of the pile.CAUTION!Do not blow hard objects such as nails,bolts, or rocks.Do not operate the blower near bystanders or pets.Use extra care when cleaning debris from stairs or other tight areas.- Wear safety goggles or other suitable eye protection, long pants, and shoes.	See Fig.H1, H2

CLEANING THE TOOL

Clean the tool regularly.

WARNING! Keep your product dry. Under no circumstances spray with water.

• To clean the tool, use only mild soap and a damp cloth.
• Do not use any type of detergent, cleaner or solvent which may contain chemicals that could seriously damage the plastic.
• Self lubricating bearings are used in your product, therefore lubrication is not required.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or er for recycling advice.

DECLARATION OF CONFORMITY

We,

Positec Germany GmbH

Grüner Weg 10, 50825 Cologne, Germany

Declare that the product,

Description Battery-operated Blower

Type WG543E WG543E.9 (520-559 - designation of machinery, representative of battery-operated Blower Vacuum)

Function Blowing

Complies with the following Directives:

2006/42/EC, 2014/30/EU,

2011/65/EU&(EU)2015/863,

2000/14/EC amended by 2005/88/EC

2000/14/EC amended by 2005/88/EC:

- Conformity Assessment Procedure as per Annex V

- Measured Sound Power Level 92.6 dB (A)

- Declared Guaranteed Sound Power Level 96 dB (A)

Standards conform to

EN 60335-1, EN 50636-2-100, EN 62233, EN ISO 3744, EN 55014-1, EN 55014-2

The person authorized to compile the technical file,

Name Marcel Filz

Address Positec Germany GmbH

Grüner Weg 10, 50825 Cologne, Germany

M A

2020/06/23

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUKTSICHERHEIT

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SÉCURITÉ DU PRODUIT

INFORMATIONS RELATIVES AU BRUIT

INFORMATIONS RELATIVES AUX VIBRATIONS

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SICUREZZA DEL PRODOTTO

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SEGURANÇA DO PRODUTO

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUCTVEILIGHEID

WAARSCHUWING Lees alle instructies

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUKTSIKKERHED

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUKTSIKKERHET

Rutiner for trygg bruk 1) TRENING

4) VEDLIKEHOLD OG OPPBEVARING

1. LUFTHASTIGHET VELKOMSTDYSE

2. BLÅSER R∅R

3. PÅ/AV-BRYTER

4. HÅNDTAG

5. BATTERIPAKKE UTL∅SERKNAPPER \*

6. BATTERIPAKKE \*

7. MOTORHUS

8. DYSE SLIPP KNAPPEN

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

PRODUKTSÄKERHET

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

BEZPIECZEŃSTWO PRODUKTU

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

ZTONSÁGOS TERMÉKHASZNÁLAT

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SECURITATEA PRODUSULUI

2020/06/23 Allen Ding Adjunct Inginer Şef, Testare si certificare Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

BEZPEČNOST VÝROBKU

INFORMACE TÝKAJÍCÍ SE HLUČNOSTI

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

BEZPEČNOST VÝROBKU

UPOZORNENIE

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

VARNOST IZDELKA

OPOZORILO Preberite vsa varnostna opozorila

SHRANITE ZA KASNEJŠO UPORABO

Varna uporaba

1) Usposabljanje

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

WORX

it's your nature

www.worx.com

Copyright © 2021, Positec. All Rights Reserved. AR01531901
