Product Type	Cordless Stick Vacuum
Brand	Amica
Model	Aqua Leste VM 8200
Rated Power	420 W
Maximum Power	450 W
Supply Voltage	29.6 V DC / 230 V AC
Frequency	50/60 Hz
Net Weight	4.7 kg
Battery Type	Lithium-ion
Charging Time	4 to 6 hours
Runtime (Min Mode)	Approximately 60 minutes
Runtime (Max Mode)	Approximately 10 minutes
Filter Type	Mesh, foam, fiber filter, and motor filter
Included Accessories	LED electric brush, mopping attachment, 2-in-1 crevice tool, universal roller brush and hard floor brush, spare mop pad
Functions	Vacuuming, mopping (mop pad), 3 power modes
Safety	Overheat protection, auto shut-off, battery safety
Maintenance	Clean dust container and filters, clean brushes, washable filters
Operating Temperature	4.5°C to 40°C
Intended Use	Household only

Frequently Asked Questions - Aqua Leste VM 8200 AMICA

How to empty the dust container?

Press the lock button on the dust container, open the bottom cover and empty the dust. For regular maintenance, empty the container after each use.

How to clean the filters?

Remove the dust container, take out the filter and clean it. The mesh, foam, and fiber filters can be washed with water. Let them dry completely before reassembling. The motor filter should be dusted every 6 months and may be rinsed.

What if the vacuum doesn't clean well?

Check that the dust container is not full and empty it. Clean the filters if they are clogged. Make sure there is no blockage in the tube or brush. If the problem persists, wash the filters.

What if the vacuum turns off or doesn't work?

Charge the vacuum (the battery may be discharged). Check that the switch is on. If the brush motor overheats, let the appliance cool down for at least one hour. If the problem is with the battery, contact after-sales service.

How to use the mopping attachment?

Fill the mopping attachment with clean water only. Dampen the mop pad and attach it to the attachment. Place the vacuum brush into the attachment. Turn on the vacuum and select the desired mode. To dampen again, use the pedal on the attachment.

How to clean the electric brush?

Turn off the appliance. Press the unlock button and remove the brush. Open the guard, remove hair and fibers with scissors. Do not wash the brush, clean it dry. Then reassemble.

How long does the battery charge last?

The first full charge takes approximately 4 to 6 hours. Subsequent charges may be shorter. The LED indicators show the charge level; when they stop blinking, charging is complete.

What is the vacuum runtime?

Runtime varies by mode: minimum mode: about 60 minutes, medium mode: about 25 minutes, maximum mode: about 10 minutes. Using specific brushes may reduce runtime.

Can I wash the filters?

Yes, the mesh, foam, and fiber filters can be washed with water. Rinse them thoroughly and let them dry completely before reassembling. The motor filter can also be rinsed, but not too often.

How to replace the battery?

The lithium-ion battery is replaceable. To purchase a replacement battery, visit the website https://czescizamienne.amica.pl/Product/Part or contact customer service. Follow safety instructions for removal and disposal.

USER MANUAL Aqua Leste VM 8200 AMICA

Black and white photo of a vacuum cleaner with attached circuit board (no visible text or symbols)

PL INSTRUKCJA OBSŁUGI 2

EN USER MANUAL 6

CS NÁVOD K OBSLUZE 10

SK NÁVOD NA OBSLUHU 14

Exploded view diagram of a device assembly with numbered parts and a schematic symbol below.

Montaż

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Exploded view of a mechanical device showing internal components and parts (no text or symbols visible)

Diagram showing a vacuum cleaner above three views of a mechanical component (no text or symbols present)

Wskazówki:

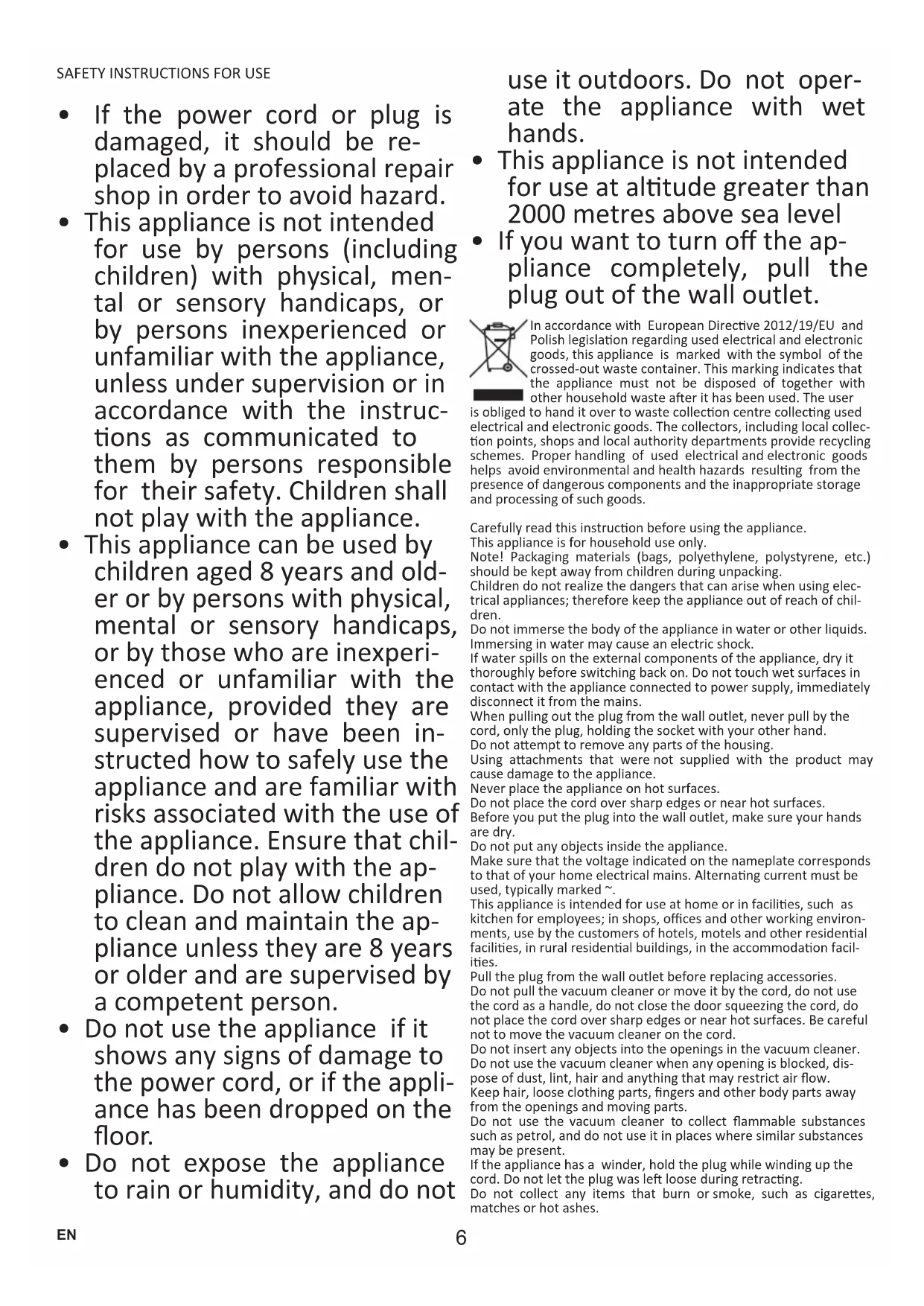

• If the power cord or plug is damaged, it should be replaced by a professional repair shop in order to avoid hazard.
• This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety. Children shall not play with the appliance.
• This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Do not allow children to clean and maintain the appliance unless they are 8 years or older and are supervised by a competent person.
• Do not use the appliance if it shows any signs of damage to the power cord, or if the appliance has been dropped on the floor.
• Do not expose the appliance to rain or humidity, and do not

use it outdoors. Do not operate the appliance with wet hands.

• This appliance is not intended for use at altitude greater than 2000 metres above sea level
• If you want to turn off the appliance completely, pull the plug out of the wall outlet.

In accordance with European Directive 2012/19/EU and Polish legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used. The user

is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes. Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

Carefully read this instruction before using the appliance.

This appliance is for household use only.

Note! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

Children do not realize the dangers that can arise when using electrical appliances; therefore keep the appliance out of reach of children.

Do not immerse the body of the appliance in water or other liquids. Immersing in water may cause an electric shock.

If water spills on the external components of the appliance, dry it thoroughly before switching back on. Do not touch wet surfaces in contact with the appliance connected to power supply, immediately disconnect it from the mains.

When pulling out the plug from the wall outlet, never pull by the cord, only the plug, holding the socket with your other hand.

Do not attempt to remove any parts of the housing.

Using attachments that were not supplied with the product may cause damage to the appliance.

Never place the appliance on hot surfaces.

Do not place the cord over sharp edges or near hot surfaces.

Before you put the plug into the wall outlet, make sure your hands are dry.

Do not put any objects inside the appliance.

Make sure that the voltage indicated on the nameplate corresponds to that of your home electrical mains. Alternating current must be used, typically marked \~.

This appliance is intended for use at home or in facilities, such as kitchen for employees; in shops, offices and other working environments, use by the customers of hotels, motels and other residential facilities, in rural residential buildings, in the accommodation facilities.

Pull the plug from the wall outlet before replacing accessories.

Do not pull the vacuum cleaner or move it by the cord, do not use the cord as a handle, do not close the door squeezing the cord, do not place the cord over sharp edges or near hot surfaces. Be careful not to move the vacuum cleaner on the cord.

Do not insert any objects into the openings in the vacuum cleaner. Do not use the vacuum cleaner when any opening is blocked, dispose of dust, lint, hair and anything that may restrict air flow. Keep hair, loose clothing parts, fingers and other body parts away from the openings and moving parts.

Do not use the vacuum cleaner to collect flammable substances such as petrol, and do not use it in places where similar substances may be present.

If the appliance has a winder, hold the plug while winding up the cord. Do not let the plug was left loose during retracting.

Do not collect any items that burn or smoke, such as cigarettes, matches or hot ashes.

Do not use the vacuum cleaner without a dust bag and/or filters. If the opening, which sucks air, hose or telescopic tube are clogged, you should immediately turn off the vacuum cleaner Before restarting the vacuum cleaner, first remove the blocking item.

Do not use the vacuum cleaner too close to heaters, radiators, cigarette butts, etc.

Before using the vacuum cleaner, remove sharp objects from the floor to avoid damaging the dust bag.

Do not collect fine particles such as: flour, gypsum, printer toners, etc., as this may clog filters and damage the vacuum cleaner.

Make sure that extension tube is fully withdrawn before you put away your vacuum cleaner either in vertical or horizontal position. Store the lithium ion battery in a cool and dry place.

The lithium-ion battery comes pre-charged by the manufacturer to 40%. After purchase, charge it up to 100%. This is to extend the life of the battery.

Liquids leaking from the battery may cause irritation and burns. If the liquid contacts your skin, seek medical attention, wash and rinse off the liquid as soon as possible with soap and water, and neutralize with a weak acid such as lemon juice or vinegar. If the liquid gets into your eyes, rinse your eyes immediately with clean water for at least 10 minutes.

When not in use, keep the battery away from metal objects such as paper clips, coins, keys, nails, screws, or other small metal objects that could short-circuit the two battery terminals. Short circuit between battery terminals may cause burns or fire.

The appliance is designed for operation at temperature from 4.5°C to 40°C,

Do not use a damaged or modified appliance or battery. Damaged or modified batteries may be unreliable, causing fire, explosion, or injury.

Do not expose the appliance or battery to heat or fire. Temperature above 130^ C may cause an explosion. Recycling and proper disposal of the battery helps to conserve natural resources. The product contains a lithium-ion battery. You must dispose of the battery properly. Before disposing of the vacuum cleaner, dispose of the battery in an environmentally safe manner. Do not dispose of the battery with domestic municipal waste.

The properties of lithium-ion batteries may slightly deteriorate over time depending on use. You can purchase a 29.6 V / 230 V battery or have it replaced by authorised service centre. For detailed information, please go to our website: https://czescizamienne.amica.pl/Product/Part

SPECIFICATION:

Power specification: 29,6V/230V	/ 50/60Hz
Nominal power: 420W
Maximum power: 450W
Net weight: 4,7 kg

Note! Figures are for illustrative purposes only Individual models may vary.

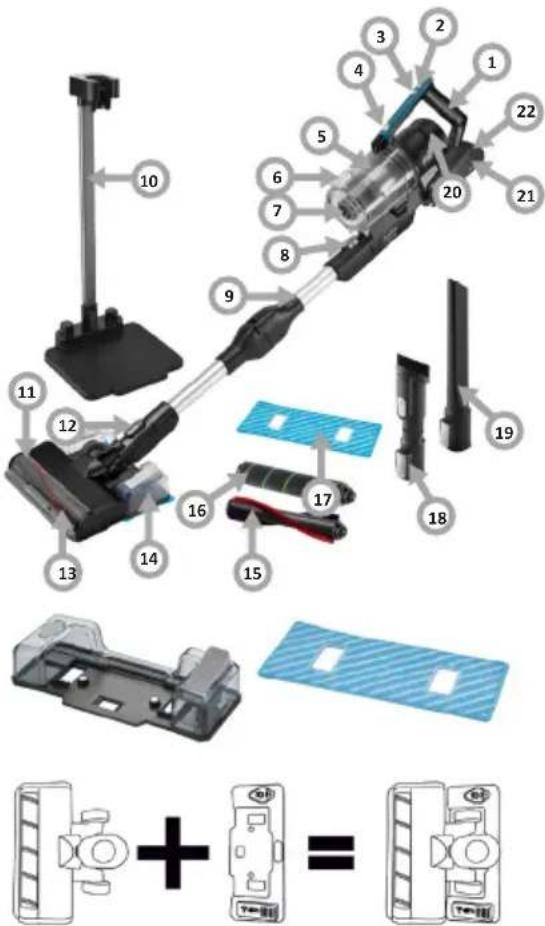

Features and components

1. Handle

2. Power on/off

3. Select mode

4. Dust bin release button

5. Dust bin

6. Dust bin lid release lever

7. Bottom cover

8. Release button for handheld vacuum cleaner

9. Tube

10. Storage stand for a vacuum cleaner and accessories

11. Electric brush

12. Floor brush release button

13. Electric brush LED backlight

14. Mopping attachment

15. Universal roller

16. Hard floor roller

17. Mopping pad for the mopping attachment

18. 2-in-1 crevice and book attachment

19. Crevice attachment

20. Pump filter cover

21. Lithium ion battery

22. Charging socket

Exploded view diagram of a device assembly with numbered parts and a formula for adding or equal to a component.

Assembly

- Place the motor unit on a flat surface. Connect the adapter to the charging socket on the battery and insert the plug into a power socket. While charging, the power indicator flashes, one minute after charging, the indicator turns off.

Technical line drawing of a mechanical assembly with no visible text or symbols

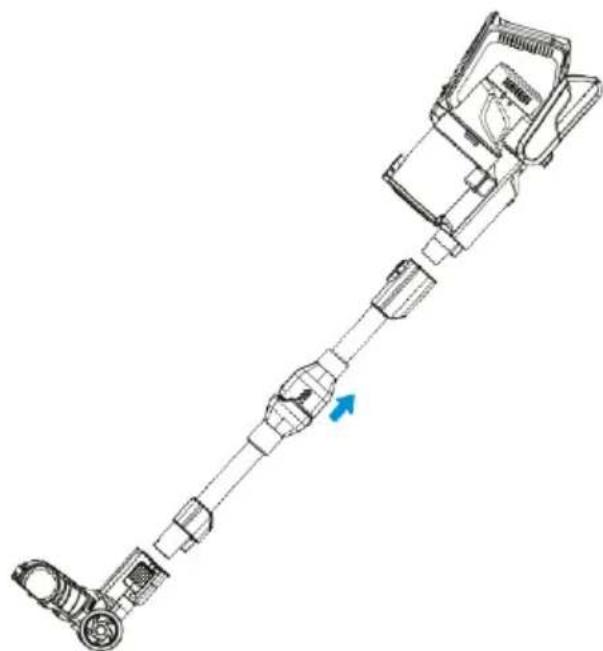

- Insert the tube into the hand vacuum cleaner until it clicks into place.

- Insert the tube into the floor brush until you hear a click.

Technical line drawing of a mechanical device with a blue arrow indicating direction (no text or symbols)

Battery indicators show the charge level.

- When fully charged, the indicators stop flashing.

- Fully charge the battery before first use. This may take 4-6 hours. Duration: At maximum power: approx. 10 minutes. At medium power level: about 25 minutes. At lowest power: approx. 60 minutes The operating time of the vacuum cleaner may vary depending on the brushes used and the conditions of use.

ON/OFF power button

Power indicator

Mode change button

Operation

• Press ON/OFF to start the appliance.
• Press ON/OFF again to turn off the appliance.
• Press the "Mode Change Button" to change the mode.
• Charge the appliance when only one power indicator flashes.

CLEANING AND CARE

Empty the dust bin

Instructions:

• To maintain the suction power of the vacuum cleaner, empty the dust bin regularly.
• Press the release button, open the bottom cover and dispose of the dust.

Use the vacuum cleaner and accessories

• Always turn the vacuum cleaner off before attaching accessories.

Cleaning and maintenance

• Press the dust bin release button and remove the bin.
• Remove the filter from the dust bin.
  • Dismantle the filter and clean it. All parts of the filter are washable.
• When all parts are cleaned, reassemble them in the reverse order.

Exploded view of a mechanical device showing internal components (no text or symbols visible)

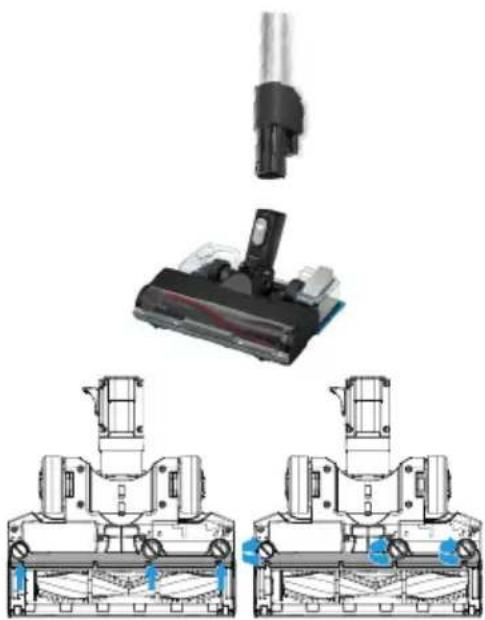

Electric brush cleaning and maintenance

Note!

In order to ensure proper operation of the brush, regularly clean the brush roller and wheels from dust and tangled hair and threads. Make sure the appliance is turned off before removing the main brush. Press the release button and remove the brush. Open the brush cover, then remove and clean the brush roller. After cleaning the roller, replace it in the reverse order.

Diagram showing a vacuum cleaner above two views of a mechanical component (no text or symbols present)

Note! Figures are for illustrative purposes only Individual models may vary.

Instructions:

- Do not wash the brush. If hair is caught in the brush, remove it with scissors or a knife.

Clean the dust filter at least once a month, depending on frequency of use.

• Turn the dust bin and remove it.
• Twist the strainer and remove it.
• Remove the foam filter and bracket.
• Separate the foam filter from the fleece filter by sliding them apart.
• Rinse and dry thoroughly. Assemble when dry.

Clean a filter behind the motor every about 6 months, depending on the frequency of use.

• Turn the filter cover and remove it.
• Remove the filter located behind the motor
• Shake off the dust.
• Every about 6 months, replace the filter or rinse and dry it thoroughly.
• Put the filter and cover back in and turn to the "locked" position.

How to work with the mopping attachment?

Note!

• Fill the mopping attachment with clean water;
• Moisten the mopping pad and place it on the mopping attachment;
• Place the vacuum cleaner brush in the mopping attachment;
• Start vacuuming by turning on the vacuum cleaner with the power button, set the mode according to your preference;
• When the mopping pad starts to dry, pump water using the footswitch on the mopping attachment;
• When you finish vacuuming and mopping, turn off the vacuum cleaner, then remove the mopping attachment with the pad, wash or rinse the pad and pour out the water from the mopping attachment.
• NOTE 1: Before working with the mopping attachment, you should soak and thoroughly wring the mopping pad for better result. When the pad is not wet enough, pump water using the footswitch on the mopping attachment.
• NOTE 2: Only add clean water to the mopping attachment, no detergents can be added.

Description of the problem Procedure:
1. The vacuum cleaner does not clean well..	Empty the dust container.Remove excess dust from the filters.Wash the filters.Ensure there is no blockage.
2. The vacuum cleaner has turned off or is not working.	Charge the vacuum cleaner(check that the mains socket is working and that the switch is on).Roller brush motor overheated due to heavy load. This may be due to prolonged use on a long-pile carpet or soft rug. Allow the vacuum cleaner to cool down for a minimum of an hour before using it again.
3. The floor brush motor turns off.	The floor brush is blocked — refer to the “Electric brush cleaning and maintenance” section of this manual.Brush motor overheat protection has tripped. Turn off the vacuum cleaner, remove the brush and let it cool down for an hour, then try again.

Labeled diagram of a mechanical device with numbered components for identification

3D rendering of a mechanical component with two views: one showing internal features and the other a blue patterned surface (no text or symbols)

Diagram showing three identical electrical connectors with a plus sign and equals sign, likely representing a simplified circuit or amplifier model.

Montáž

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Exploded view of a mechanical device showing internal components and assembly (no text or symbols visible)

Technical illustration of a vacuum cleaner assembly with three views showing internal components (no text or symbols)

Pokyny:

Technical diagram of a device assembly with numbered components and a simplified schematic below showing the main body and internal components.

Montáž

Technical line drawing of a mechanical assembly with no visible text or symbols

- Zasuňte trubicu do ručného vysávača, kým nebudete počut charakteristický zvuk zapadnutia.

Technical line drawing of a mechanical device with no visible text or symbols

Exploded view of a mechanical device showing internal components and assembly (no text or symbols visible)

Technical illustration of a vacuum cleaner assembly with three views (top, front, side) showing internal components and mounting brackets (no text or symbols)

Pokyny:

Labeled diagram of a vacuum cleaner assembly with numbered components

3D mechanical component and blue textured surface (no text or symbols)

Diagram showing a device combining two components with a plus sign and equals sign, likely illustrating a basic electrical or mechanical assembly.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Exploded view of a mechanical device showing internal components and parts (no text or symbols visible)

Diagram showing a vacuum cleaner above two views of a mechanical component (no text or symbols present)

Hinweise:

Labeled diagram of a vacuum cleaner assembly with numbered parts for identification

3D CAD model of a mechanical housing component with a blue patterned plastic sheet (no text or symbols visible)

Diagram showing a device combining two components with a plus sign and equals sign, likely illustrating a basic addition or equivalence.

Montage

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Exploded view of a mechanical device showing internal components (no text or symbols visible)

Diagram showing a vacuum cleaner above two views of a mechanical component (no text or symbols present)

Consignes

Labeled diagram of a mechanical device with numbered components for identification

3D model of a plastic housing component with two square cutouts, shown alongside a blue patterned rectangular plate (no text or symbols)

Diagram showing a mechanical assembly with plus and minus signs, likely illustrating a mechanical or electrical component.

Montaje

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Exploded view of a mechanical device showing internal components and parts (no text or symbols visible)

Technical illustration of a vacuum cleaner assembly with three views (top, front, side) showing internal components and mounting brackets (no text or symbols)

Indicaciones:

Labeled diagram of a mechanical device with numbered components for identification

3D CAD model of a plastic housing component with two inset views (no text or symbols)

Diagram showing a device combining two components with an equals sign, likely illustrating a basic or logic relationship.

Монтаж

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Exploded view of a mechanical device showing internal components and parts (no text or symbols visible)

Technical illustration of a vacuum cleaner assembly with three views (top, front, side) showing internal components and mounting brackets (no text or symbols)

Technical diagram of a device assembly with numbered components and a simplified schematic below showing the main body and internal components.

Felszerelés

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Exploded view of a mechanical device showing internal components (no text or symbols visible)

Diagram showing a vacuum cleaner above three views of a mechanical component (no text or symbols present)

Tanácsok:

Labeled diagram of a mechanical device with numbered components for identification

3D mechanical component and its cross-section view (no text or symbols)

Diagram showing a device combining two components with a plus sign and equals sign, likely illustrating a basic electrical or mechanical assembly.

Монтаж

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with a blue arrow indicating direction (no text or symbols)

Exploded view of a mechanical device showing internal components and assembly (no text or symbols visible)

Diagram showing a vacuum cleaner above two views of a mechanical component (no text or symbols present)

Вказівки:

Technical diagram of a device assembly with numbered components and a simplified schematic below showing the main body and internal components.

Montajul

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Exploded view of a mechanical device showing internal components and parts (no text or symbols visible)

Diagram showing a vacuum cleaner above two views of a mechanical component (no text or symbols present)

Indicatii:
