USER MANUAL MW 7900 SEVERIN

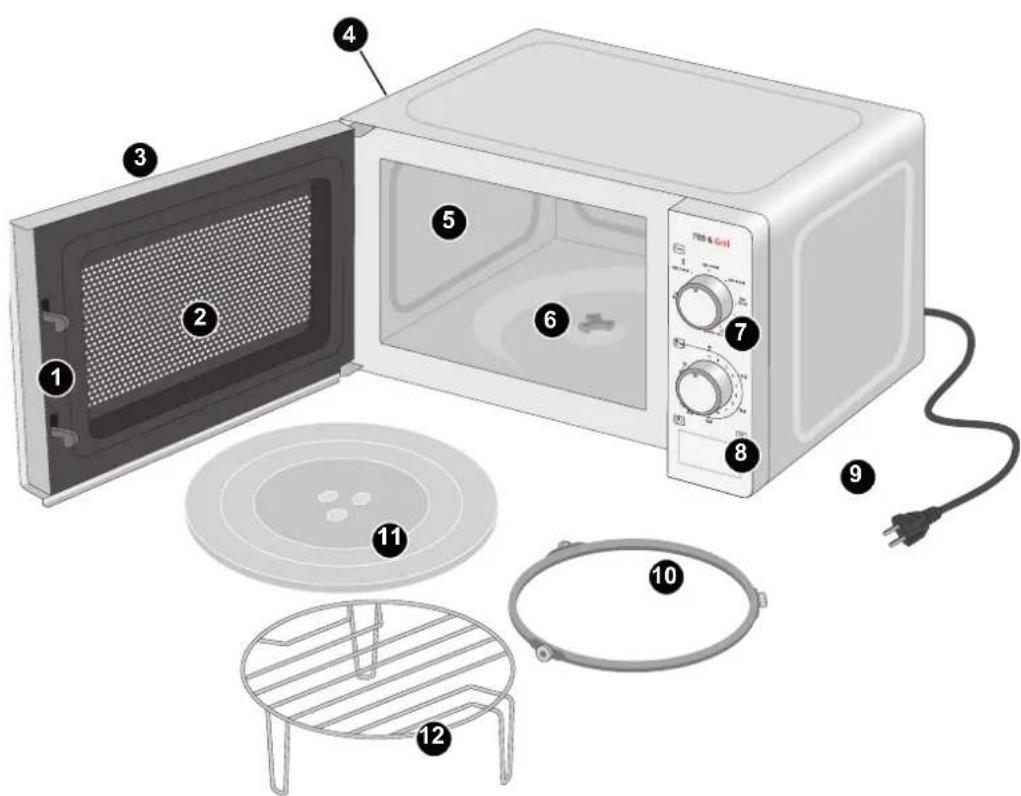

Ventilation openings (covered)

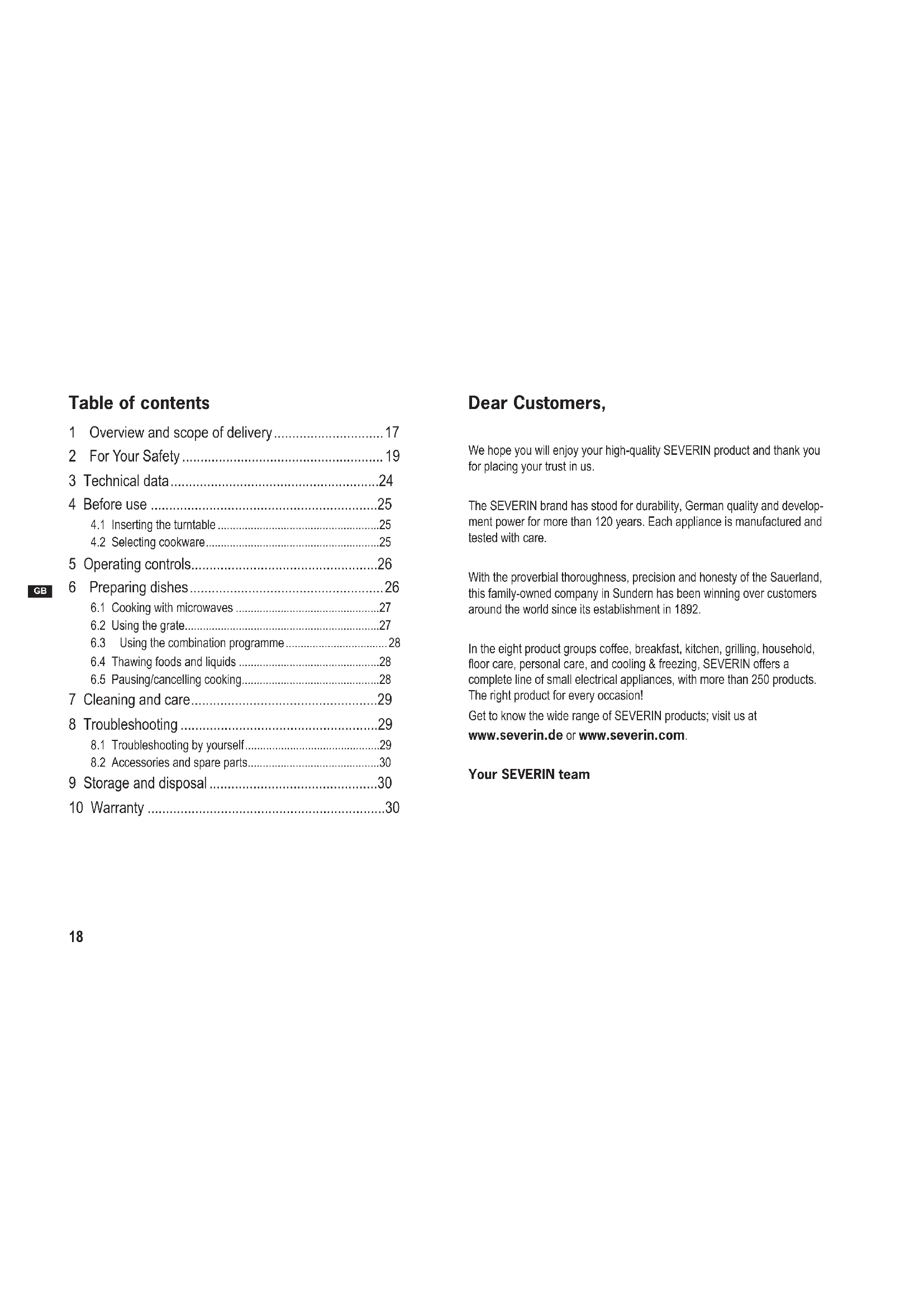

• Cooking grate18 GB GB Dear Customers, We hope you will enjoy your high-quality SEVERIN product and thank you for placing your trust in us. The SEVERIN brand has stood for durability, German quality and develop- ment power for more than 120 years. Each appliance is manufactured and tested with care. With the proverbial thoroughness, precision and honesty of the Sauerland, this family-owned company in Sundern has been winning over customers around the world since its establishment in 1892. In the eight product groups coffee, breakfast, kitchen, grilling, household, oor care, personal care, and cooling & freezing, SEVERIN offers a complete line of small electrical appliances, with more than 250 products. The right product for every occasion! Get to know the wide range of SEVERIN products; visit us at www.severin.de or www.severin.com. Your SEVERIN team Table of contents 1 Overview and scope of delivery p. 17
• 2 For Your Safety p. 19
• 3 Technical data p. 24
• 4 Before use p. 25

9 Storage and disposal ..............................................30 10 Warranty .................................................................3019 GB GB 2 For Your Safety Follow the operating instructions Read the operating instructions completely before using the appliance. Keep the instructions in a safe place for future reference. If you give the appliance to somebody else, also give them the operating instructions. Non-observance of these instructions can cause severe injuries and damage to the appliance. Important notes for your safety are highlighted in the operating instructions as shown below. Be sure to follow these instructions to prevent accidents and damage to the appliance: WARNING! Indicates notes that must be adhered to in order to prevent the risk of injury or fatal injury. CAUTION! Indicates notes that must be adhered to in order to prevent the risk of material damage. TIP: Emphasises tips and other useful information. Hazards for certain persons Particular groups of people are at an increased risk:

• This appliance may be operated by children 8 years and older and persons with limited physical, sensory or intellectual capacities or those lacking experience and/or knowledge. The prerequisite for this is that they must be supervised or trained with respect to the safe operation of the appliance and they must have understood the resulting dangers.

• Keep children younger than 8 years of age away from the appliance and its power cable.

• Children must not play with the appliance.

• Children over the age of 8 may clean and maintain the appliance if they are supervised.

• Keep children away from the packaging material. It presents a suffocation risk.

• Persons with sensitivity disorder, in particular reduced sensitivity to temperature differences, must be espe- cially careful when using this appliance.20 GB GB Correct use The appliance is used exclusively for heating, grilling and thawing foods and beverages. Any other use is deemed improper use and can cause personal injuries and dam- age to the appliance.

• The appliance is designed for household use or use in a similar environment, e.g. – in kitchens for employees in stores, ofces and other commercial areas; – on agricultural estates; – by customers in hotels, motels and other residen- tial facilities; – in bed-and-breakfast facilities.

• It is not suitable for commercial use, e.g. in the cater- ing industry.

• The appliance is not designed to be operated with a timer or separate remote control system.

• The appliance may not be used in built-in furniture.

• WARNING: Do not heat liquids or other foods in closed containers since these can easily explode.

• Do not heat eggs in the shell or whole hard-boiled eggs with the appliance since they can explode, even after the heating by the microwaves is nished. Power Since the appliance is operated with electrical current, there is a risk of receiving an electric shock. Be sure to follow the precautions mentioned below::

• Only connect the appliance to a properly installed, earthed safety outlet socket. Do not use any extension cords or multi-outlet sockets.

• Only operate the appliance if the voltage specied on the rating plate matches the voltage of your outlet socket.

• Make sure that the power cable is not kinked or pinched and that the power cable and the appliance do not come in contact with heat sources (e.g. hot plates, gas ames).

• When you pull the power cable out of the outlet, always pull directly on the plug. Never carry the appli- ance by the power cable.21 GB GB

• Never immerse the appliance in water or other uids, do not clean it under running water, and do not place it in the dishwasher.

• Never touch the power plug with wet hands.

• Never operate the appliance outdoors.

• If a dangerous situation or defect occurs, unplug the appliance from the outlet socket immediately. For this reason, make sure that the outlet with the power plug of the appliance is easily accessible at any time.

• Disconnect the power cable out from the socket be- fore you clean or carry out maintenance work on the appliance, or when assembling or disassembling it.

• Never remove screws from the appliance to open it and never carry out any technical modications.

• Even when the appliance is turned off, it carries voltage on the inside of the appliance as long as the power cable is plugged into the outlet. The appliance is only disconnected from the mains if the power cable is disconnected.

• Always unplug the appliance from the outlet socket after use. Risk of burning and scalding

• Remove beverages heated with microwaves from the cooking chamber carefully since there can be a delayed boiling.

• Stir baby food heated with microwaves or shake it. Before use, check the temperature to avoid burns.

• Do not touch the surface of the appliance while it is operating since the surface can get hot. Risk of fire

• Set up the appliance so that the top side is at least 20 cm away from walls and other objects.

• Do not operate the appliance when it is empty.

• Do not operate the appliance without the roller ring and turntable.

• Do not leave the appliance unattended while it is in operation. This applies especially if you are heating foods in plastic or paper containers, since these can catch on re.

• Do not use the appliance to dry foods or clothing. These can catch on re.22 GB GB

• Do not use the appliance to heat hot pillows, slippers, sponges, damp cleaning cloths and such. This can cause re and injuries.

• Do not use the appliance to heat pillows that are lled with grain, cherry pits or gel.

• Only use cookware that is suitable for use in micro- wave cooking appliances, ►„Selecting cookware“ on page 25. Do not use metal containers or cookware with metal edges/decorations.

• Pull the power cable if the appliance starts to smoke. Dangers due to microwaves With microwave rays, there is a danger of burns.

• Do not remove the cover (silver plate on the right inside wall) in front of the microwave outlet opening in the cooking chamber.

• Do not operate the microwave with an open door. Poor hygiene Poor cleaning of the cooking appliance can cause the destruction of the surface, which in turn inuences the usage duration and can cause dangerous situations. Bacteria can form in the appliance due to poor hygiene.

• Clean the appliance regularly.

• Wipe the cooking chamber, door and door seals with damp cloth. If necessary, use a non-caustic, non-abra- sive cleaning agent.

• Remove food remains after each use.

• Do not store any food in the cooking chamber. The use of improper cleaning agents harbours health risks:

• Only use the cleaning agents and utensils described in these operating instructions to clean the appliance. Risks for the appliance Damage can be caused by handling the appliance incor- rectly.

• Place the appliance on a dry, level, non-slip, heat-resist- ant surface which will not react with the rubber feet.

• Set up the appliance so it is protected against moisture.

• Before you stow the appliance, disconnect the power cable and let the appliance cool off completely.

• Do not cover the ventilation openings since otherwise the appliance will overheat.

• Do not clean the appliance with a steam cleaner.23 GB GB In case of a defective appliance A defective appliance can cause material damage and injuries:

• WARNING: If the door or door seals are damaged, the cooking appliance may not be operated before it has been repaired by a trained person.

• Always check the appliance for damage before use. In the event that you detect damage due to transport, immediately contact the dealer where you have pur- chased the appliance.

• Never operate a defective appliance. Never operate a appliance that has fallen down.

• If the appliance’s power cable is damaged, it must be replaced by manufacturer or their customer service department or a similarly-qualied person to prevent hazards.

• WARNING: It is dangerous for any other persons than those so trained to carry out maintenance or repair work that requires the removal of a cover which ensures protection against radiation due to microwave energy.

• The appliance does not contain any parts that you can repair yourself. Repair work must only be carried out through SEVERIN customer service department (see ►“Service Centres” on page 179).24 GB GB 3 Technical data Type of appliance Microwave with grill function MW 7891 Microwave with grill function MW 7900 Voltage 230 V~ Rated frequency 50 Hz Output power of microwave 700 W at 2450 MHz Power 1050/700 W (microwave) 1000 W (grill) Dimensions (W x H x D) 435 mm x 345 mm x 254 mm Weight approx. 10.9 kg Cooking chamber Approx. 20 l Identification Do not dispose of as household waste! The appliance conforms with all EU directives that are binding for CE certication. CAUTION! Hot surface! Let appliance and appliance parts cool off. Protection class I Information about microwave oven (Group II, class B according to EN 55011) Electromagnetic waves are generated in the appliance, which excite the molecules in the food (primarily water molecules) to strong vibrations. Heat arises due to these vibrations. Therefore, foods with a high liquid content heat faster than relatively dry foods. Cookware is heated only indirectly by the foods. This product is an ISM appliance of Group 2, Class B. Group 2 includes all ISM appliances (industrial, scientic, medical) in which radio frequency energy arises and/or is used in the form of electromagnetic radiation to process material, as well as spark erosion devices. Class B are appliances for household use or appliances on power networks that feed residential buildings.25 GB GB 4 Before use

1. Remove all foils and other packaging material from the appliance.

2. Clean the appliance, ►„Cleaning and care“ on page 29.

3. Set up the appliance in a place that fulls the following conditions:

• Near an isolated ground receptacle (fuse at least 10 A)

• Horizontal and free from shocks

• Away from heated or ammable surfaces, objects (> 1 m)

• Away from walls (> 20 cm top, > 10 cm rear, > 5 cm on the sides)

4. Plug the mains plug into the outlet.

4.1 Inserting the turntable

1. Press the door opener to open the microwave.

2. Place the roller ring in the middle of the cooking chamber.

3. Place the turntable on the drive in the interior so that the retaining lugs

4.2 Selecting cookware

Round, transparent containers are best suited for cooking in the microwave. Microwaves cannot penetrate metal. Therefore, do not use cookware with metal edges or metal containers in the microwave or combination programme. The following table provides an overview of which containers you can use in the microwave: Material Microwaves Cooking grate Combina- tion Heat-resistant ceramic/glass

Microwave-safe plastic

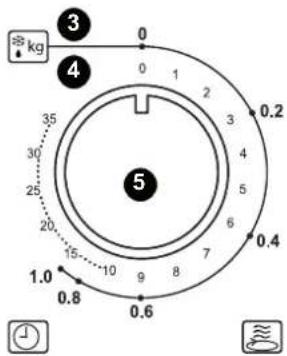

Operating controls 1 Scale for the power combination operation/ grill operation;

: Thaw function 2 Power/grill control dial 3 Scale for the thaw function (weight) 4 Scale for the cooking time 5 Cooking time/weight control dial 6 Door opener 6 Preparing dishes WARNING! Risk of re! – Use only microwave-safe containers, ►„Selecting cookware“ on page 25. WARNING! Risk of burns! – Remove the heated dishes or liquids carefully from the cooking chamber since the containers may have heated up due to the hot contents. – Do not heat liquids or other foods in closed containers since these can easily explode. – Remove beverages heated with microwaves from the cooking chamber carefully since there can be a delayed boiling. TIP: You can interrupt cooking at any time by opening the door.27 GB GB

6.1 Cooking with microwaves

TIP: When cooking with microwaves, you should cover the food with an appropriate cover so that it does not dry out.

1. Place the food to be heated on the turntable in a microwave-safe con-

3. Turn the power/grill control dial to the desired power.

4. Turn the cooking time/weight control dial to set the desired cooking time.

 Cooking begins. It ends when the cooking time/weight control dial points to 0”.

5. Let the food rest a few minutes so that the heat can be distributed

WARNING! Risk of re! – Heed the minimum distance to the top interior wall of 2 cm when you are using the grate.

1. Place the food to be heated on the turntable in a container suitable for

3. Turn the power/grill control dial to

4. Turn the cooking time/weight control dial to set the desired cooking time.

 Cooking begins. It ends when the cooking time/weight control dial points to 0”.

5. Let the food rest a few minutes so that the heat can be distributed

evenly in the food.28 GB GB

6.3 Using the combination programme

The microwave has 3 combination programmes:

600 W grill and 300 W microwave

700 W grill and 200 W microwave

800 W grill and 150 W microwave

1. Place the food to be heated on the turntable in a heat-resistant container.

3. Turn the power/grill control dial to the desired combination mode.

4. Turn the cooking time/weight control dial to set the desired cooking time.

 Cooking begins. It ends when the cooking time/weight control dial points to “0”.

5. Let the food rest a few minutes so that the heat can be distributed

6.4 Thawing foods and liquids

1. Place the food to be thawed on the turntable in a microwave-safe con-

3. Turn the power control dial to 250 W or

4. Turn the cooking time/weight control dial to the weight of the food/liquid.

 The microwave begins thawing. It ends thawing when the cooking time/weight control dial points to “0”. TIP: So that the food/liquid is thawed evenly, after half the cooking time you should open the door, turn or stir the food or liquid, and close the door again.

6.5 Pausing/cancelling cooking

Open the door to pause cooking. Close the door again to continue cooking. Turn the cooking time/weight control dial by hand to “0” to interrupt cooking.29 GB GB 7 Cleaning and care WARNING! Danger of electric shock! – Disconnect the power cable from the outlet before you clean the appliance. – Never immerse the appliance in water.

1. Make sure that the appliance is not in operation and that it has cooled

off, the power cable is disconnected and the cooking chamber is empty.

2. Remove the turntable and roller ring from the cooking chamber.

3. Wipe the cooking chamber and door with a damp cloth. In case of heavy

soiling, use a non-caustic, non-abrasive cleaning agent.

4. Clean the housing of the appliance with a damp cloth.

5. Clean the turntable and roller ring in warm soapy water.

6. Let all components dry.

7. Replace the roller ring and turntable in the appliance.

8.1 Troubleshooting by yourself

WARNING! Risk of injury! The appliance does not contain any parts that you can repair yourself. – Never attempt to operate a defective appliance. – Never attempt to repair the appliance by yourself. If your appliance is defective, contact our customer service department (see ►“Service Centres” on page 179). Before contacting our customer service, check with the aid of below table whether you can remedy the problem by yourself. Problem Cause Remedy The appliance will not turn on. Power cable not plugged in correctly. Plug the mains plug into the outlet. Cooking does not start. The door is not closed properly. Close the door. Sparks are ge- nerated during operation. Wrong cook- ware. Use only microwave-safe cookware without decorative metal edges. Metallic objects in the cooking chamber. Do not put any metal objects in the cooking chamber when you are cooking with microwaves.30 GB GB Problem Cause Remedy Turntable turns with a jerk. Roller ring and bottom of the cooking cham- ber soiled. Clean the roller ring and bottom of the cooking chamber, ►„Cleaning and care“ on page 29. Food/beve- rage is too cold/not coo- ked through. Power too low. Increase the power. Cooking time too short. Set a longer cooking time. Food/beve- rage is too hot/ burned. Power too high. Reduce the power. Cooking time too long. Set a shorter cooking time.

8.2 Accessories and spare parts

You can order spare parts or accessories conveniently via the Internet on our home page http://www.severin.com by using the “Service / Spare Parts Shop” menu. 9 Storage and disposal Disconnect the power cable and clean the appliance before you store it or dispose of it. Appliances that are marked with this symbol must be dispo- sed of separately from household waste. These appliances contain valuable raw materials that can be recycled. Proper disposal protects the environment and the health of your fellow men. Your local authorities or dealer can provide information regarding proper disposal. 10 Warranty The legal warranty rights with respect to the seller and any seller warranties are unaffected by the following warranty conditions. In case of warranty claim, contact your dealer directly. In addition, SEVERIN grants a manufacturer’s warranty of two years from the date of purchase. During this period, we will eliminate all defects caused by material or produc- tion faults that compromise the function. Other claims are excluded. Excepted from the warranty are: Damage that is due to non-observance of the instruction manual, improper handling or normal wear; also easily-break- able parts such as glass, plastic or light bulbs. If the appliance is tampered with by persons not authorised by SEVERIN, this will render the warranty null and void. If repair should be necessary, contact our customer service department per telephone or mail, see ►“Service Centres” on page 179.31 FR FR 1 Vue d’ensemble et étendue de la livraison Abb. 1: Pièces de l’appareil
