Product type	Audio receiver
Brand	Fenton
Model	AV550BT
Power supply	220-240 VAC, 50 Hz
Main functions	USB/SD player, FM tuner, Bluetooth connection, Microphone inputs, EQ settings (Bass, Treble, Balance), Center and surround volume control, Micro echo, Subwoofer output, Remote control
Inputs	2 x 6.3 mm microphone inputs, RCA audio input (CD/DVD)
Outputs	Main speakers (terminals), Center speaker, Surround speakers, Subwoofer output (RCA), REC output (line out)
Remote control	Yes, with functions: Mute, Equalizer, Play/Pause, Volume, Previous/Next track, FM Scan, Numeric keys, Repeat
Safety	Do not open the casing, avoid moisture, use original parts, disconnect during storm, respect polarity
Maintenance	Clean with a dry cloth, do not use chemical products
General information	Indoor use, ambient temperature 5°C to 35°C, do not expose to rain or humidity

Frequently Asked Questions - AV550BT Fenton

How to connect a Bluetooth device to the Fenton AV550BT receiver?

Activate Bluetooth on your device (phone, tablet). Select BT source on the receiver by pressing MODE. Search for "Fenton AV550BT" or "AV550BT" in the device list and connect. The range is about 10 meters without obstacles.

How to play audio files from a USB stick or SD card?

Insert the USB stick into the USB port or the SD/MMC card into the slot. Press MODE to select USB or SD. Use the PREVIOUS/NEXT buttons to change tracks and PLAY/PAUSE to control playback.

How to adjust bass and treble?

Turn the BASS and TREBLE controls on the front panel. At 12 o'clock position (pointing up), no effect. Turning clockwise increases frequencies, counterclockwise decreases them.

What to do if no sound comes out of the speakers?

Check that the device is on, the MASTER volume is not at zero, the source is correctly selected (MODE), and the speakers are properly connected. Also ensure that the input signal is present.

Can I connect a microphone to this device?

Yes, the receiver has two 6.3 mm microphone inputs on the front panel. You can adjust the microphone volume, echo, bass, and treble with the corresponding controls.

How to use the FM function?

Press MODE until FM is selected. Use the SCAN buttons or press and hold PLAY/PAUSE for automatic station scanning. Use PREVIOUS/NEXT to browse stations manually.

What safety precautions should be observed?

Never open the casing, avoid moisture, do not block vents, disconnect during storms, use original parts for repairs, turn off before disconnecting, etc.

How to clean the device?

Use a dry cloth. Do not use chemicals or aerosols that could damage the surface.

Can I connect an external subwoofer?

Yes, the device has a SUB output (RCA) to connect an active subwoofer.

How to reset the device in case of malfunction?

Unplug the device from the mains, wait a few minutes, then plug it back in. If the problem persists, contact a qualified technician.

USER MANUAL AV550BT Fenton

Congratulations to the purchase of this Fenton product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore, do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guidelines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the lifetime.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product has a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged, please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Fenton cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

OPERATION

When all connections to the amplifier are made, turn all rotary controls down and switch on the power. Turn BASS and TREBLE controls to the 12 o'clock position (pointing straight up) and turn the MASTER volume control up slightly for testing.

Ensure a signal is being fed to one of the inputs and gradually increase the volume level until the output is heard through the speakers. Turn up the MASTER volume to the required volume level.

Note: The initial test can be done using the built-in USB/SD audio player.

In addition to MASTER volume controls, there are BASS and TREBLE controls to adjust the tone of the overall output. At the 12 o'clock position, these controls are applying no effect to the signal (no boost or cut). Moving the BASS control clockwise boosts the low frequencies in the audio, whilst moving it anticlockwise will cut these low frequencies. Likewise, moving the TREBLE control clockwise boosts the high frequencies in the audio, whilst moving it anticlockwise will cut these high frequencies. Adjust these EQ controls to suit the type of audio signal or compensate for the room acoustics.

CONNECTING WITH BT

1. Activate the BT-function on your device (mobile phone, tablet etc.) from which you want to play the music. See the operating instructions for that device.
2. Activate BT-function.
3. Select "BT" on your BT-device and make the BT-connection.

Attention: The BT distance is approx. 10 meters without any barrier.

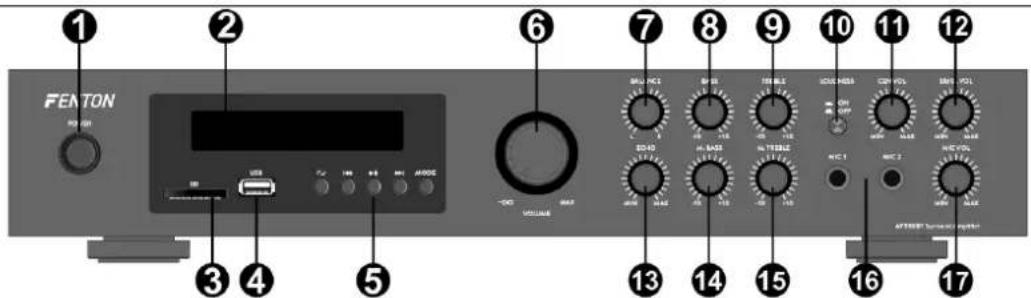

FRONT PANEL

FENTON 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

1. ON/OFF POWER BUTTON

Press to turn the device on/off.

1. LED DISPLAY

Displays modes and the current operating status.

1. SD / MMC MEMORY CARD SLOT

SD/MMC memory cards can be inserted in this slot.

1. USB PORT

An USB storage device can be inserted here.

1. BUTTON CLUSTER

REPEAT

Switch between single repeat and repeat all.

PREVIOUS

In USB/SD/BT mode: press to select previous track.

In FM mode: press to select the previous channel.

In FM/BT mode: hold to decrease volume.

PLAY/PAUSE

In USB/SD/BT mode: press to change from play to pause or from pause to play.

In FM mode: press to scan all frequencies from 87.5MHz to 108MHz.

NEXT

In USB/SD/BT mode: press to select next track.

In FM mode: press to select the next channel.

In FM/BT mode: hold to increase volume.

MODE

Switch modes between USB, SD, FM and BT.

1. MASTER VOLUME CONTROL

Turn to adjust the overall system volume, in a range between minimum and maximum level.

1. BALANCE

Turn to adjust the balance between the L/R channels.

1. BASS

Turn to adjust the low frequencies.

1. TREBLE

Turn to adjust the high frequencies.

10. LOUDNESS

Press to maximize output volume.

11. CENTRE VOLUME CONTROL

Turn to adjust the volume of the centre speaker.

12. SURROUND VOLUME CONTROL

Turn to adjust the volume of the surround speaker(s).

13. ECHO CONTROL

Turn to adjust the microphone echo level.

14. MICROPHONE BASS CONTROL

Turn to adjust the microphone bass level.

15. MICROPHONE TREBLE CONTROL

Turn to adjust the microphone treble level.

16. MICROPHONE INPUTS

6.3mm microphone input jacks.

17. MICROPHONE VOLUME CONTROL

Turn to adjust the microphone channel 1/2 volume.

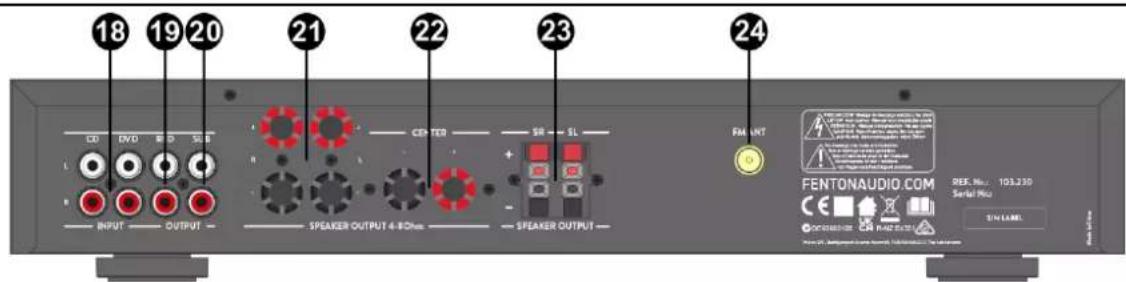

REAR PANEL

18 19 20 21 22 23 24 CD DVD R/D SLB CPTER SR SL FENTAUDIO.COM REF. No.: 103.230 Serial No. S/N LABEL

18. AUDIO INPUT

RCA input jacks for connecting CD/DVD-players, etc.

19. REC OUTPUT CONNECTOR

Line signal output, kept separately from the device's master output level.

20. SUB OUTPUT

Connect an active subwoofer to these jacks.

21. SPEAKER OUTPUT

Speaker terminal to connect main speakers.

22. CENTRE SPEAKER OUTPUT

Speaker terminal to connect the centre speaker.

Press type terminal to connect surround speakers.

24. FM ANTENNA CONNECTOR

Connector for external FM antenna.

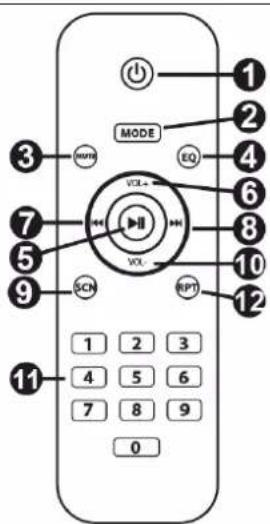

REMOTE CONTROL

1. ON/OFF POWER BUTTON

Press to turn the device on/off.

2. MODE

Press to switch operating modes (USB, SD, FM en BT).

3. MUTE

Press to (un)mute the device.

4. EQUALIZER

Press to change equalizer modes.

5. PLAY/PAUSE

Press to start/resume or pause playback.

6. VOLUME +

Press to increase the volume level.

7. PREVIOUS

Press to select the previous track or channel.

8. NEXT

Press to select the next track or channel.

9. SCAN

Press in FM mode to perform an auto scan.

10. VOLUME -

Press to decrease the volume level.

11. NUMPAD

Press to select tracks directly. The unit takes a moment to respond in USB and SD mode.

12. REPEAT

Switch between single repeat and repeat all.

MODE EQ VCL VCL RPT 1 2 3 4 5 6 7 8 9 0

REPEAT (WIEDERHOLEN)

1. REPEAT (WIEDERHOLEN)

Input connections : 6.3mm Jack, RCA, SD, USB

Output connections : RCA

Speaker connections : Clip terminal, screw terminal

Output power : 320W

Impedance : 16Ohm, 8Ohm, 4Ohm

Power supply : 220-240VAC 50Hz

Dimensions (L x W x H) : 275 x 430 x 80mm

Weight : 4.05kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual is conforming European and UK legislation directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2014/53/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2017:1206

S.I. 2012:3032

Specifications and design are subject to change without prior notice.
