Product type	Stereo receiver
Brand	Fenton
Model	TA60
Power supply	100-240 V AC, 50/60 Hz (grounded plug)
Fuse	10-16 A, replace with same type
Speaker output impedance	4 Ω or 8 Ω
Line input level	300 mV, 47 kΩ
Audio inputs	CD (RCA), DVD (RCA), BT/USB (USB and Bluetooth)
Audio outputs	Left and right speakers (terminals), headphone (3.5 mm jack)
Adjustment functions	Master volume, bass, treble, input selector
USB playback	Yes, multimedia files
Bluetooth	Yes, range approx. 10 m without obstacles
VU meter	Output level display
Operating temperature	5 °C to 35 °C (indoor)
Maintenance and cleaning	Use a dry cloth, no chemicals
Safety	Do not open the casing, avoid moisture and heat sources
Repairability	Reserved for specialized technician, original parts required
Warranty	Void in case of unauthorized modification or repair
Transport instructions	Use original packaging
Disposal	Do not dispose of with household waste, recycle appropriately

Frequently Asked Questions - TA60 Fenton

How to connect a device via Bluetooth?

Set the input selector to BT/USB. Make sure no USB stick is inserted. Activate Bluetooth on your device, search for 'FENTON' and connect. If a password is requested, enter '0000'.

How to replace the fuse?

Unplug the device. Open the fuse holder on the back with a small screwdriver. Remove the old fuse and insert a new fuse of the same type and rating. Close the fuse holder.

What to do if no sound comes out of the speakers?

Check that the master volume is not at minimum, that the speakers are correctly connected to the terminals, and that the input source is properly selected. Also ensure that the fuse has not blown.

Can I use 4 ohm speakers?

Yes, the device supports an impedance of 4 Ω or 8 Ω. Make sure the speakers are compatible with the amplifier's power.

How to clean the device?

Use a dry, soft cloth. Never use chemicals, aerosols or liquids, as they could damage the finish or cause a short circuit.

The device has been exposed to extreme temperatures, what to do?

Do not turn it on immediately. Let it reach room temperature (5-35°C) to avoid condensation inside. Wait a few hours before powering it on.

Can I use this device outdoors?

No, this device is designed for indoor use only. Do not expose it to rain, moisture or temperatures outside the 5-35°C range.

How to switch between CD, DVD and BT/USB inputs?

Use the input selector on the front panel. There are three positions: CD, BT/USB and DVD. In BT/USB mode, the device automatically switches to USB if a stick is inserted.

Is there a headphone output?

Yes, the device has a 3.5 mm headphone jack on the front panel. Plug in your headphones and adjust the volume with the master control.

What to do if the device does not turn on?

Check that the power cord is properly plugged in and that the mains socket works. Check the fuse and replace it if necessary. If the problem persists, consult a specialized technician.

USER MANUAL TA60 Fenton

MANUEL D'INSTRUCTIONS

INSTRUKCJA OBSŁUGI

Congratulations to the purchase of this Fenton product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit. This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on.
• Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
  Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ / 41^ and 35^ / 95^ .

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Fenton cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

REPLACING THE FUSE

If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing.

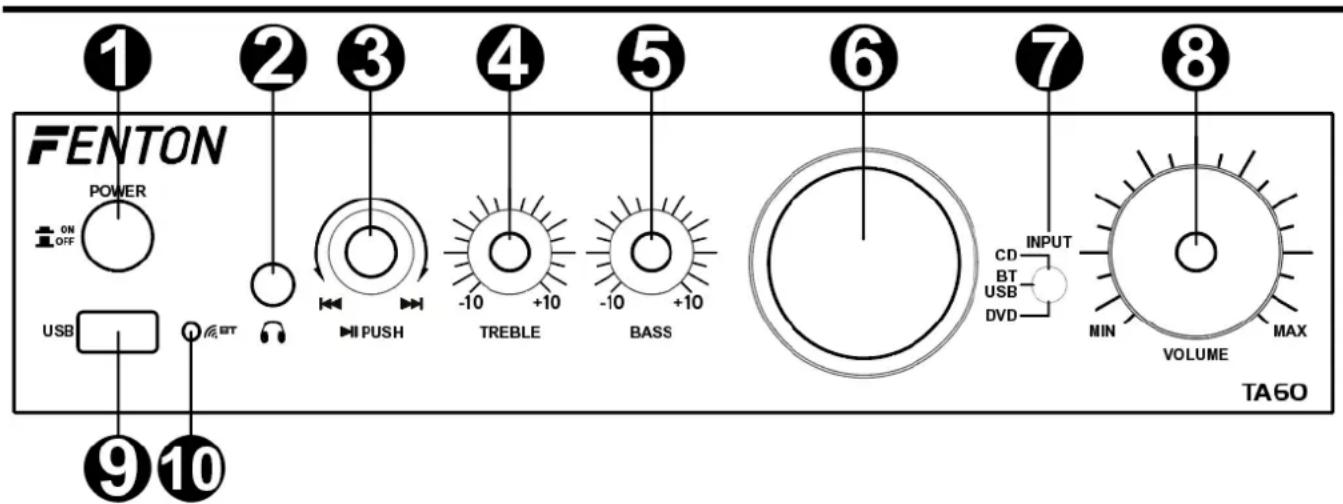

FRONT PANEL

1. POWER SWITCH: Turn the device ON or OFF.
2. HEADPHONES JACK: 3.5mm input jack for connecting headphones.
3. MP3 CONTROLS: Press this button to start/resume or pause play. Turn left to select the previous track, turn right to select the next track.
4. TREBLE CONTROL: Adjust the high frequencies of the corresponding channel.
5. BASS CONTROL: Adjust the low frequencies of the corresponding channel.
6. VU-METER: Displays the level of output.
7. INPUT SELECTOR: There are 3 different input positions: CD, BT/USB and DVD. In BT/USB mode: the unit will automatically go in USB mode when a USB stick is inserted. When no USB stick is inserted (or when withdrawing the USB stick from the device) the unit will scan for BT devices automatically.
8. MASTER VOL: This knob controls the master volume.
9. USB PORT: You can play media files from a USB stick by inserting the USB stick in this slot.
10. BT LED LIGHT: When BT mode is enabled, this light will flash. Make sure that no USB stick is inserted.

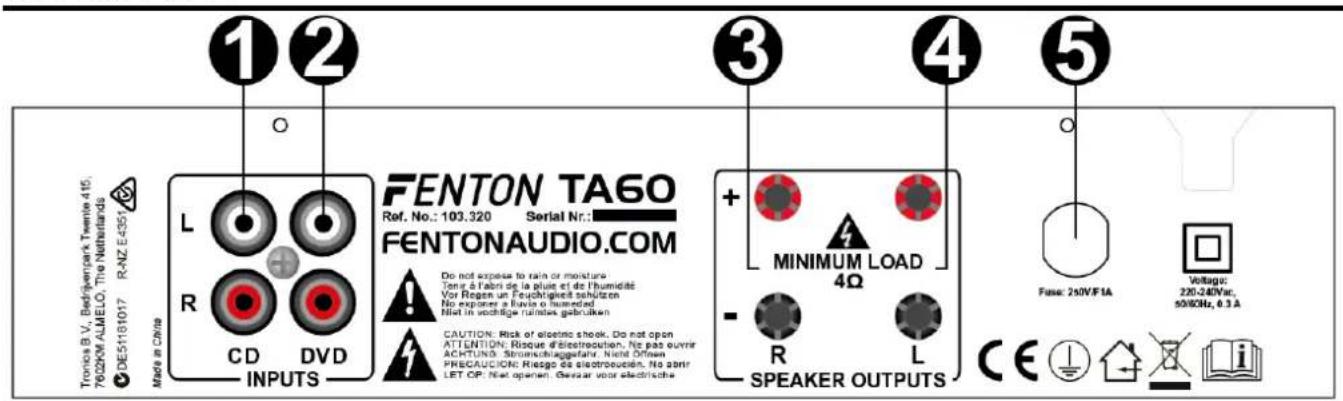

REAR PANEL

1. RCA INPUTS CD: RCA jack inputs for CD input channel.
2. RCA INPUTS DVD: RCA jack inputs for DVD input channel.
3. SPEAKER OUTPUT RIGHT: These terminals allow for connecting right speakers.
4. SPEAKER OUTPUT LEFT: These terminals allow for connecting left speakers.
5. FUSE: For instructions on how to change the fuse, see "REPLACING THE FUSE".

CONNECTING WITH BT

1. Activate the BT-function on your device (Mobile phone, tablet etc.) from which you want to play the music. See the operating instructions for that device.
2. Enter "BT/USB" mode to activate BT-function. Make sure that no USB stick is inserted.
3. Select "FENTON" on your BT-device and make the BT-connection

If password is required, you can enter "0000".

Attention: The BT distance is approx. 10 meter without any barrier.

REEMPLACEMENT DU FUSIBLE

Input connections : RCA, USB

Output connections : 3.5 mm jack

Output power @ 4 Ohm : 25W

Output power @ 8 Ohm : 35W

Dimensions (per speaker) : 270 x 280 x 140mm

Weight (kg) : 4,00

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

Low Voltage (LVD) 2014/35/EU
Electromagnetic Compatibility (EMC) 2014/30/EU
Radio Equipment Directive (RED) 2014/53/EU
- Restriction of Hazardous Substances (RoHS) 2011/65/EU

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2019 by Tronios The Netherlands
