Product type	Stereo audio receiver
Brand	Fenton
Model	AV360BT
Dimensions (approx.)	250 x 200 x 80 mm
Weight (approx.)	2.5 kg
Power supply	220-240 V AC / 50 Hz (mains cord) or 12 V DC (adapter)
Power consumption	Not specified, estimated 50 W
Main functions	USB / SD playback, Bluetooth, FM radio, RCA audio input, speaker output (L/R), remote control
Care and cleaning	Use a dry, soft cloth. Do not use chemical products.
Safety	Do not open the casing. Avoid moisture and heat sources. Disconnect during thunderstorms.
Spare parts and repairability	Use only original parts. Repairs by qualified technician only.
General information	Fenton AV360BT audio receiver with Bluetooth, USB/SD and FM radio. Manual available in several languages.

Frequently Asked Questions - AV360BT Fenton

How do I connect my phone via Bluetooth?

Enable Bluetooth on your phone. On the receiver, press MODE to select BT. Look for AV-360 in the device list and press to connect. If a code is requested, enter 0000.

What do I do if the remote control doesn't work?

Check the batteries of the remote control. Make sure there is no obstacle between the remote and the receiver. Replace the batteries if necessary.

How do I tune an FM station?

Press MODE to select FM radio. Use the CH+ and CH- buttons to search for stations. For better reception, extend the provided FM antenna.

Can I use an external 12V power supply?

Yes, the receiver has a 12VDC input at the back. Use a 12V mains adapter with the correct polarity (center positive).

What do I do if the device does not turn on?

Check that the power cord is properly plugged in and that the mains socket works. Try the 12V input if available. If nothing works, contact a technician.

How do I clean the device?

Unplug the device. Use a soft, dry cloth to wipe the surface. Never use chemical products or liquids.

Can I connect 4 ohm speakers?

Yes, the receiver supports 4 ohm impedance speakers. Make sure to connect the wires correctly to the L+/- and R+/- terminals.

Is the Bluetooth range limited?

Yes, the Bluetooth range is approximately 10 meters without obstacles. Walls and other obstacles may reduce the range.

How do I switch to USB mode?

Insert a USB flash drive into the front port. Press MODE until USB is displayed. Playback starts automatically.

What to do in case of condensation?

If the device has been exposed to a temperature change, do not turn it on immediately. Leave it off at room temperature until the condensation disappears.

USER MANUAL AV360BT Fenton

FENTON POWER -12 BASS -12 TREBLE VOLUME AV360BT INPUT BT FM USB/SD SD/MWC USB

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

BEDIENUNGSANLEITUNG

MANUEL D'INSTRUCTIONS

INSTRUKCJA OBSŁUGI

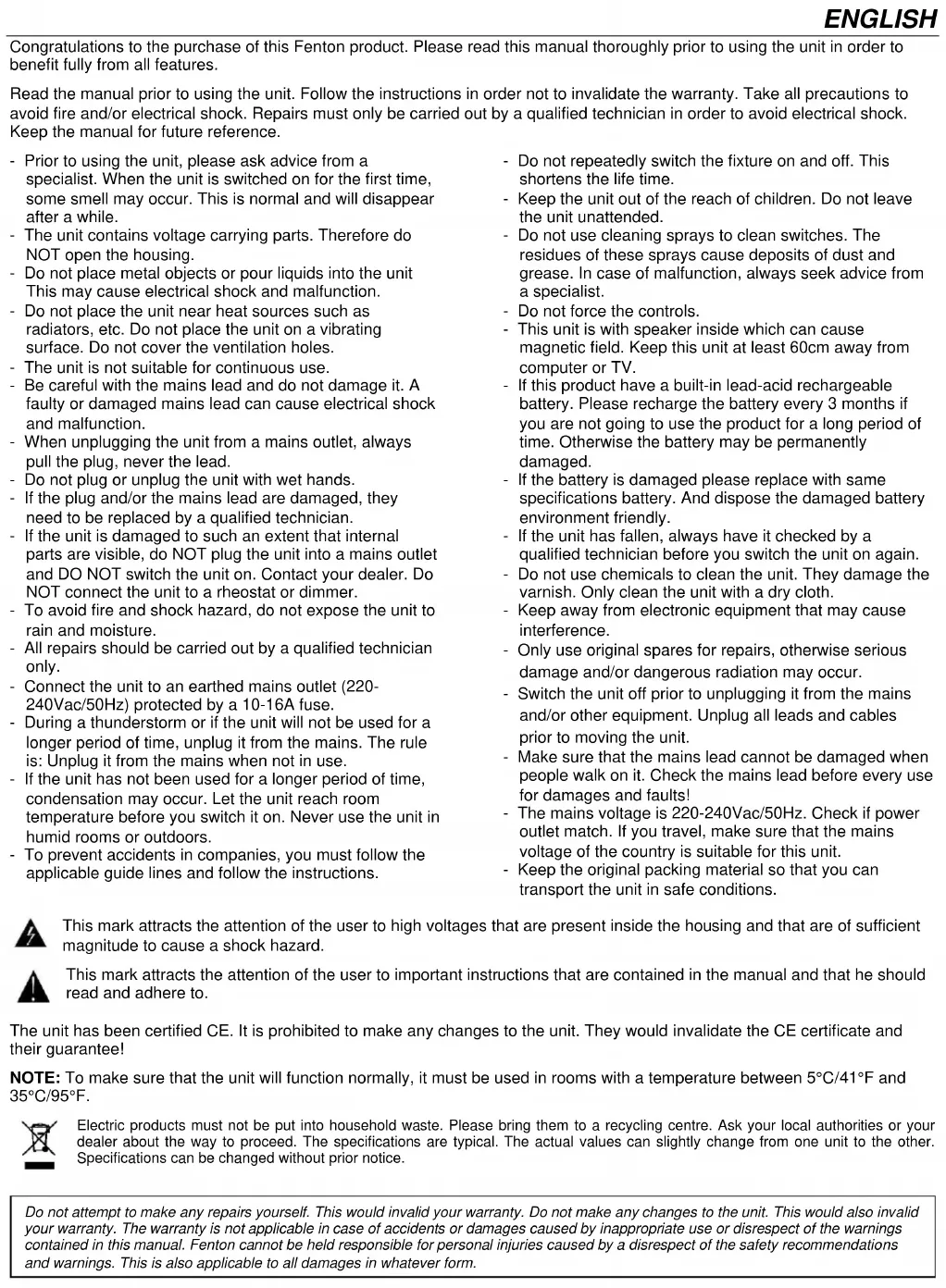

Congratulations to the purchase of this Fenton product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Fenton cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

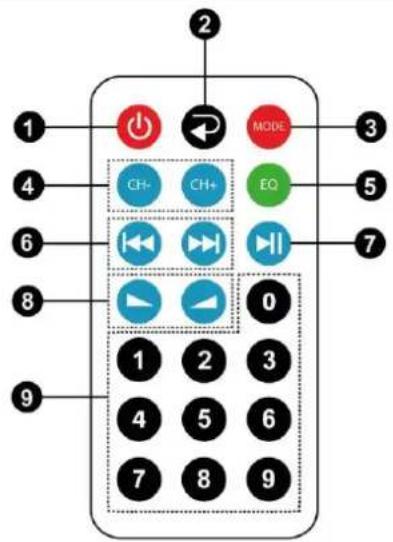

REMOTE CONTROL FUNCTION

1. POWER ON/OFF

Turn the device ON or OFF.

1. ENTER

Press to confirm.

1. MODE

Press to choose between USB/SD and BT.

1. PREVIOUS/NEXT CHANNEL

Press to select previous or next channel.

1. EQ

Press to choose EQ preset.

1. PREVIOUS/NEXT TRACK

Skip to previous or next track by pressing these buttons.

1. VOLUME UP/DOWN

Press to adjust the volume to the desired level.

1. PLAY/PAUSE

Start/resume or pause play by pressing this button.

1. NUMPAD

Use for choosing tracks directly.

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 MODE CH+ CH+ EQ 0

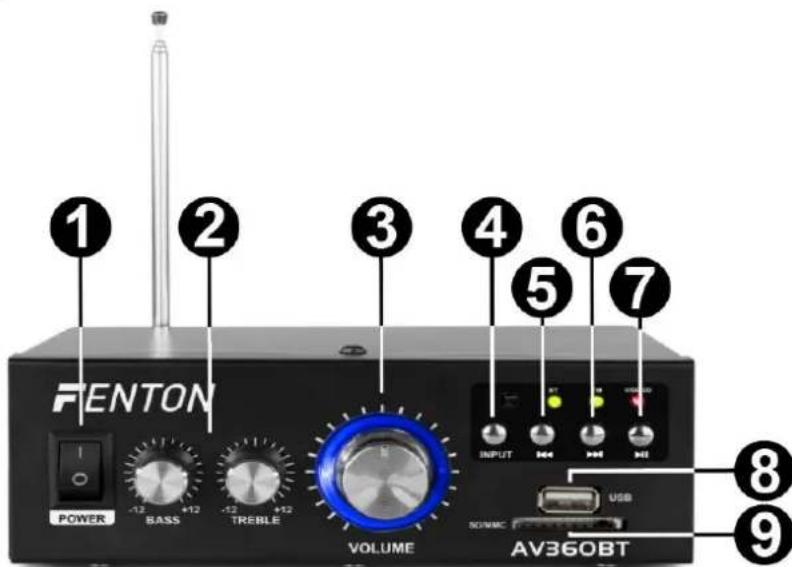

FRONT PANEL

FENTON POWER -13 +12 TREBLE VOLUME AV360BT INPUT 84 85 86 SOVAC USB ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

1. POWER BUTTON

Turn the device on or off.

1. TONE CONTROL

Using the bass and treble knobs, the overall system frequency response can be adjusted.

1. VOLUME CONTROL

Turn to adjust the volume to the desired level.

1. INPUT

Press to switch input channel.

1. PREVIOUS TRACK

Skip to previous track.

1. NEXT TRACK

Skip to next track.

1. PLAY/PAUSE

Start or pause play by pressing this button.

1. USB PORT

USB entry port.

1. SD CARD SLOT

Insert an SD card in this slot.

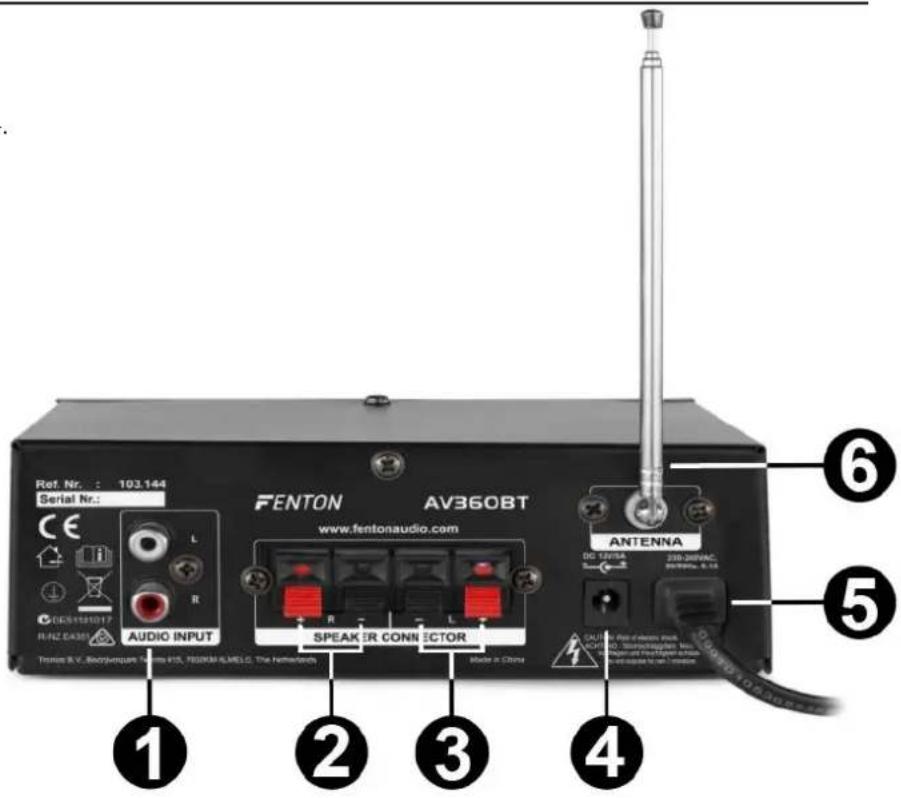

REAR PANEL

1. AUDIO SIGNAL INPUT RCA audio input.
2. SPEAKER OUTPUT R Right speaker output terminals + and -.
3. SPEAKER OUTPUT L Left speaker output terminals + and -.
4. 12VDC INPUT Adapter input
5. 220VAC POWER CORD Fixed power cord.
6. FM ANTENNA Antenna for receiving FM signal.

Ref. Nr.: 193.144 Serial Nr.: FENTON AV360BT www.fentonaudio.com AUDIO INPUT SPEAKER CONNECTOR Antenna DO NOT BEAT 200-800VAC R/NZ E435 Troms R.V. Bodyexpore Toms EDS, 7800M/4MELD, The Netherlands ① ② ③ ④ ⑤ ⑥

CONNECTING WITH BT

1. Activate the BT-function on your device (mobile phone, tablet etc.) from which you want to play the music. See the operating instructions for that device.
2. Activate BT-function.
3. Select "AV-360" on your BT-device and make the BT-connection.

If password is required, you can enter "0000".

Attention: The BT distance is approx. 10 meter without any barrier.

FENTON POWER -12 BASS +12 TREBLE VOLUME VOLUME AV360BT INPUT INPUT 5 SD/MMC USB 8 9 1 2 3 4 5 6 7

1. AAN/UIT SCHAKELAAR

FENTON POWER -12 +12 -12 +12 TREBLE VOLUME VOLUME AV360BT INPUT 45 100 SD/MIC USB 8 9

Input connections : RCA

Speaker connections : Speaker screw terminal

Output Power : 40W

Impedance : 8Ohm

Input level : 250mV, 47KOhm

Power Supply : 100-240VAC 50/60Hz (12V Adapter)

Dimensions (L x W x H) : 145 x 160 x 55mm

Weight (kg) : 1,00

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

Specifications and design are subject to change without prior notice.
