Product type	Vehicle audio/video receiver
Brand / Model	Kenwood KDC-BT362U
Dimensions (W × H × D)	182 mm × 53 mm × 159 mm
Weight	1.3 kg
Power supply	14.4 V DC (10.5 – 16 V allowed)
Maximum current consumption	10 A
Maximum output power	50 W × 4
RMS power (full bandwidth)	22 W × 4 (≤ 1% THD)
Speaker impedance	4 Ω – 8 Ω
FM radio tuner	FM: 87.5 – 108 MHz; AM: 530 – 1710 kHz
CD player	CD‑R/RW, MP3, WMA, AAC
USB connection	USB 1.1/2.0, 5 V / 1 A max, FAT12/16/32, MP3/WMA/AAC/WAV
AUX input	Mini‑jack 3.5 mm, 1000 mV max, 30 kΩ
Bluetooth	Version 2.1+EDR / 3.0; profiles HFP, A2DP, AVRCP, PBAP, SPP

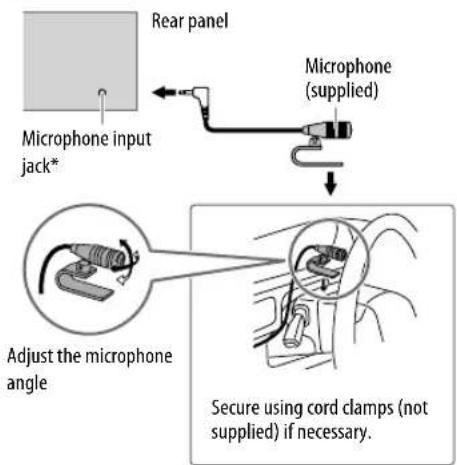

Microphone	Included, microphone input jack on rear
Remote control	RC‑406 included
Additional functions	Pandora, iHeartRadio, SiriusXM (optional tuner), voice recognition, 3‑band equalizer
Audio settings	Bass / Mid / Treble, preset EQ, low‑pass / high‑pass filter
Display	LCD display with customizable color backlighting (31 levels)
Faceplate	Detachable
Maintenance	Clean with a soft dry cloth; connectors with a cotton swab
Safety	Auto power off after 20 min in standby, short circuit protection, 10 A fuse

Frequently Asked Questions - KDCBT362U KENWOOD

How to reset the device?

To reset the device, use a pen or similar object to press the reset button located on the faceplate (see page 3 of the manual). You can also press and hold the SRC button to turn off the device, then turn it back on.

How to connect my phone via Bluetooth?

Enable Bluetooth on your phone. On the car radio, select BT MODE in the FUNCTION menu. Search for the model name (KDC-BT362U) on your phone and pair. If necessary, enter the PIN 0000.

Why is the radio reception poor?

Check that the antenna is properly connected and fully extended. You can also activate MONO SET (to improve FM reception) or AF SET for automatic search of a better frequency. If the problem persists, try moving away from sources of interference.

How to play music from a USB stick?

Connect your USB stick to the USB port (front) or via the CA‑U1EX cable (optional). Press SRC repeatedly until USB is selected. Playback starts automatically.

What to do if the screen displays 'PROTECTING'?

This indicates a probable short circuit on the speaker wires. Turn off the device, check the insulation of the speaker cables (no bare wire should touch ground). Correct the problem and turn it back on.

How to adjust the equalizer?

Press the volume button to enter FUNCTION, turn to select AUDIO CONTROL. You can adjust BASS LEVEL, MID LEVEL, TRE LEVEL or choose a PRESET EQ (Rock, Pop, Jazz, etc.).

Can I use Pandora wirelessly?

Yes, if your smartphone is connected via Bluetooth. Open the Pandora app on your phone, then select PANDORA as the source on the car stereo (make sure PANDORA SRC is set to ON in the initial settings).

The faceplate does not detach easily, what to do?

Use the detach button (usually on the top right). Gently pull the faceplate toward you. If it remains stuck, check that no object obstructs the slides. Do not force to avoid breaking the clips.

How to clean the device?

Use a soft, dry cloth (preferably silicone) to wipe the faceplate. For the connectors on the back of the faceplate, use a dry cotton swab. Never use solvents, alcohol, or abrasive products.

Where to find firmware updates?

Visit the official Kenwood website: www.kenwood.com/cs/ce/. Download the latest update for model KDC‑BT362U. Follow the instructions in the manual (section F/W UPDATE) to install the file via USB.

USER MANUAL KDCBT362U KENWOOD

Take the time to read through this instruction manual.

Familiarity with installation and operation procedures will help you obtain the best performance from your new CD-receiver.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below.

Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product.

Model KDC-X399/ KDC-BT362U/ KDC-MP362BT/ KMR-D362BT

Serial number

US Residents Only

Register Online

Register your Kenwood product at www.Kenwoodusa.com

B5A-0142-10 (KN)© 2014

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety.

JVC KENWOOD Corporation

2967-3, ISHIKAWA-MACHI,

THIS PRODUCT COMPLIES WITH DHHS RULES 21CFR SUBCHAPTER J IN EFFECT AT DATE OF MANUFACTURE.

Location: Top Plate

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

FCC NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material—special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate

IC (Industry Canada) Notice

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.

The term "IC:" before the certification/registration number only signifies that the Industry Canada technical specification were met.

Note de IC (Industrie Canada)

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person's body (excluding extremities: hands, wrists, feet and ankles).

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

ATTENTION

(except for KDC-MP362BT)

9

iHeartRadio®

(except for)

KDC-MP362BT

10

SiriusXM® Radio

(for |XMR-D362BT

11

BLUETOOTH® 13

AUX

19

AUDIO SETTINGS 19

DISPLAY SETTINGS 21
MORE INFORMATION 21

TROUBLESHOOTING

22

SPECIFICATIONS 25

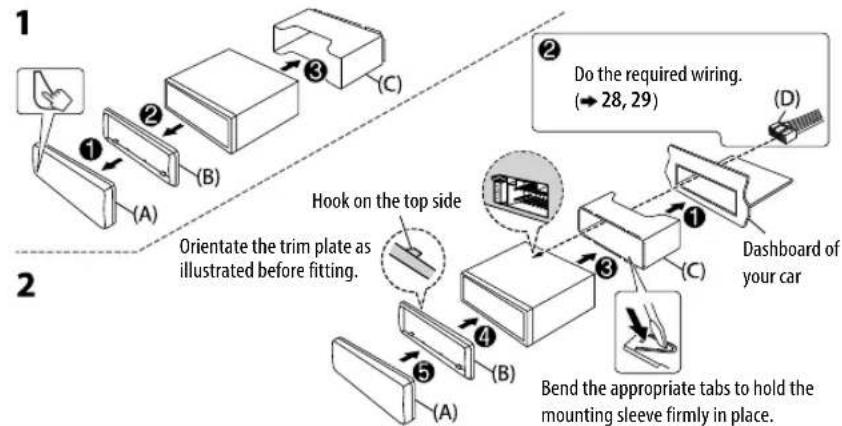

INSTALLATION /

CONNECTION

27

How to read this manual

• Operations are explained mainly using buttons on the faceplate.
  • [XX] indicates the selected items.
• (→XX) indicates references are available on the stated page.

▲ Warning

Do not operate any function that takes your attention away from safe driving.

Caution

Volume setting:

- Adjust the volume so that you can hear sounds outside the car to prevent accidents.

- Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

• Avoid using the external device if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short circuit.
• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

Remote control (RC-406):

• Do not leave the remote control in hot places such as on the dashboard.
• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type.
• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Keep the battery out of reach of children and in its original packaging when not in used. Dispose of used batteries promptly. If swallowed, contact a physician immediately.

Maintenance

Cleaning the unit: Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Cleaning the connector: Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector.

Handling discs:

• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.
• Do not use any accessories for the disc.
• Clean from the center of the disc and move outward.
• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.
• When removing discs from this unit, pull them out horizontally.
• Remove burrs from the center hole and disc edge before inserting a disc.

Connector (on the reverse side of the faceplate)

BASICS

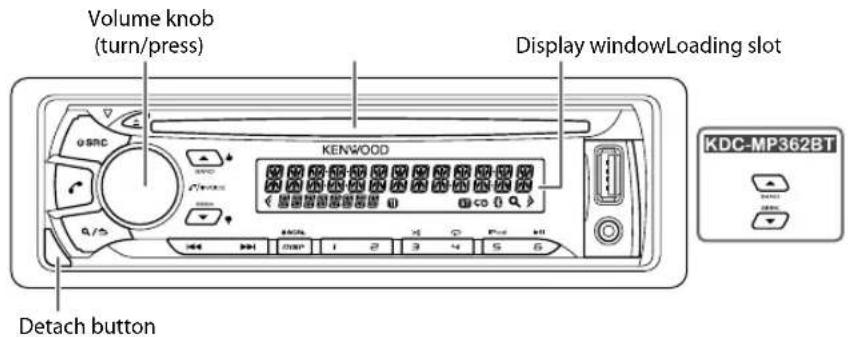

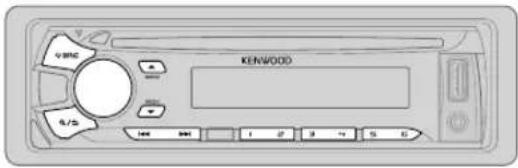

Faceplate

How to resetAttach Detach

Your preset adjustments will also be erased.

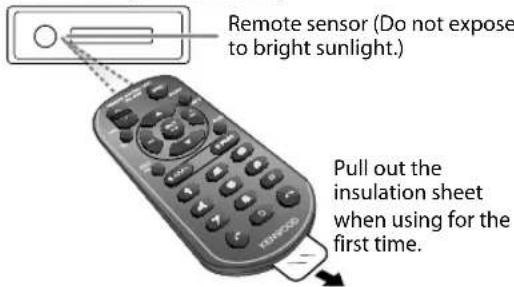

Remote control (RC-406) (supplied for KDC-X399/KDC-BT362U/KDC-MP362BT)

Remote control functions are not available for KMR-D362BT.

How to replace the battery

To On the faceplate On the remote control

Turn on the power	Press ⏻ SRC.• Press and hold to turn off the power.*1	Press and hold SRC to turn off the power.(Pressing SRC does not turn on the power.)
Adjust the volume Turn the volume knob. Press		VOL ∧ or VOL √
		Press ATT during playback to attenuate the sound.• Press again to cancel.
Select a source	Press ⏻ SRC repeatedly.	Press SRC repeatedly.
Change the display information*2	Press DISP SRELLY.• Press and hold to scroll the current display information.	(not available)

*1 For KThe power will automatically turn off after 20 minutes when in standby mode (Auto Power Off).

*2 For K You can also select to turn off the display information by pressing repeatedly. DISP SCRL

GETTING STARTED

1 Cancel the demonstration (except for KMR-D362BT)

When you turn on the power (or after you reset the unit), the display shows: "CANCEL DEMO" → "PRESS" → "VOLUME KNOB"

1 Press the volume knob.
[YES] is selected for the initial setup.
2 Press the volume knob again.
"DEMO OFF" appears.

2 Set the clock

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [ CLOCK], then press the knob.
3 Turn the volume knob to select [ CLOCK ADJUST], then press the knob.
4 Turn the volume knob to make the settings, then press the knob.
Day→Hour→Minute
5 Turn the volume knob to select [ CLOCK FORMAT], then press the knob.
6 Turn the volume knob to select [12H] or [24H], then press the knob.
7 Press and hold to exit.

To return to the previous setting item, press R/5

3 Set the initial settings

1 Press repeatedly to enter STANDBY.
2 Press the volume knob to enter [FUNCTION].
3 Turn the volume knob to make a selection (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected or activated.
5 Press and hold to exit.

To return to the previous setting item, press Q/S

Default: XX

AUDIO CONTROL
SWITCHPREOUT	(For XDC-MP362BT REAR/SUBWOOFER: Selects whether rear speakers or a subwoofer are connected to the line out terminals on the rear (through an external amplifier).
SP SELECT OFF	____/ 5/4/6 × 9/6/ OEM: Selects according to the speaker size (5 inches or 4 inches, 6×9 inches or 6 inches) or OEM speakers for optimum performance.
DISPLAY
EASY MENU	ON Both display and button illumination change to white color when entering [FUNCTION]. ;OFF: Both display and button illumination remain as [COLOR SELECT] color. (→21)
TUNER SETTING
PRESET TYPE	NORMAL: Memorizes one station for each preset button in each band (FM1/FM2/FM3/AM). ;MIX: Memorizes one station or SiriusXM channel for each preset button, regardless of the selected band or SiriusXM channel.

GETTING STARTED

SYSTEM
KEY BEEP	ON: Activates the keypress tone. ; OFF: Deactivates.
SOURCE SELECT
PANDORA SRC	(Except for KDC-MP362BTON: Enables PANDORA in source selection. ;OFF: Disables. (→ 9)
IHEART SRC	(Except for KDC-MP362BTON: Enables IHEARTRADIO in source selection. ;OFF: Disables. (→ 10)
BUILT-IN AUX ON	_: Enables AUX in source selection. ;OFF: Disables.(→ 19)
CD READ 1	_: Automatically distinguishes between audio file disc and music CD. ;2: Forces to play as a music CD. No sound can be heard if an audio file disc is played.
F/W UPDATE
UPDATE SYSTEM / UPDATE BT
F/W UP xx.xx	YES: Starts upgrading the firmware. ; NO: Cancels(upgrading is not activated).For details on how to update the firmware, see:www.kenwood.com/cs/ce/
CLOCK
CLOCK DISPLAY	ON: The clock time is shown on the display even when the unit is turned off. ; OFF: Cancels.

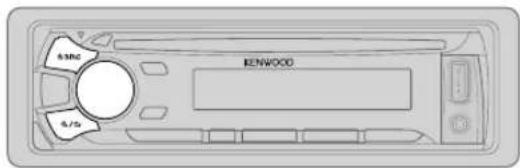

RADIO

Search for a station

1 Press repeatedly to select TUNER.

2 Press rapidly (or press / on RC-400) to select FM1/FM2/FM3/AM.

3 Press |◀◀ / ▶▶| (or press |◀◀ / ▶▶| (+) on RC-406) to search for a station.

- To change the searching method for |◀◀/▶▶: Press ▼ SEEK repeatedly. AUTO1 : Automatically search for a station.

AUTO2 : Search for a preset station.

MANUAL : Manually search for a station.

• To store a station: Press and hold one of the number buttons (1 to 6).

- To select a stored station: Press one of the number buttons (1 to 6) (or press one of the number buttons (1 to 6) on RC-406).

Direct Access Tuning (using RC-406) (except for KMR-D362BT)

1 Press DIRECT to enter Direct Access Tuning.

2 Press the number buttons to enter a frequency.

3 Press ENTEARD for a station.

• To cancel, press ↗ or DIRECT.

- If no operation is done for 10 seconds after step 2, Direct Access Tuning is automatically canceled.

RADIO

Other settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold to exit.
To return to the previous setting item, press 9/5

Default: XX

TUNER SETTING

AUTO MEMORY	YES: Automatically starts memorizing 6 stations with good reception. ;NO: Cancels. Selectable only if [ NORMAL] is selected for [ PRESET TYPE]. (→4)
MONO SET ON	: Improves the FM reception, but the stereo effect may be lost. ;OFF: Cancels.
NEWS SET	(For IKDC-MP362BTON: The unit will temporarily switch to News Programme if available. ;OFF: Cancels.
REGIONAL	(For IKDC-MP362BTON: Switches to another station only in the specific region using the “AF” control. ;OFF: Cancels.
AF SET	(For IKDC-MP362BTON: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ;OFF: Cancels.
TI ON	: Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up). ;OFF: Cancels.
PTY SEARCH	Selects the available Program Type (see the following), then, press |◀◀ / ▶▶▶ to start.
CLOCK
TIME SYNC	ON: Synchronizes the unit’s time to the Radio Data System or Radio Broadcast Data System station time. ;OFF: Cancels.

• [MONO SET]/ [NEWS SET]/ [REGIONAL]/ [AF SET]/ [TI]/ [PTY SEARCH] is selectable only when the band is FM1/ FM2/ FM3.
  • Available Program Type:
  (For KDC-X399/ KDC-BT362U KMR-D362BT
  SPEECH: NEWS, INFORM (information), SPORTS, TALK, LANGUAGE, REL TALK (religious talk), PERSNLTY (personality), PUBLIC, COLLEGE, HABL ESP (spanish talk), WEATHER
  MUSIC : ROCK, CLS ROCK (classic rock), ADLT HIT (adult hits), SOFT RCK (softrock), TOP 40, COUNTRY, OLDIES, SOFT, NOSTALGA (nostalgia), JAZZ CLASSICL (classical), R & B (rhythm and blues), SOFT R&B (soft rhythm and blues), REL MUSC (religious music), MUSC ESP (spanish music), HIP HOP
  (For KDC-MP362BT
  SPEECH: NEWS, AFFAIRS, INFO (information), SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, WEATHER FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, DOCUMENT
  MUSIC : POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music)
  The unit will search for the Program Type categorized under [SPEECH] or [MUSIC] if selected.
• If the volume is adjusted during reception of traffic information or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information or news bulletin is turned on.

The source changes automatically and playback starts.

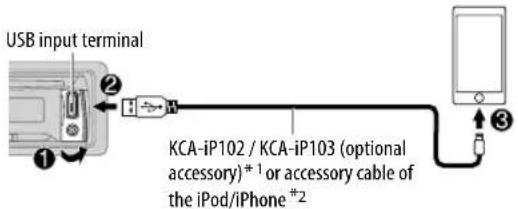

USB input terminal

CA-U1EX (max.: 500 mA) (optional accessory)

iPod/iPhone

ANDROID\*3

Micro USB 2.0 cable ^4 (commercially available)

*1 KCA-iP102 : 30-pin type, KCA-iP103 : Lightning type
*2 Do not leave the cable inside the car when not using.

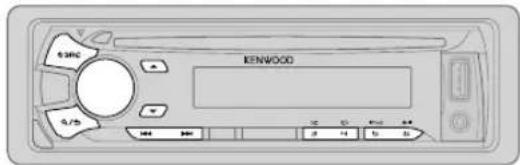

To On the faceplate On the remote control
Playback / pause Press .	6▶II	Press ENT▶II.
Reverse / Fast-forward*4	Press and hold ◀◀/ ▶▶. Press and hold ◀◀/ . ▶▶(+)
Select a track/file	Press ◀◀/ ▶▶. Press ◀◀/	▶▶(+) .
Select a folder*5	Press ▲/ ▼.	Press #FM+ / *AM-
Repeat play*6	Press 4repeatedly.TRACK REPEAT/ REPEAT OFF : Audio CDFILE REPEAT/ FOLDER REPEAT / REPEAT OFF: MP3/WMA/AAC/WAV file, iPod or ANDROIDFILE REPEAT/ REPEAT OFF : KME Light/ KMC file *7
Random play*6	Press 3repeatedly.DISC RANDOM/ RANDOM OFF : Audio CDFOLDER RANDOM/ RANDOM OFF : MP3/WMA/AAC/WAV file, KME Light/ KMC file, iPod or ANDROID
	Press and hold 3× to select ALL RANDOM,*8
Select control mode	While in iPod source, press 5 iPod repeatedly.MODE ON : Control from the iPod *9MODE OFF: Control from the unitWhile in ANDROID source, (→ 8, [ANDROID SETUP])
Select music drive (→ 8, [MUSIC DRIVE])	Press 5 iPod repeatedly.The stored songs in the following start playback.Selected internal or external memory of a smartphone (Mass Storage Class).Selected drive of a multiple drives device.

ENGLISH

*8 When connecting an Android device, "Press [VIEW] to install KENWOOD MUSIC PLAY APP" is shown. Follow the instructions to install the application. You can also install the latest version of KENWOOD MUSIC PLAY application on your Android device before connecting. (→ 22)
*4 For ANDROID: Applicable only when [BROWSE MODE] is selected. (→ ANDROID SETUP)
*5 For CD: Only for MP3/WMA/AAC files. This does not work for iPod/ ANDROID.
*6 For iPod/ ANDROID: Applicable only when [MODE OFF]/ [BROWSE MODE] is selected.
KME Light : KENWOOD Music Editor Light, KMC : KENWOOD Music Control (→ 21)
*8 For CD: Only for MP3/WMA/AAC files.
* You can still play/pause, file skip, fast-forward or reverse files from the unit.

Select a file from a folder/list

1 Press Q/5

2 Turn the volume knob to select a folder/list, then press the knob.

3 Turn the volume knob to select a file, then press the knob.

Quick Search

If you have many files, you can search through them quickly.

For USB (for KME Light/ KMC files):

Press ◀◀◀ / ▶▶▶ to search at a preset skip search ratio. (→ [SKIP SEARCH]) Press and hold ◀◀◀ / ▶▶▶ to search at a 10% ratio.

- Not applicable for CD and MP3/WMA/AAC/WAV files.

For iPod:

You can search for a file according to the first character.

① Turn the volume knob quickly to enter character search.

2 Turn the volume knob to select the character.

To search for a character other than A to Z and 0 to 9, enter only “ *”.

3 Press |◀◀ / ▶▶▶ to move to the entry position.

- You can enter up to 3 characters.

4 Press the volume knob to start searching.

• To return to the root folder/ first file/ top menu, press 5 iPod.
  • To return to the previous setting item, press 9/5.
  • To cancel, press and hold 9/5.
• For iPod, applicable only when [MODE OFF] is selected. (→ 7)
• For ANDROID, applicable only when [BROWSE MODE] is selected.
  (→ [ANDROID SETUP])

Direct Music Search (using RC-406) (except for KMR-D362BT)

1 Press DIRECT.
2 Press the number buttons to enter a track/file number.
3 Press GNEWRth for music.
• To cancel, press for DIRECT.
• Not available if Random Play is selected.
- Not applicable for iPod, ANDROID, KME Light/ KMC file.

Listen to TuneIn Radio/ TuneIn Radio Pro/ Aupeo

While listening to Tuneln Radio, Tuneln Radio Pro or Aupeo, connect the iPod/iPhone to the USB input terminal of the unit.

• The unit will output the sound from these applications.

Other settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold to exit.

To return to the previous setting item, press R/5

Default: XX

ANDROID SETUP

BROWSE MODE: Control from the unit (using KENWOOD MUSIC PLAY application). ; HAND MODE: Control other media player applications from the Android device (without using KENWOOD MUSIC PLAY application). However, you can still play/pause and file skip from the unit.

USB

MUSIC DRIVE DRIVE CHANGE : The next drive ([DRIVE 1] to [DRIVE 5]) is selected automatically and playback starts. Repeat steps 1 to 3 to select the following drives.

SKIP SEARCH 0.5% / 1%/5% /10%: While listening to iPod, ANDROID or KME Light/ KMC file, selects the skip search ratio over the total files.

Pandora® (except for KDC-MP362BT)

Preparation:

Install the latest version of the Pandora application on your device (iPhone/ iPod touch), then create an account and log in to Pandora.

- Select ON] for [PANDORA SRC]. (→ 5)

Start listening

1 Open the Pandora application on your device.
2 Connect your device to the USB input terminal.

The source changes to PANDORA and broadcast starts.

To On the faceplate On the remote control
Playback / pause	Press 6▶II. Press	ENT▶II.
Skip a track	Press ▶▶I.	Press ▶▶I (+).
Thumbs up or thumbs down*3	Press ▲▲ ▼?	Press #FM+ / *AM-

*1 KCA-iP102:30-pin type, KCA-iP103:Lightning type

*2 Do not leave the cable inside the car when not using.

*3 If thumbs down is selected, the current track is skipped.

Create and save a new station

1 Press and hold the volume knob.
2 Turn the volume knob to select [FROM TRACK] or [FROM ARTIST], then press the knob.
A new station is created based on the current song or artist.
3 Press and hold one of the number buttons (1 to 5) to store.
To select a stored station, press one of the number buttons (1 to 5).

Search for a registered station

1 Press R/S
2 Turn the volume knob to make a selection, then press the knob. [BY DATE]: According to the registered date [A-Z]: Alphabetical order

3 Turn the volume knob to the desired station, then press the knob.

To cancel, press and hold 9/5

(or using RC-406) Press ▲/▼ to search for a station, then press ENT ▶II.

Bookmark a song or artist information

1 Press and hold ▲.
2 Turn the volume knob to make a selection, then press the knob. [THIS TRACK]: Current song information [THIS ARTIST]: Current artist information
"BOOKMARKED" appears and the information is stored to your device. The bookmark is available on your Pandora account but not on this unit.

iHeartRadio® (except for HDC-MP362BT)

Preparation:

Install the latest version of iHeart Link for KENWOOD application on your device (iPhone/ iPod touch), then create an account and log in to iHeartRadio.

- Select ON] for [IHEART SRC]. (→ 5)

Start listening

1 Open the iHeart Link application on your device.
2 Connect your device to the USB input terminal.

3 Press repeatedly to select IHEARTRADIO.

Broadcast starts automatically.

To On the faceplate On the remote control
Playback / pause	Press 6▶II. Press	ENT▶II.
Skip a track for custom station	Press ▶▶I.	Press ▶▶I (+).
Thumbs up or thumbs down*3for custom station	Press ▲◀ / ▼◀	—
Create a new/custom station Press 1.		—
Add to favorite stations for live station	Press 2.	—
Scan for live station Press 5.	—

*1 KCA-iP102 : 30-pin type, KCA-iP103 : Lightning type

*2 Do not leave the cable inside the car when not using.

*3 If thumbs down is selected, the current track is skipped.

Search for a station

1 Press Q/5
2 Turn the volume knob to select a category, then press the knob.
3 Turn the volume knob to the desired station, then press the knob.
When a city list appears, you can skip cities in alphabetical order.

To cancel, press and hold 9/5

(or using RC-406)

Press ▲/▼ to search for a station, then press ENT ▶II.

Skip cities by alphabetical order

While a city list appears during search...

1 Turn the volume knob quickly to enter character search.
2 Turn the volume knob or press |◀◀ / ▶▶| to select the character to be searched for.
3 Press ▲/▼ to move to the previous/next page.
4 Press the volume knob to start searching.

To cancel, press and hold 9/5

Delete a station

While listening to IHEARTRADIO...

1 Press the volume knob to enter [ FUNCTION].
2 Turn the volume knob to select [ SYSTEM], then press the knob.
3 Turn the volume knob to select [ STATION DEL], then press the knob.
4 Turn the volume knob to select [ LIVE] or [CUSTOM], then press the knob.
5 Turn the volume knob to select the desired station to delete, then press the knob.
6 Turn the volume knob to select [ YES], then press the knob.

7 Press and hold to exn.

To return to the previous setting item, press 9/5

SiriusXM® Radio (for KMR-D362BT)

Only SiriusXM ^® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit www.siriusxm.com.

Preparation:

1 Connect the optional SiriusXM Vehicle Tuner (commercially available).

2 Check your Radio ID for activation.

The SiriusXM Radio ID is required for activation and can be found by tuning to Channel 0 as well as on the label found on the SiriusXM Connect tuner and its' packaging. The Radio ID does not include the letters I, O, S or F.

3 Activate the subscription.

For users in U.S.A.:

Online: Go to www.siriusxm.com

Phone: Call 1-866-635-2349

For users in Canada:

Online: Go to www.siriusxm.ca/activatexm

Phone: Call 1-877-438-9677

4 Press reportedly to select SIRIUS XM to start updating.

Start listening

1 Press repeatedly to select SIRIUS XM.
2 Press rapidly to select a band.
3 Press .Q/5 "Q" lights up
4 Turn the volume knob to select a category, then press the knob. If "ALL CHANNELS" is selected, all the available channels will be shown.
5 Turn the volume knob to select a channel, then press the knob. (or)

Press |◀◀ /▶▶| to search for a channel manually.

- Pressing and holding |/| changes the channel rapidly.

If a locked channel or a mature channel is selected, a pass code input screen appears. Enter the pass code to receive the channel. (→ 12)

To change the tuning method for |◀◀ / ▶▶▶: Press ▼ SEEK.

Each time you press ▼ SEEK, the tuning method switches between "CHANNEL" (manually search for a channel) and "PRESET" (searches for a preset channel of the selected band).

SiriusXM Keymode

Press and hold ▼ochange the keymode (channel or replay).

(Default: Channel keymode)

"①" lights up when replay keymode is selected.

When channel keymode is selected...

To On the faceplate

Select a channel	Press |◀◀ / ▶▶|.
Change a channel rapidly	Press and hold |◀◀ / ▶▶|.
Store a channel of the current band	Press and hold one of the number buttons (1 to 6).
Select a stored channel of the current band	Press one of the number buttons (1 to 6).

When replay keymode is selected...

To On the faceplate

Playback / pause	Press 6▶II.
Select a track	Press |◀◀ / ▶▶I.
Rewind / Fast-forward	Press and hold |◀◀ / ▶▶I.
Go to Live Press 1.

SiriusXM® Radio

SmartFavorites and TuneStart™

User stored channels (1 to 6) of the current band are recognized as SmartFavorite channels. SiriusXM Vehicle Tuner automatically buffers the broadcast content in the background.

• SmartFavorites feature is available with SXV200 or later SiriusXM tuner models.
  When you select a SmartFavorite channel, you can rewind and replay up to 30 minutes of any of the missed news, talk, sports or music content.
• Playback starts from the beginning of the song if [TUNE START] is set to [ON] for most music channels stored as SmartFavorite.

1 Press one of the number buttons (1 to 6) to select a channel.

2 For operation ( 11, SiriusXM Keymode)

TuneScan™

You can get a short preview of the songs that you have missed on each of your SmartFavorite music channels or current tuned music channel.

Press and hold ▲ BAND to start scanning the first 6 seconds of the recorded music contents.

• To listen to the current song, press the volume knob to stop scanning. The unit continues playing the current song.
• To select the previous/next song, press ◀◀◀ / ▶▶▶.
• To cancel scanning, press and hold the volume knob. Playback returns to the channel before you enter TuneScan.

SiriusXM settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [ SIRIUS XM], then press the knob.
3 Turn the volume knob to make a selection (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item.
5 Press and hold exit.

To return to the previous setting item, press 9/5

CHANNEL LOCK	To unlock settings:1 Turn the volume knob to select a number.2 Press I◄◄/►►I to move to the entry position.3 Repeat steps1 and 2 to enter the current pass code.(Initial pass code is 0000.)4 Press the volume knob to confirm.
CODE SET	1 Turn the volume knob to select a number.2 Press I◄◄/►►I to move to the entry position.3 Repeat steps1 and 2 to enter a new 4-digit pass code.4 Press the volume knob to confirm.5 Repeat steps1 to 4 to reconfirm the pass code.• Make a note of the new pass code to enter channel lock settings from next time.
LOCK SETTING MATURE CH : Selects the SiriusXM-defined lock setting. ; USER DEFINED: Selects the user-defined lock setting. ;OFF: Cancels.
CHANNEL EDIT*1	1 Turn the volume knob to select a category, then press the knob.2 Turn the volume knob to select a channel you want to lock, then press the knob.“L” appears in front of the channel number.3 Press and hold to exit
CHANNEL CLEAR*1	YES: Clears all the locked channels. ;NO: Cancels.
TUNE START*2	ON: Selected SmartFavorite channel starts playback from the beginning of the song. ;OFF: Cancels.
SIGNAL LEVEL NO SIGNAL /WEAK / GOOD/ STRONG: Shows the strength of the current received signal.
BUFFER USAGE 0%	— 100% (0): Shows the memory usage for Replay buffer.
SXM RESET YES	: Resets stored channel and lock setting to default. ;NO: Cancels.

*1 Displayed only when [USER DEFINED] is selected.
*2 Available only if the connected SiriusXM Vehical Tuner is SXV200 or later that supports SmartFavorites.

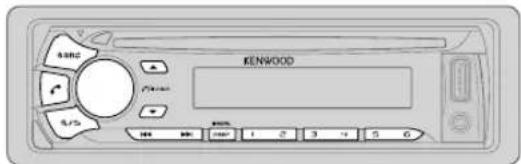

BLUETOOTH®

BLUETOOTH — Connection

Supported Bluetooth profiles

• Hands-Free Profile (HFP)
• Serial Port Profile (SPP)
• Phonebook Access Profile (PBAP)
• Advanced Audio Distribution Profile (A2DP)
• Audio/Video Remote Control Profile (AVRCP)

Supported Bluetooth codecs

• Sub Band Codec (SBC)
• Advanced Audio Coding (AAC)

Connect the microphone

* For K connected to the microphone input terminal. (→ 29)

Pair a Bluetooth device

When connecting a Bluetooth device to the unit for the first time, perform pairing between the unit and the device.

1 Press to BRD on the unit.
2 Search and select this unit model name (KDC-X3 **/ KDC-BT3**U/ KDC-MP3**BT/ KMR-D3**BT) on the Bluetooth device.

"PAIRING" → "PASS XXXXXX" → Device name → PRESS" "VOLUME KNOB" scrolls on the display.

• For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching.
  • Refer also to the manual supplied with your Bluetooth device.

3 Press the volume knob to start pairing.

"PAIRING OK" appears when pairing is completed and " ✕" will light up when the Bluetooth connection is established.

• Up to five devices can be registered (paired) in total.
• Only one Bluetooth device can be connected at any time.
  • This unit supports Secure Simple Pairing (SSP).
• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually. Refer to the instruction manual of the Bluetooth device for more information.
• Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, 17, [DEVICE DELETE].
• When you connect iPhone/ iPod touch/ Android device to the USB input terminal, pairing request (via Bluetooth) is automatically activated. Press the volume knob to pair once you have confirmed the device name.

Automatic pairing request is activated only if:

• Bluetooth function of the connected devcie is turned on.
• [AUTO PAIRING] is set to [ON]. (→ 17)
• KENWOOD MUSIC PLAY application is installed on the Android device.

BLUETOOTH®

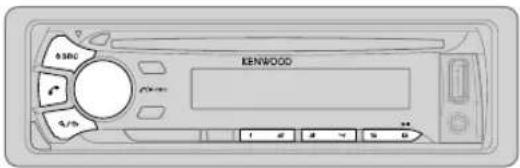

BLUETOOTH — Mobile phone

Receive a call

When there is an incoming call:

• All the buttons and display flash.
• The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. (→ 15)
  During a call:
• The buttons and display illuminate according to the settings made for [DISPLAY]. (→ 21)
• If you turn off the unit or detach the faceplate, the Bluetooth connection is disconnected.

To On the faceplate On the remote control
Answer a call	Pressor the volume knob or one of the number buttons (1 to 6).	Press
Reject a call	PressSRC.	Press
End a call	PressorSRC	Press
Adjust the phone volume [00] to [35] (Default: [15])*	Turn the volume knob during a call.This adjustment will not affect the volume of the other sources.	—
Switch between hands-free and private talk modes	Press6▶IIduring a call.Operations may vary according to the connected Bluetooth device.	—

* Not applicable for iPhone. During a call, the unit synchronizes the phone volume on the iPhone to the unit.

■ Improve the voice quality

While talking on the phone...

1 Press the volume knob to enter [ FUNCTION].
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold to exit.

To return to the previous setting item, press Q/5

Default: XX

MIC GAIN -10	— +10 (-4): The sensitivity of the microphone increases as the number increased.
NR LEVEL -5	— +5 (0): Adjust the noise reduction level until the least noise is being heard during a phone conversation.
ECHO CANCEL -5	— +5 (0): Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation.

BLUETOOTH®

Make the settings for receiving a call

1 Press to enter Bluetooth mode.
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Repeat step 2 until the desired Item is selected or activated.
4 Press and hold to exit.
To return to the previous setting item, press Q/5.

Default: XX

SETTINGS

AUTO ANSWER	1 — 30 The unit answers incoming call automatically in the selected time (in seconds). ; OFF: Cancels.
BATT/SIGNAL AUTO : Shows the strength of the battery and signal when the unit detects a Bluetooth device and the Bluetooth device is connected. ;OFF: Cancels. Clock time is shown.

Make a call

You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature.

1 Press to enter Bluetooth mode.

2 Turn the volume knob to make a selection (see the following table), then press the knob.

3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.

4 Press and hold to exp.

To return to the previous setting item, press 9/5

CALL HISTORY

1 Press the volume knob to select a name or a phone number.

• "INCOMING", "OUTGOING", or "MISSED" is shown on the lower part of the display to indicate the previous call status.

• PreDISP SCRL to change the display category (NUMBER or NAME).

• "NO DATA" appears if there is no recorded call history.

2 Press the volume knob to call.

PHONE BOOK

1 Turn the volume knob quickly to enter alphabet search mode (if the phonebook contains many contacts). The first menu (ABCDEFGHIJK) appears.

To go to the other menu (LMNOPQRSTUV orWXYZ1 *), press ▲/▼.

To select the desired first letter, turn the volume knob or press ▼◀◀/▶▶, then press the knob. Select "1" to search with numbers and select " * " to search with symbols.

2 Turn the volume knob to select a name, then press the knob.

3 Turn the volume knob to select a phone number, then press the knob to call.

If the phone supports PBAP, the phonebook of the connected phone is automatically transferred to the unit when pairing.

Contacts are categorized as: HOME, OFFICE, MOBILE, OTHER, GENERAL

This unit can display only non-accent letters. (Accent letters such as "U" is shown as "U".)

BLUETOOTH®

NUMBER DIAL	1 Turn the volume knob to select a number (0 to 9) or character (*, #, +).2 Press I◄◄ / ►►to move the entry position.Repeat stepsand 2 until you finish entering the phone number.3 Press the volume knob to call.(or using RC-406)1 Press the number buttons (0 to 9) to enter the phone number.2 Press ⬇ to call.
VOICE	Speak the name of the contact you want to call or the voice command to control the phone functions.(→ Make a call using voice recognition )
BATT*	LOW/MID/FULL: Shows the strength of the battery.
SIGNAL*	NO SIGNAL/ LOW/MID/ MAX Shows the strength of the current received signal.

* Functionality depends on the type of the phone used.

Make a call using voice recognition

1 Press and hold to activate the connected phone.

2 Speak the name of the contact you want to call or the voice command to control the phone functions.

• Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.
• This unit also supports the intelligent personal assistant function of iPhone.

Delete a contact

1 Press to enter Bluetooth mode.
2 Turn the volume knob to select [ CALL HISTORY], then press the knob.
3 Turn the volume knob to select a contact.
4 Press and hold the volume knob to enter delete mode.
5 Turn the volume knob to select [ DELETE ONE] or [DELETE ALL], then press the knob. DELETE ONE: Selected name or phone number in step 3 is deleted. DELETE ALL: All names or phone numbers in [ CALL HISTORY] in step 2 is deleted.
6 Turn the volume knob to select [ YES], then press the knob.
7 Press and hold to exit.
• To return to the previous setting item, press 9/5
• Not applicable for mobile phone that supports PBAP.

Settings in memory

Store a contact in memory

You can store up to 6 contacts into the number buttons (1 to 6).

1 Press to enter Bluetooth mode.

2 Turn the volume knob to select [CALL HISTORY], [PHONE BOOK], or [NUMBER DIAL], then press the knob.

3 Turn the volume knob to select a contact or enter a phone number. If a contact is selected, press the volume knob to show the phone number.

4 Press and hold one of the number buttons (1 to 6). "STORED" appears when the contact is stored.

To erase a contact from the preset memory, select [NUMBER DIAL] in step 2 and store a blank number.

Make a call from memory

1 Press to enter Bluetooth mode.
2 Press one of the number buttons (1 to 6).
3 Press the volume knob to call.
"NO MEMORY" appears if there is no contacts stored.

BLUETOOTH®

Other settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press and hold to exit.
To return to the previous setting item, press 9/5

Default: XX

BT MODE

PHONE SELECT	Selects the phone or audio device to connect or disconnect. “*” appears in front of the device name when connected.
AUDIO SELECT	• You can only connect another Bluetooth device by disconnecting the connected Bluetooth device first. “*” disappears when disconnected.
DEVICE DELETE	1 Turn the volume knob to select a device to delete, then press the knob.2 Turn the volume knob to select [ YES] or [NO], then press the knob.
PIN CODE EDIT (0000)	Changes the PIN code (up to 6 digits).1 Turn the volume knob to select a number.2 Press I◄◄/►►I to move the entry position.Repeat stepand 2 until you finish entering the PIN code.3 Press the volume knob to confirm.
RECONNECT ON	_: The unit automatically reconnect when the last connected Bluetooth device is within range.;OFF: Cancels.
AUTO PAIRING ON	_: The unit automatically pair supported Bluetooth device (iPhone/ iPod touch/ Android device) when it is connected through USB input terminal. Depending on the operating system of the connected device, this function may not work.;OFF: Cancels.
INITIALIZE YES	: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.).;NO: Cancels.

Bluetooth test mode

You can check the connectivity of the supported profile between the Bluetooth device and the unit.

- Make sure there is no Bluetooth device paired.

1 Press and hold.
"PLEASE PAIR YOUR PHONE PIN 0000" appears.
2 Search and select this unit model name (KDC-X3**/ KDC-BT3**U/ KDC-MP3**BT/ KMR-D3**BT) on the Bluetooth device.
3 Operate the Bluetooth device to confirm pairing.

"TESTING" flashes on the display.

The connectivity result (OK or NG) appears after the test.

PAIRING: Pairing status

HF CNT: Hands-Free Profile (HFP) compatibility

AUD CNT: Advanced Audio Distribution Profile (A2DP) compatibility

PB DL: Phonebook Access profile (PBAP) compatibility

To cancel test mode, press and hold ⏻ SRC to turn off the unit.

BLUETOOTH®

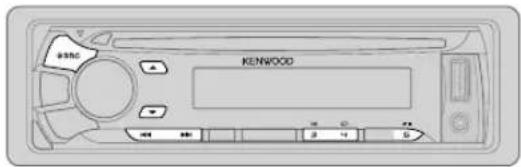

BLUETOOTH — Audio

Audio player via Bluetooth

1 Press repeatedly to select BT AUDIO (or press SRC on RC-406).
2 Operate the Bluetooth audio player to start playback.

To On the faceplate On the remote control
Playback / pause	Press 6▶II. Press	ENT▶II.
Select group or folder	Press ▲/▼.	Press #FM+ / *AM-
Reverse / Forward skip	Press |◀◀ / ▶▶|. Press |◀◀ /	▶▶| (+).
Reverse / Fast-forward	Press and hold |◀◀ / ▶▶|. Press and hold |◀◀ / ▶▶| (+).
Repeat play Press	4○ repeatedly.ALL REPEAT, FILE REPEAT, REPEAT OFF	—
Random play Press	3×repeatedly.FOLDER RANDOM, RANDOM OFF	—
	Press and hold 30$selectALL RANDOM

Operations and display indications may differ according to their availability on the connected device.

Internet radio via Bluetooth (except for KDC-MP362BT)

Listen to Pandora

Preparation:

Select [ON] for [PANDORA SRC]. (→ 5)

You can listen to Pandora on your smart phone (Android OS) through Bluetooth on this unit.

1 Open the Pandora application on your device.
2 Connect your Bluetooth audio player via Bluetooth connection. (→ 13)
3 Press repeatedly to select PANDORA.

The source switches and broadcast starts automatically.

You can operate Pandora in the same way as Pandora for iPod/iPhone. (→ 9)

Listen to iHeartRadio

Preparation:

Select [ON] for [IHEART SRC]. (→ 5)

You can listen to iHeartRadio on your smart phone (Android OS) through Bluetooth on this unit.

1 Open the iHeart Link application on your smart phone.
2 Connect your smart phone via Bluetooth connection. (→13)
3 Press repeatedly to select IHEARTRADIO.

The source switches and broadcast starts automatically.

You can operate iHeartRadio in the same way as iHeartRadio for iPod/iPhone. (→10)

AUX

Preparation:

Select [ON] for [BUILT-IN AUX]. (→ 5)

Start listening

1 Connect a portable audio player (commercially available).

3.5 mm (1/8") stereo mini plug with "L" shaped connector (commercially available)

2 Press repeatedly to select AUX.
3 Turn on the portable audio player and start playback.

Set the AUX name

While listening to a portable audio player connected to the unit...

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [ SYSTEM], then press the knob.
3 Turn the volume knob to select [ AUX NAME SET], then press the knob.
4 Turn the volume knob to make a selection, then press the knob.

AUX (default)/ DVD/ PORTABLE/ GAME/ VIDEO/ TV

5 Press and hold to exit.

To return to the previous setting item, press Q/5

AUDIO SETTINGS

While listening to any source...

1 Press the volume knob to enter [ FUNCTION].
2 Turn the volume knob to select [ AUDIO CONTROL], then press the knob.
3 Turn the volume knob to make a selection (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected or activated.
5 Press and hold to exn.

(or using RC-406)

1 Press AUD to enter [ AUDIO CONTROL].
2 Press ▲/▼ to make a selection, then press ENT▶II.

To return to the previous setting item, press 9/5.

Default: XX

SUB-W LEVEL -15 to +15 (0) Adjusts the subwoofer output level.

For KDC-X399 :

BAND1 LEVEL -8 to +8 (+6)

BAND2 LEVEL -8 to +8 (+6)

BAND3 LEVEL -8 to +8 (+7)

BAND4 LEVEL -8 to +8 (+3)

BAND5 LEVEL -8 to +8 (0)

For KDC-BT362U / KDC-MP362BT KMR-D362BT

BASS LEVEL -8 to +8 (+6)

MID LEVEL -8 to +8 (+5)

TRE LEVEL -8 to +8 (0)

The sound elements (frequency level, tone level, Q factor) are preset into each selection (BAND1 LEVEL to BAND5 LEVEL).

Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.)

AUDIO SETTINGS

EQ PRO (for KDC-BT362U KDC-MP362BT KMR-D362BT
BASS ADJUST BASS CTR FRQ 60HZ /80HZ/ 100HZ/200HZ: Selects the center frequency.
	BASS LEVEL -8 to +8 (+6): Adjusts the level.
	BASS Q FACTOR 1.00/1.25/ 1.50/2.00: Adjusts the quality factor.
	BASS EXTEND ON : Turns on the extended bass. ; OFF: Cancels.
MID ADJUST MID CTR FRQ 0.5KHZ / 1.0KHZ/1.5KHZ/2.5KHZ: Selects the center frequency.
TRE ADJUST	TRE CTR FRQ 10.0KHZ/12.5KHZ/15.0KHZ/17.5KHZ: Selects the center frequency.
	TRE LEVEL -8 to +8 (0): Adjusts the level.
PRESET EQ	DRIVE EQ/TOP40/ POWERFUL/ROCK/POPS/EASY/JAZZ/NATURAL/ USER: Selects a preset equalizer suitable to the music genre. (Select [USER] to use the customized settings.) [DRIVE EQ] is a preset equalizer that reduces noise outside the car or running noise of the tyres.
BASS BOOST	LEVEL1/ LEVEL2/ LEVEL3: Selects your preferred bass boost level. ; OFF: Cancels.
LOUDNESS	LEVEL1/ LEVEL2: Selects your preferred low and high frequencies boost to produce a well-balanced sound at a low volume level. ; OFF: Cancels.
EXTRA EQ	(ForKDC-X399) LEVEL1/ LEVEL2/ LEVEL3: Selects your preferred elevation level to enhance the sound in [PRESET EQ]. ; OFF: Cancels.

SUBWOOFER SET ON	____:Turns on the subwoofer output.;OFF: Cancels.
LPF SUBWOOFER THROUGH ____:All signals are sent to the subwoofer.;85HZ/120HZ/160HZ:Audio signals with frequencies lower than 85 Hz/120 Hz/160 Hz are sent to the subwoofer.
SUB-W PHASE REVERSE	(180°)/NORMAL(0°): Selects the phase of the subwoofer output to be in line with the speaker output for optimum performance. (Selectable only if a setting other than [THROUGH] is selected for [LPF SUBWOOFER].)
HPF	(Except forADC-MP362BTTHROUGH: All signals are sent to the speakers.;100HZ/120HZ/150HZ: Audio signals with frequencies higher than 100 Hz/120 Hz/150 Hz are sent to the speakers.
FADER R15	to F15(0): Adjusts the rear and front speaker output balance.
BALANCE L15	to R15(0): Adjusts the left and right speaker output balance.
VOLUME OFFSET	For AUX:-8 to +8(0); For other sources:-8 to 0: Presets the volume adjustment level of each source. (Before adjustment, select the source you want to adjust.)
SOUND RECNSTR(Sound reconstruction)	ON: Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression.;OFF: Cancels.

- For KG(>MP362BT SUB-W LEVEL]/[SUBWOOFER SET]/[LPF SUBWOOFER]/[SUB-W PHASE] is selectable only if [SWITCH PREOUT] is set to [SUBWOOFER]. (→ 4)

- [SUB-W LEVEL]/ [LPF SUBWOOFER]/ [SUB-W PHASE] is selectable only if [SUBWOOFER SET] is set to [ON].

DISPLAY SETTINGS

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [ DISPLAY], then press the knob.
3 Turn the volume knob to make a selection (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item.
To return to the previous setting item, press 9/5

5 Press and hold to exit.

Default: XX

COLOR SELECT VARIABLE SCAN_/ CUSTOM R/G/B / preset colors*: Selects your preferred key and display illumination color.
	You can create your own color (when [CUSTOM R/G/B] or preset colors* is selected). The color you have created can be stored in [CUSTOM R/G/B].1 Press and hold the volume knob to enter the detailed color adjustment.2 Press I◄◄ / ►►I to select the color (R/ G/ B) to adjust.3 Turn the volume knob to adjust the level ( 0 — 9), then press the knob.
DIMMER ON	: Dims the display and button illumination. ; OFF: Cancels.
BRIGHTNESS 0	—31: Selects your preferred brightness level for display and button illumination.
TEXT SCROLL AUTO / ONCE: Selects whether to scroll the display information automatically, or scroll only once. ; OFF: Cancels.

* Preset colors:RED1/ RED2/ RED3/ PURPLE1/ PURPLE2/ PURPLE3/ PURPLE4/ BLUE1/ BLUE2/ BLUE3/ SKYBLUE1/ SKYBLUE2/ LIGHTBLUE/ AQUA1/AQUA2/ GREEN1/ GREEN2/ GREEN3/ YELLOWGREEN1/ YELLOWGREEN2/ YELLOW / ORANGE1 / ORANGE2/ ORANGERED

MORE INFORMATION

General

• This unit can only play the following CDs:

- Detailed information and notes about the playable audio files are stated in an online manual on the following web site: www.kenwood.com/cs/ce/audiofile/

playable files

• Playable audio file: MP3 (.mp3), WMA (.wma), AAC (.m4a)
• Playable disc media: CD-R/CD-RW/CD-ROM
• Playable disc file format: ISO 9660 Level 1/2, Joliet, Long file name.
• Playable USB device file system: FAT12, FAT16, FAT32
  Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device.

Unplayable discs

• Discs that are not round.
• Discs with coloring on the recording surface or discs that are dirty.
- Recordable/ReWritable discs that have not been finalized.
- 8 cm CD. Attempting to insert using an adapter may cause malfunction.

About USB devices

• This unit can play MP3/WMA/AAC/WAV files stored on a USB mass storage class device.
• You cannot connect a USB device via a USB hub.
• Connecting a cable whose total length is longer than 5 m may result in abnormal playback.
• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1 A.

About KENWOOD Music Editor Light and KENWOOD Music Control

• This unit supports the PC application KENWOOD Music Editor Light and Android™ application KENWOOD Music Control.
• When you play audio files with song data added using the KENWOOD Music Editor Light or KENWOOD Music Control, you can search for audio files by Genres, Artists, Albums, Playlists, and Songs.
• KENWOOD Music Editor Light and KENWOOD Music Control are available on the following web site: www.kenwood.com/cs/ce/

MORE INFORMATION

About iPod/iPhone

Made for

- iPod touch (2nd, 3rd, 4th, and 5th generation)

- iPod classic

- iPod nano (3rd, 4th, 5th, 6th, and 7th generation)

- iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C

- For the latest compatible list and software versions of iPhone/iPod, see:

www.kenwood.com/cs/ce/ipod

- You cannot operate iPod if "KENWOOD" or "Is displayed on iPod.

About Android device

• This unit supports Android OS 4.1 and above.

- Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (AOA) 2.0.

- If the Android device supports both mass storage class device and AOA 2.0, this unit always playback via AOA 2.0 as priority.

• For more information and the latest compatible list, see: www.kenwood.com/cs/ce/

About Pandora

• Pandora is available only in the U.S., Australia and New Zealand.

- Because Pandora is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired, or some or all of the services may become unavailable.

• Some functions of Pandora cannot be operated from this unit.

- For issues using the application, please contact Pandora at [e-mail].

About iHeartRadio

- iHeartRadio® is a third-party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.

- Some iHeartRadio® functionality cannot be operated from this unit.

About Bluetooth

- Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit.

- This unit may not work with some Bluetooth devices.

• Signal conditions vary, depending on the surroundings.

- For more information about Bluetooth, visit the following website: www.kenwood.com/cs/ce/

TROUBLESHOOTING

Symptom Remedy
General	Sound cannot be heard.	Adjust the volume to the optimum level.Check the cords and connections.
	"MISWIRING CHECK WIRING THEN PWR ON" appears.	Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.
	"PROTECTING SEND SERVICE" appears.	Send the unit to the nearest service center.
	Sound cannot be heard.The unit does not turn on.Information shown on the display is incorrect.	Clean the connectors. (→2)
	The unit does not work at all. Reset the unit. (→3)
Radio	Radio reception is poor.Static noise while listening to the radio.	Connect the antenna firmly.Pull the antenna out all the way.
CD/USB/iPod	Disc cannot be ejected.	Press and hold ▲ to forcibly eject the disc. Be careful not to drop the disc when it is ejected. If this does not solve the problem, reset the unit. (→3)
	Noise is generated. Skip to another track or change the disc.
	Tracks do not play back as you intended them to play.	Playback order is determined when files are recorded.
	"READING" keeps flashing. Do not use too many hierarchical levels or folders.
	Elapsed playing time is not correct.	This is caused by how the tracks are recorded.
	Correct characters are not displayed (e.g. album name).	This unit can only display uppercase letters, numbers, and a limited number of symbols.

TROUBLESHOOTING

Symptom Remedy
CD/USB/iPod	“NA FILE” Make sure the disc contains supported audio files. ( → 21)
	“NO DISC” Insert a playable disc into the loading slot.
	“TOC ERROR” Make sure the disc is clean and inserted properly.
	“PLEASE EJECT” Reset the unit. If this does not solve the problem, consult your nearest service center.
	“READ ERROR” Copy the files and folders onto the USB device again. If this does not solve the problem, reset the USB device or use another USB device.
	“NO DEVICE” Connect a USB device, and change the source to USB again.
	“COPY PRO” A copy-protected file is played.
	“NA DEVICE” Connect a supported USB device, and check the connections.
	“NO MUSIC” Connect a USB device that contains playable audio files.
	“iPod ERROR” • Reconnect the iPod.• Reset the iPod.
ANDROID	• Sound cannot be heard during playback.• Sound output only from the Android device. • Reconnect the Android device.• If in [HAND MODE], launch any media player application on the Android device and start playback.• If in [HAND MODE], relaunch the current media player application or use another media player application.• Restart the Android device.• If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. (→ 22)

Symptom Remedy
ANDROID	Cannot playback at [BROWSE MODE].	Make sure KENWOOD MUSIC PLAY APP is installed on the Android device. (→8)Reconnect the Android device and make the appropriate setting in [ANDROID SETUP]. (→8)If this does not solve the problem, the connected Android device does not support [BROWSE MODE].(→22)
	"NO DEVICE" or "READING" keeps flashing.	Switch off the developer options on the Android device.Reconnect the Android device.If this does not solve the problem, the connected Android device does not support [BROWSE MODE].(→22)
	Playback is intermittent or sound skips.	Turn off the power saving mode on the Android device.
	"ANDROID ERROR" / "NA DEVICE"	Reconnect the Android device.Restart the Android device.
Pandora	"ADD ERROR" / "SEARCH ERROR"	New station creation is unsuccessful.
	"CHECK DEVICE" Check the Pandora application on your device.
	"NO SKIPS" The skip limit has been reached.
	"NO STATIONS" No stations are found.
	"STATION LIMIT"	The number of registered stations has reached its limit.Retry after deleting unnecessary stations from your device.
	"CONNECT ERROR"	Communication is unstable.
	"RATING ERROR"	Registration of thumbs up/thumbs down has failed.
	"LICENSE ERROR"	You try to access from a country which Pandora is not deliverable.

TROUBLESHOOTING

iHeartRadio	iHeartRadio station cannot be selected.	If "Explicit Content" in [Account Settings] is checked in the web version of iHeartRADIO, custom stations become unavailable.
	"CANNOT CREATE" Custom station name creation is unsuccessful.
	"CANNOT SAVE" Addition to the favorite category failed.
	"DISCONNECTED" Check the connection to the device.
	"NO SKIPS" The skip limit has been reached. Retry later.
	"NO STATIONS" No stations are found.
	"NOT CONNECTED" Link to the application is impossible.
	"IHEARTLINK UP" Make sure you have installed the latest version of the iHeart Link for KENWOOD application on your device.
	"PLEASE LOGIN" You haven't log in. Log in again.
	"STATION NOT AVAILABLE"	Broadcast from the station is over.
	"STATION NOT SELECTED"	No station is selected.
	"STREAM ERROR"	Broadcast data is interrupted.
	"THUMB FAILED"	Registration of Thumbs Up/Down has failed.
	"TIMED OUT"	The request has resulted in time-out.

SymptomRemedy
SiriusXM® Radio	"CH LOCKED LOCK CODE?" The selected channel is locked. Enter the correct pass code to unlock. (→12)
	"CHAN UNSUB" The selected channel is unsubscribed. Call 1-866-635-2349 in U.S.A. or 1-877-438-9677 in Canada to subscribe. (→11)
	"CH UNAVAIL" The selected channel is unavailable. Visit www.siriusxm.com for more information about the SiriusXM channel lineup.
	"CHECK ANTENNA" Check the antenna and its connection are in good condition.
	"CHECK TUNER" Make sure the SiriusXM Vehicle Tuner is connected to the unit.
	"NO SIGNAL" Make sure the antenna is mounted outside the vehicle.
	"SUBSCRIPTION UPDATED — PRESS ENTER TO CONTINUE." Your subscription is updated. Press the volume knob to continue.
	"CODE ERROR" Make sure you have entered the correct pass code. (→12)
	"NO CONTENT" There is insufficient content to start TuneScan.
	"SCAN CANCEL" TuneScan has been aborted.
Bluetooth®	No Bluetooth device is detected. Search from the Bluetooth device again. Reset the unit. (→3)
	Bluetooth pairing cannot be made. Make sure you have entered the same PIN code to both the unit and Bluetooth device. Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. (→13)
	Echo or noise is heard during a phone conversation. Adjust the microphone unit's position. (→13) Check the [ ECHO CANCEL] setting. (→14)

TROUBLESHOOTING

Symptom Remedy
Bluetooth®	Phone sound quality is poor.	Reduce the distance between the unit and the Bluetooth device.Move the car to a place where you can get a better signal reception.
	Voice calling method is not successful.	Use voice calling method in a more quiet environment.Reduce the distance from the microphone when you speak the name.Make sure the same voice as the registered voice tag is used.
	Sound is being interrupted or skipped during playback of a Bluetooth audio player.	Reduce the distance between the unit and the Bluetooth audio player.Turn off, then turn on the unit and try to connect again.Other Bluetooth devices might be trying to connect to the unit.
	The connected Bluetooth audio player cannot be controlled.	Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.)Disconnect and connect the Bluetooth player again.
	"DEVICE FULL" The number of registered devices has reached its limit. Retry after deleting an unnecessary device. (→ 17, DEVICE DELETE)
	"N/A VOICE TAG" Make sure the same voice as the registered voice tag is used.
	"NOT SUPPORT" The connected phone does not support Voice Recognition feature.
	"NO ENTRY" / "NO PAIR"	There is no registered device connected/found via Bluetooth.
	"ERROR" Try the operation again. If "ERROR" appears again, check if the device supports the function you have tried.
	"NO INFO" Bluetooth device cannot get the contact information.
	"HF ERROR XX" / "BT ERROR"	Reset the unit and try the operation again. If this does not solve the problem, consult your nearest service center.

SPECIFICATIONS

Tuner	FM Frequency Range	KDC-X399 / KDC-BT362UKMR-D362BT:87.9 MHz — 107.9 MHz (200 kHz space)KDC-MP362BT:87.5 MHz — 108.0 MHz (50 kHz space)
	Usable Sensitivity (S/N = 26 dB) 8.2 dBf (0.71 μV/75 Ω)
	Quieting Sensitivity(DIN S/N = 46 dB)	17.2 dBf (2.0 μV/75 Ω)
	Frequency Response (±3 dB) 30 Hz — 15 kHz
	Signal-to-Noise Ratio (MONO) 64 dB
	Stereo Separation (1 kHz) 40 dB
	AM Frequency Range	530 kHz — 1 700 kHz (10 kHz space)
	Usable Sensitivity (S/N = 20 dB) 29 dBμ (28.2 μV)
CD player	Laser Diode	GaAlAs
	Digital Filter (D/A)	8 times over sampling
	Spindle Speed	500 rpm — 200 rpm (CLV)
	Wow & Flutter	Below measurable limit
	Frequency Response (±1 dB)	20 Hz — 20 kHz
	Total Harmonic Distortion (1 kHz)	0.01 %
	Signal-to-Noise Ratio (1 kHz)	KDC-X399: 110 dBOther models: 105 dB
	Dynamic Range	90 dB
	Channel Separation	85 dB
	MP3 Decode	Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode	Compliant with Windows Media Audio
	AAC Decode	AAC-LC “.m4a” files

SPECIFICATIONS

USB	USB Standard USB 1.1, USB 2.0 (Full speed)
	File System FAT12/ 16/ 32
	Maximum Supply Current DC 5 V	---1 A
	MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode Compliant with Windows Media Audio
	AAC Decode AAC-LC “.m4a” files
	WAV Decode Linear-PCM
Bluetooth	Version Bluetooth Ver.2.1+EDR / Bluetooth 3.0
	Frequency Range 2.402 GHz — 2.480 GHz
	Output Power +4 dBm (MAX), 0 dBm (AVE) Power Class 2
	Maximum Communication Range Line of sight approx. 10 m (32.8 ft)
	Profile HFP (Hands-Free Profile)SPP (Serial Port Profile)PBAP (Phonebook Access Profile)A2DP (Advanced Audio Distribution Profile)AVRCP (Audio/Video Remote Control Profile)
Auxiliary	Frequency Response ( ± 3 dB) 20 Hz — 20 kHz
	Input Maximum Voltage	1 000 mV
	Input Impedance	30 k

Audio	Maximum Output Power	50 W × 4
	Full Bandwidth Power	22 W × 4 (at less than 1 % THD)
	Speaker Impedance 4 Ω — 8 Ω
	Tone Action	KDC-X399:Band 1: 100 Hz ±8 dBBand 2: 315 Hz ±8 dBBand 3: 1 kHz ±8 dBBand 4: 4 kHz ±8 dBBand 5: 12.5 kHz ±8 dBOther models:Bass: 200 Hz ±8 dBMiddle: 2.5 kHz ±8 dBTreble: 12.5 kHz ±8 dB
	Preout Level/Load (CD)	KDC-X399: 4 000 mV/10 kΩOther models: 2 500 mV/10 kΩ
	Preout Impedance	≤ 600 Ω
General	Operating Voltage	14.4 V (10.5 V — 16 V allowable)
	Maximum Current Consumption	10 A
	Operational Temperature Range	0°C — +40°C
	Installation Size (W × H × D)	182 mm × 53 mm × 159 mm(7-3/16" × 2-1/16" × 6-1/4")
	Weight	1.3 kg (2.87 lbs)

Subject to change without notice.

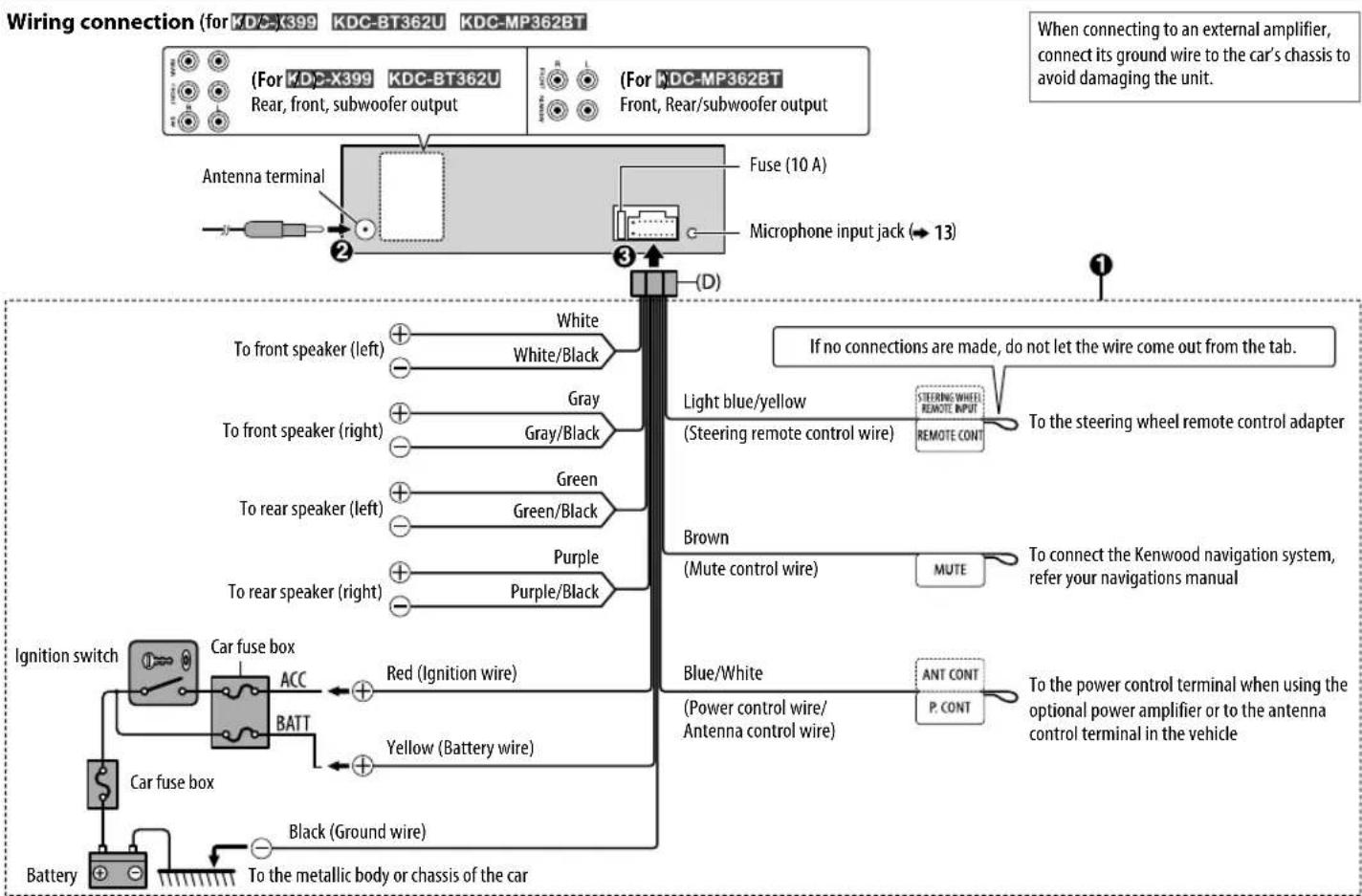

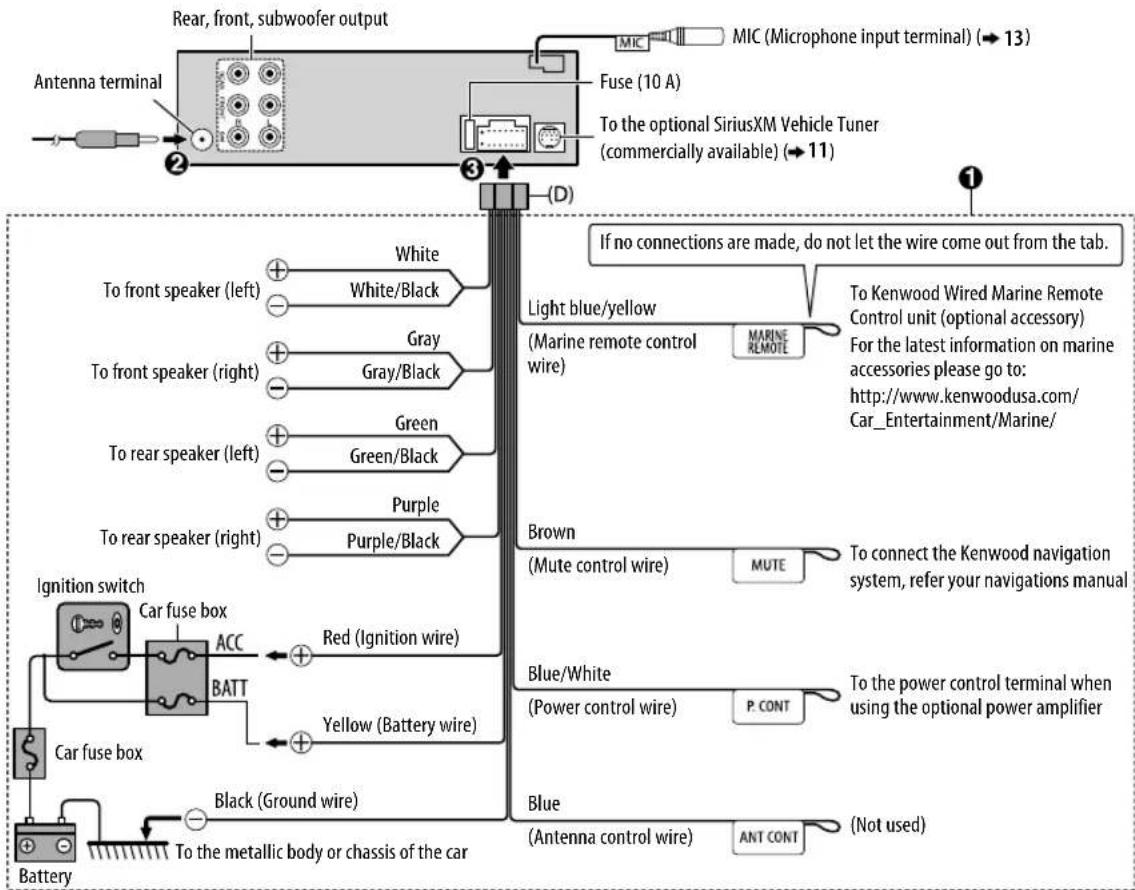

INSTALLATION / CONNECTION

▲ Warning

• The unit can only be used with a 12 V DC power supply, negative ground.
• Disconnect the battery's negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.
  • Insulate unconnected wires with vinyl tape to prevent a short circuit.
• Be sure to ground this unit to the car's chassis again after installation.

Caution

• For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer.
  • Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.
• Mount the unit at an angle of less than 30^ .
• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle's fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.
• Keep all cables away from heat dissipate metal parts.
  • After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car's chassis, then replace the old fuse with one that has the same rating.

Basic procedure

1 Remove the key from the ignition switch, then disconnect the ⊖ terminal of the car battery.
2 Connect the wires properly.
See Wiring connection. ( → 28, 29)
3 Install the unit to your car. See Installing the unit (in-dash mounting).
4 Connect the ⊖ terminal of the car battery.
5 Reset the unit. (→ 3)

Installing the unit (in-dash mounting)

When installing without the mounting sleeve

1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available).
▲ Use only the specified screws. Using wrong screws might damage the unit.

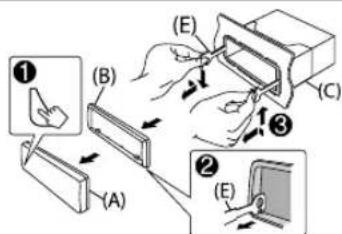

How to remove the unit

1 Detach the faceplate.
2 Fit the catch pin on the extraction keys into the holes on both sides of the trim plate, then pull it out.
3 Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the right.

ENGLISH

INSTALLATION / CONNECTION

INSTALLATION / CONNECTION

Wiring connection (for KMR-D362BT)

When connecting to an external amplifier, connect its ground wire to the car's chassis to avoid damaging the unit.

Part list for installation

(A) Faceplate

(×1)

(B) Trim plate

(×1)

(C) Mounting sleeve

(×1)

(D) Wiring harness

(×1)

(E) Extraction key

(×2)

TABLE DES MATIERES

RADIO

(Pour KDC-X399 KDC-BT362U KMR-D362BT

SPEECH: NEWS, INFORM (information), SPORTS, TALK, LANGUAGE, REL TALK (discussion religieuse), PERSNLTY (personnalité), PUBLIC COLLEGE, HABL ESP (discussion en espagnol), WEATHER

SPEECH: NEWS, AFFAIRS, INFO (information), SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, DOCUMENT

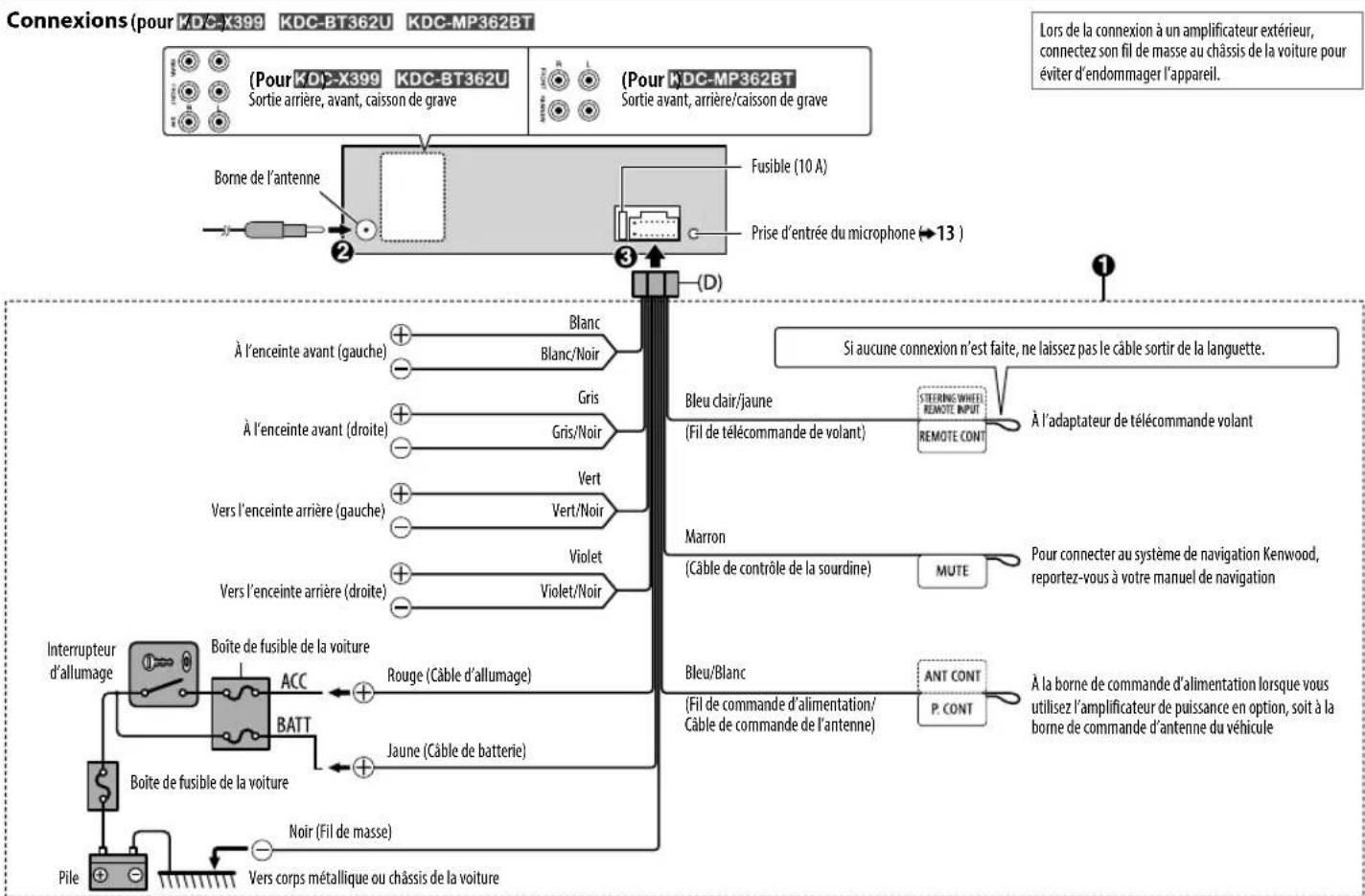

INSTALLATION / RACCORDEMENT

Cómo reinicializarFijar Desmontar

(Para KDC-X399 KDC-BT362U KMR-D362BT

• "Made for iPod," and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
  • Lightning is a trademark of Apple Inc.
  • Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.
• iHeartRadio ^30 is a registered mark of Clear Channel Broadcasting, Inc. in the United States and other countries. Such marks are used under license.
• Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.
  • The "AAC" logo is a trademark of Dolby Laboratories.
  • Android is trademark of Google Inc.
• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
