Brand	Kenwood
Model	DPX301U
Product type	Audio-video receiver
Dimensions (W × H × D)	182 mm × 111 mm × 158 mm
Weight	1.5 kg
Operating voltage	14.4 V (10.5 – 16 V allowable)
Maximum current consumption	10 A
Fuse	10 A
Maximum output power	50 W × 4
Speaker impedance	4 Ω – 8 Ω
FM range	87.9 – 107.9 MHz
AM range	530 – 1700 kHz
CD compatibility	CD-R/CD-RW/CD-ROM, MP3, WMA
USB compatibility	USB 1.1/2.0, FAT12/16/32, 5 V 1 A max
iPod/iPhone compatibility	iPod touch (2nd to 5th gen), iPod classic, iPod nano (3rd to 7th gen), iPhone 3G/3GS/4/4S/5/5S/5C
Android compatibility	OS 4.1 and later
Satellite radio	SiriusXM (optional tuner)
Built-in streaming	Pandora, iHeartRadio
Auxiliary input	3.5 mm stereo mini jack
Equalizer	Presets (DRIVE EQ, TOP40, POWERFUL, ROCK, etc.) + customizable
Audio settings	Bass, Mid, Treble, Subwoofer, Fader, Balance, Loudness, Bass Boost
Display	Variable color, dimmer, adjustable brightness
Maintenance	Dry silicone cloth or soft cloth
Safety	Reset, short-circuit protection, wiring error detection

Frequently Asked Questions - DPX301U KENWOOD

How to reset the device?

Press the reset button on the front panel. Note that your preset adjustments will be erased.

What to do if there is no sound?

Check the volume setting. Make sure all cords and connections are correct. If the display shows "MISWIRING CHECK WIRING THEN PWR ON", turn the unit off and check the insulation of the speaker wires.

How to set the clock?

Press FNC, turn the volume knob to select [CLOCK] then [CLOCK ADJUST]. Set the day, hour, and minute by turning and pressing the knob. Then choose 12H or 24H format in [CLOCK FORMAT].

How to connect an iPod/iPhone?

Use an adapter cable KCA-iP102 (30-pin) or KCA-iP103 (Lightning) or the iPod/iPhone cable. Connect it to the USB port of the unit. The source automatically changes to iPod.

How to use Pandora?

Install the latest version of the Pandora app on your iPhone/iPod touch, create an account and log in. Select [ON] for [PANDORA SRC] in settings. Open the app on your device, connect it to the USB port, then select the PANDORA source.

What does the error "PROTECTING SEND SERVICE" mean?

This error indicates an internal problem. Send the unit to the nearest authorized service center for repair.

How to change the display color?

Press FNC, select [DISPLAY] then [COLOR SELECT]. Choose from preset colors or create your own color by selecting [CUSTOM R/G/B] and adjusting the red, green, and blue levels.

How to memorize a radio station?

Tune to the desired station, then press and hold one of the numeric keys (1 to 6) to store it. To recall the station, briefly press the corresponding numeric key.

Can I use a remote control?

Yes, the unit comes with a remote control (RC-406). It allows control of basic functions: volume, source selection, playback, search, etc. Use it by pointing it at the remote sensor on the front panel.

How to clean the unit?

Wipe the front panel with a dry silicone cloth or a soft cloth. For discs, clean from the center outward with a dry cloth. Never use solvents.

USER MANUAL DPX301U KENWOOD

Take the time to read through this instruction manual. Familiarity with installation and operation procedures will help you obtain the best performance from your new Dual Din Sized CD Receiver.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product.

Model DPX301U Serial number

US Residents Only

Register Online

Register your Kenwood product at www.Kenwoodusa.com

CONTENTS BEFORE USE

BEFORE USE 2
BASICS	3
GETTING STARTED 4
RADIO	5
CD / USB / iPod / ANDROID 6
Pandora®	9
iHeartRadio®	10
SiriusXM® Radio 11
AUX	13
AUDIO SETTINGS 14
DISPLAY SETTINGS 15
TROUBLESHOOTING	15
MORE INFORMATION 17
INSTALLATION / CONNECTION	18
SPECIFICATIONS	21

How to read this manual

• Operations are explained mainly using buttons on the faceplate.
  • [XX] indicates the selected items.
• (→XX) indicates references are available on the stated page.

▲ Warning

Do not operate any function that takes your attention away from safe driving.

Caution

Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

- Avoid using the external device if it might hinder safe driving.

- Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.

- Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short circuit.

- If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

Remote control (RC-406):

• Do not leave the remote control in hot places such as on the dashboard.
• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type.
• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Keep the battery out of reach of children and in its original packaging when not in used. Dispose of used batteries promptly. If swallowed, contact a physician immediately.

Maintenance

Cleaning the unit: Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Handling discs:

• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.
• Do not use any accessories for the disc.
• Clean from the center of the disc and move outward.
• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.
• When removing discs from this unit, pull them out horizontally.
• Remove burrs from the center hole and disc edge before inserting a disc.

BASICS

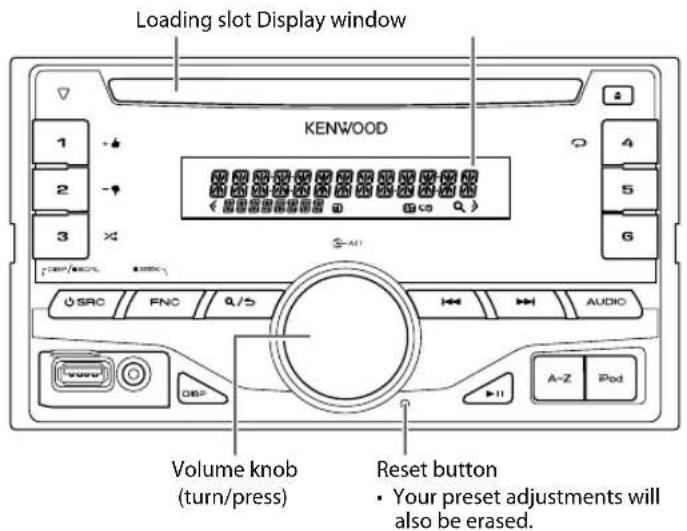

Loading slot Display window KENWOOD Volume knob (turn/press) Reset button • Your preset adjustments will also be erased.

Remote control (RC-406)Faceplate

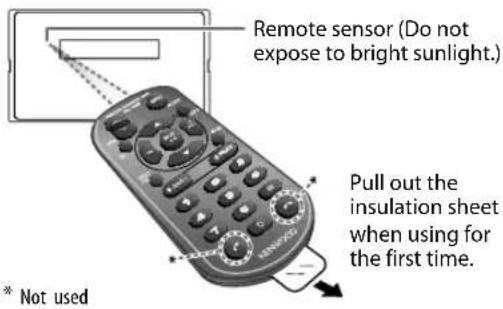

Remote sensor (Do not expose to bright sunlight.) Pull out the insulation sheet when using for the first time. * Not used

How to replace the battery

To On the faceplate On the remote control

Turn on the power	Press ⏻ SRC.• Press and hold to turn off the power.	Press and hold SRC to turn off the power.(Pressing SRC does not turn on the power.)
Adjust the volume Turn the volume knob. Press		VOL ∧ or VOL ∨
		Press the volume knob during playback to attenuate the sound.• Press again to cancel.
Select a source	Press ⏻ SRC repeatedly.• Press iPod to enter iPod source directly.	Press ATT during playback to attenuate the sound.• Press again to cancel.
Change the display information	Press DISP-DISP/■ SCRL repeatedly.• Press and hold to scroll the current display information.	(not available)

GETTING STARTED

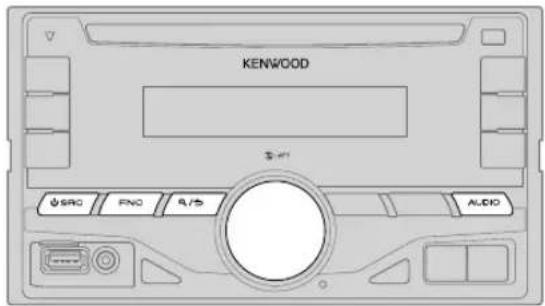

KENWOOD S-41 G SAG FNO 8/15 AUDIO

1 Cancel the demonstration

When you turn on the power (or after you reset the unit), the display shows: "CANCEL DEMO" → "PRESS" → "VOLUME KNOB"

1 Press the volume knob.
[YES] is selected for the initial setup.
2 Press the volume knob again.
"DEMO OFF" appears.

2 Set the clock

1 Press FNC to enter [FUNCTION].
2 Turn the volume knob to select [ CLOCK], then press the knob.
3 Turn the volume knob to select [ CLOCK ADJUST], then press the knob.
4 Turn the volume knob to make the settings, then press the knob. Day → Hour → Minute
5 Turn the volume knob to select [ CLOCK FORMAT], then press the knob.
6 Turn the volume knob to select [12H] or [24H], then press the knob.
7 Press and hold to exit.

To return to the previous setting item, press 9/5

3 Set the initial settings

1 Press repeatedly to enter STANDBY.
2 Press FNC to enter [ FUNCTION]. - Pressing AUDIO enter [ AUDIO CONTROL] directly.
3 Turn the volume knob to make a selection (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected or activated.
5 Press and hold to exit.

To return to the previous setting item, press R/5

Default: XX

AUDIO CONTROL
SWITCH PREOUT	REAR/ SUBWOOFER: Selects whether rear speakers or a subwoofer are connected to the line out terminals on the rear (through an external amplifier).
SP SELECT OFF	____/ 5/4 6 × 9/6/ OEM: Selects according to the speaker size (5 inches or 4 inches, 6×9 inches or 6 inches) or OEM speakers for optimum performance.
DISPLAY
EASY MENU	ON Both display and button illumination change to white color when entering [FUNCTION]. ;OFF: Both display and button illumination remain as [COLOR SELECT] color. (→15)
TUNER SETTING
PRESET TYPE	NORMAL: Memorizes one station for each preset button in each band (FM1/ FM2/ FM3/ AM). ;MIX: Memorizes one station for each preset button, regardless of the selected band.

GETTING STARTED RADIO

SYSTEM

KEY BEEP	ON: Activates the keypress tone. ;OFF: Deactivates.
SOURCE SELECT
PANDORA SRC	ON: Enables PANDORA in source selection. ;OFF: Disables. (→ 9)
IHEART SRC ON	_: Enables IHEARTRADIO in source selection. ;OFF: Disables. (→ 10)
BUILT-IN AUX ON	_: Enables AUX in source selection. ;OFF: Disables. (→ 13)
CD READ 1	_: Automatically distinguishes between audio file disc and music CD. ;2: Forces to play as a music CD. No sound can be heard if an audio file disc is played.
F/W UPDATE
UPDATE SYSTEM
F/W UP xx.xx	YES: Starts upgrading the firmware. ;NO: Cancels (upgrading is not activated).For details on how to update the firmware, see: www.kenwood.com/cs/ce/
CLOCK
CLOCK DISPLAY	ON: The clock time is shown on the display even when the unit is turned off. ;OFF: Cancels.

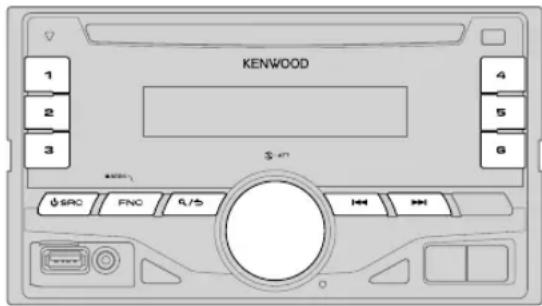

KENWOOD 1 2 3 4 5 6 S-47 φSRC FNC 6/5

Search for a station

1 Press repeatedly to select TUNER.

2 Press repeatedly (or press / on RF-106) to AMect FM1/ FM2/ FM3/ AM.

3 Press |◀◀ /▶▶| (or press |◀◀ /▶▶| (+) on RC-406) to search for a station.

- To change the searching method for ◀◀◀ / ▶▶: Press and hold FNC-■SEEK repeatedly. AUTO1 : Automatically search for a station.

AUTO2 : Search for a preset station.

MANUAL : Manually search for a station.

- To store a station: Press and hold one of the number buttons (1 to 6).

- To select a stored station: Press one of the number buttons (1 to 6) (or press one of the number buttons (1 to 6) on RC-406).

Direct Access Tuning (using RC-406)

1 Press DIRECT to enter Direct Access Tuning.

2 Press the number buttons to enter a frequency.

3 Press BSE for a station.

- To cancel, press ↩ or DIRECT.

- If no operation is done for 10 seconds after step 2, Direct Access Tuning is automatically canceled.

RADIO

Other settings

1 Press FNC to enter [FUNCTION].
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold to exit.
To return to the previous setting item, press R/5

Default: XX

TUNER SETTING
AUTO	YES: Automatically starts memorizing 6 stations with good reception. ;NO: Cancels.
MEMORY	• Selectable only if [NORMAL] is selected for [PRESET TYPE]. (→4)
MONO SET ON	: Improves the FM reception, but the stereo effect may be lost. ;OFF: Cancels.
TI ON	: Allows the unit to temporarily switch to Traffic Information if available ("TI" lights up). ;OFF: Cancels.
PTY SEARCH	Selects the available Program Type (see below), then, press i◀◀/▶▶i to start.
CLOCK
TIME SYNC	ON: Synchronizes the unit's time to the Radio Broadcast Data System station time. ;OFF: Cancels.

• [MONO SET]/ [TI]/ [PTY SEARCH] is selectable only when the band is FM1/ FM2/ FM3.
• Available Program Type:
SPEECH : NEWS, INFORM (information), SPORTS, TALK, LANGUAGE, REL TALK (religious talk), PERSNLTY (personality), PUBLIC COLLEGE, HABL ESP (spanish talk), WEATHER
MUSIC : ROCK, CLS ROCK (classic rock), ADLT HIT (adult hits), SOFT RCK (softrock), TOP 40, COUNTRY, OLDIES, SOFT, NOSTALGA (nostalgia), JAZZ, CLASSICL (classical), R & B (rhythm and blues), SOFT R&B (soft rhythm and blues), REL MUSC (religious music), MUSC ESP (spanish music), HIP HOP
The unit will search for the Program Type categorized under [SPEECH] or [MUSIC] if selected.
- If the volume is adjusted during reception of traffic information or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information or news bulletin is turned on.

The source changes automatically and playback starts.

Label side ▲ Eject disc

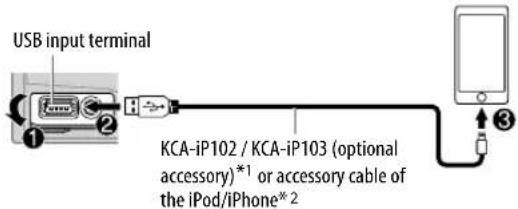

USB input terminal

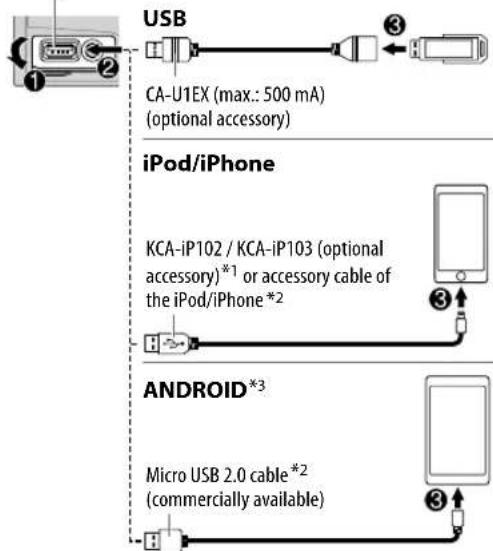


*1 KCA-iP102:30-pin type, KCA-iP103:Lightning type
*2 Do not leave the cable inside the car when not using.

KENWOOD 1 2 3 4 5 6-40 #SRC FNC 6/5 HH HH A-Z Fod

To On the faceplate On the remote control
Playback / pause Press . ▶II		Press ENT ▶II.
Reverse /Fast-forward*4	Press and hold ▶◀/ ▶▶. Press and hold ▶◀/ . ▶▶(+)
Select a track/file	Press ▶◀/ ▶▶. Press ▶◀/	▶▶(+) .
Select a folder*5	Press 1/+. 2-	Press #FM+ / *AM-
Repeat play*6	Press 4peatedly.
	TRACK REPEAT/ REPEAT OFF : AudioFILE REPEAT/ FOLDER REPEAT/ REPEAT OFF: MP3/WMA/WAV file, iPod or ANDROID
	FILE REPEAT/ REPEAT OFF: KME Light/ KMC file *7
Random play*6	Press 3peatedly.
	DISC RANDOM/ RANDOM OFF: Audio CDFOLDER RANDOM/ RANDOM OFF: MP3/WMA/WAV file, KME Light/ KMC file, iPod or ANDROID
	Press and hold 3× to select ALL RANDOM.*8

To	On the faceplate
Select control mode	While in iPod source, press and hold iPod.MODE ON: Control from the iPod*9MODE OFF: Control from the unit While in ANDROID source, (→ 8, [ANDROID SETUP])
Select music drive (→ 8, [MUSIC DRIVE])	Press 5 repeatedly.The stored songs in the following start playback.Selected internal or external memory of a smartphone (Mass Storage Class).Selected drive of a multiple drives device.

*3 When connecting an Android device, "Press [VIEW] to install KENWOOD MUSIC PLAY APP" is shown. Follow the instructions to install the application. You can also install the latest version of KENWOOD MUSIC PLAY application on your Android device before connecting. (→ 18)
^4 CD For ANDROID: Applicable only when [BROWSE MODE] is selected. ( 8, [ANDROID SETUP])
*5 For CD: Only for MP3/WMA files. This does not work for iPod/ ANDROID.
*6 For iPod/ ANDROID: Applicable only when [MODE OFF]/[BROWSE MODE] is selected.
*7 KME Light : KENWOOD Music Editor Light, KMC : KENWOOD Music Control (→ 17)
*8 For CD: Only for MP3/WMA files.
*9 You can still play/pause, file skip, fast-forward or reverse files from the unit.

Select a file from a folder/list

1 Press Q/5
2 Turn the volume knob to select a folder/list, then press the knob.
3 Turn the volume knob to select a file, then press the knob.

Quick Search

If you have many files, you can search through them quickly.

For USB (for KME Light/ KMC files):

Press ◀◀◀ / ▶▶▶ to search at a preset skip search ratio.

(→ [SKIP SEARCH])

Press and hold ◀◀◀ / ▶▶▶ to search at a 10% ratio.

- Not applicable for CD and MP3/WMA/WAV files.

For iPod:

You can search for a file according to the first character.

1 Press A to enter character search.
2 Turn the volume knob to select the character.

• To search for a character other than A to Z and 0 to 9, enter only " *".

- Press and hold / changes the characters rapidly.

3 Press |◀◀/▶▶| to move to the entry position.
- You can enter up to 3 characters.
4 Press the volume knob to start searching.

• To return to the root folder/ first file/ top menu, press 5.
• To return to the previous setting item, press / .
  • To cancel, press and hold 9/5.
• For iPod, applicable only when [MODE OFF] is selected. (→ 7)
• For ANDROID, applicable only when [BROWSE MODE] is selected. (→ [ANDROID SETUP])

Direct Music Search (using RC-406)

1 Press DIRECT.
2 Press the number buttons to enter a track/file number.
3 Press FNEarth for music.
• To cancel, press or DIRECT.
- Not available if Random Play is selected.
- Not applicable for iPod, ANDROID, KME Light/ KMC file.

Listen to Tuneln Radio/ Tuneln Radio Pro/ Aupeo

While listening to Tuneln Radio, Tuneln Radio Pro or Aupeo, connect the iPod/iPhone to the USB input terminal of the unit.

- The unit will output the sound from these applications.

Other settings

1 Press FNC to enter [FUNCTION].
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold to exit.

To return to the previous setting item, press R/5

Default: XX

ANDROID SETUP

BROWSE MODE: Control from the unit (using KENWOOD MUSIC PLAY application). ; HAND MODE: Control other media player applications from the Android device (without using KENWOOD MUSIC PLAY application). However, you can still play/pause and file skip from the unit.

USB

MUSIC DRIVE DRIVE CHANGE : The next drive ([DRIVE 1] to [DRIVE 5]) is selected automatically and playback starts. Repeat steps 1 to 3 to select the following drives.

SKIP SEARCH 0.5% / 1%/ 5%/ 10%: While listening to iPod, ANDROID or KME Light/ KMC file, selects the skip search ratio over the total files.

Pandora®

Preparation:

Install the latest version of the Pandora application on your device (iPhone/ iPod touch), then create an account and log in to Pandora.

- Select DN] for [PANDORA SRC]. (→ 5)

Start listening

1 Open the Pandora application on your device.
2 Connect your device to the USB input terminal.

USB input terminal KCA-iP102 / KCA-iP103 (optional accessory)*1 or accessory cable of the iPod/iPhone*2

The source changes to PANDORA and broadcast starts.

To On the faceplate On the remote control
Playback / pause Press .	▶II	Press ENT▶II.
Skip a track	Press ▶▶i.	Press ▶▶I (+).
Thumbs up or thumbs down*3	Press 1A ◆ 2-¶	Press #FM+ / *AM-

*1 KCA-iP102:30-pin type, KCA-iP103:Lightning type

*2 Do not leave the cable inside the car when not using.

*3 If thumbs down is selected, the current track is skipped.

Create and save a new station

1 Press and hold FNC.
2 Turn the volume knob to select [FROM TRACK] or [FROM ARTIST], then press the knob.
A new station is created based on the current song or artist.
3 Press and hold one of the number buttons (3 to 6) to store.
To select a stored station, press one of the number buttons (3 to 6).

Search for a registered station

1 Press Q/5
2 Turn the volume knob to make a selection, then press the knob. [BY DATE]: According to the registered date [A-Z]: Alphabetical order
3 Turn the volume knob to the desired station, then press the knob.

To cancel, press and hold 9/5

(or using RC-406) Press ▲/▼ to search for a station, then press ENT ▶II.

Bookmark a song or artist information

1 Press and hold 1+
2 Turn the volume knob to make a selection, then press the knob. [THIS TRACK]: Current song information [THIS ARTIST]: Current artist information
"BOOKMARKED" appears and the information is stored to your device. The bookmark is available on your Pandora account but not on this unit.

iHeartRadio®

Preparation:

Install the latest version of iHeart Link for KENWOOD application on your device (iPhone/ iPod touch), then create an account and log in to iHeartRadio.

- Select ON] for [IHEART SRC]. (→ 5)

Start listening

1 Open the iHeart Link application on your device.
2 Connect your device to the USB input terminal.

USB input terminal KCA-iP102 / KCA-iP103 (optional accessory)*1 or accessory cable of the iPod/iPhone*2

3 Press repeatedly to select IHEARTRADIO.

Broadcast starts automatically.

To On the faceplate On the remote control
Playback / pause Press .	▶II	Press ENT ▶II.
Skip a track for custom station	Press ▶▶.	Press ▶▶| (+).
Thumbs up or thumbs down*3for custom station	Press 1+◀/2-▼	—
Create a new/custom station Press and hold 1.		—
Add to favorite stations for live station	Press and hold 5.	—
Scan for live station Press 5.	—

*1 KCA-iP102:30-pin type, KCA-iP103:Lightning type

*2 Do not leave the cable inside the car when not using.

*3 If thumbs down is selected, the current track is skipped.

Search for a station

1 Press Q/S
2 Turn the volume knob to select a category, then press the knob.
3 Turn the volume knob to the desired station, then press the knob.

When a city list appears, you can skip cities in alphabetical order. To cancel, press and hold Q/S.

(or using RC-406)

Press ▲/▼ to search for a station, then press ENT▶II.

Skip cities by alphabetical order

While a city list appears during search...

1 Press A\~Z to enter character search.
2 Turn the volume knob or press ◀◀/▶▶ to select the character to be searched for.
3 Press 1/2 to move to the previous/next page.
4 Press the volume knob to start searching.

To cancel, press and hold 9/5

Delete a station

While listening to IHEARTRADIO...

1 Press FNC to enter [ FUNCTION].
2 Turn the volume knob to select [ SYSTEM], then press the knob.
3 Turn the volume knob to select [ STATION DEL], then press the knob.

4 Turn the volume knob to select [ LIVE] or [CUSTOM], then press the knob.
5 Turn the volume knob to select the desired station to delete, then press the knob.
6 Turn the volume knob to select [ YES], then press the knob.
7 Press and hold to exn.

To return to the previous setting item, press R/5

SiriusXM® Radio

Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit www.siriusxm.com.

Preparation:

1 Connect the optional SiriusXM Vehicle Tuner (commercially available).

Expansion port on the rear panel Antenna SiriusXM Vehicle Tuner

2 Check your Radio ID for activation.

The SiriusXM Radio ID is required for activation and can be found by tuning to Channel 0 as well as on the label found on the SiriusXM Connect tuner and its' packaging.

The Radio ID does not include the letters I, O, S or F.

3 Activate the subscription.

For users in U.S.A.:

Online: Go to www.siriusxm.com

Phone: Call 1-866-635-2349

For users in Canada:

Online: Go to www.siriusxm.ca/activatexm

Phone: Call 1-877-438-9677

4 Press repeatedly to select SIRIUS XM to start updating.

Start listening

1 Press repeatedly to select SIRIUS XM.

2 Press repeatedly to select a band.

3 Press and hold .Q/5 "Q" lights up.

4 Turn the volume knob to select a category, then press the knob. If "ALL CHANNELS" is selected, all the available channels will be shown.

5 Turn the volume knob to select a channel, then press the knob. (or)

Press |◀◀ / ▶▶▶ to search for a channel manually.

- Pressing and holding ◀◀/▶▶ changes the channel rapidly.

If a locked channel or a mature channel is selected, a pass code input screen appears. Enter the pass code to receive the channel. (→ 13)

To change the tuning method for ◀◀◀ / ▶▶◀: Press and hold FNC-■ SEEK Each time you press and hold FNC-■ SEEK, the tuning method switches between "CHANNEL" (manually search for a channel) and "PRESET" (searches for a preset channel of the selected band).

Direct Access Tuning (using RC-406)

1 Press DIRECT to enter Direct Access Tuning.

2 Press the number buttons to enter a channel number.

3 Press ENSTARTsearching.

• To cancel, press or DIRECT.

- If no operation is done for 10 seconds after step 2, Direct Access Tuning is automatically canceled.

SiriusXM® Radio

SiriusXM Keymode

Press and hold the volume knob to change the keymode (channel or replay). (Default: Channel keymode)

"50" lights up when replay keymode is selected.

When channel keymode is selected...

To On the faceplate On the remote control
Select a channel	Press |◀◀ / ▶▶|.	Press |◀◀ / ▶▶| (+).
Change a channel rapidly	Press and hold |◀◀ / ▶▶|.	Press and hold |◀◀ / ▶▶| (+).
Store a channel of the current band	Press and hold one of the number buttons (1 to 6).	—
Select a stored channel of the current band	Press one of the number buttons (1 to 6).

When replay keymode is selected...

To On the faceplate On the remote control
Playback / pause Press . ▶II		Press ENT ▶II.
Select a track	Press |◀◀ / ▶▶|. Press |◀◀/	▶▶| (+).
Rewind /Fast-forward	Press and hold |◀◀ / ▶▶|.	Press and hold |◀◀ / ▶▶| (+).
Go to Live Press and hold	▶II. Press 1.

SmartFavorites and TuneStart™

User stored channels (1 to 6) of the current band are recognized as SmartFavorite channels. SiriusXM Vehicle Tuner automatically buffers the broadcast content in the background.

- SmartFavorites feature is available with SXV200 or later SiriusXM tuner models.

When you select a SmartFavorite channel, you can rewind and replay up to 30 minutes of any of the missed news, talk, sports or music content.

- Playback starts from the beginning of the song if [TUNE START] is set to [ON] for most music channels stored as SmartFavorite.

1 Press one of the number buttons (1 to 6) to select a channel.

2 For operation ( → SiriusXM Keymode)

TuneScan™

You can get a short preview of the songs that you have missed on each of your SmartFavorite music channels or current tuned music channel.

Press and hold AUDIO to start scanning the first 6 seconds of the recorded music contents.

- To listen to the current song, press FNC to stop scanning. The unit continues playing the current song.

• To select the previous/next song, press ◀◀◀ / ▶▶◀.

- To cancel scanning, press and hold FNC. Playback returns to the channel before you enter TuneScan.

SiriusXM settings

1 Press FNC to enter [FUNCTION].

2 Turn the volume knob to select [ SIRIUS XM], then press the knob.

3 Turn the volume knob to make a selection ( 13), then press the knob.

4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item.

5 Press and hold to exit.

To return to the previous setting item, press R/5

SiriusXM® Radio

CHANNEL LOCK	To unlock settings:1 Turn the volume knob to select a number.2 Press I◄◄ / ►►I to move to the entry position.3 Repeat step1 and 2 to enter the current pass code.(Initial pass code is 0000.)4 Press the volume knob to confirm.
CODE SET	1 Turn the volume knob to select a number.2 Press I◄◄ / ►►I to move to the entry position.3 Repeat step3 and 2 to enter a new 4-digit pass code.4 Press the volume knob to confirm.5 Repeat step3 to 4 to reconfirm the pass code.• Make a note of the new pass code to enter channel lock settings from next time.
LOCK SETTING MATURE CH : Selects the SiriusXM-defined lock setting. ; USERDEFINED: Selects the user-defined lock setting. ;OFF: Cancels.
CHANNEL EDIT*1	1 Turn the volume knob to select a category, then press the knob.2 Turn the volume knob to select a channel you want to lock, then press the knob.“L” appears in front of the channel number.3 Press and hold OK!
CHANNEL CLEAR*1	YES: Clears all the locked channels. ;NO: Cancels.
TUNE START*2	ON: Selected SmartFavorite channel starts playback from the beginning of the song. ;OFF: Cancels.
SIGNAL LEVEL NO SIGNAL /WEAK/ GOOD STRONG: Shows the strength of the current received signal.
BUFFER USAGE 0%	— 100% (0): Shows the memory usage for Replay buffer.
SXM RESET YES	: Resets stored channel and lock setting to default. ;NO: Cancels.

*1 Displayed only when [USER DEFINED] is selected.

*2 Available only if the connected SiriusXM Vehical Tuner is SXV200 or later that supports SmartFavorites.

AUX

Preparation:

Select [ON] for [BUILT-IN AUX]. (→ 5)

Start listening

1 Connect a portable audio player (commercially available).

Auxiliary input jack Portable audio player

3.5 mm (1/8") stereo mini plug with "L" shaped connector (commercially available)

2 Press repeatedly to select AUX.
3 Turn on the portable audio player and start playback.

Set the AUX name

While listening to a portable audio player connected to the unit...

1 Press FNC to enter [ FUNCTION].
2 Turn the volume knob to select [ SYSTEM], then press the knob.
3 Turn the volume knob to select [ AUX NAME SET], then press the knob.
4 Turn the volume knob to make a selection, then press the knob.

AUX (default)/ DVD / PORTABLE/ GAME/ VIDEO/ TV

5 Press and hold to exit.

To return to the previous setting item, press 9/5

AUDIO SETTINGS

While listening to any source...

1 Press AUDIO to enter [ AUDIO CONTROL].
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold to exit.

(or using RC-406)

1 Press AUD to enter [ AUDIO CONTROL].
2 Press ▲/▼ to make a selection, then press ENT▶II.

To return to the previous setting item, press 9/5.

Default: XX

SUB-W LEVEL -15 to +15 (0) Adjusts the subwoofer output level.
BASS LEVEL -8 to +8 (+6)		Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.)
MID LEVEL -8 to +8 (+5)
TRE LEVEL -8 to +8 (0)
EQ PRO
BASS ADJUST BASS CTR FRQ 60HZ/80HZ/100HZ/200HZ: Selects the center frequency.
	BASS LEVEL -8 to +8 (+6): Adjusts the level.
	BASS Q FACTOR 1.00 / 1.25/1.50 / 2.00: Adjusts the quality factor.
	BASS EXTEND ON : Turns on the extended bass. ; OFF: Cancels.
MID ADJUST MID CTR FRQ 0.5KHZ / 1.0KHZ/1.5KHZ/2.5KHZ: Selects the center frequency.
	MID LEVEL -8 to +8 (+5): Adjusts the level.
	MID Q FACTOR 0.75 / 1.00/1.25: Adjusts the quality factor.
TRE ADJUST TRE CTR FRQ 10.0KHZ /12.5KHZ/15.0KHZ/17.5KHZ: Selects the center frequency.
	TRE LEVEL -8 to +8 (0): Adjusts the level.

PRESET EQ	DRIVE EQ/TOP40/POWERFUL/ROCK/POPS/EASY/JAZZ/NATURAL/USER: Selects a preset equalizer suitable to the music genre. (Select [USER] to use the customized settings.)[DRIVE EQ] is a preset equalizer that reduces noise outside the car or running noise of the tyres.
BASS BOOST LEVEL1	/LEVEL2/LEVEL3: Selects your preferred bass boost level. ;OFF: Cancels.
LOUDNESS	LEVEL1/LEVEL2: Selects your preferred low and high frequencies boost to produce a well-balanced sound at a low volume level. ;OFF: Cancels.
SUBWOOFER SET ON	:Turns on the subwoofer output. ;OFF: Cancels.
LPF SUBWOOFER THROUGH	:All signals are sent to the subwoofer. ;85HZ/120HZ/160HZ: Audio signals with frequencies lower than 85 Hz/120 Hz/160 Hz are sent to the subwoofer.
SUB-W PHASE REVERSE	(180°)/NORMAL(0°): Selects the phase of the subwoofer output to be in line with the speaker output for optimum performance. (Selectable only if a setting other than [THROUGH] is selected for [LPF SUBWOOFER].)
FADER	R15 to F15(0): Adjusts the rear and front speaker output balance.
BALANCE L15	to R15(0): Adjusts the left and right speaker output balance.
VOLUME OFFSET	For AUX: -8 to +8(0); For other sources: -8 to0: Presets the volume adjustment level of each source. (Before adjustment, select the source you want to adjust.)
SOUND RECNSTR(Sound reconstruction)	ON: Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression. ;OFF: Cancels.

• [SUB-W LEVEL]/ [SUBWOOFER SET]/ [LPF SUBWOOFER]/ [SUB-W PHASE] is selectable only if [SWITCH PREOUT] is set to [SUBWOOFER]. (→ 4)
• [SUB-W LEVEL]/ [LPF SUBWOOFER]/ [SUB-W PHASE] is selectable only if [SUBWOOFER SET] is set to [ON].

DISPLAY SETTINGS

1 Press FNC to enter [ FUNCTION].
2 Turn the volume knob to select [ DISPLAY], then press the knob.
3 Turn the volume knob to make a selection (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item.
5 Press and hold to exit.

To return to the previous setting item, press 9/5

Default: XX

COLOR SELECT VARIABLE SCAN_/ CUSTOM R/G/B / preset colors*: Selects your preferred button and display illumination color.
	You can create your own color (when [CUSTOM R/G/B] or preset colors* is selected). The color you have created can be stored in [CUSTOM R/G/B].1 Press and hold the volume knob to enter the detailed color adjustment.2 Press I◄◄ /►►I to select the color (R/ G/ B) to adjust.3 Turn the volume knob to adjust the level (0 — 9), then press the knob.
DIMMER ON	: Dims the display illumination and button illumination.;OFF: Cancels.
BRIGHTNESS 0	—31: Selects your preferred brightness level for display illumination and button illumination.
TEXT SCROLL AUTO	/ONCE: Selects whether to scroll the display information automatically, or scroll only once.; OFF: Cancels.

* Preset colors:RED1/ RED2/ RED3/ PURPLE1/ PURPLE2/ PURPLE3/ PURPLE4/ BLUE1/ BLUE2/ BLUE3/ SKYBLUE1/ SKYBLUE2/ LIGHTBLUE/ AQUA1/ AQUA2/ GREEN1/ GREEN2/ GREEN3/ YELLOWGREEN1/ YELLOWGREEN2/ YELLOW ORANGE1/ ORANGE2/ ORANGERED

TROUBLESHOOTING

Symptom Remedy
General	Sound cannot be heard.	Adjust the volume to the optimum level.Check the cords and connections.
	"MISWIRING CHECK WIRING THEN PWR ON" appears.	Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.
	"PROTECTING SEND SERVICE" appears.	Send the unit to the nearest service center.
	The unit does not work at all. Reset the unit. ( ➔ 3)
Radio	Radio reception is poor.Static noise while listening to the radio.	Connect the antenna firmly.Pull the antenna out all the way.
CD / USB / iPod	Disc cannot be ejected.	Press and hold ▲ to forcibly eject the disc. Be careful not to drop the disc when it is ejected. If this does not solve the problem, reset the unit. ( ➔ 3)
	Noise is generated. Skip to another track or change the disc.
	Tracks do not play back as you intended them to play.	Playback order is determined when files are recorded.
	"READING" keeps flashing. Do not use too many hierarchical levels or folders.
	Elapsed playing time is not correct.	This is caused by how the tracks are recorded.
	Correct characters are not displayed (e.g. album name).	This unit can only display uppercase letters, numbers, and a limited number of symbols.
	"NA FILE" Make sure the disc contains supported audio files. ( ➔ 17)
	"NO DISC" Insert a playable disc into the loading slot.
	"TOC ERROR"	Make sure the disc is clean and inserted properly.
	"PLEASE EJECT"	Reset the unit. If this does not solve the problem, consult your nearest service center.

TROUBLESHOOTING

Symptom Remedy
CD / USB / iPod	"READ ERROR" Copy the files and folders onto the USB device again. If this does not solve the problem, reset the USB device or use another USB device.
	"NO DEVICE" Connect a USB device, and change the source to USB again.
	"COPY PRO" A copy-protected file is played.
	"NA DEVICE"	Connect a supported USB device, and check the connections.
	"NO MUSIC" Connect a USB device that contains playable audio files.
	"iPod ERROR"	Reconnect the iPod.Reset the iPod.
ANDROID	Sound cannot be heard during playback.Sound output only from the Android device.	Reconnect the Android device.If in [HAND MODE], launch any media player application on the Android device and start playback.If in [HAND MODE], relaunch the current media player application or use another media player application.Restart the Android device.If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. (→ 18)
	Cannot playback at [BROWSE MODE].	Make sure KENWOOD MUSIC PLAY APP is installed on the Android device. (→ 7)Reconnect the Android device and make the appropriate setting in [ANDROID SETUP]. (→ 8)If this does not solve the problem, the connected Android device does not support [BROWSE MODE]. (→ 18)
	"NO DEVICE" or "READING" keeps flashing.	Switch off the developer options on the Android device.Reconnect the Android device.If this does not solve the problem, the connected Android device does not support [BROWSE MODE]. (→ 18)
	Playback is intermittent or sound skips.	Turn off the power saving mode on the Android device.
	"ANDROID ERROR" / "NA DEVICE"	Reconnect the Android device.Restart the Android device.

Symptom Remedy
Pandora	“ADD ERROR” / New station creation is unsuccessful.“SEARCH ERROR”
	“CHECK DEVICE” Check the Pandora application on your device.
	“NO SKIPS” The skip limit has been reached.
	“NO STATIONS” No stations are found.
	“STATION LIMIT” The number of registered stations has reached its limit.Retry after deleting unnecessary stations from your device.
	“CONNECT ERROR” Communication is unstable.
	“RATING ERROR” Registration of thumbs up/thumbs down has failed.
	“LICENSE ERROR” You try to access from a country which Pandora is not deliverable.
iHeartRadio	iHeartRadio station If “Explicit Content” in [Account Settings] is checked in the web cannot be selected.version of iHeartRADIO, custom stations become unavailable.
	“CANNOT CREATE” Custom station name creation is unsuccessful.
	“CANNOT SAVE” Addition to the favorite category failed.
	“DISCONNECTED” Check the connection to the device.
	“NO SKIPS” The skip limit has been reached. Retry later.
	“NO STATIONS” No stations are found.
	“NOT CONNECTED” Link to the application is impossible.
	“IHEARTLINK UP” Make sure you have installed the latest version of the iHeart Link for KENWOOD application on your device.
	“PLEASE LOGIN” You haven’t log in. Log in again.
	“STATION NOT AVAILABLE” Broadcast from the station is over.
	“STATION NOT SELECTED” No station is selected.
	“STREAM ERROR” Broadcast data is interrupted.
	“THUMB FAILED” Registration of Thumbs Up/Down has failed.
	“TIMED OUT” The request has resulted in time-out.

TROUBLESHOOTING

Symptom Remedy

SiriusXM® Radio	“CH LOCKED LOCK CODE?” The selected channel is locked. Enter the correct pass code to unlock. (→ 13)
	“CHAN UNSUB” The selected channel is unsubscribed. Call 1-866-635-2349 in U.S.A. or 1-877-438-9677 in Canada to subscribe. (→ 11)
	“CH UNAVAIL” The selected channel is unavailable. Visit www.siriusxm.com for more information about the SiriusXM channel lineup.
	“CHECK ANTENNA” Check the antenna and its connection are in good condition.
	“CHECK TUNER” Make sure the SiriusXM Vehicle Tuner is connected to the unit.
	“NO SIGNAL” Make sure the antenna is mounted outside the vehicle.
	“SUBSCRIPTION UPDATED – PRESS ENTER TO CONTINUE.” Your subscription is updated. Press the volume knob to continue.
	“CODE ERROR” Make sure you have entered the correct pass code. (→ 13)
	“NO CONTENT” There is insufficient content to start TuneScan.
	“SCAN CANCEL” TuneScan has been aborted.

MORE INFORMATION

General

• This unit can only play the following CDs:

- Detailed information and notes about the playable audio files are stated in an online manual on the following web site: www.kenwood.com/cs/ce/audiofile/

playable files

- Playable audio file: MP3 (.mp3), WMA (.wma)

- Playable disc media: CD-R/CD-RW/CD-ROM

- Playable disc file format: ISO 9660 Level 1/2, Joliet, Long file name.

- Playable USB device file system: FAT12, FAT16, FAT32

Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device.

Unplayable discs

• Discs that are not round.

• Discs with coloring on the recording surface or discs that are dirty.

- Recordable/ReWritable discs that have not been finalized.

- 8 cm CD. Attempting to insert using an adapter may cause malfunction.

About USB devices

• This unit can play MP3/WMA/WAV files stored on a USB mass storage class device.
• You cannot connect a USB device via a USB hub.
• Connecting a cable whose total length is longer than 5m may result in abnormal playback.
• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1 A.

About KENWOOD Music Editor Light and KENWOOD Music Control

• This unit supports the PC application KENWOOD Music Editor Light and Android™ application KENWOOD Music Control.
• When you play audio files with song data added using the KENWOOD Music Editor Light or KENWOOD Music Control, you can search for audio files by Genres, Artists, Albums, Playlists, and Songs.
• KENWOOD Music Editor Light and KENWOOD Music Control are available on the following web site: www.kenwood.com/cs/ce/

About iPod/iPhone

Made for

• iPod touch (2nd, 3rd, 4th, and 5th generation)
• iPod classic
• iPod nano (3rd, 4th, 5th, 6th, and 7th generation)
• iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C
• For the latest compatible list and software versions of iPhone/iPod, see: www.kenwood.com/cs/ce/ipod
• You cannot operate iPod if "KENWOOD" or "√" is displayed on iPod.

About Android device

• This unit supports Android OS 4.1 and above.
- Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (AOA) 2.0.
- If the Android device supports both mass storage class device and AOA 2.0, this unit always playback via AOA 2.0 as priority.
- For more information and the latest compatible list, see: www.kenwood.com/cs/ce/

About Pandora

• Pandora is available only in the U.S., Australia and New Zealand.
- Because Pandora is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired, or some or all of the services may become unavailable.
- Some functions of Pandora cannot be operated from this unit.
- For issues using the application, please contact Pandora at [e-mail].

About iHeartRadio

• iHeartRadio® is a third-party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.
• Some iHeartRadio® functionality cannot be operated from this unit.

Muting upon the reception of a phone call

Connect the MUTE wire to your telephone using a commercial telephone accessory. ( 20)

When a call comes in, "CALL" appears. (The audio system pauses.)

- To continue listening to the audio system during a call, press ⏻ SRC. "CALL" disappears and the audio system resumes.

When the call ends, "CALL" disappears. (The audio system resumes.)

INSTALLATION / CONNECTION MORE INF

▲ Warning

• The unit can only be used with a 12 V DC power supply, negative ground.
• Disconnect the battery's negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.
  • Insulate unconnected wires with vinyl tape to prevent a short circuit.
• Be sure to ground this unit to the car's chassis again after installation.

Caution

• For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer.
• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.
• Mount the unit at an angle of less than 30^ .
• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle's fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.
• Keep all cables away from heat dissipate metal parts.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car's chassis, then replace the old fuse with one that has the same rating.

Basic procedure

1 Remove the key from the ignition switch, then disconnect the ⊖ terminal of the car battery.
2 Connect the wires properly.
See Wiring connection. ( → 20)
3 Install the unit to your car.
See Installing the unit (in-dash mounting).
4 Connect the ⊖ terminal of the car battery.
5 Reset the unit. ( → 3)

INSTALLATION / CONNECTION

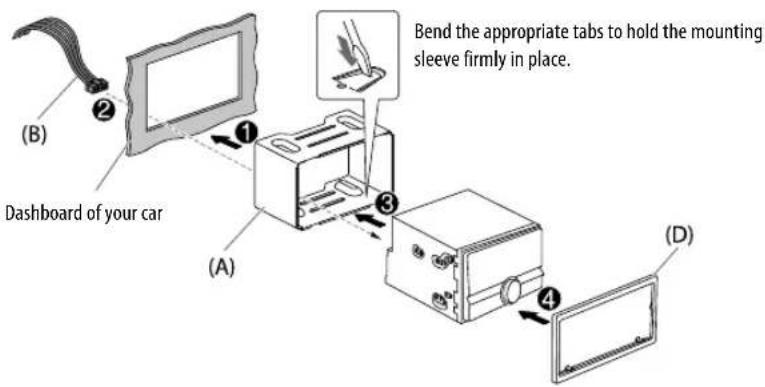

Installing the unit (in-dash mounting)

Do the required wiring. (→ 20)

Bend the appropriate tabs to hold the mounting sleeve firmly in place. Dashboard of your car (A) (B) (D)

When installing without the mounting sleeve

1 Remove the mounting sleeve from the unit.
2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available).

Use only the specified screws. Using wrong screws might damage the unit.

8 mm (3/8") MAX MS mm MS mm

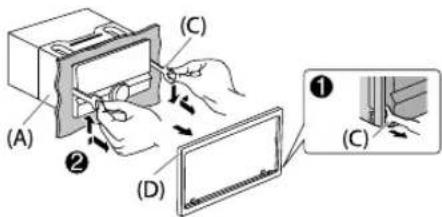

How to remove the unit

1 Fit the catch pin on the extraction keys into the holes on both sides of the trim plate, then pull it out.

2 Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown below.

(A) ② (C) (D) ① (C)

Part list for installation

(A) Mounting sleeve

(B) Wiring harness

(C) Extraction key

(D) Trim plate

INSTALLATION / CONNECTION

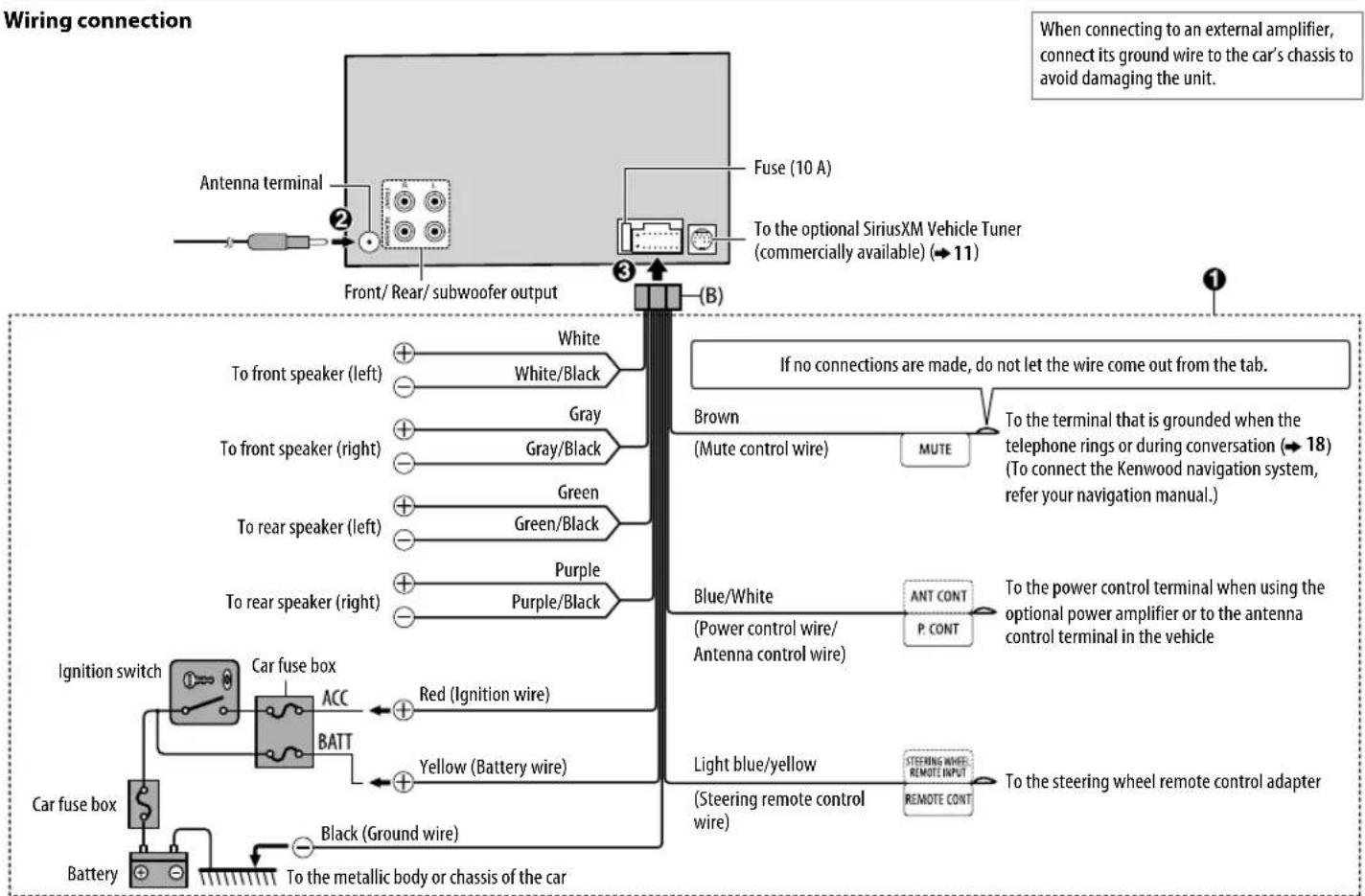


SPECIFICATIONS

Tuner	FM Frequency Range 87.9 MHz — 107.9 MHz (200 kHz space)
	Usable Sensitivity (S/N = 26 dB) 8.2 dBf (0.71 μV/75 Ω)
	Quieting Sensitivity (DIN S/N = 46 dB)	17.2 dBf (2.0 μV/75 Ω)
	Frequency Response (±3 dB) 30 Hz — 15 kHz
	Signal-to-Noise Ratio (MONO) 64 dB
	Stereo Separation (1 kHz) 40 dB
	AM Frequency Range 530 kHz — 1 700 kHz (10 kHz space)
	Usable Sensitivity (S/N = 20 dB) 29 dBμ (28.2 μV)
CD player	Laser Diode GaAlAs
	Digital Filter (D/A) 8 times over sampling
	Spindle Speed 500 rpm — 200 rpm (CLV)
	Wow & Flutter Below measurable limit
	Frequency Response (±1 dB) 20 Hz — 20 kHz
	Total Harmonic Distortion (1 kHz) 0.01 %
	Signal-to-Noise Ratio (1 kHz) 105 dB
	Dynamic Range 90 dB
	Channel Separation	85 dB
	MP3 Decode	Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode	Compliant with Windows Media Audio

USB	USB Standard	USB 1.1, USB 2.0 (Full speed)
	File System	FAT12/ 16/ 32
	Maximum Supply Current	DC 5 V---1 A
	MP3 Decode	Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode	Compliant with Windows Media Audio
	WAV Decode Linear-PCM
Audio	Maximum Output Power	50 W × 4
	Full Bandwidth Power	22 W × 4 (at less than 1 % THD)
	Speaker Impedance	4 Ω — 8 Ω
	Tone Action	Bass 200 Hz ±8 dB
		Middle 2.5 kHz ±8 dB
		Treble 12.5 kHz ±8 dB
	Preout Level/Load (CD)	2 500 mV/10 kΩ
	Preout Impedance	≤ 600 Ω
Auxiliary	Frequency Response (±3 dB)	20 Hz — 20 kHz
	Input Maximum Voltage	1 000 mV
	Input Impedance	30 kΩ
General	Operating Voltage	14.4 V (10.5 V — 16 V allowable)
	Maximum Current Consumption 10 A
	Operational Temperature Range 0°C — +40°C
	Installation Size (W × H × D)	182 mm × 111 mm × 158 mm(7-3/16" × 4-3/8" × 6-1/4")
	Weight	1.5 kg (3.4 lbs)

Subject to change without notice.

TABLE DES MATIERES

AVANT L’UTILISATION 2
FONCTIONNEMENT DE BASE 3
PRISE EN MAIN 4
RADIO	5
CD / USB / iPod / ANDROID 6
Pandora®	9
iHeartRadio®	10
Radio SiriusXM® 11
AUX	13
RÉGLAGES AUDIO 14
RÉGLAGES D’AFFICHAGE 15
GUIDE DE DÉPANNAGE	15
PLUS D’INFORMATIONS	17
INSTALLATION / RACCORDEMENT	18
SPÉCIFICATIONS	21

KENWOOD S-41 G SRC FNO 6/15 ALDO

8 mm (3/8") MAX MS mm MS mm

(A) ② (C) (D) ① (C)

KENWOOD S-41 G SRC FNC 8/15 ALDO

KENWOOD 1 2 3 4 5 6 S-47 #SRC FNC 6/5

8 mm (3/8") MAX MS mm MS mm

(A) ② (C) (D) ① (C)

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety.

JVC KENWOOD Corporation

2967-3, ISHIKAWA-MACHI,

THIS PRODUCT COMPLIES WITH DHHS RULES 21CFR SUBCHAPTER J IN EFFECT AT DATE OF MANUFACTURE.

Location : Top Plate

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

FCC NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CALIFORNIA, USA ONLY

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material—special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate

• "Made for iPod," and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
  • Lightning is a trademark of Apple Inc.
• Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.
• iHeartRadio® is a registered mark of Clear Channel Broadcasting, Inc. in the United States and other countries. Such marks are used under license.
• Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.
  • Android is trademark of Google Inc.
