Product type	Portable amplified speaker
Brand	Fenton
Model	FT210LED
Power supply	220-240 V~ / 50 Hz (mains), 5 V DC (external)
Magnet type	Ferrite
Connectivity	Bluetooth, USB, TF (microSD), AUX 3.5 mm input, microphone (MIC IN)
Functions	MP3 player, recording, equalizer, treble and bass control, echo, microphone priority
Display	LCD screen
Dimensions (approx.)	30 cm × 25 cm × 20 cm
Weight (approx.)	3.5 kg
Operating temperature	5 °C to 35 °C
Cleaning	Use a dry cloth, avoid chemicals
Safety	Do not open the casing, avoid moisture and heat sources
Repairability	Entrust any repair to a specialized technician; use original parts
Warranty	Valid subject to compliance with instructions; void in case of unauthorized modification

Frequently Asked Questions - FT210LED Fenton

How to connect the speaker via Bluetooth?

Activate Bluetooth on your device (phone, tablet). Press the Mode button on the speaker to select BT mode. Look for the name FT210 in the list of Bluetooth devices and pair. The range is about 10 meters without obstacles.

How to use the recording function?

Insert a USB drive or TF card (max 16 GB, FAT32 format). Press the REC button for 3 seconds to start recording. Press again to stop; the file is saved in MP3 format. To play recordings, in USB/TF mode, press REC for 3 seconds, then use |<< and >>| to navigate.

How to delete a recording?

In USB/TF mode, while playing a recording, press the Repeat button for 3 seconds. The recording will be deleted.

What to do if the USB drive is not recognized?

Make sure the USB drive is formatted as FAT32 and does not exceed 16 GB. Try reformatting it on a computer. Also check that the drive is properly inserted into the USB port.

How to adjust the echo on the microphone?

Use the ECHO button on the control panel. Turn it to increase or decrease the intensity of the echo effect on the voice.

Microphone priority is not working, what to do?

Press the MIC PRIORITY button to activate the function. When you speak into the microphone, the music will automatically lower. If it doesn't work, check that the microphone is plugged in and that the microphone volume is sufficient.

How to switch between sources (USB, TF, BT)?

Press the MODE button on the speaker or remote control to switch between Bluetooth, USB, and TF card modes. The LCD screen indicates the active mode.

The speaker does not turn on, what should I check?

Check that the power cord is properly plugged into a 220-240 V mains socket and that the power switch is in the ON position. If it runs on battery, make sure the battery is charged (if applicable). If problems persist, contact a technician.

Can I use the speaker outdoors?

No, this device is designed for indoor use only. Do not expose it to rain or moisture to avoid risk of electric shock.

How to clean the speaker?

Unplug the device. Use a soft, dry cloth. Never use solvents, chemicals, or aerosols. Avoid liquid ingress.

USER MANUAL FT210LED Fenton

FT210LED Portable System 2x10"

Ref. nr.: 170.022

Black ergonomic computer case with purple and blue fan blades (no text or symbols visible)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI

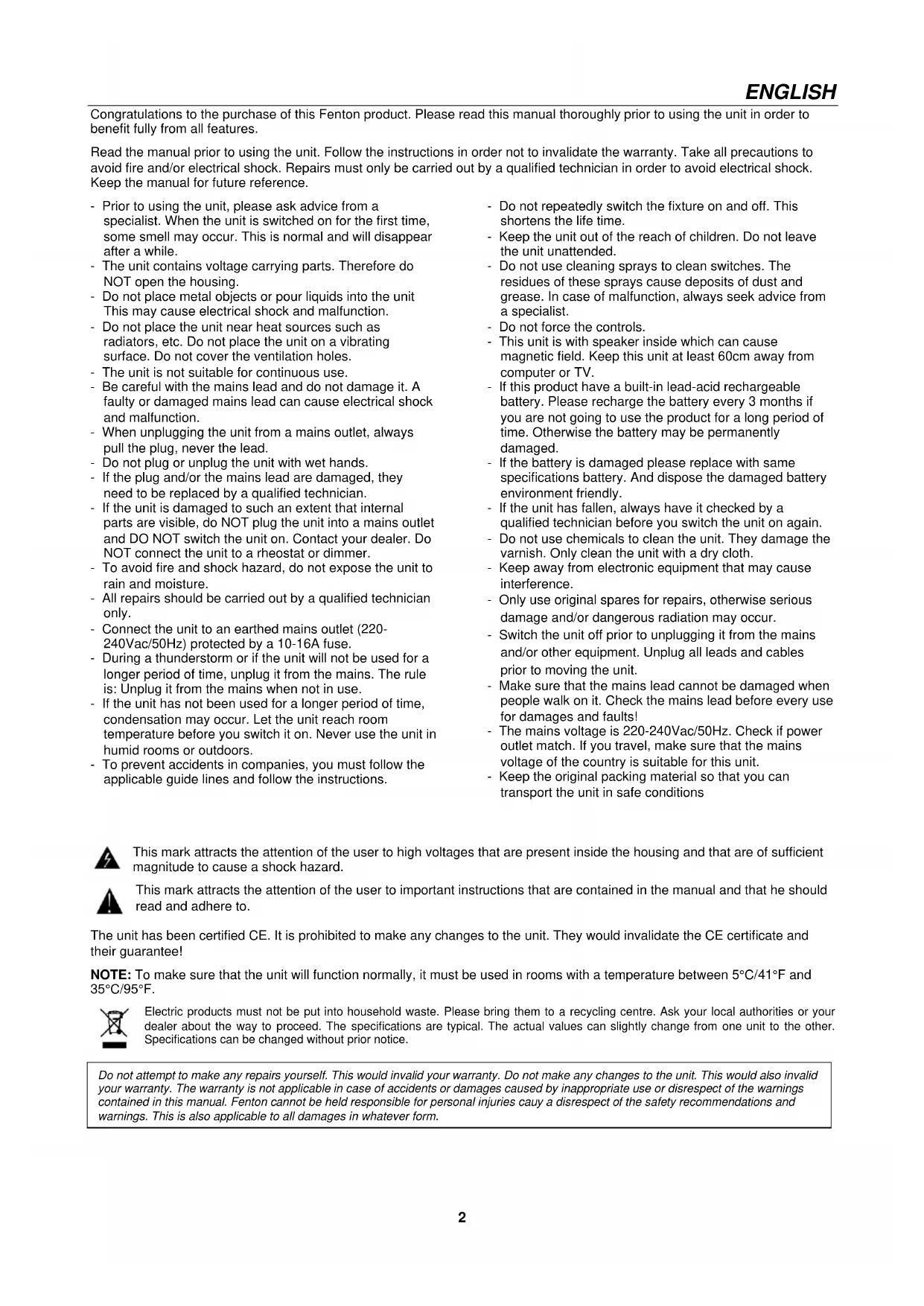

Congratulations to the purchase of this Fenton product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Fenton cannot be held responsible for personal injuries cauy a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

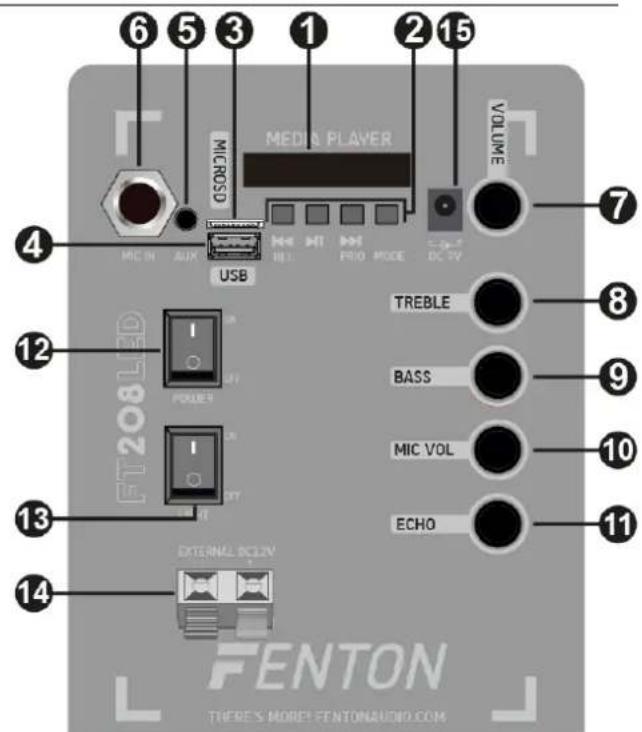

CONTROLS AND CONNECTIONS

1. LCD DISPLAY

2. BUTTON SELECTION

3. TF CARD

Insert a TF Card here.

1. USB PORT

Connect your USB drive to this slot to play music with MP3-format in USB mode.

1. AUX INPUT

3.5mm auxiliary line input jack.

1. MICROPHONE VOLUME

Turn to adjust the microphone volume level.

1. MASTER VOLUME

Adjust the overall output level.

1. TREBLE KNOB

Turn to adjust the higher tones.

1. BASS KNOB

Turn to adjust the lower tones.

1. MIC VOL

Turn to adjust the intensity of your microphone volume.

1. ECHO CONTROL

Turn to adjust the intensity of the echo effect.

1. POWER SWITCH

2. LIGHT SWITCH

3. EXTERNAL POWER SUPPLY

4. 5VDC POWER INPUT

Connector for inserting the supplied power cord.

6 5 3 1 2 15 MEDIA PLAYER VOLUME USB MIC IN AUX TREBLE BASS MIC VOL ECHO FT208LID POWER External PC2V FENTON THERE'S MORE FENTONAUDIO.COM

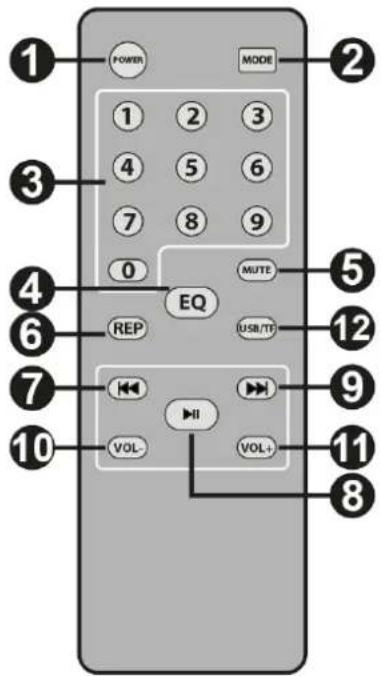

REMOTE

1. STAND-BY BUTTON

Use this button to put the unit into or out of standby mode.

1. MODE BUTTON

Press to switch between BT/USB/SD modes.

1. NUM PAD

Numeric keyboard for selecting presets.

1. EQUALIZER

Press to use EQ function.

1. MUTE

Press to mute the device.

1. USB/TF

Select the usb or tf card

1. PREVIOUS BUTTON

Press to change to the previous track.

1. PLAY/PAUSE

Press this button to start or pause play.

1. NEXT BUTTON

Press to change to the next track.

1. VOLUME + CONTROL

Adjust the output level higher on the sound system.

1. VOLUME - CONTROL

Adjust the output level lower on the sound system.

1. MASTER VOLUME CONTROL

1 POWER MODE 2 3 1 2 3 4 5 6 7 8 9 0 EQ MUTE REP USB/TF 4 6 12 7 VOL- II 9 10 VOL+ 11 8

BT CONNECTION

1. Activate the BT on your device (Mobile phone, tablet etc.) which you want to play the music. See the operating instructions for that device.
2. Press the "MODE" button and activate the BT-function.
3. Select "FT210" on your BT device and pair.
   Attention: BT distance is approx. 10meter without any barrier.

RECORD FUNCTION

Record

First, insert a USB of TF drive into the speaker. Second, you can use the record function when you push the "REC" button for 3 seconds, the speaker will start recording. Press the REC button again to stop recording, It will save the mp3 at your USB or TF card.

Playback

In USB/TF mode, Press and hold Play "Rec button" for 3 sec to enter playback, Press >>>| or "|<<" button to navigate stored record, Press and hold "Repeat" button for 3 sec to delete record.

NOTE: USE A USB STICK WITH A MAXIMUM OF 16GIG AND FORMAT THE USB/TF DRIVE TO FAT-32 FILE SYSTEM.

MIC PRIORITY:

MIC Priority button; press to turn on or off the microphone priority; the music will be automatically turned down when you speak through the microphone

3,5mm aux lijn-ingang jack.

6. MICROFOONVOLUME

6 5 3 1 2 15 MEDIA PLAYER MIC IN AOX USB VOLUME 4 7 8 12 TREBLE POWER BASS 9 13 I I MIC VOL 10 14 EXTERNAL DC12V ECHO FENTON THERE'S MORE! FENTONAUDIO.COM

FERNBEDIENUNG

1. STANDBY-TASTE

Frequency response : 50Hz - 18KHz

Diameter woofer : 10"

Input connections : 3.5mm jack, 6.3mm jack, MicroSD, USB

Power supply : 100-240VAC 50/60Hz (9V Adapter)

Dimensions (LxWxH) : 315 x 600 x 500mm

Weight (kg) : 10,60

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

2014/53/EU

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

S.I. 2017:1206

Specifications and design are subject to change without prior notice.
