USER MANUAL ED 1442mm F3.55.6 EZ OLYMPUS

© 2014 OLYMPUS CORPORATION

WD166302

Printed in China

OLYMPUS

MICRO FOURTHINDS

M.ZUIKO DIGITAL

ED 14-42mm f3.5-5.6 EZ

04 - JP 取扱説明書
06 - EN INSTRUCTIONS
09 - ES INSTRUCCIONES
12 - F: MODE D'EMPLOI
15 - ВЕ ИНСТРУКЦИИ
17 - CS NÁVOD K POUŽITI
19 - DE BEDIENUNGSANLEITUNG
21 - D: BETJENINGSVEJLEDNING
23 - JUHISED
25 - F KÄYTTÖOHJEET
27 - EL OΔΗΓΙΕΣ
29 - HR UPUTE
31 - HIL HASZNÁLATI ÚTMUTATÓ
33 - ISTRUZIONI
35 - INSTRUKCIJA
37 - LV NORADIJUMI

39 - NL AANWIJZINGEN
41 - NO INSTRUKSJONER
43 - PL INSTRUKCJA
45 - PT INSTRUÇÕES
47 - PO INSTRUCTIUNI
49 - SA UPUTSTVO ZA UPOTREBU
51 - RU ИНСТРУКЦИЯ
53 - SV BRUKSANVISNING
55 - SL NAVODILA
57 - SK NÁVOD NA POUŽITIE
59 - IR TALIMATLAR
61 - UK IHCTPYKCIЯ
64 - 42
65 - 40 ตัวแนะนําดการใช้งาน
67-취급설명서
69-使用說明書

Technical illustration of two mechanical components with labeled parts (1 and 2), showing cross-sectional views without any text or symbols.

P 取扱説明書

For customers in Europe

Manufactured by OLYMPUS CORPORATION 2951 Ishikawa-machi, Hachioji-shi, Tokyo 192-8507. Japan

Imported by OLYMPUS EUROPA SE & Co. KG Wendenslasse 14-18, 20097 Hamburg, Germany

ご注意 必ずお読みください

警告 安全上のご注意

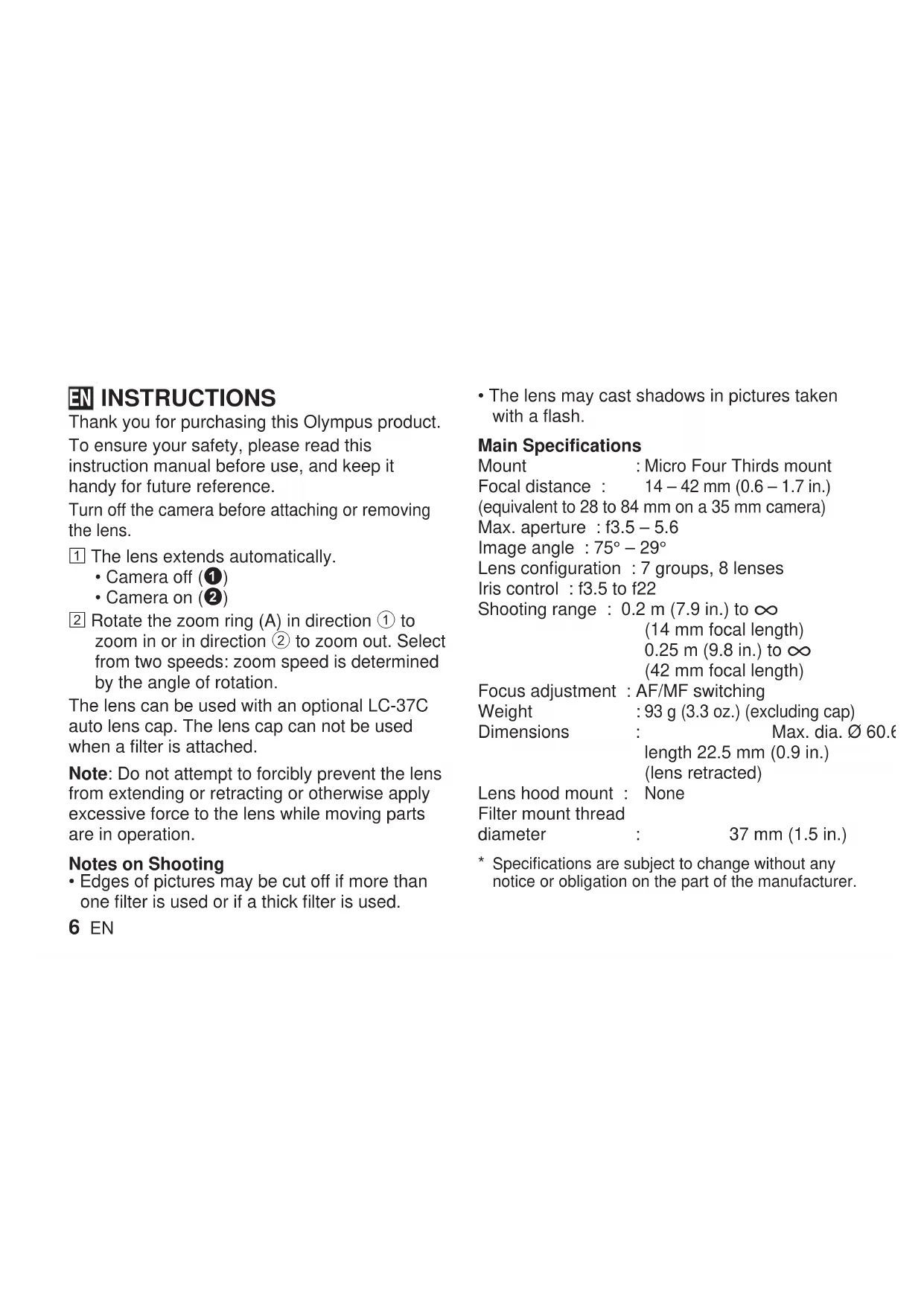

Thank you for purchasing this Olympus product.

To ensure your safety, please read this instruction manual before use, and keep it handy for future reference.

Turn off the camera before attaching or removing the lens.

① The lens extends automatically.

- Camera off (1)

- Camera on (2)

② Rotate the zoom ring (A) in direction ① to zoom in or in direction ② to zoom out. Select from two speeds: zoom speed is determined by the angle of rotation.

The lens can be used with an optional LC-37C auto lens cap. The lens cap can not be used when a filter is attached.

Note: Do not attempt to forcibly prevent the lens from extending or retracting or otherwise apply excessive force to the lens while moving parts are in operation.

Notes on Shooting

- Edges of pictures may be cut off if more than one filter is used or if a thick filter is used.

6 EN

- The lens may cast shadows in pictures taken with a flash.

Main Specifications

Mount : Micro Four Thirds mount

Focal distance : 14 – 42 mm (0.6 – 1.7 in.)

(equivalent to 28 to 84 mm on a 35 mm camera)

Max. aperture : f3.5 - 5.6

Image angle : 75° – 29°

Lens configuration : 7 groups, 8 lenses

Iris control : f3.5 to f22

Shooting range : 0.2 m (7.9 in.) to ∞

(14 mm focal length)

(42 mm focal length)

Focus adjustment : AF/MF switching

Weight : 93 g (3.3 oz.) (excluding cap)

Dimensions : Max. dia. ∅ 60.6

length 22.5 mm (0.9 in.)

(lens retracted)

Lens hood mount : None

Filter mount thread

diameter : 37 mm (1.5 in.)

* Specifications are subject to change without any notice or obligation on the part of the manufacturer.

Precautions: Be Sure to Read the Following

Warnings: Safety Precautions

• Do not view the sun through the lens. It may cause blindness or vision impairment.
• Do not leave the lens without the cap. If solar light is converged through the lens, a fire may result.
• Do not point the camera lens at the sun. Sunlight will converge in the lens and focus inside the camera, possibly causing a malfunction or fire.

Micro Four Thirds and the Micro Four Thirds logo are trademarks or registered trademarks of OLYMPUS CORPORATION.

For customers in North America, Central America, South America and the Caribbean FCC Notice

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any unauthorized changes or modifications to this equipment would void the user's authority to operate.

This Class B digital apparatus complies with Canadian ICES-003. CAN ICES-3(B)/NMB-3(B)

• Technical Support (U.S.A. / Canada)

24/7 online automated help : http://www.olympusamerica.com/support Phone customer support : Tel.[phone] (Toll-free)

Our phone customer support is available from 9 am to 9 pm (Monday to Friday) ET E-Mail : [e-mail]

For customers in Europe

The “CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. CE-mark products are for sale in Europe.

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries.

Please do not throw the equipment into the domestic refuse.

Please use the return and collection systems available in your country for the disposal of this product.

• European Technical Customer Support

Please visit our homepage

http://www.olympus-europa.com

or call: Tel. 00800 - 67 10 83 00 (Toll-free)

+49 40 - 237 73 899 (Charged)
