Product Type	Zoom Lens
Brand	Olympus
Model	ED 14-150mm F4.0-5.6 II
Mount	Micro Four Thirds
Focal Length	14 – 150 mm (35mm equivalent: 28 – 300 mm)
Maximum Aperture	f/4.0 (at 14 mm) – f/5.6 (at 150 mm)
Minimum Aperture	f/22
Angle of View	75° – 8.2°
Optical Construction	11 groups, 15 elements
Minimum Focus Distance	0.5 m
AF/MF Switching	Yes
Filter Diameter	58 mm
Lens Hood	Bayonet, supplied
Dimensions (diam. × length)	∅ 63.5 × 83 mm
Weight	285 g (without lens hood or cap)
Multi-Coating	Yes
Care and Cleaning	Clean with a soft, dry cloth. Avoid solvents.
Safety	Do not look at the sun through the lens. Always replace the cap.
General Information	Complies with CE and FCC standards. Support available at olympus-europa.com.

Frequently Asked Questions - ED 14150mm F4.05.6 II OLYMPUS

Is this lens compatible with all Micro Four Thirds cameras?

Yes, the Olympus ED 14-150 mm F4.0-5.6 II is designed for the Micro Four Thirds mount and works with all cameras of this standard, including Olympus and Panasonic models.

What is the full-frame equivalent?

The equivalent focal length in 35mm format is 28 to 300 mm, offering a wide-angle to telephoto range.

Does this lens have image stabilization?

No, this lens does not have optical stabilization. However, many Micro Four Thirds bodies have built-in sensor stabilization.

What is the filter diameter?

The filter thread diameter is 58 mm.

Can I use thick filters or stack multiple filters?

It is not recommended to stack filters or use thick filters, as this may darken the edges of the image (vignetting).

What is the minimum focusing distance?

The minimum focusing distance is 0.5 meters throughout the focal range, allowing a moderate magnification ratio.

Is the lens weather-sealed?

No, this lens is not specifically weather-sealed. It is advisable to avoid humid or dusty conditions.

How to clean the lens?

Use a soft, dry cloth to clean the lenses. For stubborn marks, a slightly damp microfiber cloth can be used. Avoid solvents.

Is the lens hood included?

Yes, a bayonet lens hood is supplied and can be reversed for storage.

What is the warranty on this lens?

The standard Olympus warranty varies by country. Contact technical support or visit olympus-europa.com for more information.

USER MANUAL ED 14150mm F4.05.6 II OLYMPUS

date of issue 2014.12

WD180202

Printed in China

OLYMPUS

MICRO FOURTHIRDS

M.ZUIKO DIGITAL

ED 14-150mm f4-5.6 II

04 - JP 取扱説明書
06 - EN INSTRUCTIONS
09 - ES INSTRUCCIONES
12 - FR MODE D'EMPLOI
16 - ВС ИНСТРУКЦИИ
18 - CS NÁVOD K POUŽITÍ
20 - DE BEDIENUNGSANLEITUNG
22 - D: BETJENINGSVEJLEDNING
24 - ET JUHISED
26 - FJ KÄYTTÖOHJEET
28 - ΕΟΔΗΓΙΕΣ
30 - HF UPUTE
32 - HASZNÁLATI ÚTMUTATÓ
34 - ISTRUZIONI
36 - INSTRUKCIJA
38 - IV NORADJUMI
40 - ML AANWIJZINGEN
42 - INSTRUKSJONER

44 - PL INSTRUKCJA
46 - PT INSTRUÇÕES
48 - RC INSTRUCTIUNI
50 - ŠR UPUTSTVO ZA UPOTREBU
52 - RL ИНСТРУКЦИЯ
54 - SV BRUKSANVISNING
56 - SL NAVODILA
58 - SK NÁVOD NA POUŽITIE
60 - TR TALİMATLAR
62 - UK I H C T P K C I A
65 - AF الارشادات
66 - ที่ คําแนะนําการใช้งาน
68-KF취급설명서
70 - 用說明書

Exploded view diagram of a camera lens assembly with numbered parts for identification

Diagram illustrating camera lens assembly steps with labeled parts and directional arrows

P 取扱説明書

The following importer description applies to products imported into the EU directly by OLYMPUS EUROPA SE & Co. KG only, OLYMPUS EUROPA SE & Co. KG

ご注意 必ずお読みください

警告 安全上のご注意

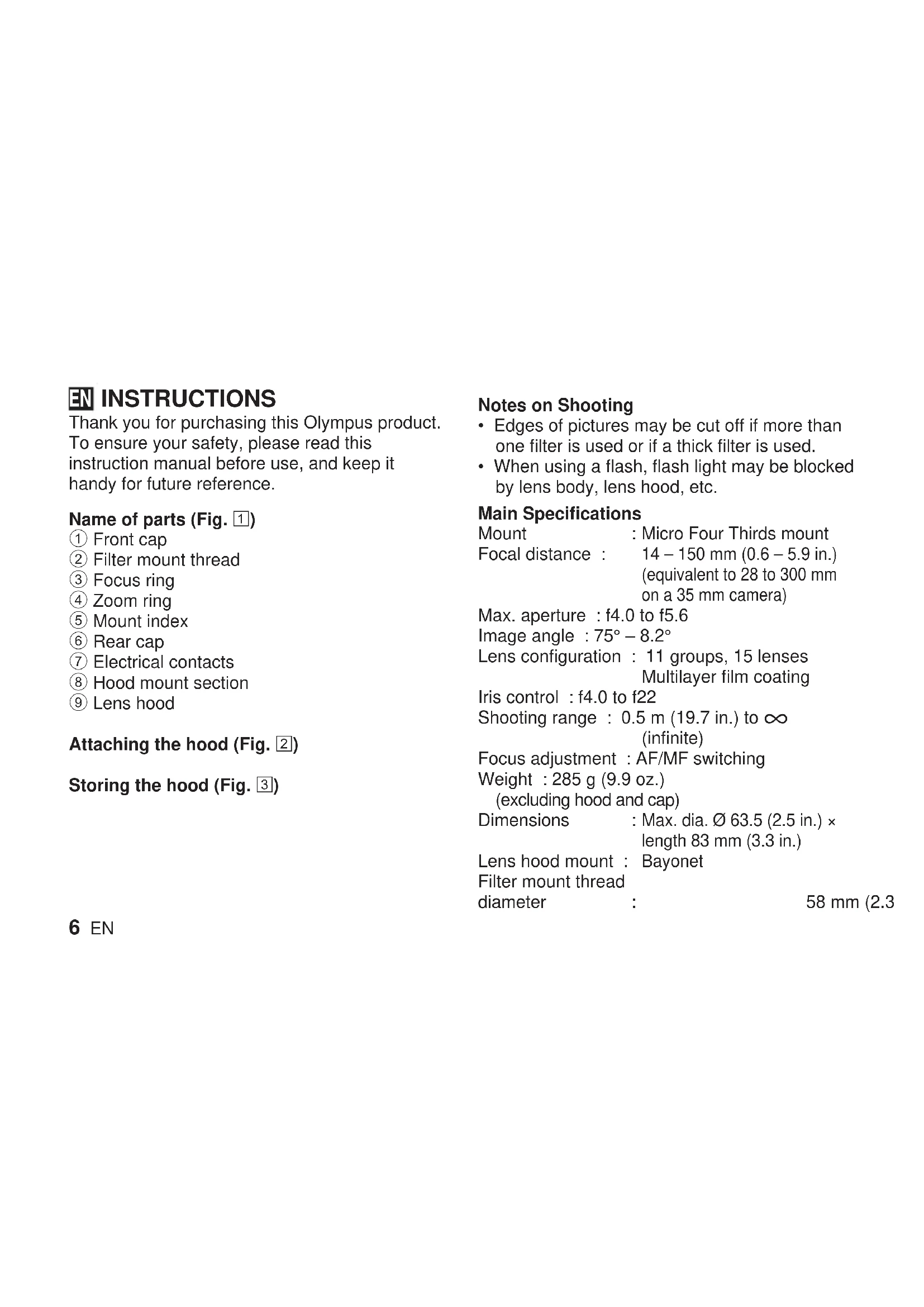

Thank you for purchasing this Olympus product. To ensure your safety, please read this instruction manual before use, and keep it handy for future reference.

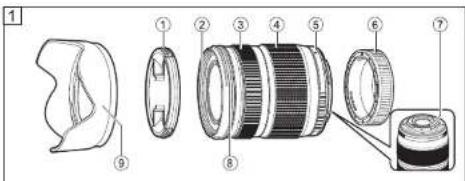

Name of parts (Fig. 1)

① Front cap
② Filter mount thread
③ Focus ring
④ Zoom ring
⑤ Mount index
⑥ Rear cap
⑦ Electrical contacts
⑧ Hood mount section
⑨ Lens hood

Attaching the hood (Fig. 2)

Storing the hood (Fig. 3)

Notes on Shooting

• Edges of pictures may be cut off if more than one filter is used or if a thick filter is used.
• When using a flash, flash light may be blocked by lens body, lens hood, etc.

Main Specifications

Mount : Micro Four Thirds mount Focal distance : 14 – 150 mm (0.6 – 5.9 in. (equivalent to 28 to 300 mm on a 35 mm camera)

Max. aperture : f4.0 to f5.6

Image angle : 75^ - 8.2^

Lens configuration : 11 groups, 15 lenses Multilayer film coating

Iris control : f4.0 to f22

Shooting range : 0.5 m (19.7 in.) to ∞ (infinite)

Focus adjustment : AF/MF switching

Weight : 285 g (9.9 oz.)

(excluding hood and cap)

Dimensions : Max. dia. ∅ 63.5 (2.5 in.) × length 83 mm (3.3 in.)

Lens hood mount : Bayonet

Filter mount thread

diameter : 58 mm (2.3

* Specifications are subject to change without any notice or obligation on the part of the manufacturer.

Precautions: Be Sure to Read the Following

Warnings: Safety Precautions

• Do not view the sun through the lens. It may cause blindness or vision impairment.
• Do not leave the lens without the cap. If solar light is converged through the lens, a fire may result.
• Do not point the camera lens at the sun. Sunlight will converge in the lens and focus inside the camera, possibly causing a malfunction or fire.

Micro Four Thirds and the Micro Four Thirds logo are trademarks or registered trademarks of OLYMPUS CORPORATION.

For customers in North America, Central America, South America and the Caribbean FCC Notice

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any unauthorized changes or modifications to this equipment would void the user's authority to operate.

This Class B digital apparatus complies with Canadian ICES-003. CAN ICES-3(B)/NMB-3(B)

• Technical Support (U.S.A. / Canada)

24/7 online automated help : http://www.olympusamerica.com/support Phone customer support : Tel.[phone] (Toll-free) Our phone customer support is available from 9 am to 9 pm (Monday to Friday) ET E-Mail : [e-mail]

For customers in Europe

The “CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. CE-mark products are for sale in Europe.

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries.

Please do not throw the equipment into the domestic refuse.

Please use the return and collection systems available in your country for the disposal of this product.

• European Technical Customer Support

Please visit our homepage

http://www.olympus-europa.com

or call: Tel. 00800 - 67 10 83 00 (Toll-free)

+49 40 - 237 73 899 (Charged)
