USER MANUAL ED 25mm F1.2 PRO OLYMPUS

date of issue 2016.7

WC948601

Printed in Japan

OLYMPUS®

MICRO FOURTHIRDS

M.ZUIKO DIGITAL

ED 25mm f1.2 PRO

Model No.:IM003

04 - JP 取扱説明書
07 - EN INSTRUCTIONS
11 - ES INSTRUCCIONES
15 - FR MODE D'EMPLOI
19 - ВС ИНСТРУКЦИИ
22 - CS NÁVOD K POUŽITÍ
25 - DE BEDIENUNGSANLEITUNG
28 - D ^1 BETJENINGSVEJLEDNING
31 - ET JUHISED
34 - FJ KÄYTTÖOHJEET
37 - ΕΟΔΗΓΙΕΣ
40 - HF UPUTE
43 - HL HASZNÁLATI ÚTMUTATÓ
46 - ISTRUZIONI
49 - INSTRUKCIJA
52 - IV NORADJUMI
55 - ML AANWIJZINGEN
58 - INSTRUKSJONER

61 - PL INSTRUKCJA
64 - PT INSTRUÇÕES
67 - RC INSTRUCTIUNI
70 - SF UPUTSTVO ZA UPOTREBU
73 - RL ИНСТРУКЦИЯ
76 - SV BRUKSANVISNING
79 - SL NAVODILA
82 - SKNÁVOD NA POUŽITIE
85 - TR TALİMATLAR
88 - UK I H C T R Y K C I A
93 - AF
94 - ดําแหนะนําการใช้งาน
97-KE사용석명서
100 - [E] 使用說明書

IP 取扱説明書

The following importer describes the products imported into the EU directly by OLYMPUS EUROPA SE & Co. KG only, OLYMPUS EUROPA SE & Co. KG Kinder Institute 14-18, 2007 Hertberg Centre

主な仕様

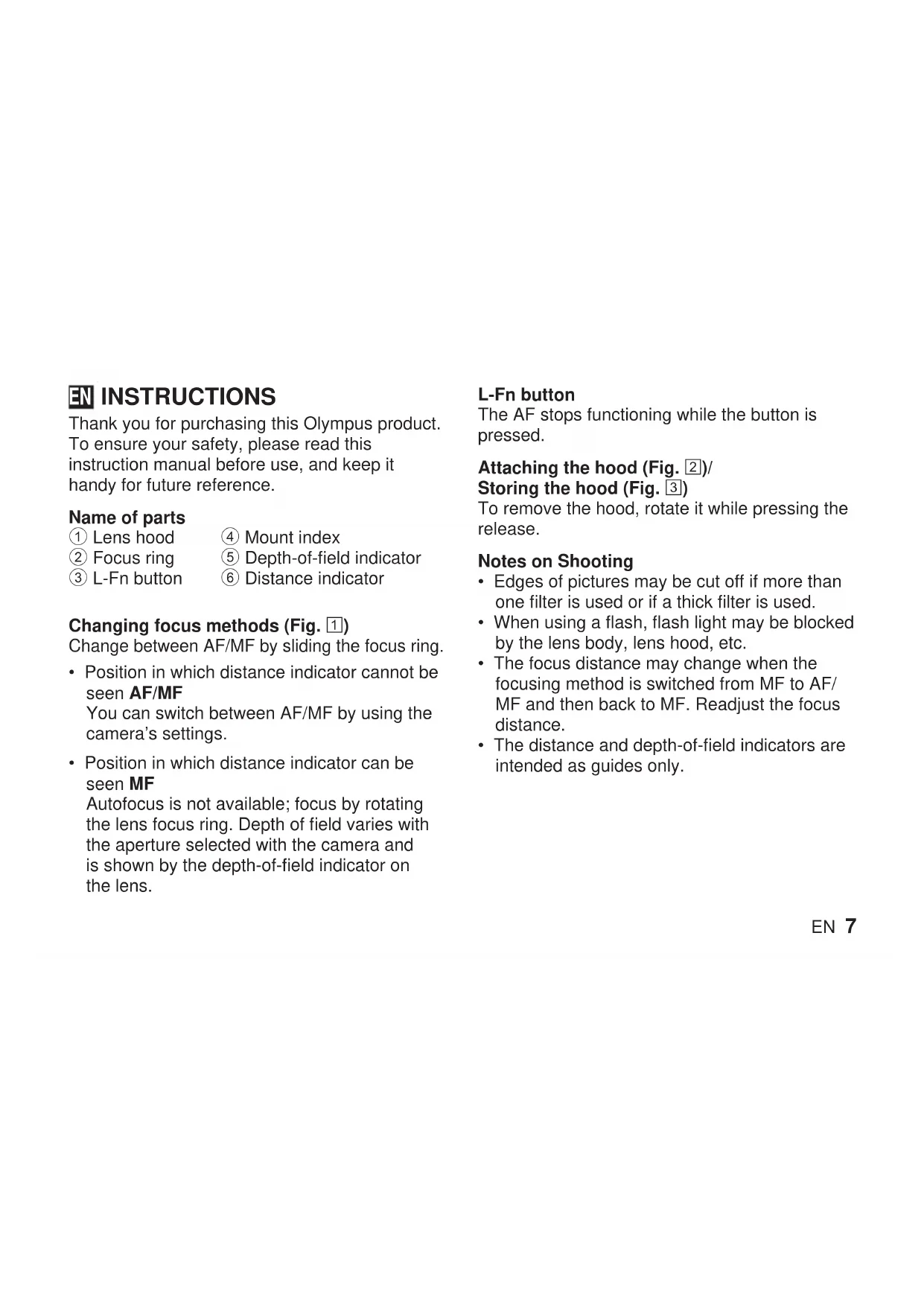

Thank you for purchasing this Olympus product. To ensure your safety, please read this instruction manual before use, and keep it handy for future reference.

Name of parts

① Lens hood

④ Mount index

② Focus ring

⑤ Depth-of-field indicator

③ L-Fn button

⑥ Distance indicator

Changing focus methods (Fig. 1)

Change between AF/MF by sliding the focus ring.

- Position in which distance indicator cannot be seen AF/MF

You can switch between AF/MF by using the camera's settings.

- Position in which distance indicator can be seen MF

Autofocus is not available; focus by rotating the lens focus ring. Depth of field varies with the aperture selected with the camera and is shown by the depth-of-field indicator on the lens.

L-Fn button

The AF stops functioning while the button is pressed.

Attaching the hood (Fig. 2)/

Storing the hood (Fig. 3)

To remove the hood, rotate it while pressing the release.

Notes on Shooting

• Edges of pictures may be cut off if more than one filter is used or if a thick filter is used.
• When using a flash, flash light may be blocked by the lens body, lens hood, etc.
• The focus distance may change when the focusing method is switched from MF to AF/MF and then back to MF. Readjust the focus distance.
• The distance and depth-of-field indicators are intended as guides only.

Main Specifications

Mount : Micro Four Thirds mount

Focal distance : 25 mm

(equivalent to 50 mm on a 35 mm camera)

Shooting range : 0.3 m (11.8 in.) to ∞ (infinite)

Focus adjustment : AF/MF switching

Weight : 410 g (14.5 oz.)

(excluding hood and cap)

Dimensions :

Max. dia. ∅ 70

length 87 mm (3.4 in.)

Lens hood mount : Bayonet

Filter mount thread

diameter : ∅ 62 mm

* Specifications are subject to change without any notice or obligation on the part of the manufacturer.

Precautions: Be Sure to Read the Following

Warnings: Safety Precautions

• Do not view the sun through the lens. It may cause blindness or vision impairment.
• Do not leave the lens without the cap. If solar light is converged through the lens, a fire may result.
• Do not point the camera lens at the sun. Sunlight will converge in the lens and focus inside the camera, possibly causing a malfunction or fire.

Micro Four Thirds and the Micro Four Thirds (2009) are trademarks or registered trademarks of OLYMPUS CORPORATION.

For customers in North America, Central America, South America and the Caribbean FCC Notice

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any unauthorized changes or modifications to this equipment would void the user's authority to operate.

CAN ICES-3(B)/NMB-3(B)

• Technical Support (U.S.A. / Canada)

24/7 online automated help : http://www.olympusamerica.com/support Phone customer support : Tel.[phone] (Toll-free)

Our phone customer support is available from 9 am to 9 pm (Monday to Friday) ET E-Mail : [e-mail]

For customers in Europe

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries.

Please do not throw the equipment into the domestic refuse.

Please use the return and collection systems available in your country for the disposal of this product.

• European Technical Customer Support

Please visit our homepage http://www.olympus-europa.com or call: Tel. 00800 - 67 10 83 00 (Toll-free) +49 40 - 237 73 899 (Charged)

The software in this lens may include third party software. Any third party software is subject to the terms and conditions, imposed by the owners or licensors of that software, under which software is provided to you.

Those terms and other third party software notices, if any, may be found in the software notice PDF file stored at

http://www.olympus.co.jp/en/support/img/digicamera/download/notice/notice.cfm

This product uses T-Kernel source code under the terms of the T-Engine Forum (www.tron.org) T-License.
