USER MANUAL ED 714mm F2.8 PRO OLYMPUS

date of issue 2015.3

WD180103

Printed in Vietnam

OLYMPUS

MICRO FOURTHINDS

M.ZUIKO DIGITAL

ED 7-14mm f2.8 PRO

04 - JP 取扱説明書
06 - EN INSTRUCTIONS
09 - ES INSTRUCCIONES
12 - F# MODE D'EMPLO
16 - ВС ИНСТРУКЦИИ
18 - CS NÁVOD K POUŽITÍ
20 - DE BEDIENUNGSANLEITUNG
22 - D: BETJENINGSVEJLEDNING
24 - EJUHISED
26 - KÄYTTÖOHJEET
28 - ΞΟΔΗΓΙΕΣ
30 - UPUTE
32 - HASZNÁLATI ÚTMUTATÓ
34 - ISTRUZIONI
36 - INSTRUKCIJA
38 - IV NORADJUMI
40 - ML AANWIJZINGEN
42 - INSTRUKSJONER

44 - PL INSTRUKCJA
46 - PT INSTRUÇÕES
48 - RC INSTRUCTIUNI
50 - SF UPUTSTVO ZA UPOTREBU
52 - RL ИНСТРУКЦИЯ
54 - SV BRUKSANVISNING
56 - SL NAVODILA
58 - SKNÁVOD NA POUŽITIE
60 - TR TALIMATLAR
62 - UKIHNCTPYKЦИЯ
64 - AF
66 - 100 ค่าแนะナーการใช้งาน
68-Ⅲ취급설명서
70 - 使用說明書

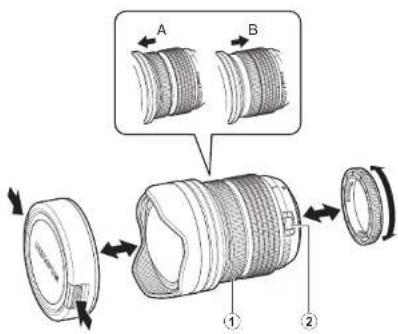

Technical diagram of a camera lens assembly with labeled parts and directional arrows indicating components A and B.

P 取扱説明書

The following importer description applies to products imported into the EU directly by OLYMPUS EUROPA SE & Co. KG only. OLYMPUS EUROPA SE & Co. KG Wendenstrasse 14-18, 20097 Hamburg, Germany

ご注意 必ずお読みください

警告 安全上のご注意

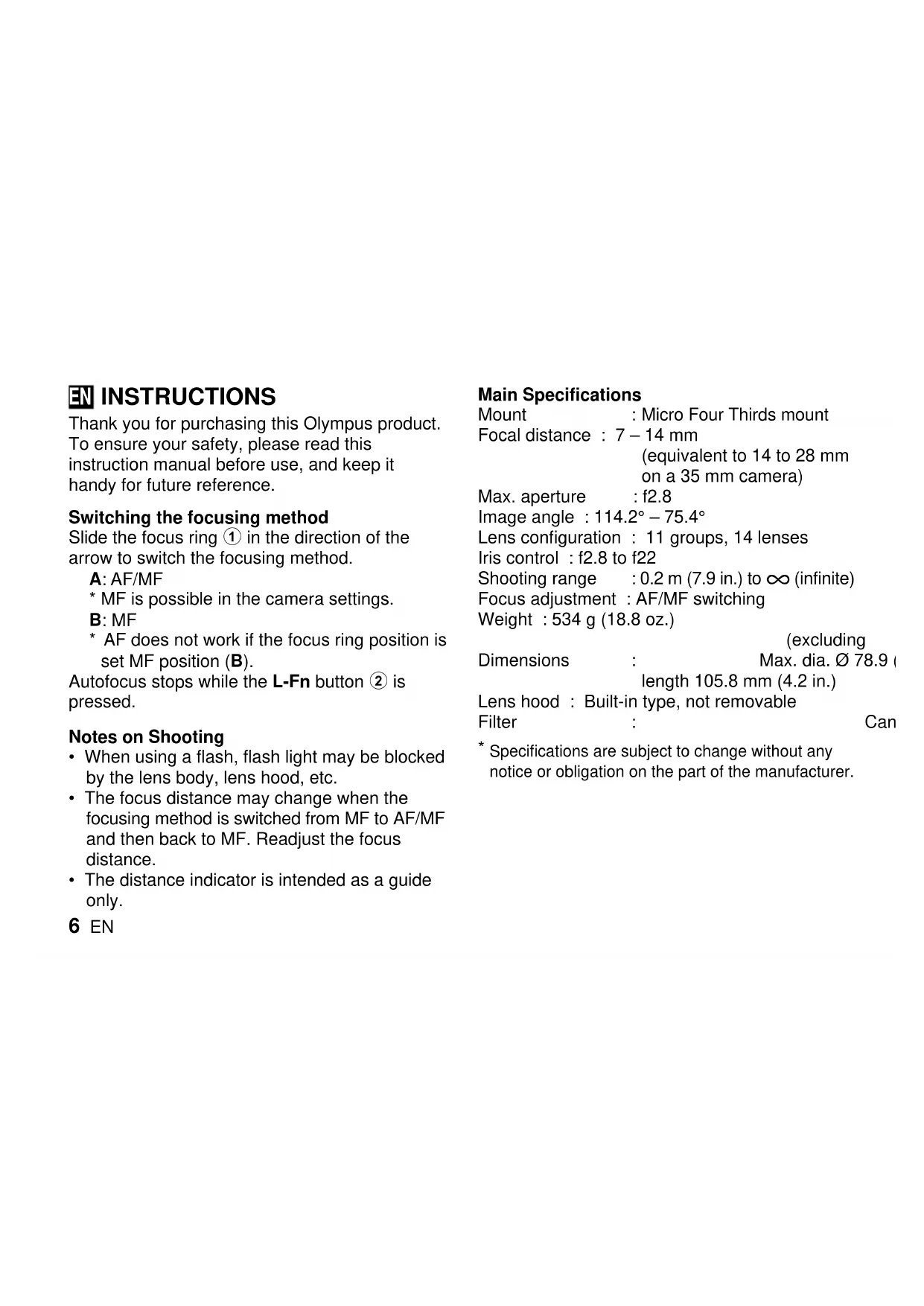

Thank you for purchasing this Olympus product. To ensure your safety, please read this instruction manual before use, and keep it handy for future reference.

Switching the focusing method

Slide the focus ring ① in the direction of the arrow to switch the focusing method.

A: AF/MF

* MF is possible in the camera settings.

B: MF

* AF does not work if the focus ring position is set MF position (B).

Autofocus stops while the L-Fn button ② is pressed.

Notes on Shooting

• When using a flash, flash light may be blocked by the lens body, lens hood, etc.
• The focus distance may change when the focusing method is switched from MF to AF/MF and then back to MF. Readjust the focus distance.
• The distance indicator is intended as a guide only.

6 EN

Main Specifications

Mount : Micro Four Thirds mount

Focal distance : 7 - 14 mm (equivalent to 14 to 28 mm on a 35 mm camera)

Max. aperture : f2.8

Image angle : 114.2° – 75.4°

Lens configuration : 11 groups, 14 lenses

Iris control : f2.8 to f22

Shooting range : 0.2 m (7.9 in.) to ∞ (infinite)

Focus adjustment : AF/MF switching

Weight : 534 g (18.8 oz.)

(excluding

Dimensions : Max. dia. ∅ 78.9 (length 105.8 mm (4.2 in.)

Lens hood : Built-in type, not removable

Filter :

Can

* Specifications are subject to change without any notice or obligation on the part of the manufacturer.

Precautions: Be Sure to Read the Following

Warnings: Safety Precautions

• Do not view the sun through the lens. It may cause blindness or vision impairment.
• Do not leave the lens without the cap. If solar light is converged through the lens, a fire may result.
• Do not point the camera lens at the sun. Sunlight will converge in the lens and focus inside the camera, possibly causing a malfunction or fire.

Micro Four Thirds and the Micro Four Thirds logo are trademarks or registered trademarks of OLYMPUS CORPORATION.

For customers in North America, Central America, South America and the Caribbean FCC Notice

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any unauthorized changes or modifications to this equipment would void the user's authority to operate.

This Class B digital apparatus complies with Canadian ICES-003. CAN ICES-3(B)/NMB-3(B)

• Technical Support (U.S.A. / Canada)

24/7 online automated help : http://www.olympusamerica.com/support Phone customer support : Tel.[phone] (Toll-free)

Our phone customer support is available from 9 am to 9 pm (Monday to Friday) ET E-Mail : [e-mail]

For customers in Europe

The “CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. CE-mark products are for sale in Europe.

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries.

Please do not throw the equipment into the domestic refuse.

Please use the return and collection systems available in your country for the disposal of this product.

• European Technical Customer Support

Please visit our homepage

http://www.olympus-europa.com

or call: Tel. 00800 - 67 10 83 00 (Toll-free)

+49 40 - 237 73 899 (Charged)
