USER MANUAL Series 8 8325s BRAUN

Line drawing of a Braun electric shaver with power button and brand logo (no text or symbols on the device itself)

Scan Me!

QR code image containing encoded data, no visible human-readable text

90398421/X-22

English 12, 21

Français 15, 26

Español 18, 29

Thank you for purchasing a Braun product.

We hope you are completely satisfied with your new Braun shaver.

If you have any questions, please visit

www.service.braun.com or call:

US residents 1-800-BRAUN-11

1-800-272-8611

Canadian residents 1-800-387-6657

1 Foil & cutter cassette 83M 2 Cassette re-lease button 3 Multi head lock to lock the shaver head for a precise shave 4 On/off button 5 Display Foil replacement Travel lock Cleaning station indicator Low charge / cordless use indicator Battery indicator S8 wet&dry BRAUn 6 Long hair trimmer 7 Contacts for cleaning station (10) / power case (12) usage 8 Release button to lift up longhair trimmer 9 Power socket

10 Cleaning station BRAUN Type 5430

11 Charging stand

12 PowerCase PowerCase Type 5796

13 Power supply

Note: Design / Content / availability of attachments may vary by model / country.

A.

Simple line drawing of a battery with a lightning bolt symbol (no text or numbers)

Exterior view of a modern electric toothbrush with a cable connector (no text or symbols visible)

Exterior view of a modern electric shaver with power cord and attached cable (no visible text or symbols)

Exterior view of a black and silver BAN-branded digital ear cleaner with attached cable (no visible text or symbols)

1h 0% 100%

B.

Electric toothbrush with power button and 8Ω label, next to a battery icon (no text or symbols on the device itself)

Two simple icons: a battery with a minus sign and a battery with a plus sign, both without any text or symbols.

Two simple icons: a black rectangular panel with horizontal lines and a white battery with a plus sign, both without any text or symbols.

Two simple icons: a battery with a switch and a document with horizontal lines, both without any text or symbols.

Illustration of a person using a hairbrush (no text or symbols present)

5 min

12 0 min

C.

Exterior view of a modern electric shaver with a red power plug icon and a black connector panel (no text or symbols)

1 38 200Hz 200Hz 200Hz

1

2 58 ###

2 34 1h 0% 100%

Illustration of a person using a radial tool to clean their face (no text or symbols)

D.

Illustration of a person using a handheld electric shaver (no text or symbols)

58 milk

Sakay 6 S8 baby

Illustration of a hand using a device to interact with a person's face, showing red arrows indicating interaction (no text or symbols present)

Illustration of a hand holding a device with red arrows indicating motion or force direction (no text or symbols)

Hand pressing a button on a car interior (no text or symbols visible)

1 20° 10° 0° 10° 20°

Illustration of a hand holding a medical or cosmetic device with a red dashed line indicating alignment or measurement (no text or symbols present)

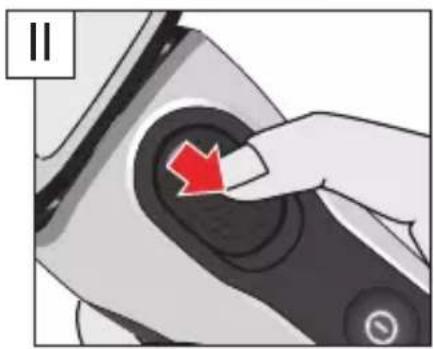

III 2 1

Illustration of a person applying makeup to their ear with a brush (no text or symbols)

E.

Diagram showing a BLM electric shaver with indicator lights and a lock display, alongside a warning symbol.

Illustration of a handheld electric shaver inside a rectangular frame (no text or symbols)

2 S8 3 sec. S8 3 sec.

F.

Electric shaver with power button and front panel, next to a black server unit (no visible text or symbols)

100% ▶ 0%

old

new Series 8 83M

Close-up of a hand pressing down on a device with a red arrow indicating the press direction (no text or symbols visible)

S8 9 sec. 3 sec 6 sec 9 sec

Illustration of a person using a radial tool, no text or symbols present

G.

Illustration of a white electric shaver and a black rectangular device with red light trails (no text or symbols)

10 BANRAN Type 5430

H.

Simple line drawing of a faucet with liquid level indicator (no text or symbols)

1 S8 w 10x ###

2 3 4 5 +

Hand holding a handheld electric shaver with a finger pointing at the button (no visible text or symbols)

Illustration of a bottle pouring liquid into a container with bubbles (no text or symbols)

Diagram illustrating a spray bottle with particles and a prohibition symbol, showing fluid flow and particle distribution.

Illustration of a handwashing device with water droplets falling, no text or symbols present

Diagram of a robotic arm with red directional arrows indicating movement or force (no text or symbols)

8 Series B

9 oil

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

Illustration of a person holding a device (no text or symbols visible)

1.

Illustration of a mechanical component with fins and a curved top (no text or symbols)

1 2 3 4

Illustration of a hand pressing down on a mechanical component with red arrows indicating motion (no text or symbols)

Close-up of a hand using a tool to press or feed into a small container (no text or symbols visible)

Illustration of a hand pressing down on a device component with a red arrow indicating the press direction (no text or symbols present)

Image showing a person crossed out with a red X symbol, indicating prohibition or rejection.

J.

Battery icon with circular arrows indicating cycle (no text or symbols)

www.service.braun.com

Simple black-and-white icon of a house with triangular roof and rectangular door (no text or symbols)

BRAUN

Service

Simple line drawing of a battery with a sad face inside, no text or symbols present.

old

Exterior view of a modern electric shaver with S8 brand logo (no text or symbols on device body)

Battery icon with circular arrows indicating cycle (no text or symbols)

Simple line drawing of a smiling face inside a battery (no text or symbols)

new

Illustration of a person using a radial tool to clean their face (no text or symbols)

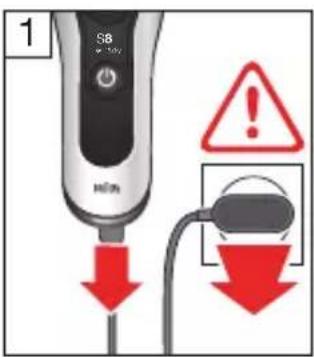

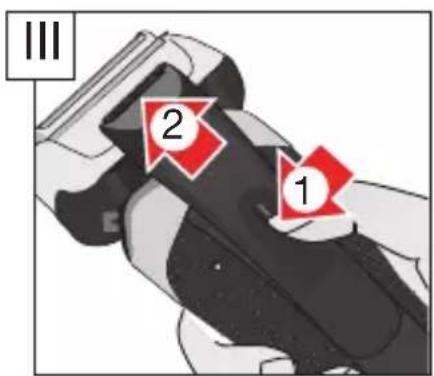

EN Battery removal for disposal only

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using this appliance.

When disconnected, the hand-held part of this shaver may be used in a bath or shower. For safety reasons this shaver can only be operated cordless.

DANGER

To reduce the risk of electric shock:

1. The charger unit is not for immersion in water or for use in shower.
2. Do not reach for a charger that has fallen into water. Unplug immediately.
3. Do not place, store or charge the appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
4. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
5. This appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it.
6. Do not use an extension cord with this appliance.
7. Unplug this appliance before cleaning.

WARNING

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if the power supply has been dropped into water. Return the appliance to a service center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into any opening of the appliance.
6. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
7. Do not use this appliance with a damaged or broken foil, as serious skin injuries may occur.
8. Always attach plug to appliance first, then to outlet.
9. When plugging to an electrical outlet outside North America, use a plug adapter to match the outlet's pin configuration.
10. Caution: The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 100 °C ( 212 °F ), or incinerate.
11. To recharge the battery, only use the detachable power supply provided with this appliance. If the appliance is marked D-□-C 492, only use Braun power supplies coded 492-XXXX.

SAVE THESE INSTRUCTIONS

This appliance is designed for household use only.

Important

Keep power supply, charging stand, PowerCase and cleaning station dry.

Do not open the appliance! The built-in rechargeable batteries can only be replaced by an authorized Braun Service center. Only at the end of the product's useful life, disassemble the rechargeable battery for disposal reasons: Disassemble the housing as shown in the battery removal pictures, remove the rechargeable battery and recycle or dispose of properly, according to local guidelines.

Caution: Disassembling the appliance will destroy it.

Recommended ambient temperature for charging is 41 °F to 95 °F / 5 °C to 35 °C , for storage and shaving it is 60 °F to 95 °F / 15 °C to 35 °C . Do not expose the appliance to temperatures higher than 122 °F / 50 °C for extended periods of time.

The shaver head needs cleaning under hot running water after each foam or gel usage! Switch the shaver on and rinse until all residues have been removed.

For hygienic reasons, do not share this appliance with other persons.

Product contains recyclable electric waste. For environment protection, do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice

Description

1 Foil & cutter cassette 83M
2 Cassette release button

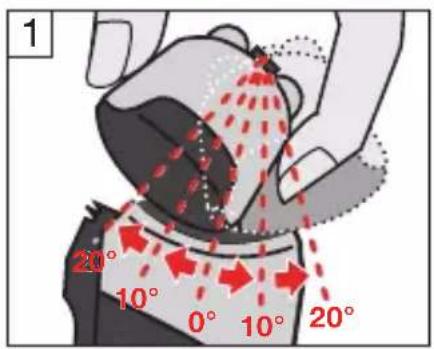

3 Multi head lock to lock the shaver head for a precise shave

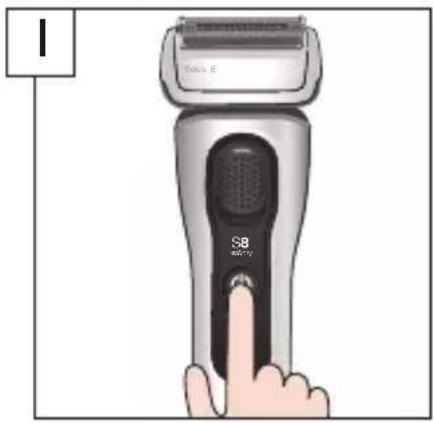

4 On/off button

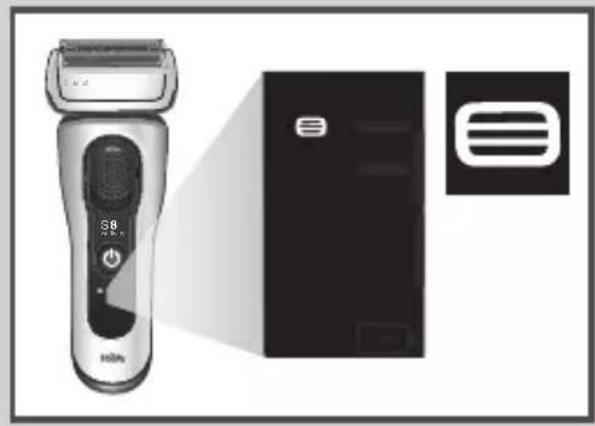

5 Display
- Foil replacement indicator
- Travel lock indicator

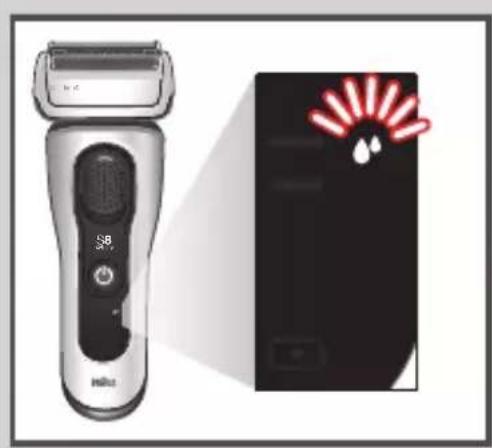

- Cleaning station indicator
- Low charge / cordless use indicator
- Battery indicator with status bars and minutes left (9 minutes and below)

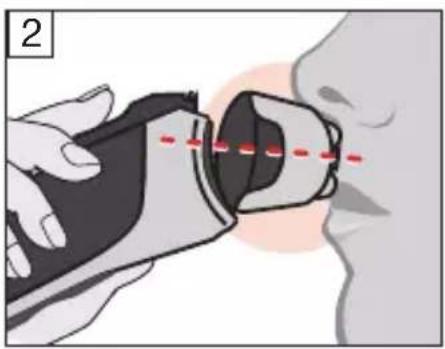

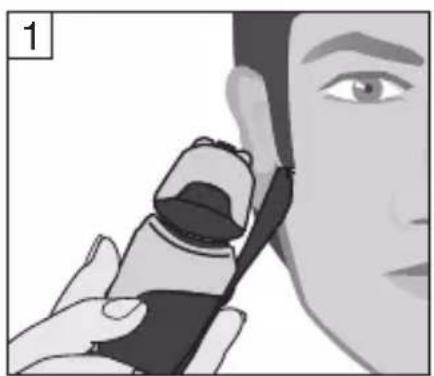

6 Long hair trimmer
7 Contacts for cleaning station / PowerCase usage
8 Release button to lift up long hair trimmer
9 Power socket

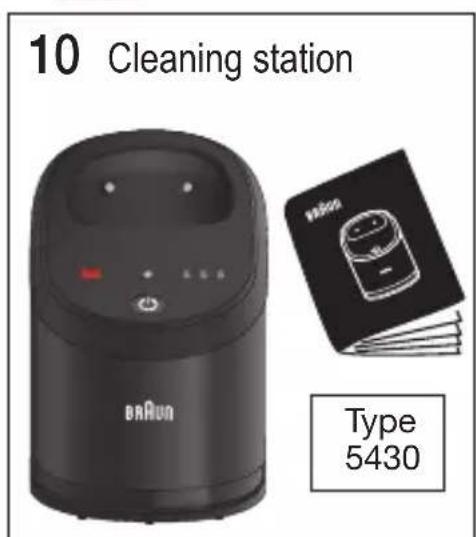

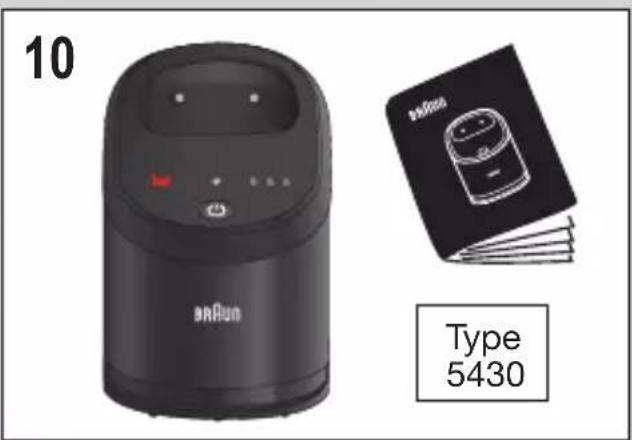

10 Cleaning station (see separate use instructions)
11 Charging stand

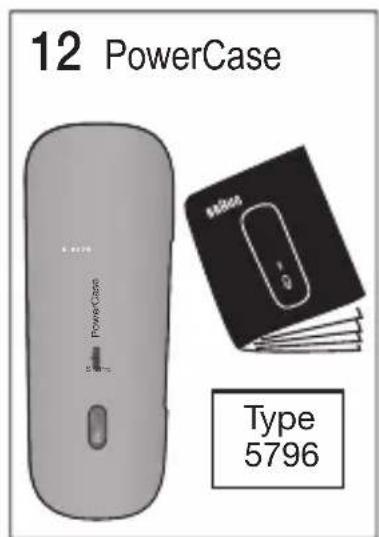

12 PowerCase (see separate instructions)

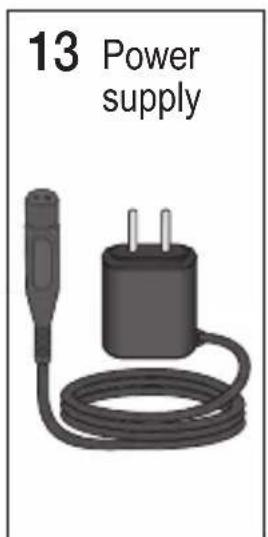

13 Power supply

Note: Content may vary by model

Usage

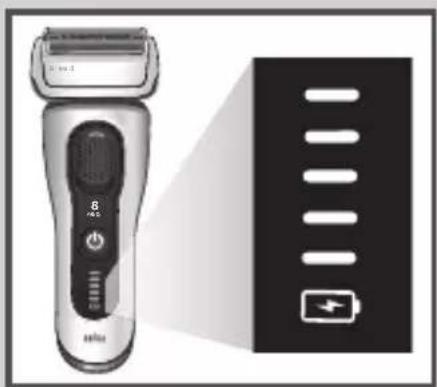

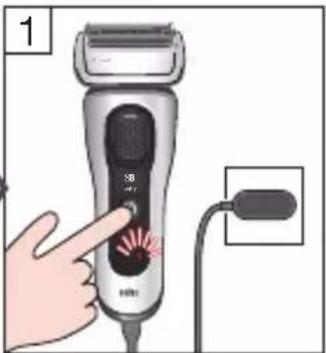

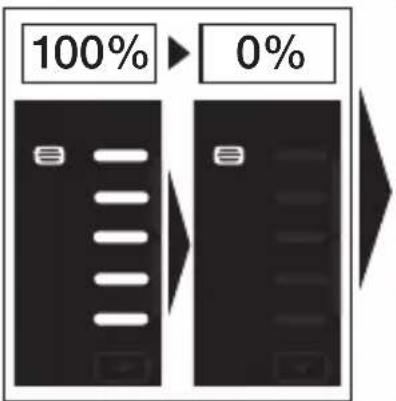

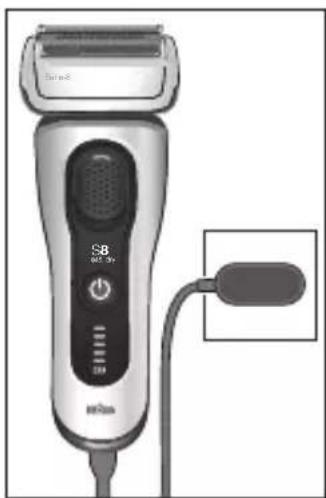

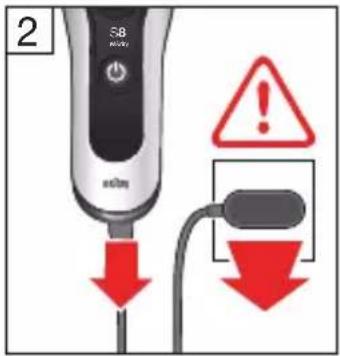

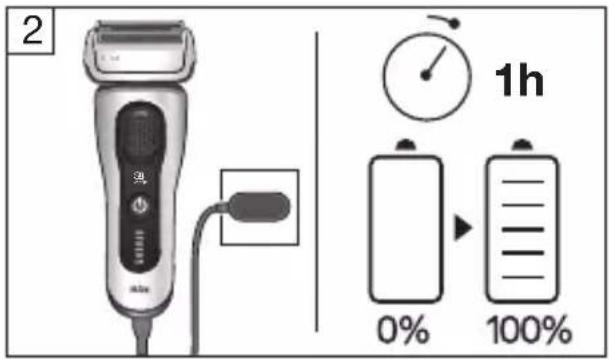

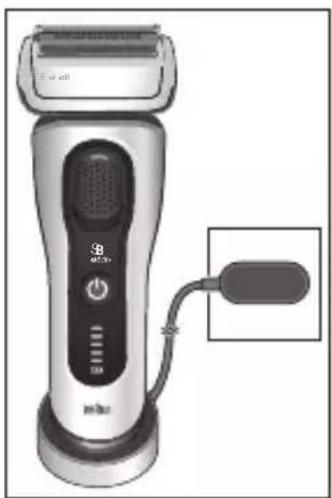

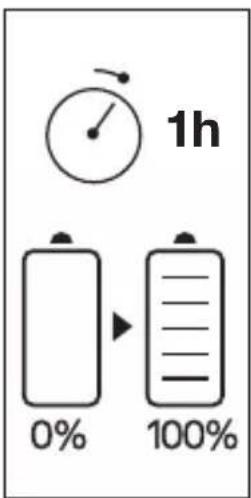

A./B. Charging / Battery

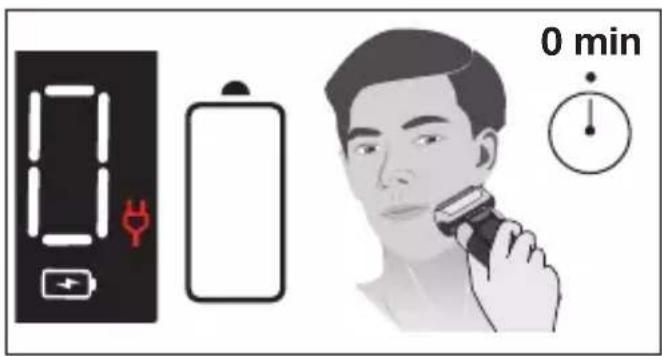

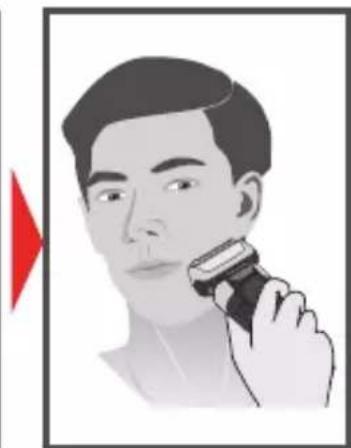

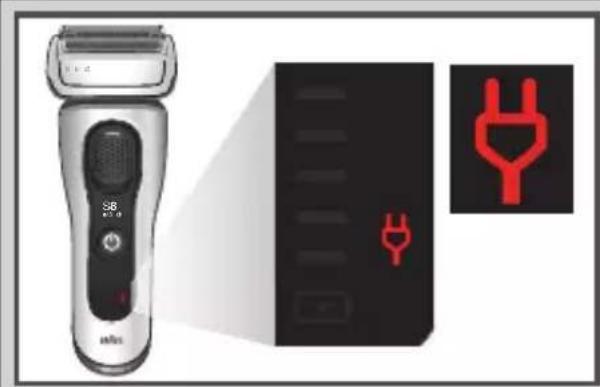

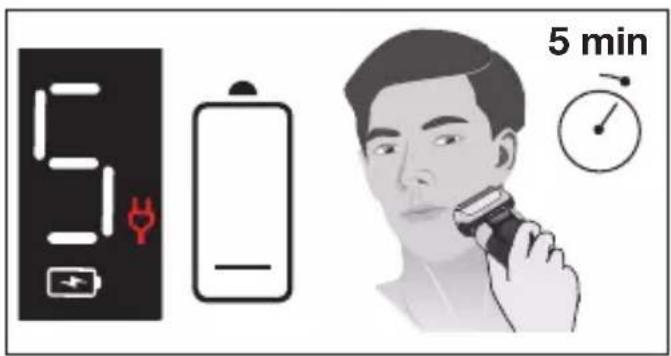

C. a. Low charge b. Cordless use

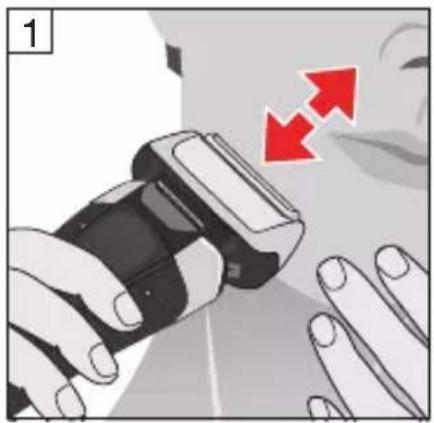

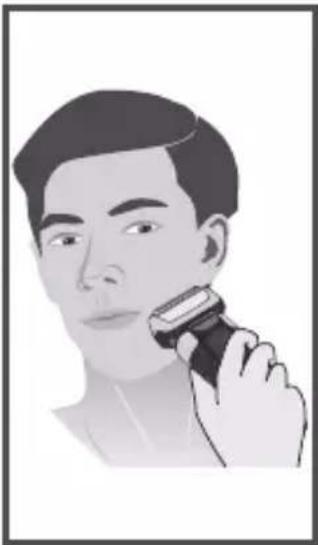

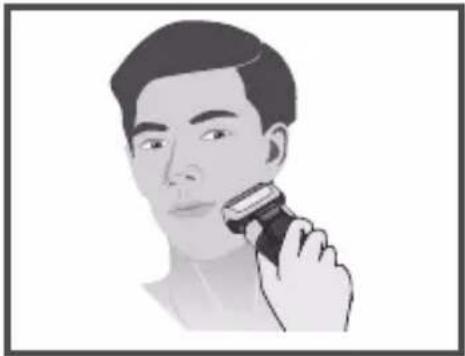

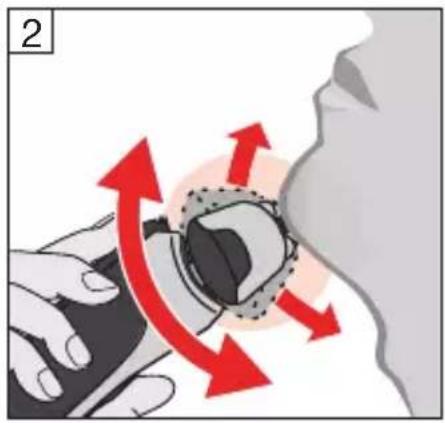

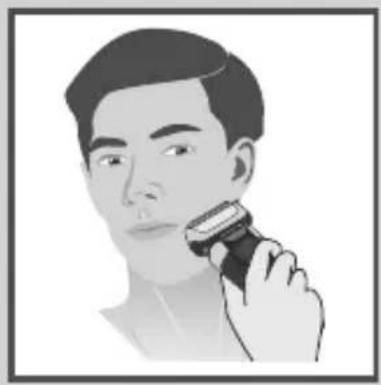

D. Shaving

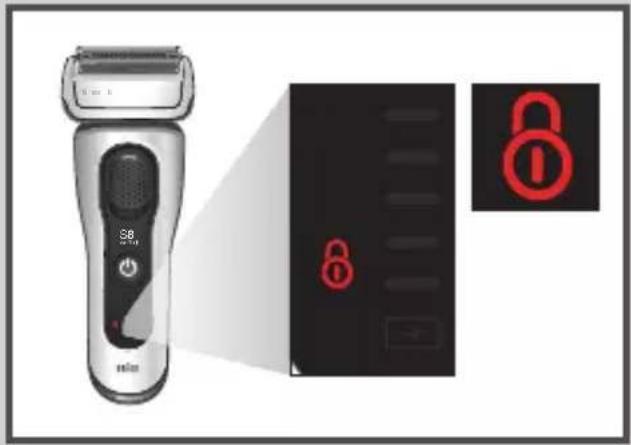

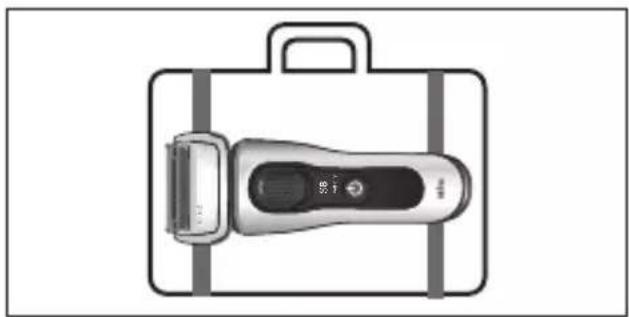

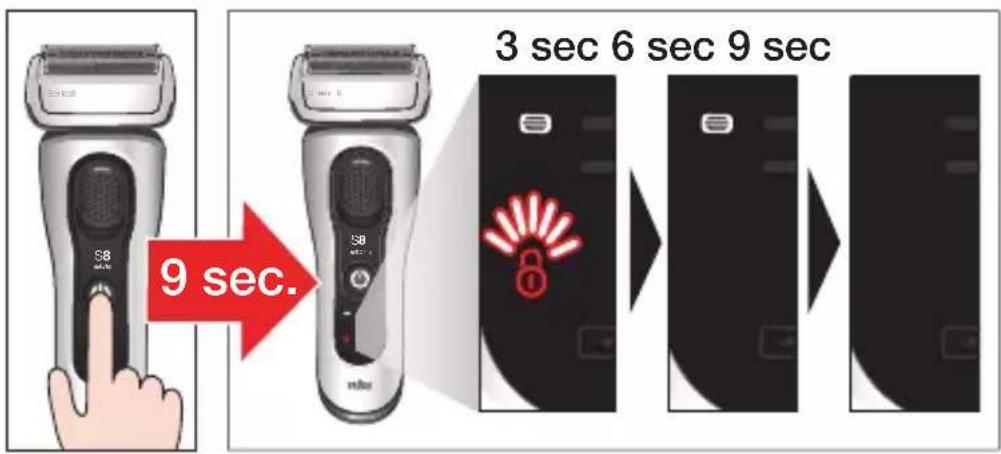

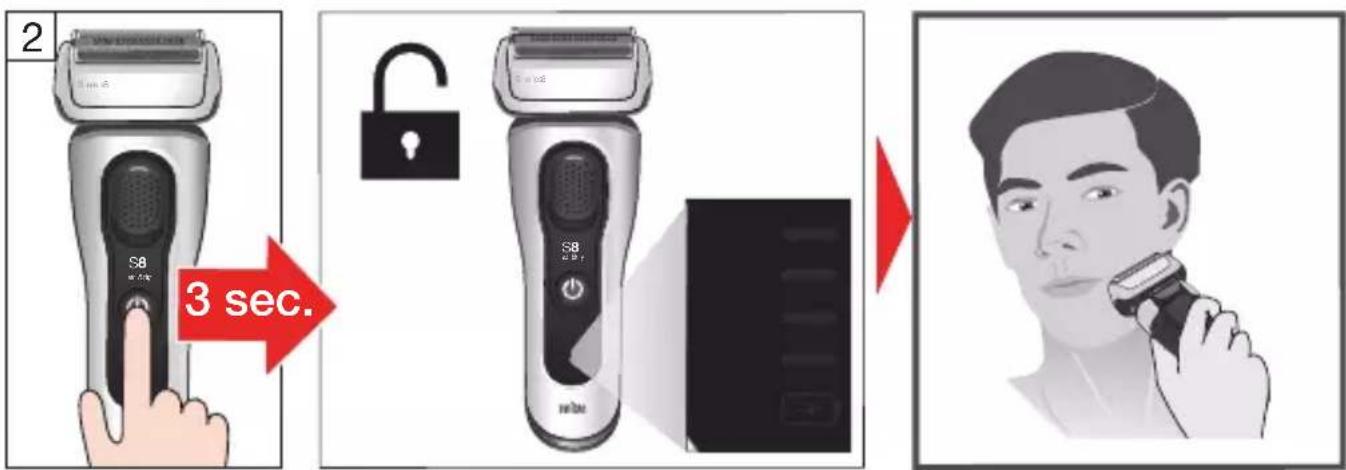

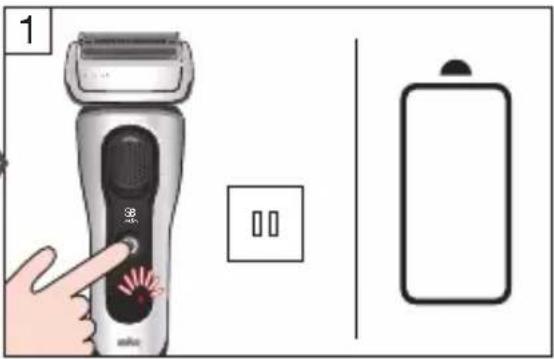

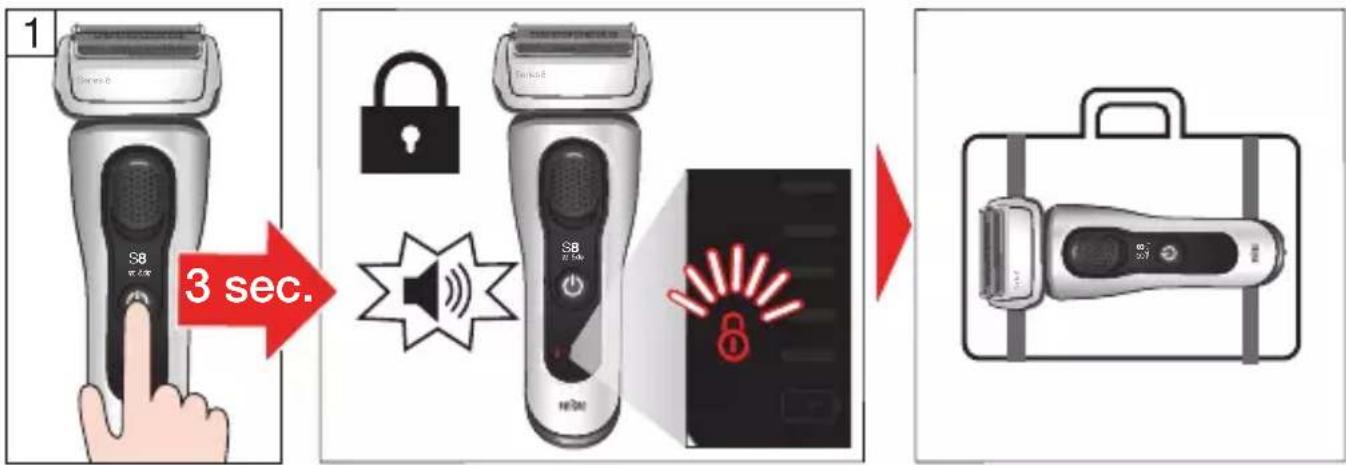

E. Travel lock

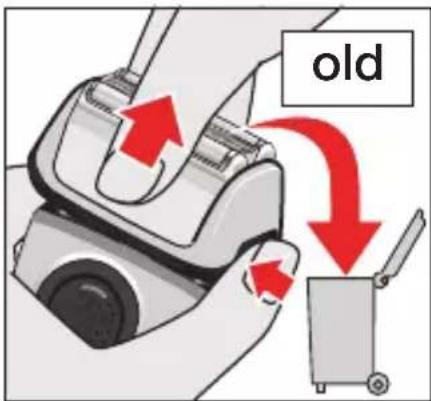

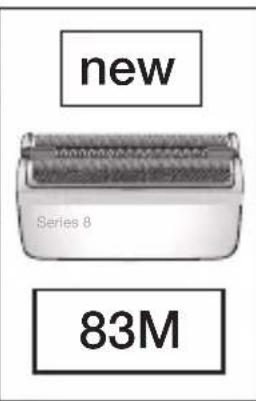

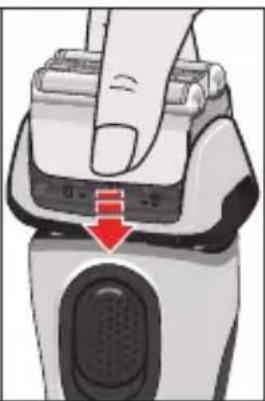

F. Foil replacement

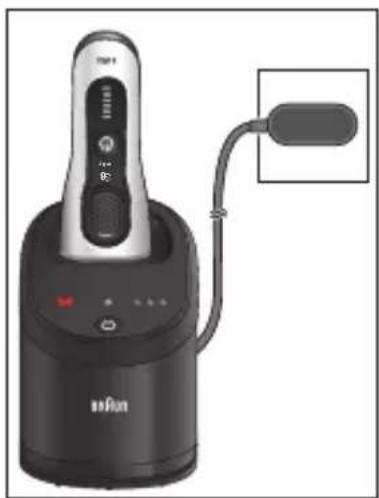

G. Automatic cleaning

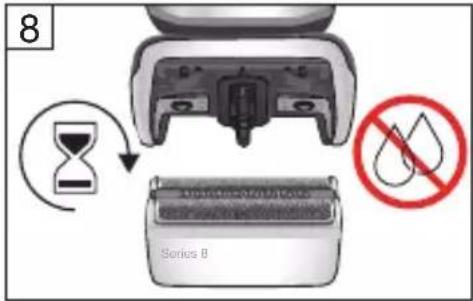

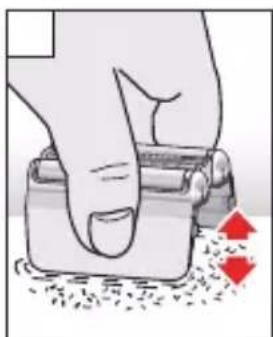

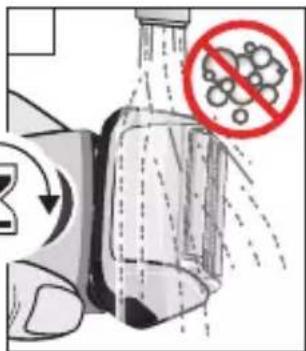

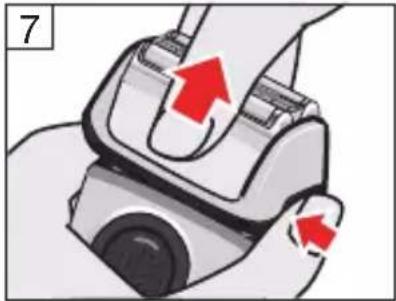

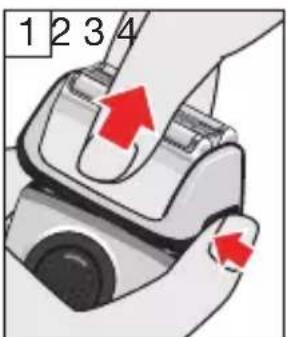

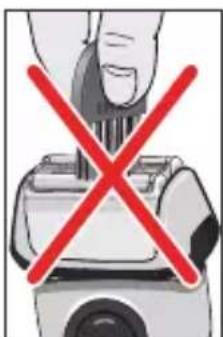

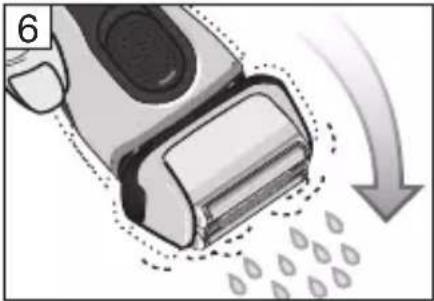

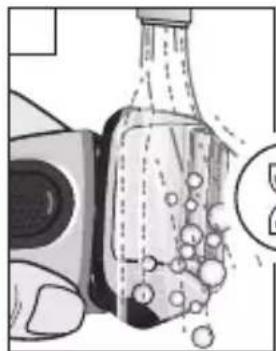

H./I. Manual cleaning

J. Battery replacement

CONSIGNES DE SÉCURITÉ IMPORTANTE

How to obtain service in the USA

Should your Braun product require service, please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.

To obtain service:

A. Carry the product in to the Authorized Braun Service Center of your choice or,

B. Ship the product to the Authorized Braun Service Center of your choice.

Pack the product well.

Ship the product prepaid and insured (recommended).

Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts and accessories:

Contact a Braun Authorized Service Center.

Please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized

Braun Service Center closest to you or visit www.service.braun.com.

To speak to a Braun Consumer Service Representative:

Please call 1-800-BRAUN 11 (272-8611).

How to obtain service in Canada

Should your Braun product require service, please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.

To obtain service:

A. Carry the product in to the Authorized Braun Service Center of your choice or,
B. Ship the product to the Authorized Braun Service Center of your choice.
Pack the product well.
Ship the product prepaid and insured (recommended).
Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts & accessories:

Contact a Braun Authorized Service Center.

Please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.

To speak to a Braun Service Representative:

Please call 1-800-387-6657.

60 day money back satisfaction guarantee for men's grooming products

Braun Shavers

Braun Beard Trimmers

Once you have tried your new Braun shaver or beard trimmer, we are confident you will appreciate its performance. We suggest using the product regularly for 2 to 3 weeks. If you are not satisfied with the product, please call 1-800-211-6661 for instructions on how to return the product. Return the unit and all parts within 60 days of purchase. Retain original cash receipt, product and all product parts, including the box. Do not return to the retailer for guarantee fulfillment.

Please note: No refunds will be made for any product damaged by accident, neglect or unreasonable use.

Your product must be shipped in its original packaging, with your original sales slip indicating the date of purchase.

Please include the following information when you return your product:

Name

Street

City

State

Zip code

Telephone number

Please allow 6-8 weeks for handling.

FOR USA ONLY

2 year limited warranty

(foil and cutter block excluded)

Braun warrants this Braun shaver (except foil and cutter block) to be free of defects in material and workmanship for a period of two years from the date of original purchase.

If the shaver exhibits such a defect, Braun will, at its option, either repair or replace it for the consumer without charge.

Please call 1-800-Braun 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you or visit www.service.braun.com.

This warranty does not cover foil and cutter cassette or damage resulting from accident, misuse, abuse, dirt, water, tampering, unreasonable use, normal wear, servicing performed or attempted by unauthorized service agencies or failure to provide reasonable and necessary maintenance, including recharging.

ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO 2 YEARS FROM DATE OF ORIGINAL PURCHASE. IN NO EVENT WILL BRAUN BE RESPONSIBLE FOR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state.

FOR CANADA ONLY

2 year limited warranty

(foil and cutter block excluded)

In the event a Braun Shaver fails to function within 2 years from date of purchase, because of defects in material or workmanship, and the consumer returns the unit to an authorized service center, Braun Canada, will, at its option, either repair or replace the unit without additional charge to the consumer.

This guarantee does not cover any product, which has been damaged by dropping, tampering, wrong current, servicing performed or attempted by unauthorized service agencies, misuse or abuse, kinks in the shaver foil as well as the normal wear of the shearing parts.

Exclusion of Warranties: The foregoing warranty is the sole warranty offered by Braun Canada. Braun Canada hereby disclaims any implied warranty or merchantability or fitness for any particular purpose. In no event will Braun Canada be responsible for consequential damages resulting from the use of this product.

Close-up of a Series 8 electric shaver with visible blades and internal components (no text or symbols)

Please note down the suggested replacement date (in 18 months from now) below replacement part reference number.
