Product type	Electric shaver
Brand	Braun
Model	Series 6 60-B4500cs
Power supply	Rechargeable, built-in Li-ion battery
Input voltage	Very low voltage (special charger block 492-XXXX)
Functions	Dry or wet shave, integrated trimmer for beard and body
Use	Can be used in the shower (unplugged)
Cleaning the shaver head	Under hot water after each use, while operating
Cleaning brush	Under cold water after each use
Safety	Do not use if foil is damaged; do not immerse charger
Charging temperature	15°C - 35°C
Maximum storage temperature	50°C
Replaceable parts	Shaver foil and blade block (accessories)
Battery repairability	Rechargeable battery replaceable only at an authorized Braun service center
Warranty	2-year limited (excluding foil and blades)
Customer service Canada	1-800-387-6657
Included accessories	Cleaning brush, trimmer comb, charger block
Usage	Household use only
Hygiene	Do not share the device with other persons
Compatibility	Can be used with shaving foam or gel

Frequently Asked Questions - Series 6 60-B4500cs BRAUN

Can I use the shaver in the shower?

Yes, you can use the shaver in the shower when it is unplugged. Do not use the charger block in water.

How do I clean the shaver head?

After each use with foam or gel, rinse the shaver head under hot water while running the appliance until residues are removed.

Can I replace the battery myself?

No, the built-in rechargeable battery can only be replaced by an authorized Braun service center. Opening the device voids the warranty.

What should I do if the shaver foil is damaged?

Do not use the appliance if the foil is damaged or broken, as this may cause serious injuries. Contact an authorized service center.

What is the warranty period?

The limited warranty is 2 years from the date of purchase, excluding the shaver foil and blade block.

How do I get a refund if I am not satisfied?

Call 1-800-211-6661 for return instructions. You must return the complete appliance within 60 days of purchase.

Can I use non-Braun accessories?

No, use only accessories recommended by Braun to avoid any risk of damage or injury.

How do I charge the shaver?

Use only the special power cord provided with the appliance (model 492-XXXX) to charge the battery.

Can the trimmer be used without the comb?

No, do not press the trimmer onto the skin without the comb, as this poses a risk of injury. Always use the provided comb.

Can I share the shaver with another person?

For hygiene reasons, do not share this appliance with other people.

USER MANUAL Series 6 60-B4500cs BRAUN

Black SensoFlex brand brush with S6 and BRAUN branding, no visible text or symbols beyond product labels

Braun Infolines Lignes d'assistance Braun Líneas de información de Braun

English 4,

Français 6,

Español 8,

12

Thank you for purchasing a Braun product.

We hope you are completely satisfied with your new Braun shaver.

If you have any questions, please visit

www.service.braun.com or call:

US residents 1-800-BRAUN-11

1-800-272-8611

Canadian residents 1-800-387-6657

3D rendered image of a black mechanical component with a central protrusion and base (no text or symbols visible)

Illustration of a hand holding a small electric shaver with red arrows indicating motion or change (no text or symbols)

*

Close-up of a black electric shaver with a red arrow indicating the blade (no text or symbols visible)

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using this appliance.

When disconnected, the hand-held part of this shaving appliance may be used in a bath or shower. For safety reasons this appliance can only be operated cordless.

DANGER

To reduce the risk of electric shock:

1. The charger unit is not for immersion in water or for use in shower.
2. Do not reach for a charger that has fallen into water. Unplug immediately.
3. Do not place, store or charge the appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
4. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
5. This appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it.
6. Do not use an extension cord with this appliance.
7. Unplug this appliance before cleaning.

WARNING

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if the power supply has been dropped into water. Return the appliance to a service center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into any opening of the appliance.
6. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
7. Do not use this appliance with a damaged or broken foil, as serious skin injuries may occur.
8. Always attach plug to appliance first, then to outlet. To disconnect, turn all controls off, then remove plug from outlet.
9. When plugging to an electrical outlet outside North America, use a plug adapter to match the outlet's pin configuration.
10. Caution: The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 100 °C ( 212 °F ), or incinerate.
11. To recharge the battery, only use the detachable power supply provided with this appliance. If the appliance is marked 492, only use Braun power supplies coded 492-XXXX.

SAVE THESE INSTRUCTIONS

CONSIGNES DE SÉCURITÉ IMPORTANTE

This product is for household use only.

Caution

Keep power supply and charging stand dry.

Do not expose the appliance to temperatures higher than 50^ C / 122^ F for extended periods of time.

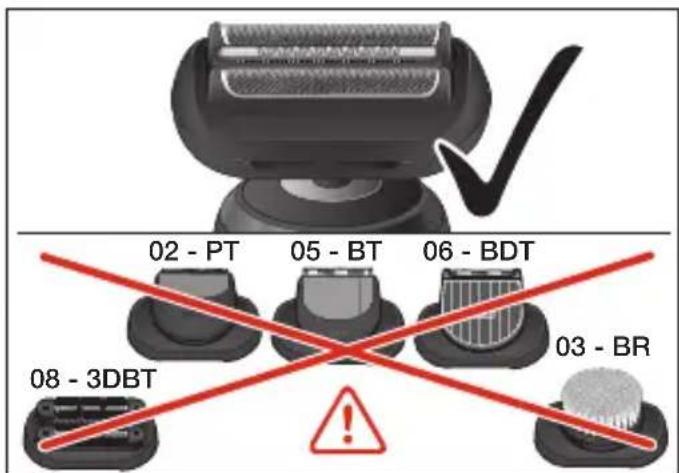

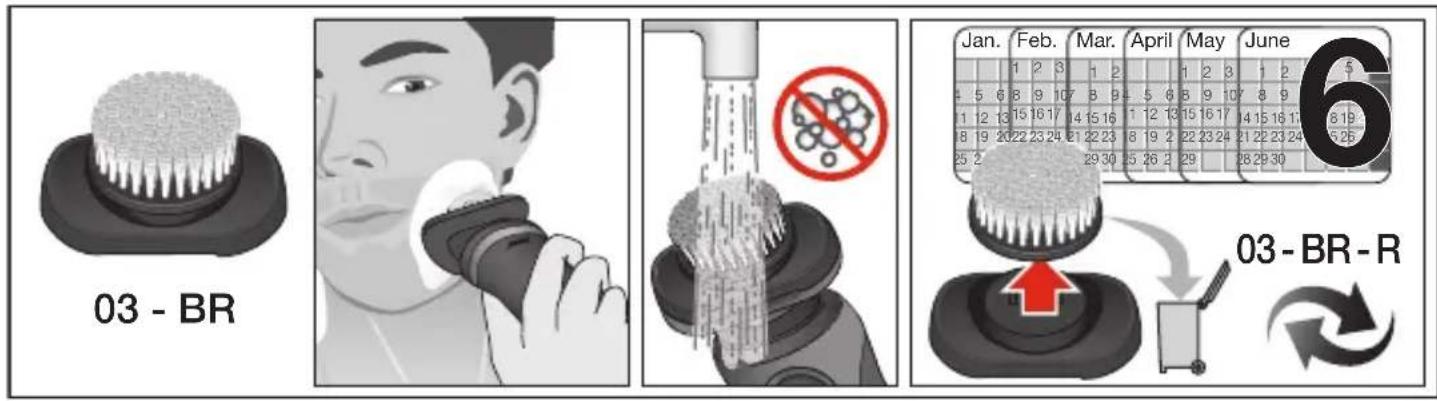

The brush (03-BR) must not be used on damaged or irritated skin or on wounds. If skin irritation occurs, discontinue use.

Avoid direct contact with eyes and hairline.

When the distance comb is removed, the trimmer should not be pressed into the skin. Risk of injury!

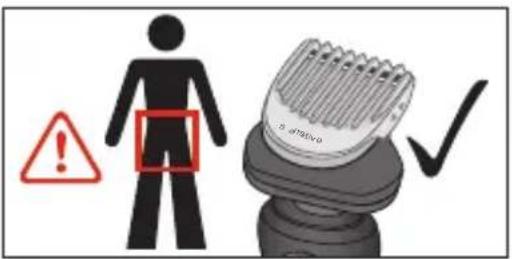

The body trimmer (06-BDT) must only be used with comb attachment in delicate areas.

Important

Do not open the appliance! The built-in rechargeable batteries can only be replaced by an authorized Braun Service center.

Only at the end of the product's useful life, disassemble the rechargeable battery for disposal reasons: Disassemble the housing as shown in the battery removal pictures, remove the rechargeable battery and recycle or dispose of properly, according to local guidelines. Caution: Disassembling the appliance will destroy it and invalidate the warranty.

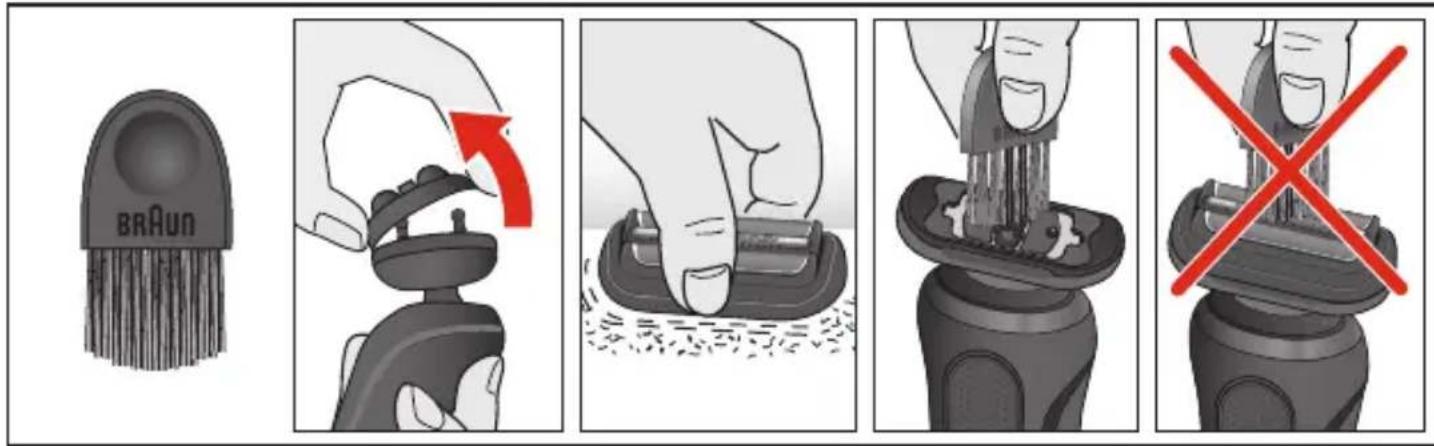

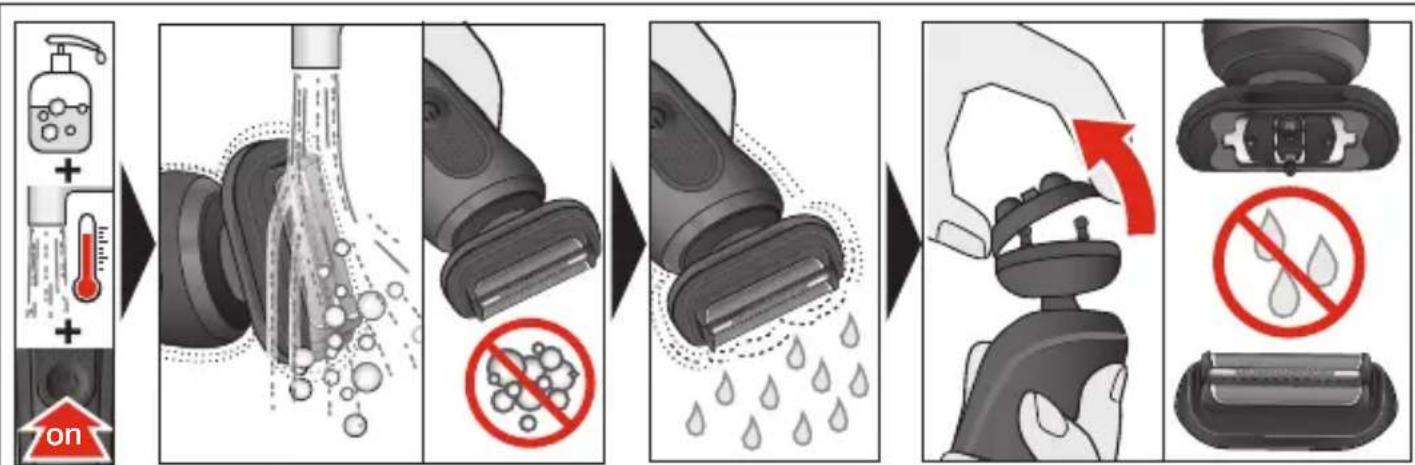

The shaver head needs cleaning under hot running water after each foam or gel usage! The brush needs to be cleaned with cool running water after each usage! Switch the shaver on and rinse until all residues have been removed. For hygienic reasons, do not share this appliance with other persons.

Subject to change without notice.

Français

Pure electrical circuit symbols without any text or labels

EN Display
FR Écran d'affichage
ES Visualización

Pure electrical circuit symbols without any text or labels

Pure electrical circuit symbols without any text or labels

EN Cleaning indicator
FR Indicateur de nettoyage
ES Indicador de limpieza

Pure electrical circuit symbols without any text or labels

3D rendered image of a black mortar and pestle with a small inset showing a cylindrical object (no text or symbols visible)

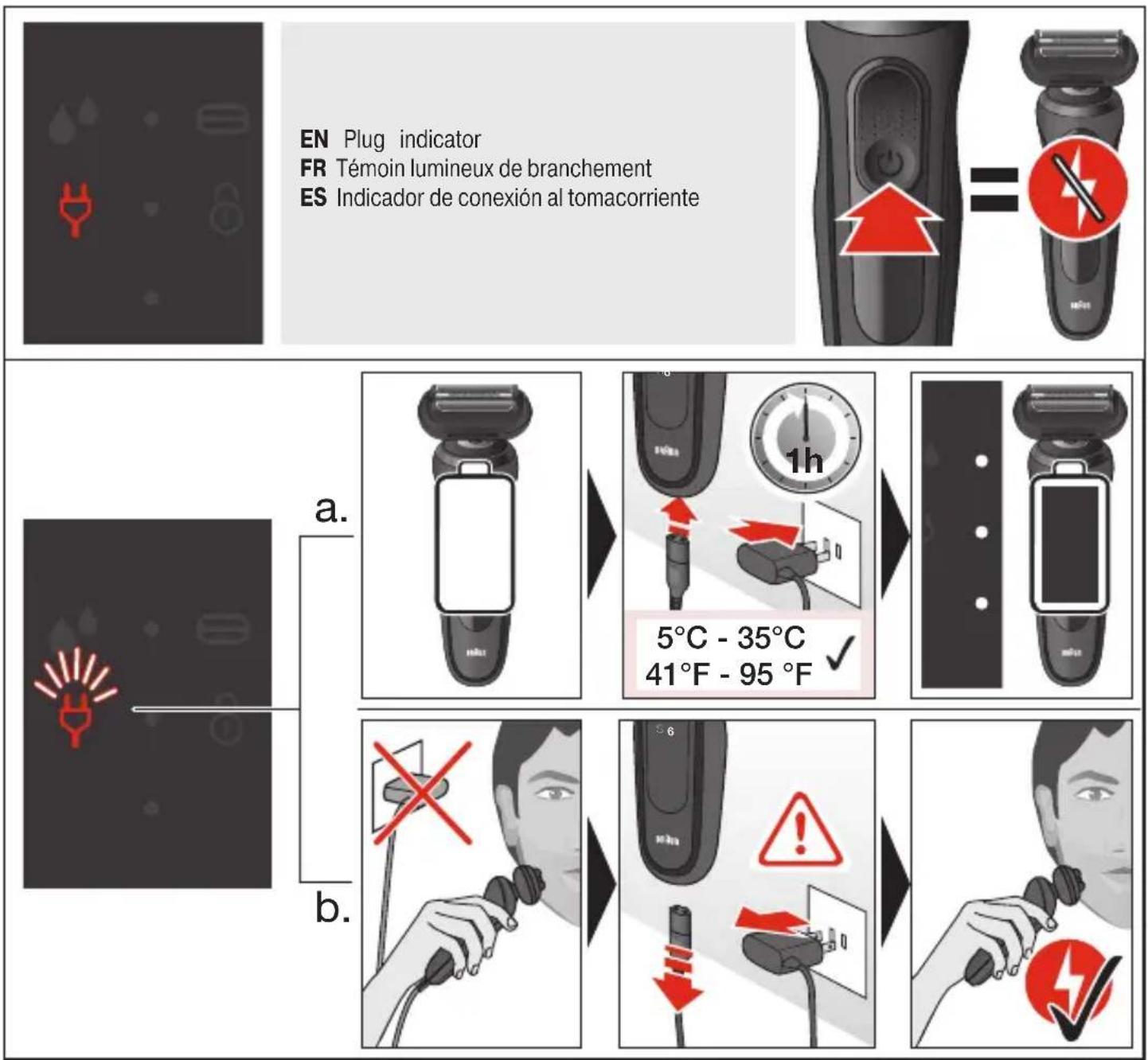

5^ C - 35^ C 41^ F - 95^ F √

EN Charging

Close-up of a dark, textured object with a striped top and 'salma' label (no other text or symbols visible)

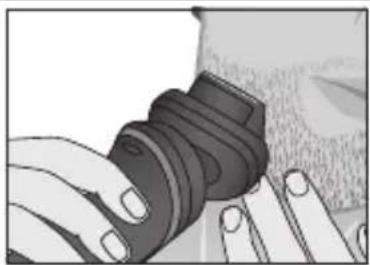

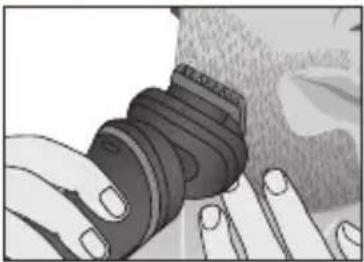

02 - PT

Close-up of a mechanical component with ribbed top and base (no visible text or symbols)

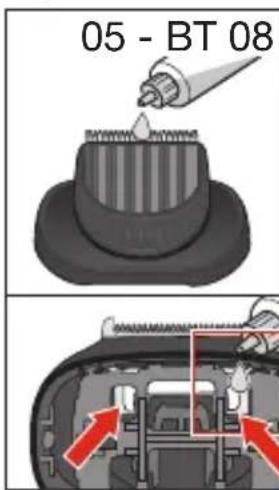

05 - BT

Illustration of a person's face with hand near ear (no text or symbols)

Close-up of a black mechanical component with ribbed top and base (no visible text or symbols)

05 - BT

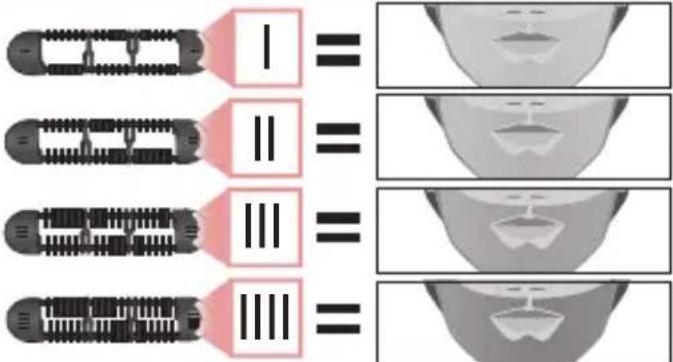

2mm3mm5mm7mm1mm

m5mm7mm1m

m1m

Close-up of a hand holding a camera lens, no visible text or symbols

Side profile illustration of a human ear and hand (no text or symbols)

Close-up of hands holding a camera lens, no visible text or symbols

Close-up of a white filter blade with a black base and metallic rim (no text or symbols visible)

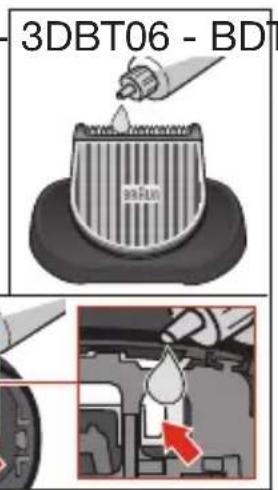

06 - BDT

3 mm

Illustration of a person's arm and hand holding a black object (no text or symbols visible)

Illustration of a hand holding a small black object, possibly a device or tool, with no visible text or symbols.

08-3DBT

Illustration of a person using a handheld device (no text or symbols visible)

Illustration of a person's face with a checkmark (no text or symbols)

Illustration of a person's face with a red X mark, no text or symbols present

Cross-sectional diagram of a mechanical device showing internal components and directional arrows (no text or symbols)

0,5-2,3 mm

Illustration of a hand pouring liquid into a digital device (no text or symbols visible)

Illustration of a brush applying material to a motor (no text or symbols)

Battery icon with circular arrow symbol (no text or numbers)

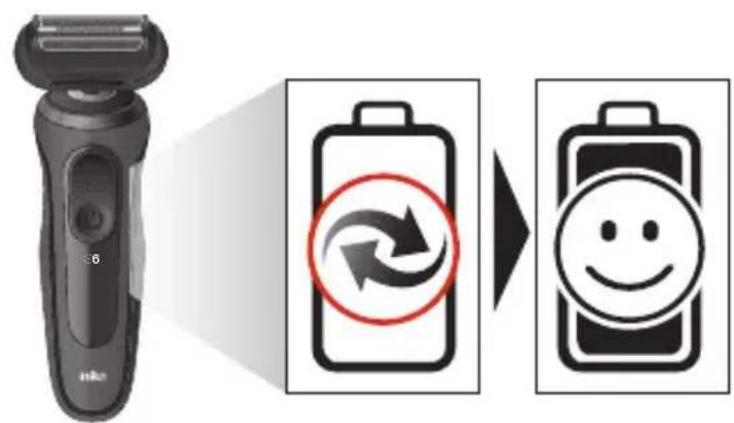

EN Battery replacement
FR Remplacement des piles
ES Reemplazo de la batería

Simple line icon of a battery with a sad face and right-pointing arrow, symbolizing negative energy or stress (no text or symbols)

www.service.braun.com

Black-and-white photo of a DTM electric shaver with a checkmark and power button (no text or symbols visible)

How to obtain service in the USA

Should your Braun product require service, please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.

To obtain service:

A. Carry the product in to the Authorized Braun Service Center of your choice or,
B. Ship the product to the Authorized Braun Service Center of your choice.
Pack the product well.
Ship the product prepaid and insured (recommended).
Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts and accessories:

Contact a Braun Authorized Service Center.

Please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized

Braun Service Center closest to you or visit www.service.braun.com.

To speak to a Braun Consumer Service Representative:

Please call 1-800-BRAUN 11 (272-8611).

How to obtain service in Canada

Should your Braun product require service, please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.

To obtain service:

A. Carry the product in to the Authorized Braun Service Center of your choice or,
B. Ship the product to the Authorized Braun Service Center of your choice.
Pack the product well.
Ship the product prepaid and insured (recommended).
Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts & accessories:

Contact a Braun Authorized Service Center.

Please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.

To speak to a Braun Service Representative:

Please call 1-800-387-6657.

60 day money back satisfaction guarantee for men's grooming products

Braun Shavers

Braun Beard Trimmers

Once you have tried your new Braun shaver or beard trimmer, we are confident you will appreciate its performance. We suggest using the product regularly for 2 to 3 weeks. If you are not satisfied with the product, please call 1-800-211-6661 for instructions on how to return the product. Return the unit and all parts within 60 days of purchase. Retain original cash receipt, product and all product parts, including the box. Do not return to the retailer for guarantee fulfillment.

Please note: No refunds will be made for any product damaged by accident, neglect or unreasonable use.

Your product must be shipped in its original packaging, with your original sales slip indicating the date of purchase.

Please include the following information when you return your product:

Name

Street

City

State

Zip code

Telephone number

Please allow 6-8 weeks for handling.

FOR USA ONLY

2 year limited warranty (foil and cutter block excluded)

Braun warrants this Braun shaver (except foil and cutter block) to be free of defects in material and workmanship for a period of two years from the date of original purchase.

If the shaver exhibits such a defect, Braun will, at its option, either repair or replace it for the consumer without charge.

Please call 1-800-Braun 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you or visit www.service.braun.com.

This warranty does not cover foil and cutter cassette or damage resulting from accident, misuse, abuse, dirt, water, tampering, unreasonable use, normal wear, servicing performed or attempted by unauthorized service agencies or failure to provide reasonable and necessary maintenance, including recharging.

ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO 2 YEARS FROM DATE OF ORIGINAL PURCHASE. IN NO EVENT WILL BRAUN BE RESPONSIBLE FOR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state.

FOR CANADA ONLY

2 year limited warranty (foil and cutter block excluded)

In the event a Braun Shaver fails to function within 2 years from date of purchase, because of defects in material or workmanship, and the consumer returns the unit to an authorized service center, Braun Canada, will, at its option, either repair or replace the unit without additional charge to the consumer.

This guarantee does not cover any product, which has been damaged by dropping, tampering, wrong current, servicing performed or attempted by unauthorized service agencies, misuse or abuse, kinks in the shaver foil as well as the normal wear of the shearing parts.

Exclusion of Warranties: The foregoing warranty is the sole warranty offered by Braun Canada. Braun Canada hereby disclaims any implied warranty or merchantability or fitness for any particular purpose. In no event will Braun Canada be responsible for consequential damages resulting from the use of this product.

Close-up of a hand turning a small electric shaver into a battery socket (no text or symbols visible)

Please note down the suggested replacement date (in 18 months from now) below replacement part reference number.
