Product Type	Lens
Brand	Olympus
Model	ED 75-300mm F4.8-6.7 II
Mount	Four Thirds
Focal Length	75-300 mm (35 mm equivalent: 150-600 mm)
Maximum Aperture	f/4.8 - f/6.7
Angle of View	16° - 4.1°
Optical Configuration	13 groups, 18 elements
Focus Range	0.9 m to ∞
Focus Control	AF/MF switch (dedicated ring)
Filter Diameter	58 mm
Dimensions (Max Diameter × Length)	∅69 mm × 116.5 mm
Weight	Approx. 490 g (without cap)
Lens Hood	Bayonet, model LH-61E (optional)
Key Features	Motorized zoom, optical stabilization not mentioned
Care and Cleaning	Clean with a soft, dry cloth; avoid solvents
Safety	Do not look at the sun through the lens; use the cap when not in use
Spare Parts and Repairability	Front/rear caps; contact Olympus support for repairs
General Information	Compatible with Micro Four Thirds cameras

Frequently Asked Questions - ED 75300mm F4.86.7 II OLYMPUS

What is the minimum focusing distance of the Olympus ED 75-300mm F4.8-6.7 II lens?

The minimum focusing distance is 0.9 meters at all focal lengths.

Can I use filters with this lens?

Yes, the filter diameter is 58 mm. However, be careful not to stack multiple filters or use a thick filter, as this could cut off the edges of the image.

How to attach the lens hood to the lens?

The lens hood (model LH-61E sold separately) attaches via bayonet to the mount provided on the front of the lens. See Fig. 2 of the manual for details.

What is the 35 mm equivalent of this lens?

On a Four Thirds format camera, the actual focal length of 75-300 mm is equivalent to 150-600 mm in 35 mm format.

Does the lens have image stabilization?

The manual does not mention built-in stabilization. Stabilization may be provided by the camera body.

How to clean the lens?

Use a soft, dry cloth to clean the lenses. Avoid solvents or harsh chemicals. A blower can be used to remove dust.

What are the important safety warnings?

Never look at the sun through the lens, as this can cause eye injury. Do not leave the lens without a cap to avoid any risk of fire due to concentration of sunlight.

How to switch between autofocus and manual focus?

The lens has an AF/MF switch (probably via a ring or switch). Consult the manual for exact location.

Is this lens compatible with Olympus Micro Four Thirds cameras?

Yes, the Four Thirds mount is compatible with Micro Four Thirds cameras via an adapter, but it is designed for Olympus Four Thirds DSLRs.

Where can I get technical support for this lens?

For the US and Canada, call 1-800-260-1625 or visit the Olympus support website. In Europe, contact 00800-67 10 83 00 (toll-free) or [phone] (charges apply).

USER MANUAL ED 75300mm F4.86.7 II OLYMPUS

ED75-300mm f4.8-6.7 II

04 - JP 取扱説明書
06 - EN INSTRUCTIONS
09 - ES INSTRUCCIONES
12 - FR MODE D'EMPLOI
15 - ВС ИНСТРУКЦИИ
17 - CS NÁVOD K POUŽITÍ
19 - DE BEDIENUNGSANLEITUNG
21 - DA BETJENINGSVEJLEDNING
23 - ET JUHISED
25 - F KÄYTTÖOHJEET
27 - EL OΔΗΓΙΕΣ
29 - HF UPUTE
31 - HU HASZNÁLATI ÚTMUTATÓ
33 - ISTRUZIONI
35 - INSTRUKCIJA
37 - Ⓜ NORĀDĪJUMI
39 - RL AANWIJZINGEN
41 - NO INSTRUKSJONER

43 - PL INSTRUKCJA
45 - PT INSTRUÇÕES
47 - FC INSTRUCTIUNI
49 - SR UPUTSTVO ZA UPOTREBU
51 - RU ИНСТРУКЦИЯ
53 - SV BRUKSANVISNING
55 - SL NAVODILA
57 - SK NÁVOD NA POUŽITIE
59 - TR TALİMATLAR
61 - UK ІНСТРУКЦІЯ
64 - AF الار شادات
65-KF 취급설명서
67- 使用說明書

Technical diagram of a camera lens with numbered parts for identification

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

JP 取扱説明書

The following importer description applies to products imported into the EU directly by OLYMPUS EUROPA SE & Co. KG only OLYMPUS EUROPA SE & Co. KG Wendenstrasse 14-18, 20097 Hamburg, Germany

ご注意 必ずお読みください

警告 安全上のご注意

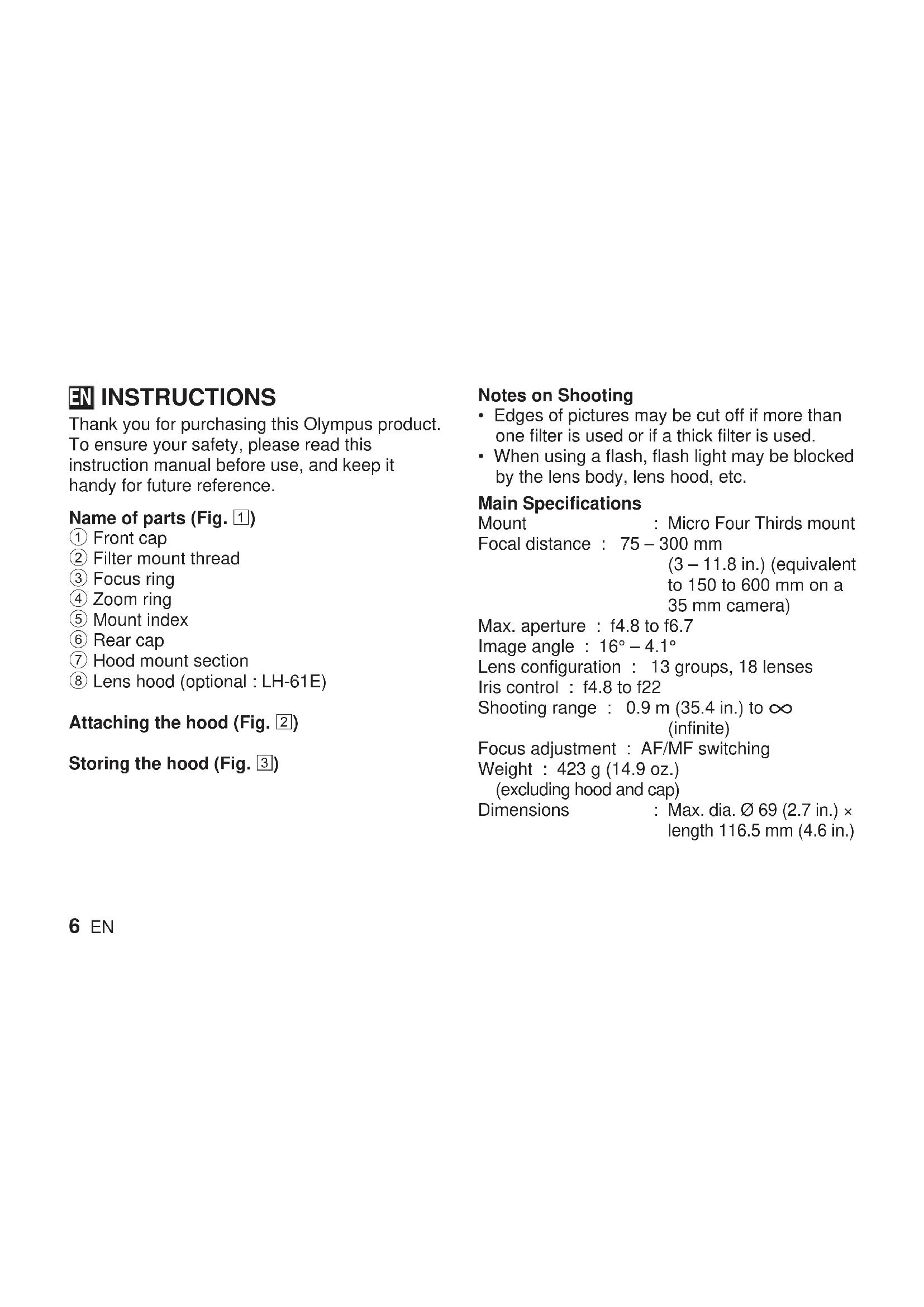

Thank you for purchasing this Olympus product. To ensure your safety, please read this instruction manual before use, and keep it handy for future reference.

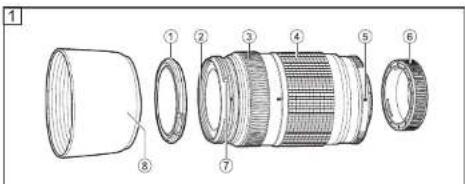

Name of parts (Fig. 1)

① Front cap
② Filter mount thread
③ Focus ring
④ Zoom ring
⑤ Mount index
⑥ Rear cap
⑦ Hood mount section
⑧ Lens hood (optional : LH-61E)

Attaching the hood (Fig. 2)

Storing the hood (Fig. 3)

Notes on Shooting

• Edges of pictures may be cut off if more than one filter is used or if a thick filter is used.
• When using a flash, flash light may be blocked by the lens body, lens hood, etc.

Main Specifications

Mount : Micro Four Thirds mount Focal distance : 75 – 300 mm (3 – 11.8 in.) (equivalent to 150 to 600 mm on a 35 mm camera)

Max. aperture : f4.8 to f6.7

Image angle : 16^-4.1^

Lens configuration : 13 groups, 18 lenses

Iris control : f4.8 to f22

Shooting range : 0.9 m (35.4 in.) to ∞ (infinite)

Focus adjustment : AF/MF switching

Weight : 423 g (14.9 oz.) (excluding hood and cap)

Dimensions : Max. dia. ∅ 69 (2.7 in.) × length 116.5 mm (4.6 in.)

Lens hood mount : Bayonet

Filter mount thread diameter :

* Specifications are subject to change without any notice or obligation on the part of the manufacturer.

Precautions: Be Sure to Read the Following

Warnings: Safety Precautions

• Do not view the sun through the lens. It may cause blindness or vision impairment.
• Do not leave the lens without the cap. If solar light is converged through the lens, a fire may result.
• Do not point the camera lens at the sun. Sunlight will converge in the lens and focus inside the camera, possibly causing a malfunction or fire.

Micro Four Thirds and the Micro Four Thirds logo are trademarks or registered trademarks of OLYMPUS CORPORATION.

For customers in North America, Central America, South America and the Caribbean 58 mFCO Notice

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any unauthorized changes or modifications to this equipment would void the user's authority to operate.

This Class B digital apparatus complies with Canadian ICES-003. CAN ICES-3(B)/NMB-3(B)

• Technical Support (U.S.A. / Canada)

24/7 online automated help : http://www.olympusamerica.com/support Phone customer support : Tel.[phone] (Toll-free)

Our phone customer support is available from 9 am to 9 pm (Monday to Friday) ET E-Mail : [e-mail]

For customers in Europe

The “CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. CE-mark products are for sale in Europe.

• European Technical Customer Support

Please visit our homepage

http://www.olympus-europa.com

or call: Tel. 00800 - 67 10 83 00 (Toll-free)

+49 40 - 237 73 899 (Charged)
