WST - Faucet STIEBEL ELTRON - Free user manual and instructions

Brand	STIEBEL ELTRON
Model	WST
Product Type	Basin faucet
Application	Washbasin
Mounting Type	Single-hole faucet
Surface	Chrome-plated
Connection	Connection hoses (G 3/8)
Drilling Diameter	33.5 mm
Flow Height	135 mm
Reach	140 mm
Max. Flow Rate	10 l/min (adjustable with flow limiter to 5 l/min)
Max. Admissible Pressure	1 MPa (10 bar)
Max. Water Temperature	>60 °C (risk of burns)
Functions	Swivel spout, mechanical mixer, flow regulator, temperature and flow control handles
Safety	Anti-return valve, drip prevention, flow limiter
Maintenance	Clean with a damp cloth, descaling of flow regulator possible
Use	With open-vented (unpressurised) hot water cylinder
Installation	By a qualified installer, compliance with local standards
Spare Parts	Hoses, seals, flow limiter, flow regulator
Warranty	According to conditions in the country of sale

Frequently Asked Questions - WST STIEBEL ELTRON

How to install the WST faucet?

Installation must be carried out by a qualified installer. Attach the mixer using the seal, clamping sleeve and nut. Connect the short hose to the cold water supply and the long hoses (marked blue and red) to the hot water cylinder. Ensure the hoses are not kinked and observe the maximum flow rates.

What is the difference between WST and WUT?

The WST model is designed for a washbasin, while the WUT is intended for a kitchen sink. The WUT comes with a plastic part to stabilise the mixer on the sink and has a greater flow height (190 mm compared to 135 mm for the WST).

How to adjust the water temperature?

Turn the temperature control handle (located on the left) to adjust the temperature. The outlet temperature can exceed 60 °C; be careful as above 43 °C there is a risk of burns.

What to do if the flow rate is too low?

Check that the flow limiter is not blocked or remove it if your installation allows. Also ensure the supply pressure is sufficient (max. 1 MPa). If the flow rate is too high, the supplied flow limiter can be installed to reduce it to 5 l/min.

How to descale the flow regulator?

Unscrew the flow regulator from the spout, then soak it in white vinegar or a mild descaler. Rinse thoroughly with clean water before reassembling. Do not use abrasive products.

Can I use this faucet with a pressurised water heater?

No, this faucet is designed only for open-vented (unpressurised) hot water cylinders. Use on a pressurised system could damage the cylinder and cause leaks.

What is the maximum admissible pressure?

The maximum admissible pressure is 1 MPa (10 bar). If your mains pressure exceeds this value, an additional pressure reducer must be installed.

How to clean the faucet?

Simply use a damp cloth to clean the appliance. Avoid abrasive cleaning agents or solvents that could damage the chrome-plated surface.

Is the faucet guaranteed?

Warranty conditions vary by country. In Germany, the warranty conditions apply; elsewhere, the local subsidiary is authorised to grant a warranty. Consult your dealer for more details.

What does 'open-vented' mean?

Open-vented means that water does not remain under pressure in the faucet. The hot water cylinder is open to the air, allowing water expansion. During heating, a small amount of water drips from the outlet.

USER MANUAL WST STIEBEL ELTRON

BEDIENUNG UND INSTALLATION OPERATION AND INSTALLATION UTILISATION ET INSTALLATION BEDIENING EN INSTALLATIE OBSLUHA A INSTALACE OBSŁUGA I INSTALACJA

Armatur für offene Warmwasserspeicher | Tap for open vented water heaters | Mitigeur pour ballon d'eau chaude sanitaire | Kraan voor open warmwaterboilers | Baterie pro otevřené zásobníky teplé vody | Armatury do otwartych zasobników ciepłej wody

» WST

» WUT

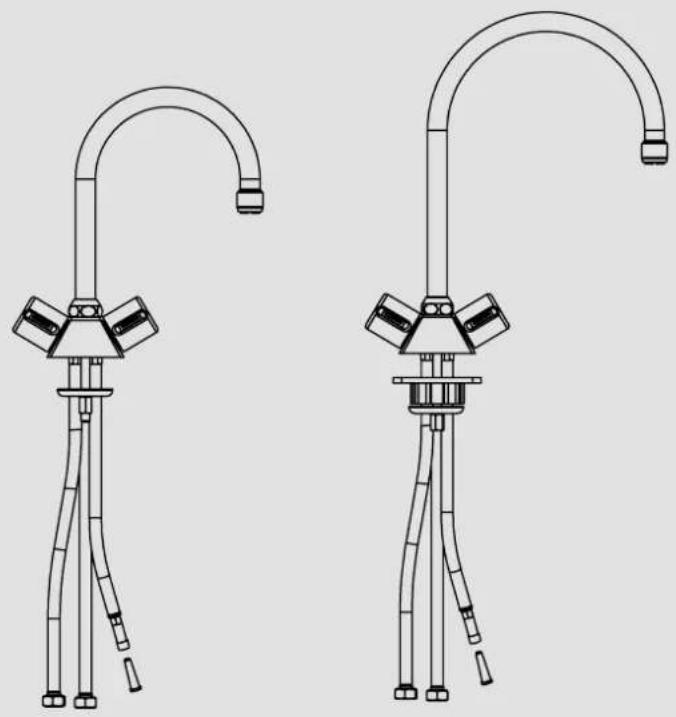

Technical line drawing of two identical mechanical fixtures with curved arms and connectors (no text or symbols)

STIEBEL ELTRON

BEDIENUNG

Technical diagram of a mechanical or fluidic system with pipes and valves, no visible text or symbols

1. General information 8
   1.1 Safety instructions 8
   1.2 Other symbols in this documentation ____ 8
   1.3 Units of measurement 9
2. Safety 9
   2.1 Intended use 9
3. Operation 9
4. Cleaning and care 9

INSTALLATION

1. Safety 9
   5.1 General safety instructions 9
   5.2 Instructions, standards and regulations ____ 9
2. Appliance description 10
3. Installation 10
   7.1 Water connection 10
4. Commissioning 10
5. Specification 11
   9.1 Dimensions and connections 11
   9.2 Data table 11

GUARANTEE

ENVIRONMENT AND RECYCLING

OPERATION

1. General information

The chapter "Operation" is intended for appliance users and qualified contractors.

The chapter "Installation" is intended for qualified contractors.

Note

Read these instructions carefully before using the appliance and retain them for future reference.

Pass on the instructions to a new user if required.

1.1 Safety instructions

1.1.1 Structure of safety instructions

KEYWORD Type of risk

Here, possible consequences are listed that may result from failure to observe the safety instructions.

▶ Steps to prevent the risk are listed.

1.1.2 Symbols, type of risk

Symbol	Type of risk
	Burns(burns, scalding)

1.1.3 Keywords

KEYWORD	Meaning
DANGER	Failure to observe this information will result in serious injury or death.
WARNING	Failure to observe this information may result in serious injury or death.
CAUTION	Failure to observe this information may result in non-serious or minor injury.

1.2 Other symbols in this documentation

Note

General information is identified by the symbol shown on the left.

▶ Read these texts carefully.

Symbol	Meaning
	Material damage(Appliance and consequential losses, environmental pollution)
	Appliance disposal

This symbol indicates that you have to do something. The action you need to take is described step by step.

1.3 Units of measurement

Note

All measurements are given in mm unless stated otherwise.

2. Safety

2.1 Intended use

This product is intended for operation with an open vented (non-pressurised) undersink water heater.

• WST for washbasins
• WUT for kitchen sinks

This product is designed for domestic use. It can be used safely by untrained persons. The appliance can also be used in a non-domestic environment, e.g. in a small business, as long as it is used in the same way.

Any other use beyond that described shall be deemed inappropriate. Observation of these instructions is also part of the correct use of this appliance.

3. Operation

Note

When the water in the water heater is being heated, expansion water will drip from the outlet.

With non-pressurised water heaters with anti-drip function, the expansion water remains inside the water heater.

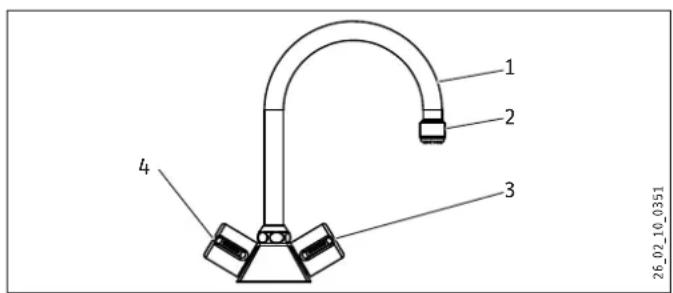

1 2 3 4 26_02_10_0351

1 Swivelling spout
2 Aerator inside the fitting
3 Draw-off valve
4 Temperature regulating tap head

4. Cleaning and care

▶ Never use abrasive or corrosive cleaning agents. A damp cloth is sufficient for cleaning and caring for the product.
▶ For descaling, remove the aerator from the fitting.

INSTALLATION

5. Safety

Only qualified contractors should carry out installation, commissioning as well as maintenance and repair of the product.

5.1 General safety instructions

We guarantee trouble-free function and operational reliability only if the original accessories and spare parts intended for the appliance are used.

WARNING Burns

During operation, the tap can reach temperatures in excess of 60 °C.

Material damage

Scale build-up can block the outlet and thus subject the water heater to pressure.

▶ Never block the spout, and use only aerators for non-pressurised taps, otherwise the water heater could be damaged.

5.2 Instructions, standards and regulations

Note

Observe all applicable national and regional regulations and instructions.

6. Appliance description

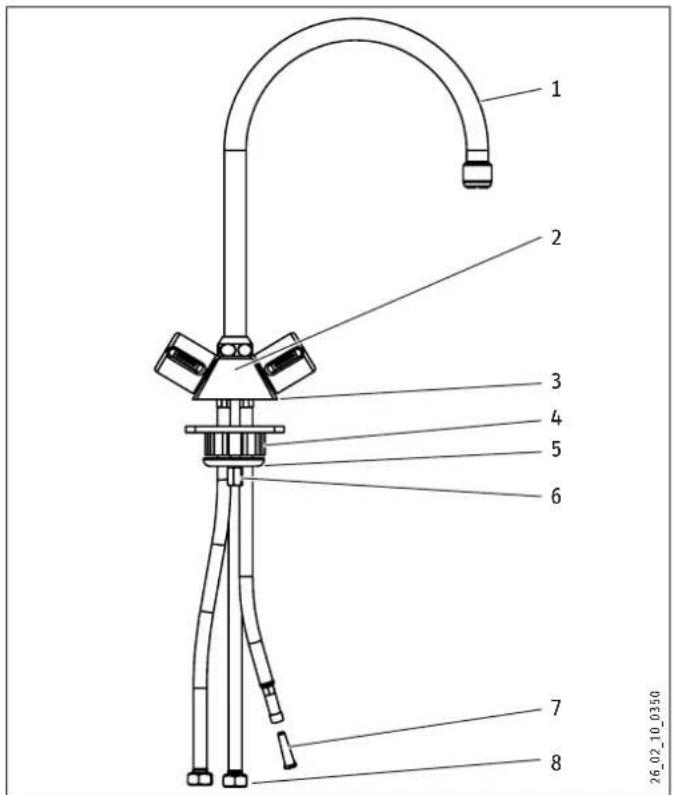

Standard delivery

WUT illustration

1 2 3 4 5 6 7 8 26_02_10_0350

1 Swivelling spout with aerator and non-return valve to prevent dripping
2 Tap body
3 Gasket
4 Spring sleeve
5 Mating fitting (spanner size 13)
6 WUT: Moulded plastic fitting for kitchen sink installation
7 Butterfly valve
8 Fitting G 3/8

7. Installation

▶ Secure the tap with gasket, spring sleeve and mating fitting.
▶ WUT: Use the moulded plastic fitting to secure the tap in the kitchen sink.
▶ Fasten the spout to the tap body.

7.1 Water connection

Material damage

With non-pressurised water heaters, observe the maximum permissible flow rate when the tap is fully open (see chapter "Specification / Data table").

▶ If the flow rate is exceeded, install the supplied butterfly valve in the cold water line.

Material damage

The water heater can leak.

▶ Never subject the water heater to water pressure.
▶ Do not interchange the connection hoses.

Note

Ensure that the connection hoses are not kinked or under tension during installation.

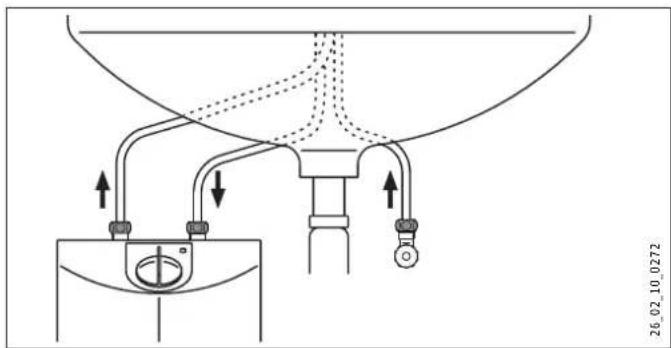

Technical diagram of a mechanical assembly with pipes and housing (no text or symbols)

▶ Connect the short connection hose to the angle valve of the cold water supply line.
- Connect the long connection hose marked blue to the "Cold water inlet" connection on the water heater.
- Connect the long connection hose marked red to the "DHW outlet" connection on the water heater.

8. Commissioning

▶ Thoroughly flush the cold water supply line.
▶ Filling the water heater: Turn the temperature adjusting tap head to max. temperature (fully anti-clockwise) and open the draw-off valve.
▶ Wait until water flows from the outlet, then switch on the water heater.

9. Specification

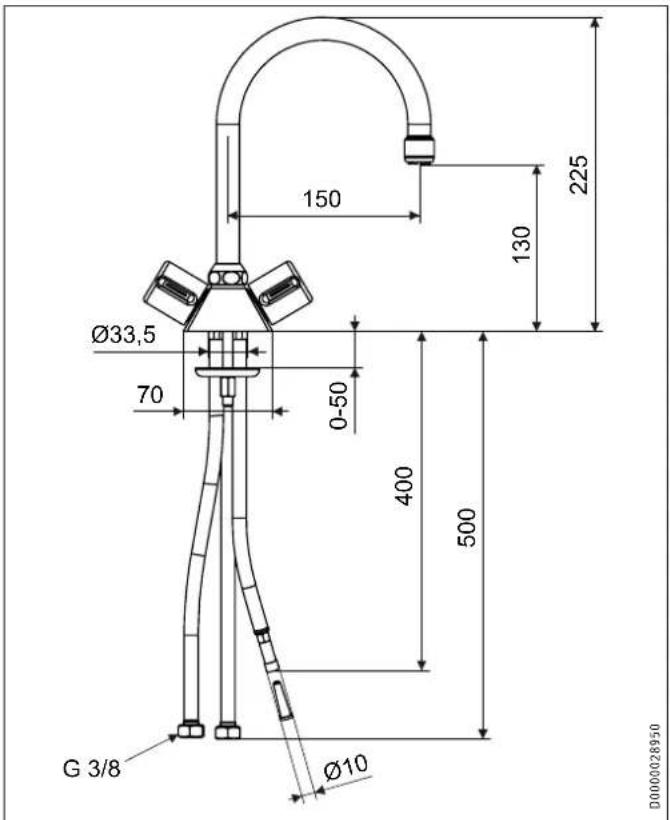

9.1 Dimensions and connections

WST

150 225 130 Ø33,5 70 0-50 400 500 G 3/8 Ø10 D0000028950

9.2 Data table

WST WUT
232620 232604
Application		Basin	Sink
Type		open	open
Type of installation		Single hole mixer tap	Single hole mixer tap
Surface		chrome finish	chrome finish
Connection		Connecting hoses	Connecting hoses
Max. throughput	l/min	5/10	5/10
Max. permissible pressure	MPa	1	1
Outlet height	mm	135	190
Reach	mm	140	185

▶ Bear in mind that, depending on the static pressure, you may also need a pressure reducing valve.

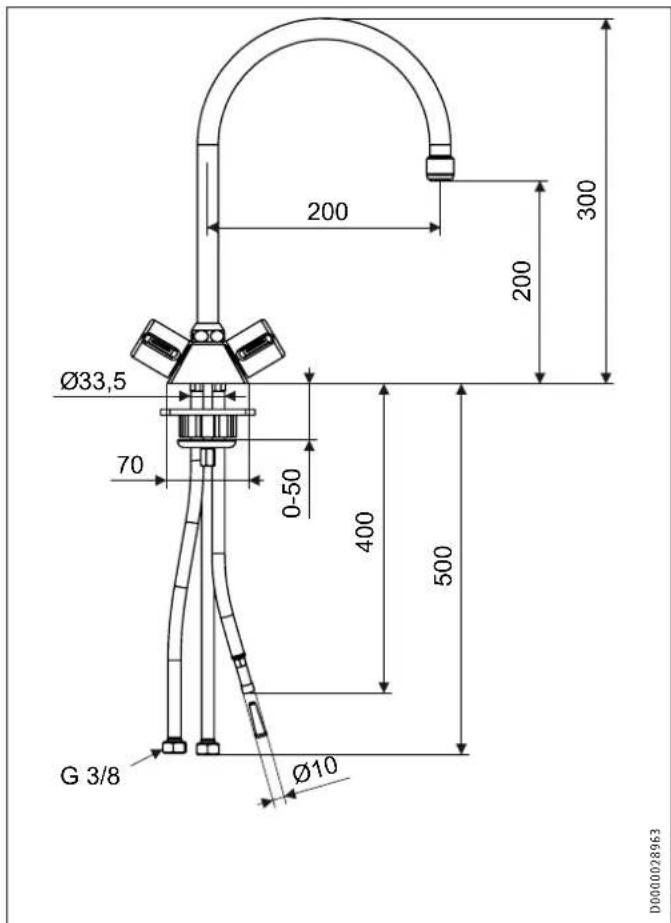

WUT

200 300 200 Ø33,5 70 0-50 400 500 G 3/8 Ø10 D0000028963

Guarantee

The warranty conditions of our German companies do not apply to appliances acquired outside of Germany. In countries where our subsidiaries sell our products, it is increasingly the case that warranties can only be issued by those subsidiaries. Such warranties are only granted if the subsidiary has issued its own terms of warranty. No other warranty will be granted.

We shall not provide any warranty for appliances acquired in countries where we have no subsidiary to sell our products. This will not affect warranties issued by any importers.

Environment and recycling

We would ask you to help protect the environment. After use, dispose of the various materials in accordance with national regulations.
