USER MANUAL Voyager 3 Sicce

Fig. 3bFig. 3a Fig. 5Fig. 4 max min minIMPORTANT SAFETY INSTRUCTIONS WARNING - To guard against injury, basic safety precautions should be observed, including the following:

DANGER: To avoid possible electric shock, special care should be taken since water

is employed in the use of aquarium equipment. For each of the following situations, do not attempt repairs by yourself; return the appliance to an authorized service facility for service or discard the appliance.

1) CAUTION: If electrical components of the appliance get wet, unplug the appliance

2) If the appliance shows any sign of abnormal water leakage, immediately unplug it from

3) Carefully examine the appliance after installation. It should not be plugged in if there

is water on parts not intended to be wet.

4) Do not operate any appliance if it has a damaged cord or plug, or if it is malfunctioning

or has been dropped or damaged in any manner.

5) To avoid the possibility of the appliance plug or receptacle getting wet, position

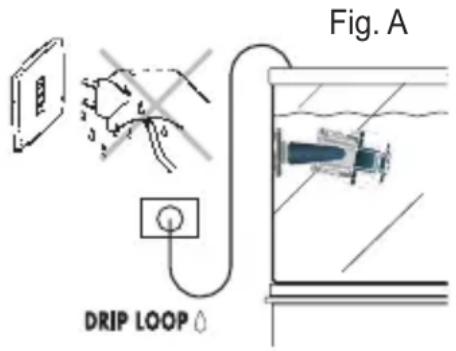

aquarium stand and tank or the fountain to one side of a wall-mounted receptacle to prevent water from dripping onto the receptacle or plug. A “drip-loop” shown in Fig. A should be arranged by the user for each cord connecting an aquarium appliance to a receptacle. The “drip- loop” is the part of the cord below the level of the receptacle or the connector if an extension cord is used, to prevent water traveling along the cord and coming in contact with the receptacle. If the plug or receptacle does get wet, DON’T unplug the cord. Disconnect the fuse or circuit breaker that supplies power to appliance. Then unplug and examine for presence of water in the receptacle.

6) Close supervision is necessary when any appliance is used by or near children.

7) To avoid injury, do not contact moving parts or hot parts such as heaters, reectors,

lamp bulbs and the like.

8) Always unplug an appliance from an outlet when not in use, before putting on or

taking off parts and before cleaning. Never yank cord to pull plug from outlet. Grasp the plug and pull to disconnect.

9) Do not use an appliance for other than intended use. The use of attachments not

recommended or sold by the appliance manufacturer may cause an unsafe condition.

10) Do not install or store the appliances where it will be exposed to the weather or to

temperatures below freezing.

11) Make sure an appliance mounted on a tank is securely installed before operating it.

12) Read and observe all the important notices of the appliance.

13) If an extension cord is necessary, a cord with a proper rating should be used. A

cord rated for less amperes or watts than the appliance rating may overheat. Care should be taken to arrange the cord so that it will not be tripped over or pulled.

14) This appliance has a polarized plug (one blade is wider than other). As a safety

feature, this plug will t in a polarized outlet only one way. If the plug does not t fully in the outlet, reverse the plug. If it still does not t, contact a qualied electrician. Never use with an extension cord unless plug can be fully inserted. Do no attempt to defeat this safety feature. CAUTION: Pump is to be connected to a circuit that is protected by a Ground Fault Circuit Interrupter.

WARNING: To reduce the risk of electric shock, use only on portable self-contained

fountains no larger than 5 feet in any dimension.

SAVE THESE INSTRUCTIONS

Dear client, thank for choosing VOYAGER 2-3-4, the new stream pump for salt and fresh water aquariums. Made on the most recent technology with a high reliability, minimum maintenance and low energy consumption VOYAGER range has a compact design and a powerful adjustable revolving ow at 360°. A strong magnetic support guarantees a perfect seal even to very dirty aquarium glass. Please, read carefully and save the following instructions to use in the best way your VOYAGER! GENERAL SAFETY INSTRUCTIONS: VOYAGER range are made in conformity with the national and international security laws.

1) Always isolate the pump from the mains electricity before installing or carrying

out any maintenance. Power to the pump must be supplied through a Residual Current Device (RCD) with a rated residual operating current not exceeding 30mA

2) This pump is designed to be used indoors and is not suitable for any outdoor

3) Before connecting the pump to the electricity supply, check there are any

damages on cord or plug.

4) The pump has a type Z cable link. The cable and the plug cannot be substituted

or repaired; in case of damages replace the entire pump.

5) ATTENTION: do not operate any appliance if it has a damaged cord or plug, if it

is malfunctioning, or if it has been dropped or damaged in any way.

6) Never operate the pump without water inside the impeller chamber or with liquids

at a temperature higher than 35° C / 95° F.

7) Do not use the pump with corrosive and abrasive liquids.

8) Do not use the pump for uses different (i.e. in bathroom or other applications) to

those for which it has been designed.

9) The pump cannot be used by people with handicaps or by children if they are not

supervised by a person responsible for their safety.

10) Avoid closeness with blades, sharp objects or other magnets to prevent

accidental injuries as the magnets of the support attract metal objects and other magnets with high force.

11) The magnets can provoke permanent damages to electronic devices and to

other objects that are sensitive to magnetic eld such as pacemakers, credit cards and keys: always keep them at least 30 cm (12 inches) distance.

12) The magnets could loose partially or completely their attracting power if

exposed to temperature higher than 50° C / 122° F.

13) Always leave a drip-loop in the pump cable to prevent water running down the

cable and reaching the power source (Pic. A).

14) Avoid taking the pump by the cord during the installation or maintenance.

15) Do not try to attach directly the two magnets holder because the magnetic

attraction is very high. Hold them only on the external sides paying attention not to put your hands or ngers in between.

PUMP INSTALLATION: USE AND REGULATION

ATTENTION: before make the product functioning, verify that it is complete with all its parts. To install the pump, proceed as follows.

1) To avoid resonances and vibrations, do not put the pump in contact with the

lateral surfaces nearby or at the bottom of the tank to avoid sand or small stones to be sucked by the pump.

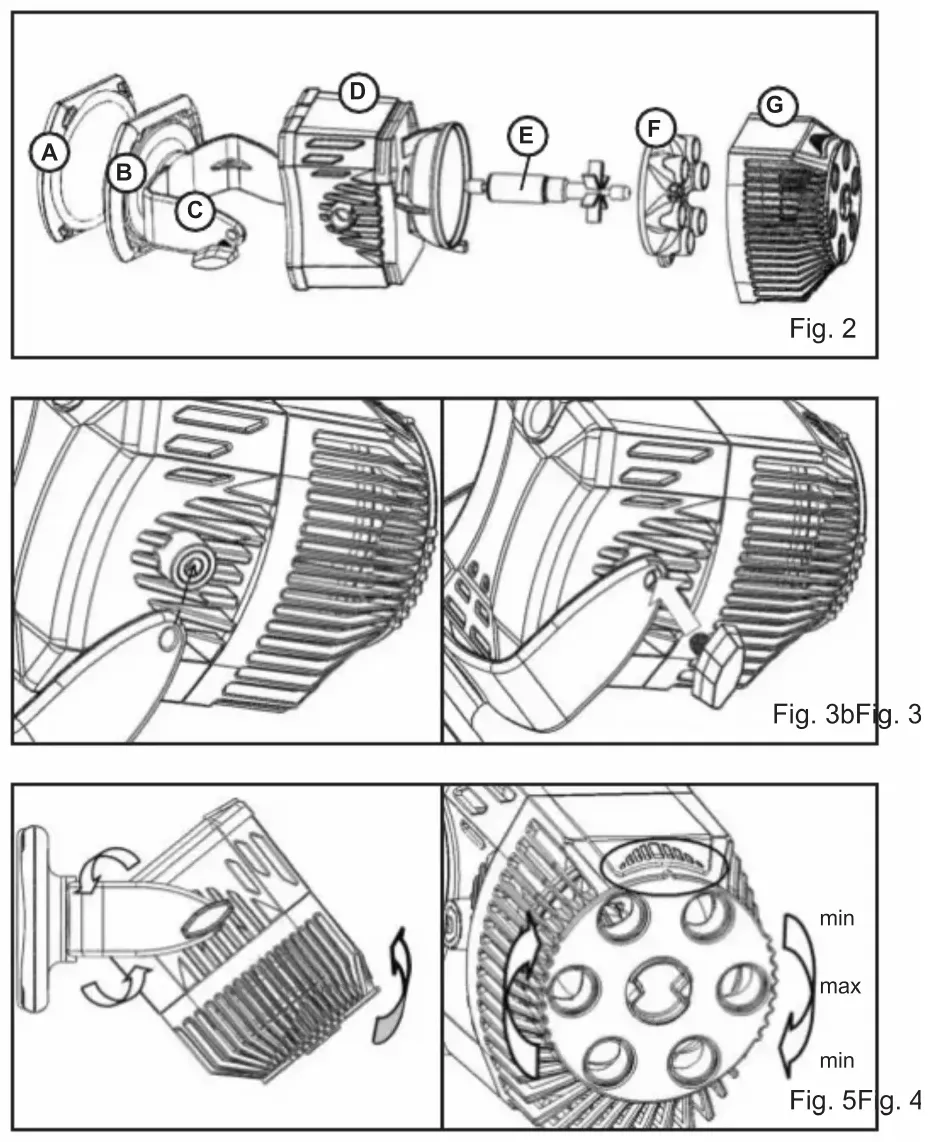

2) To connect the magnetic support to the pump, insert the pump into the staple

overlapping the holes (Pic. 3a). Insert the handle in the staple in the holes (Pic. 3b), screwing it in so to keep the pump in place.

3) Clean the glass and position the pump inside the tank, submerging it completely.

Pay attention that the upper part of the pump is positioned in the right way otherwise, if the water level decrease, the pump could suck air and make noise.

4) Attach the external magnetic support to the tank at a 10 cm / 3.93 inches distance

from the centre of the internal support. Drag it until perceiving of the opposite magnetic force and position the centres of the 2 supports on the same axis. ATTENTION: Please follow carefully the above instruction because if the installation in made differently, you may cause glass breakage and nger pinching as the attraction power of the magnets is very strong.ONLINE HELP

SICCE TUTORIAL VIDEO

5) Turn the pump so that the ow is directed where desired (Pic. 4), then secure

the lateral handle tightly, so to keep the product in position.Then regulate the ow according to your preferences turning the ow regulator in front of the pump (Pic. 5). If it is completely open, it makes a direct and strong ow for hard corals, if it is more closed, it make a wider and softer ow for soft corals or plants.

6) Connect it to the electric socket.

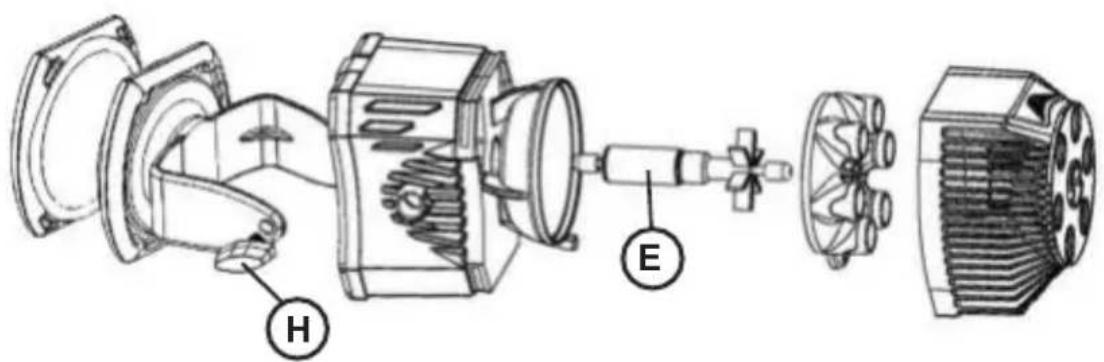

MAINTENANCE For the periodic maintenance of the pump, rst of all unplug the plug from the electric socket and then take the pump out of water. Clean regularly the pump and the rotor. In case of very dirty or limestone or with a lot of detritus water, it is recommended a more frequent cleaning. Proceed in the following way: detach the pre-chamber from the pump (Pic. 2 G/F) and take out the rotor (Pic. 2 E). Clean all the parts: the prechamber, the rotor, the impeller and their sits. Do not remove the dirt by hard means but using a soft brush with soap or vinegar. If, after that, the impeller makes still some noise, substitute it with a new one because it means that it worn out. Then assemble everything in the inverse order. ONLINE HELP Watch our tutorial videos on THE SICCE YOU TUBE ofcial channel www. youtube.com/SICCEspa. INSTRUCTIONS FOR THE CORRECT DISCHARGE OF THE PRODUCT
