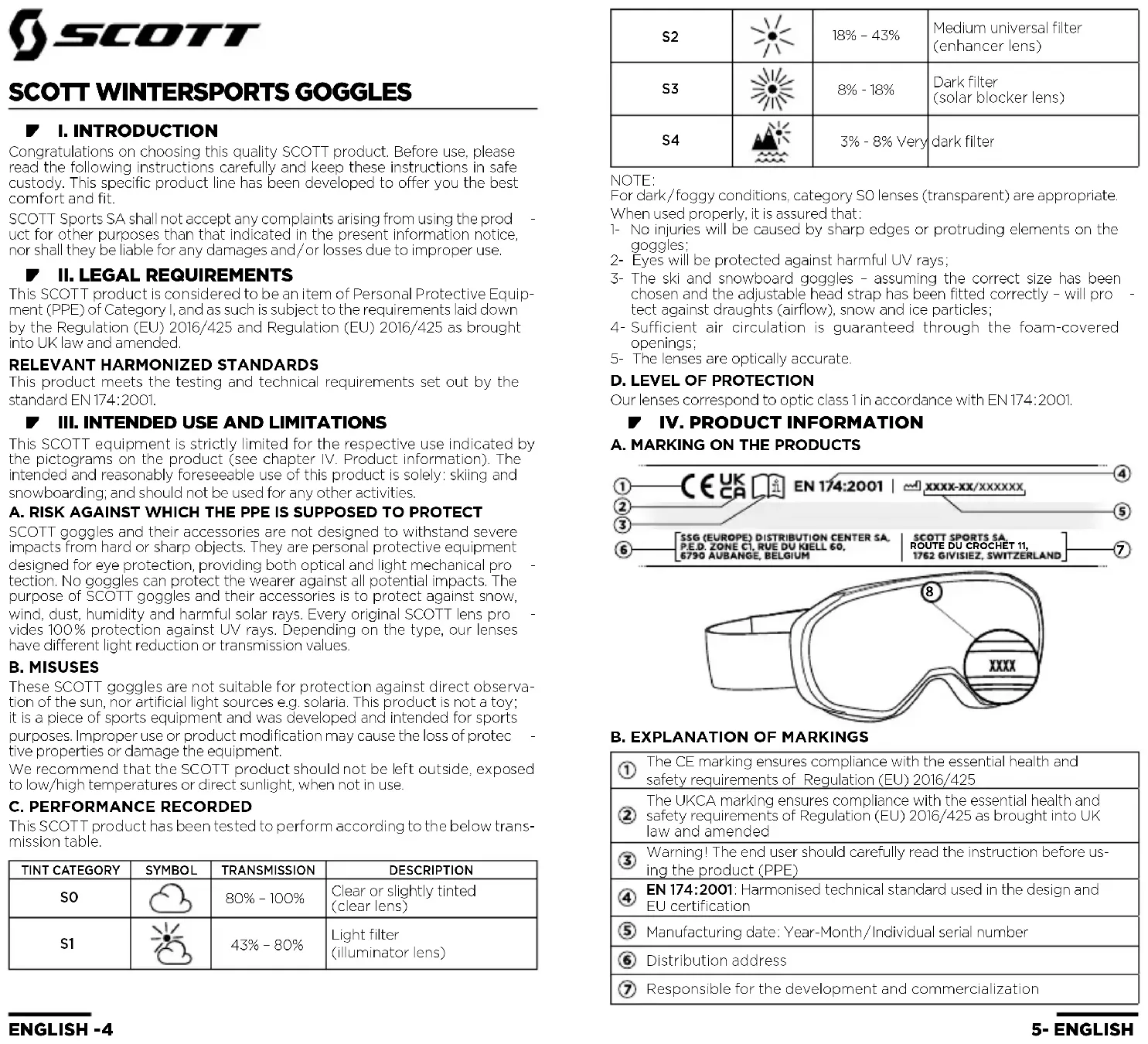

USER MANUAL Shield Goggle SCOTT
Congratulations on choosing this quality SCOTT product. Before use, please read the following instructions carefully and keep these instructions in safe custody. This specific product line has been developed to offer you the best comfort and fit.
SCOTT Sports SA shall not accept any complaints arising from using the product for other purposes than that indicated in the present information notice, nor shall they be liable for any damages and/or losses due to improper use.
II. LEGAL REQUIREMENTS
This SCOTT product is considered to be an item of Personal Protective Equipment (PPE) of Category I, and as such is subject to the requirements laid down by the Regulation (EU) 2016/425 and Regulation (EU) 2016/425 as brought into UK law and amended.
RELEVANT HARMONIZED STANDARDS
This product meets the testing and technical requirements set out by the standard EN 174:2001.
III. INTENDED USE AND LIMITATIONS
This SCOTT equipment is strictly limited for the respective use indicated by the pictograms on the product (see chapter IV. Product Information). The intended and reasonably foreseeable use of this product is solely: skiing and snowboarding; and should not be used for any other activities.
A. RISK AGAINST WHICH THE PPE IS SUPPOSED TO PROTECT
SCOTT goggles and their accessories are not designed to withstand severe impacts from hard or sharp objects. They are personal protective equipment designed for eye protection, providing both optical and light mechanical protection. No goggles can protect the wearer against all potential impacts. The purpose of SCOTT goggles and their accessories is to protect against snow, wind, dust, humidity and harmful solar rays. Every original SCOTT lens provides 100% protection against UV rays. Depending on the type, our lenses have different light reduction or transmission values.
B. MISUSES
These SCOTT goggles are not suitable for protection against direct observation of the sun, nor artificial light sources e.g. solaria. This product is not a toy; it is a piece of sports equipment and was developed and intended for sports purposes. Improper use or product modification may cause the loss of protective properties or damage the equipment.
We recommend that the SCOTT product should not be left outside, exposed to low/high temperatures or direct sunlight, when not in use.
C. PERFORMANCE RECORDED
This SCOTT product has been tested to perform according to the below transmission table.
| TINT CATEGORY | SYMBOL | TRANSMISSION | DESCRIPTION |
| S0 |  | 80% - 100% | Clear or slightly tinted (clear lens) |
| S1 |  | 43% - 80% | Light filter (illuminator lens) |
| S2 |  | 18% - 43% | Medium universal filter (enhancer lens) |
| S3 |  | 8% - 18% | Dark filter (solar blocker lens) |
| S4 |  | 3% - 8% Very dark filter | |
NOTE:
For dark/foggy conditions, category SO lenses (transparent) are appropriate. When used properly, it is assured that:
1- No injuries will be caused by sharp edges or protruding elements on the goggles;
2- Eyes will be protected against harmful UV rays;
3- The ski and snowboard goggles - assuming the correct size has been chosen and the adjustable head strap has been fitted correctly - will protect against draughts (airflow), snow and ice particles;
4- Sufficient air circulation is guaranteed through the foam-covered openings;
5- The lenses are optically accurate.
D. LEVEL OF PROTECTION
Our lenses correspond to optic class 1 in accordance with EN174:2001.
IV. PRODUCT INFORMATION

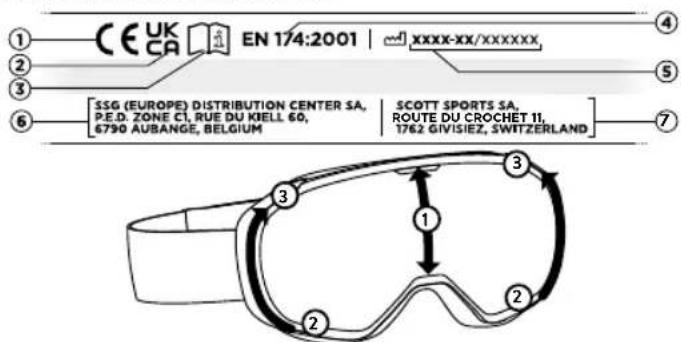

A. MARKING ON THE PRODUCTS
| 1 | The CE marking ensures compliance with the essential health and safety requirements of Regulation (EU) 2016/425 |
| 2 | The UKCA marking ensures compliance with the essential health and safety requirements of Regulation (EU) 2016/425 as brought into UK law and amended |
| 3 | Warning! The end user should carefully read the instruction before using the product (PPE) |
| 4 | EN 174:2001. Harmonised technical standard used in the design and EU certification |
| 5 | Manufacturing date: Year-Month/Individual serial number |
| 6 | Distribution address |
| 7 | Responsible for the development and commercialization |
Model identification
C. FURTHER MARKINGS

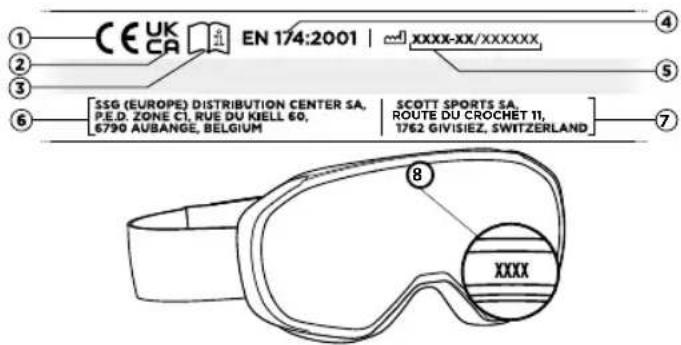

Below you can find each product is marked on the inside of the frame with a reference code. The model description of each code:
| 2301 SCOTT REACT |
| 2250 SCOTT SPLIT OTG |
| 2201 SCOTT FACTOR |
| 2101 SCOTT $HIELD |
| 2001 SCOTT VAPOR |
| 1701 SCOTT WITTY |
| 1702 SCOTT FAZE II |
| 1601 SCOTT UNLIMITED II OTG |
| 1602 SCOTT MUSE PRO |
| 1603 SCOTT MUSE |
| 1604 SCOTT MUSE PRO OTG |
| 1501 SCOTT LCG COMPACT |
| 1502 SCOTT FIX |
| 1401 SCOTT LINX |
| 1301 SCOTT LCG EVO |
| 1203 SCOTT FACT |
| 1250 SCOTT HABIT OTG |
| 1104 SCOTT AGENT |
| 0601 SCOTT 89X (CLASSIC, ASSET, ALTA) |
D. SCOTT WINTER GOGGLE LENSES
| MARKETING NAME TINT CAT. | REF | ||
| AMPLIFIER | LIGHT SENSITIVE | ||
| Light Sensitive Blue Chrome S2-S4 | L154, L365 | ||
| Light Sensitive Bronze Chrome S1 | S3 L155, L3 | 54 | |
| Light Sensitive Red Chrome S2-S3 | L162, L362 | ||
| SOLAR BLOCKER | |||
| Solar Black Chrome | S3 | L156, L355 | |
| Solar Red Chrome | S3 L158, L3 | 68 | |
| Solar Blue Chrome | S3 L102 | ||
| ENHANCER | |||
| Enhancer Aqua chrome | S2 | L165, L367 | |
| Enhancer Blue chrome | S2 | L163, L363 | |
| Enhancer Rose chrome | S2 | L164, L364 | |
| Enhancer Purple Chrome | S2 | L113, L322 | |
| Enhancer Silver Chrome | S2 | L114, L312 | |
| Enhancer Teal Chrome | S2 | L116, L356 | |
| Enhancer Red Chrome | S2 | L151, L350 | |
| Enhancer Green Chrome S2 | L110 | ||
| AMPLIFIER | Enhancer Yellow Chrome | S2 | L357, L159 |
| Enhancer | S2 | L119, L505, L711 | |
| ILLUMINATOR | |||
| Illuminator | S1 | L120, L501 | |
| Illuminator Red Chrome | S1 L153 | ||
| Illuminator Blue Chrome | S1 | L161, L361 | |
| OTHERS COLORS | ||
| Night Enhancer | S1 | L559 |
| Clear | S0 | L152,L504 |
The resistance to fogging is guaranteed on all SCOTT winter goggles. Light transmission curves are available at www.scott-sports.com.
▼ V. TIME OF OBSOLESCENCE
SCOTT Goggles have limited lifespan. For optimum safety, SCOTT recommends replacing your product three (3) to five (5) years after its purchasing date, depending on usage.
SCOTT Goggles or goggle lenses that are damaged or worn out must be replaced for safety reasons.
SCOTT shall not be liable for damages relating to the use of products which should have been replaced.
It is essential for the lens to be changed if it can no longer be guaranteed to work properly and provide good protection because of soiling, mechanical wear and tear or improper usage.
VI. INSTRUCTIONS FOR SIZING, FIT
For the SCOTT product to serve its purpose, it must cover the protected area correctly.
To obtain maximum comfort and protection, SCOTT goggles must be adjusted correctly.
The goggles should be placed on the user's face, and the strap around the head or the helmet. Adjust the strap by sliding the plastic sliders towards the face to tighten it, and towards the back of the head to loosen it.
A. CHANGING THE LENS
Please note that ideally the lens should be changed at room temperature so that the frame is sufficiently pliable.
Should you need a new lens, please make a note of the model code, which is marked inside the frame (IV. Product Information) and order the relevant replacement lens from your specialist retailer.

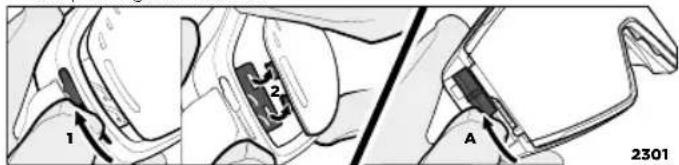

All goggles (excluding frames 1301, 1501, 2301)
1- Remove the lens from the frame by pulling the nose section away from the lens (1) and remove the lens it from each of the mounts.
2- When inserting the new lens, press the nose section together and insert the lens into the nose groove so that the mount engages.

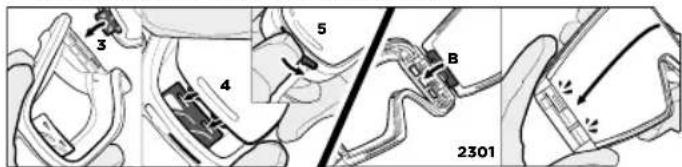

3- Repeat the process on the lower (2) and on the upper edge (3) of the goggles.
4- Be sure that the entire lens is properly seated in the frame slot and all frame retention posts are fully engaged with the lens keyholes. If this is not the case, apply slight pressure to click it into place.
1- Lens removal: always hold the goggles on the outside of the frame with - out pinching the nose area
Wear and tear, dirt or any kind of damage may compromise the effectiveness of the equipment. Contamination with foreign substances and improper care can seriously compromise the effectiveness of your equipment and reduce its performance.
A. CLEANING AND CARE
Depending on the model, the lenses have a hydrophilic coating, which prevents fogging-up. It is therefore important to proceed in accordance with the following directions:
1- In the event of slight soiling, the goggles can be cleaned sufficiently using the storage bag or a damp cloth.
2- In the event of heavy soiling, the goggles can be cleaned under running water and with a little soap. Please make sure that the wet lens is not wiped but that the water is merely shaken off and dabbed with a soft, clean cloth. Wiping can destroy the anti-fog coating. This can also occur if paper towels are used.
3- Particular care should be taken with mirrored lenses. Please ensure that there are no dust particles on the lens or the cleaning cloth when cleaning.
4- We strongly advise against the use of solvents.
5- Do not wash SCOTT goggles in the washing machine.
B. TRANSPORTATION & STORAGE
Whenever possible please store and transport your SCOTT goggles in the bag or box designed for this purpose. Only by doing so can you be certain that your goggle lens will remain undamaged for as long as possible. Please also note that the goggles should not be stored in places where they may be subjected to high levels of radiated heat. Storage in temperatures above 50°C is not recommended!
C. CHECKING OF WEAR AND TEAR
Inspect the goggles before the beginning of a season or after a fall to ensure the goggles are still intact. The lens must not be split, the strap must be securely fastened to the frame and the frame should not have any cracks. In the event that any such damage is found, the defective part must be replaced. Only original SCOTT spare parts may be used. Scratched or damaged lenses have to be replaced and must not be used again.
D. DISPOSAL
Dispose of the products in the domestic waste. Do not tamper or incinerate the product. This may lead to potential hazards.
ENGLISH -8
VIII. WARNING
- No SCOTT equipment can offer full protection against injury. Any contamination, alteration to the product or misuse could dangerously reduce the performance of the equipment.
- Do not use ski goggles in road and when driving.
IX. SALES
Responsible for the development and commercialization in the EU and worldwide is: SCOTT Sports SA, Route du Crochet 11, CH-1762 Givisiez, Switzerland. Distribution USA: SCOTT USA Inc., 651 West Critchlow Drive, 84404 Oaden, USA.
Importer for the UK: SCOTT Sports SA (UK Branch), Unit 3, Baker Road, Nelson Park West, Cramlington NE231WL, United Kingdom.
Distribution other countries: SSG (Europe) Distribution Center SA, P.E.D Zone C1, Rue du Kiell 60, 6790 Aubange, Belgium.
All information related to importers is available at www.scott-sports.com/company/distributors
X. HOMOLOGATION
Declarations of conformity are available at www.scott-sports.com/conformity
Assessed by:
- ITALCERT, Notified Body No. 0426, v. le Sarca 336-20126, Milano, Italy. - TÜV SÜD Product Service GmbH Zertifizierstelle, Ridlerstraße 65, 80339 MÜNCHEN, Germany. Prüfstellennummer 0123.
The product complies requirements of the Standard: EN 174:2001
This SCOTT product complies with the essential health and safety requirements of Regulation (EU) 2016/425 on Personal Protective Equipment (PPE Category I). Further, it complies with the health and safety requirements of Regulation (EU) 2016/425 on Personal Protective Equipment (PPE Category I) as brought into UK law and amended.
WWW.SCOTT-SPORTS.COM
©SCOTT SPORTS SA 2023. All rights reserved. Rev. 04 of 03.2022.
The information contained in this manual is in various languages but only
the English version will be relevant in case of conflict.
UK CA CE
⚠ WARNING THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING BISPHENOLA, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.265WARNINGS.CA.GOV
9- ENGLISH
SCOTT
SCOTT WINTERSPORTS GOGGLES
I. EINLEITUNG
WWW.SCOTT-SPORTS.COM
NORMES APPLICABLES HARMONISÉES
IV. INFORMATION PRODUIT
A. MARQUAGE SUR LE PRODUIT
WWW.SCOTT-SPORTS.COM
www.scott-sports.com.
WWW.SCOTT-SPORTS.COM
WWW.SCOTT-SPORTS.COM

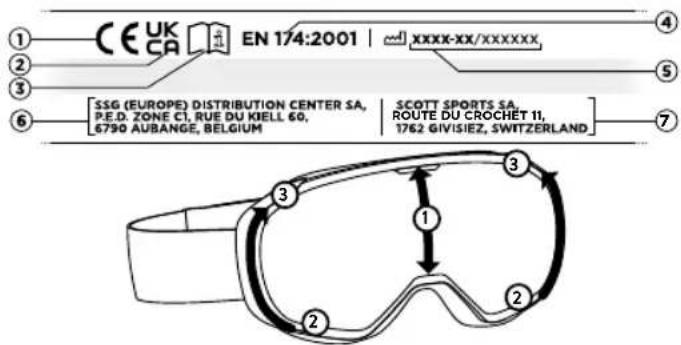

A. MÄRKNING PÅ PRODUKTERNA
B. FÖRVARING OCH TRANSPORT
WWW.SCOTT-SPORTS.COM
A. MÆRKNING PÅ PRODUKTERNE
www.scott-sports.com/company/distributors
X. GODKENDELSER
www.scott-sports.com/conformity
Bedømt:
- ITALCERT, bemyndiget organ nr. 0426, v. le Sarca 336-20126, Milano, Italien.
- TUV SUD Product Service GmbH, Daimlerstraße 11, 85748 Garching, Tyskland.
WWW.SCOTT-SPORTS.COM
©SCOTT SPORTS SA 2023. Alle rettigheder forbeholdes. Rev. 04 af 03.2022.


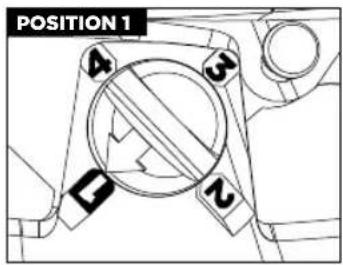

POSITION 1


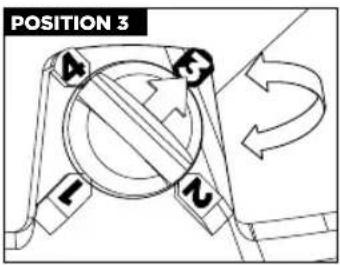

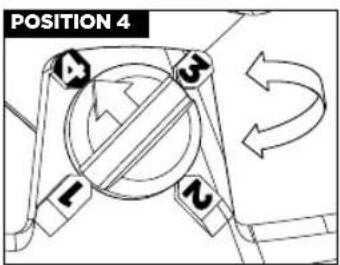

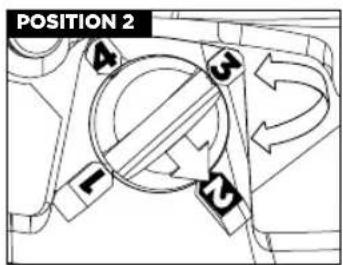

POSITION 4 1 2 3SCOTT FIT SYSTEM -46
