USER MANUAL Fast&Furious 4020 Force CECOTEC

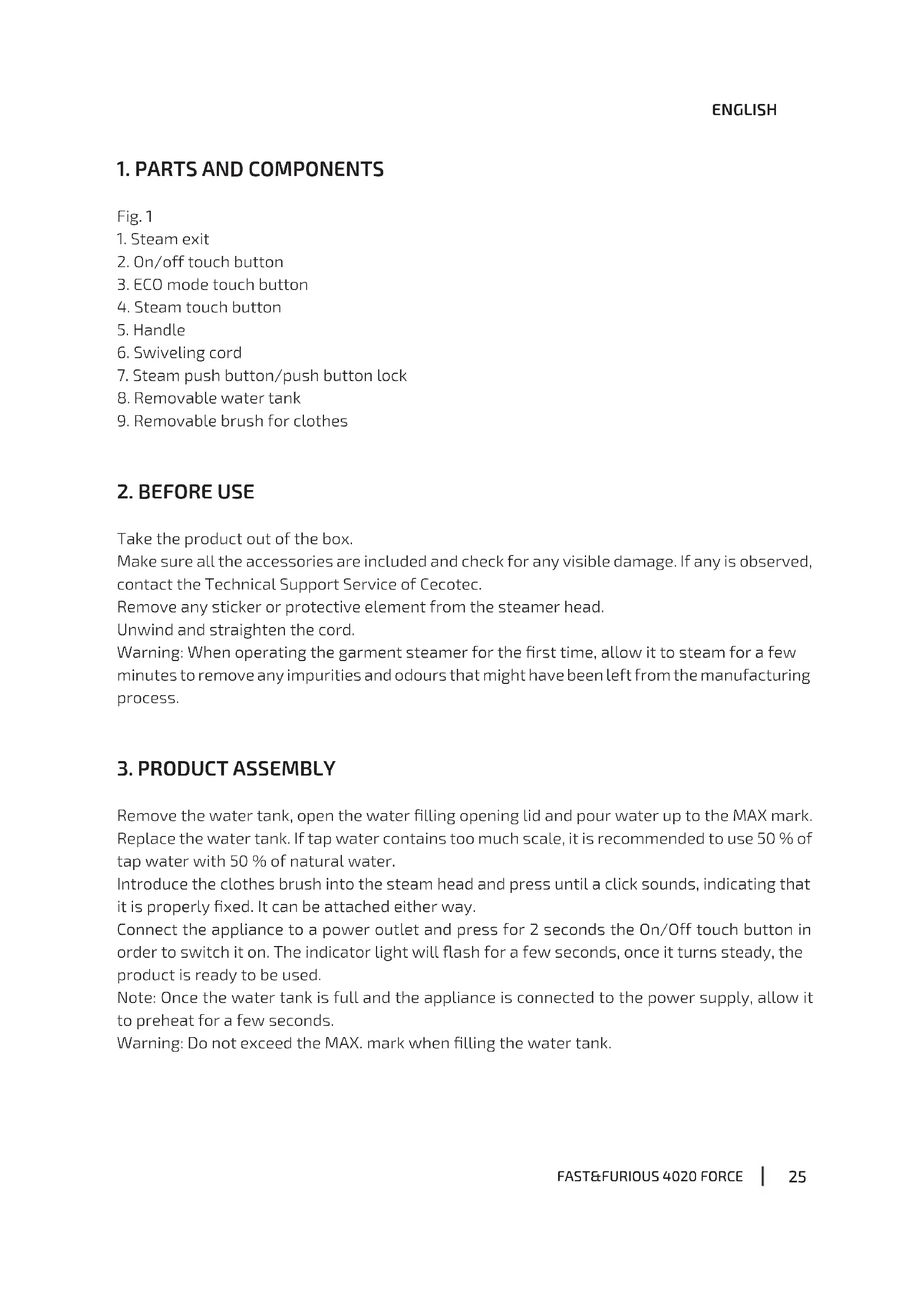

1. Parts and components 25

5. Cleaning and maintenance 27

8. Disposal of old electrical appliances 29

9. Technical support and warranty 29

Do not twist, bend, strain, or damage the power cord in any way. Protect it from sharp edges and heat sources. Do not let it touch hot surfaces. Do not let the cord hang over the edge of the working surface or countertop. Do not immerse the cord, plug, or any non-removable part of the appliance in water or any other liquid, nor expose the electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance. Do not use the device with perfume, vinegar or other liquids. It is designed to operate only with water. Avoid contact with the steam generated by the iron. Steam temperature is very high and can cause burns and other damage. Do not exceed the MAX mark on the water tank when lling the appliance with water. Do not use outdoors, close to baths, showers, swimming pools or in bathrooms. Do not leave the appliance unattended while hot or connected. Do not allow the cord to come into contact with hot surfaces. Never operate the appliance while clothes are on the body or direct steam towards people. Unplug the appliance before attaching any of its accessories, lling water, cleaning or descaling. Place the appliance on a at, stable surface. Keep it away from wet surfaces. Make sure the product is properly assembled before use and use only attachments or accessories provided by Cecotec. Do not operate the appliance if it has dropped, if it shows visible signs of damage or if it leaks. This product can be used by children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way8

FAST&FURIOUS 4020 FORCE

and understand the hazards involved. Do not try to repair the device by yourself. Contact the ofcial Technical Support Service of Cecotec for advice. Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance functions properly. Turn off and unplug the appliance before moving and cleaning it. Make sure the iron has completely cooled down before storing it. Store the appliance and its instruction manual in a safe and dry place when not in use. Cecotec takes no responsibility for any damage caused by misuse of the appliance. Any misuse or non compliance with these instructions renders the warranty and Cecotec’s liability null and void. The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision. Supervise children, they shall not play with the appliance. Close supervision is necessary when the appliance is being used by or near children. Cleaning and maintenance tasks must not be carried out by children.

Warning: All our ironing range’s products have undergone

quality control tests previous to their commercialisation. These tests consist of lling the water tank in order to check tightness and to ensure correct operating of the device. Once the test has been carried out, the tank is emptied and dried, but there is a slight probability that water could remain inside it.9

8. Removable water tank

9. Removable brush for clothes

Take the product out of the box. Make sure all the accessories are included and check for any visible damage. If any is observed, contact the Technical Support Service of Cecotec. Remove any sticker or protective element from the steamer head. Unwind and straighten the cord.

Warning: When operating the garment steamer for the rst time, allow it to steam for a few

minutes to remove any impurities and odours that might have been left from the manufacturing process.

Remove the water tank, open the water lling opening lid and pour water up to the MAX mark. Replace the water tank. If tap water contains too much scale, it is recommended to use 50 % of tap water with 50 % of natural water. Introduce the clothes brush into the steam head and press until a click sounds, indicating that it is properly xed. It can be attached either way. Connect the appliance to a power outlet and press for 2 seconds the On/Off touch button in order to switch it on. The indicator light will ash for a few seconds, once it turns steady, the product is ready to be used. Note: Once the water tank is full and the appliance is connected to the power supply, allow it to preheat for a few seconds.

The garment steamer is easy to use and is perfect for removing creases from garments and curtains. Note: The garment steamer is designed to be used in an upright position on hanging garments. Make sure there is ventilation behind the garment. Press the steam push button to activate the desired steam ironing function. Press the ECO push button to steam delicate clothes. Gently press the clothes brush against the garment to be steamed and move it up and down, especially focusing on creases. When using the garment steamer without the clothes brush, keep a distance of at least 5 cm between the steam head and the garment. Release the steam push button to stop the steaming function. Slide downward the steam push button lock in order to produce constant steam without having to press the push button. Note: It is suggested to use the clothes brush attachment when steaming delicate fabrics such as silk.

Warning: The garment steamer generates steam at very high temperatures. Do not touch the

steam exit and make sure to hold the product in an upright position and facing outward. Steaming curtains Once the curtain has been properly washed and dried, follow the below indications: Hang it in its correct position. Steam it in an upright position. Lightly stretch the curtain with one hand while steaming to help remove creases more easily. Steaming upholstery The product can also be operated on upholstery, slipcovers, cushions etc. Keep the appliance in an upright position. Steam up and down, focusing on creases. After every use Press the power touch button for 2 seconds approx. and unplug the power cord from the power supply. Allow the iron to cool down completely. Empty the remaining water in the water tank. Be careful not to burn yourself! Stand the garment steamer on its base in an upright position and allow to cool. Tips It is suggested to iron or steam clothes on its inner side. Trousers may be ironed or steamed holding them by the ends.27 ENGLISH

FAST&FURIOUS 4020 FORCE

The garment steamer does not eliminate stains. Do not steam clothes while worn. The garment steamer can be used almost on any type of fabric: Silk, jeans, cotton, polyester, wool, etc. Always check if the garment to be steamed has a label with instructions for ironing, and if it has, follow the instructions. Auto-off For safety reasons, the garment steamer turns automatically off after 8 minutes. The light indicator will start ashing.

5. CLEANING AND MAINTENANCE

Disconnect the device from the power supply and allow it to cool down completely before cleaning. Remove the clothes brush from the steamer head and clean using a damp cloth. Do not use harsh or abrasive cleaning agents or solvents. Do not put the garment steamer in water or any other liquid. Always empty the water tank after each use and rinse with clean water. Clean the housing with a damp cloth. Always ensure the steam outlet hole is clean, free from scaling and not blocked. Use a toothpick to unclog it. Once the garment steamer is disconnected from the power outlet, cooled down, water is emptied and the device is clean, it is recommended to wrap the cord safely around the steamer to store in an upright position. Cleaning water mineral deposits To prevent minerals from building up or reduce them, follow the below recommendations: Carry out this process once every month if not using natural water. Make sure the appliance is unplugged and cooled down. Mix 50 % of descaling product and 50 % low-mineral or natural water. Remove the water lling opening cover and pour the mixture into the water tank. Replace the cover. Allow it to take effect for 40 minutes and then empty the tank. Wipe down the housing with a damp cloth. Fill the tank with clean water, rinse and empty. Repeat this step until any odour disappears. Assemble the unit back and use it normally. This process only cleans the water tank. Do not plug the device during this process.28 ENGLISH

Problem Possible solution The steamer does not heat up. Check main plug is inserted correctly. Check the power supply. Check the power button. The steamer does not produce steam. Check the water level and the water tank inlet cover is properly covered. Press the steam push button harder. Hold the steamer in an upright position. Water leaks from the water tank. Make sure water does not exceed the MAX. mark. Make sure water tank inlet cover is properly closed. Always use the steamer in an upright position. The steamer is producing smoke and a loud humming sound. Check water level and rell the water tank. The steamer does not remove creases correctly. Hold the steamer in an upright position and stretch the fabric downward to ensure best results. Unsure when to use the clothes brush. When steaming delicate fabric, such as silk to reduce the risk of water dripping onto the garment while steaming. Metal accessories on garment are discolouring. Do not steam directly over the metal accessories. Use caution and steam around the metal accessories.

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), species that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation to dispose of the appliance correctly. Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

9. TECHNICAL SUPPORT AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual. The warranty will not cover the following situations: The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer. The product has been disassembled, modied, or repaired by persons, not authorised by the ofcial Technical Support Service of Cecotec. Faults deriving from the normal wear and tear of its parts, due to use. The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply. If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone] 728.30 FRANÇAIS
