Product Type	Aroma Diffuser
Brand	Clean Air Optima
Model	AD-302
Dimensions	106 x 106 x 160 mm
Weight	238 g
Power Supply	USB 5 V / 1 A (220-240 V AC adapter included)
Rated Power	5 W
Tank Capacity	130 ml
Mist Output	20 ml/h
Noise Level	< 25 dB(A)
Color	White
Main Functions	Continuous and intermittent mist diffusion
Lighting	7 colors with fixed color stop
Auto Shut-off	Yes, when water runs out (red flashing)
Maintenance	Clean after 5-6 uses with a neutral detergent
Safety	Unplug before cleaning, indoor use only, keep out of reach of children
Warranty	2 years
Regulatory Compliance	CE, WEEE, RoHS

Frequently Asked Questions - AD302 Clean Air Optima

How to start the AD-302 diffuser?

Connect the USB cable to a 5V/1A power source. The device flashes yellow once. Press the on/off button once for continuous diffusion, a second time for intermittent diffusion, a third time to turn it off.

How much water and essential oil should I use?

Use soft tap water until it covers the water level sensor, without exceeding the maximum level. Add 1 to 8 drops of essential oil depending on the water volume and room size (see chart in the manual).

What to do if the diffuser does not produce mist?

Check that the water level is sufficient (above the sensor), the atomizer plate is clean, and the mist outlet and air inlet are not blocked. Clean if necessary.

How to clean the diffuser?

After 5-6 uses, unplug the device, empty the water, clean the tank and atomizer plate with a diluted neutral detergent using a cotton swab, then rinse with clean water. Do not use harsh solvents.

What happens if the water level is too low?

The mist diffusion stops automatically and the device flashes red five times to indicate low water. It enters standby mode. The light remains functional.

Can I use the diffuser in a bathroom?

No, the device is designed for indoor use only and should not be used in particularly humid rooms like bathrooms, nor near heat sources or flammable liquids.

Is the diffuser safe for children and pets?

The device must be kept out of reach of children. It should not be used by persons (including children) with reduced capabilities without supervision. Avoid spraying mist directly on furniture or clothing.

What to do in case of accidental spill?

Turn off the device and unplug it. Drain the water through the air inlet (do not pour through the mist outlet). Let it air dry for 24 hours before reuse.

How does the diffuser lighting work?

Press the light button to turn on the yellow light. A second press cycles through seven colors. A third press holds the current color. A fourth press turns off the light.

Where can I download the full manual?

The manual is available for free in PDF format at www.cleanairoptima.com/info/manuals. You can also consult it at notice-facile.com.

USER MANUAL AD302 Clean Air Optima

Clean Air Optima Aroma Diffuser Ambiente AD-302

User manual

Gebrauchsanweisung

Gebruiksaanwijzing

Mode d'emploi

Manual del usuario

Read these instructions carefully before you start using the Aroma Diffuser and keep the manual for later usage.

Clean Air Optima

AD-302 Parts / Main unit

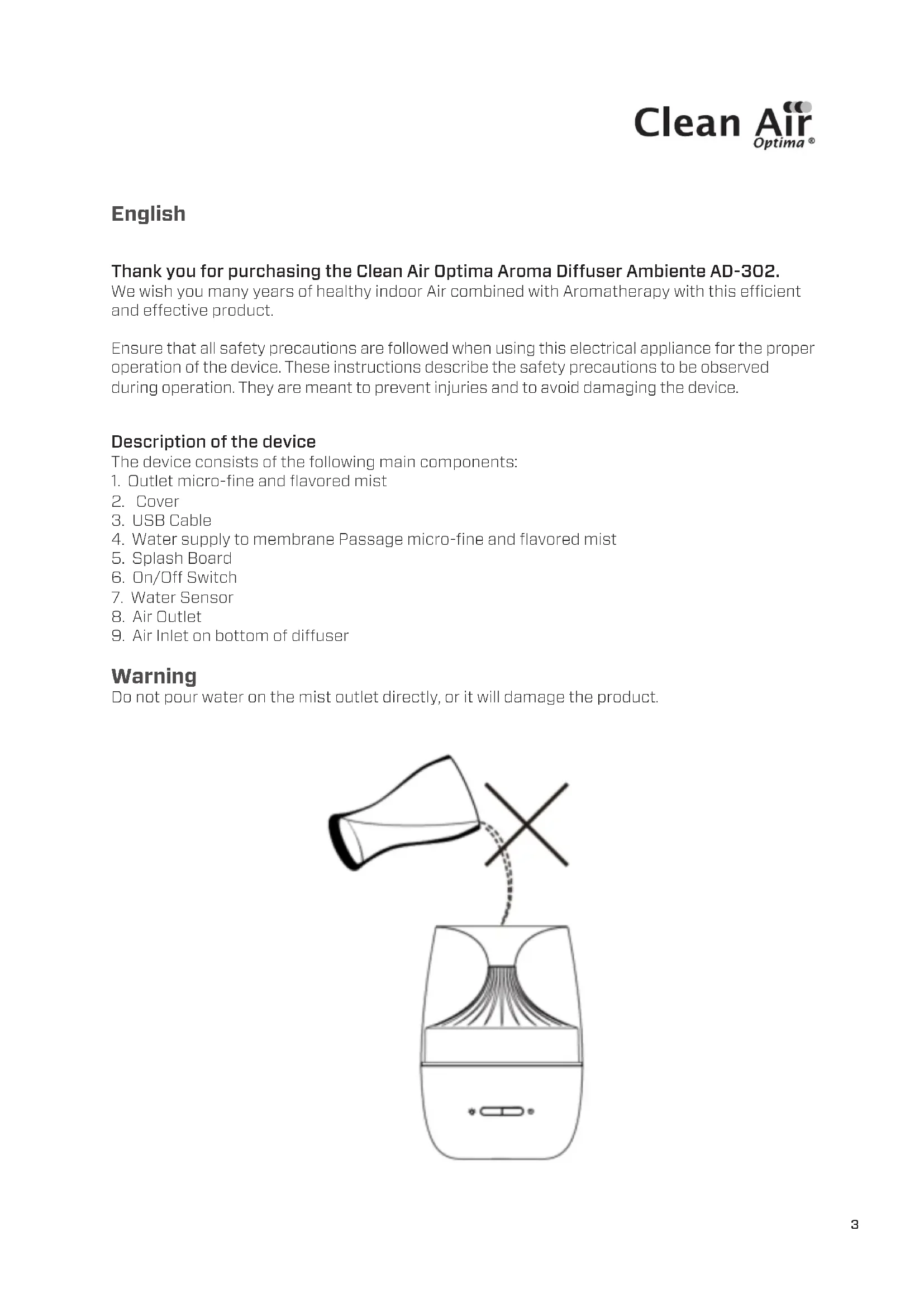

English

Thank you for purchasing the Clean Air Optima Aroma Diffuser Ambiente AD-302.

We wish you many years of healthy indoor Air combined with Aromatherapy with this efficient and effective product.

Ensure that all safety precautions are followed when using this electrical appliance for the proper operation of the device. These instructions describe the safety precautions to be observed during operation. They are meant to prevent injuries and to avoid damaging the device.

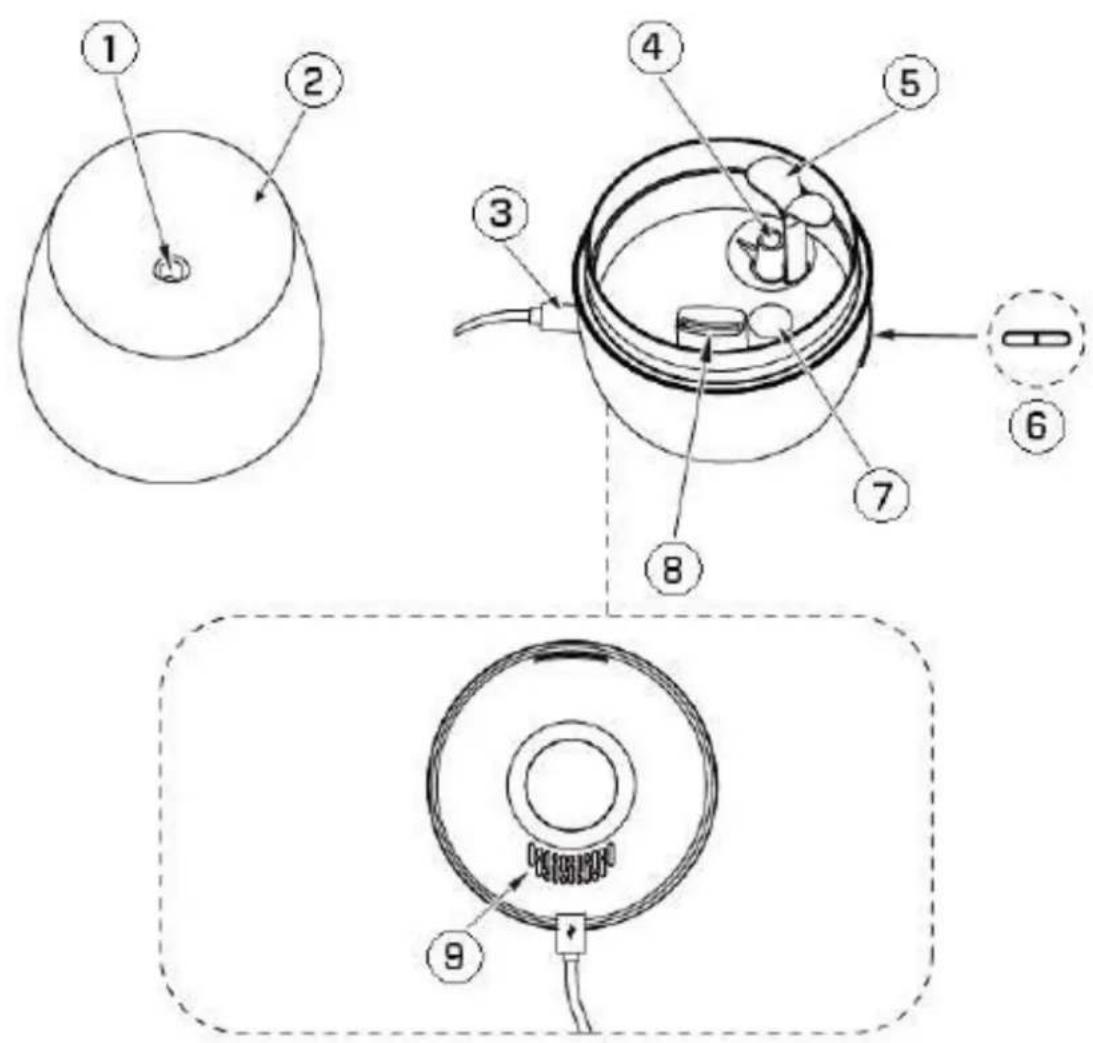

Description of the device

The device consists of the following main components:
1. Outlet micro-fine and flavored mist
2. Cover
3. USB Cable
4. Water supply to membrane Passage micro-fine and flavored mist
5. Splash Board
6. On/Off Switch
7. Water Sensor
8. Air Outlet
9. Air Inlet on bottom of diffuser

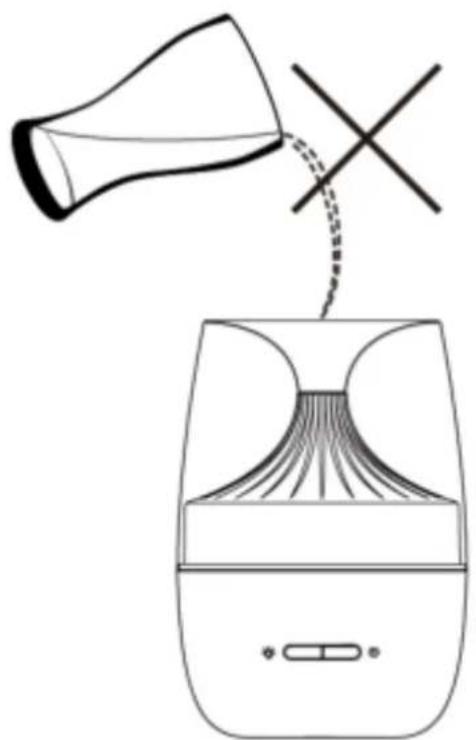

Warning

Do not pour water on the mist outlet directly, or it will damage the product.

Clean Air Optima

Safety warnings

Take the following steps to minimize the risk of personal injury caused by for example electric shocks or fire.

1. Only for indoor use.
2. Pull the plug when you do not use the device or when you clean internal or external parts
3. Use, maintain and clean the device as described in this manual.
4. Do not use the device when there is visible damage on the electrical cord or on the device itself. Do not repair the device yourself in case of damage. Never pull the device by its cord. If the power cord is damaged, then it must be replaced by an authorized service person to prevent electric shock or fire.
5. Do not use the device in rooms where inflammable liquids or gases are stored, close to heat sources or in particularly humid rooms like the bathroom.
6. Do not insert strange objects into the device.
7. Touch the device only with dry hands.
8. Essential oil from aromatherapy can cause stains and if splashes occur, they should be dried immediately with a cleaning cloth.
9. Do not spray the mist directly onto the furniture, clothes, walls, etc.
10. Do not place the device in direct sunlight, and avoid using it nearby an air-conditioner, ventilator or under high temperature, and avoid using the device nearby an electric appliance such as a TV or sound equipment.
11. Do not move while using.
12. This product must be placed out of the reach of children to ensure that they do not play with it.
13. The appliance is not intended to be used by children or persons with reduced physical, sensory or mental capabilities, unless they are supervised by a person responsible for their safety.

How To Use

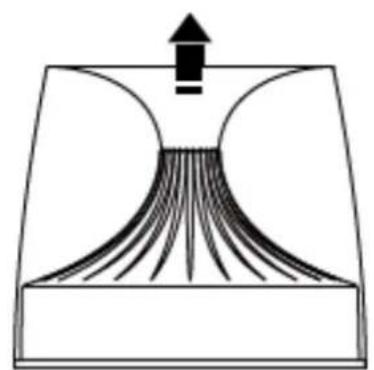

1. Open the cover

Remove the cover

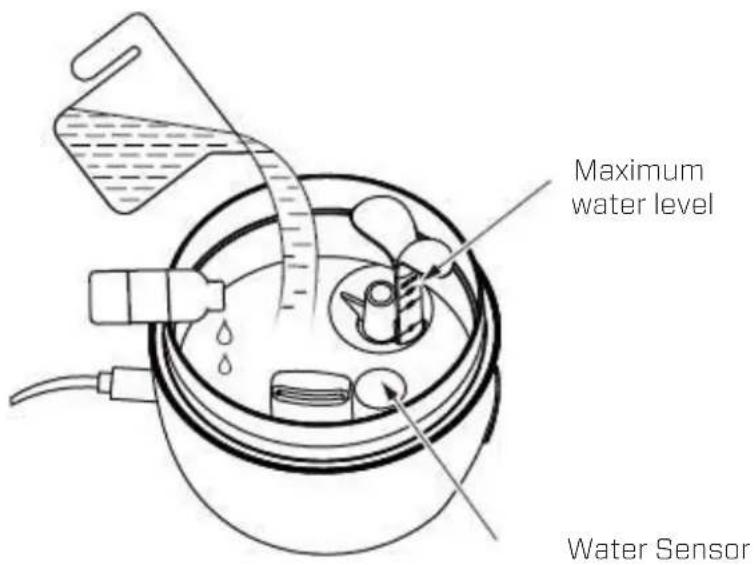

2. Add water and essential oils

Clean Air Optima

• Use soft tap water. The water line shall cover the water sensor and should remain below the Max water level line.
• Drop a few drops of essential oil into the water. (See the table below).

Note: Please do not remove the Splash Board when adding water, to avoid that the amount of water exceeds the MAX level.

Space Volume Drops suggestion Duration
10m2-20m2 50ml 1-4 drops	drops 0.5h-1h
10m2-40m2 100ml 3-6 drops	drops 1h-2h
10m2-60m2 130ml 4-8 drops	drops 2h-3h

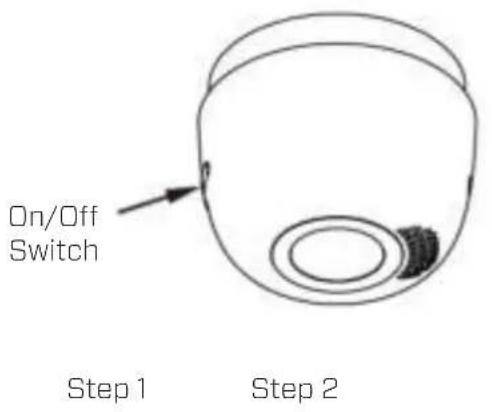

3. Connect to power supply

Step 1

Step 2

• Connect USB cord with any USB power source. (Please make sure the power supply is 5V = 1A).
• When the power is connected, the device flashes yellow once to indicate the power is connected. The device is on standby now.

4. Mist function and light

Light button

Spray button

• Press the on/off button once, the continuous mist mode will be switched on.
• Press the on/off button again, the device will switch to the intermittent mist mode. Press one more time, the device will return to the standby mode.
• Press the light button, the yellow light is on. Press again, the device will alternate between seven colours. Press one more time, the present colour is frozen. Press again to switch off the light.

Note: When the water runs out (water level lower than the water sensor), the evaporation will stop. The device flashes red five times to indicate that the water level is too low. The device will switch to standby mode.

Attention

1. The device must use the correct power supply.
2. Do not pour water on the mist outlet directly, or it will damage the product.
3. The mist plume can differ per device, which is normal because it depends on various factors such as type of water, humidity, temperature and air flow.
4. If water shortage occurs while the device is switched on, the device will light up red five times. In that case, the device cannot spray mist but the light function will continue to work.
5. Do not use corrosive liquids, otherwise it will damage the device.
6. When using or changing to a different essential oil, please make sure to follow the instructions in the "maintenance" section.

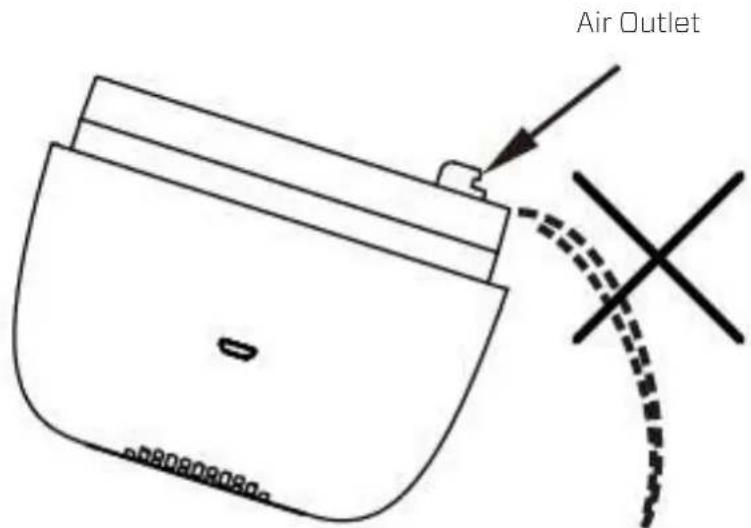

Accidentally leaking

If the device is accidentally knocked over or dropped while using, please proceed as follows:

1. Switch off and pull the power cord out of the device.
2. Empty the remaining water. (Do NOT pour out from the mist outlet side, to avoid water getting in the circuit board, see picture below).

Clean Air Optima

1. Topple the device and drain the water from the air inlet.

drainir

1. Put the product in a dry place and let it air dry for 24 hours.

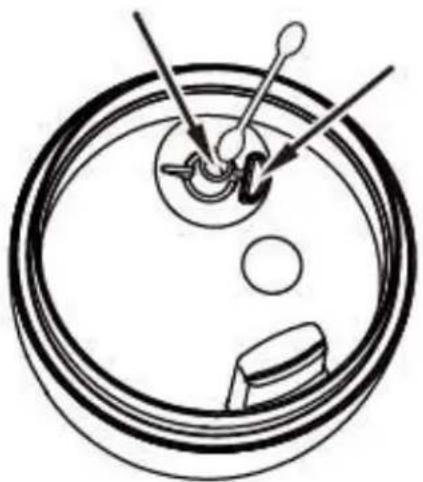

Maintenance

Clean the product in the following way after 5 to 6 times or 3 to 5 days of use:

Outlet micro-fine and flavored mist

Splash board hole

1. Switch off and unplug the power cord, remove the cover.
2. Pour all water out of the water tank and clean it.
3. Cleaning the atomizer plate: Use a cotton stick to clean the surface of the atomizer plate with diluted neutral detergent, then rinse with clean water.
4. Cleaning the splash board hole and the mist outlet: pull out the splash board.

Use a cotton stick to clean the surface and the holes with diluted neutral detergent, then rinse with clean water.

1. Use soft cloth to clean the surface of the product, do not use a medical diluent, phenethyl alcohol and so on, otherwise it will discolor the device.
2. If you are not going to use the device for a long time: unplug the power cord, empty the water tank, clean the device as described, dry it thoroughly and store it in a dry place.

Troubleshooting

The following is a troubling shooting guide to help you solve any issues that you may have using the Clean Air Optima Aroma Diffuser Ambiente AD-302.

Device does not switch on

1. Does the USB cable and the power supply body connect correctly? Solution: make sure that the USB cable get through with power supply body. To verify it, pull out the USB cable, and re-plug it again.

Power is on (yellow light flashed once) but no mist

1. Check if the water level is above the minimum water level. Solution: add more water. The water level should remain below the Max water level line, otherwise it will cause irregular mist. 2. Is there any dirt on the ultrasonic atomizer plate? Solution: clean the atomizer plate. (see point 3. of the “Maintenance section”). 3. Check the Mist outlet to see whether it is blocked. Solution: clean the inside part of the mist outlet with a cotton stick (See point 4. of the “Maintenance” section). 4. Check if there is dust in the air-inlet. Solution: clean the air-inlet. The airflow will decrease considerably if there is too much dust in the air-inlet, meaning there is insufficient pressure to blow out the mist.

WARNING!

If the above recommended solutions do not work, please contact Clean Air Optima technical support at the telephone number for your region. Do not attempt to disassemble, reassemble or repair the device as this may void the warranty.

Specifications

Model AD-302

Rated voltage USBAdapter220V-240V

Output:5V-1A

Rated power 5W

Capacity 130ml - mist output 20ml/h

Sound level < 25dB(A)

Dimensions 106x106x160mm

Weight 238g

Colour White

Complies with

EU regulations CE/WEEE/RoHS

Ask your retailer or your municipality for updated information regarding the disposal of the packaging and

of the device.

Clean Air Optima

Service

Warranty Certificate for the Clean Air Optima Aroma Diffuser Ambiente AD-302

Date of purchase:

Customers name:

Address:

Telephone:

Email:

Seller's name:

Address:

1. Please fill in completely this Warranty Certificate. Send it with the invoice and the unit, postage pre-paid and using the original packing box, to your distributor. Make sure to include the appropriate return postage for the package.
2. Please enclose a short description of the damage, fault or malfunction, and the circumstances under which these problems arose.

The Clean Air Optima Aroma Diffuser Ambiente AD-302 is subjected to strict testing procedures before leaving the factory. If within two years from the date of purchase the product does not perform according to the specifications, because of factory defects, the purchaser is entitled to free repairs or replacement of parts upon presentation of this warranty (provided that the malfunction or damage to the device and/or parts occurred under normal operating conditions). What is covered: All parts defective in material and workmanship. For how long: two years from purchase date. What we will do: Repair or replace any defective parts.

Other Conditions

The provisions of this warranty are in lieu of any other written warranty whether express or implied, written or oral, including any warranty of merchantability or fitness for a particular purpose. The manufacturer's maximum liability shall not exceed the actual purchase price paid by you for the product. In no event shall the manufacturer be liable for special, incidental, consequential, or indirect damages. This warranty does not cover a defect that has resulted from improper or unreasonable use or maintenance, faulty assembly, accident, natural catastrophes, improper packing, or unauthorized tampering, alteration, or modification as determined solely by us. This warranty is void if the label bearing the serial number has been removed or defaced.
