USER MANUAL AD-304B Clean Air Optima

Clean Air Optima Aroma Diffuser (Nebulizer) AD-304B/ AD-304W

(EN) User manual
(DE) Gebrauchsanweisung
(NL) Gebruiksaanwijzing
(FR) Mode d'emploi
(ES) Manual del usuario
(IT) Manuale d'uso
(PL) Instrukcja obsługi
(CZ) Uživatelská příručka
(RO) Manual de utilizare
(LT) Naudotojo vadovas
(EE) Kasutusjuhend
(LV) Lietošanas pamācība

Find more languages on: www.cleanairoptima.com/info/manuals

Read these instructions carefully before you start using the Air Purifier and keep the manual for future reference.

Clean Air Optima®

Table of contents Page

English		3
German	10
Dutch		17
French	24
Spanish	31
Italian	38
Polish	45
Czech	52
Romanian	59
Lithuanian	66
Estonian	73
Latvian	80

English

Thank you for purchasing the Clean Air Optima Aroma Diffuser (Nebulizer) AD-304B/ AD-304W.

We wish you many years of pleasure with this efficient and effective product.

Ensure that all safety precautions are followed when using this electrical device for the proper operation of the device. These instructions describe the safety precautions to be observed during operation. They are meant to prevent injuries and to avoid damaging the device.

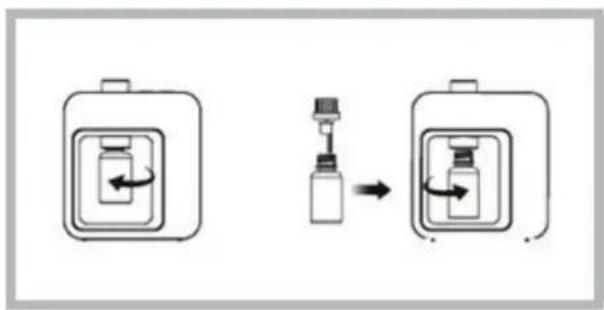

Take into use

Remove the empty oil bottle by turning it counterclockwise.

Remove the cap from a 10ml or 15ml essential oil bottle, then twist it up towards the diffuser.

For first use: charge the diffuser for 3 hours before first use, and use the USB cord supplied with the diffuser.

Diagram of a device with labeled components and a circular dial indicator showing measurement ranges.

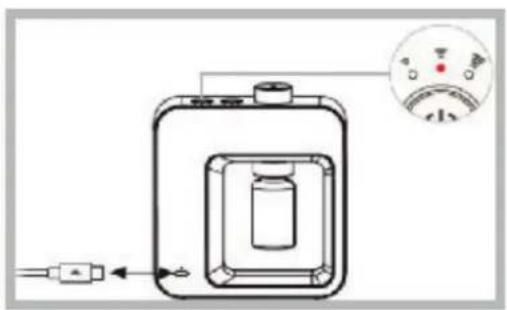

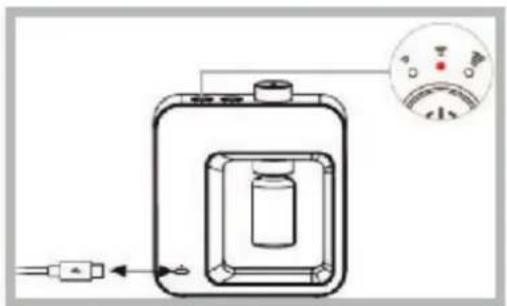

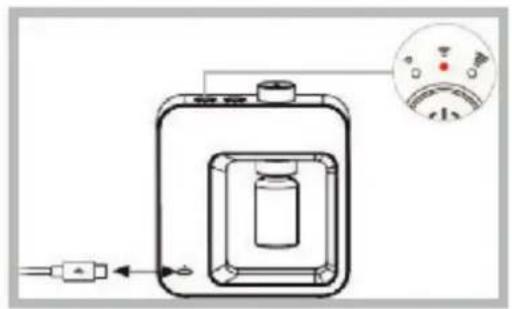

Battery charger

Battery charger

Charging: indicator is yellow.

Charging complete: indicator is green.

Low battery reminder: middle indicator turns red and flashes slowly.

Low battery alarm: middle indicator turns red and flashes quickly.

AD-304B/ AD-304W/ Description of the device

1. Mist outlet
2. Power
3. Timer
4. Bottle
5. Charging indicator
6. Adaptor connection
7. USB cord

1. 2. 3. 4.

5. 6.

Diagram of a coiled cable with two connectors and a connector pin, labeled with number 7 (no text or symbols on the diagram itself)

Clean Air Optima®

Safety warnings

This device may only be used in accordance with this safety instructions. Take the following steps to minimize the risk of personal injury caused by for example electric shocks or fire.

1. Only for indoor use. Do not use or store outdoors.
2. This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
3. Do not use the device when there is visible damage on the electrical cord or on the device itself. Do not repair the device yourself in case of damage. Never pull the device by its cord. If the power cord is damaged, then it must be replaced by an authorized service person to prevent electric shock or fire.
4. Repairs may only performed by authorized service personal. Do not try to repair the device yourself to prevent electric shock or fire.
5. Always remove the plug from the cord when the device is not being used.
6. Only use power adapters and cords provided. Check if adapter voltage matches local voltage.
7. Pull the plug when you do not use the device or when you clean internal or external parts of it.
8. For safety use, put the device in a steady position.
9. Never dissemble or replace the device's inner parts.
10. Do not put heavy objects on the unit.
11. Please avoid places with direct sunlight. There is a risk that the device discolors.
12. Never immerse the unit in water or other liquids.
13. Do not touch the power cord with wet hands.
14. The normal operating environment of the device is 10 °C to 45 °C degrees.
15. Only use 100% pure essential oil. Other types, such as fragrance and synthetic oils, can damage the diffuser and void the warranty.
16. Use, maintain and clean the device as described in this manual.

Control Panel / Operation Instruction

For first use: charge the diffuser for 3 hours before first use, and use the USB cord supplied with the diffuser.

1. Power Button

Power on: Press and hold the POWER button for 3 seconds, the mode Indicator will be flashing till the diffuser starts working. Power off: Press and hold the POWER button for 3 seconds, the mode Indicator will be flashing till the diffuser stops working.

POWER

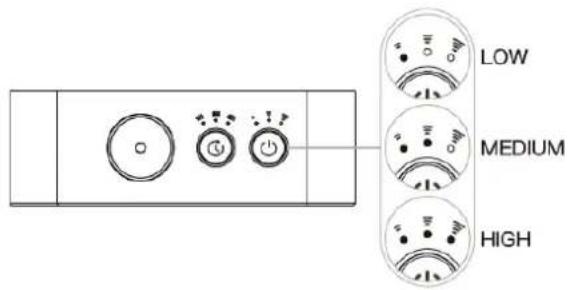

2. Mode selection

Mode 1 is low: The diffuser evaporates for 10 seconds. After a pause of 270 seconds, the diffuser starts to evaporate again for a period of 10 seconds. The diffuser keeps this cycle on.

Mode 2 is medium: The diffuser evaporates for 10 seconds. After a pause of 30 seconds,

LOW MEDIUM HIGH

the diffuser starts to evaporate again for a period of 10 seconds. The diffuser keeps this cycle on.

Mode 3 is high: The diffuser evaporates for 10 seconds. After a pause of 10 seconds, the diffuser starts to evaporate again for a period of 10 seconds. The diffuser keeps this cycle on.

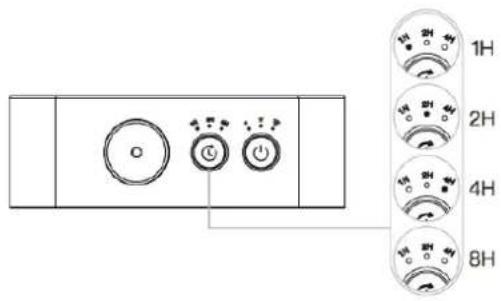

3. Timer selection

Press the TIMER button to select the timer.

1-hour work time, "1H" indicator on.

2-hour work time, "2H" indicator on.

4-hour work time, "4H" indicator on.

8-hour work time, 3 indicators off.

When the timer has expired, the mode indicator will flash until the diffuser turns off.

Diagram showing a device panel with three circular buttons and four labeled indicators (1H to 8H) arranged vertically.

Maintenance

Cleaning the outside of the diffuser

1. Switch off the device and pull the plug.
2. Use a soft and humid piece of cloth to clean the device from dust and dirt.
3. Make sure that no water gets into the device.

Disconnect the diffuser from the power source when the diffuser is not in use.

Aromatherapy

Important

In order to reach the best results and to enjoy your Aroma Diffuser (Nebulizer) as much as possible, we advise to read carefully the following instructions regarding the use of essential oils in the Aroma Diffuser (Nebulizer).

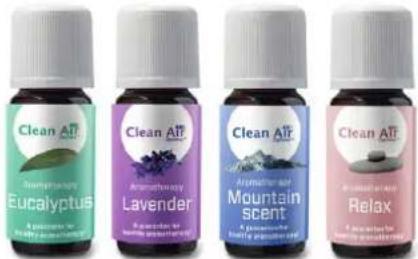

Use of essential oils in the Clean Air Optima Aroma Diffuser (Nebulizer) AD-304B/ AD-304W.

Use our high quality essential oils and enjoy your personal aromatherapy! A scent sensation at its highest level!

You can find high quality essential oils with many different scents in our assortment. They perfectly fit to the Aroma Diffuser (Nebulizer) and have been specially developed for the use with this Aroma Diffuser (Nebulizer):

You can order the Essential Oils in our online store at

www.cleanairoptima.com.

Clean Air Staphyrene Eucalyptus A mixture in Bottle powder Clean Air Aromatic air Lavender A mixture in Bottle powder Clean Air Aromatic air Mountain scent A mixture in Bottle powder Clean Air Aromatic air Relax

Warning!

The use of other essential oils not made for this air purifier or other additives (for example: fragrances and water purification products) can damage the Aroma Diffuser (Nebulizer) and must NOT be used!

Devices that are damaged through additives are excluded from the guarantee.

Troubleshooting

The following is a troubling shooting guide to help you solve any issues that you may have using the Clean Air Optima Aroma Diffuser (Nebulizer) AD-304B/ AD-304W.

Problem Solution
The device does not evaporate.	Check if the oil bottle is not empty.Restart the diffuser.Try different pure essential oils.Is the battery fully charged? Charge the battery.Connect the device to a power source.See chapter: How to use.

WARNING!

If the above recommended solutions do not work, please contact Clean Air Optima technical support at the telephone number for your region. Do not attempt to disassemble, reassemble, or repair the device as this may void the warranty.

Specifications

Model AD-304B/AD-304W

For rooms up to 65m²/160m³/699ft²

Adapter rated voltage 5V DC1A

Rated power 4W

Charger USB cord

Charging time Approximate 3 hours

Battery duration 6 -8 hours in mode medium

Battery capacity 1000mAh

Consumption 1 ml/h in high mode/0,5 ml/h in medium mode, 0,1 ml/h in low mode

Sound level <15 dB(A) (Low)

Dimensions 130 x 43,5 x 152mm

Weight 0.3kg

Colour White with gold edge/ black with gold edge.

Complies with EU

regulations CE/WEEE/RoHS

Ask your retailer or your municipality for updated information regarding the disposal of the packaging and of the device.

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Clean Air Optima®

Service

Warranty Certificate for the Clean Air Optima Aroma Diffuser (Nebulizer) AD-304B/ AD-304W.

Date of purchase: ..... Customers name: ..... Address: ..... Telephone: ..... Email: ..... Seller's name: ..... Address: ....

1. Please fill in completely this Warranty Certificate. Send it with the invoice and the unit, postage pre-paid and using the original packing box, to your distributor. Make sure to include the appropriate return postage for the package.

2. Please enclose a short description of the damage, fault or malfunction, and the circum-stances under which these problems arose.

The Clean Air Optima Aroma Diffuser (Nebulizer) AD-304B/ AD-304W is subjected to strict testing procedures before leaving the factory. If within 2 years from the date of purchase the product does not perform according to the specifications, because of factory defects, the purchaser is entitled to free repairs or replacement of parts upon presentation of this warranty (provided that the malfunction or damage to the device and/or parts occurred under normal operating conditions). What is covered: All parts defective in material and workmanship. For how long: two years from purchase date. What we will do: Repair or replace any defective parts.

Other Conditions

The provisions of this warranty are in lieu of any other written warranty whether express or implied, written or oral, including any warranty of merchantability or fitness for a particular purpose. The manufacturer's maximum liability shall not exceed the actual purchase price paid by you for the product. In no event shall the manufacturer be liable for special, incidental, consequential, or indirect damages. This warranty does not cover a defect that has resulted from improper or unreasonable use or maintenance, faulty assembly, accident, natural catastrophes, improper packing, or unauthorized tampering, alteration, or modification as determined solely by us. This warranty is void if the label bearing the serial number has been removed or defaced.

Thank you for reading!

Share your feedback about the Clean Air Optima Aroma Diffuser (Nebulizer) AD-304B/ AD-304W on: www.cleanairoptima.com

For frequently asked questions about the AD-304B/ AD-304W go to: www.cleanairoptima.com and search for the AD-304B/ AD-304W.

Download PDF instruction manual on: www.cleanairoptima.com/info/manuals

Watch all Clean Air Optima Product animation video's on: www.youtube.com

Clean Air Optima International B.V. | David Ricardostraat 9-7 / 9-9 | 7559 SH Hengelo (ov)

The Netherlands | Phone: +31 (0) 74 - 2670145

Clean Air Optima Germany GmbH | Enschedestraße 14 | 48529 Nordhorn | Germany Phone: [phone]

E-mail: [e-mail] Internet: www.cleanairoptima.com
