Product Type	Countertop Sandwich Press
Brand	Vollrath
Model	40795C
Usage	Commercial Food Service
Temperature Range	49 °C - 288 °C (120 °F - 550 °F) for uncoated surface models
Thermostat	Adjustable with on/off function
Heating Indicator Light	Yes, indicates that the element is heating
Plates	Upper and lower with heating elements
Grease Tray	Removable for draining and cleaning
Handle	To raise/lower the upper plate
Plate Coating	Uncoated (metal surface)
Cleaning	Wiping after each cycle, daily cleaning
Safety	Do not immerse, do not use steel wool, do not use unattended
Initial Conditioning	Seasoning the grids before first use
Warranty	Vollrath warranty for professional use
Replacement Parts	Available at Vollrath.com
Repairs	Entrust to a qualified professional

Frequently Asked Questions - 40795C Vollrath

How to adjust the temperature?

Use the thermostat dial. The numbers correspond to the plate temperature. Position 0 to turn off the appliance.

How to clean the plates?

Let cool, unplug the appliance, then wipe with a damp cloth and mild soap. Do not immerse the appliance and do not use steel wool.

What to do if the indicator light does not turn on?

Check that the appliance is plugged in. If the light is defective, replace it. Contact a professional if necessary.

How to season the grids before first use?

Heat to 400 °F, apply oil with a lint-free cloth, let heat for 10 to 15 minutes, then let cool and wipe off excess. Repeat at least once.

Can I use an extension cord?

No, do not use an extension cord with this appliance. Plug it directly into a suitable grounded outlet.

Can the appliance be used at home?

No, this appliance is designed for commercial food service use only, not for household use.

How to empty the grease tray?

Remove the removable tray, empty it, and clean it with soapy water. Replace it after drying.

What to do if the plates do not heat?

Check the voltage at the outlet. If the heating element is defective, contact a qualified professional for replacement.

Can I clean the appliance with water?

Yes, with a damp cloth, but do not spray water and do not immerse the appliance to avoid short circuits.

Where to find replacement parts?

Consult the website Vollrath.com to order replacement parts. Do not attempt to repair the appliance yourself.

USER MANUAL 40795C Vollrath

Cayenne® CastIronPaniniStyleSandwichPresses

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment,readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.Savetheoriginalboxandpackaging.Usethispackaging toshiptheequipmentifrepairsareneeded.

SAFETYPRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Pleasereadcarefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorcan causeseverepersonalinjuryordeath.

CAUTION

Cautionisusedtoindicatethepresenceofahazardthatwillorcan causeminorormajorpersonalinjuryifthecautionisignored.

NOTICE: Notice is used to note information that is important but not hazard-related.

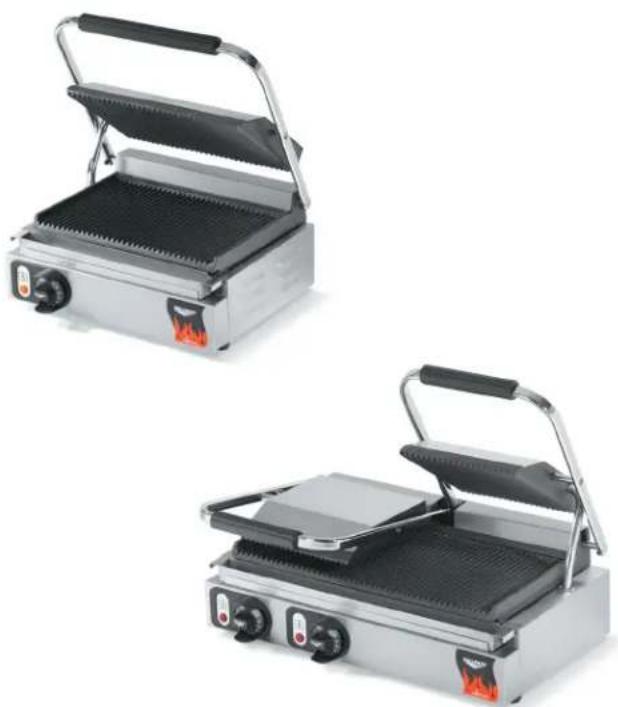

Two identical stainless steel grating machines with open doors, one showing black grating and the other a flat grater (no text or symbols visible)

Toreduceriskofinjuryordamagetotheequipment:

These precautions should be followed at all times. Failure to follow these precautions could result in injury to yourself and others.

• Useonlygroundedelectricaloutletsmatchingthenameplaterated voltage.
• Have equipment installed by a qualified personal in accordance with local codes and ordinances.
  •Thisunitmustonlybeusedinaflat,levelposition.
• Donotuseanextensioncordwiththisunit.
• Unplugtheunit,turnoffandletitcoolbeforecleaningormoving.
• Donotspraycontrolsoroutsideoftheunitwithliquidsorcleaning agents.
  •Donotcleantheunitwithsteelwool.
• Keeptheunitandpowercordawayfromopenflames,electric burnersorexcessiveheat.
  •Donotoperatetheunitunattended.
• Donotoperatetheunitinpublicareasand/oraroundchildren.
  •Theunitmaybehot,eventhoughthepilotlightisnoton.
• Donotoperateiftheunithasbeendamagedorismalfunctioningin anyway.

ItemNo.	Model	DescriptionVoltageWattsAmpsHzPlug
40794TSI7001		SandwichPress, PaniniStyle, CastIron(Single)	12018	0015	60		NEMA 5-15P
40794-C	TSI7001						NEMA 5-20P
40795TSI8002		SandwichPress, PaniniStyle, CastIron(Double)	208-240	2700-3600	13-15	60	NEMA 6-15P
40795-C	TSI8002						NEMA 6-20P

FUNCTIONANDPURPOSE

Thisunitisintendedtobeusedforcontactgrillingfoodsincommercial foodserviceoperationsonly.Itisnotintendedforhousehold,industrial orlaboratoryuse.

Before using this equipment must be cleaned and dried thoroughly. Clean all surfaces before use. Failure to cleans surfaces before using the unit could cause food contamination.

Thissandwichpressisamedium-dutyappliancecapableofawide varietyofapplications. Thetemperatureisthermostaticallycontrolled. Thetemperaturerangeisbetween120°F(49°C)and550°F(288°C). ThethermostatisalsotheON/OFFswitch.Anindicatorlampadjacentto thethermostatdialindicateswhentheelementsareheating.

UNPACKINGTHEEQUIPMENTANDINITIALSETUP

1. Remove all packing material and tape, as well as any protective plastic from the unit.
2. Cleananyglueresidueleftoverfromtheplasticortape.
3. Washthegrillplatestoremoveanymachineoilfromthe manufacturingprocess.SeeCleaningprocedureinthismanual.
4. Plugtheunitintoaproperlygroundedelectricalsupplymatchingthe nameplaterating.Damagetotheunitcanoccurifincorrectpoweris supplied.
   5.Seasonthegrillplates. Useaclean,lint-freeclothtowipecookingoilontothegrillplatesor coattheplateswithcookingoilspray.Setthetemperatureto400°F. Aftertheequipmenthasreachedtemperature,allowtheplatesto seasonfor10-15minutes.Smokemayappearduringthisprocess. Thisisnormal.Allowtheplatestocoolcompletely.Wipeoffthe excessoilusingaclean,lint-freecloth.Repeattheprocessatleast onemoretime.

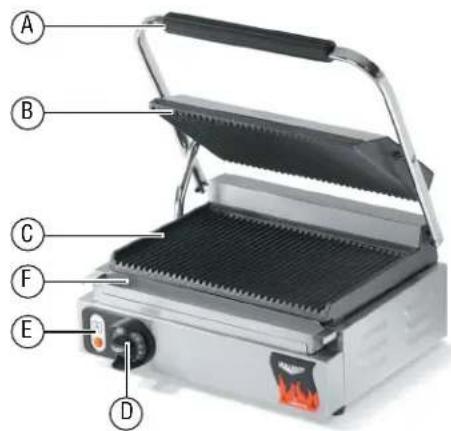

FEATURESANDCONTROLS

A B C F E D

AHandle. Used to control the up and down movement of the top grill plate.

BTopGrillPlate.Containsaheatingelementandheatsfood.

CBottomGrillPlate.Containsaheatingelementandheatsfood.

DThermostatControlDialUsedtosetoradjustthetemperature of the cooking plate. Thenumbersonthedialcorrespond with the grill platetemperature. The "0" positionisoff.

EPilotLight. Thislightindicatestheelementisheating. Oncethe settemperaturehasbeenreachedthelightwillgoout. Unitwill continuetomaintainheatandtemperaturewiththelightcycling. Thisisnotapowerindicatorlight.

FDripTray.Acontainerthatcollectsgrease,oilandliquidfrom thebottomgrillplate.Thisisremovablefordrainingand cleaning.

OPERATION

WARNING

ElectricalShockHazard

Keepwaterandotherliquidsfromenteringtheinsideofthe equipment. Liquidinsidetheequipmentcouldcausean electricalshock.

Donotspraytheunitorcontrolswithwaterorcleaningproducts. Liquidcouldcontacttheelectricalcomponentsandcauseashort circuitoranelectricalshock.Donotuseunitifpowercordisdamaged orhasbeenmodified

CAUTION

BurnHazard

Donottouchhotfood, liquidorheatingsurfaceswhile equipmentisheatingoroperating.

Hotsurfacesandfoodcanburnskin.Allowthehotsurfacestocool beforehand.Donotdroporspillwaterintothecookingsurfaceas itcansprayorsplatter.

1. Preheatunittodesiredtemperature.
2. Centerthefoodproductontothebottomgrillplate.
3. Usethehandletolowerthetopgrillplatetothedesiredheight.
4. Heatforthedesiredlengthoftime.
5. Raisethehandleandremovethefoodproduct.
6. Attheendofeachcookingcyclewipedownthecookingplates. Neverallowexcessfat,oil,orgreasetobuildupasthiswillresultin build-upofcarbonontheplates.

CLEANING

WARNING

ElectricalShockHazard

Keepwaterandotherliquidsfromenteringtheinsideofthe equipment. Liquidinsidetheequipmentcouldcausean electricalshock.

Donotspraytheunitorcontrolswithwaterorcleaningproducts. Liquidcouldcontacttheelectricalcomponentsandcauseashort circuitoranelectricalshock.Donotuseunitifpowercordisdamaged orhasbeenmodified

CAUTION

BurnHazard

Donottouchhotfood, liquidorheatingsurfaceswhile equipmentisheatingoroperating.

Hotsurfacesandfoodcanburnskin.Allowthehotsurfacestocool beforehand.Donotdroporspillwaterintothecookingsurfaceas itcansprayorsplatter.

NOTICE: Donotcleantheunitwithsteelwool.

Tomaintaintheappearanceandincreasetheservicelife,cleanyourunit daily.

1. Allow the unit to cool completely before cleaning.
2. Unplugtheunit.
   3.Donotimmersethecord,plugorunitinwateroranyotherliquid.
3. Wipegreaseoroilintothedriptray.
4. Useadampclothorspongedippedinsoapywatertocleantheunit andplates. Includedbrushescanbeusedtoremoveburntfood. Rinsethoroughly.
   6.Drythoroughly.
5. Empty and clean the drip tray.

TROUBLESHOOTING

ProblemMightbeCausedByCourseof	Action
Pilotlightdoesnotcomeonwhen thetemperaturecontrolisturnedup.	Unitisnotpluggedin.Plugunitin.
	Pilotlightmalfunction.Replacepilotlight.
Grillplatesdonotgethot.	Lowornovoltagefrompowersource (walloutlet).	Verifycorrectvoltageisbeingprovidedtounit.Ifnot,have qualifiedpersonnelcorrectpowerproblem.
	Heatingelementisfaulty.Replaceheatingelement.

SERVICEANDREPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC.PleasecontactVollrathTechnicalServicesforinstructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty top purchasers for such uses.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be recovered under warranty.

Forcompletewarrantyinformation,productregistrationandnewproductannouncement,visitwww.vollrath.com.

Outperform every day."

www.vollrath.com

The VollrathCompany, L.L.C.

1236North18thStreet

Sheboygan, WI53081-3201U.S.A.

MainTel:800.624.2051or920.457.4851

MainFax:800.752.5620or920.459.6573

CustomerService:800.628.0830

CanadaCustomerService:800.695.8560

TechnicalServices

[e-mail]

InductionProducts:800.825.6036

CountertopWarmingProducts:800.354.1970

AllOtherProducts:800.628.0832

Exterior view of a stainless steel grating with open lid and heat exchanger (no text or symbols visible)

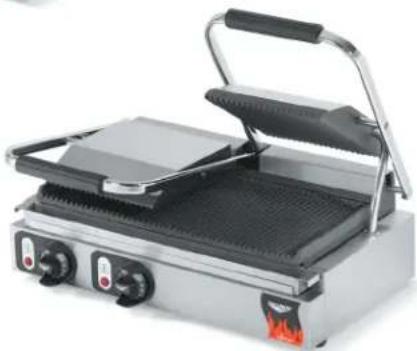

Exterior view of a stainless steel grating with open lid and side grates (no text or symbols visible)

ArticleModeleDescriptionVWattsAmpsFichePlug
40794	TSI7001	Presseàsandwich, plaquecrantée,fonte	120	800	15	60	NEMA 5-15P
40794-CT	SI7001						NEMA 5-20P
40795	TSI8002	Presseàsandwich, plaquecrantée,fonte	208-240	2700-3600	13-15	60	NEMA 6-15P
40795-CT	SI8002						NEMA 6-20P
