Dear new owner of a Bertazzoni appliance, I want to thank you for choosing one of our beautiful products for your home. My family started manufacturing kitchen appliances in Italy in 1882, building a reputation for quality of engineering and passion for good food. Today, our products stand out because of their unique blend of authentic Italian design and superior appliance technology. It is our mission to make products that function perfectly and bring joy to their owners. By making beautiful products we respond to our customers’ flair for good design. By making them versatile and easy-to-use, cooking with Bertazzoni becomes a real pleasure. This manual will help you learn to use and care for your Bertazzoni appliance in the safest and most effective way, so that it can give you the highest satisfaction for years to come. Enjoy! Paolo Bertazzoni President 34MANUAL VALIDITY The following manual is valid for all the product codes mentioned below:

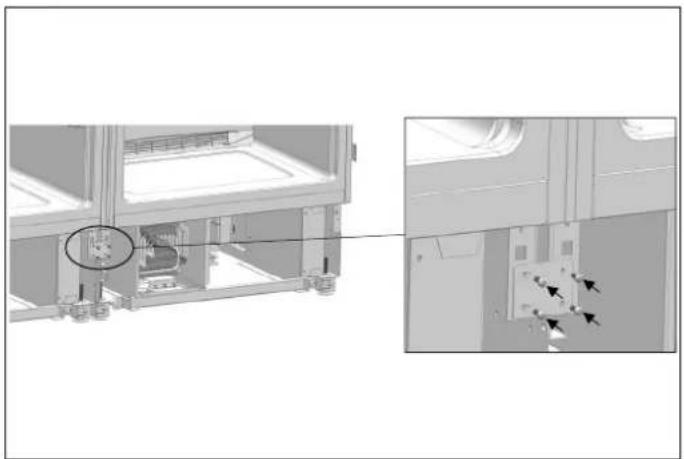

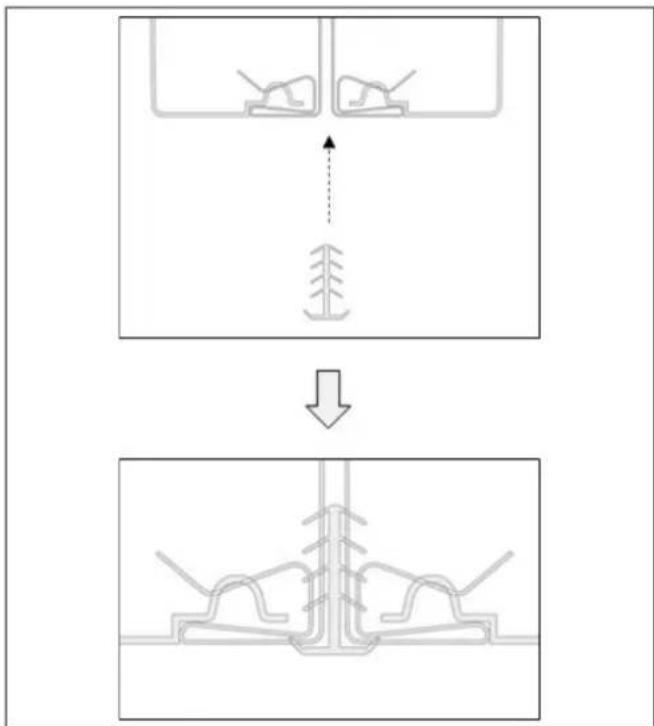

• FIXING THE CENTER TRIM BETWEEN THE REFRIGERATORS p. 73
• POSITIONING THE REFRIGERATORS IN THE CABINET CUTOUT p. 73

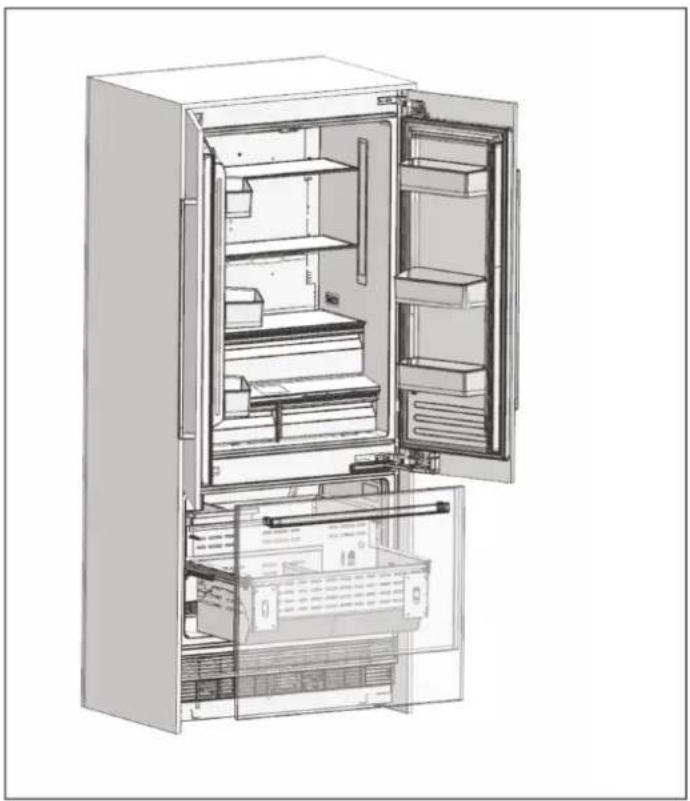

• LEVELING THE REFRIGERATORS p. 74

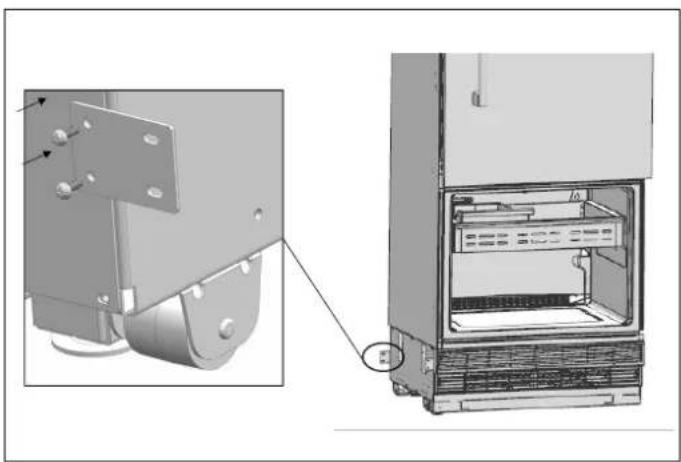

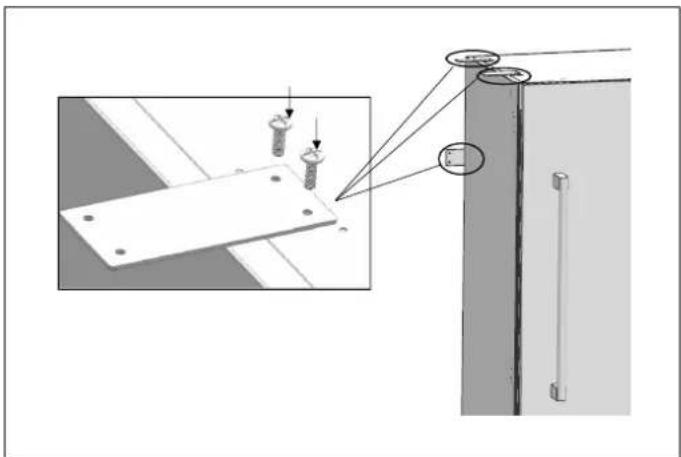

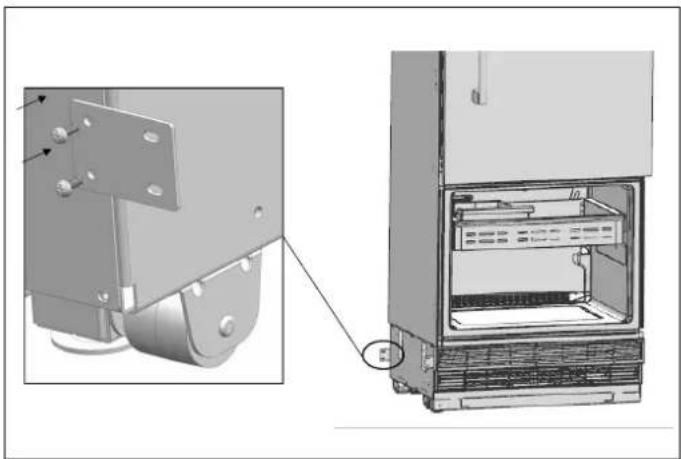

• INSTALLING THE CONNECTION BRACKETS ON THE REFRIGERATOR'S SIDE WALLS p. 74

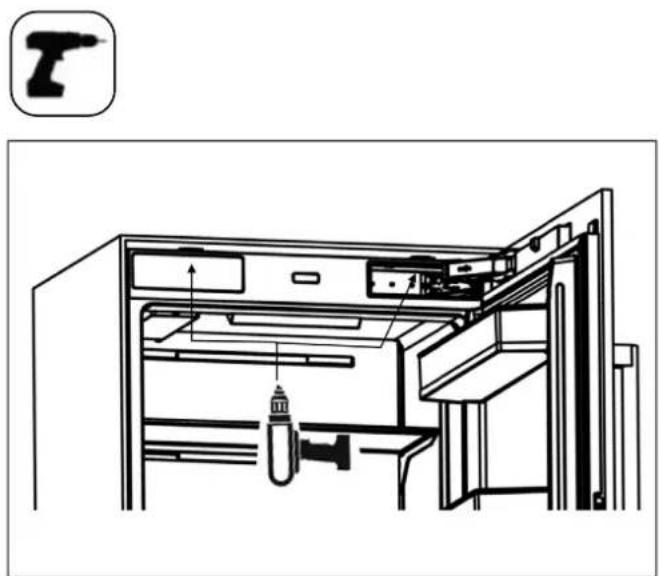

• INSTALLING THE CONNECTION BRACKETS ON THE REFRIGERATOR'S TOP WALL p. 757

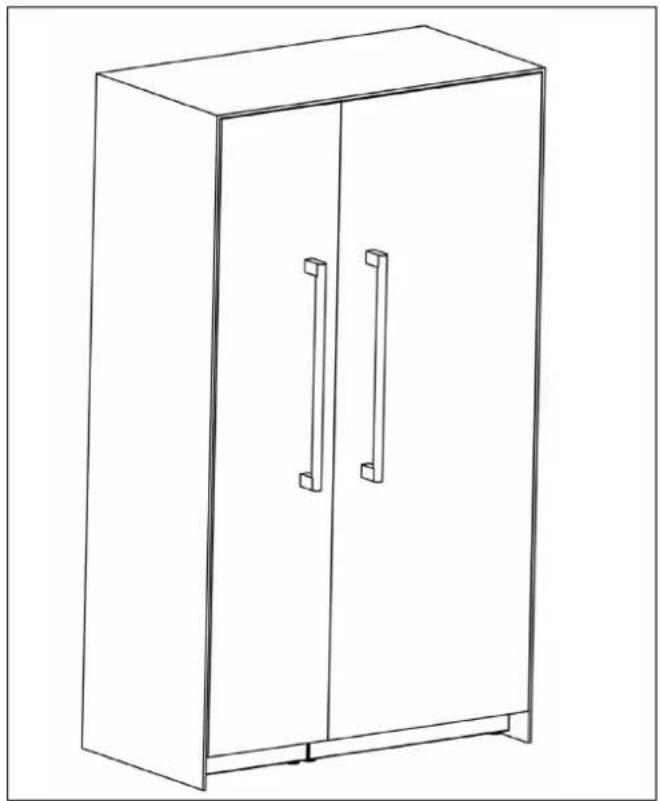

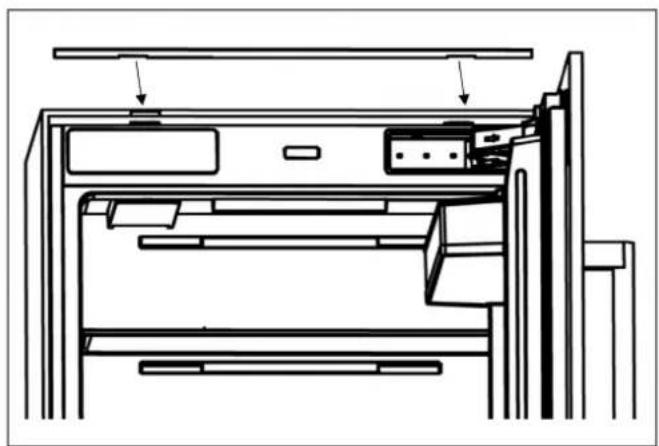

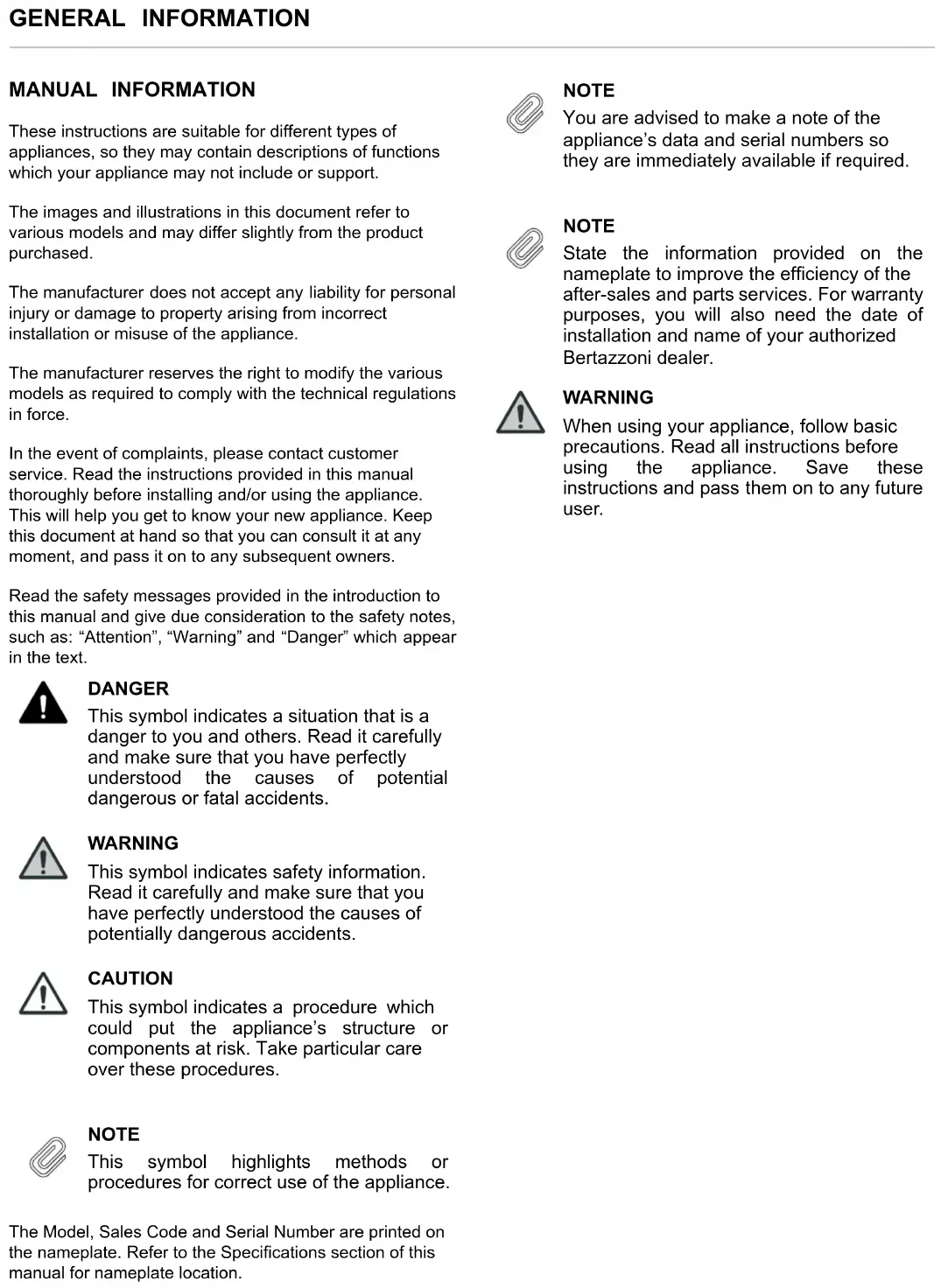

• CONTENTS INSTALLING THE LATERAL AND UPPER TRIMS GENERAL INFORMATION MANUAL INFORMATION These instructions are suitable for different types of appliances, so they may contain descriptions of functions which your appliance may not include or support. The images and illustrations in this document refer to various models and may differ slightly from the product purchased. The manufacturer does not accept any liability for personal injury or damage to property arising from incorrect installation or misuse of the appliance. The manufacturer reserves the right to modify the various models as required to comply with the technical regulations in force. In the event of complaints, please contact customer service. Read the instructions provided in this manual thoroughly before installing and/or using the appliance. This will help you get to know your new appliance. Keep this document at hand so that you can consult it at any moment, and pass it on to any subsequent owners. Read the safety messages provided in the introduction to this manual and give due consideration to the safety notes, such as: “Attention”, “Warning” and “Danger” which appear in the text. DANGER This symbol indicates a situation that is a danger to you and others. Read it carefully and make sure that you have perfectly understood the causes of potential dangerous or fatal accidents. WARNING This symbol indicates safety information. Read it carefully and make sure that you have perfectly understood the causes of potentially dangerous accidents. CAUTION This symbol indicates a procedure which could put the appliance’s structure or components at risk. Take particular care over these procedures. NOTE This symbol highlights methods or procedures for correct use of the appliance. The Model, Sales Code and Serial Number are printed on the nameplate. Refer to the Specifications section of this manual for nameplate location. NOTE You are advised to make a note of the appliance’s data and serial numbers so they are immediately available if required. NOTE State the information provided on the nameplate to improve the efficiency of the after-sales and parts services. For warranty purposes, you will also need the date of installation and name of your authorized Bertazzoni dealer. WARNING When using your appliance, follow basic precautions. Read all instructions before using the appliance. Save these instructions and pass them on to any future user. 9GENERAL INFORMATION SAFETY INFORMATION WARNING This installation manual is intended to aid installation teams. The User Manual provided with the product must also be taken into account. You may be seriously injured and your product damaged if you ignore the warnings provided in this manual. Please read the following carefully. WARNING R600a refrigerant This product contains R600a isobutane refrigerant, which is a very eco-friendly natural gas. However, it is also flammable. If the product has been transported horizontally, you must wait for a minimum of 4 hours before plugging it in. The following instructions must be followed during installation: p. 758

• The dimensions of the installation area must be adequate.

• The dimensions, features and position of the object used to support and secure the product in said area must be suitable.

• Minimum clearances between product parts and surrounding structures must be adequate.

• Minimum dimensions and proper positioning of ventilation holes must be heeded.

• The product must be able to be disconnected from the power supply after installation.

• The socket or fuse must be accessible, so as to be able to shut off power to the product.

• Extension cords and ungrounded adapters may not be used. The dimensions of the installation area must be adequate. CAUTION You must wear protective gloves and eye protection when installing the product. You must also wear hearing protection when using a drill or similar tools. CAUTION Make sure that the electrical circuit is suitable for the product. CAUTION The product must be installed by a qualified technician according to the installation instructions. WARNING The product may tip over, because it is quite heavy. Precautions must be taken to prevent this from occurring. The product's doors must be kept closed until it reaches its destination; it must be transported in the manner described in the installation instructions.

CARING FOR THE ENVIRONMENT

The packing materials have been designed to protect the product during transport. Our appliances are packaged in non-polluting and recyclable materials in accordance with National Environmental Regulations:

• Dispose of packaging in an environmentally friendly manner.

• Please ask your dealer to inquire at your local authority about current means of disposal. All plastic packing materials, bags, etc. must be disposed of safely and kept out of the reach of children. 10CUTOUT DIMENSIONS The instructions below refer to a built-in installation. In a built-in installation, the appliance is installed in a cabinet niche or framed in with panels. Niche Dimensions

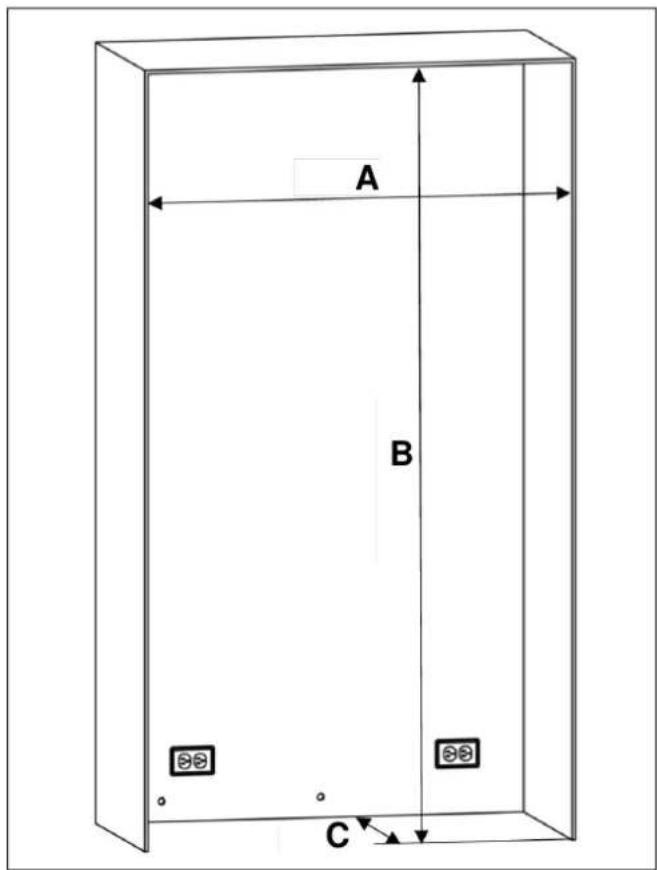

height 2134 mm (84″) 2134 mm (84″) 2134 mm (84″) Make sure that the cabinery inside which you will install the appliance has been securely mounted in your kitchen. Your cabinet must be properly secured to the floor and to the wall using appropriate mounting hardware. For the best installation, clearances between the cabinet and the appliance must be in compliance with the measurements specified in the installation instructions. The side walls must be free of obstructions and their surfaces must be flat. The minimum thickness of the side walls must be 16 mm (5/8″). The minimum thickness of the door panels to be attached to the appliance must be 16 mm (5/8″). NOTE There is a stainless steel door and stainless toe kick option. Please consult your Authorized Service Provider. Ventilation openings where the air enters and exits the unit must never be obstructed. The user is responsible for periodically cleaning off the dust and debris that can accumulate on the grill over time. 11PRODUCT DIMENSIONS Fig. 2

without panel: 592 mm (23 5/16″), with panel: 616 mm (24 ¼″)

68 mm (2 11/16″) Minimum door clearance to adjacent wall (90°- reduced internal access)

483 mm (19″) 371 mm (14 5/8″) Minimum door clearance to adjacent wall (115°- full internal access)

230 mm (9 1/16″) Minimum distance to wall

Front 8 mm (5/16″) Rear 7 mm (1/4″)

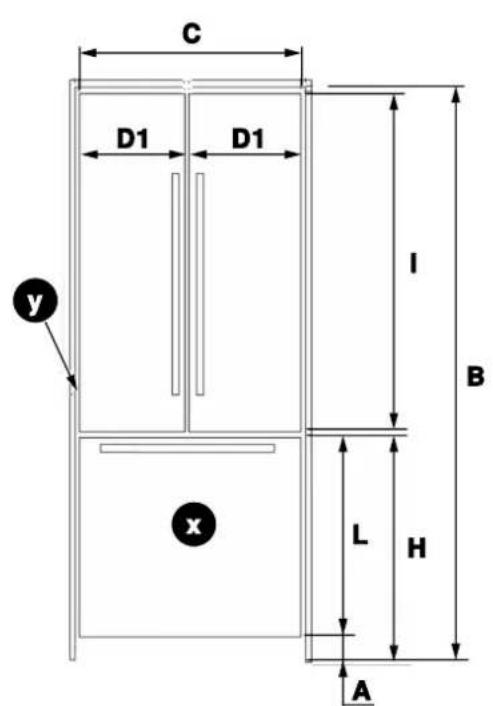

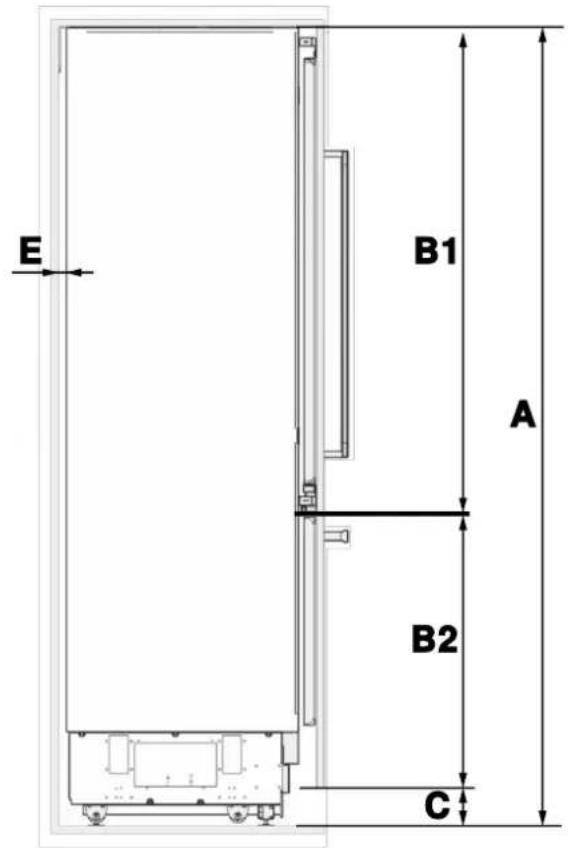

15PRODUCT DIMENSIONS Fig. 5

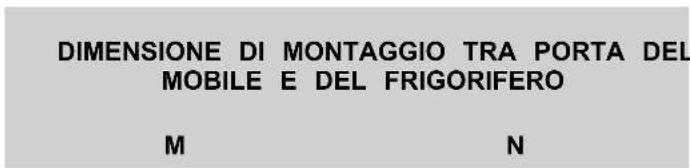

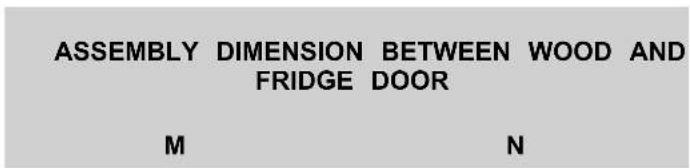

ASSEMBLY DIMENSION BETWEEN WOOD AND

16PRODUCT DIMENSIONS

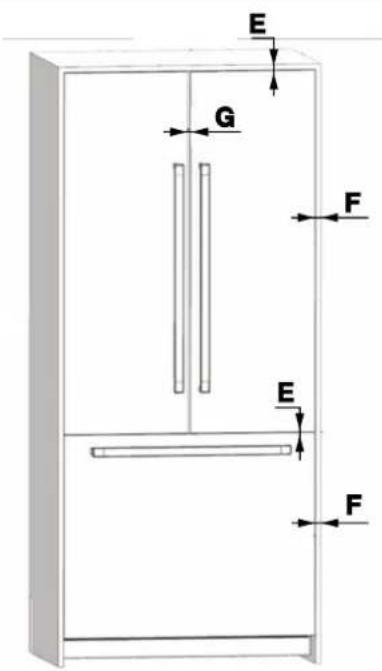

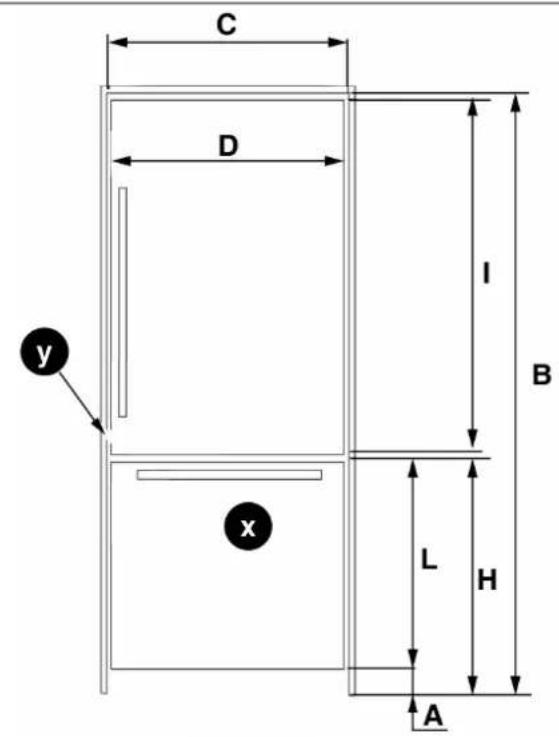

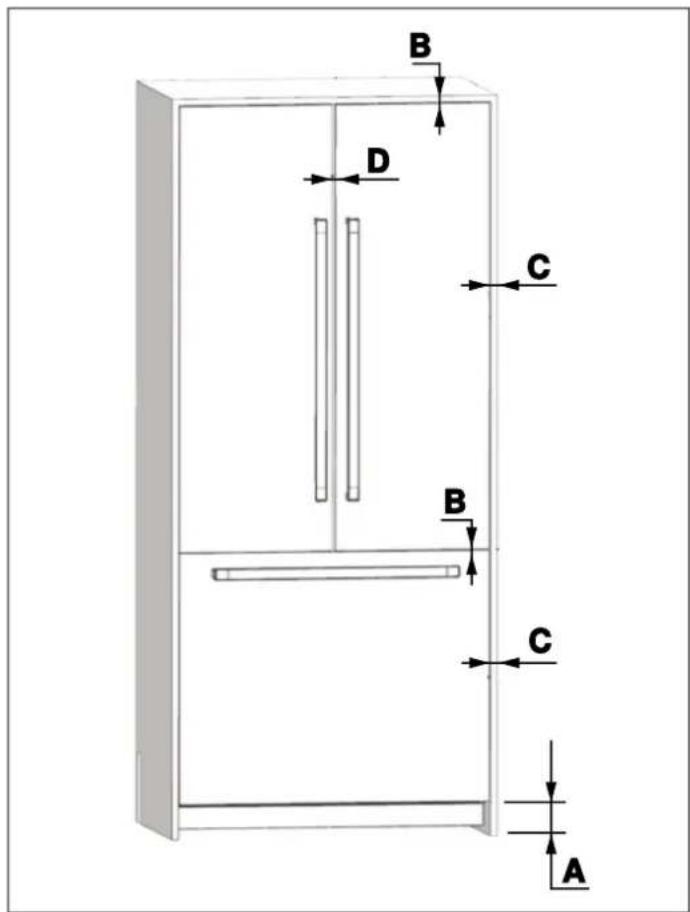

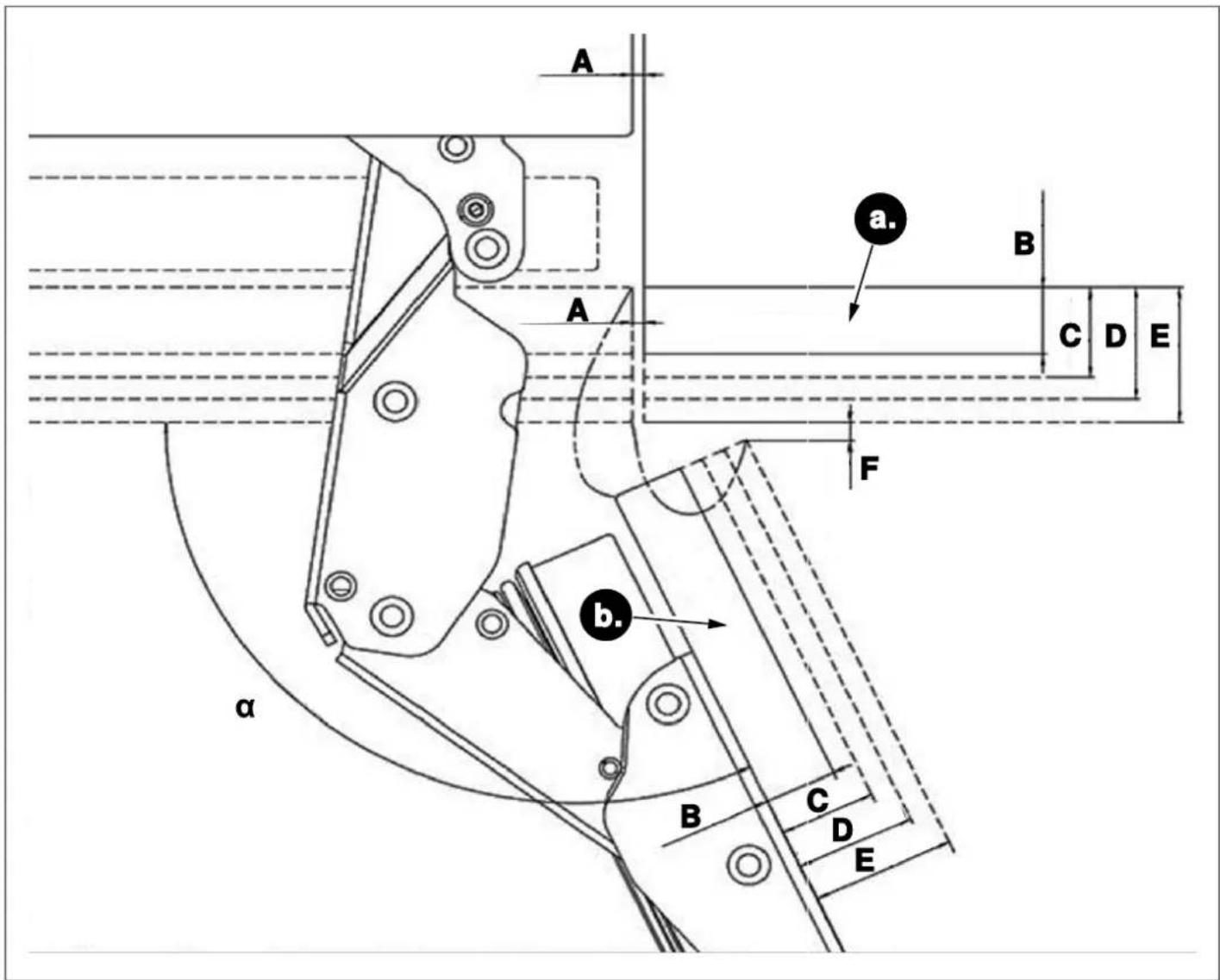

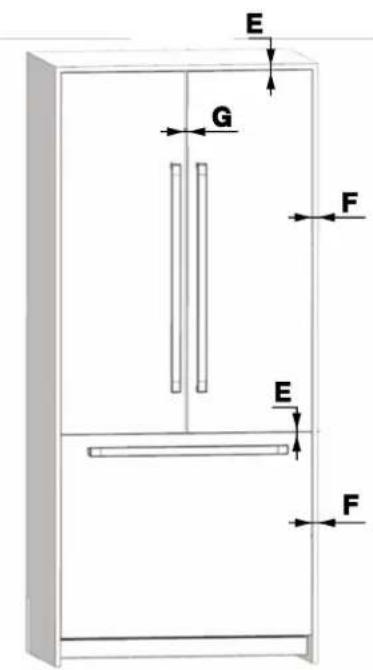

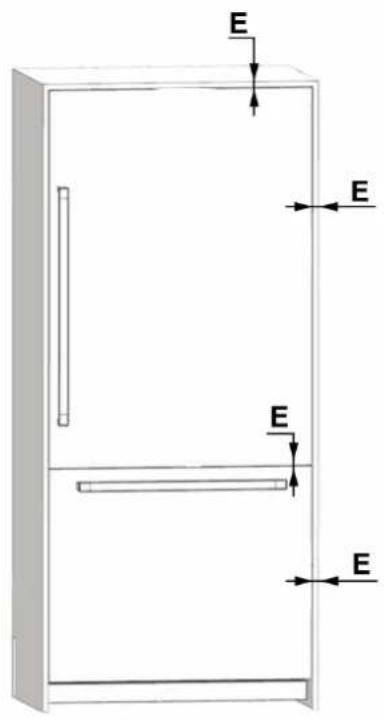

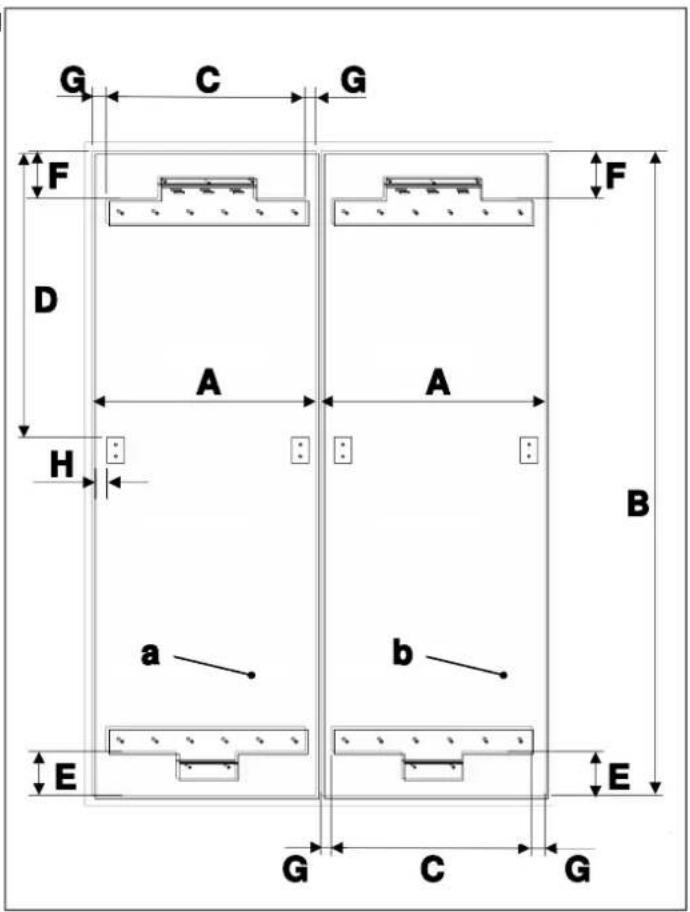

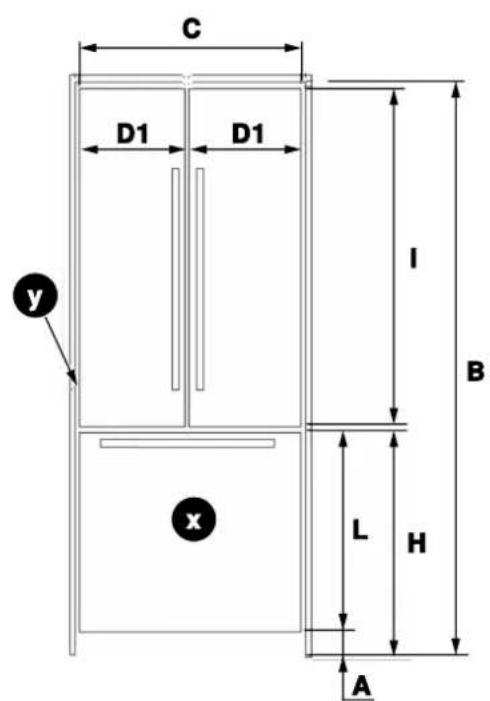

18CUSTOM DOOR PANEL (FOR PANEL-READY MODELS) Based on the cabinet cutout height, the kitchen toe kick can be installed with following heights: CATEGORY RFD90S5FPNS/24 RBM90S5FPNS RBM75S5FPNS

Gap 3.5 mm (1/8″) - -

Gap between the french doors 5 mm (3/16″) - -

Wooden cabinet panel height from ground to freezer panel 831 mm (32 11/16″) 831 mm (32 11/16″) 831 mm (32 11/16″)

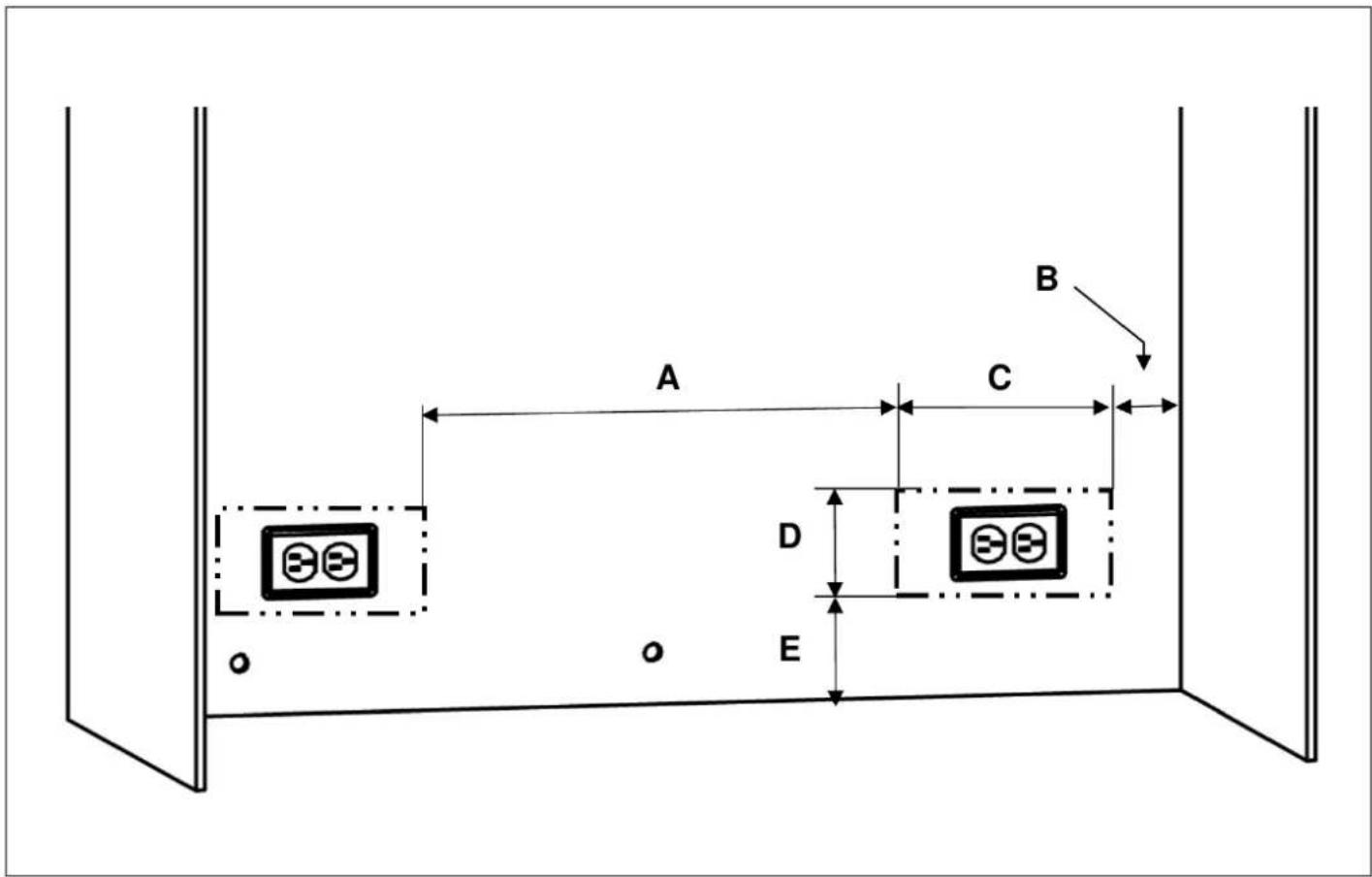

wood cabinet 19ELECTRICAL REQUIREMENTS The location of the electrical outlet in the cabinet where the product is to be installed must be within the area shown in the figure. CAUTION Do not use extension cords or two prong adapters and do not remove the ground terminal of the grounding cable. CAUTION A qualified electrician must ensure that the poles of the socket are connected correctly. Verify that the grounding of the socket is correct. Fig. 11

• D 50.8 mm (2″) WARNING Do not connect the appliance to electronic energy saver plugs. The socket must comply with the following data: ELECTRICAL REQUIREMENTS Plug type SCHUKO Power cord 2-prong Voltage 220 V – 240 V Frequency 50 Hz Fuse 15 A After installation, wait at least 3 hours before connecting the appliance to the electrical power to avoid damaging the compressor. IMPORTANT Do not use extension cords and/or multiple adapters for the power supply connection. If the electrical wiring or the electric power supply of the house requires alteration, the necessary procedures must be performed by a qualified electrician. Please heed the following rules:

• The electrical outlet or panel must be easily accessible in case of an emergency.

• Neither the plug nor the cable may touch the back surface of the appliance. Otherwise, it may be damaged by the appliance's vibrations.

• Do not connect other equipment plugs behind this appliance. If the humidity level is high where the appliance is being used, its exterior surfaces may become corroded. To prevent corrosion, keep the installation room dry and well-cleaned. To prevent the risk of electric shock:

• Connect the plug to a grounded outlet.

• Do not remove plug's grounding prong.

• Do not use adapters.

• Do not use extension cords. CAUTION Do not connect the grounding cable to the gas line. Please have the grounding checked by a qualified electrician if you are not sure about the grounding of the appliance. Do not install a fuse on the neutral line or on the grounding circuit. CAUTION Failure to follow these instructions may result in fire, electric shock or death. Connecting the appliance's grounding conductor in the wrong place may lead to electric shock. Please have the grounding checked by a qualified electrician or service technician if you have any doubt about the proper grounding of the appliance. Installation, repairs and other procedures performed by unqualified persons may give rise to hazards. Before installing the appliance, make sure that the voltage, load and circuit current parameters on the data plate are in compliance with the power supply in your house.

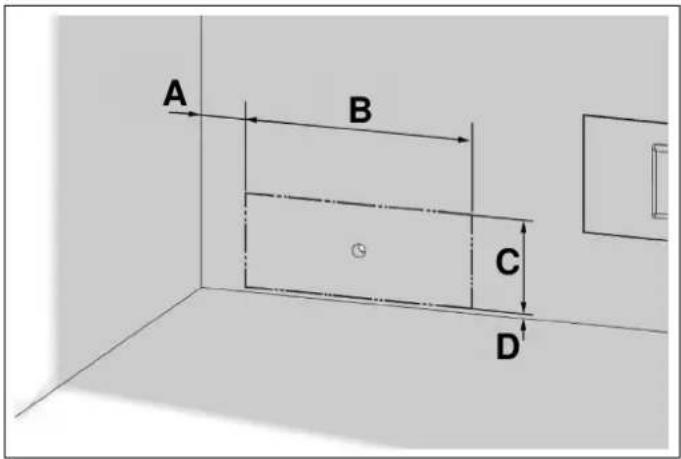

20PLUMBING REQUIREMENTS Models equipped with an Ice Maker and/or a Water Dispenser require a connection to the domestic water supply system. NOTE Take the necessary measures to prevent the risk of freezing of the hoses. The operating water temperature range is between a minimum of 1℃ (34℉) and a maximum of 38℃ (100℉). The system pressure must be:

• Min. 0.17 Mpa (1.7 bar, 25 psi)

• Max. 0.55 Mpa (5.5 bar, 80 psi) If the water pressure exceeds 0.55 Mpa (5.5 bar, 80 psi), install a pressure limiting device or water impact protector to the inlet valve. Do not install or operate the appliance if the water pressure exceeds 0.83 Mpa (8.3 bar, 120 psi). If you do not know how to check the water pressure, please consult a professional plumber. WARNING This appliance should only be connected to a drinking water system. WARNING The location of the water line connection must be within the area shown in the figure below. WARNING The refrigerator's water system must be connected to the house's main water supply. WARNING The user must be able to switch it on/off using the valve when necessary. WARNING Make sure that installation is performed correctly and in accordance with all the instructions in the specific installation manual provided with the appliance. WARNING Do not attempt to use a locally sourced threaded garden hose adapter or braided supply line. It will strip the threads on the appliance's water connection solenoid. NOTE A bypass plug is recommended for the water filtering system if a reverse osmosis system is used. WARNING Make sure that there is no water leakage when establishing the water connections. Otherwise, water may damage the cabinetry. The water supply line must located in the cabinet where the appliance is to be installed. The user must be able to switch it on/off using the valve when necessary. You will need a hose with a minimum length of 1.5 m (60″) and a diameter of 6.4 mm (¼″) for the appliance's water connections during installation. A connector that has a thread with an external diameter of 6.4 mm (¼″) must be used to connect the end of the hose to the product. You will need a hose with a minimum length of 60″ (1.5 m) and a diameter of ¼″ (6.4 mm) for the appliance's water connections during installation. A connector that has a thread with an external diameter of ¼″ (6.4 mm) must be used to connect the end of the hose to the product. Before completing the installation, make sure that water flows and that there is no water leakage. Fig. 12

• The level of the floor where the product is to be installed must be checked with a bubble level.

• The cabinet flanges must be checked with a bubble level to ensure that they are perfectly vertical.

• If the appliance is not perfectly level and vertical, problems may arise with the installation. 22INSTALLATION Make sure that the installation is performed correctly, in accordance with all the instructions in the specific installation manual provided with the appliance. WARNING Always connect the water before connecting the power. For a correct installation, please follow the instructions below:

• The floor on which the product is to be installed must be capable of bearing 544 kg (1,200 lb) minimum.

• The kitchen floor and the bottom of the product must be equally level. Otherwise, problems may occur with the appliance's air flow.

• There must be no obstructions at the rear and on the side walls of the product's installation location that would prevent its installation.

• The electrical outlet must be in the correct place.

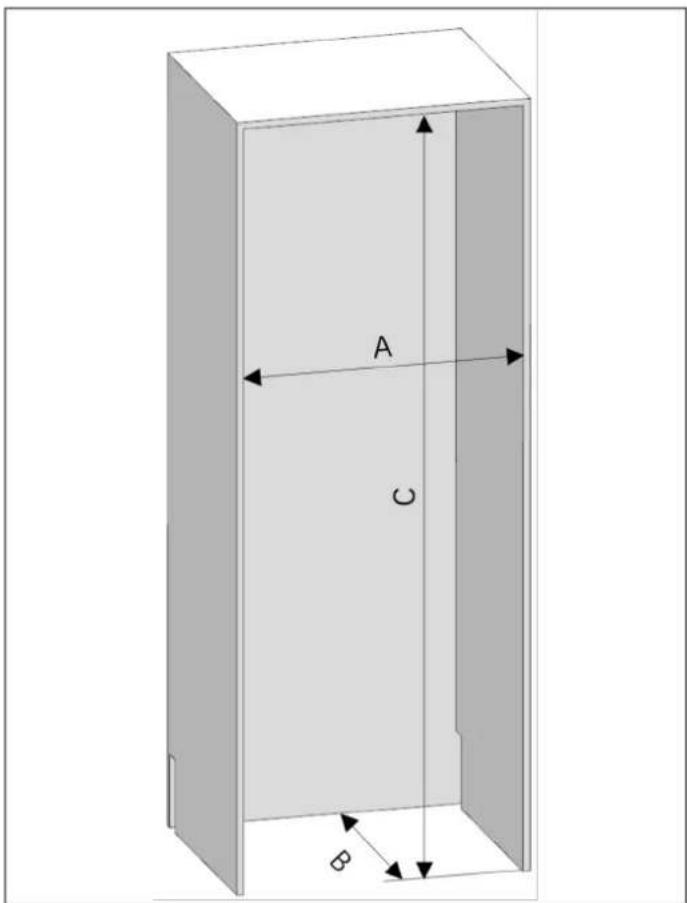

• The dimensions of the cabinet where the appliance is to be installed must be in strict conformity with the dimensions provided in the manual.

• Do not install the appliance adjacent to another fridge/ freezer. Otherwise, condensation and damage may occur. For a side-by-side installation, use the proper connection kit.

• The level of the floor where the product is to be installed must be checked with a bubble level.

• The installation location must not be exposed to direct sunlight and must be away from heat sources (ovens, radiators, etc.).

• The ambient temperature must be between 10℃ (50℉) and 43℃ (110℉). Otherwise, malfunctions may occur when the appliance is running.

• If it is not possible to avoid installing the product near a heat source, the minimum clearances provided below must be maintained between the appliance and the given source:

• 32 mm (1 1/4″) from electric ranges or ovens

• 305 mm (12″) from gas or fuel-powered hobs or ovens.

• Position the appliance with the aid of a second person.

• Never use the open door to lever the appliance into place when fitting.

• Avoid exerting too much pressure on the door when open.

• Installation and servicing should be carried out by qualified personnel in accordance with current standards.

• Ensure that an authorized technician performs the electrical connection.

• If the power supply cable is damaged, ensure against hazards by contacting technical support immediately and they will replace it, so as to prevent any risk.

• Always put on the necessary/required Personal Protective Equipment (PPE) before performing any work on the appliance (installation, maintenance, positioning, or movement).

• Before performing any operation involving the appliance, switch off the power supply.

• This appliance can be used up to a maximum altitude of 4,000 metres above sea level.

• Do not try to repair the appliance yourself or without the assistance of a qualified technician.

• Do not install/use the appliance outdoors.

• To ensure the appliance is stable, install and secure it correctly as described in the instructions provided in this manual. CAUTION Make sure that the power supply cable does not become caught or damaged when positioning the appliance. CAUTION Do not install your refrigerator:

• in an outdoor space,

• in a location with dripping water,

• in a location where the temperature is lower than 10℃ (50℉). The permitted room temperature depends on the climate class:

CLIMATE CLASS PERMITTED ROOM

TEMPERATURE SN (Sub Normal) + 10 ℃ to + 32 ℃ N (Normal) + 16 ℃ to + 32 ℃ ST (Sub Tropical) + 18 ℃ to + 38 ℃ T (Tropical) + 18 ℃ to + 43 ℃ Information on the climate class can be found on the rating plate. 23INSTALLATION TOOL LIST The tools to be used when installing the product are as follows: Cordless drill Safety goggles

bit Box cutter Safety gloves Tape measure Phillips-head bit

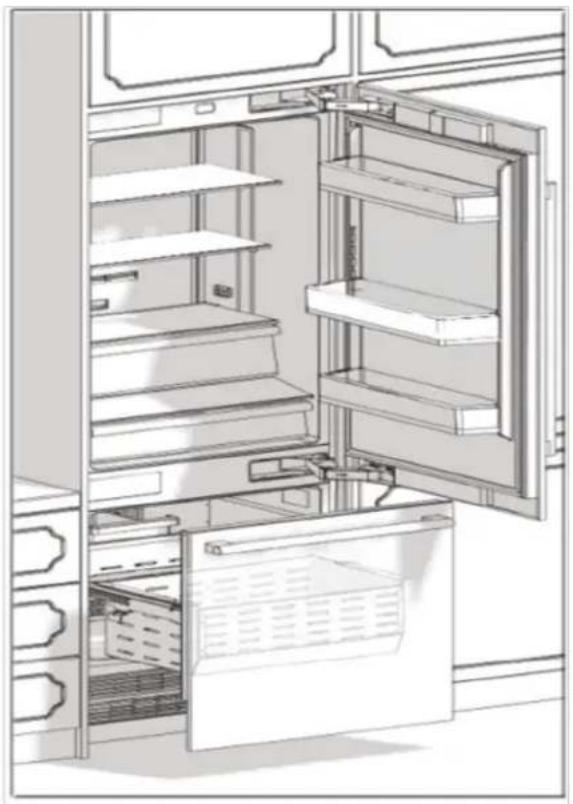

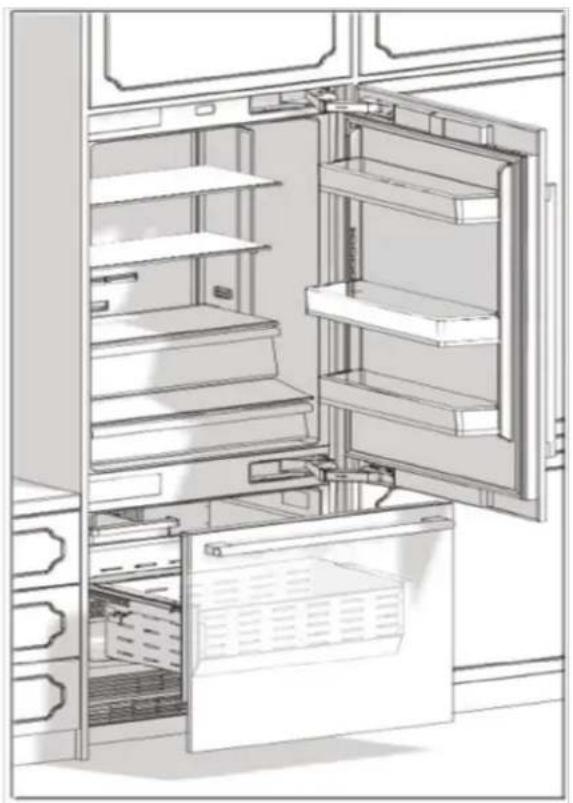

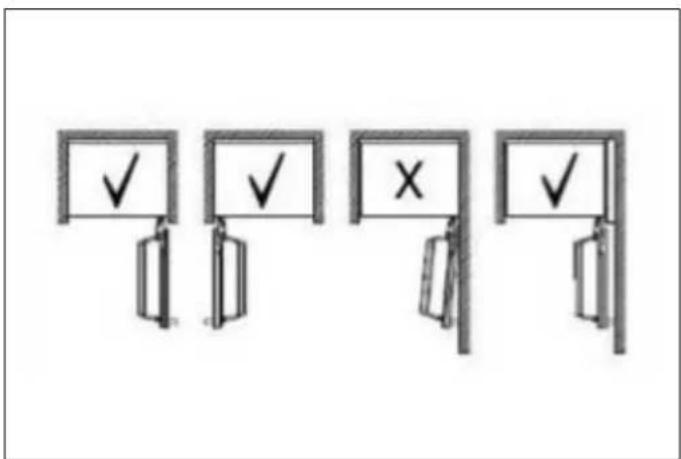

The appliance can be installed in a variety of ways depending on the kitchen design. It must be installed in a location where it is certain that the door can be opened and closed properly. If the doors cannot open up to at least 90 degrees the appliance drawers will not be able to be opened.

• Single-fridge cabinet placement methods Fig. 14

• Dual-fridge cabinet placement methods. Fig. 15 24INSTALLATION UNPACKING WARNING At least two people must carry the refrigerator.

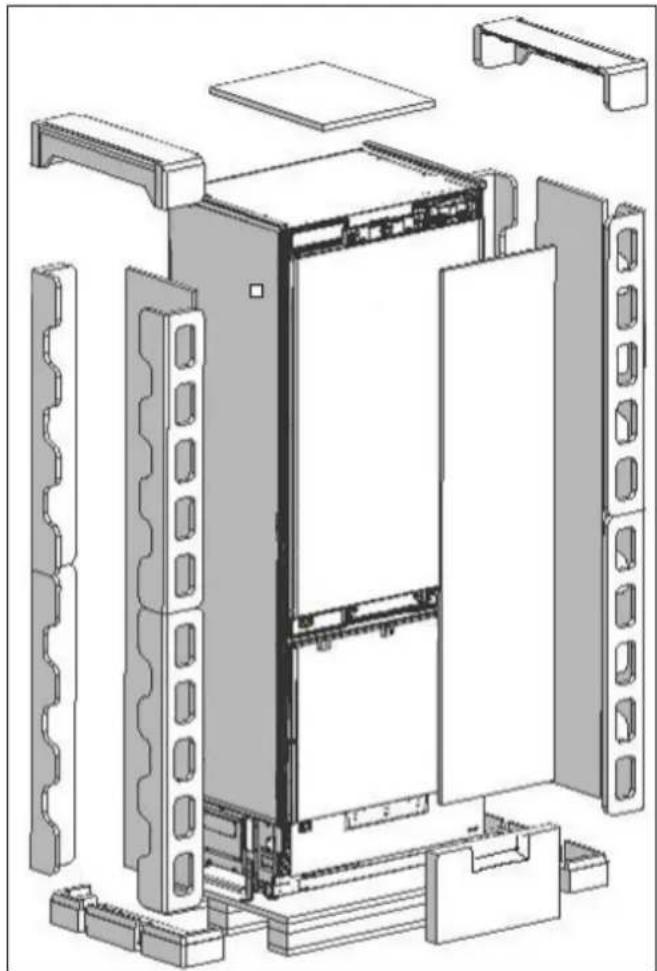

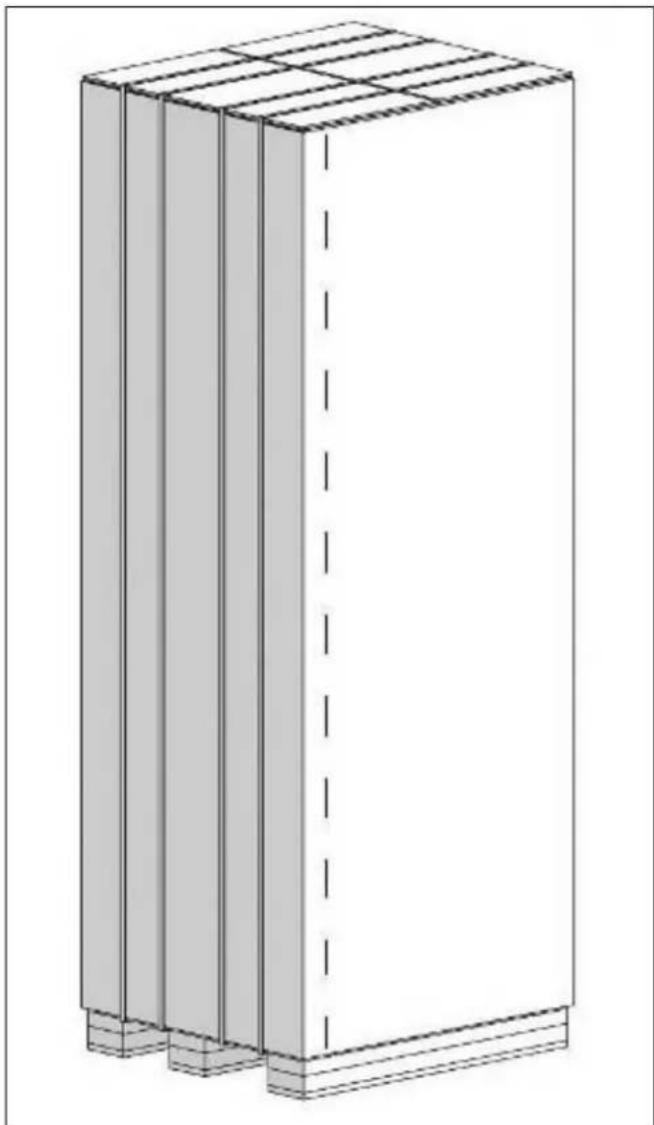

• Use a box cutter to remove the tape.

• Cut the cardboard packaging along the dotted lines using a box cutter and remove it. Fig. 16

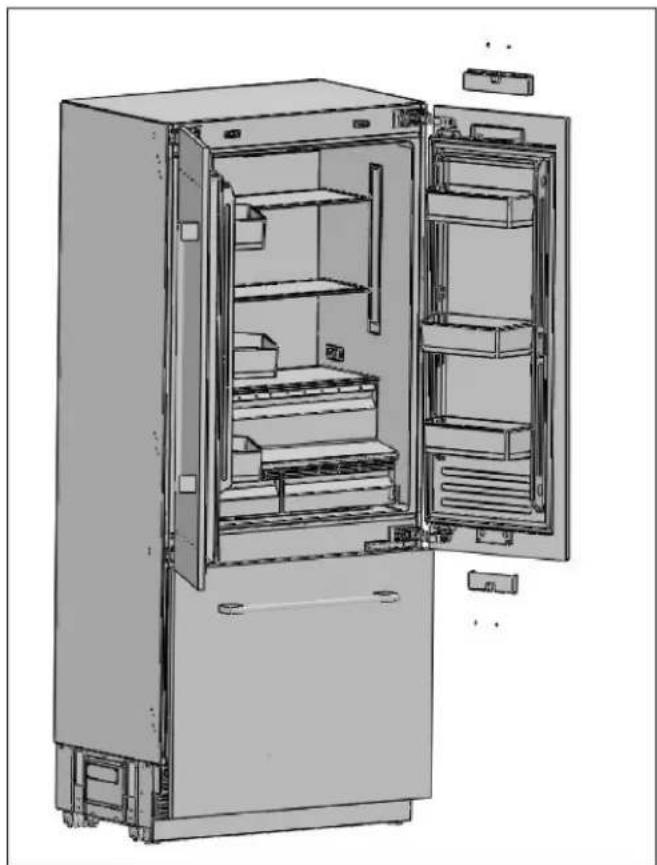

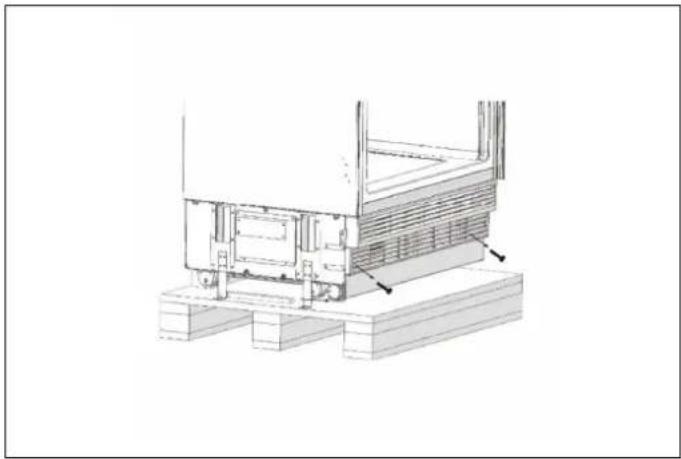

• Remove the polystyrene packing material. Fig. 17 CAUTION Do not remove the tape from the upper door of the appliance until the refrigerator is placed in the cabinet. Tipping risk. 25INSTALLATION REMOVING THE CONNECTORS ON THE SIDE WALL OF THE UNIT Fig. 18 NO. PART NAME SPECS RFD90S5FPNS/24

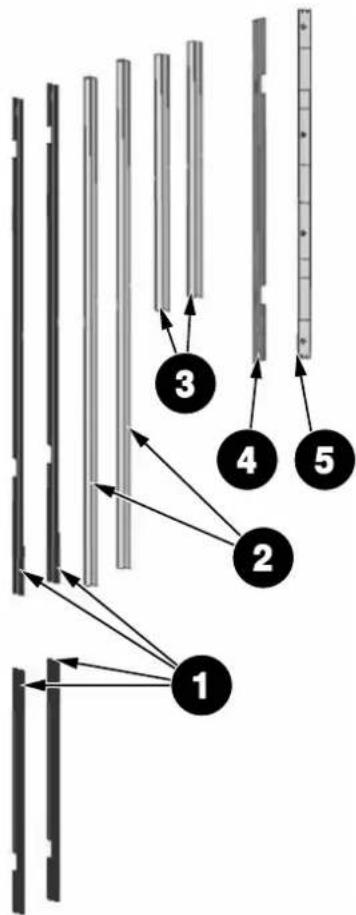

Fridge trim, cabinet side PVC extrusion, L= 617 mm , L = 1,259 mm

Fridge trim, door side PVC extrusion, L = 1,136 mm

3 Trim door side PVC extrusion L =

Fridge trim, top of cabinet PVC extrusion, L = 762 mm , L = 914 mm

Cover for the freezer door top ABS 1 1

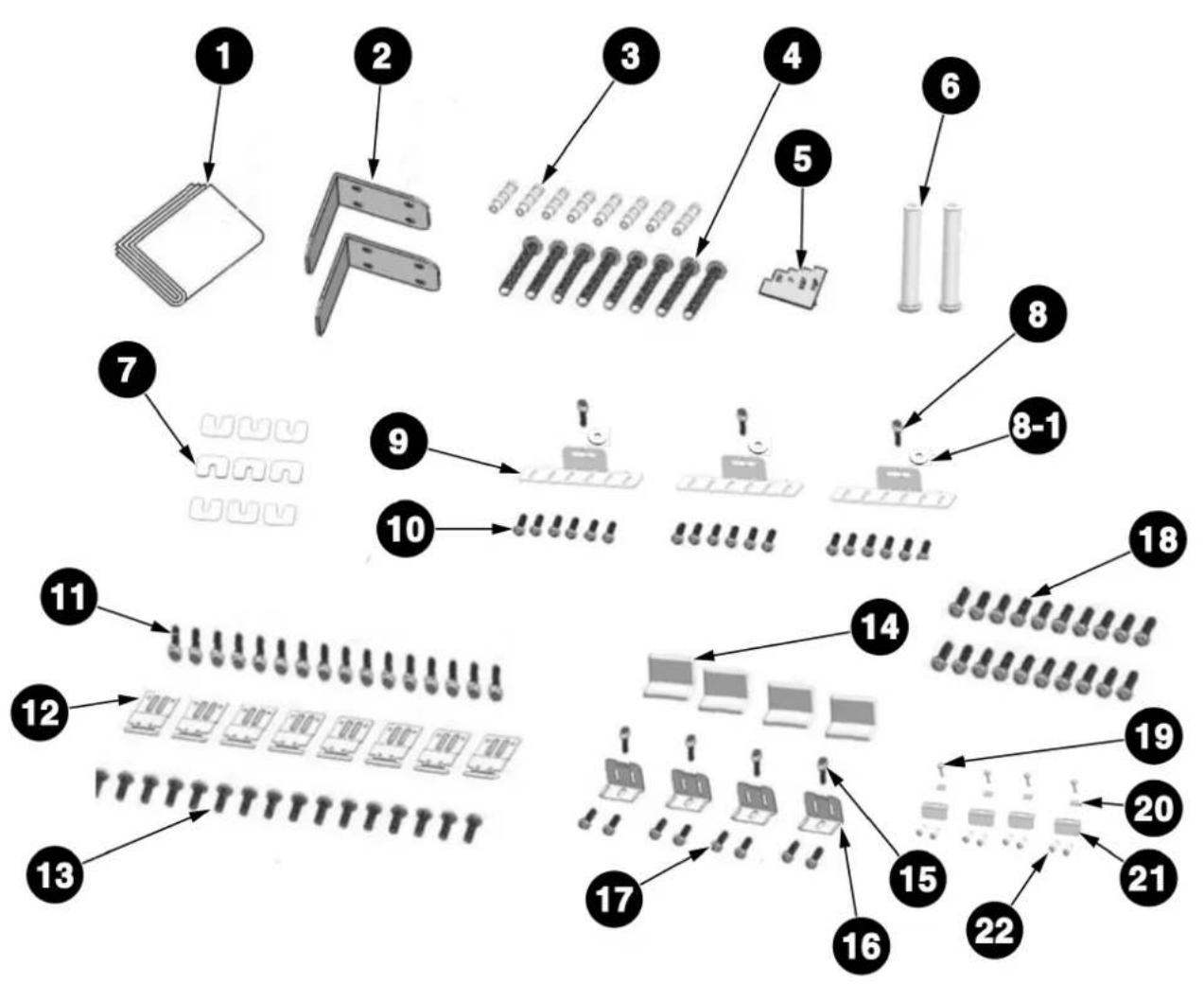

Anti-tip bracket T 4.0, Zn-coating

Position adjustment jig PS 1 1

Freezer furniture door adjustment washer abs 9 9 27INSTALLATION NO. PART NAME SPECS RFD90S5FPNS/24

Screw freezer door hanger bracket ST5*16, Crossed flat head tapping screws

Screw freezer furniture door hanger bracket ST4x14, counter sunk head screw

Screw cabinet connecting bracket M4*12, Crossed flat head tapping screws

Cabinet- cabin connecting bracket T1.0, Zn-coating

Screw cabin connecting bracket ST4x14, counter sunk head screw

Cover furniture door bracket abs 2 4

Screw door fixing bracket M4*12, Crossed flat head tapping screws

Door- door furniture connecting bracket T1.0, Cr+zn-coating

Screw furniture door fixing bracket ST4x14, counter sunk head screw

Screw furniture door hanger bracket ST4x14, counter sunk head screw

19 Screws M4*12, Crossed flat head tapping screws

• Remove it manually by removing the 4 knurled screws. Fig. 20

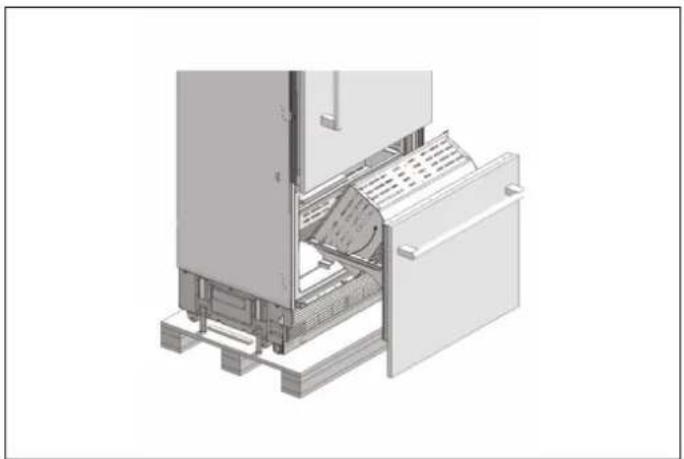

• Remove the lower drawer. Fig. 21 NOTE Figures are illustrative. Panels and handles are not supplied already installed.

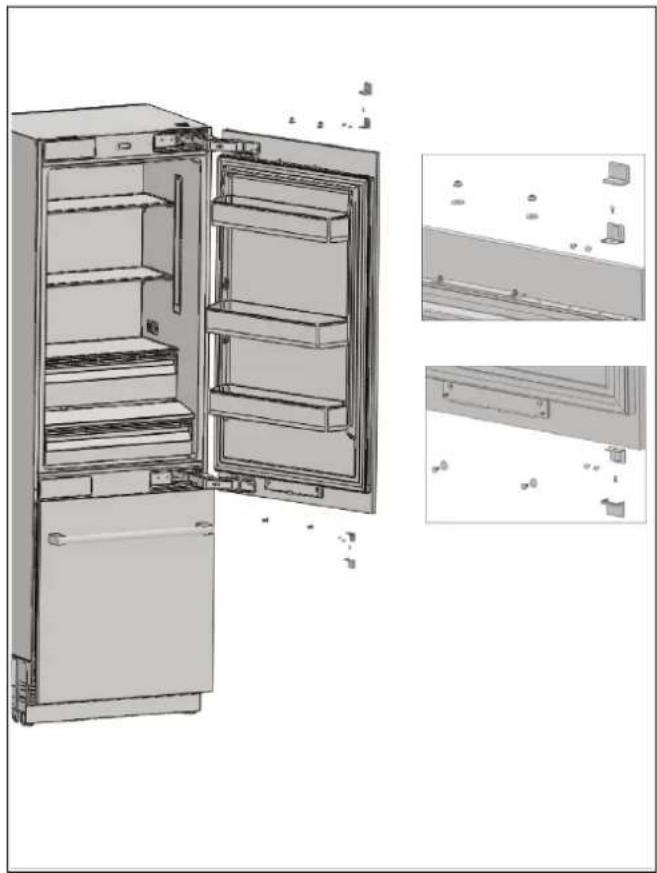

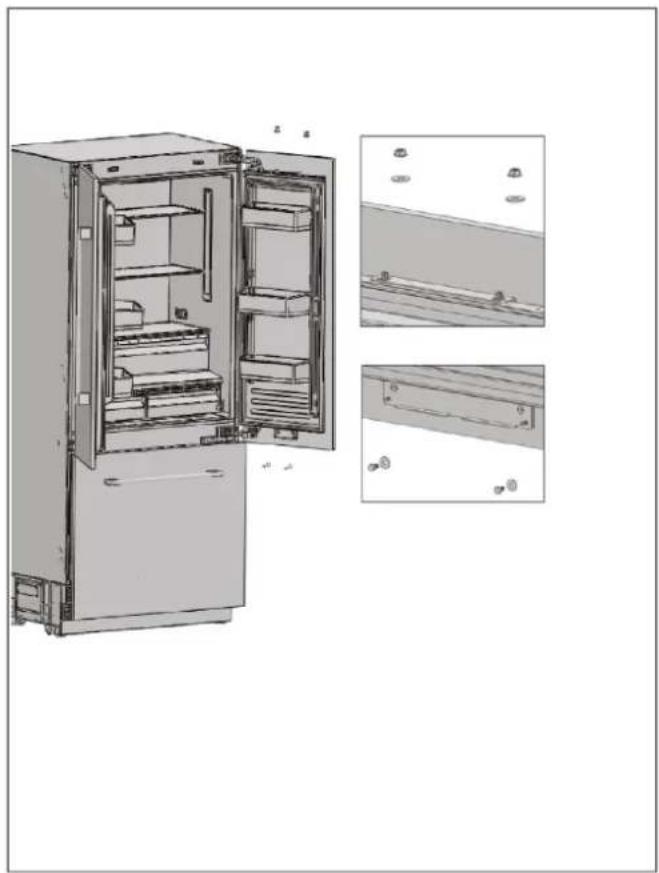

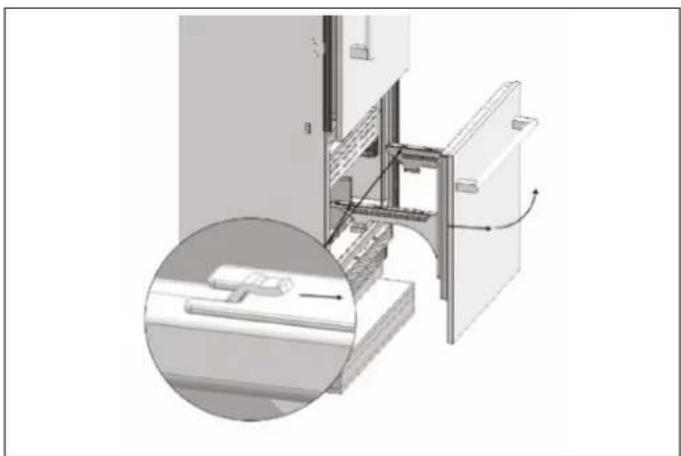

REMOVING THE FREEZER DOOR

• Remove 2 screws near the front section that connect the freezer the door to the rail. Fig. 22

• Pull the door outward to free it from the tabs at the back and remove it. Fig. 23 NOTE Figures are illustrative. Panels and handles are not supplied already installed. 29INSTALLATION

• Remove the 2 screws on the sides with a screwdriver in order to remove the lower ventilation grill cover. Fig. 24

• Remove the 2 screws on the sides with a screwdriver in order to remove the upper ventilation grill cover. Fig. 25 30INSTALLATION INSTRUCTION

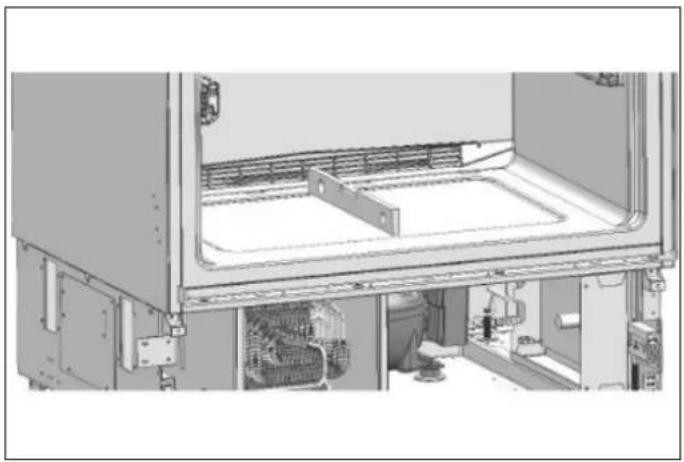

MOUNTING THE ANTI-TIP BRACKETS

WARNING If the unit cannot be secured to the cabinetry (which in turn must be secured to wall) to prevent tipping, make sure to use the supplied anti-tip brackets in order to prevent the appliance from tipping over. WARNING Make sure that there is no electrical or water connection in the adjacent cabinets into which the mounting screws will be screwed to secure the refrigerator. WARNING Please remember to use the necessary protective equipment when drilling holes in the wall and performing the installation.

• Use a tape measure to mark the wall for installation of the anti-tip brackets. Fig. 26

• For the most secure installation, use a stud-finder to secure the anti-tip brackets in wall studs. If no studs are present at the correct installation location, follow the instructions below. WARNING Always make sure that the area to be drilled into is free of any waterlines or electrical circuits, which could cause damage, injury, or death.

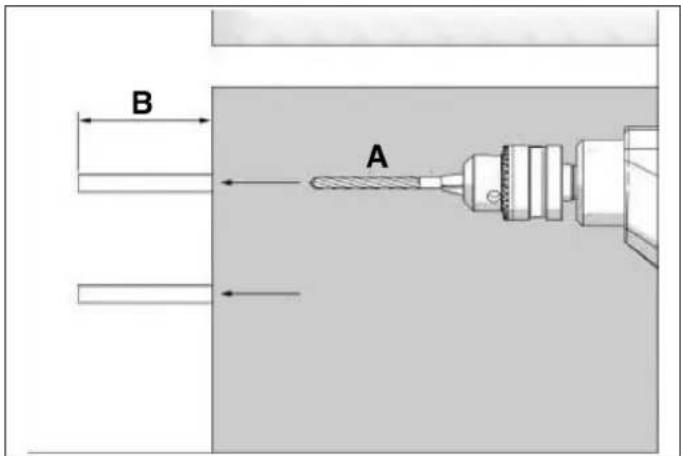

• Use a drill to create holes for wall anchors (#3) at the marked points 7.9 mm (5/16″ Ø), 8 mm). Fig. 27 A. Ø 8 mm B. >62 mm

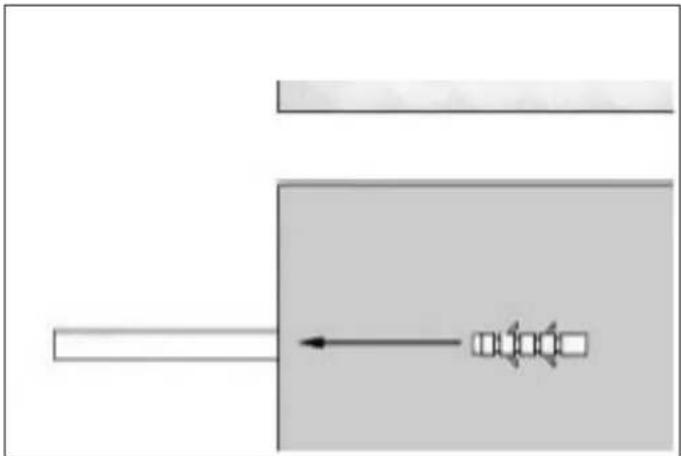

• Use a hammer to install the wall anchors (#3) if no stud is present. Fig. 28

• Install the brackets (#2) in place, using 4 screws (#4) for each. 32INSTALLATION INSTRUCTION

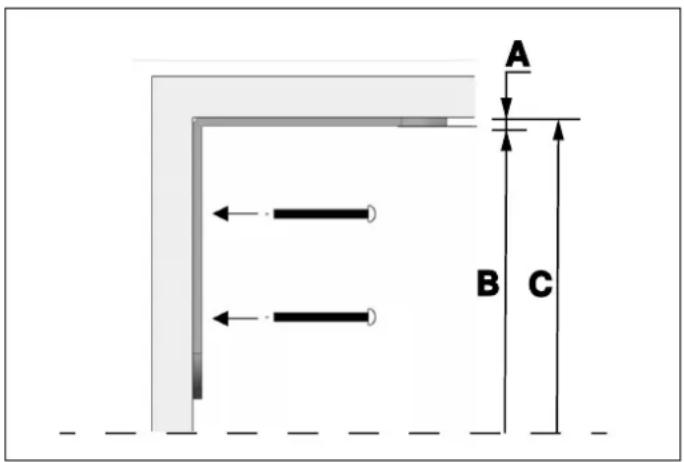

• You must use both (two) brackets to ensure that the appliance is safely supported. Fig. 29 A. 4 mm (3/16″) B. 2130 mm (83 7/8″) C. 2134 mm (4″) NOTE If you are not confident that the supplied connectors and anti-tip brackets are mounted on the wall as securely as they should be, you can use alternative anti- tip methods. If there is a cabinet panel behind the back wall of the refrigerator, make sure that it is securely fastened to the wall. For this, you need to be sure that the back wall of the cabinet panel is affixed to a wall stud. Alternative anti-tip method: If the anti-tip brackets cannot be mounted securely, you must use the alternative method below. For this method, you can use wooden boards to avoid the risk of tipping over. They must be installed as illustrated in the figure below. There must be no clearance between the appliance and the wooden support. The minimum section dimensions of the wooden support must be 76 mm x 102 mm (3″ x 4″). The width of the support must be equal to the clearance where it will be installed. This can be achieved using one 102 mm x 102 mm (4″ x 4″) or two 51 mm x 102 mm (2″ x 4″) pieces of framing lumber. The calculation of blocking depth is based on a standard niche depth. If the depth of the niche is greater than 610 mm (24″), ensure the blocking overlaps the upper rear fridge body by 51 mm (2″). Position the wooden support, mark the location on the rear wall, select suitable screws and mount it securely. WARNING The quantity and type of screws or fasteners to be used for affixing wooden blocking must be suitable for ensuring a secure connection to the rear wall. Fig. 30 a 76 mm x 102 mm (3″ x 4″) A 2130 mm (83 7/8″)

PREPARING THE WATER HOSE AND THE

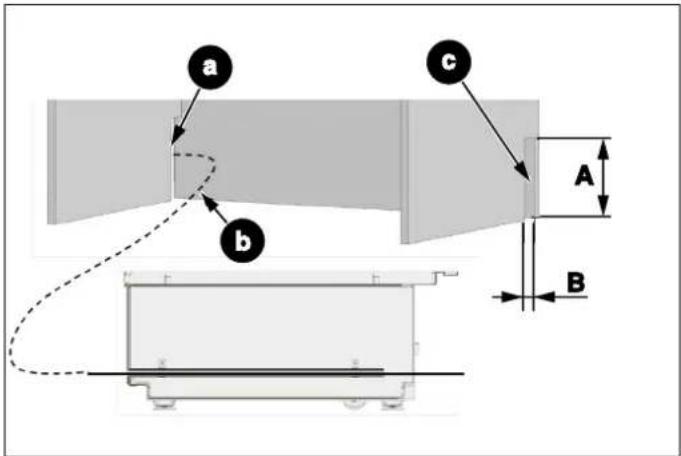

ELECTRICAL CONNECTION Inspect all water connections for leaks. Water leaks can cause significant damage over time. It is recommended to use a 6.4 mm (1/4″) water line with a minimum length of 1.5 metres (60″) with a threaded 6.4 mm (1/4″) female connector end. Before finishing the installation, turn the water on to ensure that water is flowing and that there are no leaks. A connector that has a thread with an external diameter of

6.4 mm (1/4″) must be used to connect the end of the hose

to the product. Allow for sufficient slack in the water supply line, providing a minimum of 254 mm (10″) of length from the base of the unit once it is installed in the niche. This provides some allowance for connections and adjustments if needed. The product must be connected to a 2-prong outlet on a dedicated 15 amp circuit; local electrical and building codes should be respected. You can choose method A or method B below to prevent the power cord from getting wedged in.

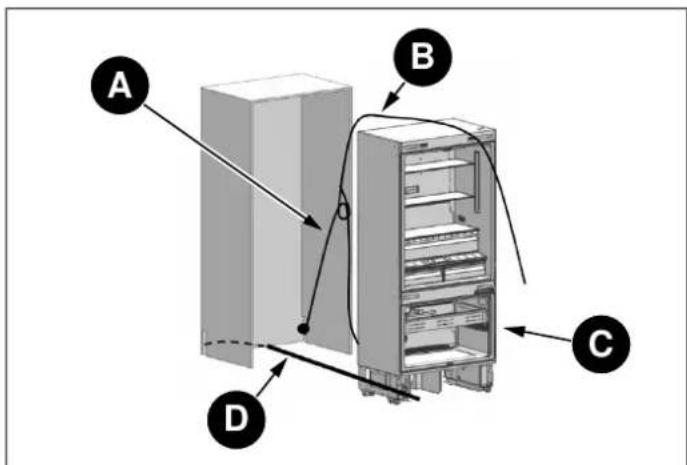

• Method A: Position the water hose and the mains power connections on the back of the refrigerator. Fig. 31

• A Water line location

• B Power cord location

• Method B: Position the water hose and mains power connections on the sides of the cutout. Fig. 32 a. Keep open for water line b. Water hose c. Keep open for power cord A. 203 mm (8″) B. 51 mm (2″)

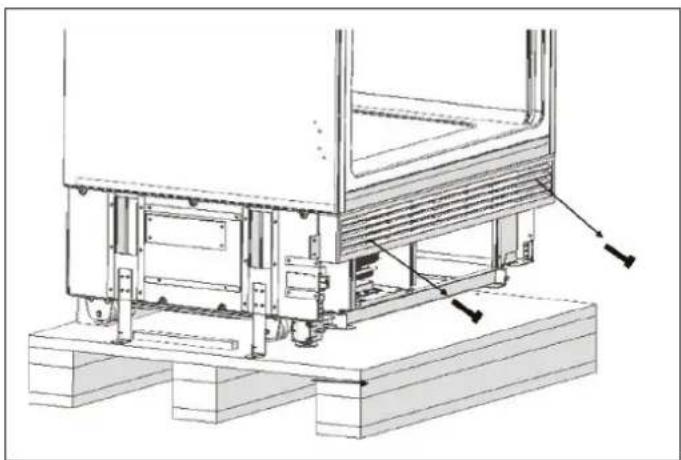

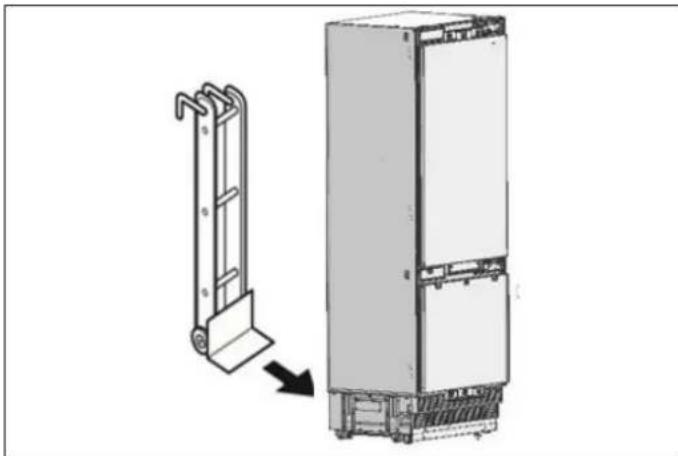

Taking the Refrigerator from the Wooden Pallet

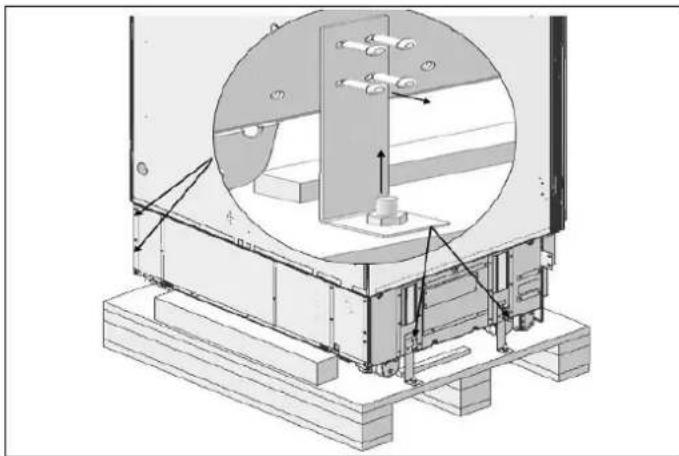

• Remove the brackets which secure the refrigerator to the wooden pallet as shown below. Fig. 33

• Slowly tilt the refrigerator back and remove it from the pallet, taking care not to damage the underside of the unit. When transporting the unit, always carry it from the sides to ensure that the unit's feet remain on the base of the appliance dolly. Fig. 34 NOTE Exercise extreme caution when handling the unit, as the underside of the fridge has components vital to its proper operation; damage to these components could result in a malfunction or potential leakage of condensate and damage to floors. CAUTION The risk of tipping over is high from this point forward. You should not open the doors until the product is placed into the cabinet. 35INSTALLATION INSTRUCTION Placing the refrigerator into the cabinet niche

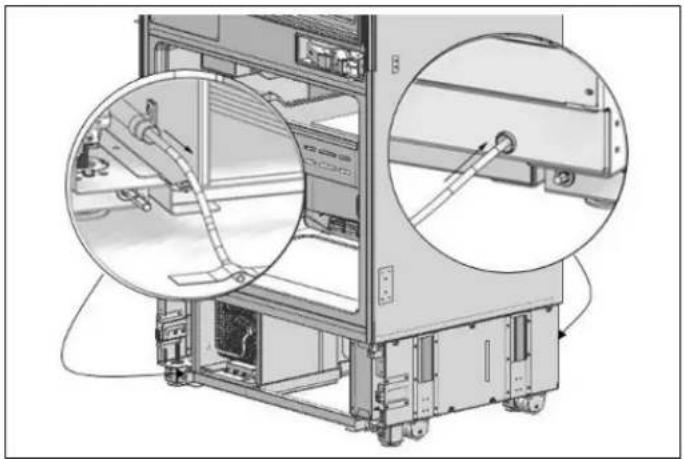

• Insert the water supply hose into the channel opening at the back of the unit and pull it through to the front of the unit to ensure that the water connection can be made once the unit is installed in the niche. Fig. 35 NOTE Use the method below to prevent the cord from getting wedged in. Fig. 36

• D Water hose Connect the electrical plug to the power outlet. Turn on the unit to ensure it has power. (To see if the product is operating, check if the lamps in the freezer compartment are on or off). NOTE Protect the front edges of the cabinet niche with masking tape; this will help protect them from damage when pushing the unit back into the niche. Use some packing tape to secure the excess electrical cord to the back of unit to prevent slack from catching under the unit during installation. NOTE The unit's plug must be accessible after installation. If the plug is not accessible after installation, the power must have a dedicated circuit breaker which can be accessed to cut power off using the main switch. WARNING

• Make sure that the power cord does not get wedged in when placing the product.

• Push the product carefully towards the cabinet to position it; the unit should slide into the niche with relative ease. If you experience resistance while placing the product in the cabinet:

• The floor might be uneven.

• The adjustable feet might be loose (please see the relevant section to learn how to adjust the adjustable feet).

• You must attach the freezer door temporarily to align the product before placing it. NOTE Use the upper edges of the fridge and freezer doors to align the unit in the niche opening. Adjustment of other edges is explained in the following pages.

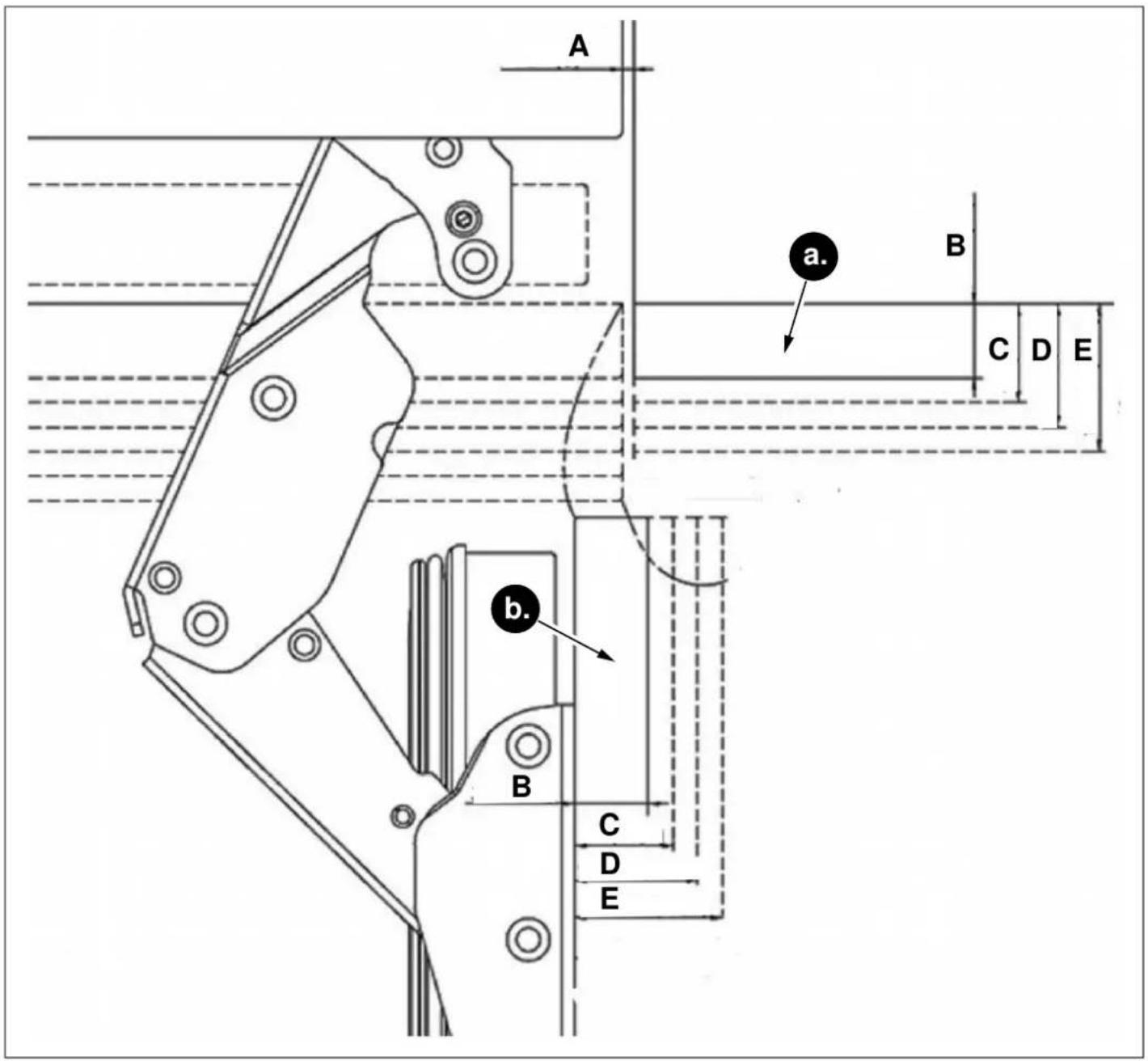

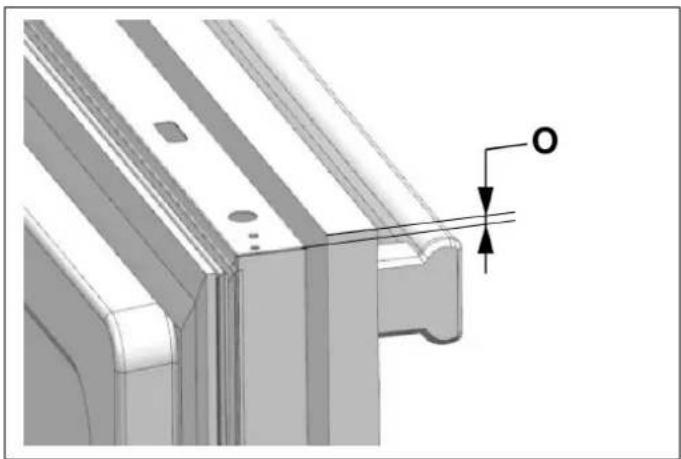

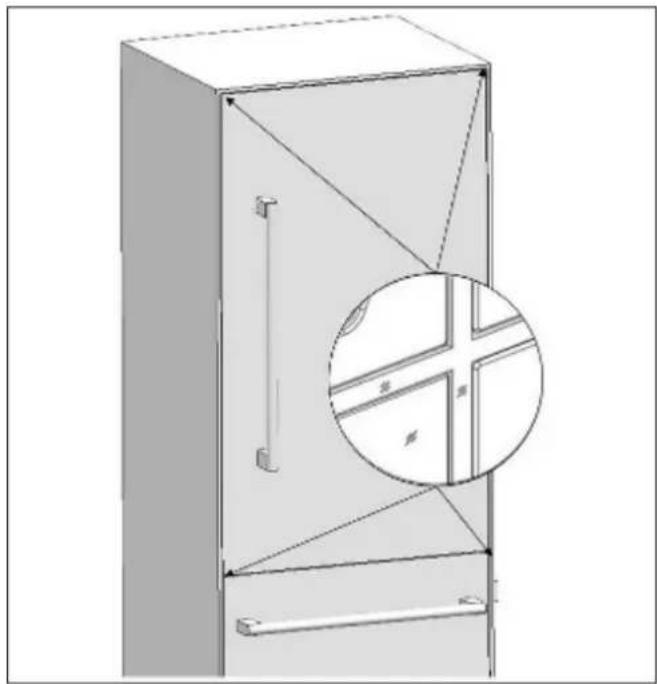

• D 5 mm (3/16″) Adjusting the height of the refrigerator within the niche

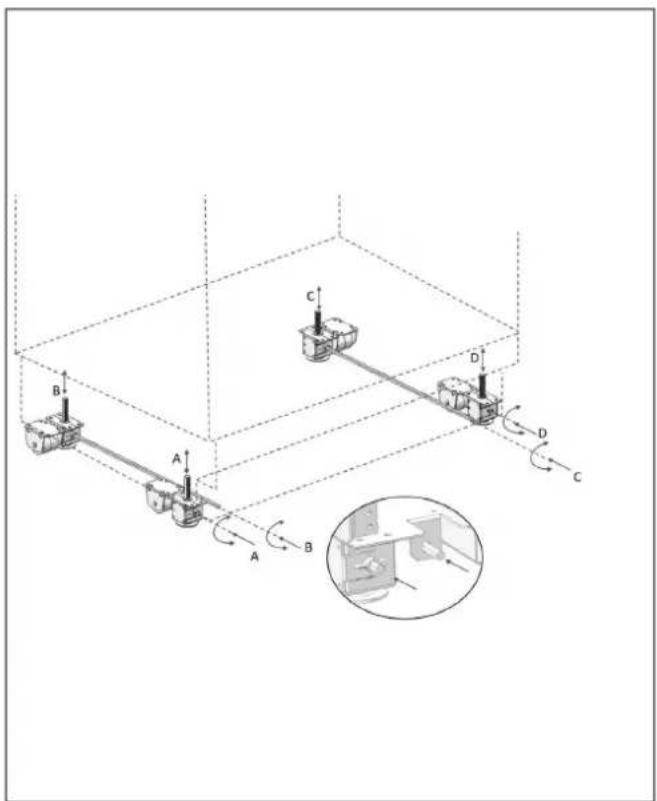

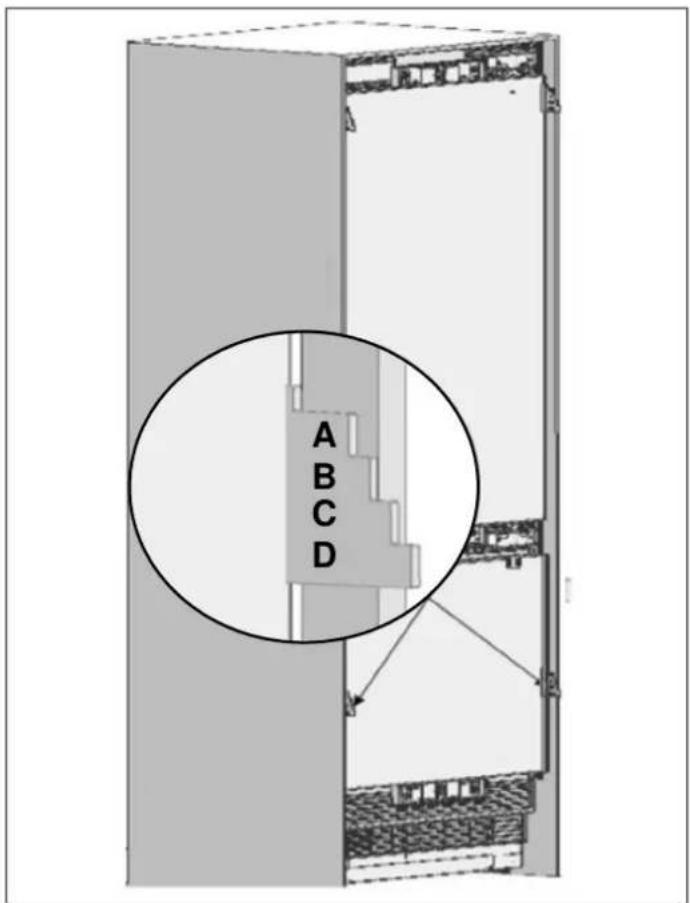

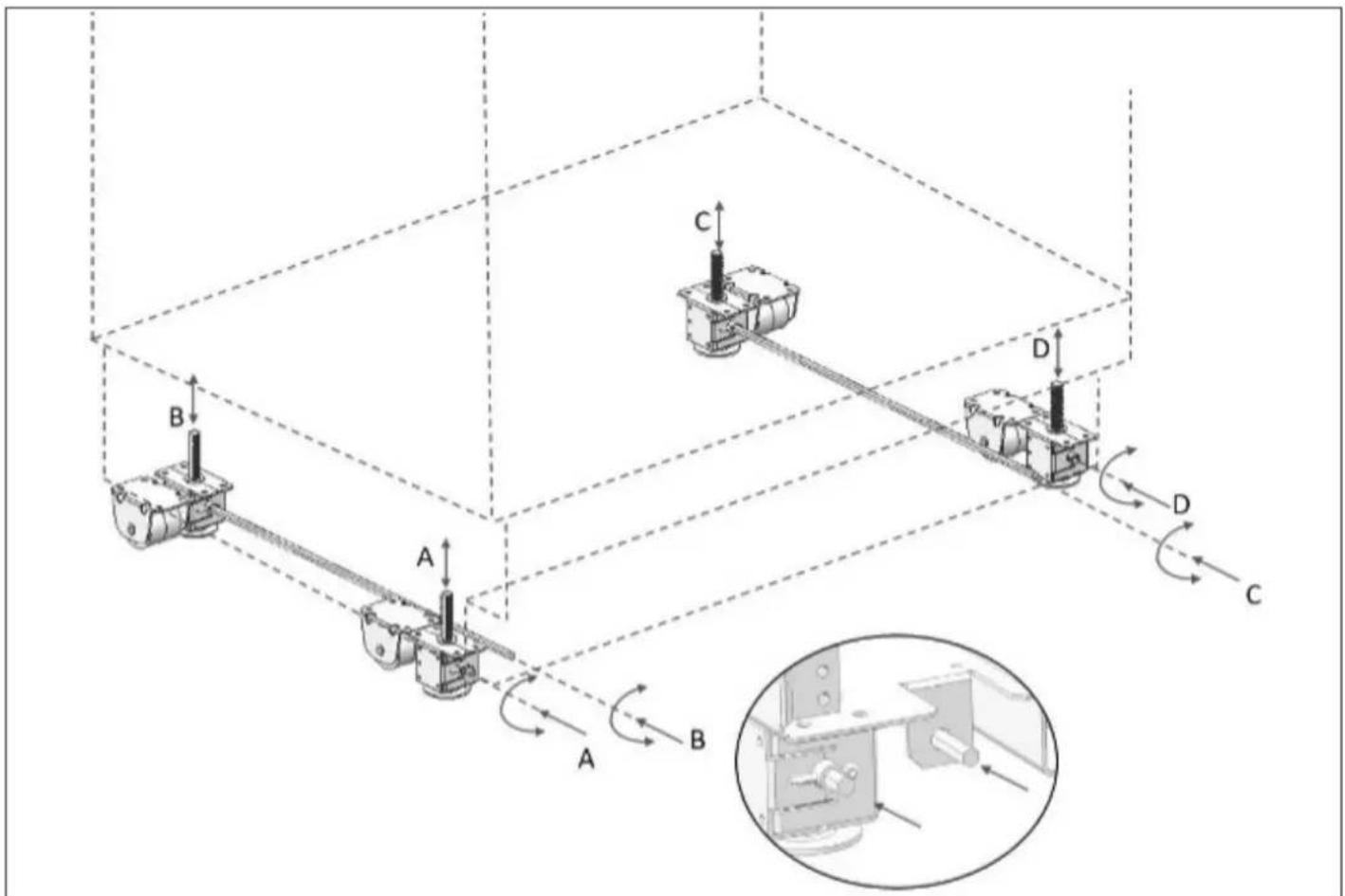

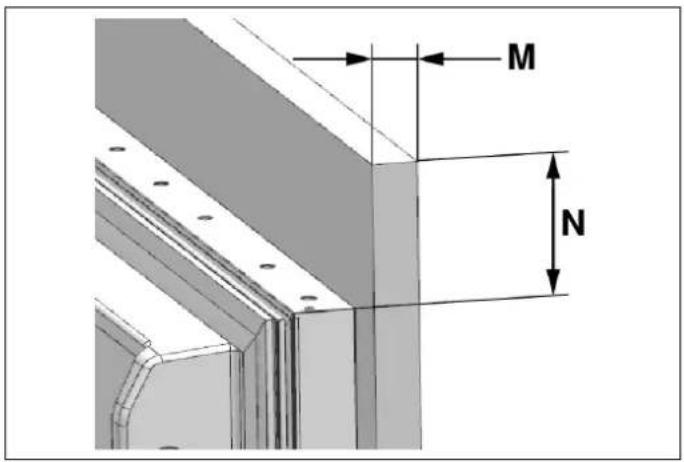

• Use the adjustable leg mechanism to raise, lower and level the unit in the niche as per the diagram below. WARNING Once the unit is pushed into the niche, raise the front feet first; this will reduce the risk of the unit tipping forward during the height adjustment process. The maximum height that the adjustable feet can reach is 40 mm (1 9/16″).

• A/D –Turn the adjusting rod clockwise to lift the front

• B/C –Turn the adjusting rod clockwise to lift the rear For each 360 degree rotation, the legs are raised 1.5 mm (1/16″). We recommend raising the front legs by 8 mm (5/16″) and the rear legs by 7 mm (9/32″): rotate the front feet 5.5 times and the rear feet 4.5 times. 38INSTALLATION INSTRUCTION Fig. 40

• After adjusting the adjustable feet, check that the appliance is level both side-to-side and back-to-front by placing a level on the floor of the freezer compartment (the drawer should be removed for this). Adjusting the refrigerator based on the cabinet niche

• For products with supplied stainless steel panel doors, the position of the unit is adjusted so that the door and the cabinet surface are flush and a min. 3.2 mm (1/8″) distance from panels and gables is ensured. Fig. 41

• For panel-ready units, the refrigerator should be installed at a depth that takes into consideration the custom overlay panel thickness, so as to ensure a flush installation, if desired. NOTE It is important to align the upper edge of the freezer drawer when aligning the unit, as its height and position are fixed. All of the other panels can be adjusted using the adjustment mechanisms built into the mounting hardware. As shown below, an installation depth template tool is provided for your convenience. 39INSTALLATION INSTRUCTION Fig. 42

• The position of the level adjustment part (#5) must be adjusted based on the thickness of the door. It can adjust the level for 4 different door thicknesses. Fig. 43

• 4 Cabinet side panel

• d. 38 mm (1 1/2″) WARNING On the French Door Bottom Mount RFD90S5FPNS/24 model can only be mounted panels with a thickness up to 19 mm (3/4″). NOTE The niche must be designed to accommodate the minimum depth requirement plus the thicker door panel, if desired. Regardless of door thickness, the maximum panel weights must always be respected, or the product warranty will be void.

40INSTALLATION INSTRUCTION NOTE The thickness of the accessory stainless steel panel is 19 mm (3/4″).

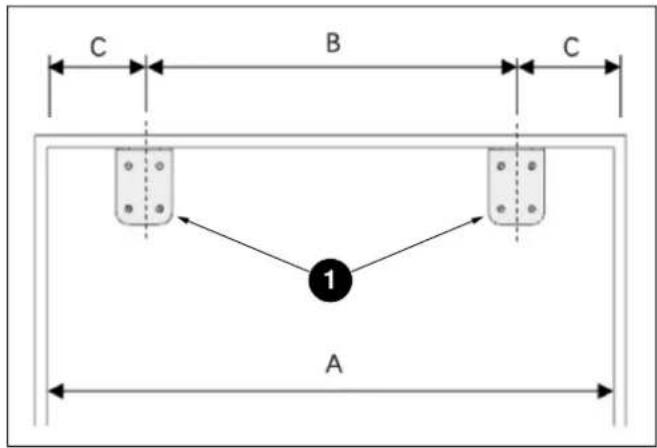

SCREWING IN THE SIDE BRACKETS

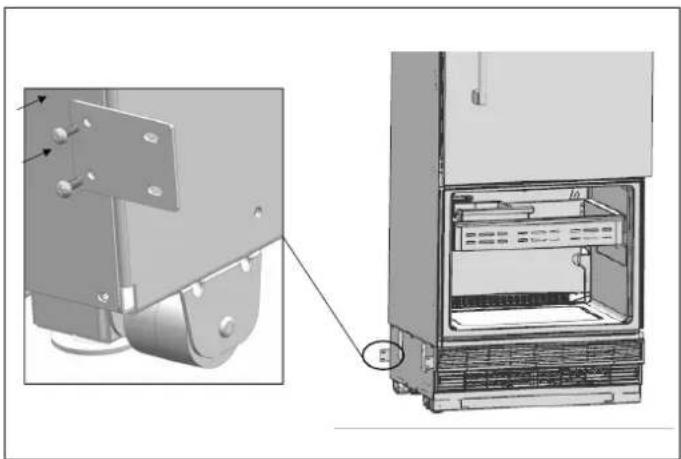

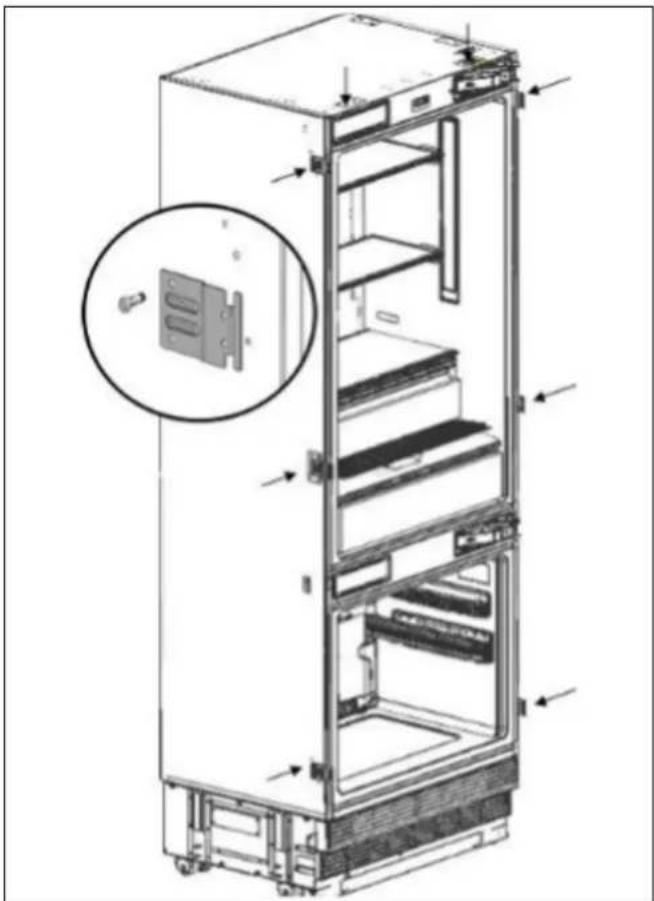

• Mount the brackets (#12) on the unit, with 2 on the top and 3 on each side. Use screws (#11) to tighten them in place.

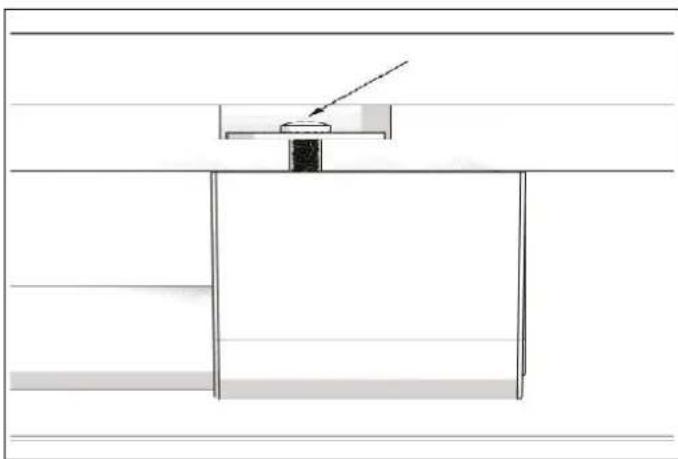

• Use 16 long screws (#13) to join the unit to the cabinet. WARNING Before screwing the side brackets into the cabinet gables, ensure the screw is shorter than the gable thickness, otherwise the finished side may be damaged. Before beginning to screw on the side and upper brackets, make sure that the unit is connected to power, that water (if applicable) is being supplied to the appliance and that the water connection has been tested for leaks. Fig. 44 NOTE Drilling a pilot hole in the side gable for reference could make the mounting process easier. 41INSTALLATION INSTRUCTION Fig. 45

SECURING THE UPPER BRACKET

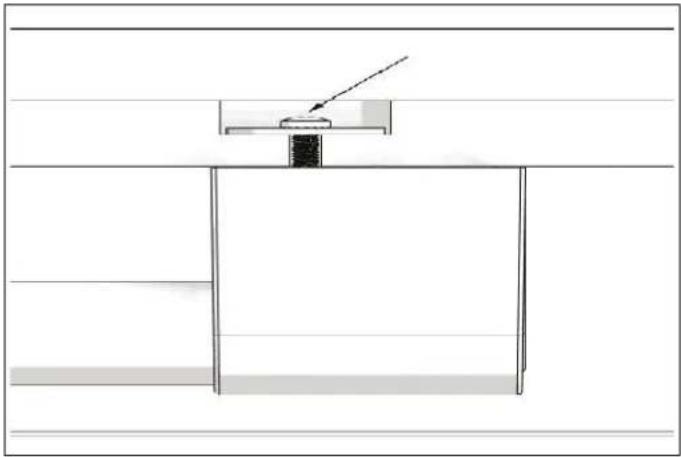

• Attach the upper bracket to the cabinet using 4 screws (#13). NOTE Drilling a pilot hole in the side gable for reference could make the mounting process easier. Fig. 46 42INSTALLATION INSTRUCTION

INSTALLING THE BOTTOM CABINET

Complete the water connection

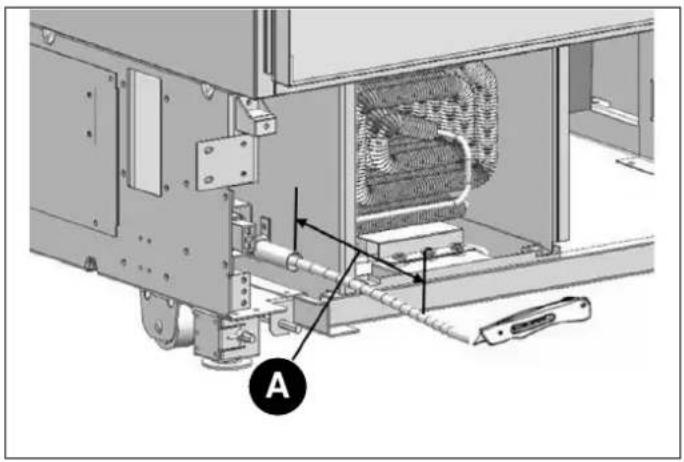

• Use a cutter to cut of any excess waterline length, allowing sufficient slack of 254 mm (10″) to ensure an easy bend and clear connection, with no tension or potential kinks in the supply line that runs to the connector. Fig. 47

• Use 2 wrenches to firmly connect both the hose that runs from the mains and the connection to the valve on the refrigerator. WARNING The hose that runs from the mains connection must be one piece. Do not use extension hoses. WARNING Make sure that the power is cut off when establishing the appliance's water connection. WARNING The water valve must be closed when connecting the water hose. WARNING It is recommended to keep the water valve accessible after product installation. WARNING The pressure of the water system must be between 25-80 psi (1.7-5.5 bar). NOTE Once the connection is complete, you must open the water valve and make sure that there is no leakage. NOTE The appliance is equipped with a brass compression joint water connection. Fig. 48

ATTACHING THE LOWER VENT APERTURE

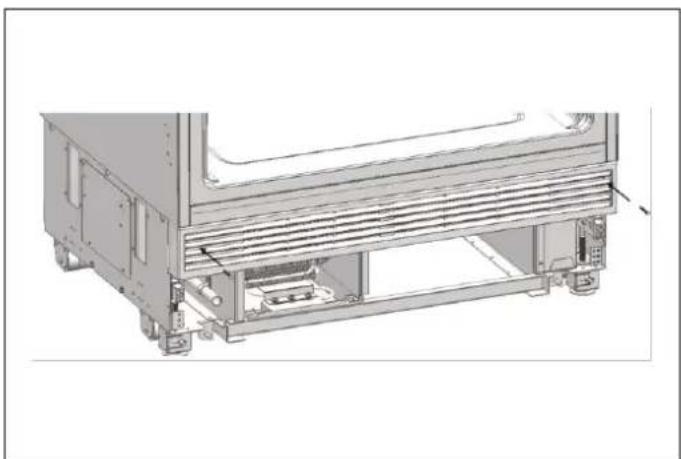

ASSEMBLY Use 2 screws to attach the lower vent aperture component. Fig. 50 NOTE The lower grill can be adjusted to accommodate the cabinet toe kick by moving it forward or backward a maximum of 23 mm (15/16″). Also, a piece of decorative cabinet toe kick material can be affixed to the lower grill to match the cabinets, provided there is no obstruction to vent grills and air flow.

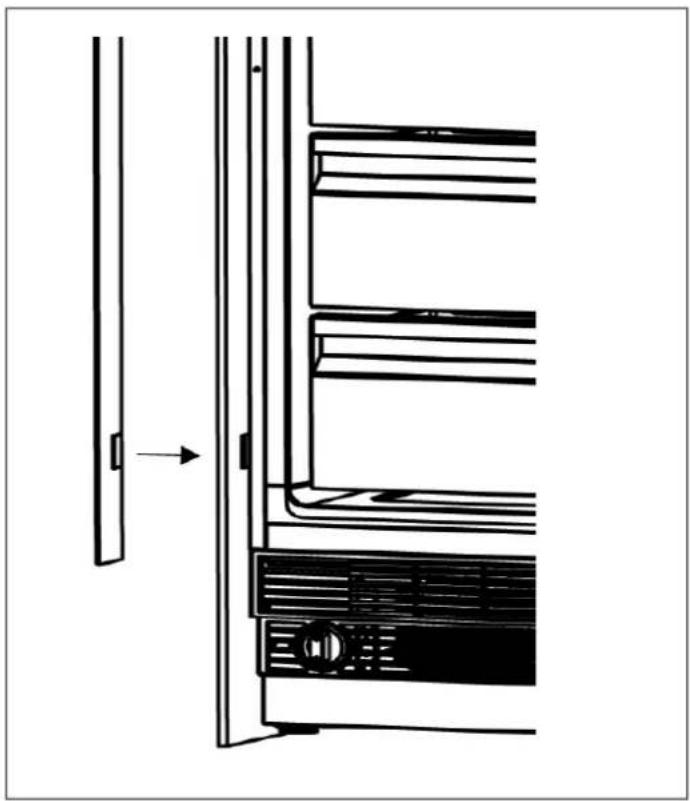

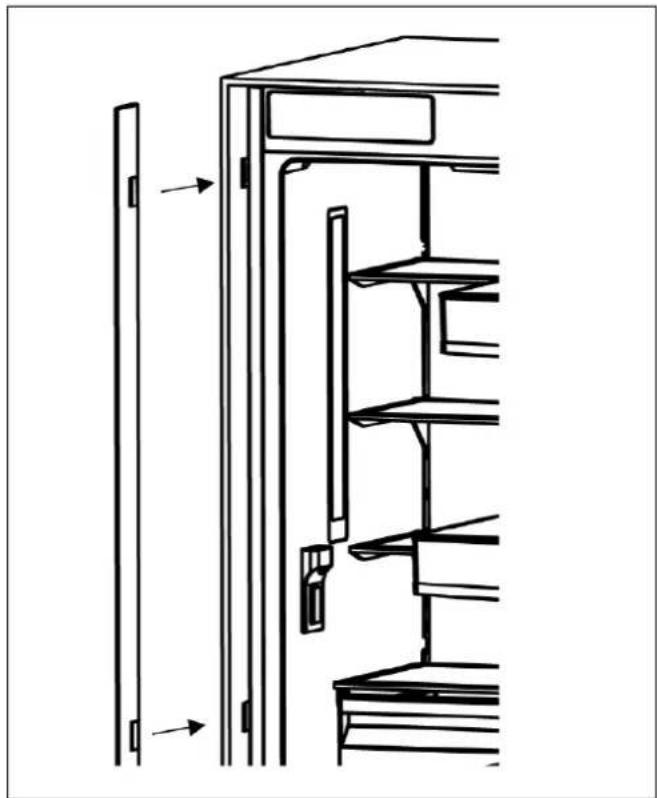

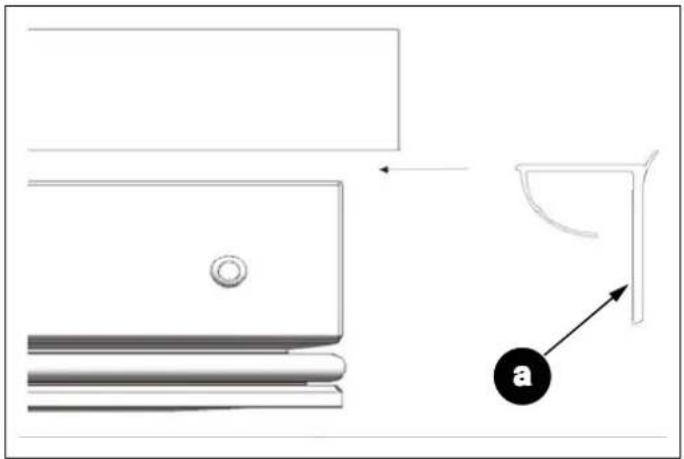

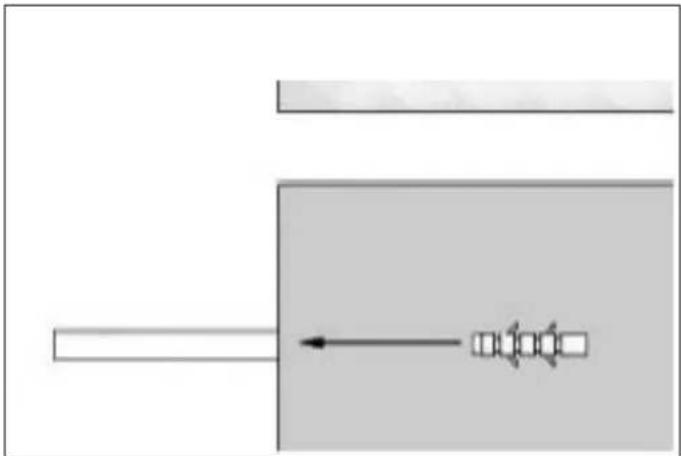

• The decorative side trim is a soft plastic material with a barbed end intended to be inserted between the cabinet gable and the appliance body (#1), onto the right/left connection brackets. Some trimming may be required to ensure the trim pieces can fit around the brackets; the thickness of the barbed end may also require trimming depending on the width of the gap between the side body and the cabinet gable. Fig. 51

• Push in the finished trim (#4) on the upper connection bracket. Fig. 52 44INSTALLATION INSTRUCTION

OVERLAY PANEL INSTALLATION AND

PREPARATION This section contains information about preparing thecabinet doors and mounting them on the product. WARNING Maximum weights of the panels to be mounted on the unit are as follows:

• Bottom Mount Fridge Door: 16 kg (35 lbs)

• French Door Fridge Doors: 16 kg (35 lbs)

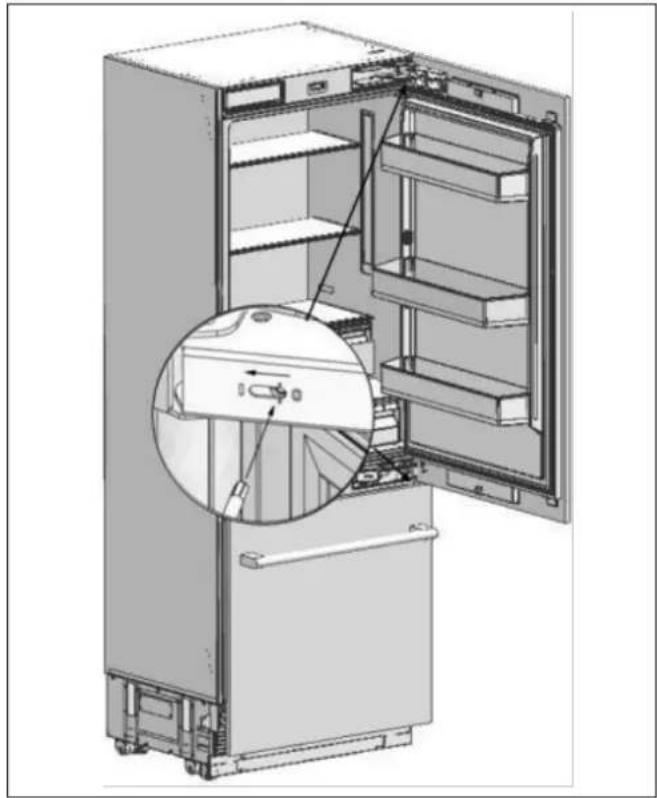

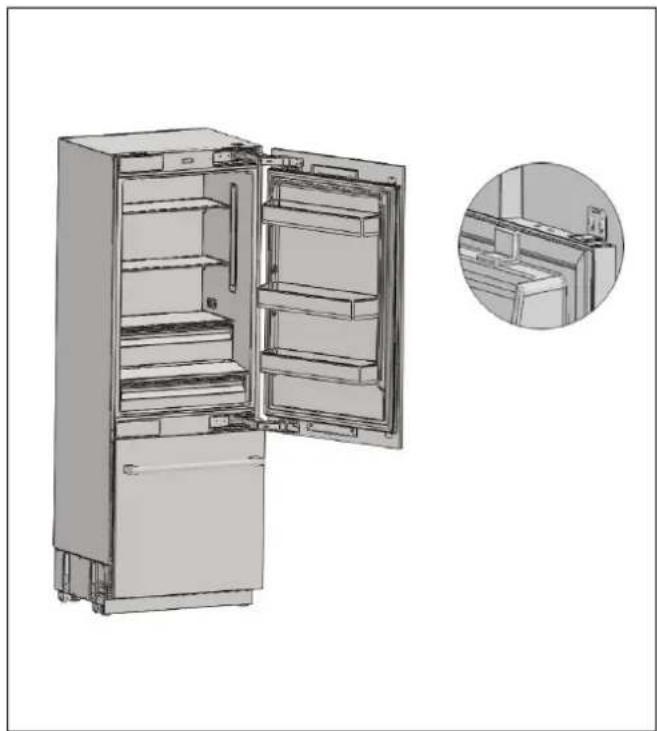

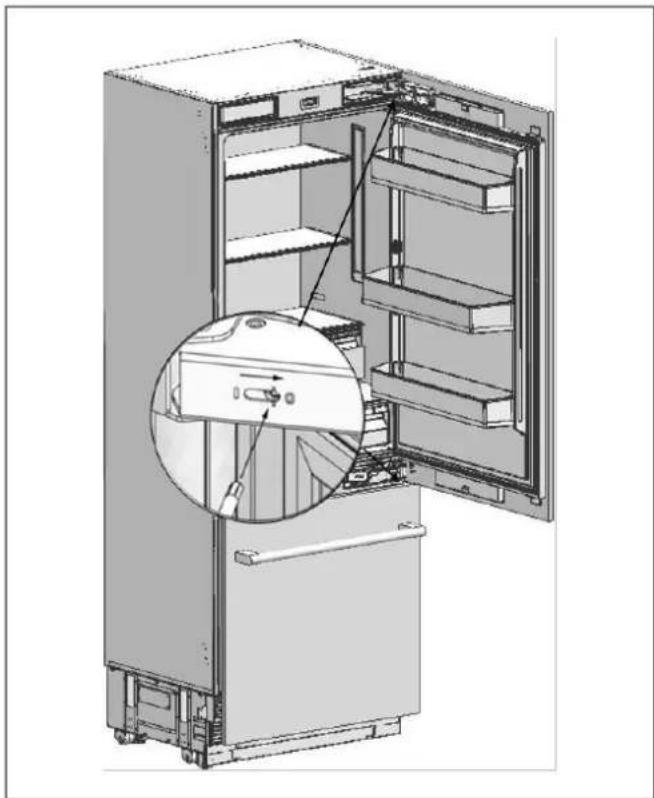

The door of your refrigerator can open to 115° maximum. If you want the doors to open to this degree, you can choose from the thicknesses shown in the image above. For all 2- door Bottom Mount refrigerators. For the 3-door French Door Bottom Mount, the only thickness available is 19 mm (3/4″). WARNING If the door thickness is more than 38 mm (1 1/2″), the door should not open more than 90°. You must use a limiting pin on the hinge. A limiting pin (#6) is provided with the unit to prevent the door from opening beyond 90° if necessary; it can be installed on the hinge. Door thickness allowances when using the limiting pin are shown in the diagram below. Fig. 54 46INSTALLATION INSTRUCTION Fig. 55

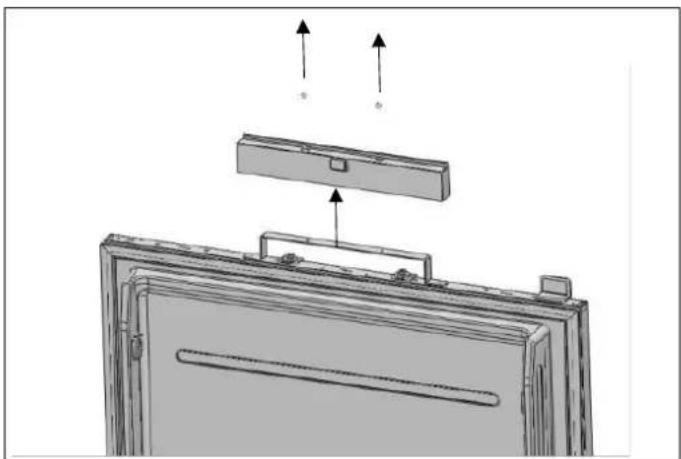

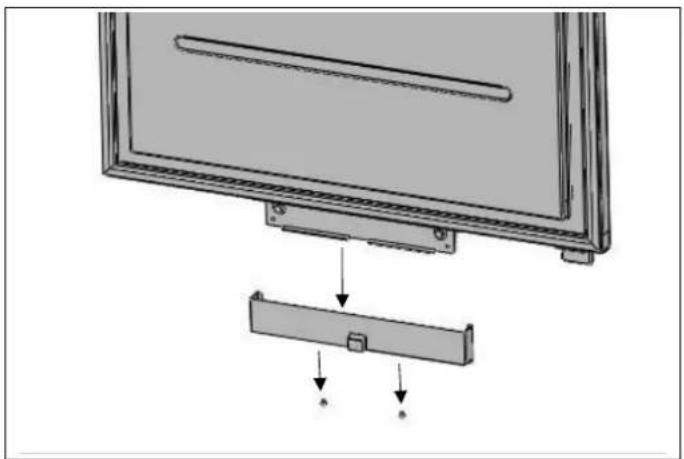

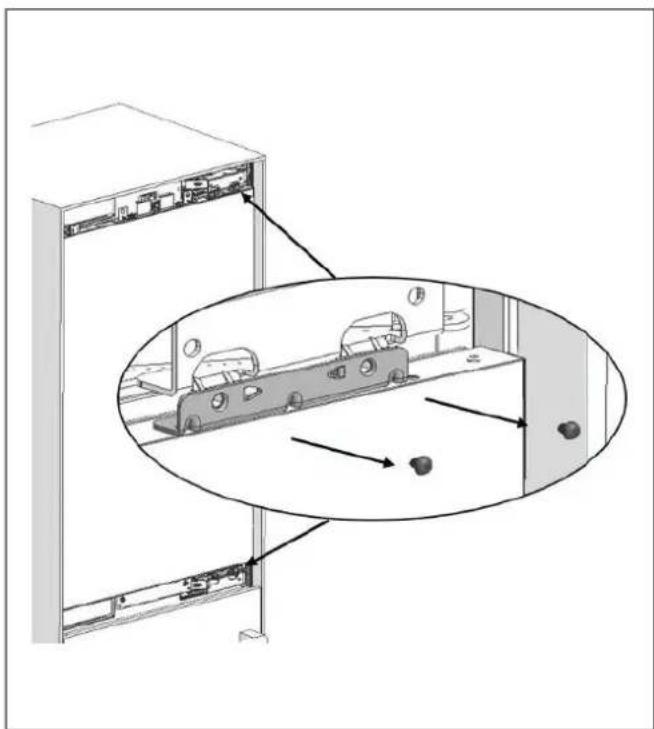

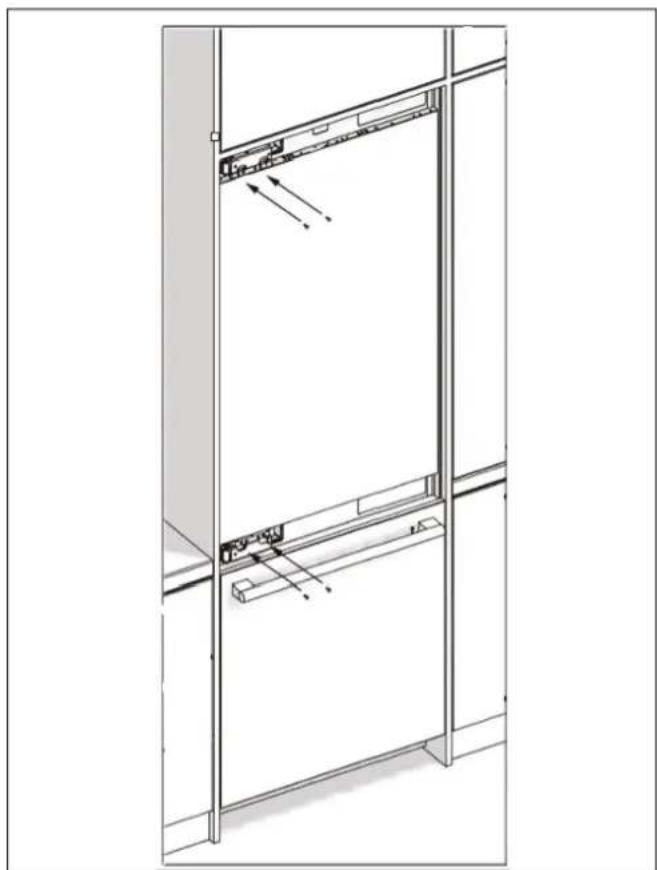

• Remove the upper screws to remove the upper cover. Fig. 56 WARNING There is a magnet on the cover door hanger bracket. This is a functional component for product operation, because it activates the door open reed switch. Please ensure the covers do not get switched; put each back on the same bracket it was removed from. The magnet should not be switched with the lower cover.

• Remove the two screws to remove the door hanger bracket for the lower mechanism cover. Fig. 57 48INSTALLATION INSTRUCTION

REMOVING THE PANEL BRACKETS

• Remove the upper and lower adjustable panel mounting brackets from the door panel adjustment mechanisms, as shown below. Fig. 58 Fig. 59

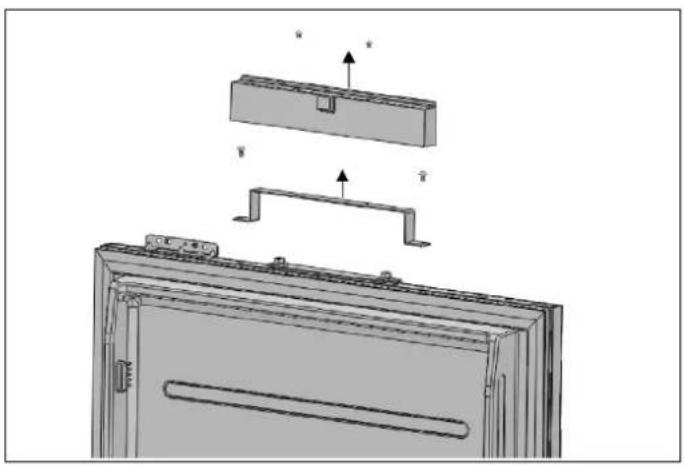

• Remove the covers for the panel adjustment mechanisms from the lower part of the freezer door along with the panel mounting brackets. 49INSTALLATION INSTRUCTION

PREPARING THE OVERLAY PANELS

NOTE When marking, you can use the door/ drawer panel preparation template provided with the product. Fig. 60A. Fresh food topB. Fresh food bottomC. Freezer topD. Freezer bottomFig. 61 WARNING The handle mounting holes will have to be adjusted based on the handles to be used in the kitchen design. WARNING The minimum door thickness must be 16 mm (5/8″). WARNING On the French Door Bottom Mount RFD90S5FPNS/24 model can only be mounted panels with a thickness up to 19 mm (3/4.″).

• To prevent damage to the finished surface of the panel, use screws suitable for the door panel thickness.

• Install the hanger brackets using the screw furniture door hanger brackets (#18). The furniture door preparation template (#1) provided can be used to align the door panel and the brackets. Use 4 screws (#22) and 2 fixing irons (#21) to secure the sides of each RFD90S5FPNS/24 fridge door panel. The fridge door hanger sheet and fridge door upper mechanism assembly must be on the upper part of the door. Attach the door handle to the upper door panel prior to installing the panel on the fridge. Use handle hardware that will ensure a secure connection to the panel and that will lie flush against or, in any case, not protrude from the back of the overlay panel. This may require countersinking the handle hardware into the back of the panel, as shown below. The door handle mounting screws must not protrude either. Fig. 64 RFD90S5FPNS/24 Fig. 65 RBM90S5FPNS / RBM75S5FPNS Attach the fridge door handle. Screws holding the door handle must not protrude. Fig. 66 WARNING The handle mounting holes will have to be adjusted based on the handles to be used in the kitchen design. WARNING The minimum door thickness must be 16 mm (5/8″). WARNING On the French Door Bottom Mount RFD90S5FPNS/24 model can only be mounted panels with a thickness up to 19 mm (3/4″). WARNING To prevent damage to the finished surface of the panel, use screws suitable for the door thickness. 52INSTALLATION INSTRUCTION

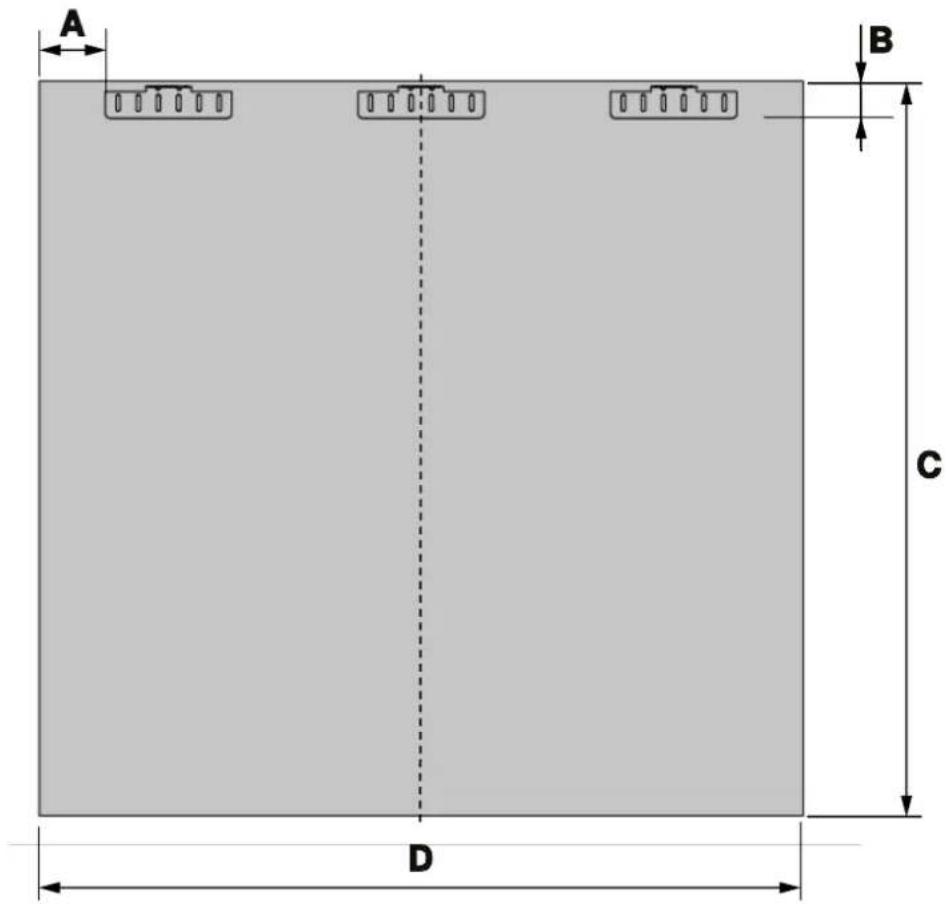

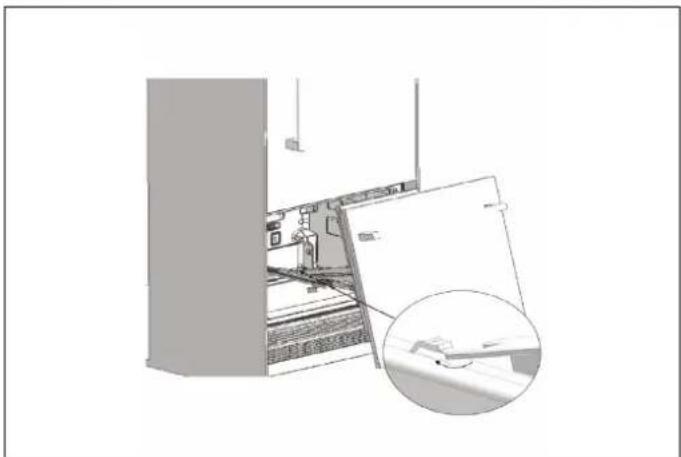

PREPARING THE FREEZER DRAWER PANEL

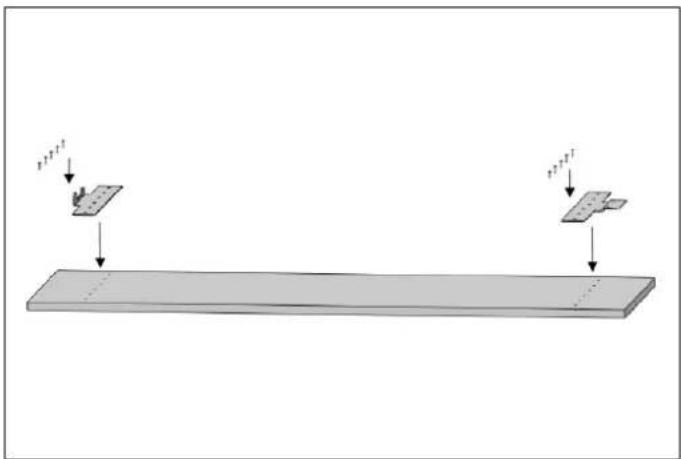

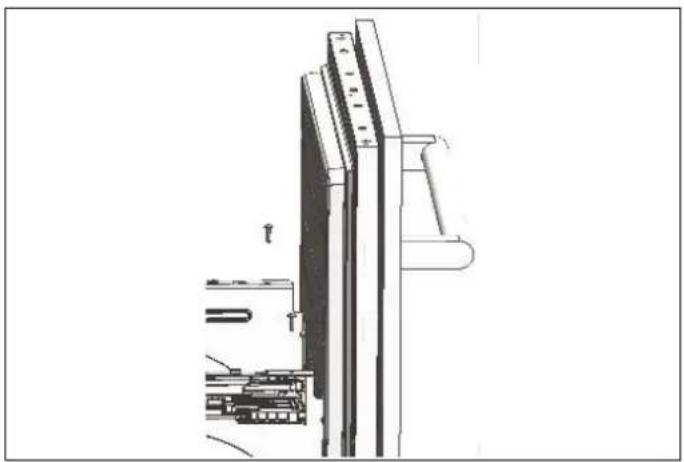

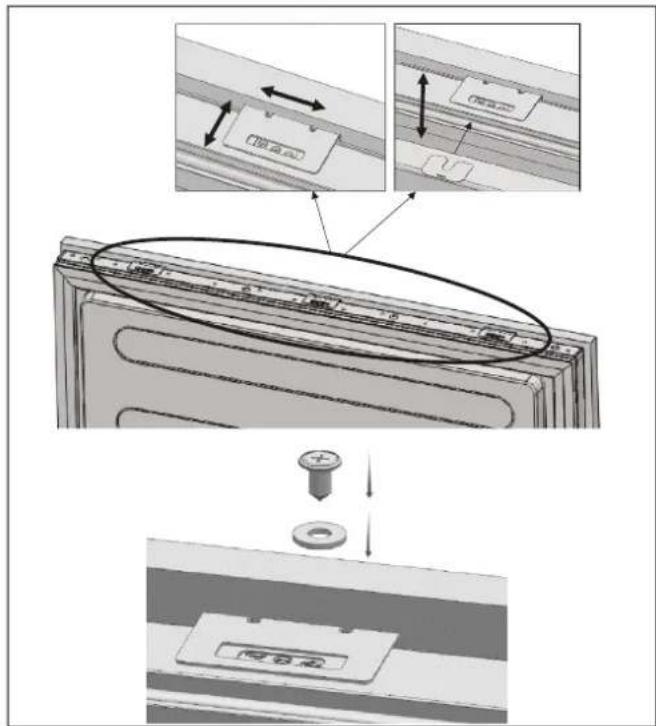

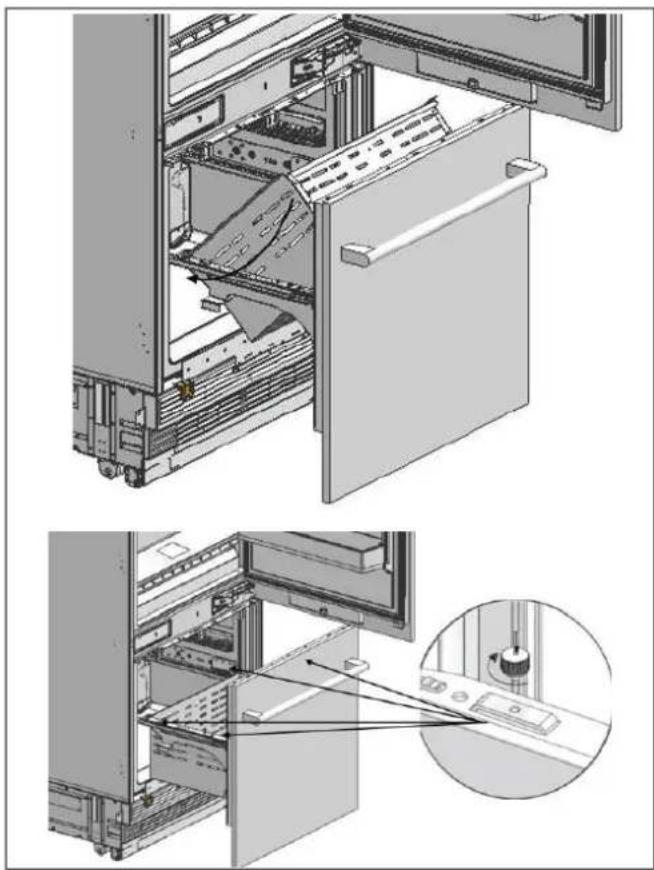

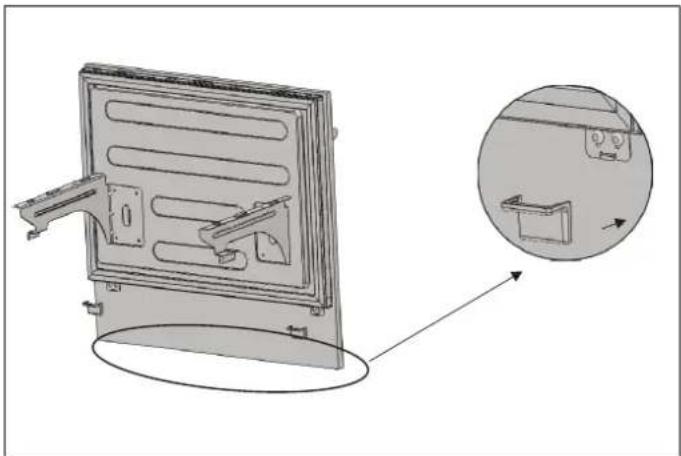

• Attach the 3 freezer door hanger metal "L" brackets (#9) using 6 screws (#10) and 1 screw (#8) for each. Fig. 67

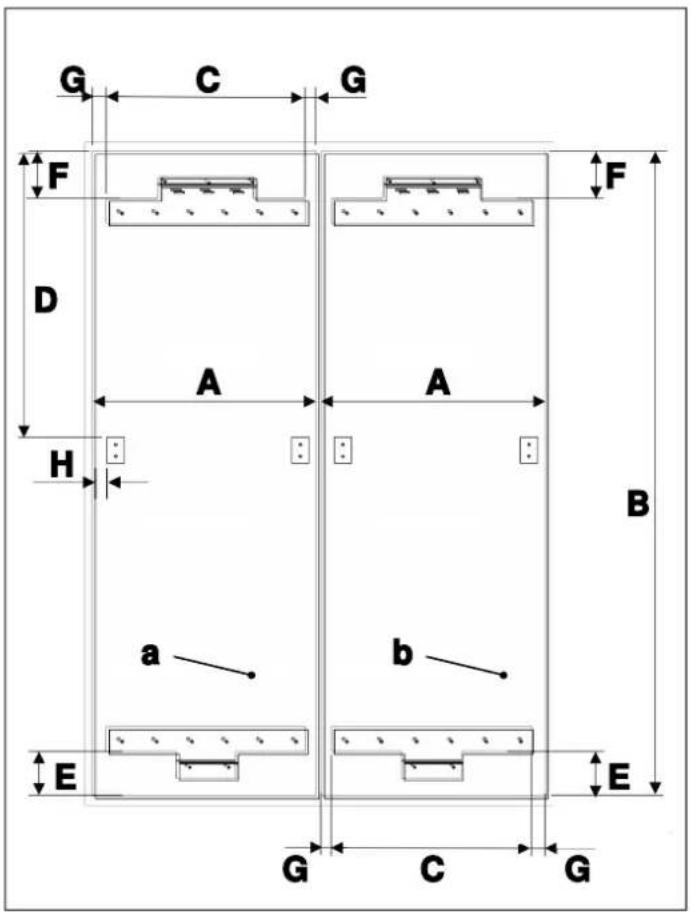

53INSTALLATION INSTRUCTION The furniture door preparation template (#1) provided can be used to align the door panel and the brackets. Fig. 68 WARNING You must use screws suitable for the door panel thickness. Install the hanger brackets using the screw furniture door hanger brackets (#18). You can also use the furniture door preparation template (#1) provided with the product to align these parts. It is recommended to keep this template for future reference. Attach freezer door hanger brackets (#9) using 6 screws (#18) for each.

• Attach the door handle to the panel prior to installing the panel on the freezer. Use handle hardware that will ensure a secure connection to the panel and that will lie flush against or, in any case, not protrude from the back of the overlay panel. This may require countersinking the handle hardware into the back of the panel. The door handle mounting screws must not protrude either. Fig. 69

INSTALLING THE REFRIGERATOR CUSTOM

DOOR PANEL Attach the furniture door to the fridge door by slightly tilting it diagonally. Fig. 70 54INSTALLATION INSTRUCTION

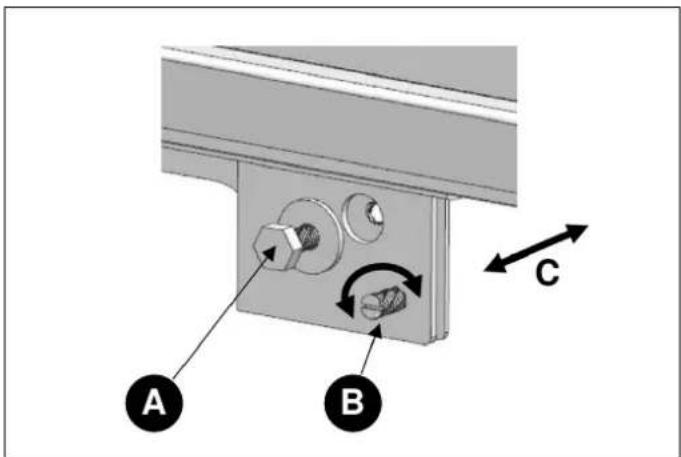

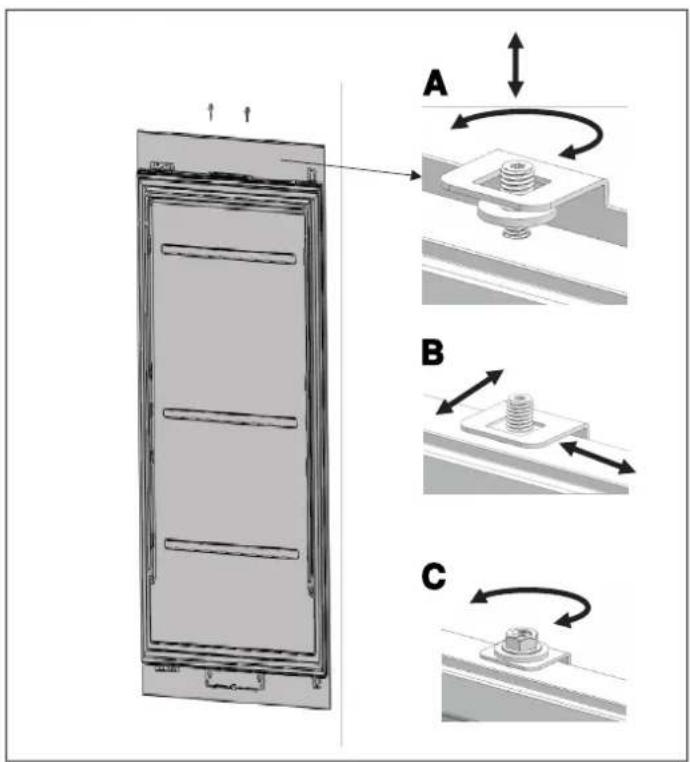

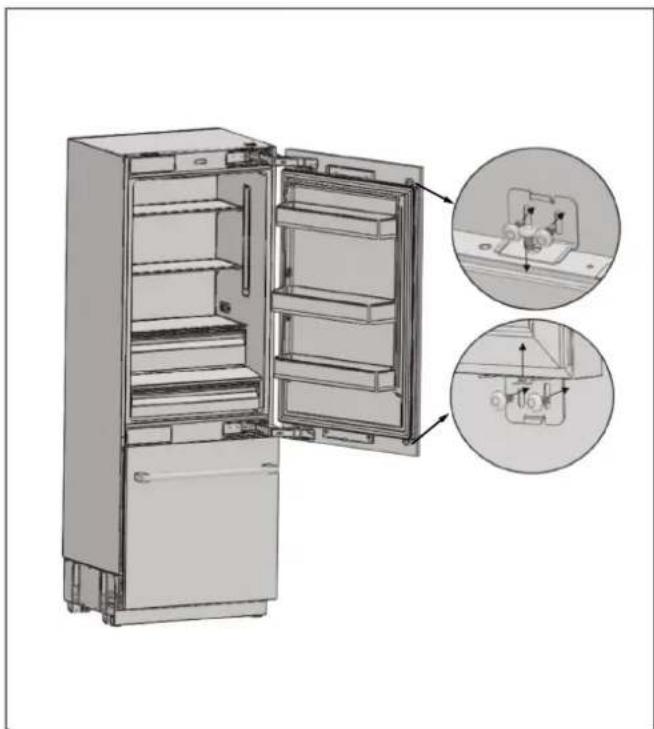

ALIGNING THE UPPER PART OF THE

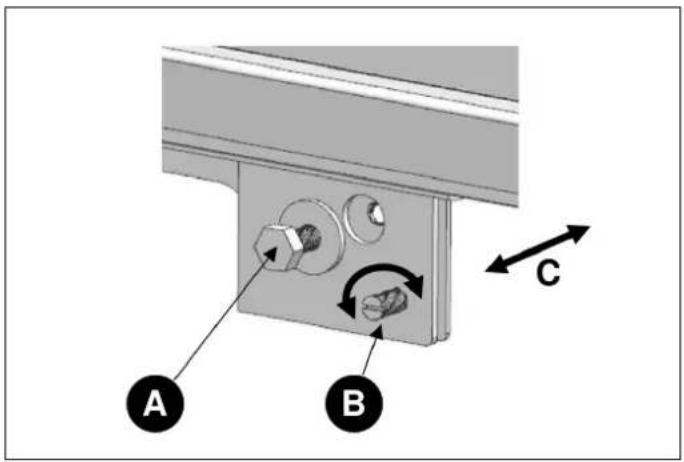

CUSTOM DOOR PANEL WITH BOLTS

• The custom panel for the refrigerator must be flush with the cabinet doors beside it. To achieve this, it is necessary to adjust the 3D direction using two fixing bolts. First, check the position of the refrigerator door in relation to the kitchen cabinets. The distance between the door and the cabinets beside it should be 3 mm (1/8″), assuming that the door dimensions are correct. You can now adjust the door according to this distance. Fig. 71

• C Fixing furniture door completely

• B Fixing furniture door completely

• Use the bracket furniture door (#16) to join the furniture door

• Use 1 screw door fixing bracket (Item #15) to fix on the door.

• Use 2 screws (Item #17) to fix on the furniture door Fig. 74 WARNING There is a magnet on the cover door hanger bracket upper. WARNING This is a functional part for the operation of the product. WARNING It should not be confused with the lower cover.

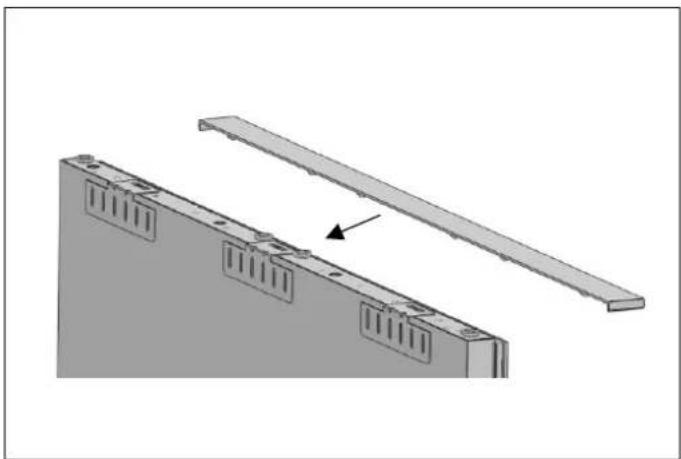

• Clip the cover furniture door bracket (#14). Fig. 75

• Attach and screw the upper/lower decoration cover. Fig. 76 56INSTALLATION INSTRUCTION Fig. 77 Secure the fixing irons (#21) at the door side using screws (#19) and washers (#20).

• Attach door-door furniture connecting bracket (Item #16) on the door lower part with screw door fixing bracket (Item #15) Fig. 78

• Align the furniture door for the freezer drawer with the adjustment washer (#7). 57INSTALLATION INSTRUCTION

• Fix the three freezer door hanger brackets (#9) with one screw (#8) and one shim (#8-1) each. Fig. 79

• Use 2 screws (Item #17) to fix on the furniture door. Fig. 80

• Clip the cover furniture door bracket (Item #14). Fig. 81

• Install the Freezer Furniture door assembly onto the rails. Fig. 82 58INSTALLATION INSTRUCTION

• Fix the Freezer Furniture door assembly onto the rails with 2 screws. Fig. 83

• Locate the drawer onto the rail and tigthen the screws Fig. 84

Attach the side door trims (#2 and #3) to complete the installation. Fig. 86 Remove the double-sided tape paper before attaching the parts. Fig. 87

• Use a drill to adjust the tension of the upper and lower hinges of the fridge door. Set the hinge adjustment screw to position "I" from position "O". Fig. 88 WARNING The door must be fully open during this adjustment. WARNING The hinge tension adjustment must be performed only after the door panel has been adjusted.

• Set the tension level of the hinge to "0". Fig. 89 CAUTION Failure to set the hinge to "0" before continuing the installation may result in injury.

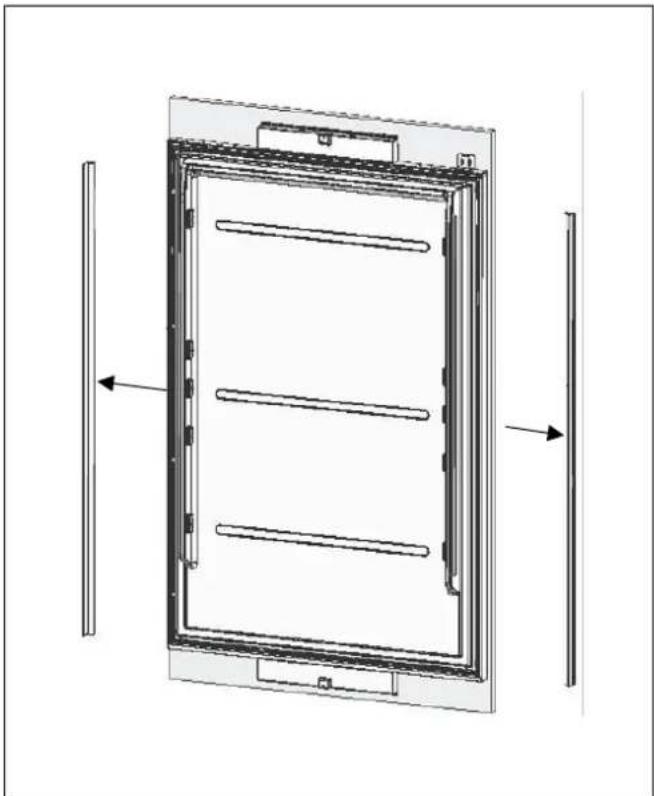

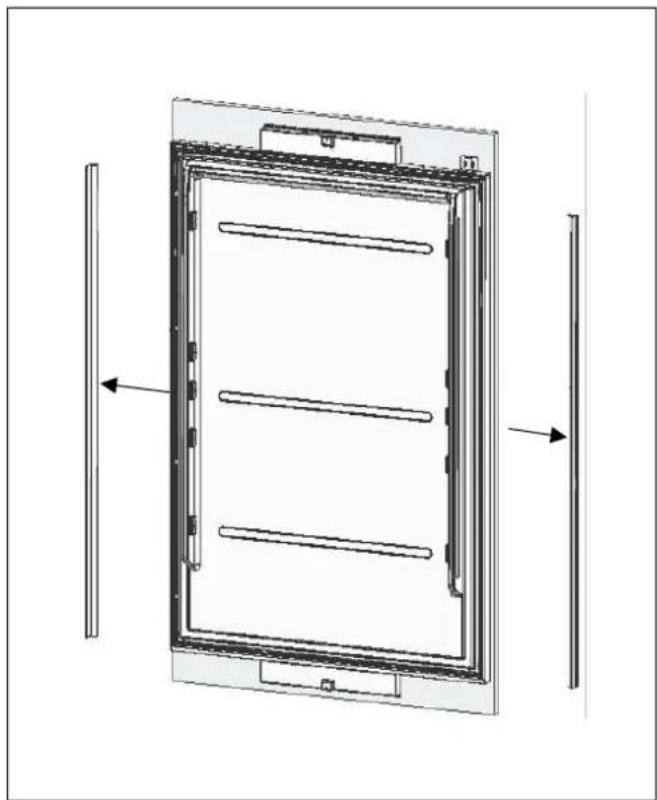

• Remove the side closing seals. Fig. 90

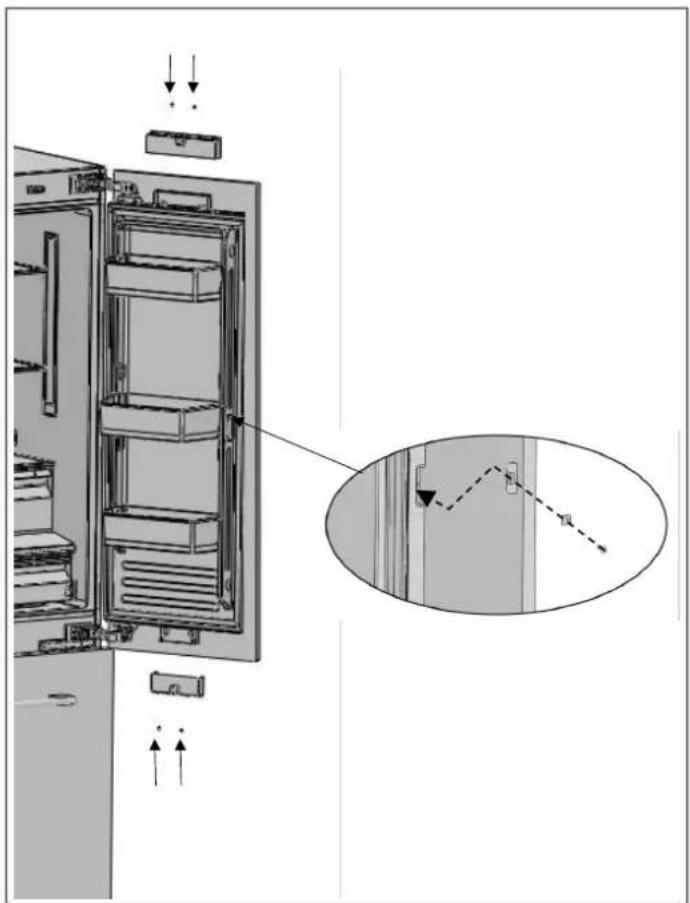

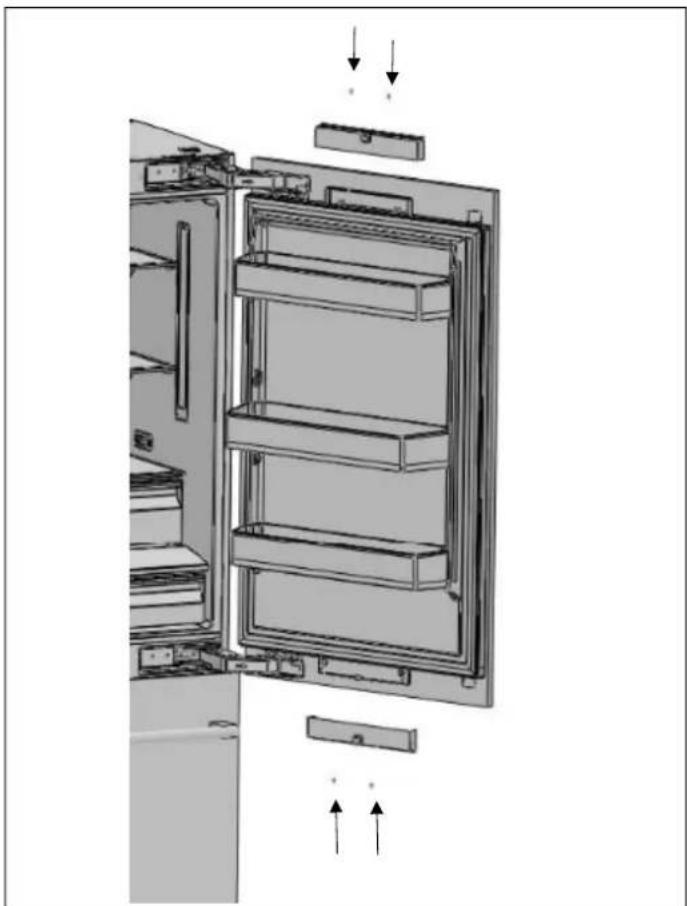

• Loosen the 2 screws in the upper cover of the fridge door and remove it. Fig. 91

61REVERSING THE DOOR SWING

• Loosen the 2 screws in the lower cover of the fridge door and remove it. Fig. 92

• Remove the lower and upper bracket screws from the fridge. Fig. 93 RBM90S5FPNS / RBM75S5FPNS

62REVERSING THE DOOR SWING

Fig. 94 RFD90S5FPNS/24 French doors are not reversible. The steps below indicate the procedure to be followed should it be necessary to remove the panels

• Remove the screw from the upper and from the lower fridge mechanism. WARNING The fridge door panel will be released when these screws are removed. You must take measures to prevent the door from falling. You can tape the cabinet door to the inner door or ask a second person to help.

• Take off the fridge cabinet door and lay it upside down on a table top.

• You must attach the cabinet door by rotating it 180° with respect to its current position.

63REVERSING THE DOOR SWING

REMOVING AND PREPARING THE INNER

• Remove the hinge connection screws from the hinge brackets. CAUTION The door will be released when these screws are removed. You must take measures to prevent the door from falling. You can tape the cabinet door to the inner door or ask a second person to help. Fig. 95

• Take off the fridge door and lay it on a table top, then remove the mounting components and screw them to the opposite side of the door.

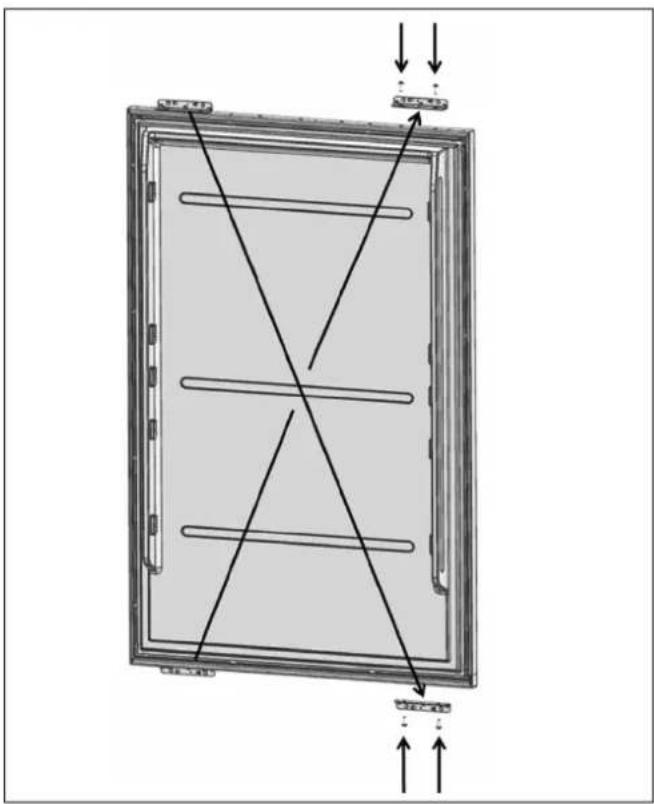

• Use 2 screws to attach the hanger sheet. Fig. 96 NOTE To successfully complete the reversibility of the door swing, the brackets must be diagonally changed.

• Remove the Hinge Caps located at the other side where you will fix the hinges.

• Remove the screw cover and the screws securing the hinges. Fig. 97

• Remove the lower right hinge by loosening its 2 screws and fix it to its slot at the upper left side. Fig. 98

• Remove the upper right hinge by loosening its 2 screws and mount it in its slot on the lower left side Fig. 99

• Return the hinges' decorative screw caps to their places.

65REVERSING THE DOOR SWING

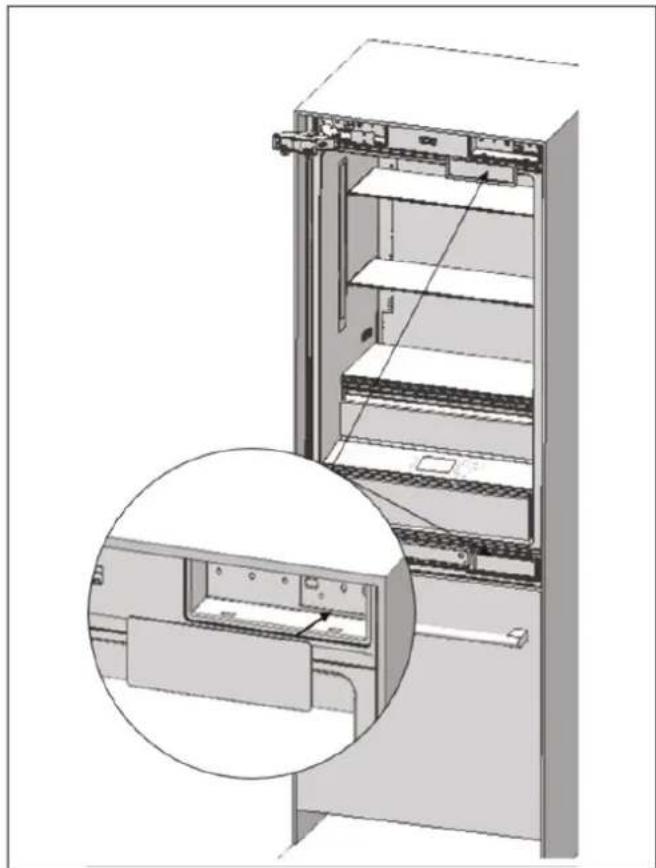

• Return the hinge pocket cover to the opposite side, where the hinges were removed. Fig. 100

AIR VENT UPPER PART DIRECTION CHANGE

• Remove the air vent part and change direction as shown in the figure. Fig. 101

REINSTALLING THE DOOR

• Place the inner door on the refrigerator using the door seal to help hold the door in place and fasten it back onto the hinges using 4 screws. Fig. 102

• Please check cabinet cutout dimensions below before starting the installation. For combined installations of two or more bottom mount refrigerators, one or more accessory connection trim kits (CTXV) must be purchased. Fig. 103

• Location of the electrical wiring must be within the range given below. WARNING Do not use extension cables or two-pin adaptors and do not remove the ground terminal of the grounding cable. WARNING A qualified electrician must ensure that the poles of the socket are connected correctly. Verify that the grounding of the socket is correct. For technical aspects, refer to the ELECTRICAL REQUIREMENTS chapter. Fig. 104

Location of the water system should be as in the image below. For technical aspects, refer to the PLUMBING REQUIREMENTS chapter. Fig. 105

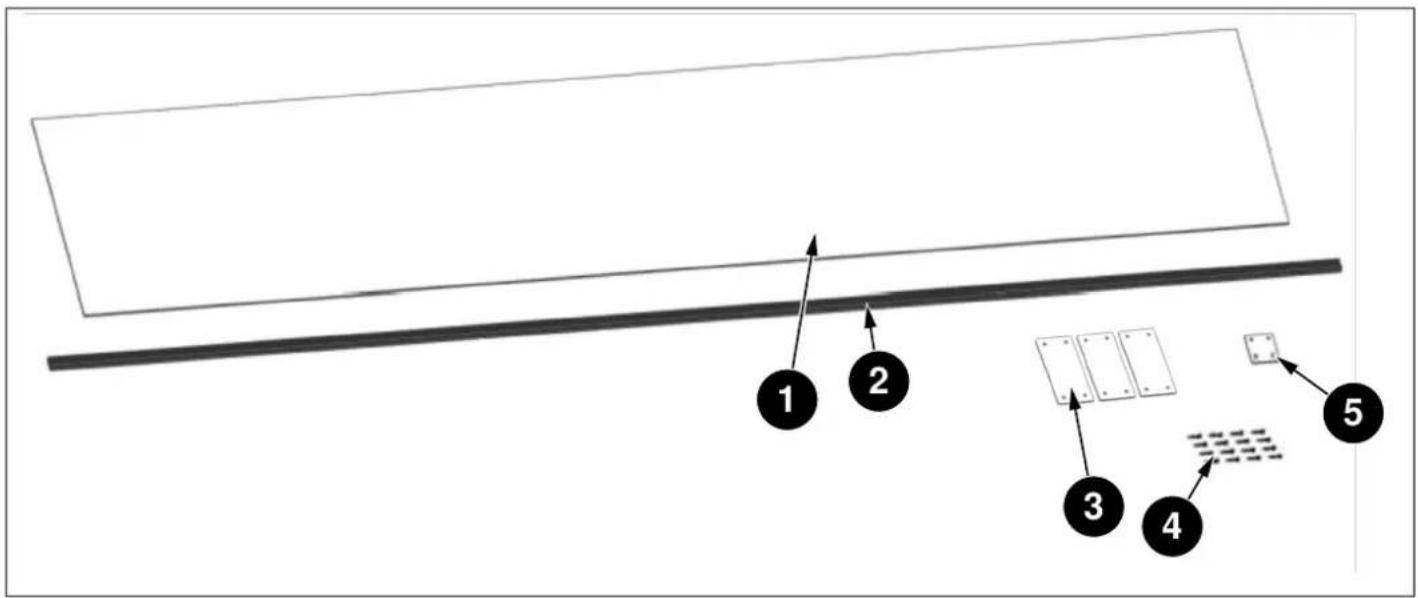

Connecting bracket T2.0, Cr+zn-coating

Central trim PVC extrusion L = 1876 mm

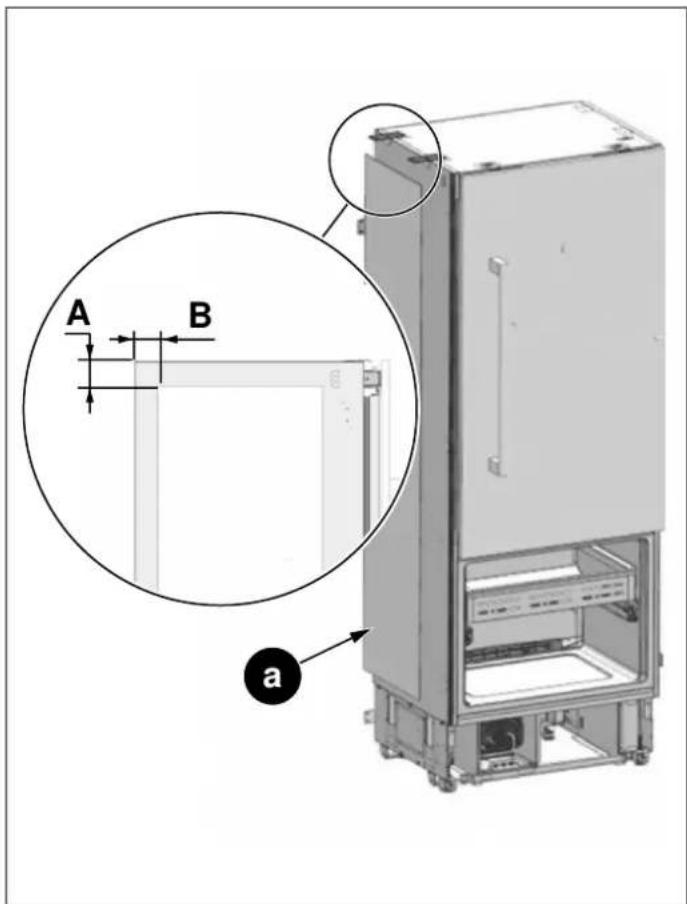

Attach the Insulating Foam centered to the side of one ofthe refrigerator units, as per the picture below:Fig. 107a. Insulating foamA. 60 mmB. 55 mm NOTE The insulating foam must be attached to the side of the unit that will be placed next to the other appliance, fitting it securely between the two units. Failure to do so may lead to condensation buildup.

INSTALLING THE FASTENERS AND

• Position the two refrigerators side-by-side, ensuring they are properly aligned.

• Once aligned, use screws to attach the fasteners (#4) to both refrigerators. Refer to the pictures below for guidance: Fig. 110

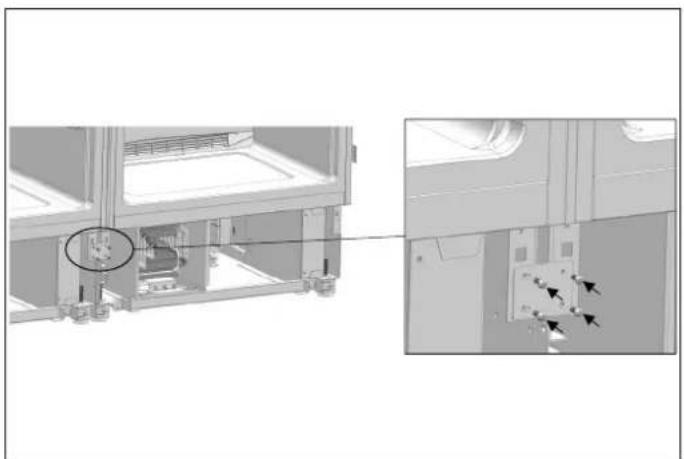

• Once the refrigerators are properly aligned, secure the connecting brackets at the back (Fig. 111 )and the front (Fig. 112 ), joining the two refrigerators together. Fig. 111 Fig. 112

• Connect the power supply to the refrigerators.

• Install the water connections for the refrigerators, following the manufacturer’s instructions.

• Gently push the refrigerators into their final position, making sure they are level and stable.

• Ensure that the refrigerators are properly aligned before inserting the Center Trim.Fig. 113
• Gently push the Center Trim between the refrigerators to securely fit it in place.Fig. 114

POSITIONING THE REFRIGERATORS IN THE

• Connect the power supply to the refrigerators.• Install the water connections for the refrigerators,following the manufacturer’s instructions.• Gently push the refrigerators into their final position,making sure they are level and stable.Fig. 115 A. Cabinet cutout B. Refrigerators C. 3 mm (1/8″)

• Using a drill and the bit shown below, engage each of the refrigerator's adjuster shafts in turn and level the refrigerator. Fig. 116 Raise the front feet to reduce any risk of the cabinet falling frontward. A/D –Rotate the shaft clockwise to raise the front feet B/C –Rotate the shaft clockwise to raise the rear feet.

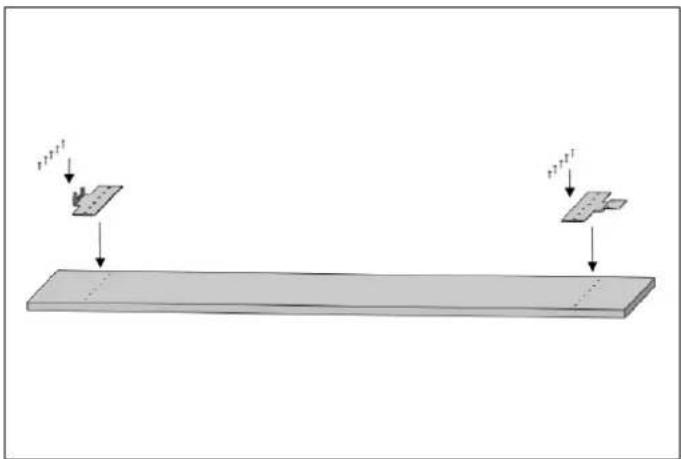

• Install the connection brackets to the refrigerator using 12 screws. Fig. 117

• Attach the connection brackets to the refrigerator using 4 screws. Fig. 118

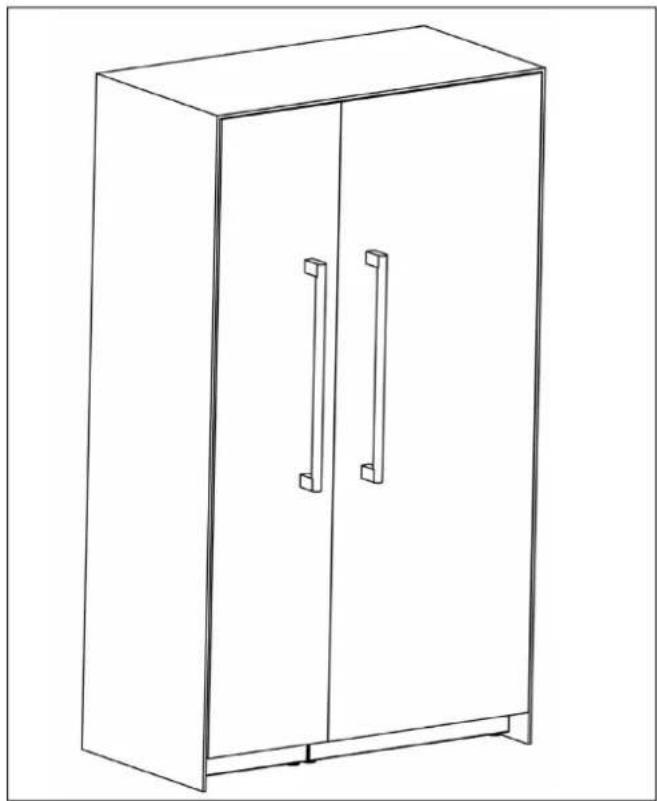

• Install the lateral trims onto the right and left connection brackets. Fig. 119

• Ensure that the refrigerators are properly aligned before inserting the Center Trim (part #5).

• Gently push the Center Trim between the refrigerators to securely fit it in place. Fig. 122 Fig. 123

• Porte frigo French Door: 16 kg (35 lb)

162DIMENSIONS DU PRODUIT

163DIMENSIONS DU PRODUIT

164DIMENSIONS DU PRODUIT

165DIMENSIONS DU PRODUIT

166DIMENSIONS DU PRODUIT

• D 6 mm (1/4″) Afb. 13 WAARSCHUWING

• “Bottom mount” koelkastdeur: 16 kg (35 lbs)

AVLÄGSNA OCH FÖRBEREDA
