REF60BIS - Refrigerator BERTAZZONI - Free user manual and instructions

Product type	Refrigerator
Brand	Bertazzoni
Model	REF60BIS
Width	60 cm
Height	185 cm
Depth	65 cm
Net weight	65 kg
Power supply	220-240 V, 50 Hz
Annual energy consumption	250 kWh
Energy class	E
Total net capacity	350 L
Refrigerator capacity	250 L
Freezer capacity	100 L
Number of shelves	4 glass shelves
Interior lighting	LED
Temperature control function	Mechanical thermostat
Automatic defrost	Yes, refrigerator
Cooling system	Static
Noise level	40 dB
Repairability index	7.5 / 10
Spare parts available	Thermostat, shelves, door seals
Maintenance	Cleaning with soft cloth and soapy water
Installation	Leave a space of 5 cm at the back for ventilation

Frequently Asked Questions - REF60BIS BERTAZZONI

What is the ideal temperature for the refrigerator?

The ideal temperature is between +2°C and +5°C. Use the thermostat to adjust it.

How to adjust the freezer temperature?

The general thermostat of the refrigerator also controls the freezer. Turn the dial to a higher setting to lower the temperature.

What to do if the refrigerator stops cooling?

Check that the plug is connected, the thermostat is not set to '0' or 'Off', and the rear ventilation is not obstructed. If the problem persists, contact after-sales service.

How to clean the inside of the refrigerator?

Unplug the appliance, empty it, and clean the walls with a soft cloth soaked in warm water and white vinegar. Rinse and dry thoroughly before putting it back into service.

Do I need to manually defrost the refrigerator?

No, the refrigerator has automatic defrost. However, the freezer may require manual defrosting if the ice layer exceeds 5 mm.

What is the noise level of this appliance?

The noise level is about 40 dB, making it quiet for kitchen use.

How to reverse the door opening direction?

Unscrew the hinges, remove the door, then reattach the hinges on the other side. Refer to the diagram in the manual for detailed steps.

Where to find spare parts?

Parts such as shelves, door seals, or thermostats are available from Bertazzoni customer service or authorized dealers.

What is the energy class?

This appliance is rated E on the European energy label, with an annual consumption of about 250 kWh.

How to install the refrigerator?

Place it on a flat floor, away from direct sunlight and heat sources. Leave a gap of at least 5 cm at the back for ventilation.

USER MANUAL REF60BIS BERTAZZONI

F.LLI BERTAZZONI ITALIA

INSTRUCTION MANUAL

Refrigerator-freezer

MODEL:REF60BIS

CONTENTS

1 Safety warnings

1.1 Warning.... 1
1.2 Meanings of safety warning symbols.... 2
1.3 Electricity related warnings.... 2
1.4Warnings for using.... 3
1.5 Warnings for placement 3–4
1.6Warnings for energy 4
1.7 Warnings for disposal.... 4

2 Proper use of the refrigerator

2.1 Placement.... 5
2.2 Installation in cabinet....6-7
2.3 Door Right-Left Change 8-10
2.4 Changing the Light.... 11
2.5 Starting to use.... 11
2.6 Energy saving tips.... 11

3 Structure and functions

3.1 Key components.... 12
3.2 Functions.... 13

4 Maintenance and care of the refrigerator

4.1 Overall cleaning.... 15
4.2 Defrosting.... 15
4.3 Out of operation.... 15

5 Trouble shooting

5.1 Trouble shoot ing....16

1 Safety warnings

1.1 Warning

Warning: risk of fire / flammable materials

RECOMMENDATIONS:

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications. (EN60335-2-24)

For EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (IEC60335-1)

For IEC standard: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.)

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

WARNING: Risk of fire / flammable materials.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.

Do not use extension cords or ungrounded (two prong) adapters

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

-Take off the doors

-Leave the shelves in place so that children may not easily climb inside

The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable.

Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

1.2 Meaning of safety warning symbols

Prohibition symbol

This is a prohibition symbol. Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.

Warning symbol

This is a warning symbol. It is required to operate in strict observance of instructions marked with this symbol; or otherwise damage to the product or personal injury may be caused.

Note symbol

This is a cautioning symbol. Instructions marked with this symbol require special caution. Insufficient caution may result in slight or moderate injury, or damage to the product.

This manual contains lots of important safety information which shall be observed by the users.

1.3 Electricity related war nings

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a refrigerator with a door, no text or symbols present

• Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly.
• To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.

- Please use a dedicated power socket and the power socket shall not be shared with other electrical appliances. The power plug should be firmly contacted with the socket or else fires might be caused.

- Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

- Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

Line drawing of a refrigerator with a washing machine and a door, no text or symbols present

• Do not use electrical appliances on the top of the appliance, unless they are of the type recommended by the manufacturer.
• Do not use electrical appliances in the food storage compartments of the appliance, unless they are of the type recommended by supplier.

1.4 Warnings for using

Simple line drawing of a refrigerator with a handle, falling into a container, and a crossed-out box (no text or symbols)

• Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist
• Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

• The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when close the refrigerator door to avoid falling articles.
• Do not pick foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

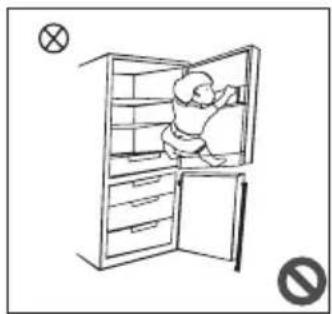

Line drawing of a child hanging from an open refrigerator with no text or symbols

- Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may be caused.

Simple line drawing of a trash bin with a sad face and warning symbols (no text or labels)

• Do not place heavy objects on the top of the refrigerator considering that objectives may fall when close or open the door, and accidental injuries might be caused.
• Please pull out the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

1.5 Warnings for placement

Illustration of hands holding a tray with a bottle, blocks, and a cross symbol (no text or labels)

• Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.
• Do not place flammable items near the refrigerator to avoid fires.

- The refrigerator is intended for household use, such as storage of foods; it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc.

- Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; otherwise the bottles or enclosed containers may crack due to freezing to cause damages.

1.6 War nings for energy

1) Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
2) The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;
3) The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;
4) The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5) The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.
6) The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside

1.7 War nings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable.

Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

Correct Disposal of this product:

This marking indicates that this product should not be disposed in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances(WEEE).

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

2 Proper use of refrigerators

2.1 Placement

Simple line drawing of a person carrying a cardboard box next to an appliance (no text or symbols)

- Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.

Simple line drawing of a refrigerator with a sad face, sun, and potted plant (no text or symbols)

• Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.
• Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.

Simple line drawing of a refrigerator and a door (no text or symbols)

- The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy.

! Precautions before installation:

Information in the Instruction Manual is only for reference. The physical product may differ.

Before installation and adjusting of accessories, it shall be ensured that the refrigerator is disconnected from power.

2.2 Installation in cabinet

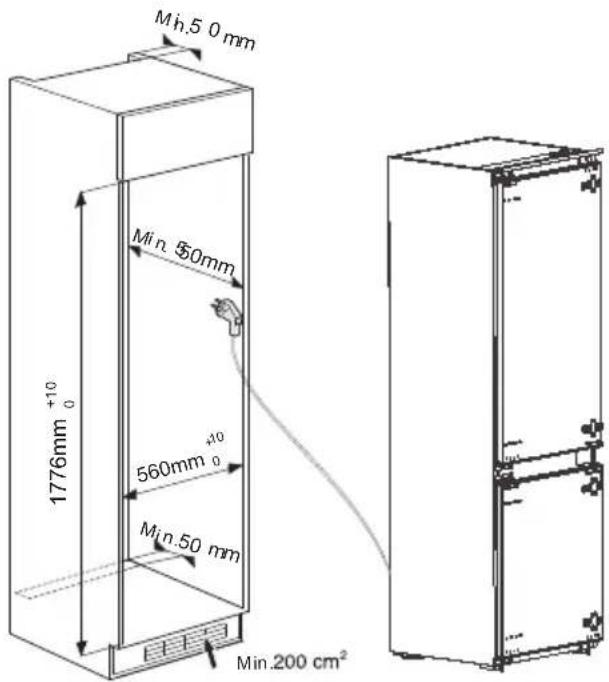

- Fridge size and cabinet size requirement.

- Push the refrigerator into the cabinet and adjust it to make sure the edgefold of top baffle completely touch the top edge of the cabinet, and the limit hook of supporting leg completely touch the bottom edge of the cabinet.

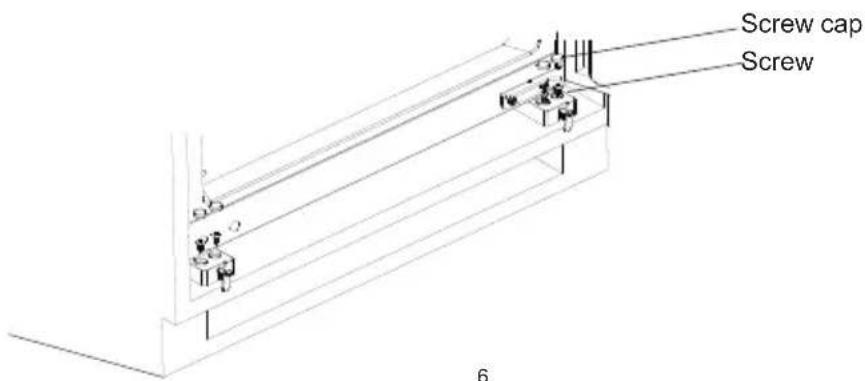

- Fix the supporting leg with screws, then install the screw caps.

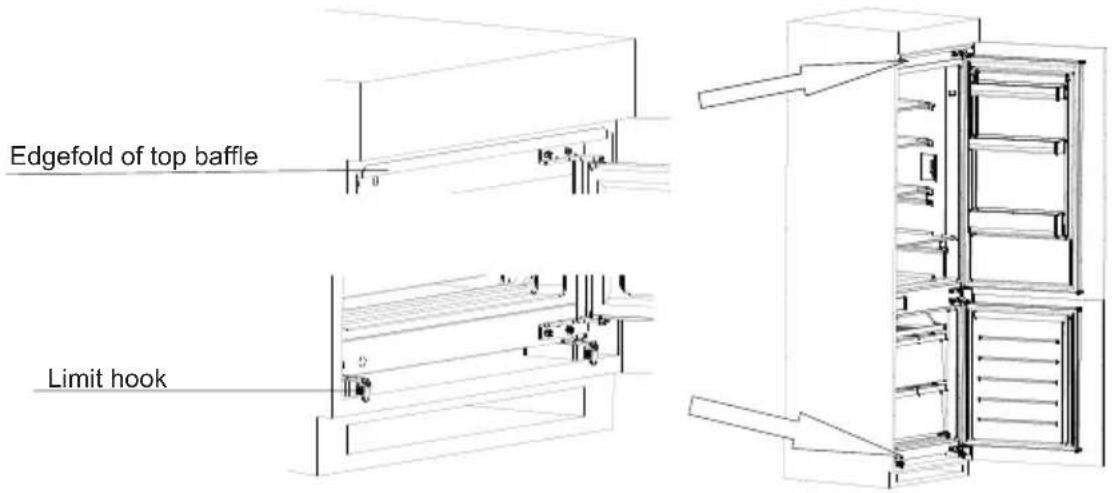

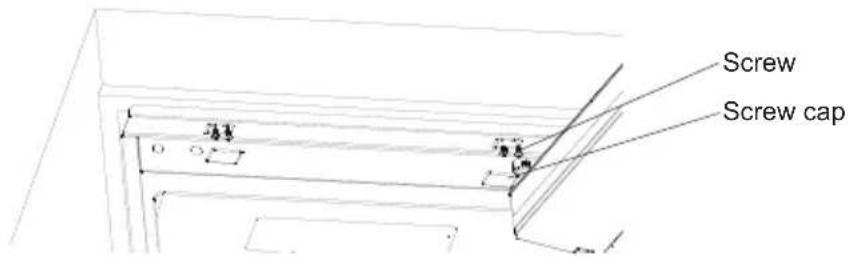

- Fix the top baffle to the top of the cabinet inner with screws, then install the screw caps.

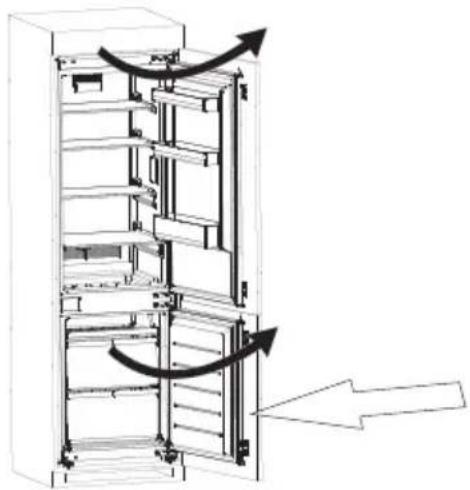

- Open the lower door of cabinet the maximum angle, and open the lower door of the refrigerator to the corresponding position. Sliding the block to make sure inner edge align with the lower door edge of refrigerator, then fix the block to the door of cabinet with screw and install screw caps. Fix the upper refrigerator door to the cabinet door in the same way.

Diagram of a refrigerator interior showing door, shelves, and air vent (no text or labels)

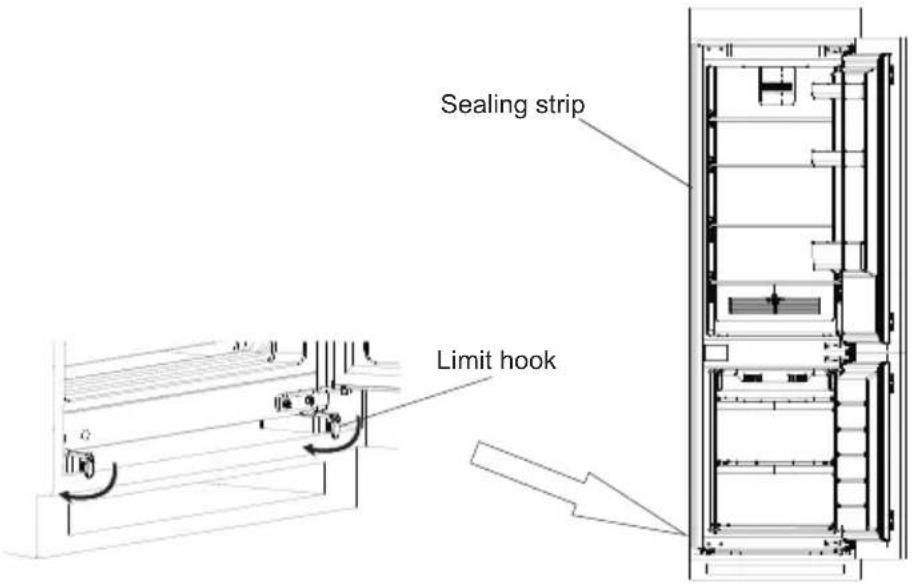

- Take out the sealing strip from accessory bag, and press it in the gap between the cabinet and the refrigerator, then adjust the limit hook to original position. Installation is completed.

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor )

2.3 Door Right-Left Change

List of tools to be provided by the user
[28WH]	Cross screwdriver		Putty knifethin-blade screwdriver
	5/16"socket and ratchet		Masking tape

1) Power off the refrigerator, and remove all objects from the door trays.

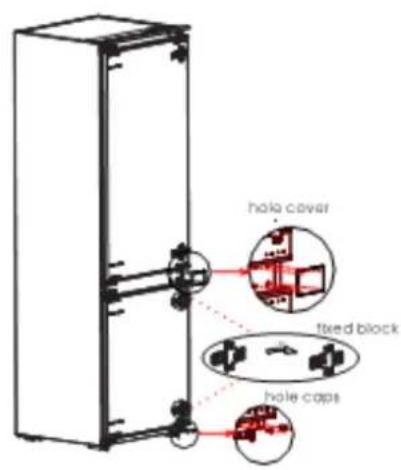

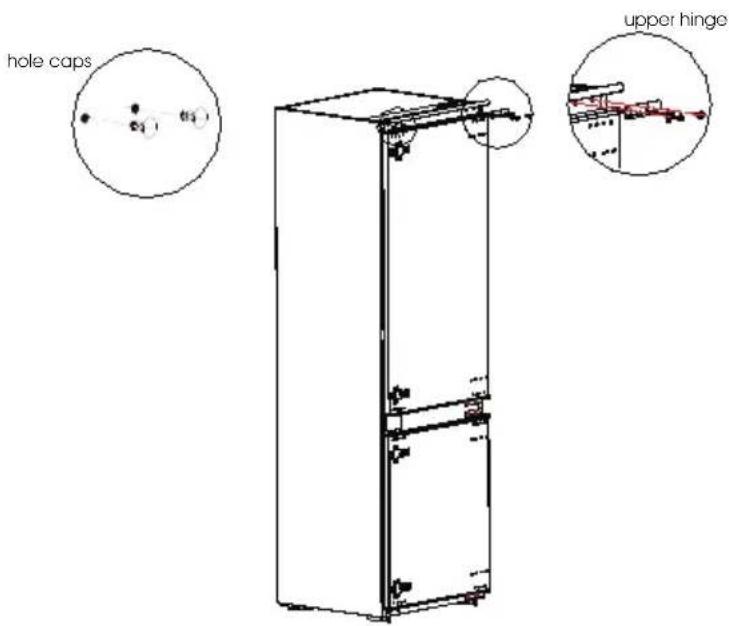

2) Remove the upper hinge and hole caps of refrigerator door.

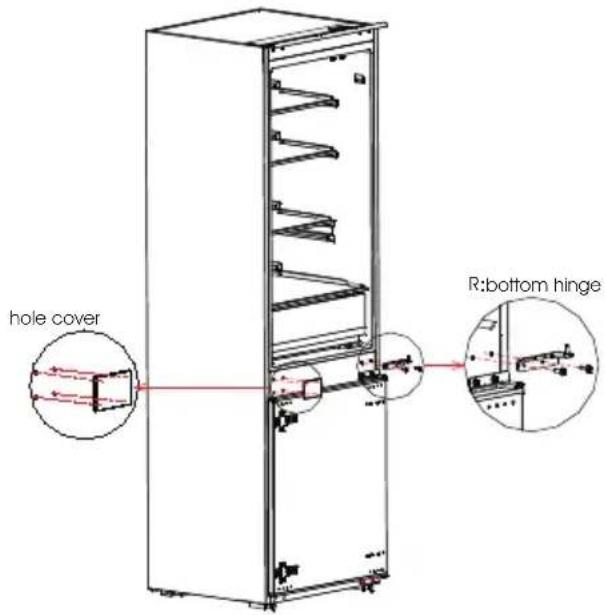

3) Remove the refrigerator door, the bottom hinge and the hole cover.

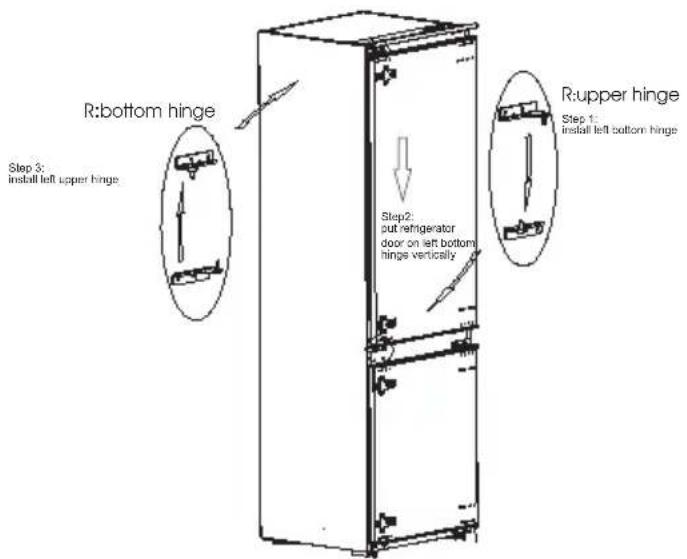

3) Exchange the R: bottom hinge and R: upper hinge, then install them according to below steps, and install the top hole caps.
4) Refr refrigerator with fixed books for 80° rotate and install them on other side of . refrigerator door

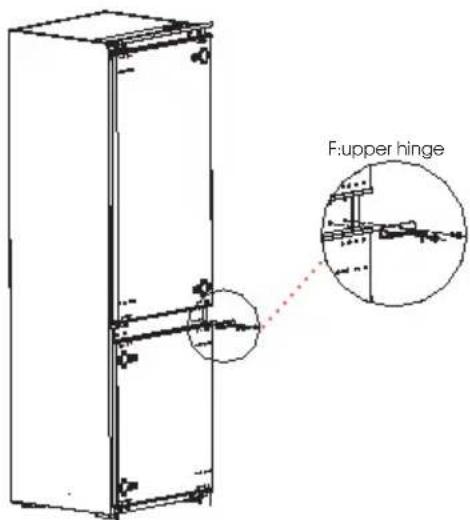

5) Remove the the upper hinge of freezer door.

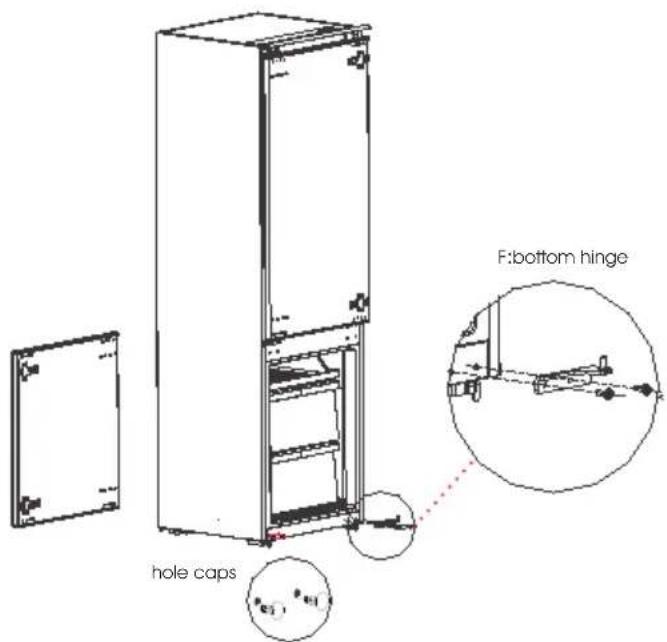

6) Remove the freezer door, the bottom hinge and the hole caps.

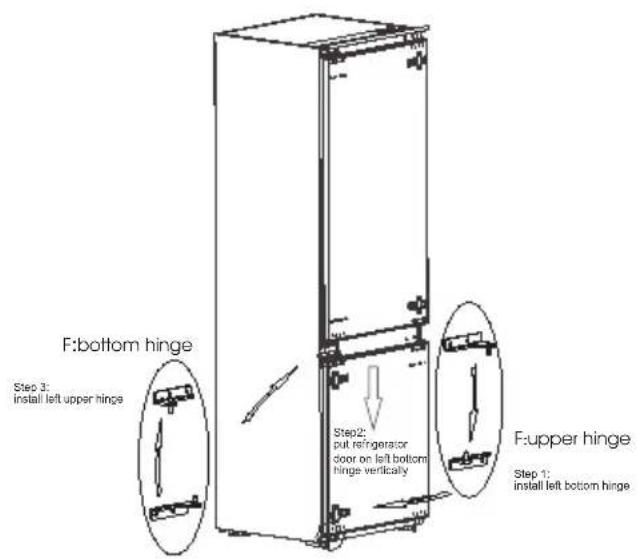

7) Exchange the F: bottom hinge and F: upper hinge, then install them according to below steps, and install the top hole cover and lower hole caps.

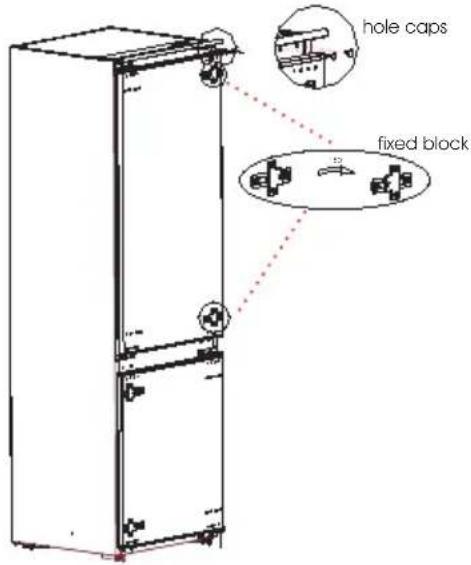

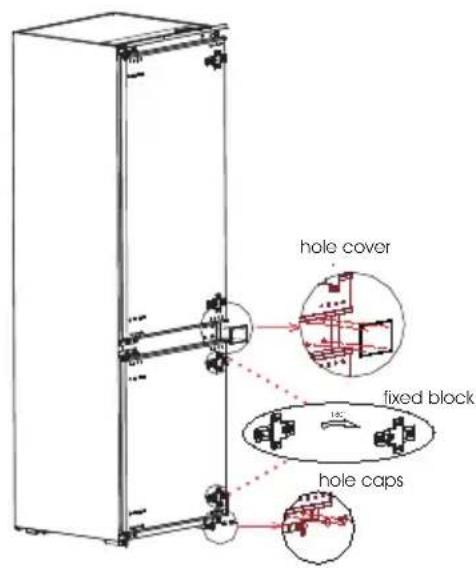

8) Riem 100 the two fixed blocks of freezer door and rotate them and install them on other side of . freezer door

9). The picture after completion is shown as below

Line drawing of a rectangular refrigerator with doors and front panel (no text or symbols)

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor )

2.3 the LightChanging

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

2.4 Starting

Simple line drawing of a smiling refrigerator with closed eyes and a power outlet (no text or symbols)

• Before initial start, keep the refrigerator still for half an hour before connecting it to power supply.
• Before putting any fresh or frozen foods, the refrigerator shall have run for 2–3 hours, or for above 4 hours in summer when the ambient temperature is high.

- Spare enough space for convenient opening of the doors and drawers or statement by the distributor.

2.5 Energy saving tips

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper , or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
  Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

3 Structure and functions

3.1 Key components

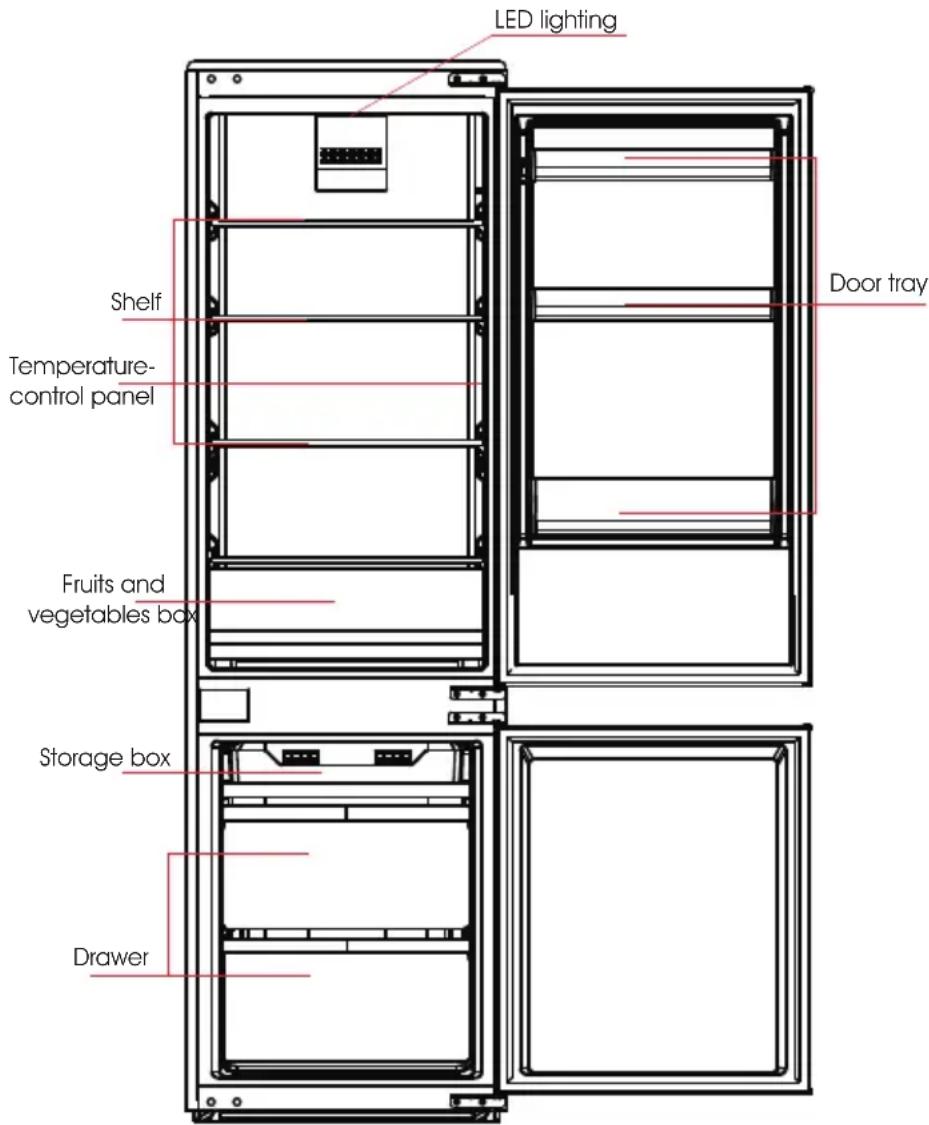

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor )

Refrigerating chamber

• The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumers short term.
  • Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.
• The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use.

Freezing chamber

• The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
• The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short term.
• Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food shall be consumed within the shelf time.

Note: Storage of too much food during operation after the initial connection to power may adversely affect the freezing effect of the refrigerator. Foods stored shall not block the air outlet; or otherwise the freezing effect will also be adversely affected.

3.2 Functions

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor )

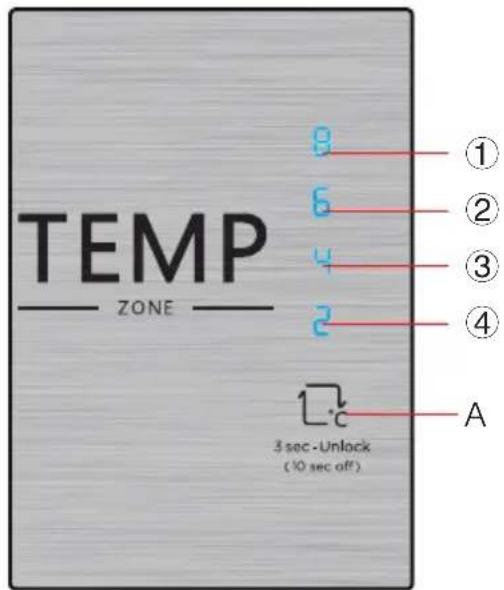

1) Key

A. Temperature setting button of refrigerator compartment

2) Display screen

①setting 1: 8°C
②setting 2: 6°C
③setting 3: 4°C
④setting 4: 2°C

3) Display

Once initially powered on the display screen is on full display for 3s. and then the refrigerator runs according to setting 3.

Normal operation display

In case of a failure the corresponding LED blinks.

In case of no failures that occur at a temperature setting of refrigerator.

Fault Code	Fault Description
indicator setting 1	Refrigerator temperature sensor circuit
indicator setting 2	Refrigerator defrost sensor
indicator setting 3	Freezer defrost sensor
indicator setting 4	Ambient temperature sensor

4) temperature setting

Each time the temperature is reported per year, and one time.

After the teaspace can be settled, the refrigerator will run according to the set value after 30s.

The shift regulation is:

5)Lock/Unlock

When the temperature control panel is in lock state, it needs to long press temperature setting key for 3 seconds for unlocking the panel, all LEDs will blink for 2 second when panel is unlocked. When the temperature control panel is in unlock state, if there is no operation on control panel within 30 seconds, it will enter into lock state automatically.

6) Memory function

Power off memory function of the control device, memory contents:

Refrigerator setting temperature: set the gear

Standby mode

Press total run time (when power on freezing frost sensor temperature greater than 8 ^ , press total run time).

7) Control of standby function

① entry mode:

In the unlocking state, set the key STE for 10S (when the display and control of the refrigerator are all off, the standby button will take effect when the key is released). After 30S, the refrigerator will enter the standby function mode, and the display and control of the ref rigerator will be all off in the standby mode.

② exit method:

In standby mode, press the SET key to exit the standby mode and the refrigerator will return to normal con.

4. Maintenance and care of the refrigerator

4.1 Overall cleaning

• Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. The interior of the refrigerator should be cleaned regularly to avoid odor. Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the door for natural drying before the power is turned on.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior.
• Do not rinse with water so as not to affect the electrical insulation properties.

Please unplug the refrigerator for defrost and cleaning.

Illustration of various alcohol and beverage items including a gas container, spray bottle, alcohol lamp, and teapot (no text or symbols)

4.2 Defrosting

- The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

4.3 Out of operation

• Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.
• Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.
• Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and seal them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45^ .

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; or otherwise the service life may be impaired

5 Trouble shooting

5.1 You may try to solve the following simple problems by yourself. If them cannot be solved, please contact the after-sales department.

Failed operation	Check whether the appliance is connected to power or whether the plug is in well contactCheck whether the voltage is too lowCheck whether there is a power failure or partial circuits have tripped
Odor	Odorous foods shall be tightly wrappedCheck whether there is any rotten foodClean the inside of the refrigerator
Long-time operation of the compressor	Long operation of the refrigerator is normal in summerwhen the ambient temperature is highIt is not suggestible having too much food in the appliance at the same timeFood shall get cool before being put into the applianceThe doors are opened too frequently
Light fails to get lit	Check whether the refrigerator is connected to power supply and whether the illuminating light is damagedHave the light replaced by a specialist
Doors cannot be properly closed	The door is stuck by food packagesThe refrigerator is tilted
Loud noise	Check whether the floor is level and whether the refrigerator is placed stablyCheck whether accessories are placed at proper locations
Door seal fails to be tight	Remove foreign matters on the door sealHeat the door seal and then cool it for restoration(or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored contains too much water,resulting in heavy defrostingThe doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normal.When housing becomes hot due to high ambient temperature and storage of too much food,it is recommended to provide sound ventilation to facilitate heat dissipation.
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

F.LLI BERTAZZONI ITALIA

Simple line drawing of a plug with a circular socket and a curved tube, no text or symbols present.

Simple line drawing of a room interior with a cabinet and door (no text or symbols)

Simple line drawing of a refrigerator with a door and lid, no text or symbols present

Simple line drawing of a refrigerator with an open lid and accessories (no text or symbols)

Hand holding a book with a starburst effect, no text or symbols present

Simple line drawing of a baby hanging from an open refrigerator with no text or symbols

Simple line drawing of a person with a stack of boxes and a sad face, accompanied by a warning symbol (no text or labels)

Simple line drawing of a person lifting a cardboard box next to an refrigerator (no text or symbols)

Illustration of a refrigerator with a sad face, sun, and potted plant nearby (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

Line drawing of a refrigerator with doors and a circular arrow indicating a component (no text or symbols)

Cerniera superiore

Line drawing of a double door with doors open, showing front and side panels (no text or symbols)

Simple line drawing of a smiling refrigerator with a small electrical outlet (no text or symbols)

Illustration of various household items including a glass, alcohol spray bottle, and a kettle with steam (no text or symbols)

4.2 Sbrinamento

MANUEL D'INSTRUCTIONS

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a cabinet and door, no text or symbols present

Simple line drawing of a kitchen appliance with a cabinet and handle (no text or symbols)

Simple line drawing of a refrigerator with a sad face, next to a pencil and directional arrows (no text or symbols)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a person inside an open refrigerator (no text or symbols)

Simple line drawing of a trash bin with an explosion symbol and warning symbols (no text or labels)

Illustration of hands holding a tray with food items including milk bottle, cheese, and instant noodles (no text or symbols)

Simple line drawing of a person pushing a large box next to a tall rectangular object (no text or symbols)

Simple line drawing of a refrigerator with sun and potted plant nearby (no text or symbols)

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

Line drawing of a two-door refrigerator with doors and front panels (no text or symbols)

Simple line drawing of a smiling refrigerator with closed eyes and a small plug attached to the side (no text or symbols)

Illustration of various household items including a spray bottle, a jar with liquid, a steaming kettle, and a small bottle (no text or symbols)

4.2 Décongélation

Three-panel cartoon showing a person handling a refrigerator, a sad refrigerator with a sad expression, and a refrigerator with a sun and potted plant (no text or symbols)

Line drawing of a double-door refrigerator with doors open and closed (no text or symbols)

Simple line drawing of a smiling refrigerator with a power outlet (no text or symbols)

Illustration of various household items including a glass, alcohol spray bottle, and a kettle with a smoke (no text or symbols)

4.2 Ontdooien
