Product Type	Bicycle frame mount for bike rack with anti-theft lock
Brand	Eufab
Model	11246
Length	650 mm
Compatible U-hitch diameter	25 mm or 30 mm (adjustable)
Main function	Secure a bicycle to the universal U-hitch of a bike rack
Safety	Integrated lock with two keys, anti-theft protection
Material	Resistant metal (steel)
Package contents	1 frame mount, 2 keys, 1 instruction manual
Intended use	For bicycles on bike racks, private non-commercial use
Maintenance and cleaning	Clean with a soft, slightly damp cloth and a mild cleaner; oil the lock regularly
Storage	Store in a dry place
Safety during use	Do not use if the mount is damaged; do not disassemble; follow the bike rack instructions
Repairability	Not user-repairable; no spare parts available
General information	Follow safety instructions to avoid injury and damage

Frequently Asked Questions - 11246 Eufab

How to install the frame mount on the U-hitch?

Unfold the frame mount with a slight bend (do not unfold to 180°). Adjust the diameter by tightening the screw. Place it on the U-hitch and lock with the lock. Follow the bike rack instructions to secure the bicycle.

Which U-hitch diameter is compatible with this mount?

The mount is compatible with U-hitches of 25 mm or 30 mm diameter. It adjusts easily using the tightening screw.

Can I use this mount with any type of bike rack?

This mount is designed for bike racks equipped with a universal U-hitch. Check the compatibility of the U-hitch diameter with your bike rack.

Is the lock secure?

Yes, the integrated lock offers additional anti-theft protection. Use the two keys provided. Be careful not to unfold the mount to 180° as the safety function would no longer be guaranteed.

How to maintain the frame mount?

Clean it with a soft, slightly damp cloth and a mild cleaner. Avoid solvents. Regularly apply resin-free oil to the lock. Store it dry.

What to do if the frame mount is damaged?

Do not use a damaged mount as it could be dangerous. It cannot be repaired; replace it with a new one.

Can I use it for an electric bike?

Yes, provided the bike weight does not exceed the load capacity of your bike rack. The mount has no specified weight limit, but follow the bike rack manufacturer's instructions.

How to protect the frame paint?

The mount can cause pressure points. Use a protective film between the frame and the mount to avoid scratches.

Is the frame mount foldable?

Yes, it unfolds for use. Do not unfold it to 180° to maintain the lock safety. A slight bend is enough.

Where can I find spare parts?

No spare parts are available. The mount is not repairable. If needed, replace the entire unit. Contact the manufacturer (EAL GmbH) for more information.

USER MANUAL 11246 Eufab

Technical line drawing of two adjustable wrench tools (no text or symbols present)

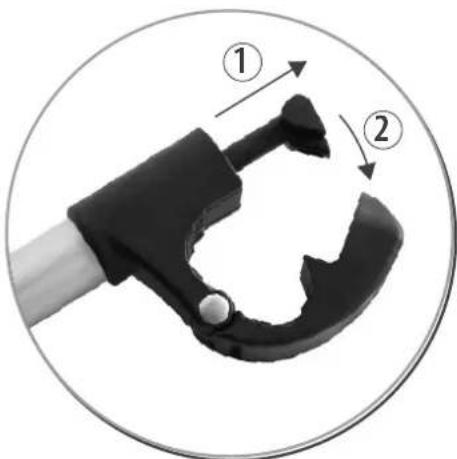

Diagram of a mechanical clamp or clip with numbered parts and directional arrows indicating motion or assembly.

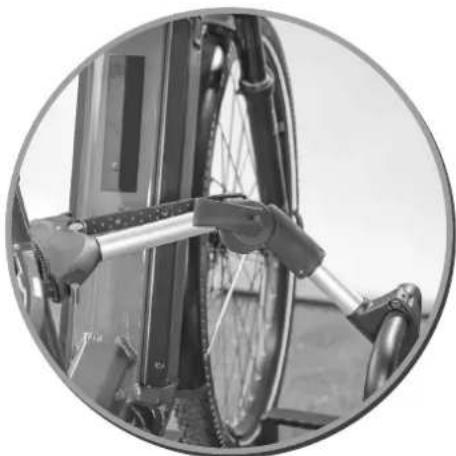

Close-up of a bicycle wheel with mechanical arms and levers, shown in circular crop (no text or symbols visible)

Black-and-white circular photo of a car parked near a multi-lane bicycle rack, surrounded by trees and grass (no visible text or symbols)

© EAL GmbH, 11244, 11245, 11246 07.2022

Line drawing of a mechanical assembly with threaded components and ornate frame (no text or symbols)

Warning symbol with exclamation mark inside triangle, commonly used to indicate caution or hazard

WARNING!

Please read the operating instructions carefully prior to use and observe all safety instructions!

Not observing such may lead to personal injury, damage to the device or to your property!

Store the original packaging, the receipt and these instructions so that they may be consulted at a later date! When passing on the product, please include these operating instructions as well.

Please check the contents of package for integrity and completeness prior to use!

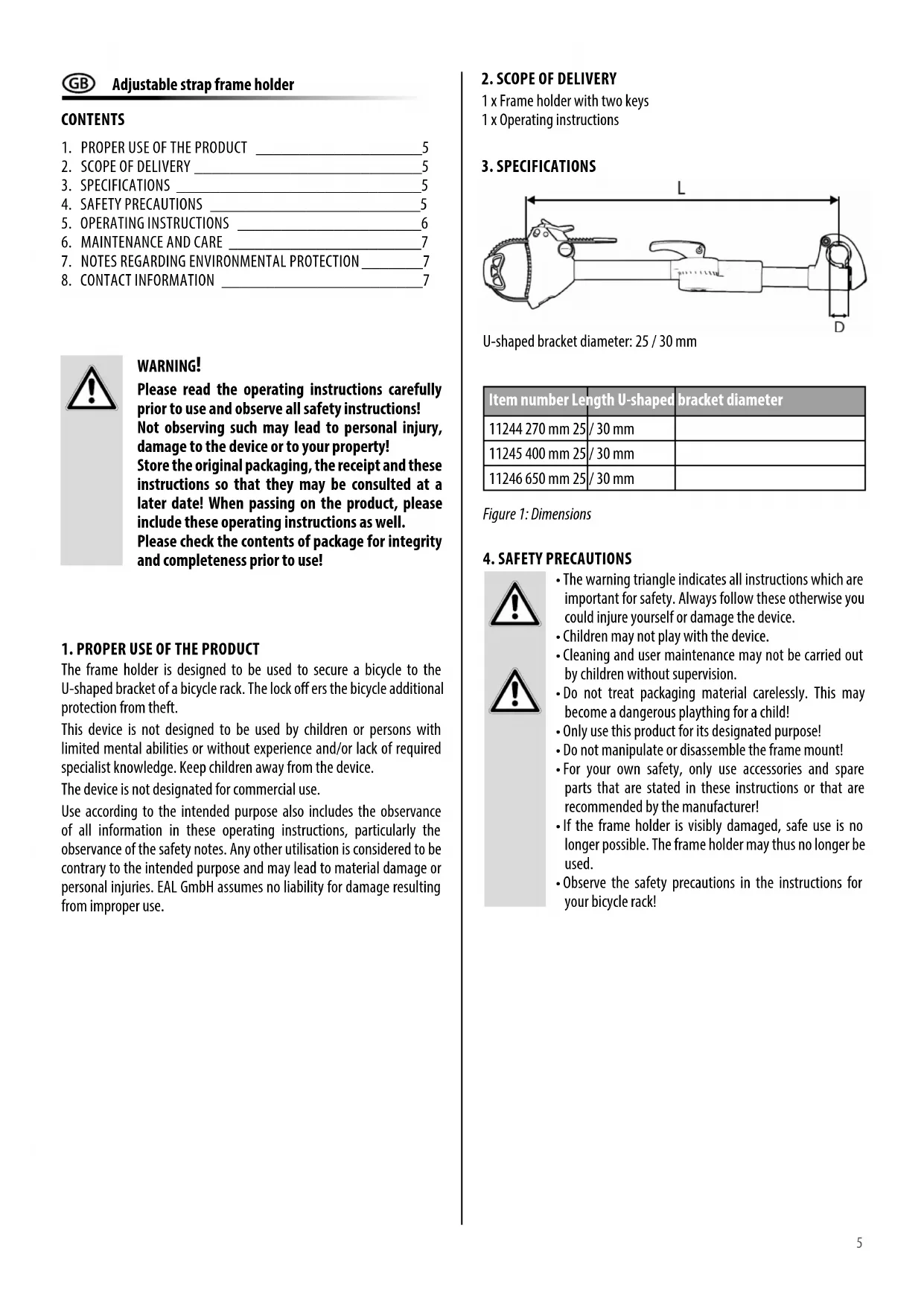

1. PROPER USE OF THE PRODUCT

The frame holder is designed to be used to secure a bicycle to the U-shaped bracket of a bicycle rack. The lock offers the bicycle additional protection from theft.

This device is not designed to be used by children or persons with limited mental abilities or without experience and/or lack of required specialist knowledge. Keep children away from the device.

The device is not designated for commercial use.

Use according to the intended purpose also includes the observance of all information in these operating instructions, particularly the observance of the safety notes. Any other utilisation is considered to be contrary to the intended purpose and may lead to material damage or personal injuries. EAL GmbH assumes no liability for damage resulting from improper use.

2. SCOPE OF DELIVERY

1 x Frame holder with two keys
1 x Operating instructions

1. SPECIFICATIONS

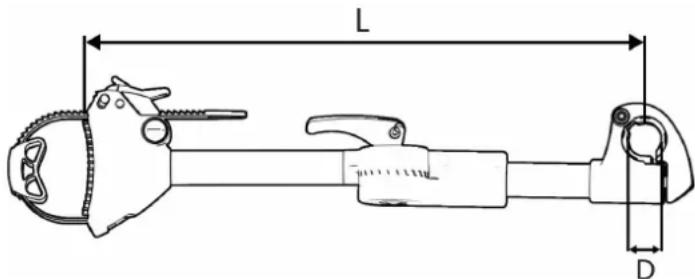

L D

U-shaped bracket diameter: 25 / 30 mm

Item number Length U-shaped bracket diameter
11244 270 mm 25	/ 30 mm
11245 400 mm 25	/ 30 mm
11246 650 mm 25	/ 30 mm

Figure 1: Dimensions

4. SAFETY PRECAUTIONS

• The warning triangle indicates all instructions which are important for safety. Always follow these otherwise you could injure yourself or damage the device.
  • Children may not play with the device.
• Cleaning and user maintenance may not be carried out by children without supervision.
• Do not treat packaging material carelessly. This may become a dangerous plaything for a child!
• Only use this product for its designated purpose!
• Do not manipulate or disassemble the frame mount!
• For your own safety, only use accessories and spare parts that are stated in these instructions or that are recommended by the manufacturer!
• If the frame holder is visibly damaged, safe use is no longer possible. The frame holder may thus no longer be used.

• Observe the safety precautions in the instructions for your bicycle rack!

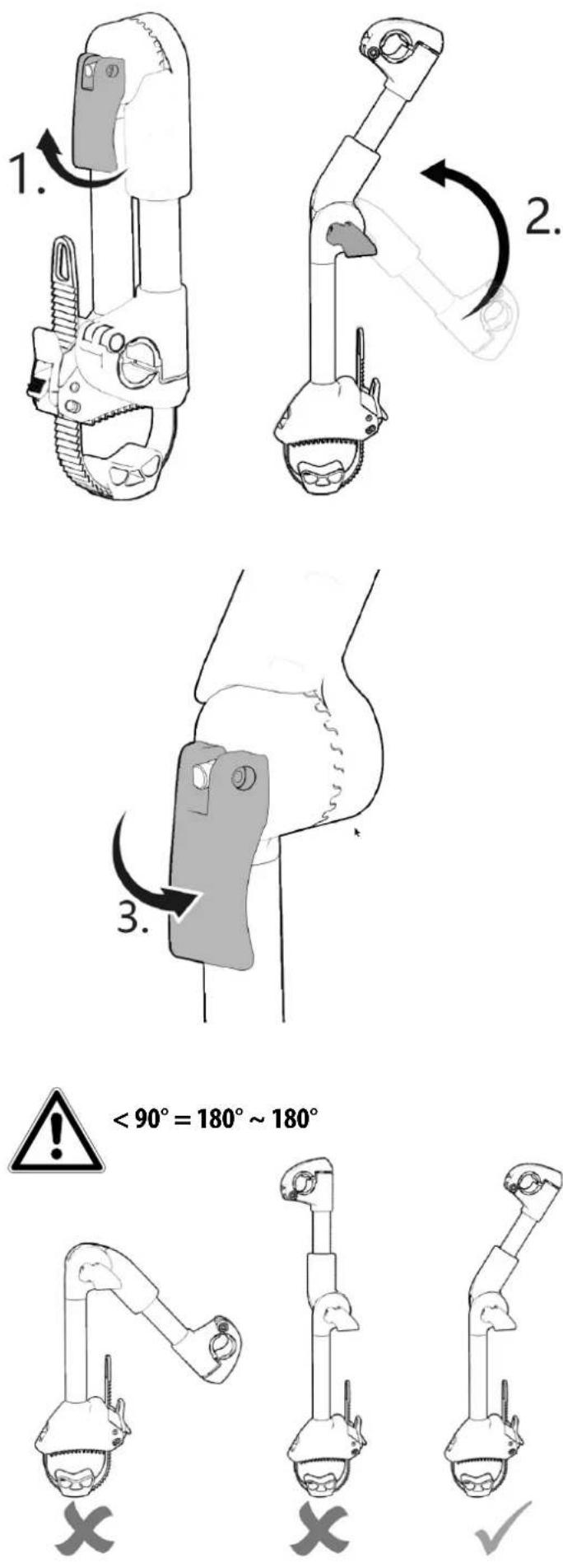

• OPERATING INSTRUCTIONS Folding out the frame holder

  Figure 2: Folding out the frame holder

If the frame holder is set to 180°, the safety function of the lock is no longer given. Therefore, only use the frame holder with a „slight bend“.

Folding out the frame holder

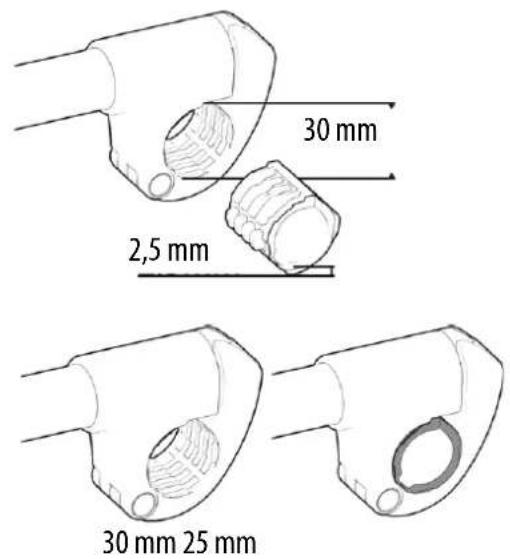

30 mm 2,5 mm 30 mm 25 mm

Figure 3: Adjusting to U-bolt diameter

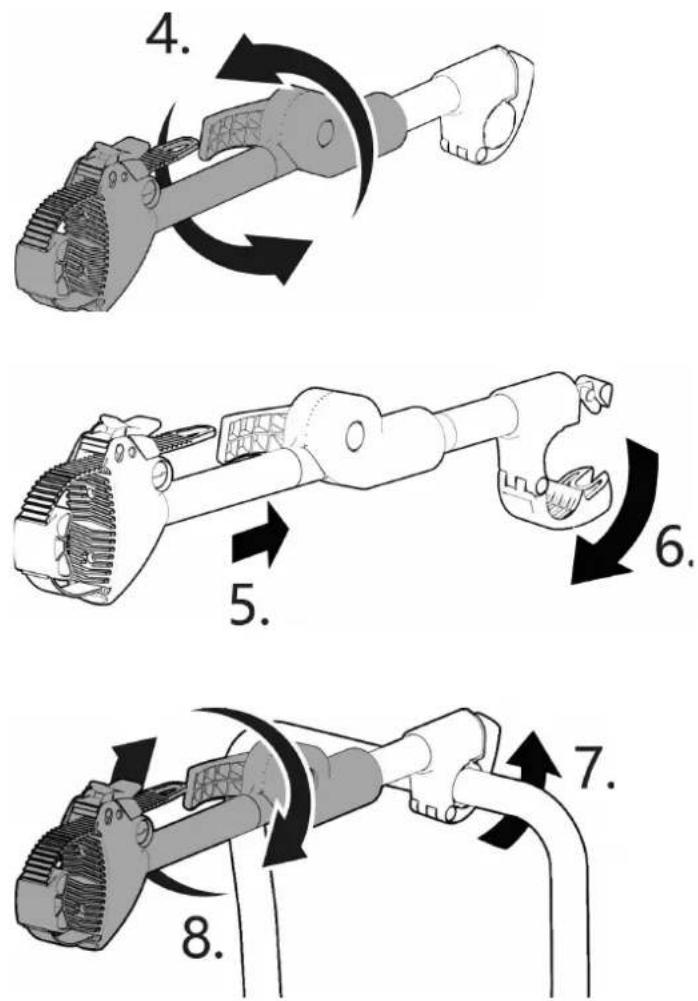

Fitting the frame holder to the U-bolt

4. 5. 6. 7. 8.

Figure 4: Mounting on U-bolt

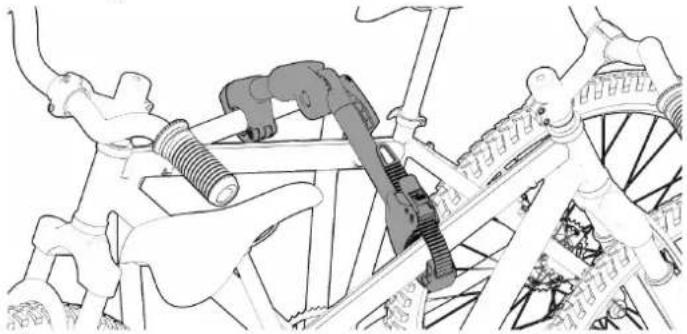

Attach bicycle

Line drawing of a bicycle frame with mechanical components, no text or symbols present

Figure 5: Attach bicycle

CAUTION

Before travelling, you must first secure the bicycle in accordance with the instructions of your bicycle rack (tensioning straps, safety strap etc.)

The frame holder may result in minor pressure points on the bicycle frame and damaged to the paintwork. Protect the bicycle frame, for example, using protective film.

6. MAINTENANCE AND CARE

Clean the frame holder using a slightly moist, soft cloth and a mild cleaning agent. Do not use aggressive cleaning agents, solvents or petrol. Ensure that no cleaning agents or liquids enter the tube of the frame holder.

Occasionally lubricate the lock with a resin-free oil.

Store the frame holder in a dry place.

7. NOTES REGARDING ENVIRONMENTAL PROTECTION

Dispose of the frame holder in accordance with the laws and conditions in your country.

8. CONTACT INFORMATION

EAL GmbH

42115 Wuppertal, Germany

[phone]

[e-mail]
