11244 - Bike rack Eufab - Free user manual and instructions

Product Type	Frame support for bike rack with lock
Brand	Eufab
Model	11244
Compatible references	11244, 11245, 11246
Items included	1 frame support, 2 keys, 1 instruction manual
Compatible U-bracket diameter	25 mm or 30 mm
Support length (model 11244)	270 mm
Main use	Secure the bike to the universal bracket of a bike rack
Anti-theft protection	Yes, integrated lock with keys
Safety precautions	Do not unfold to 180° (use with slight bend); do not use if damaged
Maintenance	Clean with a slightly damp soft cloth; oil the lock regularly with resin-free oil
Storage	Dry place
Environmental instructions	Dispose of according to local laws; prefer repair or donation
Usage	Not intended for industrial or commercial use
Manufacturer	EAL GmbH, 42115 Wuppertal, Germany
Manufacturer contact	[phone], [e-mail]

Frequently Asked Questions - 11244 Eufab

How do I install the frame support on the U-bracket?

Slightly unfold the support (do not unfold to 180°). Adjust the diameter (25 or 30 mm). Place it on the U-bracket and lock the lock. See figures 2 to 4 in the manual.

How do I correctly unfold the frame support?

The support must be used with a slight bend (approximately 170°). Never unfold it to 180°, as the safety function of the lock would no longer be ensured.

Can I use the frame support if the bracket has a different diameter than 25 or 30 mm?

No, the support is designed exclusively for U-brackets of 25 mm or 30 mm. A different diameter could compromise the attachment and safety.

What to do if the frame support is damaged?

If the support is visibly damaged (crack, deformation, etc.), it can no longer be used safely. Do not reuse it and replace it.

How do I maintain the lock?

Apply resin-free oil regularly to the lock mechanism to ensure proper operation and prevent seizing.

Can I use the frame support with heavy electric bikes?

The frame support is an attachment accessory. Observe the maximum load of your bike rack. The support itself has no specified weight limit, but check compatibility with your bike rack.

How to protect the bike paint from pressure points?

Use a protective film or cloth between the support and the bike frame to avoid pressure marks and paint damage.

Is the lock secure against theft?

The lock offers additional protection against theft, but it does not replace a primary lock. It deters opportunistic theft.

Can I unfold the support to 180°?

No, never unfold the support to 180°. The safety function of the lock is only ensured with a slight bend. Complete opening makes locking ineffective.

Where can I find spare parts?

Spare parts are not listed in the manual. Contact the manufacturer EAL GmbH at the indicated contact details for any questions about spare parts.

USER MANUAL 11244 Eufab

© EAL GmbH, 11244, 11245, 11246 07.2022

WARNING!

Please read the operating instructions carefully prior to use and observe all safety instructions!

Not observing such may lead to personal injury, damage to the device or to your property!

Store the original packaging, the receipt and these instructions so that they may be consulted at a later date! When passing on the product, please include these operating instructions as well.

Please check the contents of package for integrity and completeness prior to use!

1. PROPER USE OF THE PRODUCT

The frame holder is designed to be used to secure a bicycle to the U-shaped bracket of a bicycle rack. The lock offers the bicycle additional protection from theft.

This device is not designed to be used by children or persons with limited mental abilities or without experience and/or lack of required specialist knowledge. Keep children away from the device.

The device is not designated for commercial use.

Use according to the intended purpose also includes the observance of all information in these operating instructions, particularly the observance of the safety notes. Any other utilisation is considered to be contrary to the intended purpose and may lead to material damage or personal injuries. EAL GmbH assumes no liability for damage resulting from improper use.

2. SCOPE OF DELIVERY

1 x Frame holder with two keys
1 x Operating instructions

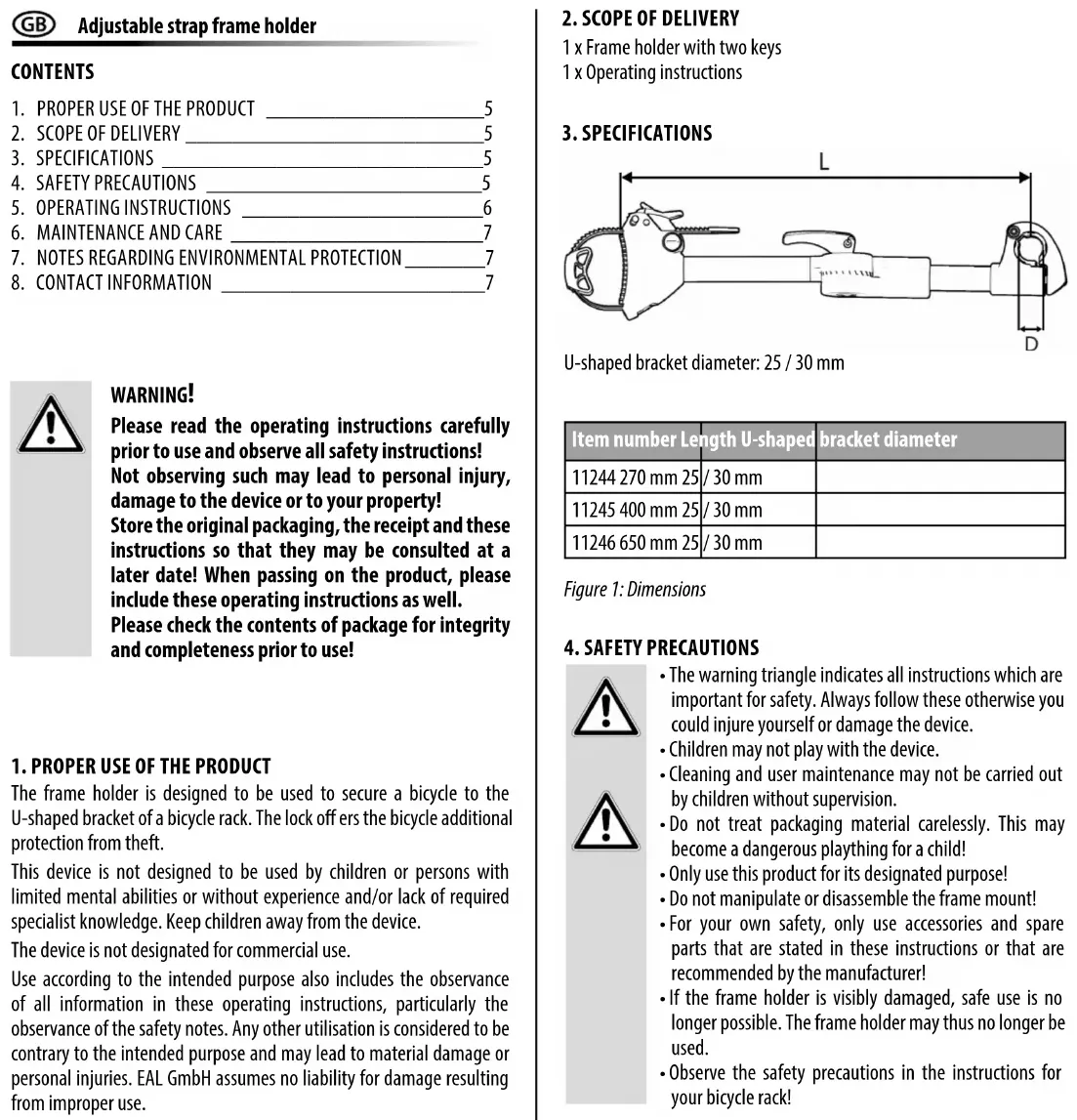

1. SPECIFICATIONS


U-shaped bracket diameter: 25 / 30 mm

Item number Length U-shaped bracket diameter
11244 270 mm 25	/ 30 mm
11245 400 mm 25	/ 30 mm
11246 650 mm 25	/ 30 mm

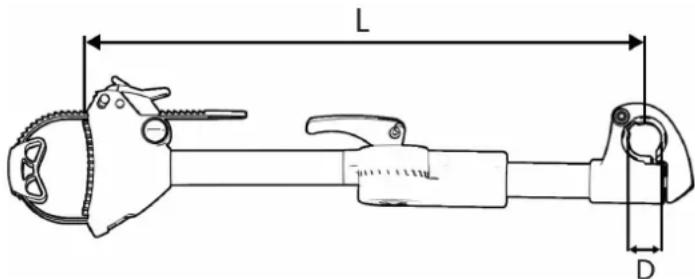

Figure 1: Dimensions

4. SAFETY PRECAUTIONS

• The warning triangle indicates all instructions which are important for safety. Always follow these otherwise you could injure yourself or damage the device.
  • Children may not play with the device.
• Cleaning and user maintenance may not be carried out by children without supervision.
• Do not treat packaging material carelessly. This may become a dangerous plaything for a child!
• Only use this product for its designated purpose!
• Do not manipulate or disassemble the frame mount!
• For your own safety, only use accessories and spare parts that are stated in these instructions or that are recommended by the manufacturer!
• If the frame holder is visibly damaged, safe use is no longer possible. The frame holder may thus no longer be used.

• Observe the safety precautions in the instructions for your bicycle rack!

• OPERATING INSTRUCTIONS Folding out the frame holder

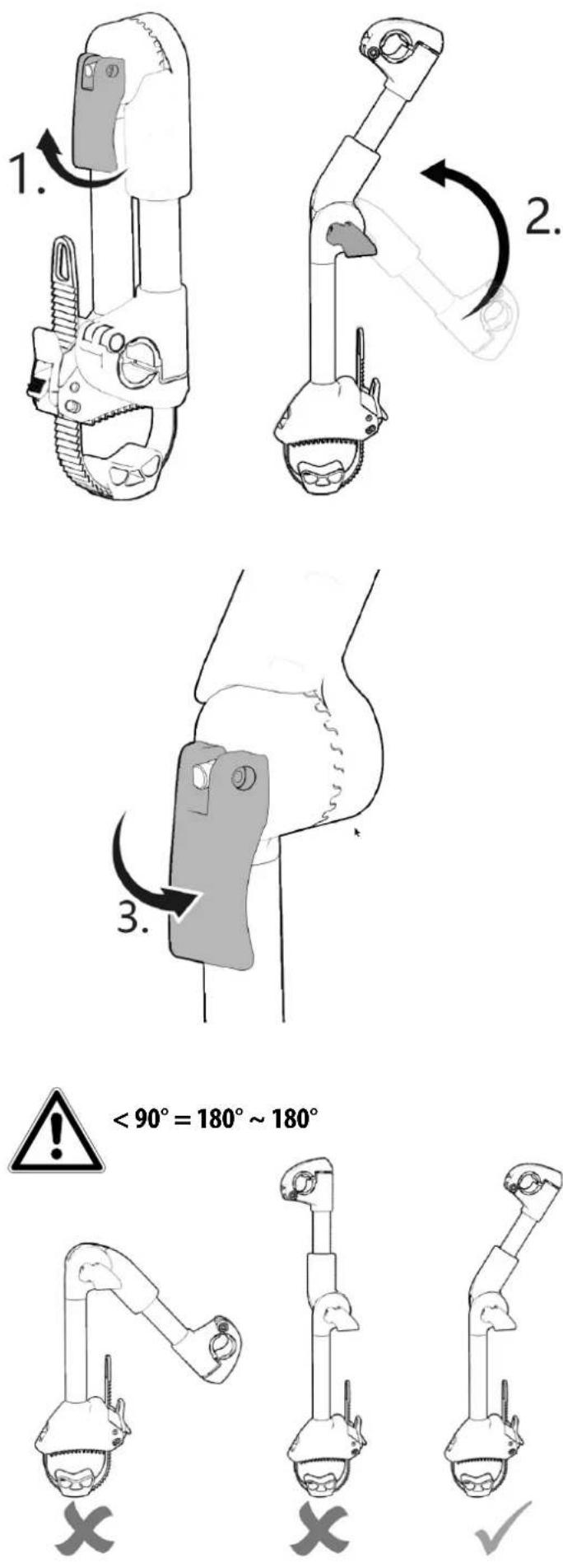

  Figure 2: Folding out the frame holder

If the frame holder is set to 180°, the safety function of the lock is no longer given. Therefore, only use the frame holder with a „slight bend“.

Folding out the frame holder

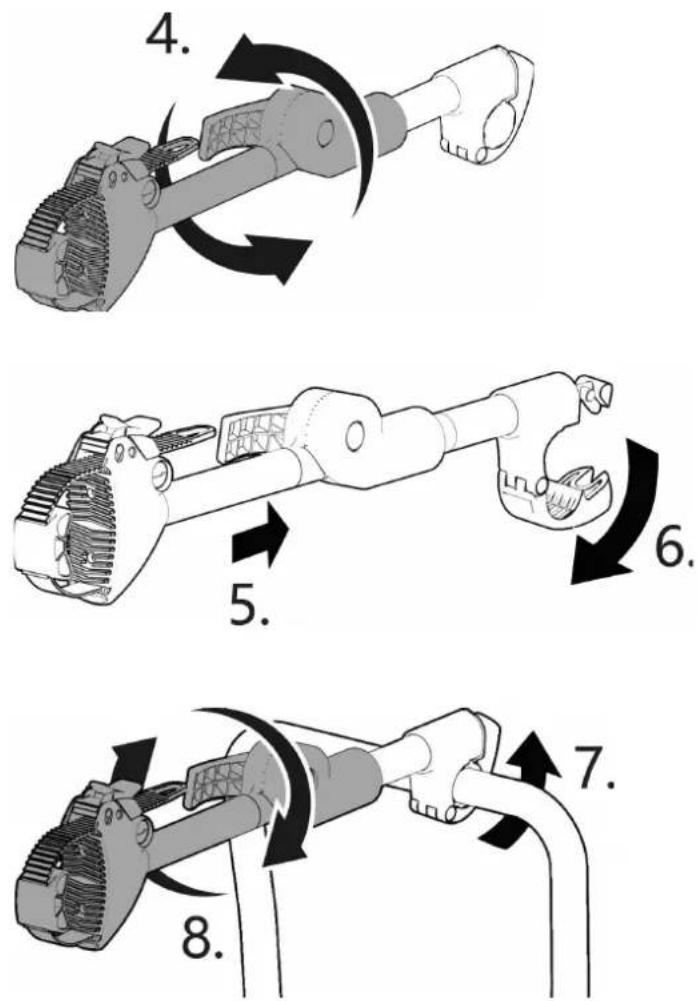

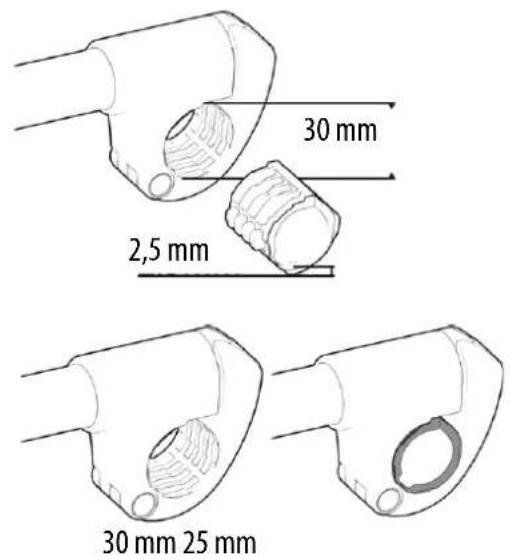

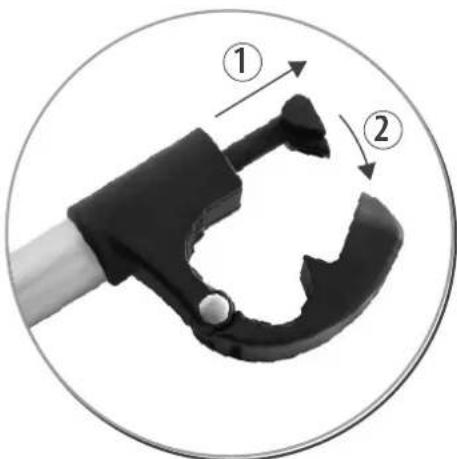

Figure 3: Adjusting to U-bolt diameter

Fitting the frame holder to the U-bolt

Figure 4: Mounting on U-bolt

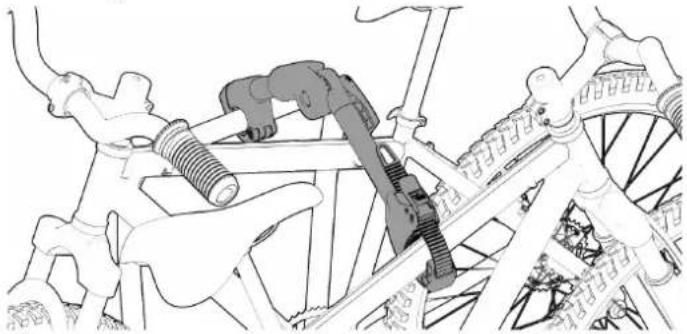

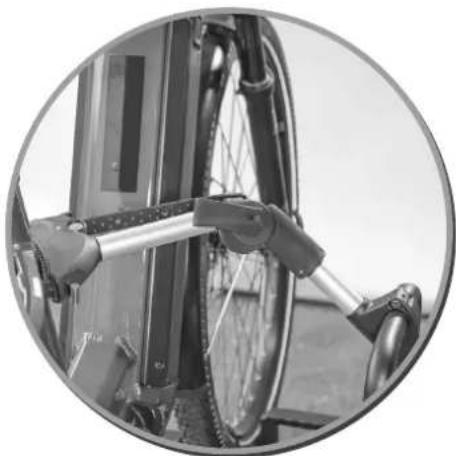

Attach bicycle

Figure 5: Attach bicycle

CAUTION

Before travelling, you must first secure the bicycle in accordance with the instructions of your bicycle rack (tensioning straps, safety strap etc.)

The frame holder may result in minor pressure points on the bicycle frame and damaged to the paintwork. Protect the bicycle frame, for example, using protective film.

6. MAINTENANCE AND CARE

Clean the frame holder using a slightly moist, soft cloth and a mild cleaning agent. Do not use aggressive cleaning agents, solvents or petrol. Ensure that no cleaning agents or liquids enter the tube of the frame holder.

Occasionally lubricate the lock with a resin-free oil.

Store the frame holder in a dry place.

7. NOTES REGARDING ENVIRONMENTAL PROTECTION

Dispose of the frame holder in accordance with the laws and conditions in your country.

8. CONTACT INFORMATION

EAL GmbH

42115 Wuppertal, Germany

[phone]

[e-mail]

Figure 1: Dimensions

4. CONSIGNES DE SÉCURITÉ

Figure 5: Fixer le vélo

ATTENTION

EAL GmbH
