USER MANUAL BG310M Berger & Schröter

2. Camera Operations 29

3.2.3 Setup for Mobile applications 38-40

4G / LTE camera with PIR motion sensor, 2 black LEDs with 940nm, 18 million pixels (3 MP CMOS sensor), 720P videos, 1.44 '' TFT screen, then let the photos on your mobile phone via 4G / LTE or send as email to the PC. 24 hours around the clock. With special antenna for optimal radio connection. With 940nm infrared technology pictures and videos without flash at night! Infrared range approx. 30 m! IR illumination up to approx. 25 m, camera setting via computer, remote control on site or via SMS from the smartphone: 1 to 3 photos per release. Videos 5-60 seconds, videos with sound recording! Antenna 2 x IR LED Flash Mic

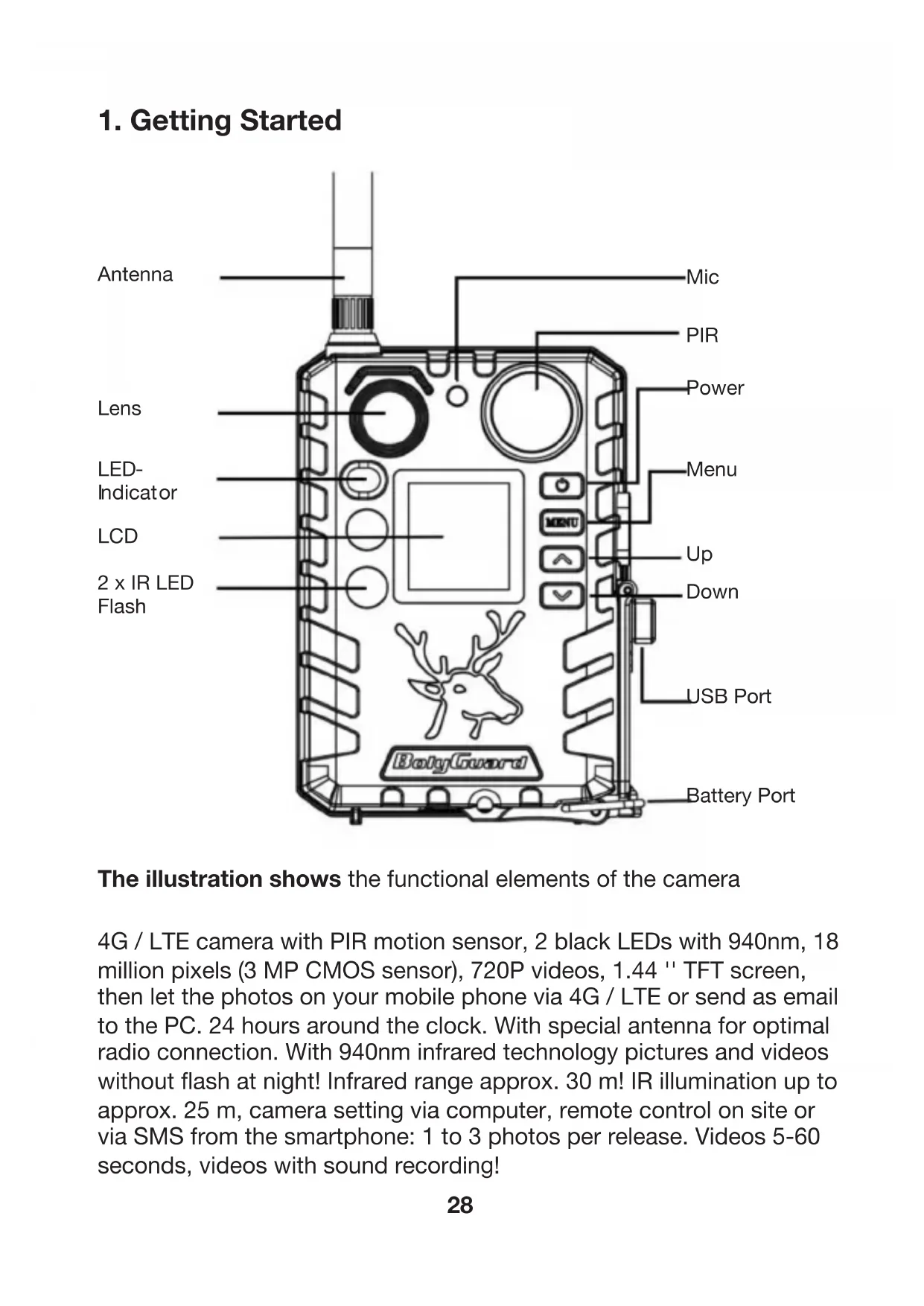

Lens PIR Power Menu The illustration shows the functional elements of the camera LCD

2. Camera Operations

2.1 Batteries / Power Supply

● Battery The camera is powered by 2x18650 batteries. (pointed head,18650 battery, length: 67~69mm) - Keep lithium-ion batteries away from extreme temperatures, fire and contact with liquids. - Make sure that the lithium-ion battery is not damaged and is not ex- posed to mechanical loads. Avoid falling on the floor! Even with tiny da- mage, the battery must be replaced immediately for safety reasons. - If you discover moisture or residues, this may be the first indication of a degassing of the lithium-ion battery. Take the defective battery to the hazardous waste. - Only charge batteries under supervision. Use a suitable, high-quality charger. It should stop charging automatically when the charging voltage is reached. - Do not bring lithium-ion batteries into contact with metallic objects. Otherwise there is a risk of short circuit. Get a protective box in which you can take your batteries with you. (This means, for example, that you must not put batteries in your pocket with your car key.) - Do not use batteries after deep discharge. - Do not use damaged batteries, even if the damage is minimal. - If a battery gets hot, it is defective and should be removed and stored in a fire-proof place.30 ● External power supply It is also possible to power the device or charge the 18650 battery in the device via an external USB power supply adapter(5V/2A) or solar panel. (External power supply not included) Chargi

USB port function, in this mode mass storage or charging mode is dis- played when the USB cable is plugged in. ● Charging function In this mode, USB charges the camera's 18650 batteries. ● Memory and charging function. When you select the Save mode, the camera functions as a storage de- vice. You can read or copy the photos or videos on the TF card. When you select the Charging mode, charges the camera's 18650 batteries.31

2.2 TF Card Information

This camera uses a TF card, to take full advantage of the latest technologies, we recommend Class 10 TF cards or better, which have fast transfer speeds and long durability for extensive shooting in the most extreme outdoor conditions. ● Insert the TF card into the camera before turning on the camera This camera supports up to a 32GB capacity TF card and has no built-in internal memory. The camera will not function without the TF card properly inserted into the camera. ● Do not remove the TF card while the camera is on Removing the TF card while the camera is on risks damaging the internal components of the camera. ● If you experience any problems with an inserted TF card Try reformatting the TF card by using the camera’s main settings option.

2.3 SIM Card Information

Insert the SIM card into the camera before turning on the camera The camera SIM card slot is sized for a standard SIM card. If you have a nano or micro size SIM card, utilizing a SIM card adapter (included with most of our cameras) will be required to connect your camera to the cellular network via SIM card. NOTE: The camera will still function without a SIM card. The SIM card is needed only for the wireless/cellular messaging capabili- ties.32

The different modes are accessed by pressing the OK button, marked on the camera. ● OFF Mode To turn off the camera when the display screen is active, press and hold the OK button until the screen powers off. The camera will still consume a small amount of battery power while in OFF mode. We recommend removing the batteries if the camera will not be used for a long period of time. ● SETUP Mode [Test Mode] To turn on the camera, press and hold the OK button until the display screen activates, In this mode, you can customize the camera settings or playback pictures and videos the camera has taken on the LCD display. After switching the camera to the ON position and if the camera is left alone for more than 20 seconds, the camera will automatically switch to Hunting Mode, as described below. ● On [Hunting Mode] The camera will take pictures or videos when motion is detected and/or at specific time intervals, according to the programmed settings. Hunting mode is automatically activated if the camera is turned on and left alone for 20 seconds (BG310-M 60 seconds). Before entering Hunting Mode, the front (red) LED light will continuously blink for approximately 10 seconds and then turn off. This preset time allows you to adjust the camera’s position if needed before the camera becomes active. To “wake” the camera and access the camera menu functions, press and hold the OK button until the display becomes active.33

2.5 Manage Images and/or Videos

Place the camera in TEST/SETUP mode and press the POWER button to view images or videos, the latest image or video will be shown on the LCD screen. Press the ▲ / Up or ▼ / Down buttons to cycle through the pictures and videos were taken. NOTE: Video cannot be viewed directly on the camera.

2.6 Sending via MMS/ 4G / 3G / 2G /Molnus

Images can be sent directly to your wireless device/email/Molnus, based on the Send Mode settings.

1) Insert the SD & SIM card into the camera before turning on the

2) Turn on the camera in TEST/SETUP mode. Make sure the SIM

card is recognized, and signal strength is adequate. Indicates the camera recognizes the SIM card. Indicates the camera do not recognize the SIM card or the SIM card is not working due to connection/activation issues.

3) Select the send mode setting and fill in the correct parameters.

You have the options of Molnus (default setting), Phone MMS, Email MMS, or Email / 4G / 3G / 2G. Video files will compressed to less than 20 Mbytes.

4) Press “Power” to view the photos stored on the camera.

5) Find the picture you want to send manually.

6) Press the MENU button to pull up the Send To option.

7) Press Menu again to send the picture via the messaging option

chosen in your camera settings.34

For encryption settings, enter your four-digit pre-set password to enter the camera. This function helps protect your privacy. This function is off by default. To use this function:

2.7.1 Press ▲ / ▼, to adjust the number from 0~9, and / to

change the password.

2.7.2 The same password must be entered twice to take effect.

2.7.3 After the password is set up, you will be required to enter the

same password on the next boot to enter the camera. If you forgot your password, please contact us for assistance.

To update the camera settings, turn the camera on to activate the display screen. OK/Power: Switch on and off, save parameter settings, enter or exit playback mode. Menu: Enter or exit Menu ▲ / Up: Setting items switching ▼ / Down: options parameter switching, manually take a photo or record a video. When the camera is in the ON Mode, the screen will activate and display the following: Camera mode Image size Signal strength Telecom provider Battery level Date (M:D:T) Number of images Available space Indicates the camera recognizes the SIM card. Indicates the camera or the SIM card do not recognize the SIM card is not working due to connection/activation issues. Note: SIM card/Signal strength/Telecom provider only appear in models with a communication function. SIM-card Time (H:M:S)36

3.2 Wireless Model Setup

The features described in this section only support communica- tion models.

3.2.1 Mobile Communication

The camera can receive and respond to commands sent via SMS, Molnus and the Apple or Android application, as long as the camera is correctly connected to a wireless carrier. To enable the SMS functionality using the mobile application, you must complete the following steps: ● Place the camera in Test/Setup Mode and go into the menu Setup options ● Set SMS control to ON For MMS/GPRS/Molnus functionality, the following menu Setup options will need to be set: ● MMS network settings (varies depending on carrier) ● GPRS network settings (varies depending on carrier) ● Molnus (varies depending on carrier)

3.2.2 Setup Software of PC

Download the camera setup application (BMC_config.zip), from our website: www.bolymedia.com/index/Support, open the software and select camera model. STEP 1> Select your country and carrier. STEP 2> Check WAP/Internet Parameters.37 Fill out the required fields (marked with an asterisk), enter Email server such as “smtp.gmail.com” or “smtp.bolymedia.com.” STEP 3> Choose between default or manual settings. For first time users, we suggest using the default settings.38 STEP 4> Enter the phone number of the phone to receive/send the remote com- mands and images in the “administrator number” field and email address in “Receive Email 1” field (This is NOT the phone number of the inserted SIM card that resides in the camera). STEP 5> Save the .txt file in the GSM folder of SD card after all settings are complete. The program names the .txt file. The txt file must be loaded into the specific camera’s GSM folder. If your country or SIM card provider is not listed, select “Others.” You will need to ask the SIM card provider for their specific MMS, URL, MMS APN, Port, MMS IP, Account, Password, GPRS APN, GPRS account, GPRS password. For sen- ding emails, your email service provider will be able to provide the send email server and port settings.

3.2.3 Setup for Mobile applications

When the camera is switched to the ON mode, you can change some of the basic camera settings on the mobile application. There are currently apps supported by Android and Apple devices. Charges or fees may apply when sending text messages to the camera depending on your cellular provider. ● For Android, you can search BGTools from the Google store or download the application directly from our website, under the Downloads section: http://www.bolymedia.com/index/Support ● For Apple, search BGTools in the official Apple Apps store. BG Tools Usage Instructions for Android App The Android APP makes it easy to communicate with the camera, so you don’t need to edit the SMS. STEP 1: Open the BG Tools app and click on the icon , to add a new device. STEP 2: Input the model of your camera. Input your SIM card number which is inserted in your camera Select your camera model number then click “Add” to finalize.39 STEP 3: Click “send,” then choose the country and provider that cor- responds with your SIM card (which is inserted in your camera). After that, choose “Check WAP/Internet Parameters” to check whether you have all the required parameters filled in. The “User name and User Password” is your MMS name and password. STEP 1 STEP 2 STEP 3 STEP 440 STEP 4: In the Select Mail Server: you can decide on using a Boly Email or Other Email service. Select “my device” to add or delete a device. STEP 5: Select “Setting” to set users parameters or set to default. STEP 6: Select “Get Photos” means you can get a photo from your camera device. There are two ways to send an image via: Cellphone: Send MMS to phone. Email: Send an email by GPRS. STEP 7: For more settings, select “Advanced” to set Super user infor- mation, change the password, format the SD card, system checking, arming, or disarming. Set password: If you forget your superuser password, you can get a new one. Add or Delete a device: Android: Select “My Device” to add a device, a long click on the device to select the delete option. IOS: Click“ „ “ to add a device and choose your device, or slide to the left to delete it. STEP 5 STEP 6 STEP 741

3.3 Cloud Service - Molnus

Molnus is a cloud service that allows users to access to transfer and store images taken through the cameras with the use of compatible de- vices or a computer. To get started, you need to supply the camera with batteries and a SIM- card that has internet access. You also need to have the phone number and the APN name to the SIM- card you will use for the camera. The operator of the SIM card provides the APN name. Each operator has its own APN name. If not present in any documents sent along with the SIM-card, then please check the operator’s homepage for APN set- tings. IMEI, Control Code can be found on your camera. You will need a SIM-card that has internet access. Start the camera in SETUP mode, look for the operator ’ s name in camera display, then check the Version. Step 1: Register your Molnus account. (In Molnus). Step 2: Log in to your Molnus account and go to the My Cameras page. (In Molnus). Step 3: Slide the functions switch to SETUP position on your camera, and make sure Send mode is“Molnus.”(On camera).42 Step 4: Press the Register camera button to register your camera. (In Molnus). Step 5: Slide the functions switch to ON position on your camera. Quickly place the device with the camera facing an area with no move- ment, for example, against the wall. (On camera). Step 6: Press the Register button in Molnus, and wait for about 5 mi- nutes. (In Molnus). The registration should now be done, and the camera should now be able to upload images to Molnus. Test the function by moving in front of the camera. Within a few seconds to a minute, the images will show up in the gallery in Molnus. If you would like to use Molnus on your smartphone, please download the app on Google Play or Apple App Store. For more details please check on the website: https://www.molnus.com/

3.4 Camera Setup Options

To view the camera settings menu, press OK to “wake up” the camera. When the screen is active, press MENU to enter into the menu settings. Use the ▲ / Up key to select the different items, use ▼ / Down key to select the different options. Press OK to save the setting and press MENU to exit the camera set- tings menu.43 Main Options Descriptions Language Language options include: English, Czech, German, French, Spanish, Swedish, Finnish. Default: English Camera Mode There are three camera modes: Photo: to take a photo Video: to record a video Picture + Video: to take a picture with a video clip. This mode disables the photo burst function. Default: Photo Set Clock Set the date and time of the camera. The date format is month/day/year and the time format are hour: minute: second. Photo Size Choose the image size. 18 MP Day - 14 MP Night, 12 MP Day - 10 MP Night, 5 MP Day - 5 MP Night Default: 18 MP Day - 14 MP Night Photo Burst Choose the number of photos taken after the camera is triggered: 1 Photo, 2 Photo, or 3 Photo. If Pic+Video is selected, Photo burst defaults to 1 photo regardless of the entered value. Default: 1 Photo Video Size Choose the video size: 1280x720 or 640x480. Default: 1280x720 Video Length Choose the duration of the video recording. Valid values extend from 5-60 seconds in 5 second increments. Default: 10 seconds Time Lapse The camera can capture images or videos at a preset time interval regardless of motion detection. Changing this setting to a non-zero value turns on Time Lapse mode, and the camera will take photos at the set interval time. If PIR Trigger/Sensitivity and Time Lapse options are BOTH OFF, the camera will not capture any photos or videos. Default: Off44 Main Options Descriptions PIR Trigger / This setting is for the sensitivity of the PIR sensor. There are Sensitivity four sensitivity parameters: High, Normal, Low, and Off. It is recommended to use HIGH sensitivity in areas with little environmental interference and warmer, humid climates. Use LOW sensitivity for areas that have a lot of interference. The sensitivity of the PIR is affected by temperature. Higher temperatures lead to a lower sensitivity. If PIR Trigger/Sensitivity and Time Lapse options are BOTH OFF, the camera will not capture any photos or videos. Default: Normal PIR-Interval This setting indicates how long the PIR sensor will be disabled after each camera triggering. During this time the PIR sensor will not react to any detected motion. The PIR Interval can be set between zero seconds to a maximum of 1 hour. Work Day Choose the days of the week you want the camera to work This setting is only available in Hunting Mode. Default: All Work Hour This parameter defines a certain time in a day when the camera can be triggered, while the device will shut off during non-working hours. The effective value ranges from 00:00 to 23:59. When this parameter is set to Off, the camera works at all times. When the timer switch is ON, the camera works only during the time according to the preset settings. Default: Off Camera Position Used for multiple cameras in an area. You can set an A-Z indicator for each of your cameras to distinguish between which photos are from a specific camera. Default: Off45 Main Options Descriptions Recycle Storage In hunting mode, if the SD card is full, the oldest images or videos will be overwritten by new pictures or videos. This keeps you from having to retrieve your memory card manually. In SETUP mode, this option is disabled. Default: Off Send To Send the image to your phone or email options. ● TPhone [MMS]: Send the image to the cellular device via WAP. ● Email [MMS]: Send the image to an email address via WAP. ● Email [GPRS]: Send the image to an email address via SMTP. ● Molnus: Send the image/video to Molnus via WAP. Default: Molnus Sendemodus There are 3 options for this setting. Photo Mode: This setting will send summarized information, and the last picture was taken at the end of the time you had set. Video Mode: The summarized information will include how many videos were taken and the last video taken at the end of time you had set (less than 10M). Pic+Video Mode: The summarized information will include how many videos and pictures were taken and the last picture taken at the end of time you have set. ● Instant: Only works in ON mode. The camera will send a message instantly after it captures a photo or video. ● OFF: Disables all communication functions. NOTE: Some cellular carriers limit the size of files being sent. Some image and video files may be too large to send. Default: Instant46 Main Options Descriptions SMS Control SMS Control enables mobile communication functionality. When SMS Control to ON, the camera can receive and respond to your SMS commands. Default: Off Attachment Size Setting the picture size which will be sent to your phone or email. There are 3 options for this setting. Low: Sends a severely compressed picture. Normal: Sends a slightly compressed picture. *High: Sends the original pictures. Default: Low Password Set Enter your four digits password to enter your camera when powering it on. Default: Off Format SD All information on the SD card will be deleted. Make sure to make a backup of important data already on the SD card. Default Settings Restores all settings back to default values. Version Shows firmware Version. Note: After changing EACH setting in the Setup menu, you must press OK, or the camera will not save new settings.47

1 There is something in front of the camera lens. Is the camera broken? A: The camera is not broken. It’s an IR-cut filter. When the camera is powered on, the IR-cut will be reset and cover the lens. Only when the camera is powered off, the IR-cut will be at a random place. 2 The display screen is suddenly black. A: The camera may be in “Hunting mode.” Press MENU to wake it up. If there is no response, the camera may be powered off. Please check if the batteries are still good and in place. Once battery power and place- ment is verified, press and hold down the OK/POWER button until the display turns on, indicating the camera powering up. 3 Why my phone can’t receive MMS? A: MMS/GPRS function needs the SIM cards in both your camera and phone to have enough balance and to be opened to data exchange. IR-cut filter48

5. PIR Detection Zone

This camera has a new patented PIR design which allows the detection range to reach to 22 m in good environments. The following picture shows the compared detection zone between normal PIR and the new patented PIR. The PIR detection angle (α) is smaller than the field of view (FOV) (β). The advantage of this design is to reduce empty an empty picture’s rate and capture most, if not all, objects in motion. α = Detection angle β = F. O. V. Angle ■ normal PIR ■ new patented PIR49

6. Technical Specifications

Image Sensor 3MP CMOS Sensor, Lens F/NO=2.4; (FOV, Field of View)=57° Black IR LED Type 940nm Black IR LED Number 2 piece PIR Detection Range 22m/70ft Illumination Distance approx 30 m Display Screen 1,44” TFT Memory Card From 8 MB to 32 GB Image Resolution 18 MP day - 14 MP night 12 MP day - 10 MP night 5 MP day - 5 MP night Video resolution 1280x720,640×480 PIR Sensitivity Adjustable (High/Normal/Low/OFF) Trigger Time 0,7 sec. Weight without batteries 174 g Operation/Storage Temperature -20 - +60°C / -30 - +70°C PIR-Intervall 0 sec. - 60 min. Photo Burst 1–3 Video Length 5–180 sec. Power Supply 2 x 18650 batteries Sound Recording Available Mounting Belt Dimensions 115x81x45 mm Operation Humidity 5 % - 90 % Security Authentication FCC, CE, RoHS50 Parts List Part Name Quantity Digital Camera One 18650 Akku Two Belt One User’s Manual One Antenna One Guarantee: We grant on this product a guarantee of 24 months, according to the pertinent statutory regulations, from the date of the purchase by the initial user. This guarantee covers all material or production defects; however, it does not cover the following: Faults and defects resulting from normal wear, including we- aring parts, seals etc.; damages or defects arising or as a result of alteration. We reserve the right to reject a guarantee claim if the purchase cannot be pro- ven, or if the product was improperly serviced or was obviously erroneously maintained (not or insufficiently maintained; cleaning and servicing). Please retain the proof of purchase documentation because this is valid as proof of date of purchase. In case of a guarantee claim, the machine must be returned to the dealer in a clean state, and in its original packaging if possible, and not disassembled in any way. Proof of purchase must also be included. Copyright by All rights reserved. It is not permitted without written approval from Berger + Schröter to re- produce these operating instructions. It is also not permitted to reproduce extracts in any form that have been created or processed by use of electronic, mechanical or chemical pro- cedures. Technical changes can be made at any time without prior announcement. The opera- ting instructions are corrected regularly. We assume no liability for technical and typographical errors and their results. Dear Customer! Please note! Depending on battery regulations you are required to used or defective batteries and accumu- lators, at no cost to you, return it to us Every consumer is legally obliged to dis- pose of WEEE separately from the hou- sehold waste and to dispose of at a collection site of his community / City Di- strict for example. Electric appliances are marked with the crossed out dustbin, ac- cepted there for free.51
